JointMaster Angle Clamping - PA

Product Overview

Both the PA634 and PA114 models include these core benefits:

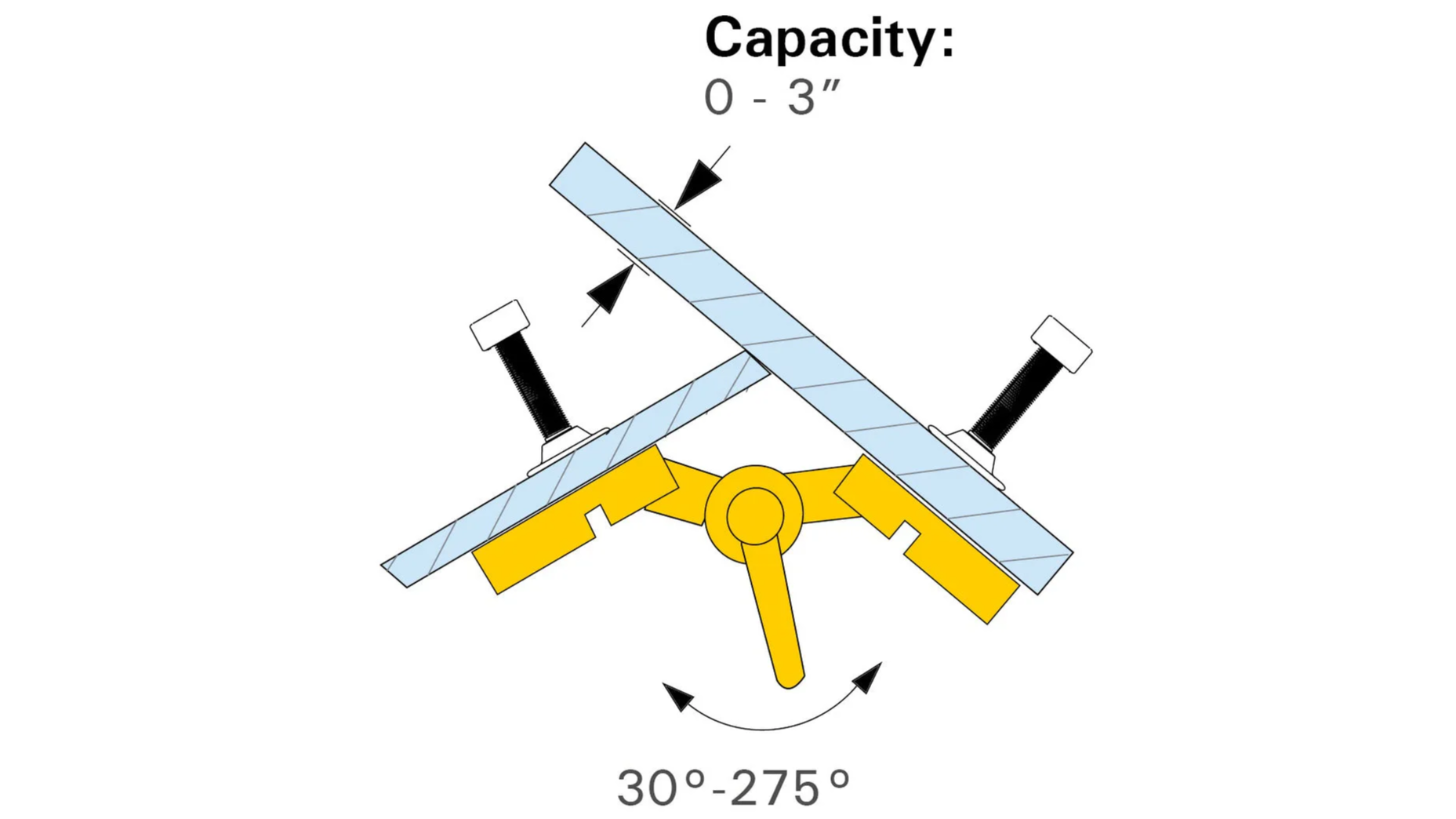

  • Fully Adjustable Angles: Easily set any angle from 30° to 275° for acute, obtuse, right, or reflex joints.

  • Double-Locking Pliers: Features two independent locking pliers on a pivoting bracket to hold both workpieces securely.

  • Mix & Match Materials: Clamps different thicknesses or shapes (flat plates, square tubing, or round pipes) at the same time.

  • Heavy-Duty Build: Made from heat-treated alloy steel with a nickel-chrome finish to resist rust and welding spatter.

  • Strong Grip: Delivers up to 160 lbs (72.6 kg) of holding pressure to keep joints perfectly rigid.

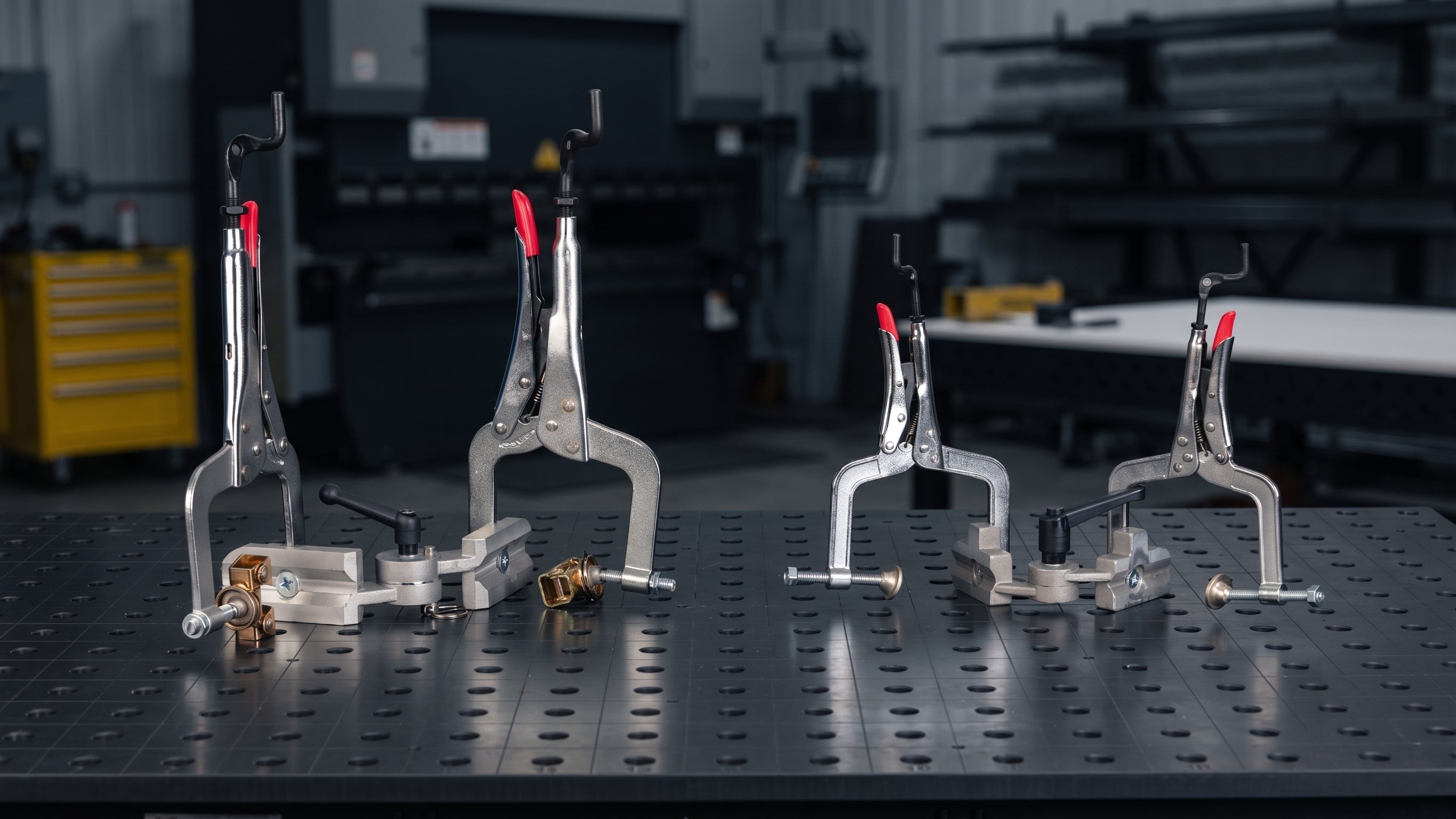

    If you need something lightweight for mobile repairs, go with the PA634. If you need to clamp thicker materials or want a deeper reach, choose the PA114.

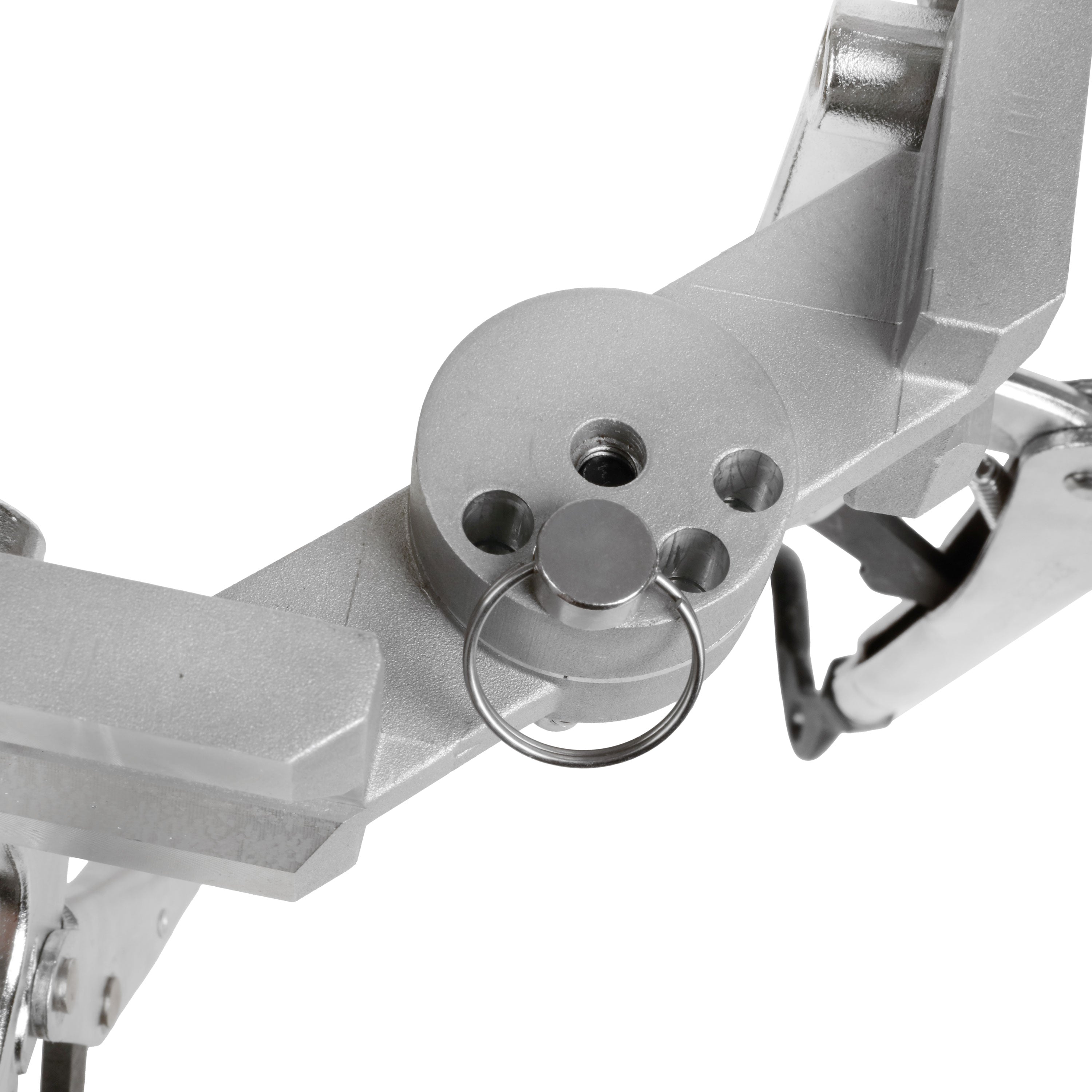

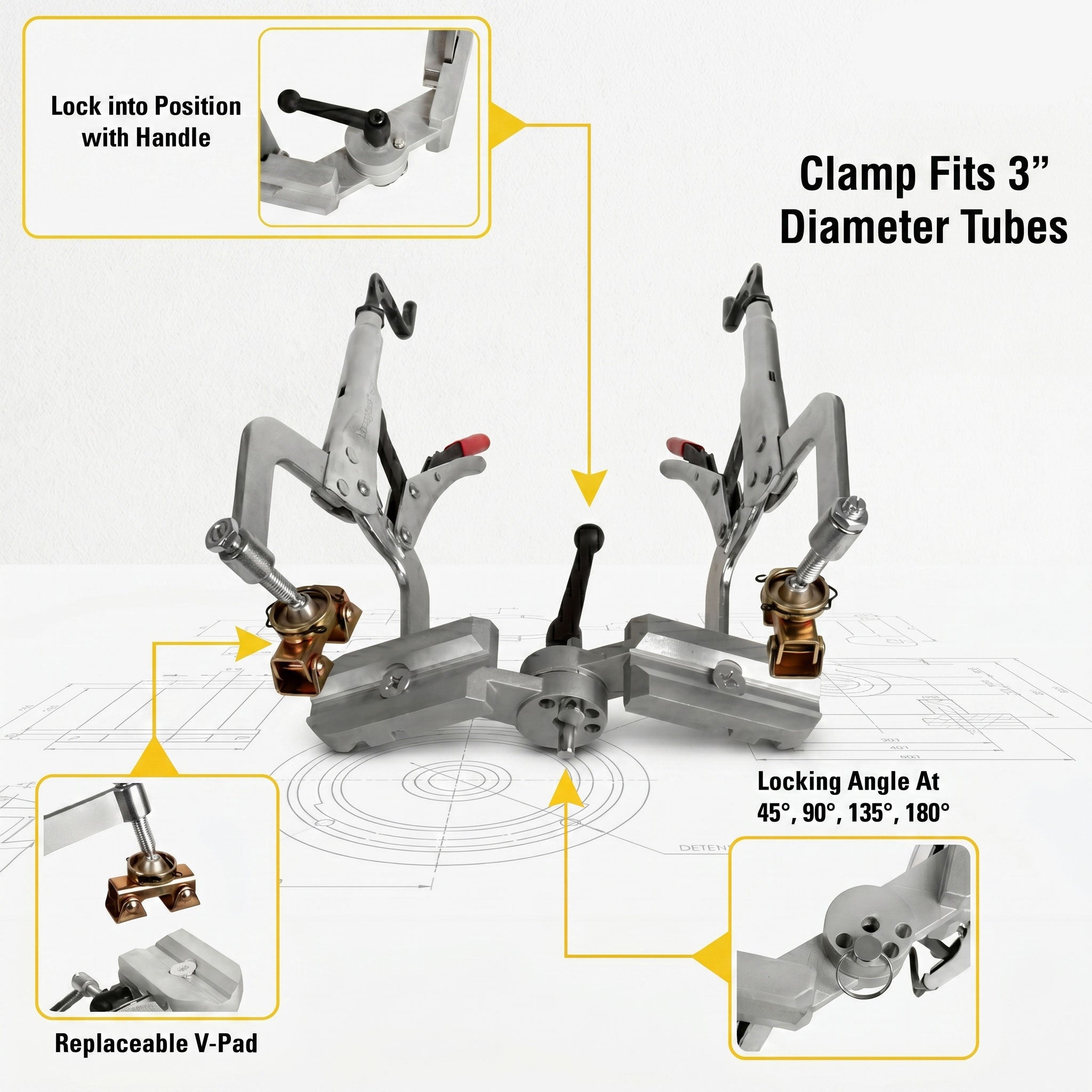

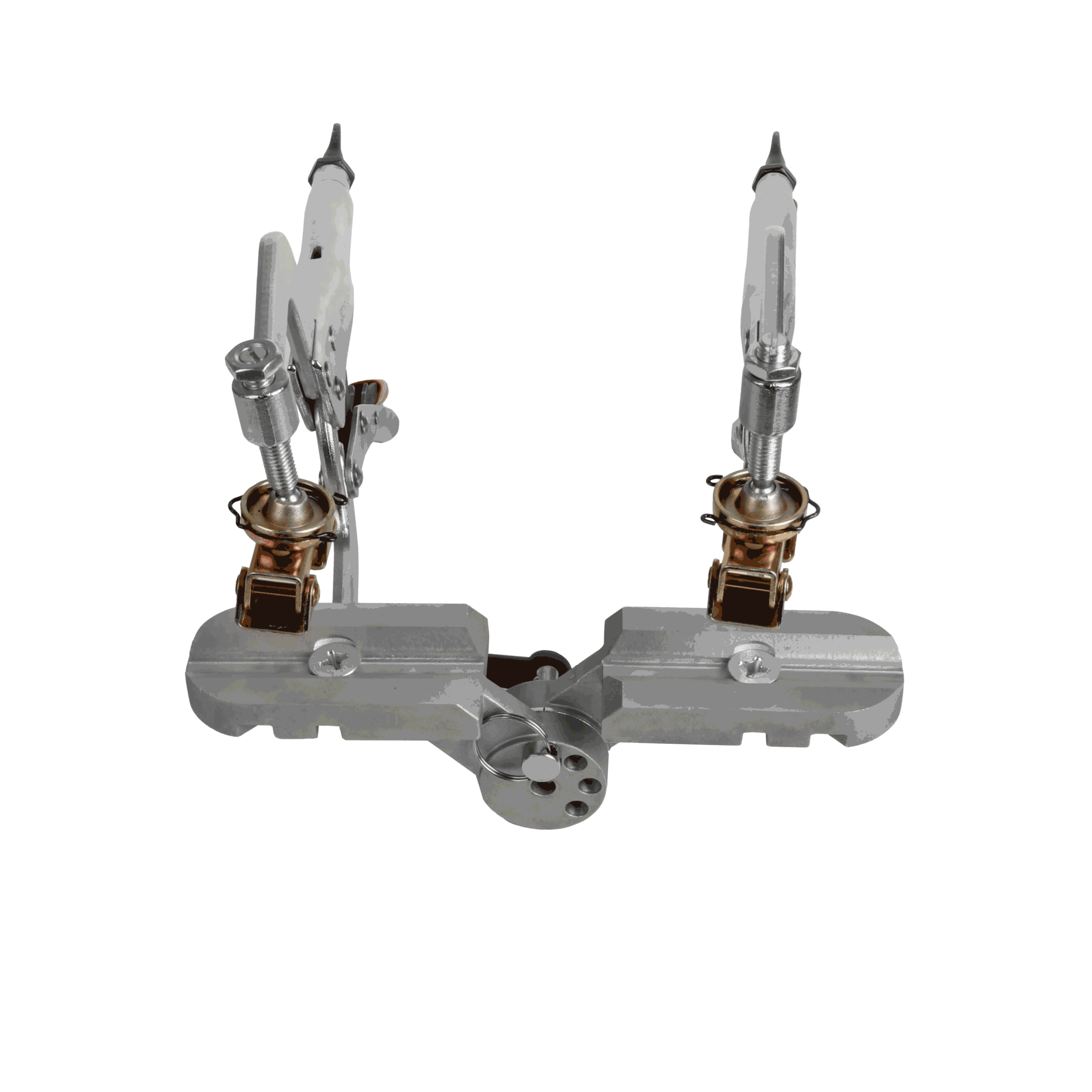

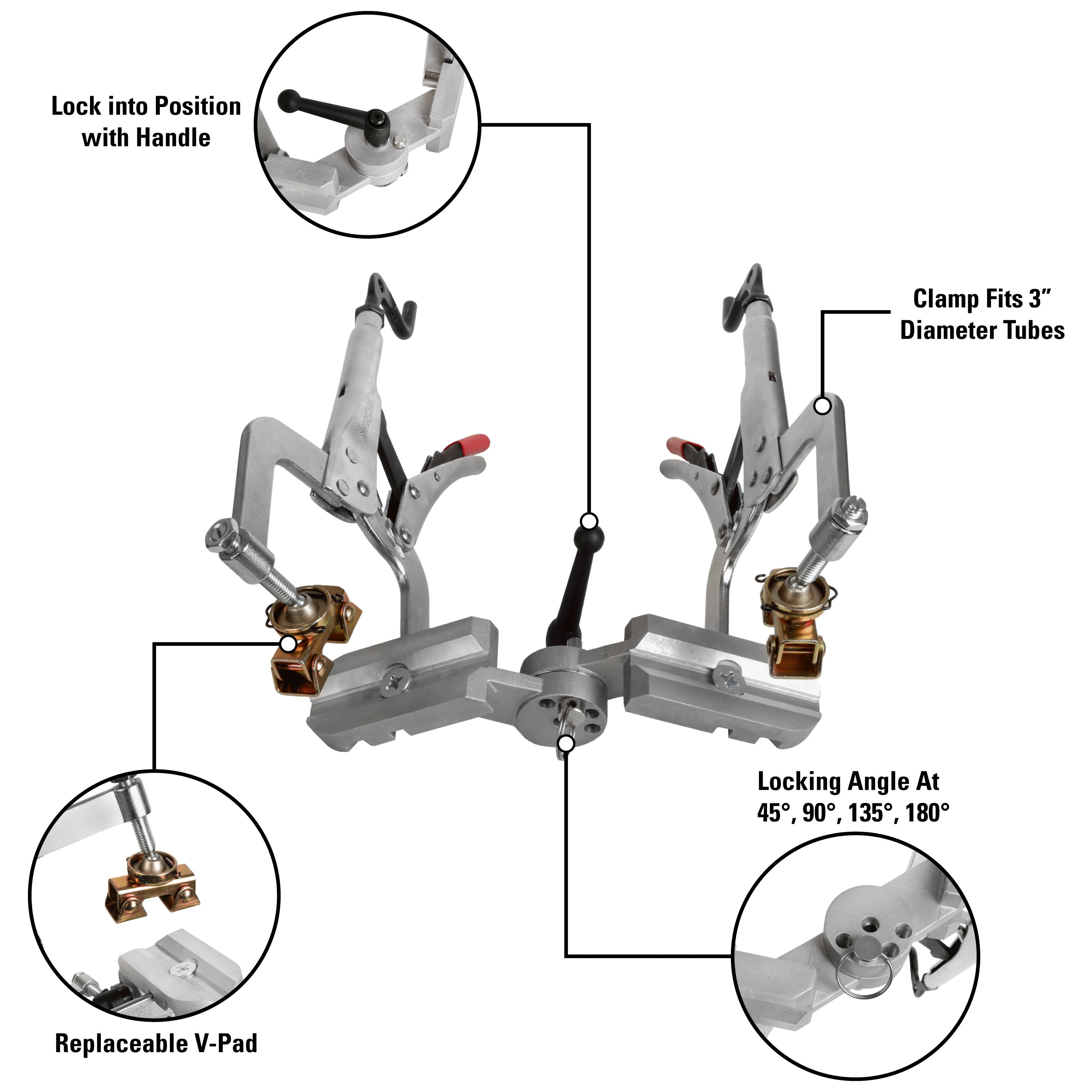

The angle-locking pin holes are positioned at 45°, 90°, 135° and 180° respectively.

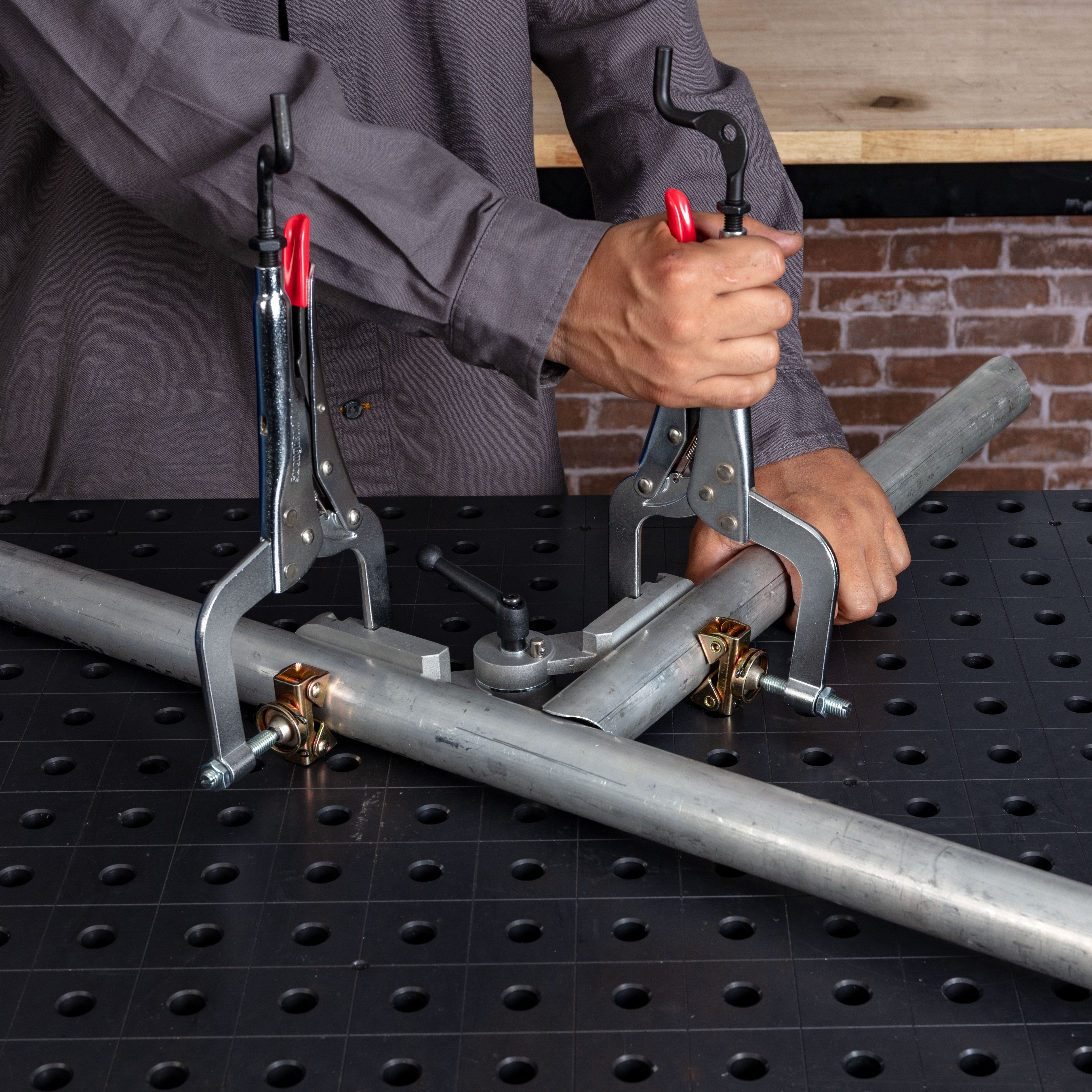

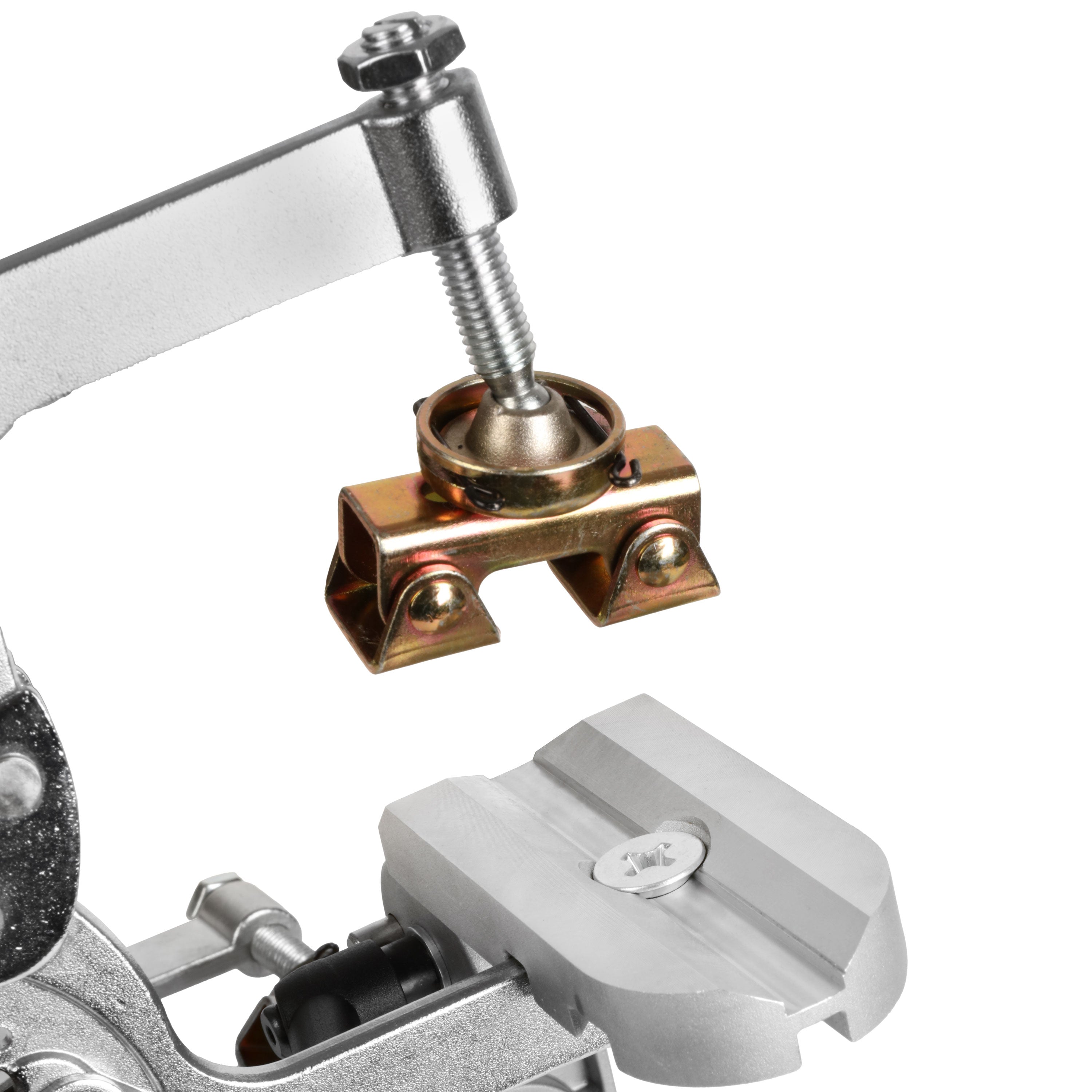

Clip-on V-pads for enhanced grip on round materials

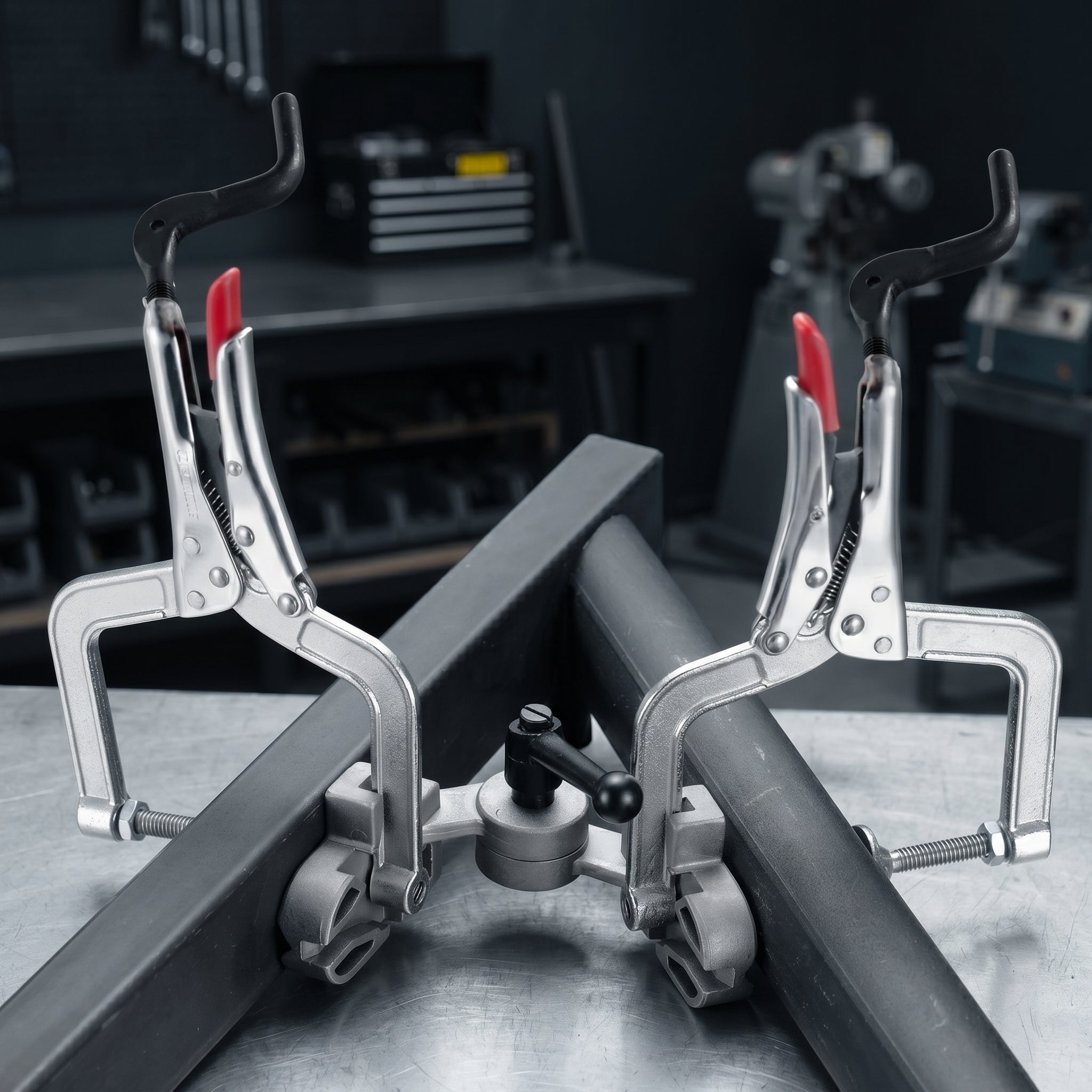

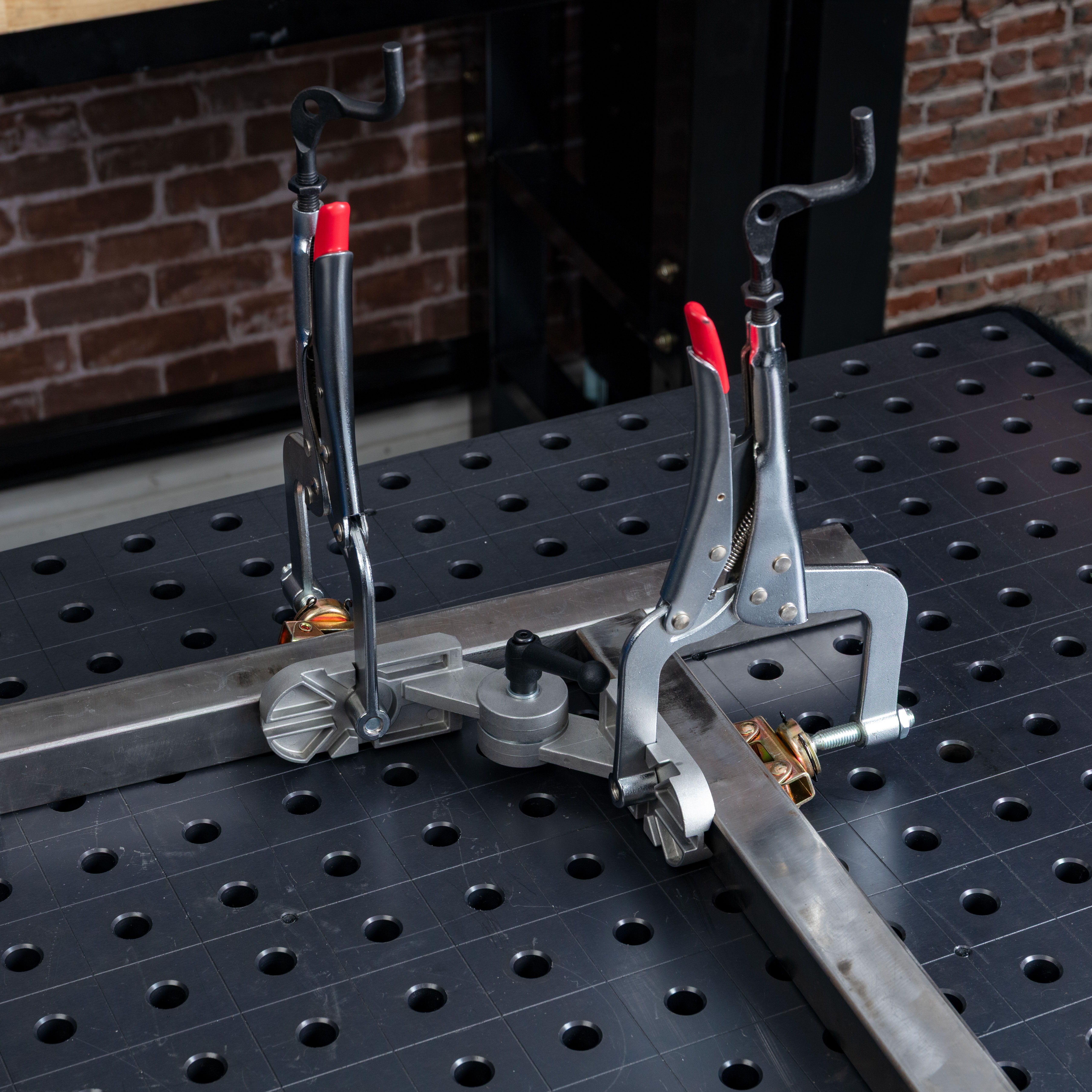

Mix & Match Materials

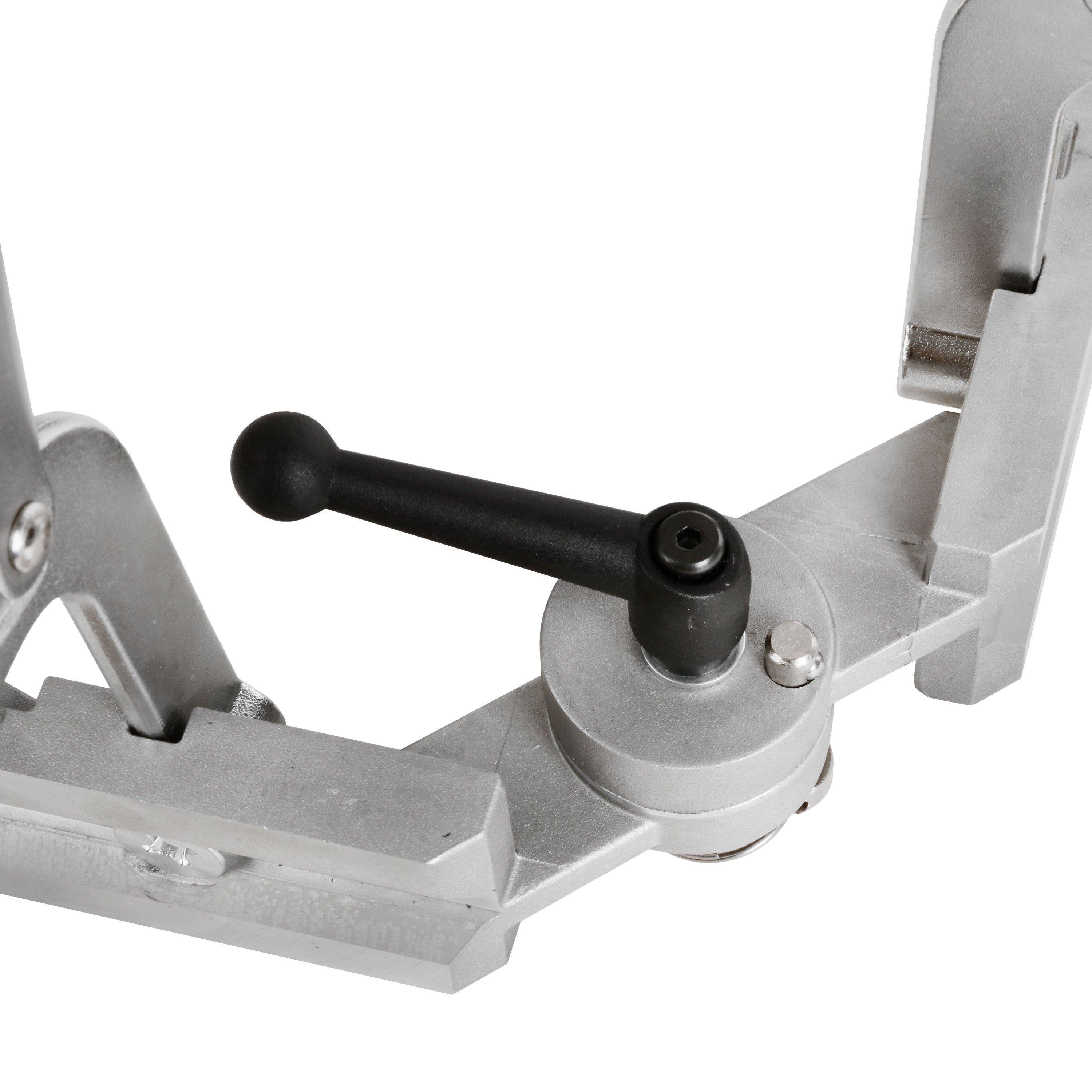

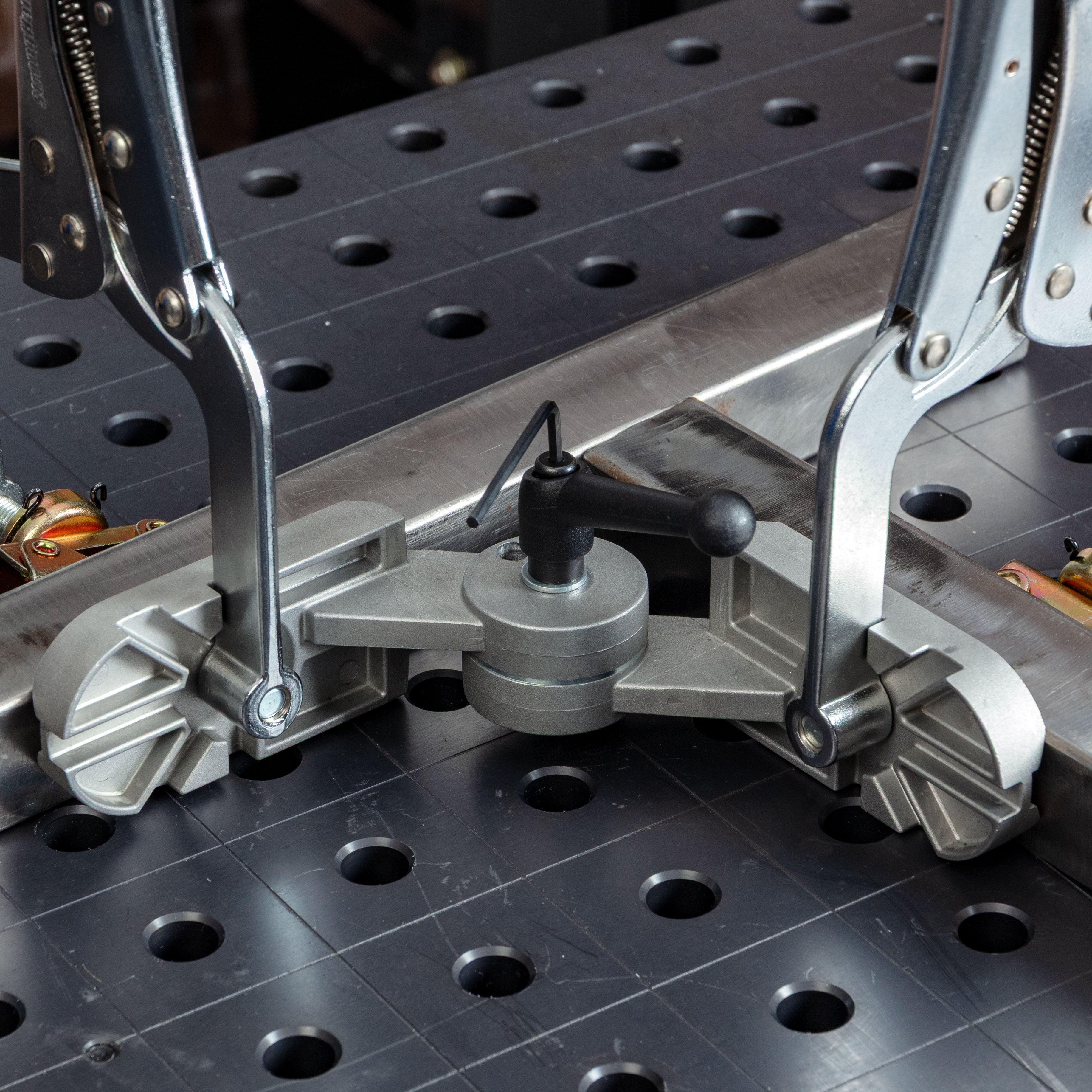

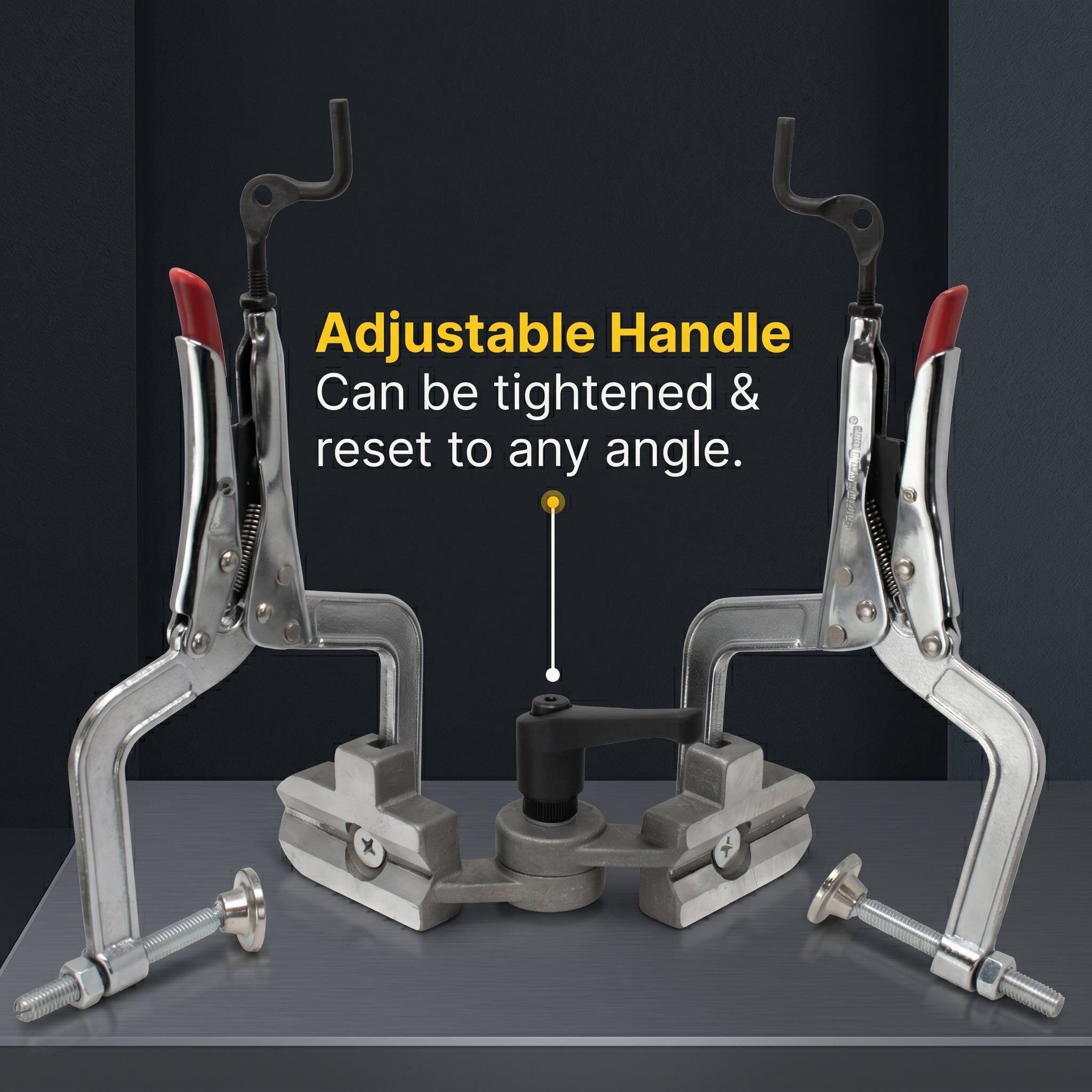

Adjust to the Desired Angle, Lock into Position with the Handle

SKU
PA634
Angular Range
30° to 275°

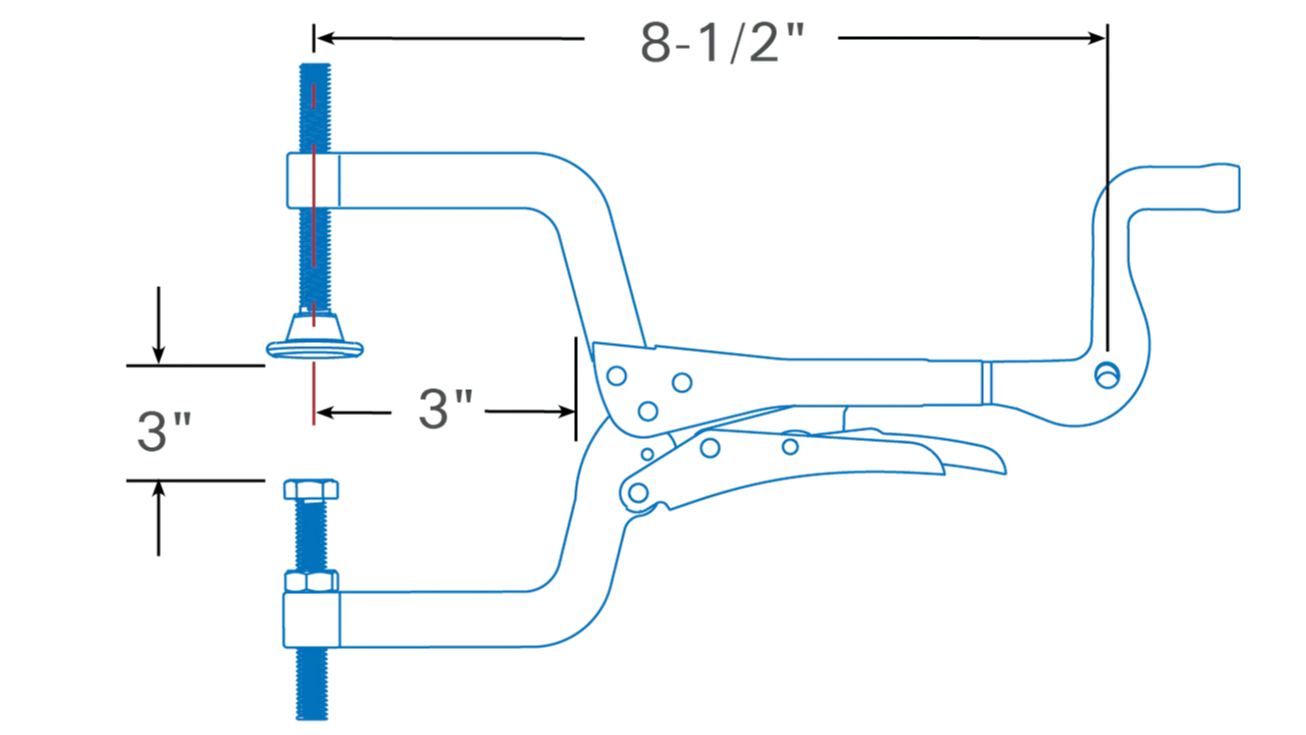

Plier Length
8.5" (216 mm)
Clamping Capacity
3.0" (76 mm)
Throat Depth
3.0" (76 mm)
Locking System
Dual locking pliers on adjustable bracket
Top Pad
Round Flat
Thread
M8
Primary Material
Heat-treated alloy steel
Unit Weight
2.4 lbs (1.1 kg)
SKU
PA634
Angular Range
30° to 275°
Plier Length
11" (279.4 mm)
Clamping Capacity
3.0" (76 mm)
Throat Depth
3.5" (89 mm)
Locking System
Dual locking pliers on adjustable bracket
Top Pad
Clip-On V-Pads
Thread
M10
Primary Material
Heat-treated alloy steel
Unit Weight
5.38 lbs (2.44 kg)
