MAX Slotted Tables, 4' × 3'
MAX Slotted Tables, 4' × 3'
MAX Slotted Tables, 4' × 3'
MAX Slotted Tables, 4' × 3'
MAX Slotted Tables, 4' × 3'
MAX Slotted Tables, 4' × 3'
Save 10%

MAX Slotted Tables, 4' × 3'

MAX Slotted Tables, 4' × 3'

Patented

SKU: TMB54738

All BuildPro® Tables are constructed from 5/8" thick steel plate, with Ø5/8" CNC machined and holes chamfered in a 2" grid pattern.

All Slotted tables have 1.7" slots between plates.

Actual Table Surface Dimension: 47" x 38"
Tabletop Side Height: 6-1/4"

* All load capacities are calculated based on static load.

* Optional Leg Brace Assembly TMLBR47 is suggested.

U.S. PAT. 8065967
Finish: Standard
Legs: 4x Heavy Duty 24-1/4" Legs
$2,583 USD
$2,583 USD $2,870 USD
Shipping calculated at checkout.
  • Eligible for Return Within 30 Days.
  • One Year Limited Warranty

California Prop 65 - This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more info: www.P65Warnings.ca.gov

Manual Download

Table Setup Instructions

Reversible Plate Instructions

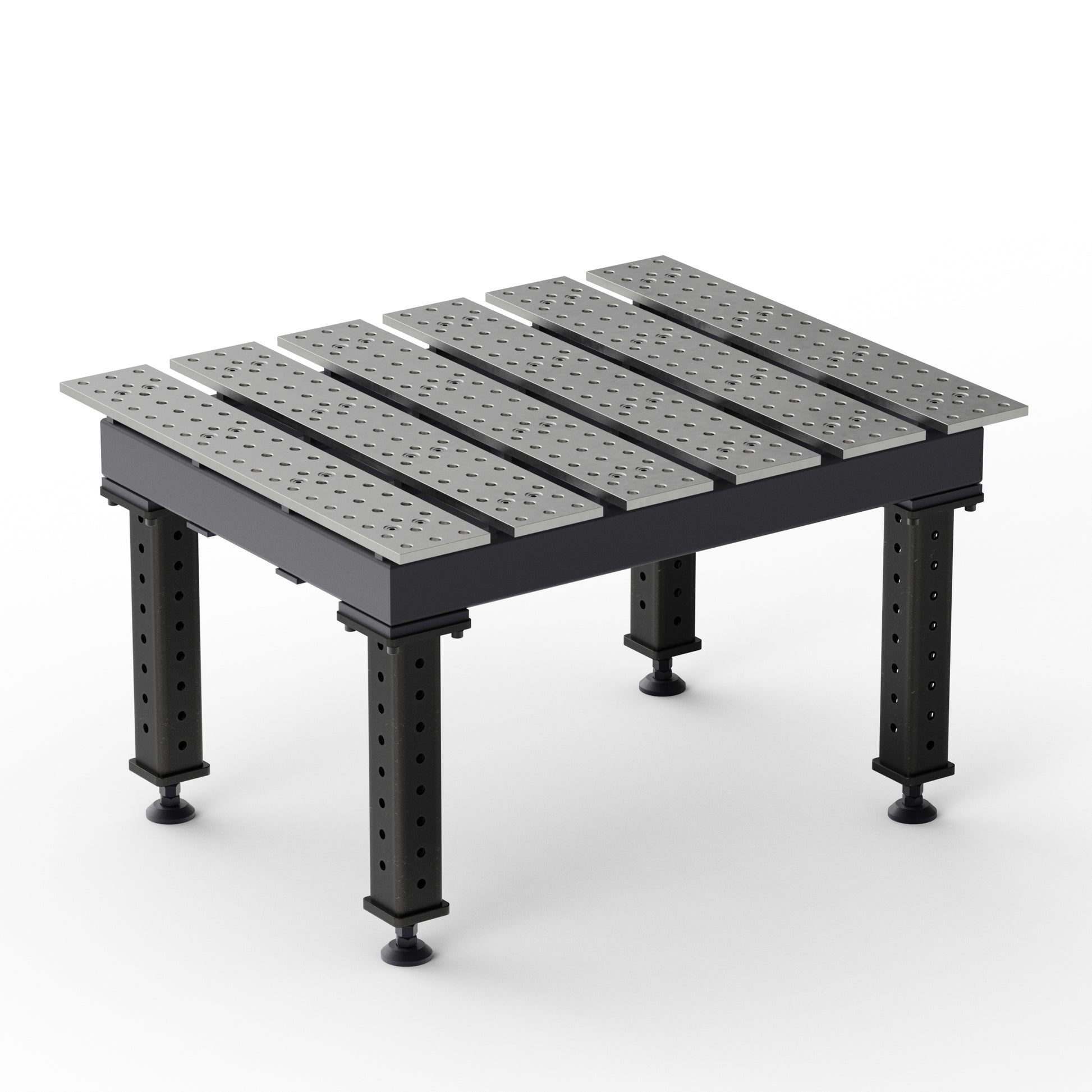

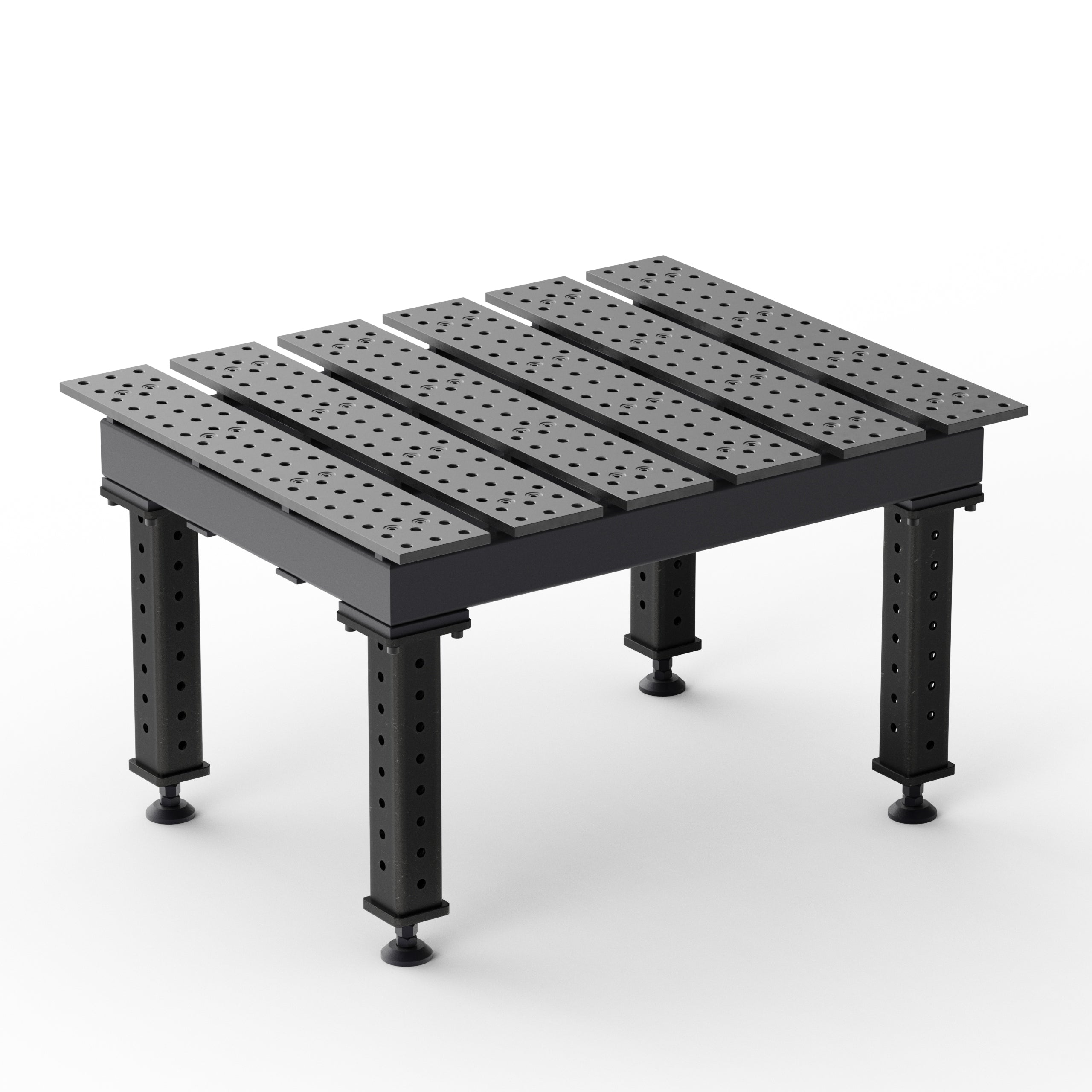

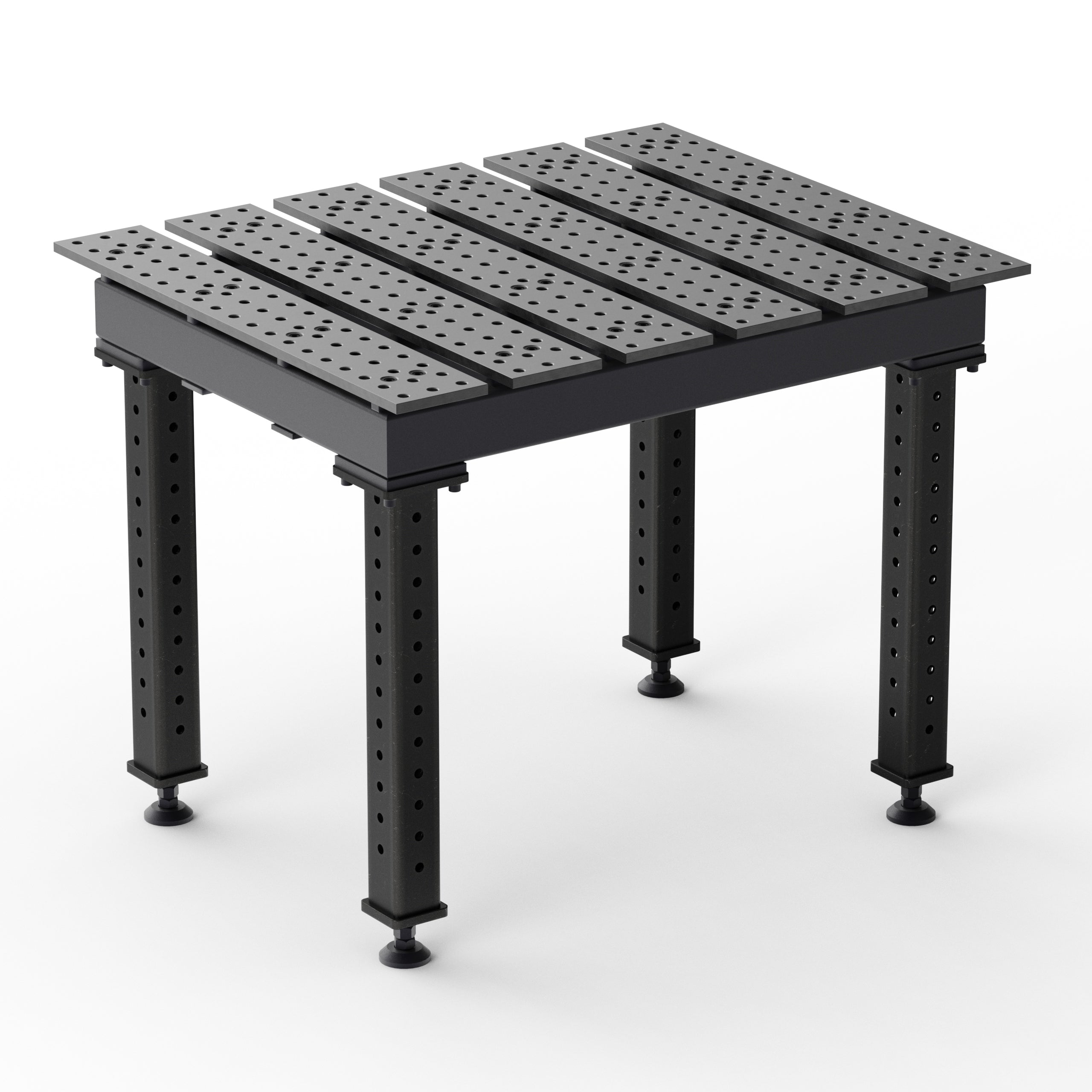

Use with 4x Heavy Duty Legs

Part No. (Standard Finish) Part No. (Nitrided Finish) Use with Leg Table Surface Height (in) Gross Weight (lb)
TMA54738 TMQA54738 TML3130 36-1/2 501
TMB54738 TMQB54738 TML2530 30-1/2 493

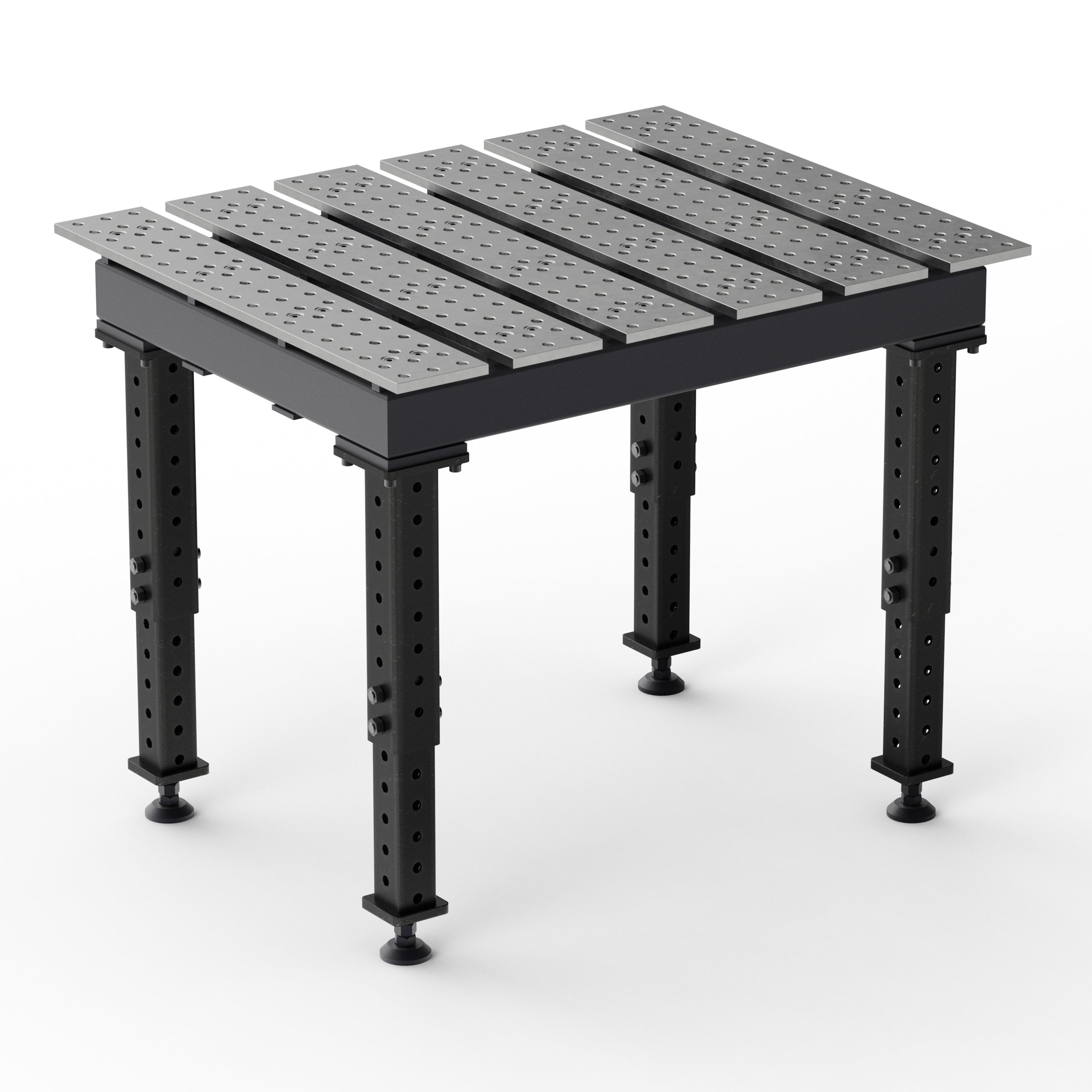

Use with 4x adjustable legs - adjustable at 1" increments

Part No. (Standard Finish) Part No. (Nitrided Finish) Use with Leg Table Surface
Height (in)		 Gross Weight (lb)
TMR54738 TMQR54738 TMLR30 28-1/2 ~ 38-1/2 515

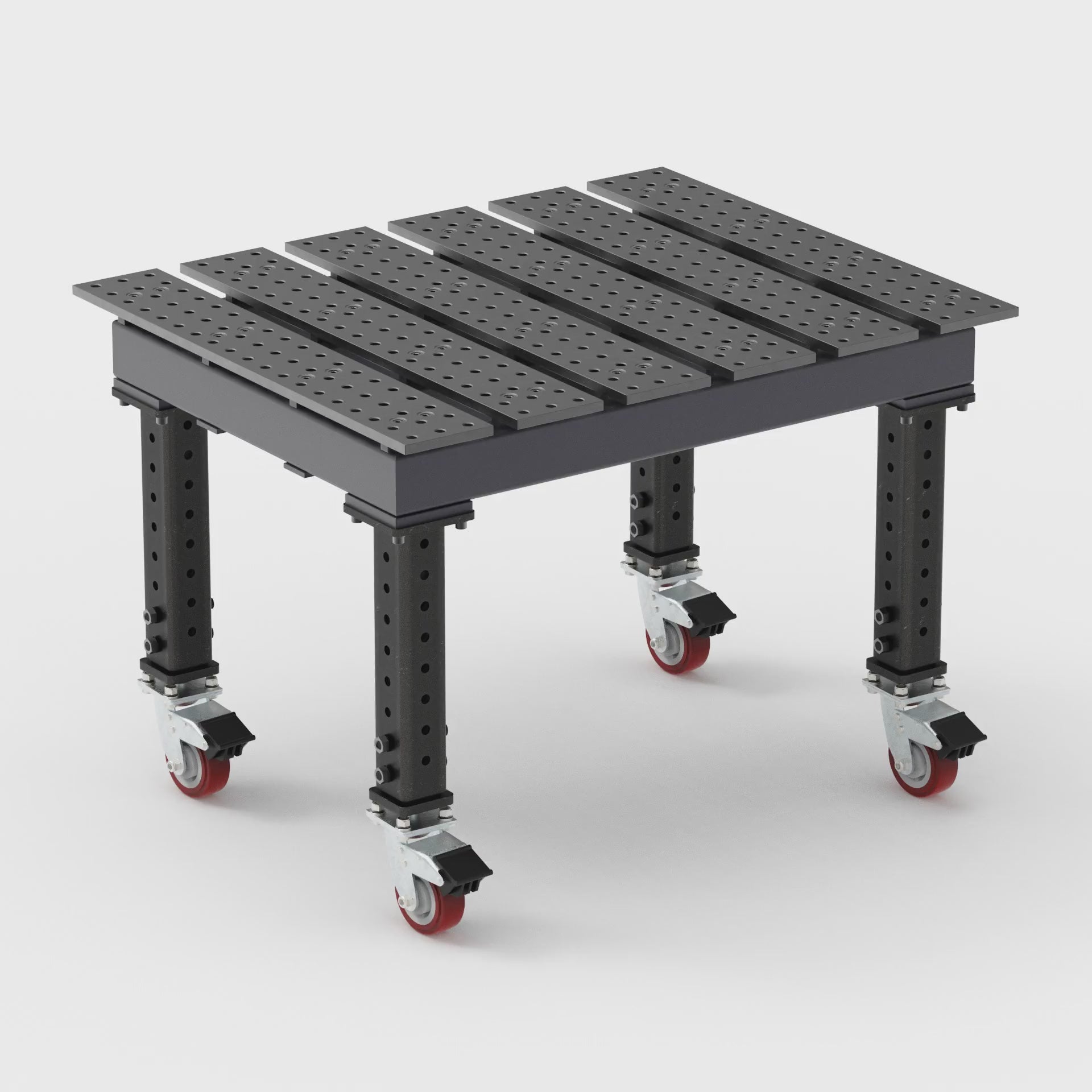

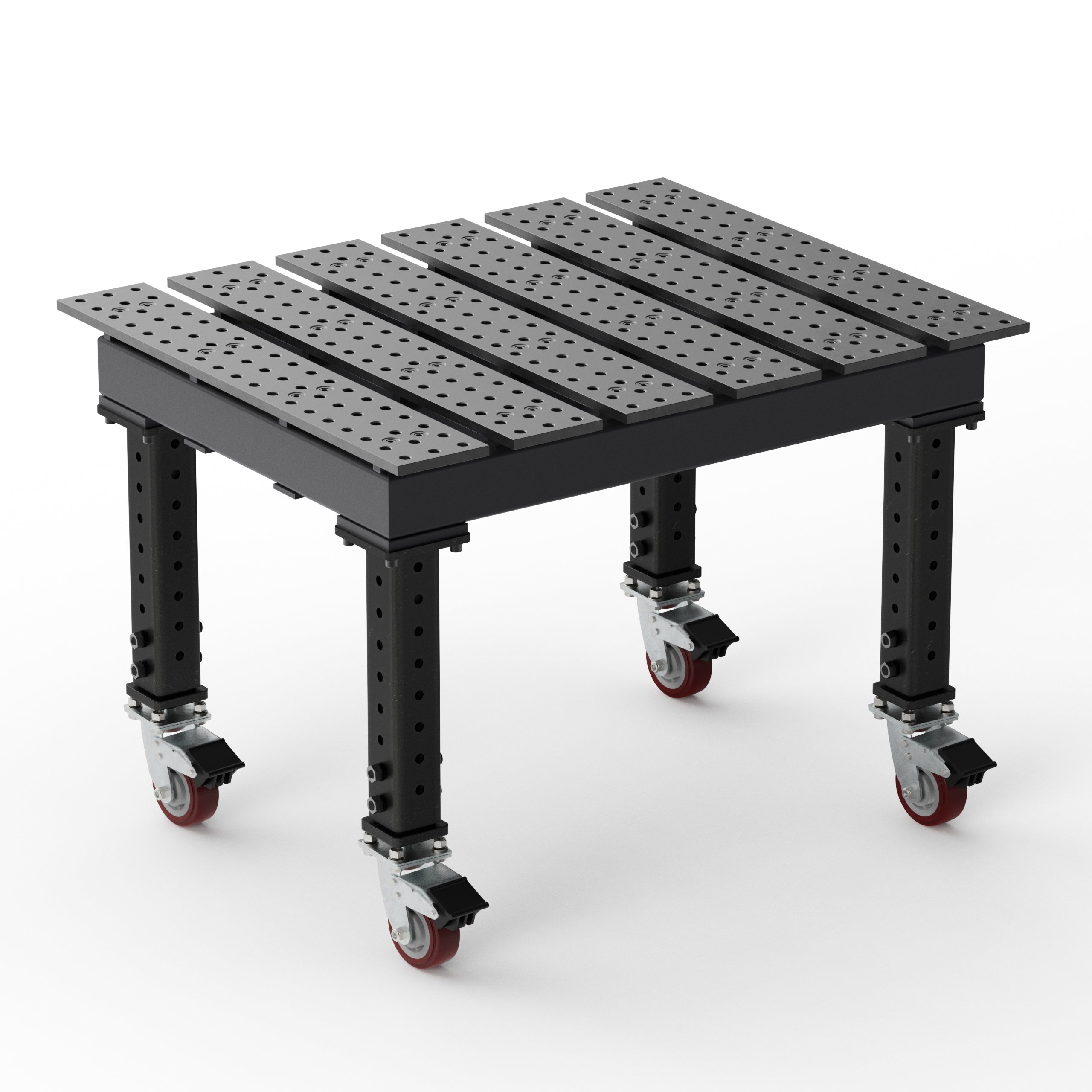

Use with 4x adjustable legs with mobility caster

Part No. (Standard Finish) Part No. (Nitrided Finish) Use with Leg Table Surface Height (in) Gross Weight (lb)
TMRC54738 TMQRC54738 TMLC30 33-1/4 ~ 43-1/4 538
View this table in your shop

* All MAX TABLES ARE PATENTED: U.S. PAT. 8065967

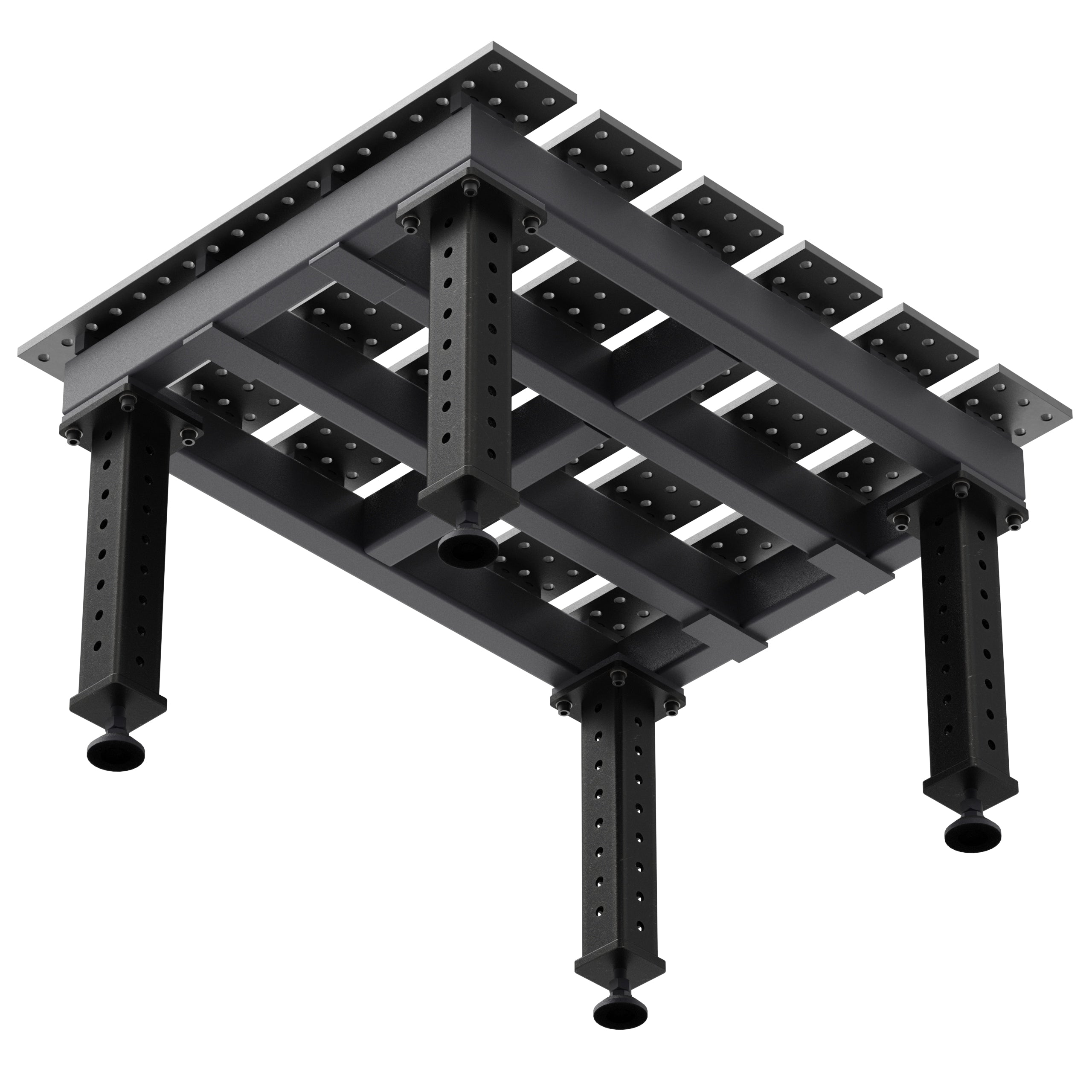

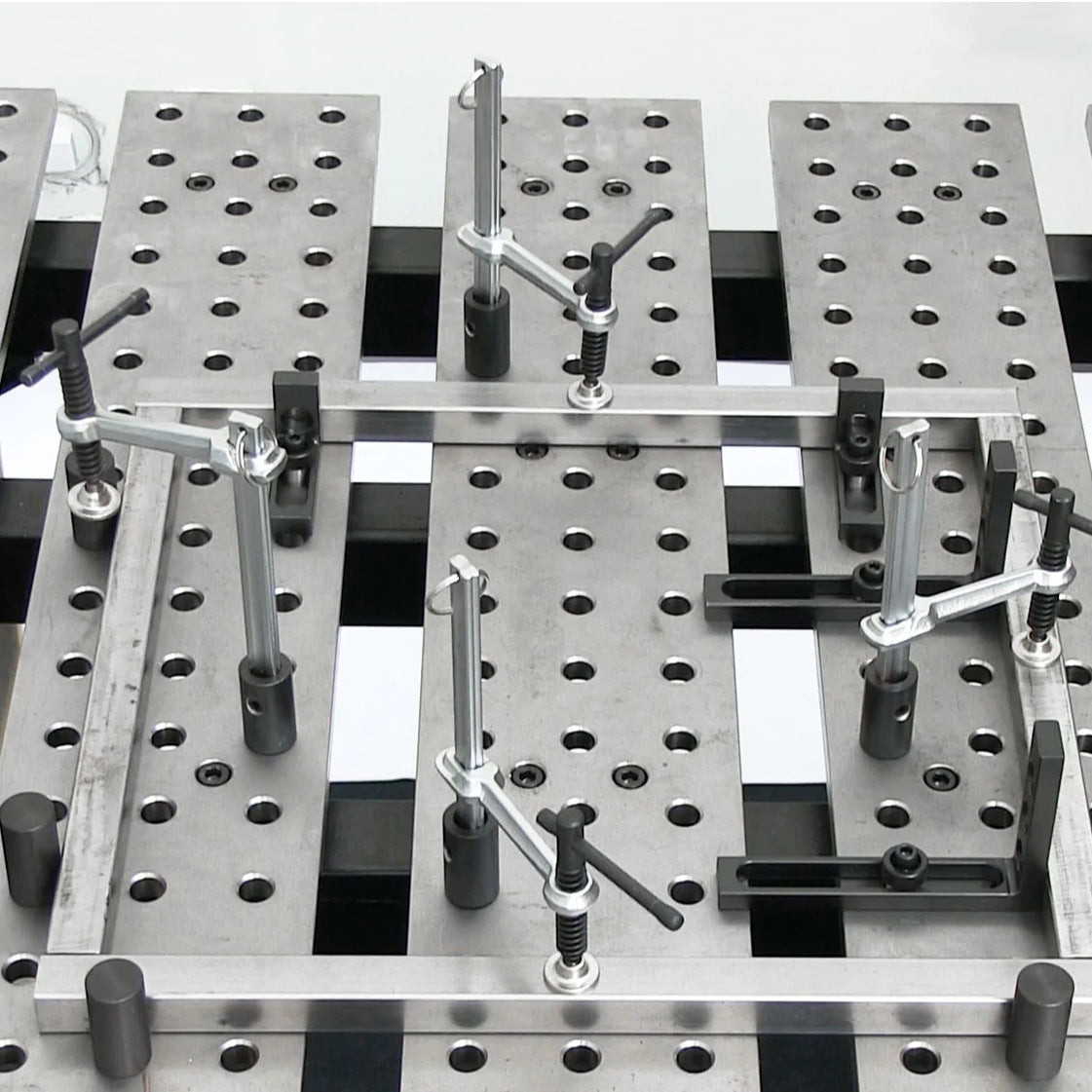

Our slotted, single-sided heavy-duty tables feature open gaps between the top plates. Providing extra versatility, allowing you to slide clamping tools or pliers using T-Slot adapters or Sliding Channel on the open slot edges as clamping surfaces.

Available in standard and nitrided tabletop finishes.

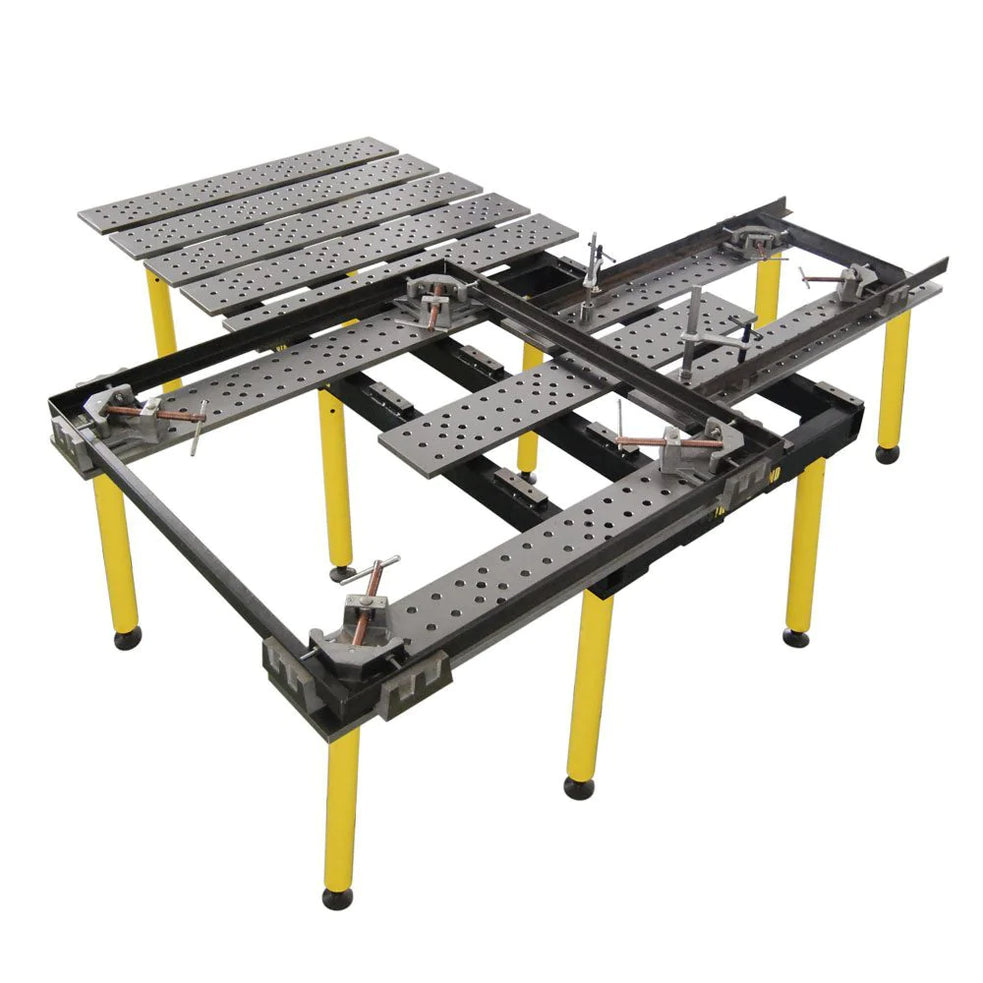

Reversible Self-Locating Table Plates

Patented Bushing design allows you to remove, re-position, re-align, and reverse the table plates!

Tabletop Side Height

6-1/4″ for both MAX and MAX Slotted tables

Table Accuracy

Table flatness: ±0.005 per 24″ x 24″

Hole spacing: 2.000″ ±0.001

Hole diameter: 0.625″ +.002/-.000

Plate thickness: 0.630″ ±0.004

Slot: 1.7″

Standard (plain) / Nitrided Finish

Choose from standard finish (medium carbon steel) or Nitrided (heat-treating) finish.
