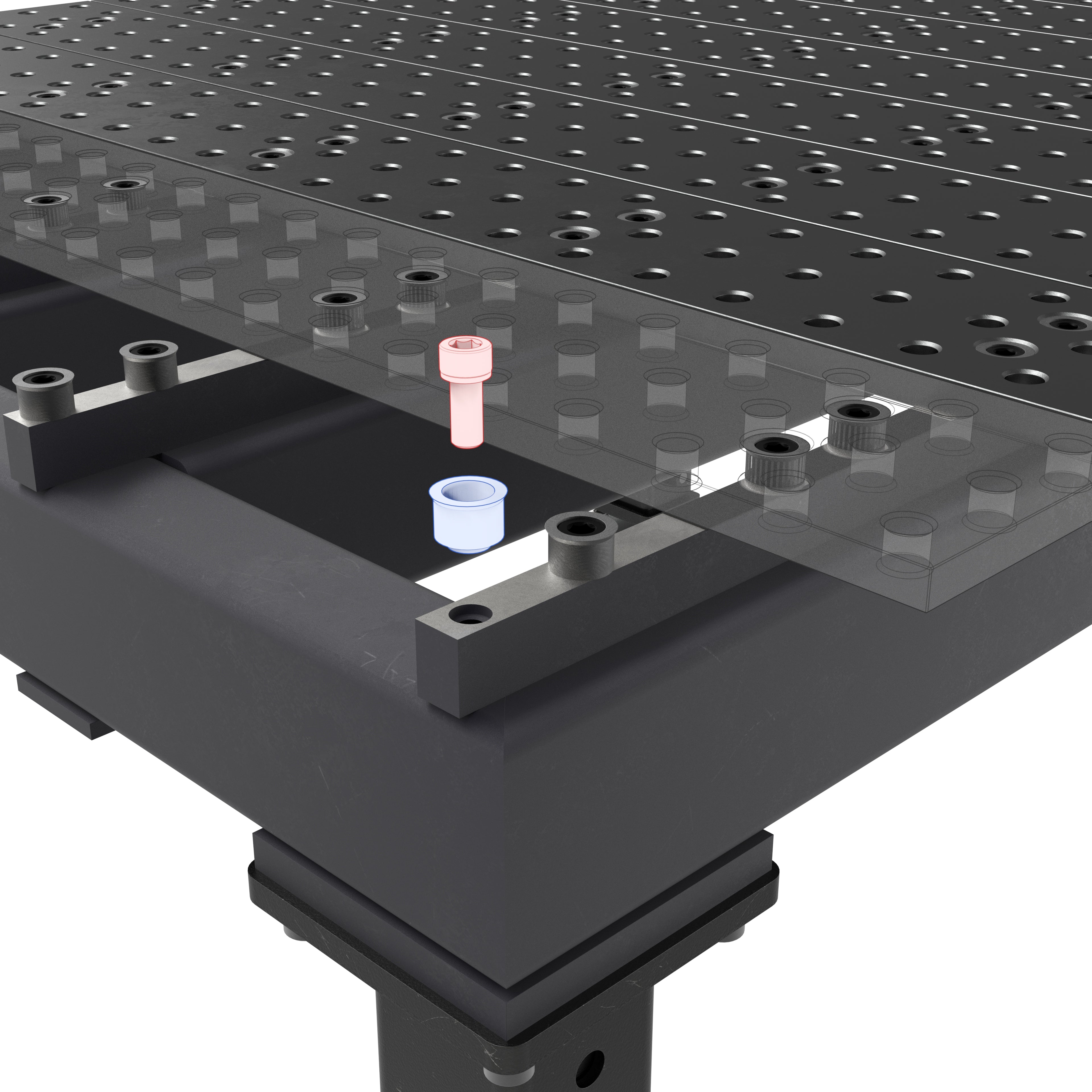

Patented Bushing design allows you to remove, re-position, re-align, and reverse the table plates!
Other Systems
16mm System
28mm System
Metric Spacing
Inch Spacing
Tables
Fixtures
Save 10%

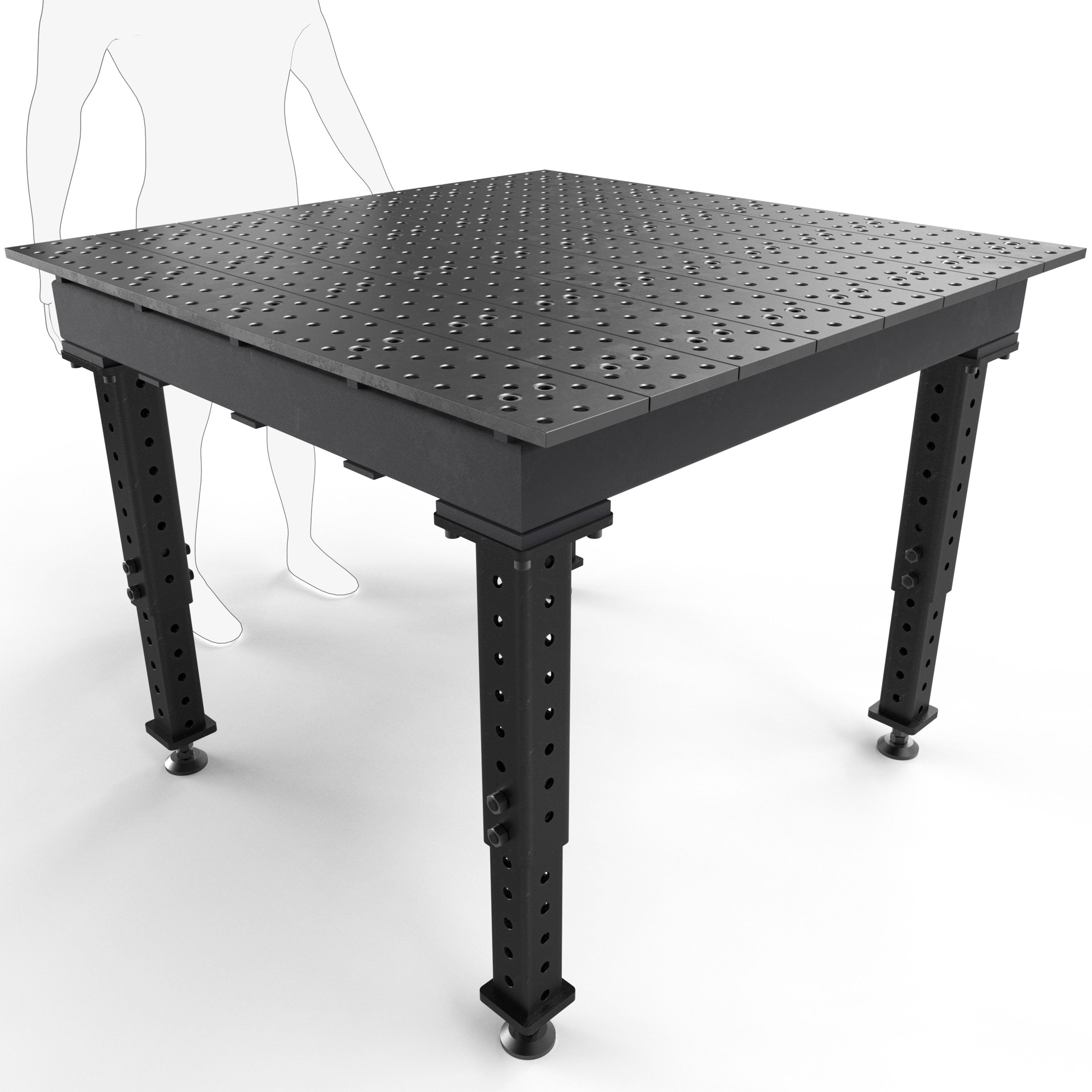

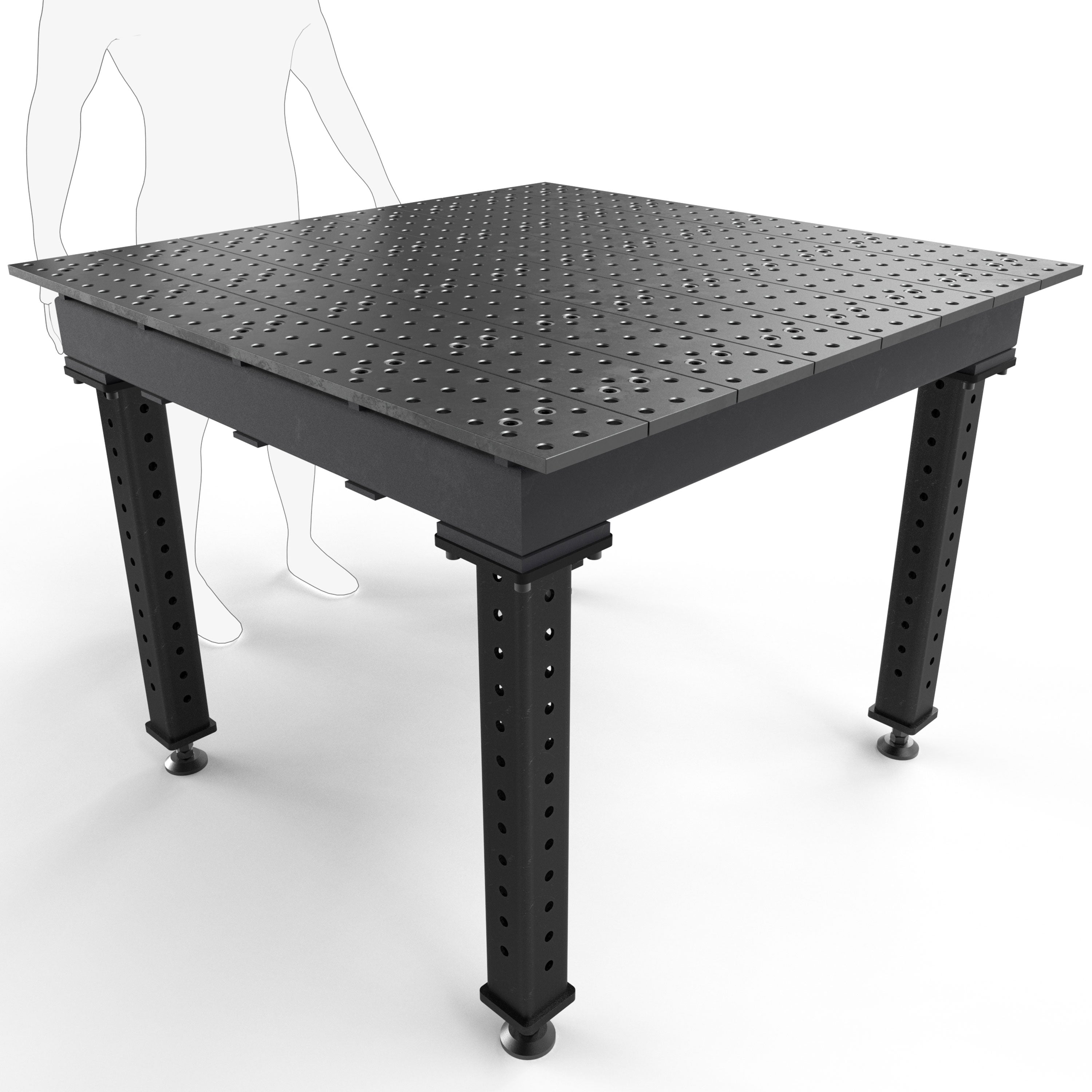

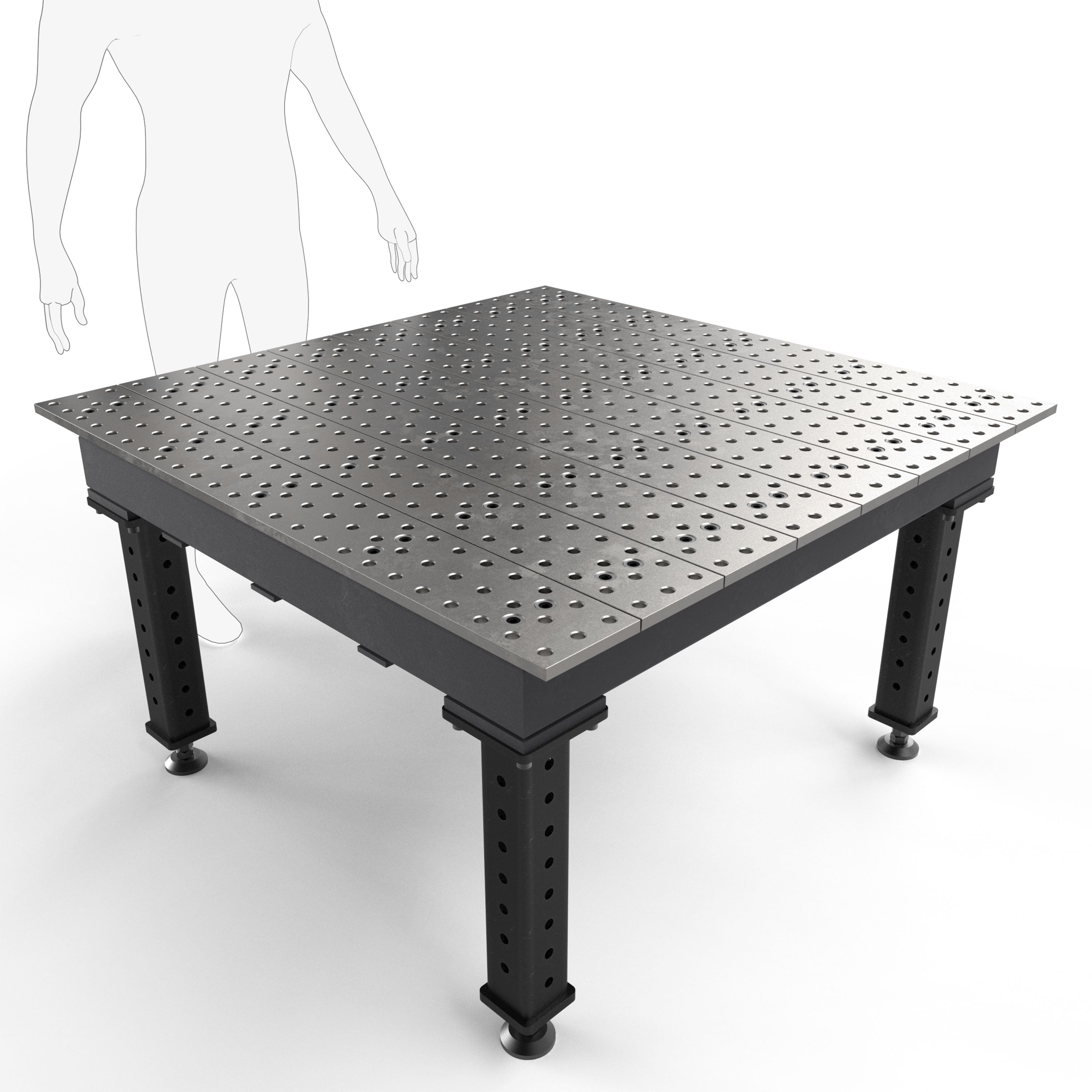

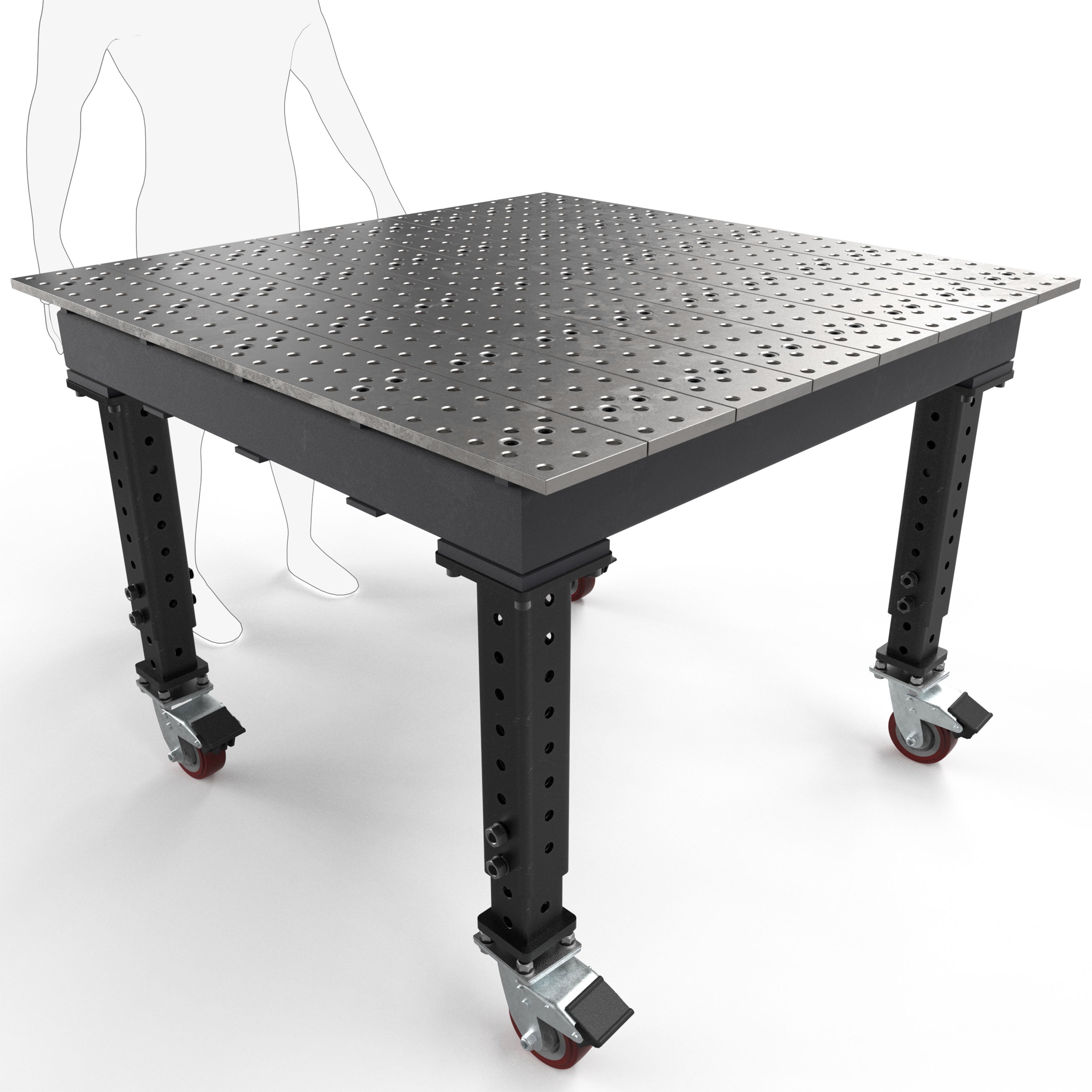

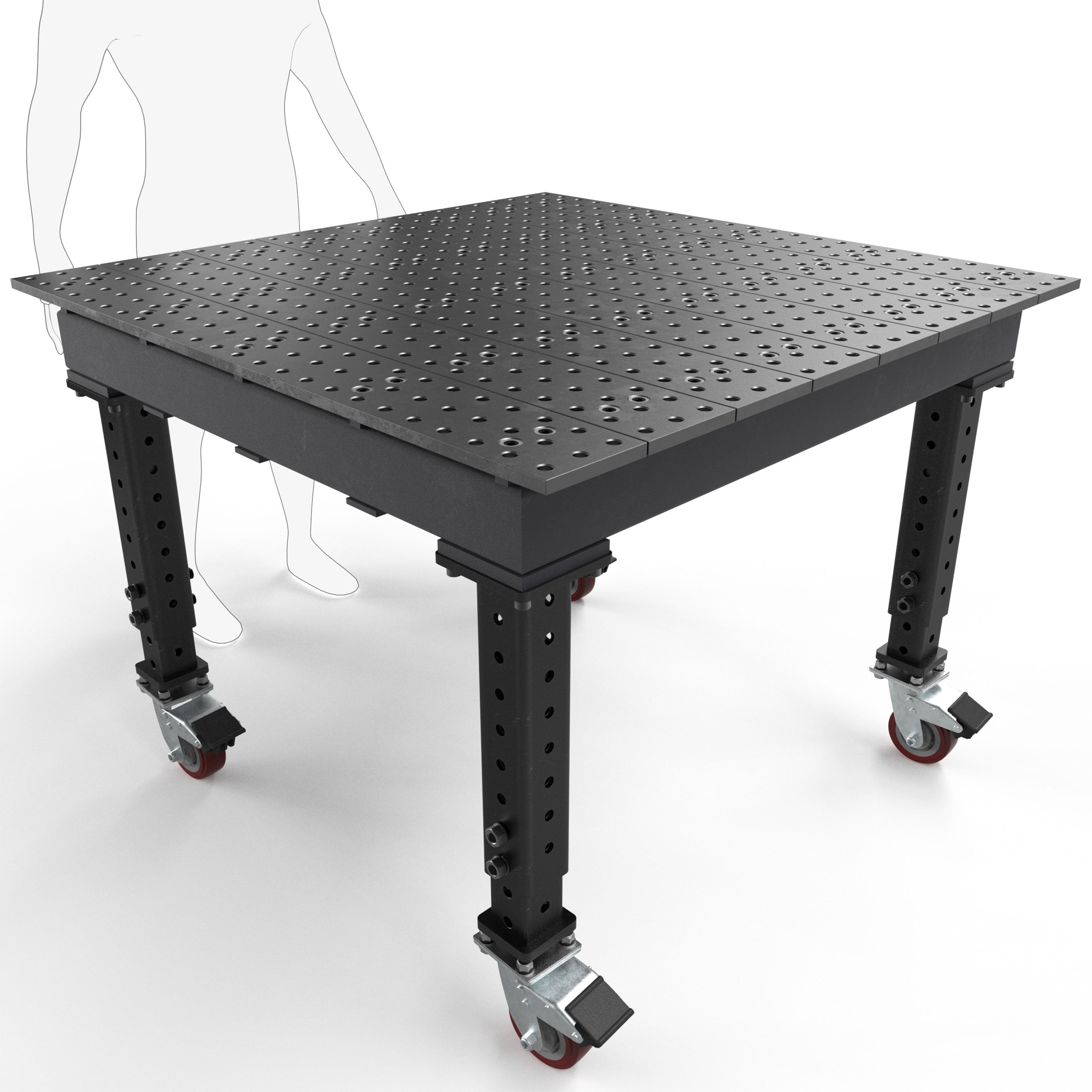

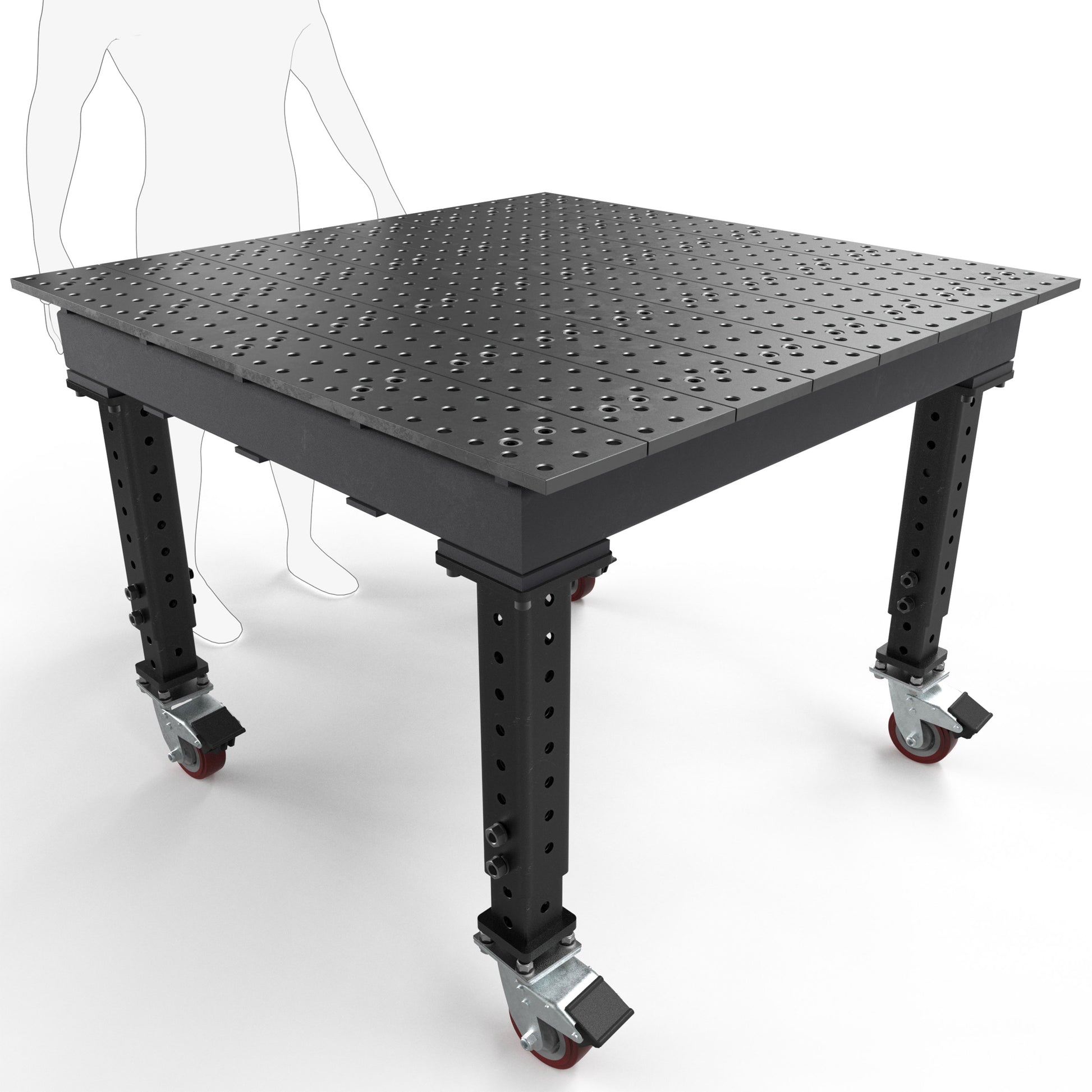

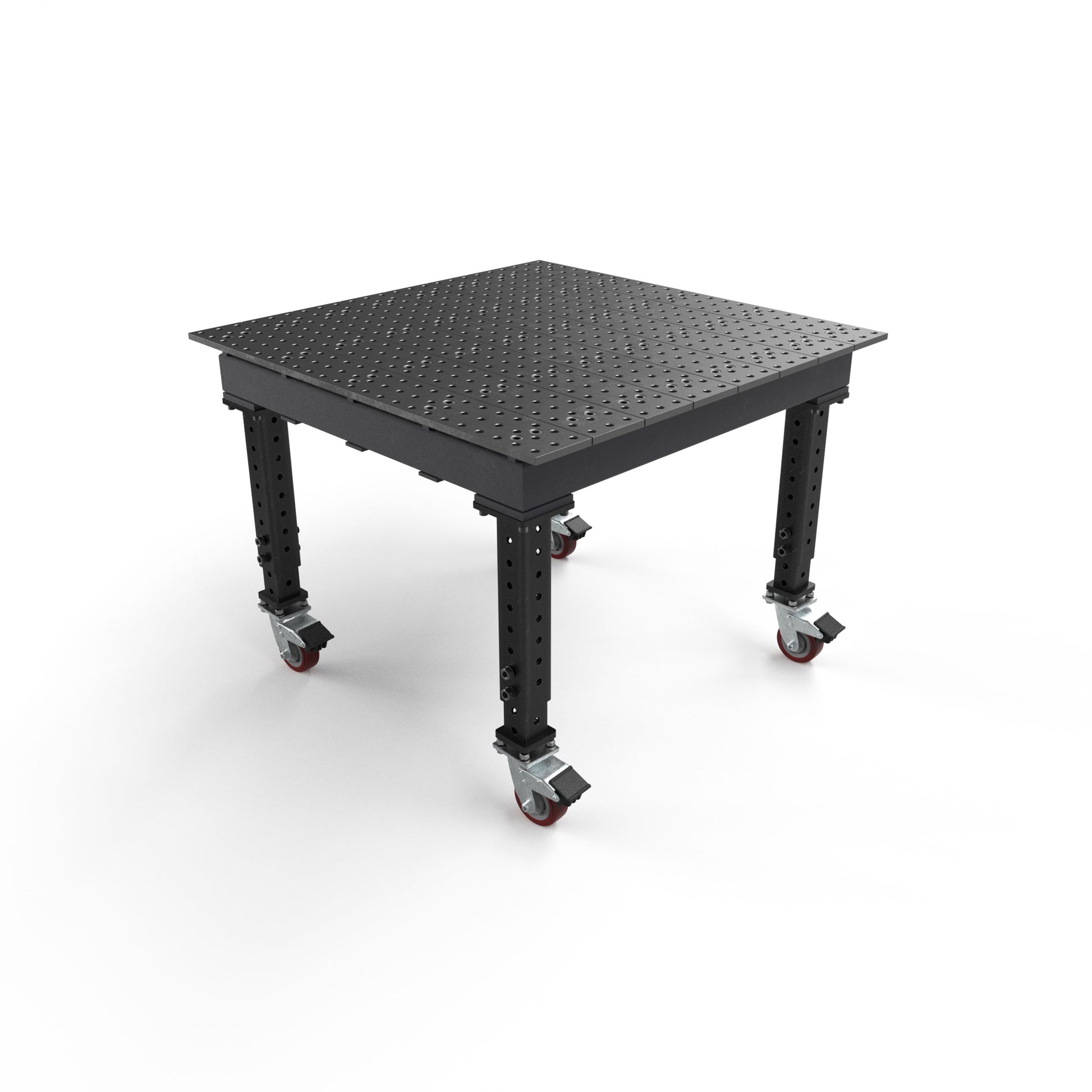

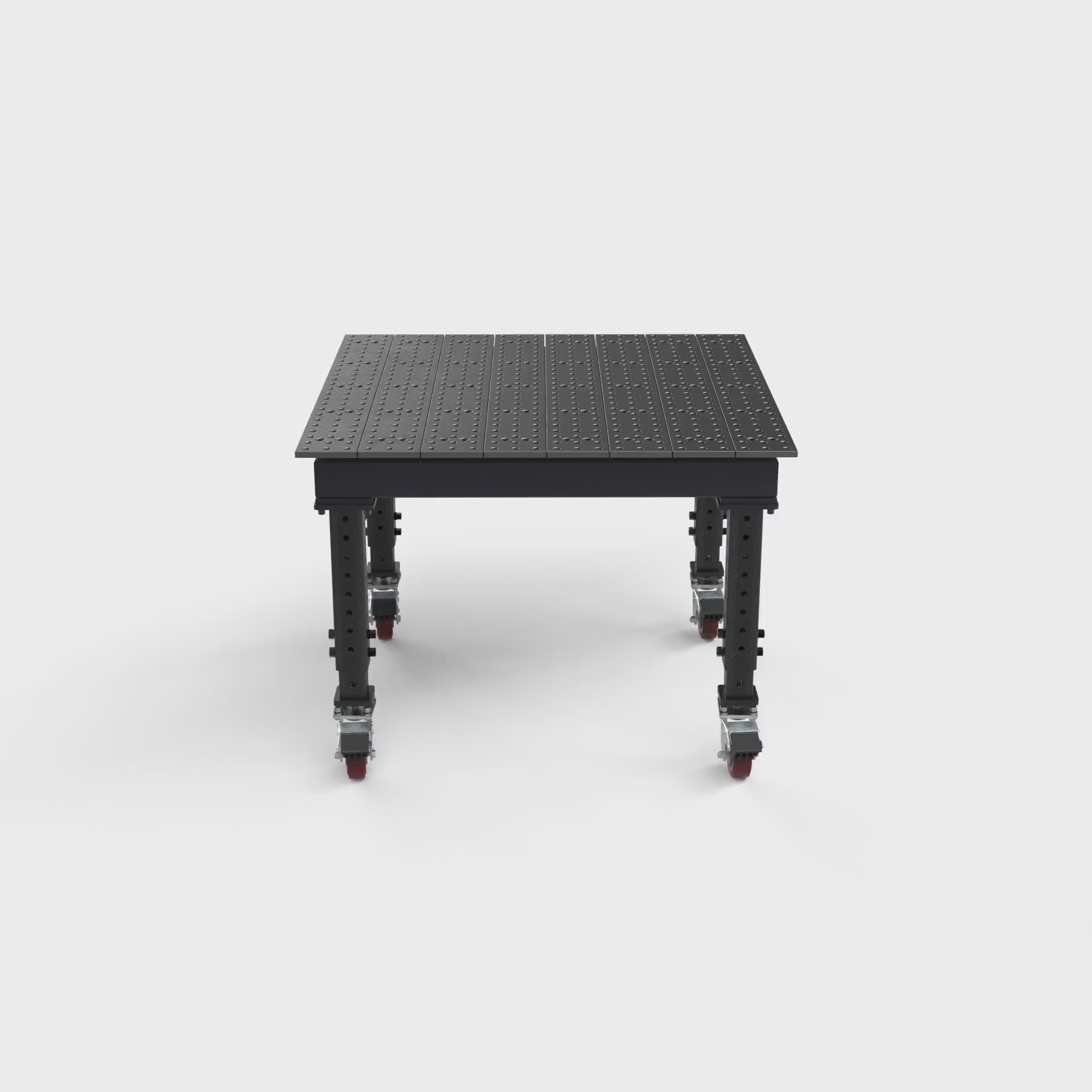

Max 4' x 4' (48" x 48") Tables, 5/8" System
Max 4' x 4' (48" x 48") Tables, 5/8" System
5/8"
Hole Diameter
2"
Hole Spacing
Nitrided
Optional Finish
Reversible
Plates
Shipping calculated at checkout.
-
Estimated delivery: Oct 29 - Nov 02
View this table in your shop
* All MAX TABLES ARE PATENTED: U.S. PAT. 8065967
Our single-sided heavy-duty tables feature boreholes on the top surface and feature patented self-locating and reversible table top plates. Maximum Table Surface, Maximum Capacity. Utilize the additional holes (33% more than slotted tables) for clamping at multiple points.
Available in standard and nitrided tabletop finishes.

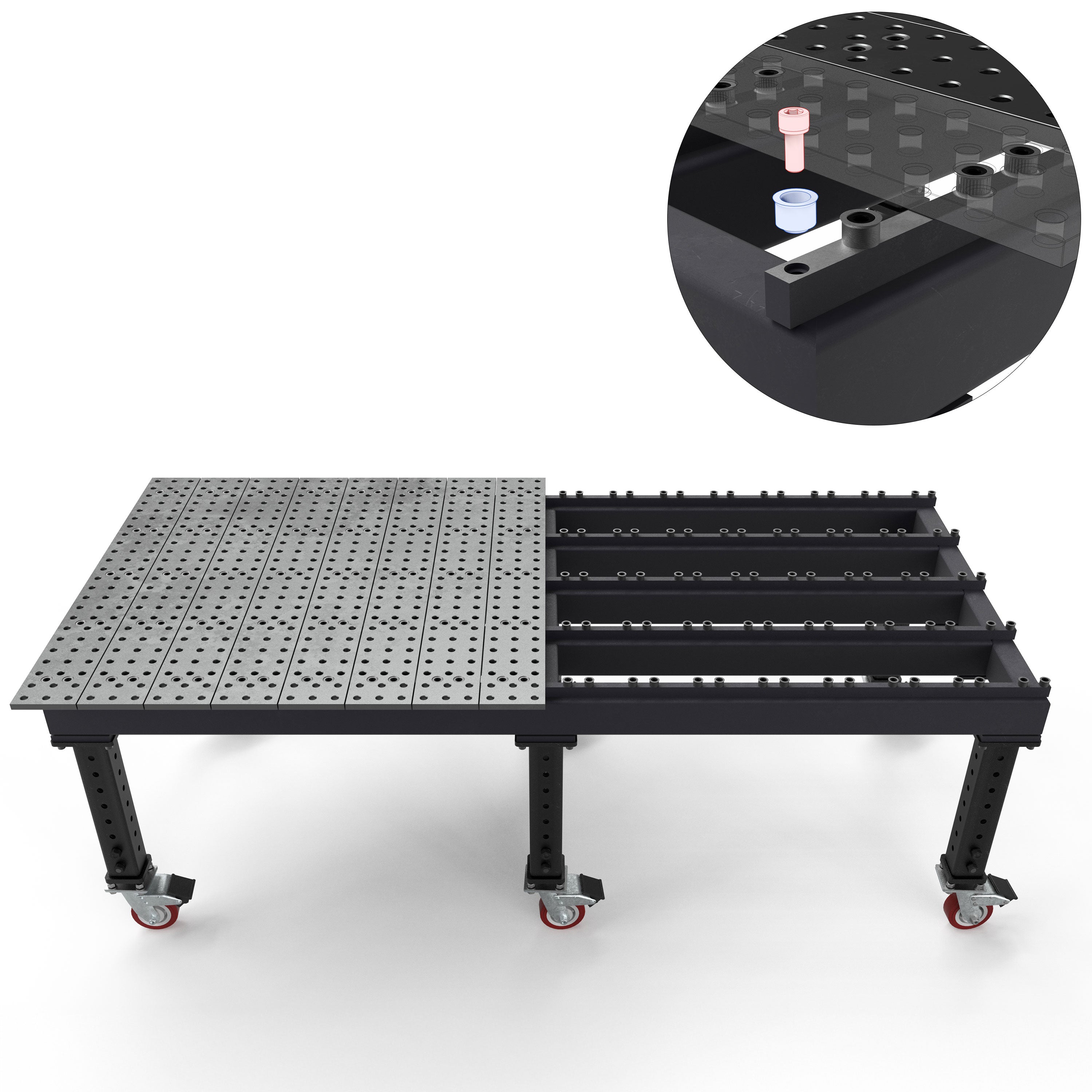

Reversible Self-Locating Table Plates
Tabletop Side Height
6-1/4″ for both MAX and MAX Slotted tables
Table Accuracy
Table flatness: ±0.005 per 24″ x 24″
Hole spacing: 2.000″ ±0.001
Hole diameter: 0.625″ +.002/-.000
Plate thickness: 0.630″ ±0.004

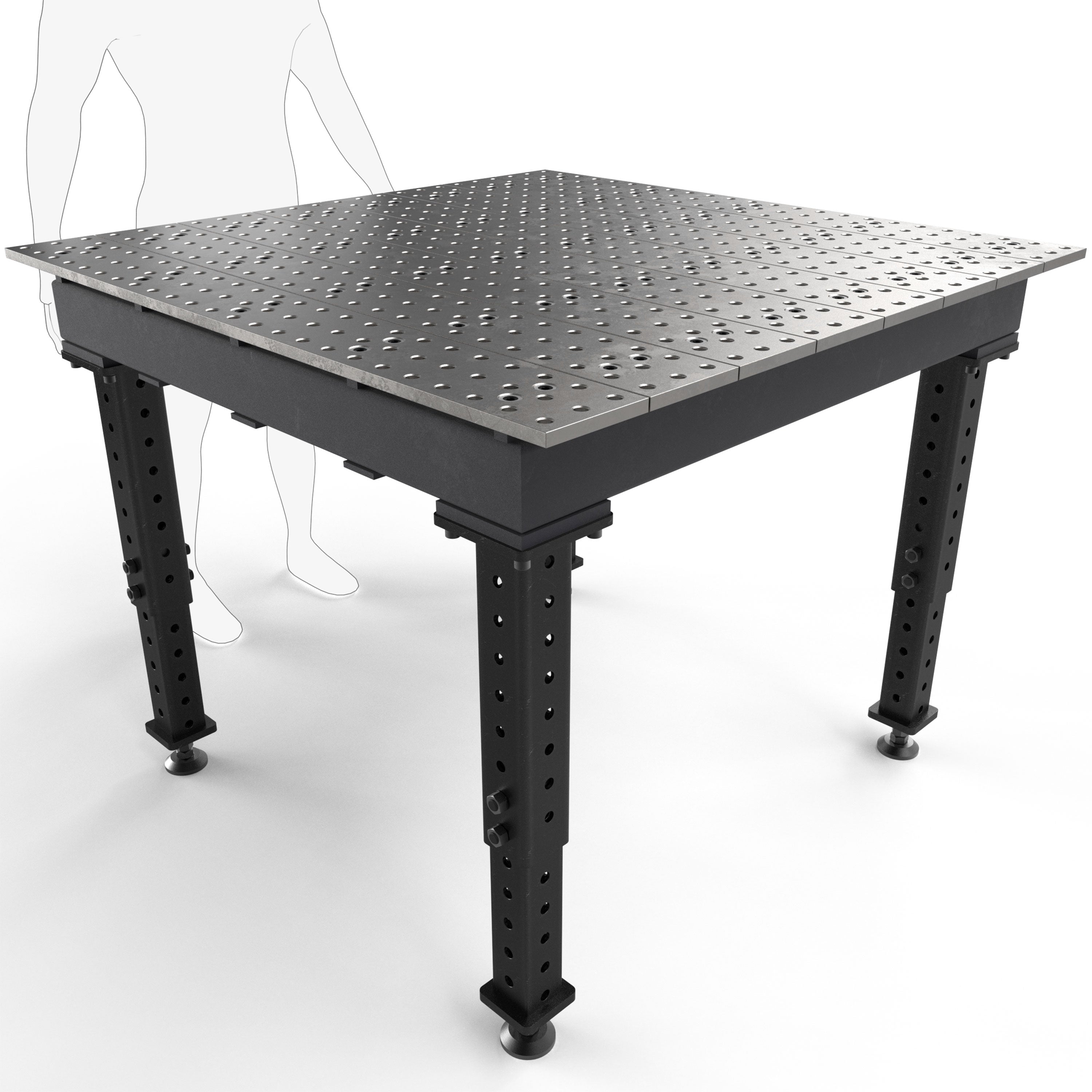

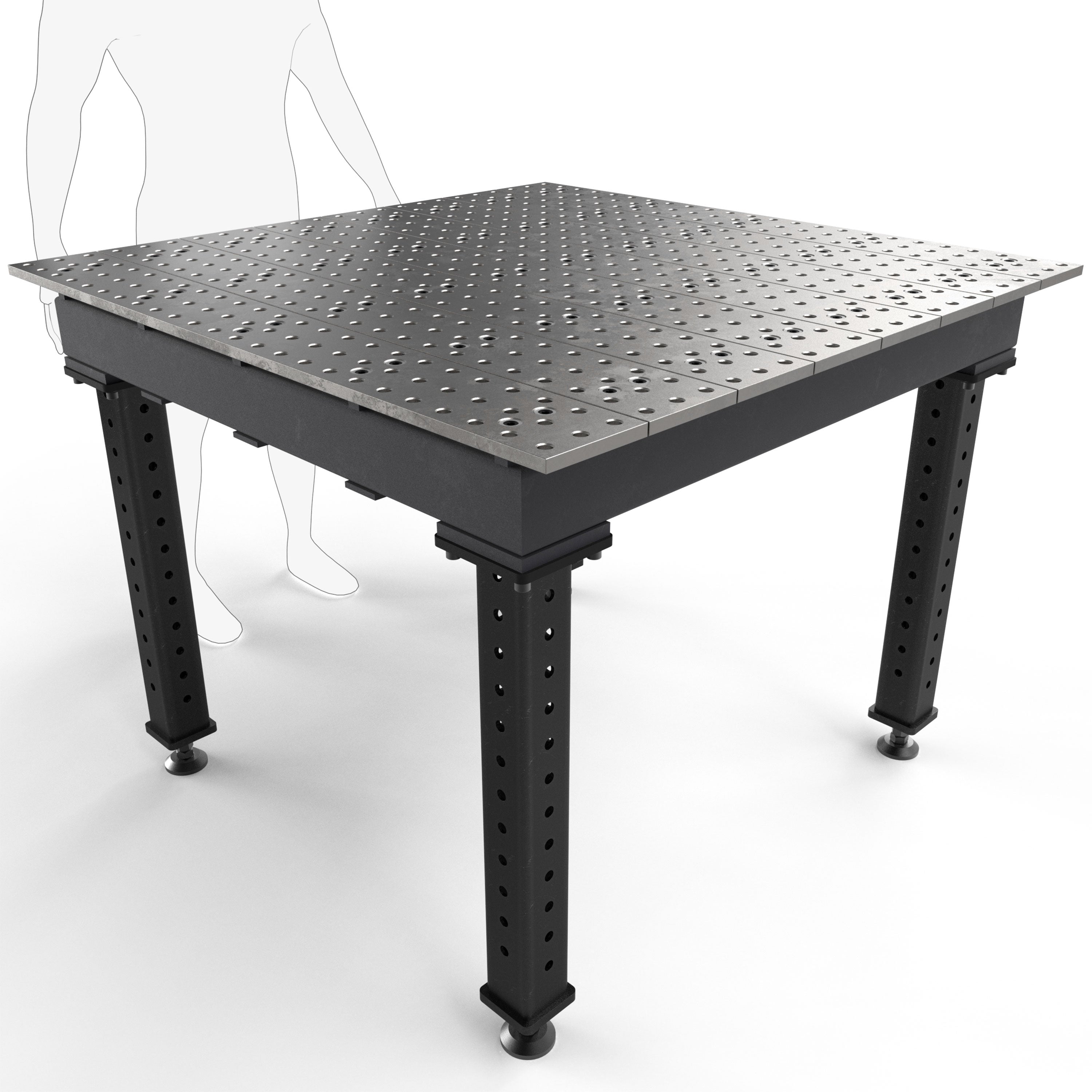

Standard (plain) / Nitrided Finish
Choose from standard finish (medium carbon steel) or Nitrided (heat-treating) finish.
What people say about us:
Very very well made! Super precise tolerances, clean and ready to be used. Just slap the legs on and off we go! Would recommend!
Kasey S (Gainesville, GA)
Really fast and accurate setup for square joints - big time saver in setup and by minimizing repairs to poor welds.
Dan L (EMI)
Has improved prototype building to a make sure parts are welded accordingly.
Craig M (CUMMINS SERVICE TRAINING)
Reversible Plates
Frame
