Key Features of This Bench Vise

  • Universal Welding Table Compatibility: Featuring a 4-point swivel base, this vise is specifically designed to align with standard welding table grids. It fits perfectly on any table with 2-inch (50.8 mm) hole spacing, accommodating both 5/8-inch (15.875 mm) and 16 mm (16 mm) bore diameters.
  • Rapid Reconfiguration: Effortlessly bolt and unbolt the unit to reposition it across your workspace, providing maximum flexibility for evolving projects.

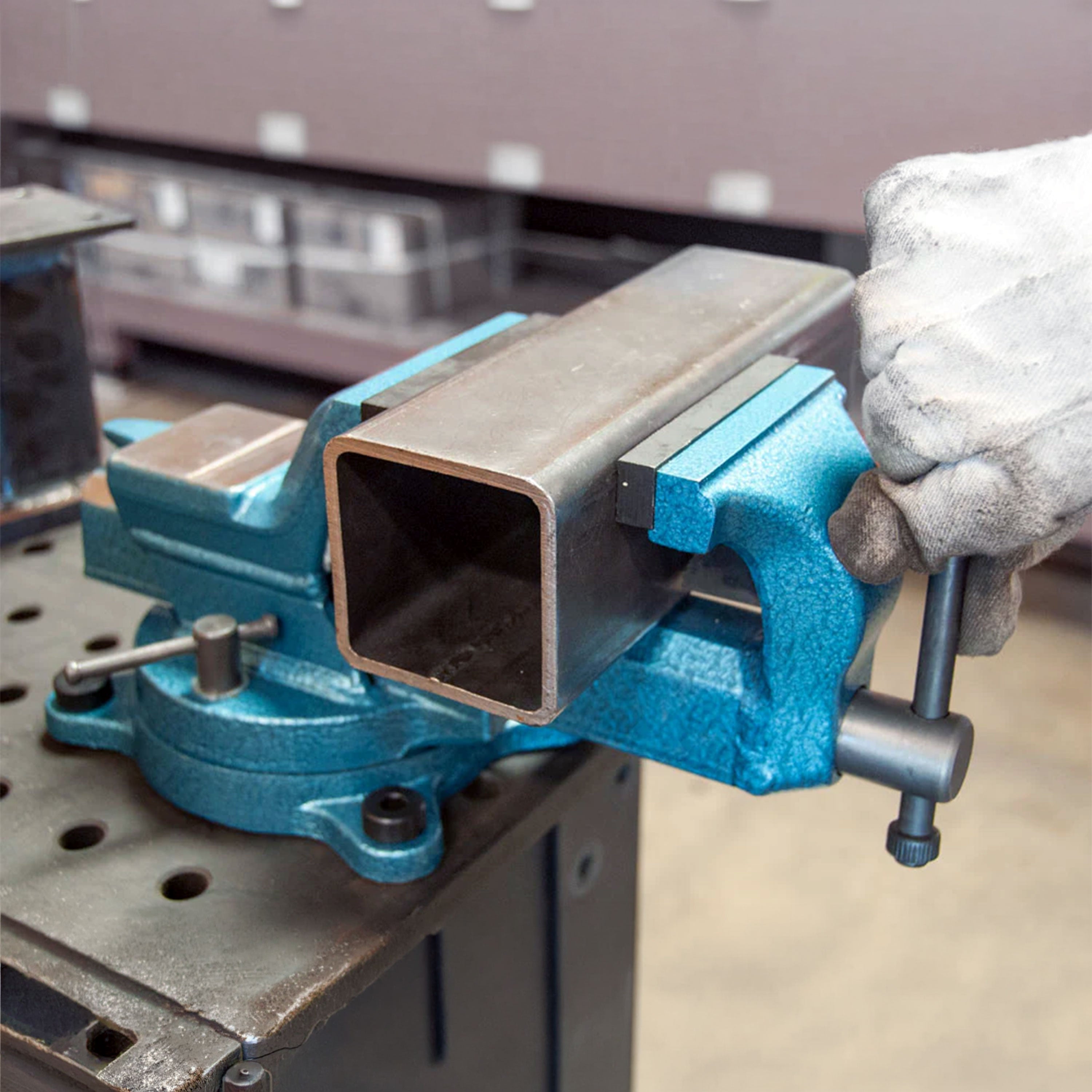

  • Extended Vertical Clearance: When oriented correctly, the rear jaw extends past the table's edge. This specialized positioning allows you to securely clamp tall or oversized workpieces that would otherwise be obstructed by the tabletop.

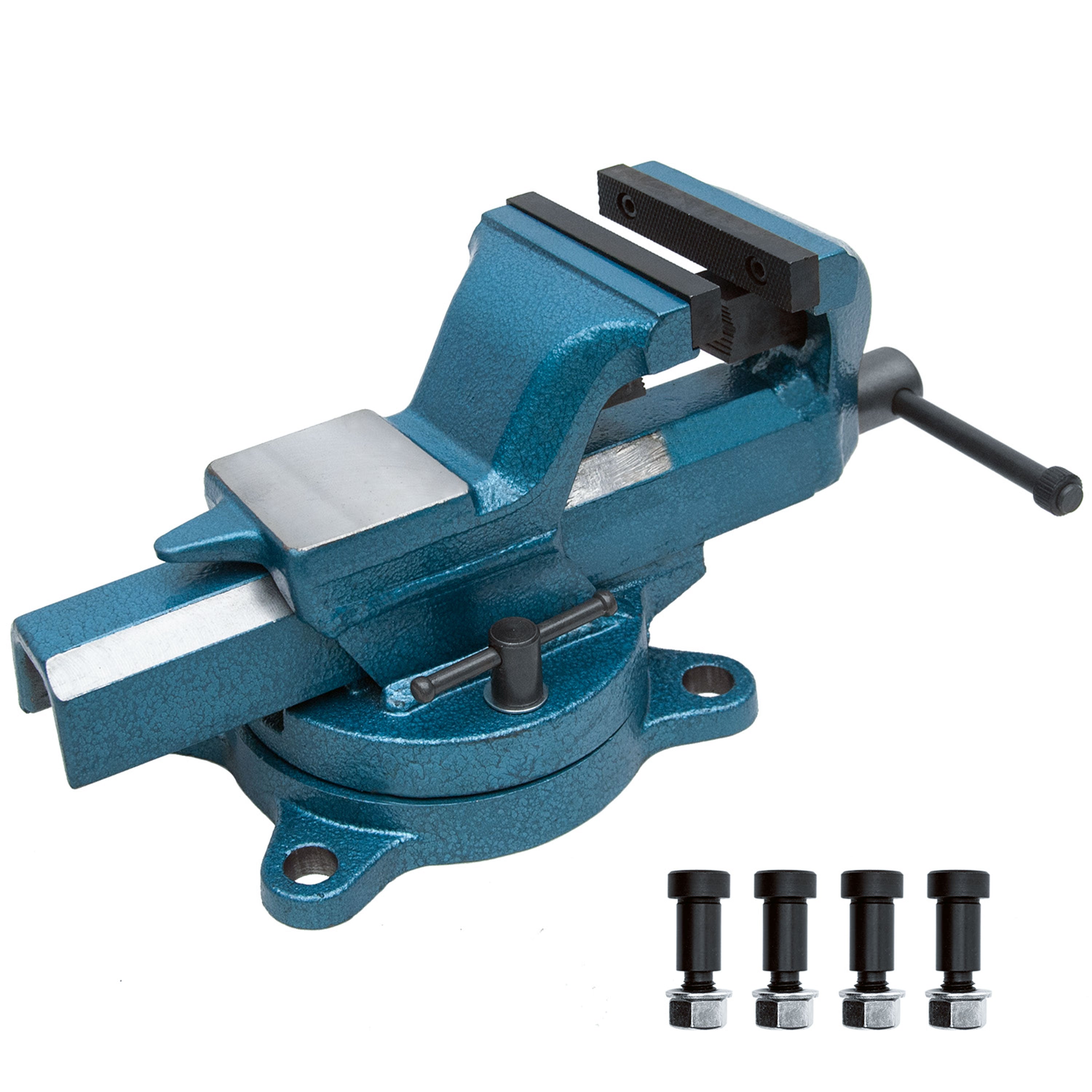

* Four Socket Shoulder Screws (PN: T831610) included.

* TXV5-4-K is NOT compatible with TXH8022

Enhanced Durability and Performance

Forged Steel Construction: Unlike traditional cast iron models, this vise is crafted from high-quality forged steel. This material provides a significantly higher yield strength, ensuring the tool can withstand rigorous use without failing.

High Strength-to-Weight Ratio: Engineered with a 90,000 PSI (620.5 MPa) tensile strength, this vise offers the same industrial-grade power as units twice its weight. This lightweight design makes it much easier to reposition across your table without sacrificing clamping force.

Serviceable and Resilient: Because the vise features a welded construction, it is uniquely repairable. In the event that excessive force from a cheater bar causes damage, the steel components can be easily re-welded, extending the life of your investment.

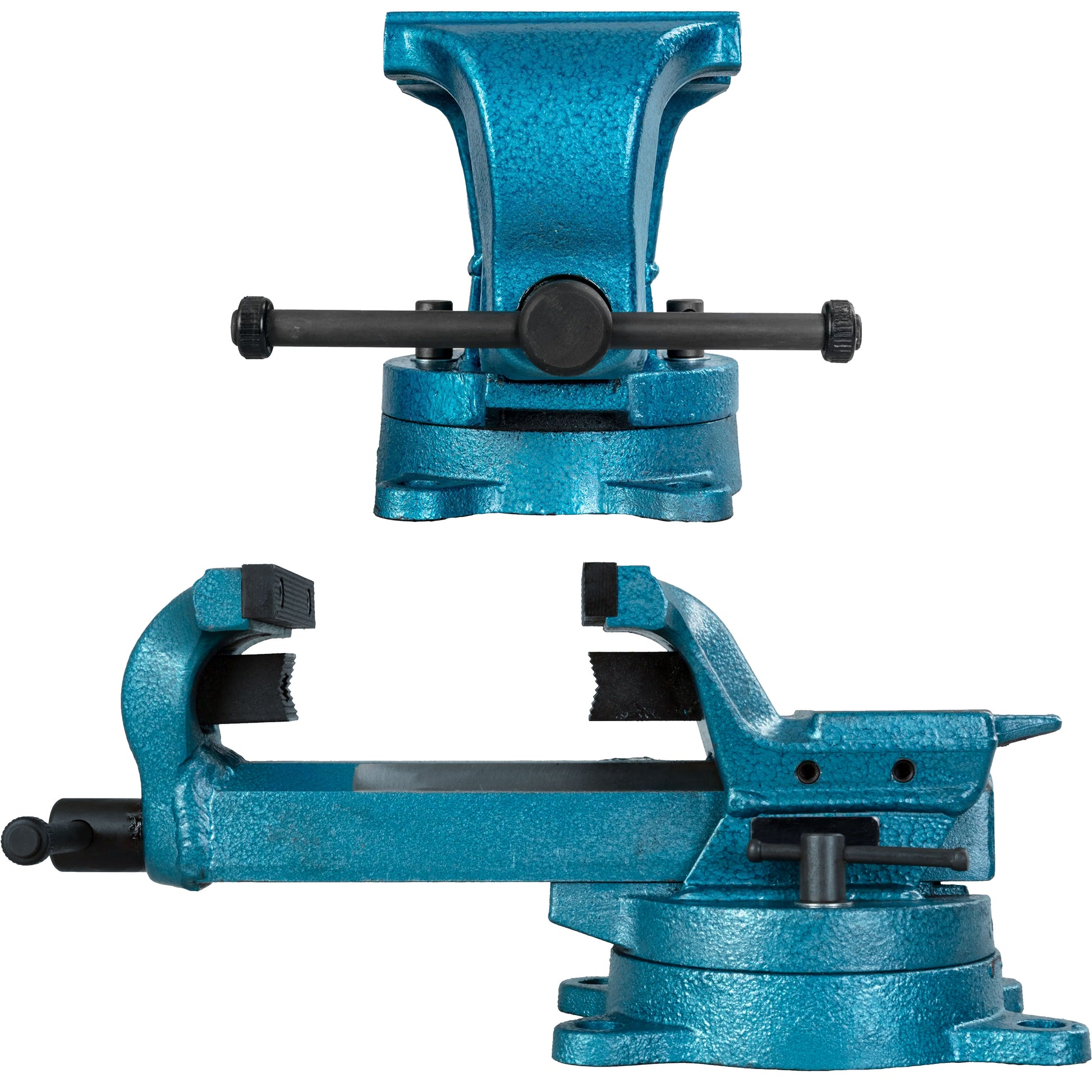

360° Swivel Base

Made of 90,000 PSI tensile strength forged steel

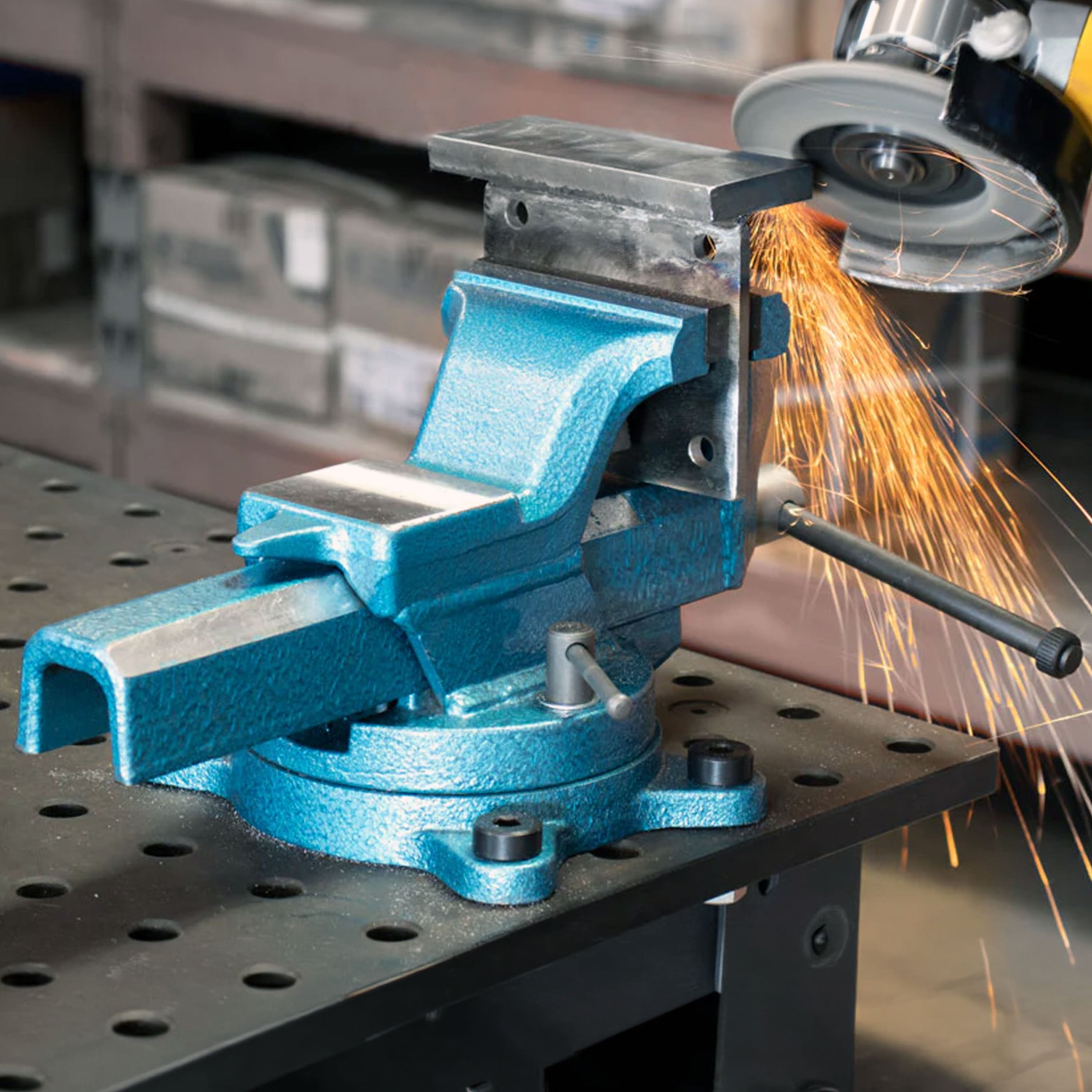

Machined Anvil surface

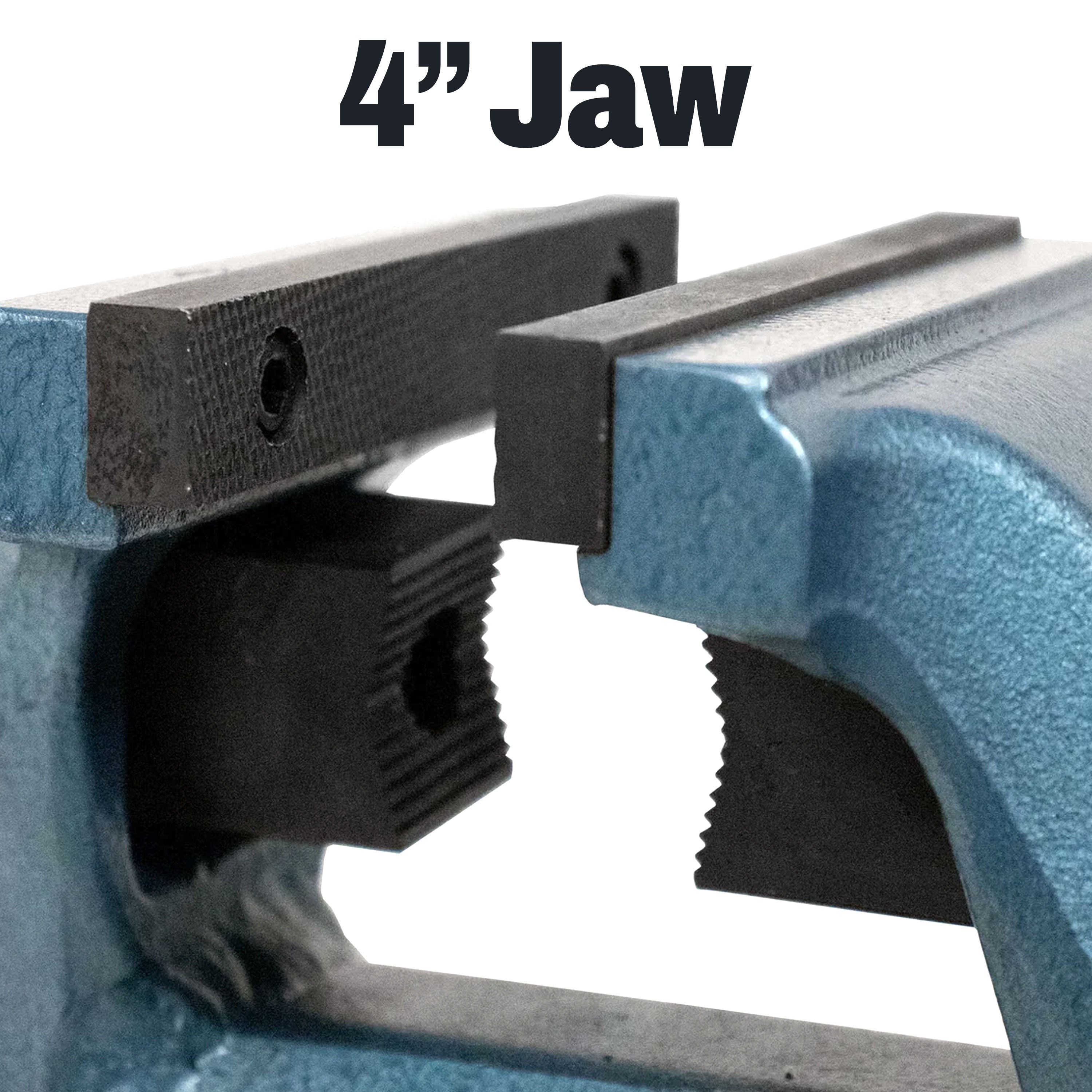

4" Replaceable Jaw

Jaw Width (in)
4"
Max Opening (in)
5"
Pipe (in)
0.5" ~ 2.0"
Throat Depth (in)
2.9"
Clamping Force (lb)
5,000
Handle Length (in)
7.1"
Max Torque (ft/lb)
118
Gross Weight (lb)
20
