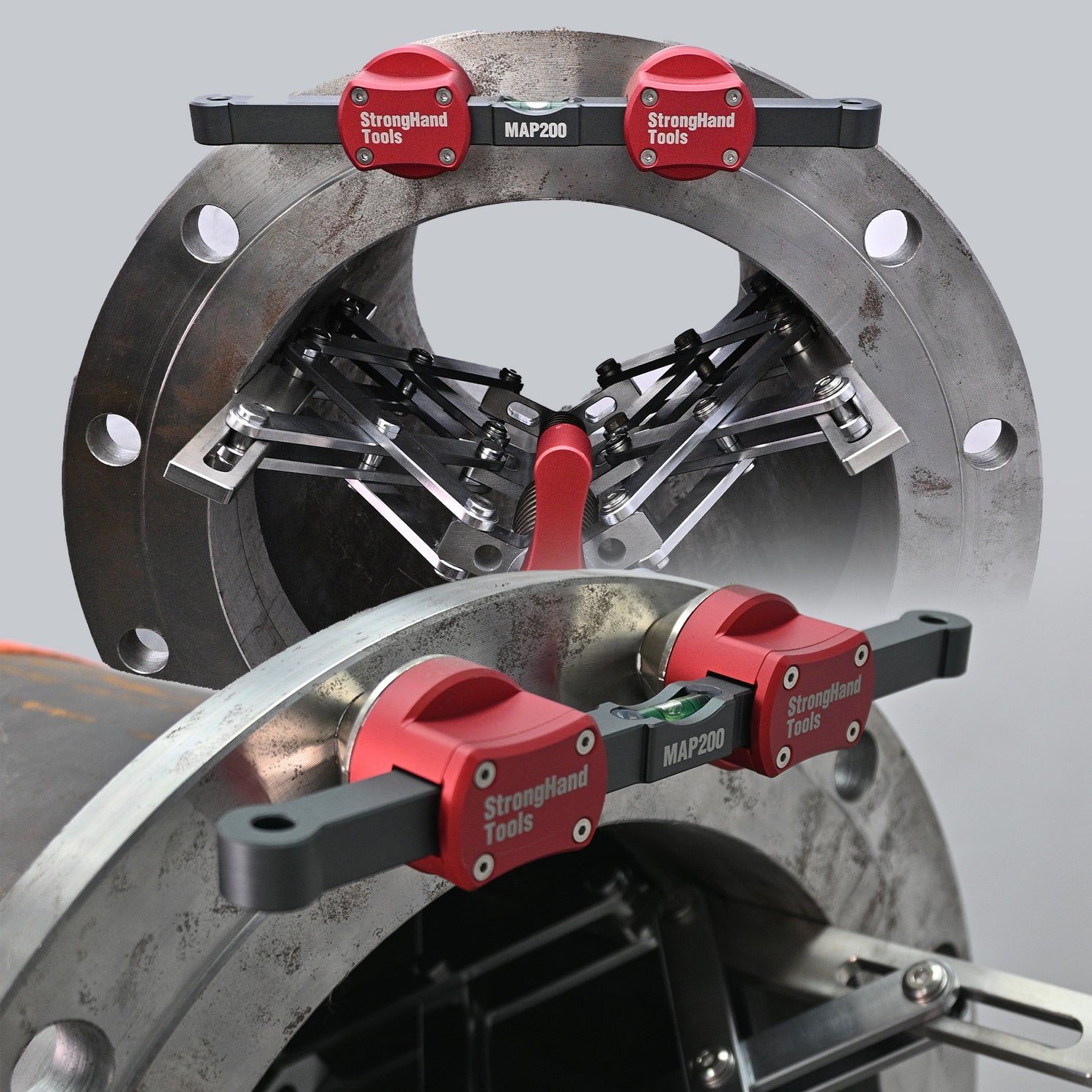

The Magnetic Alignment Pin quickly aligns ferrous pipe flanges without removing gloves or fiddling with threaded fasteners.
Drop the spring-loaded pin heads into two adjacent bolt holes, let the magnets seat, and read the built-in bubble vial for horizontal calibration.
Couldn't load pickup availability

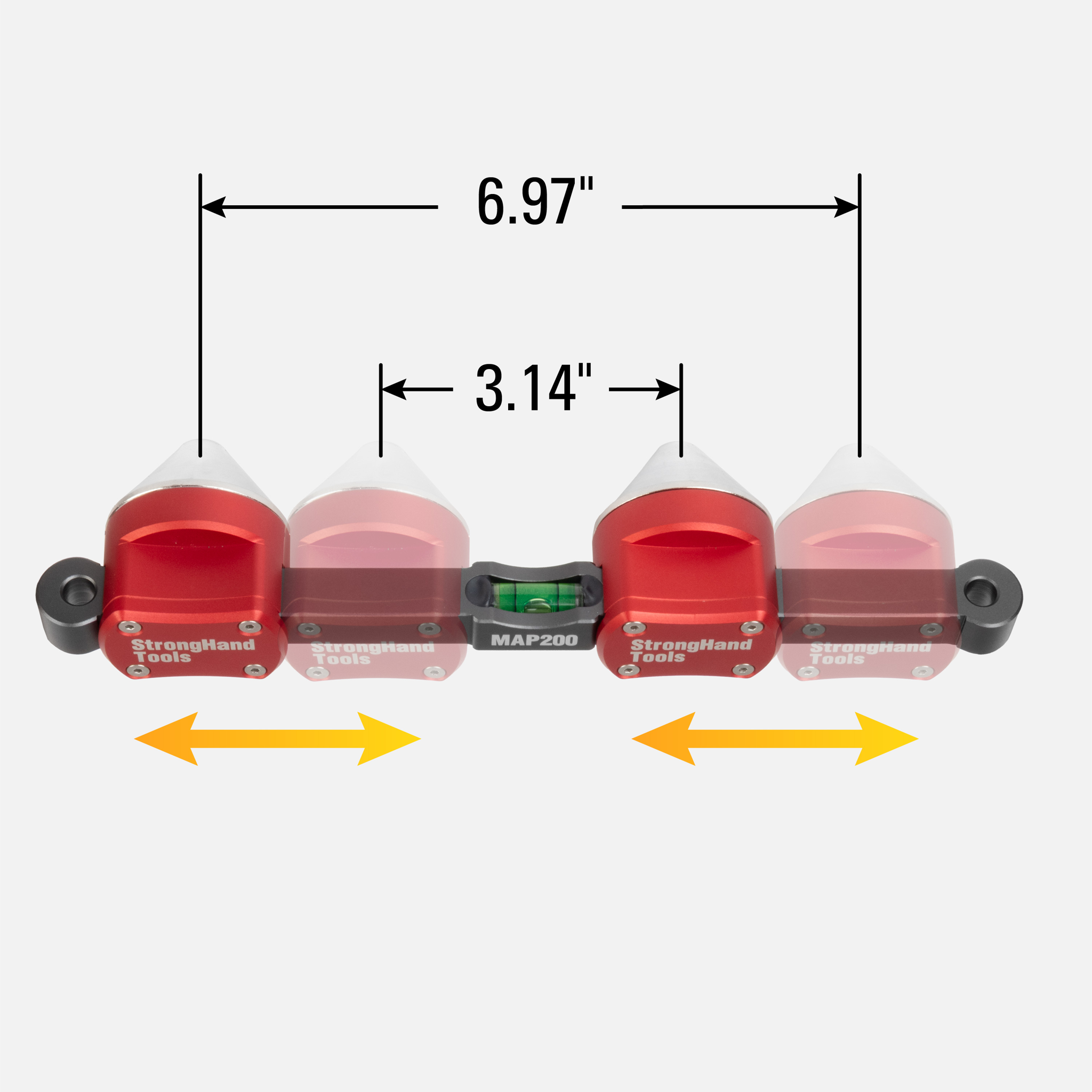

Compatible flange range: The tool bridges two adjacent bolt holes with a center-to-center pin span of 3.14" (minimum) to 6.97" (maximum). Before ordering, verify your flange's adjacent bolt-hole
spacing falls within this range (see compatibility chart below). Not all flange sizes and pressure classes are supported. For example, with a max pin span of 6.97", the 4" Class 150 flange (adjacent hole spacing 6.93") is compatible.
For use with ferrous (magnetic) flange materials only. Not suitable for stainless steel, aluminum, or other non-ferrous flanges.
• Spring-loaded, self-aligning pin heads seat quickly in bolt holes
• Built-in bubble vial for horizontal calibration
• Pin diameter adjustable 0.5" to 2"
• CNC machined, aluminum anodized body for high precision
• Super-strong magnets, no threaded assembly required

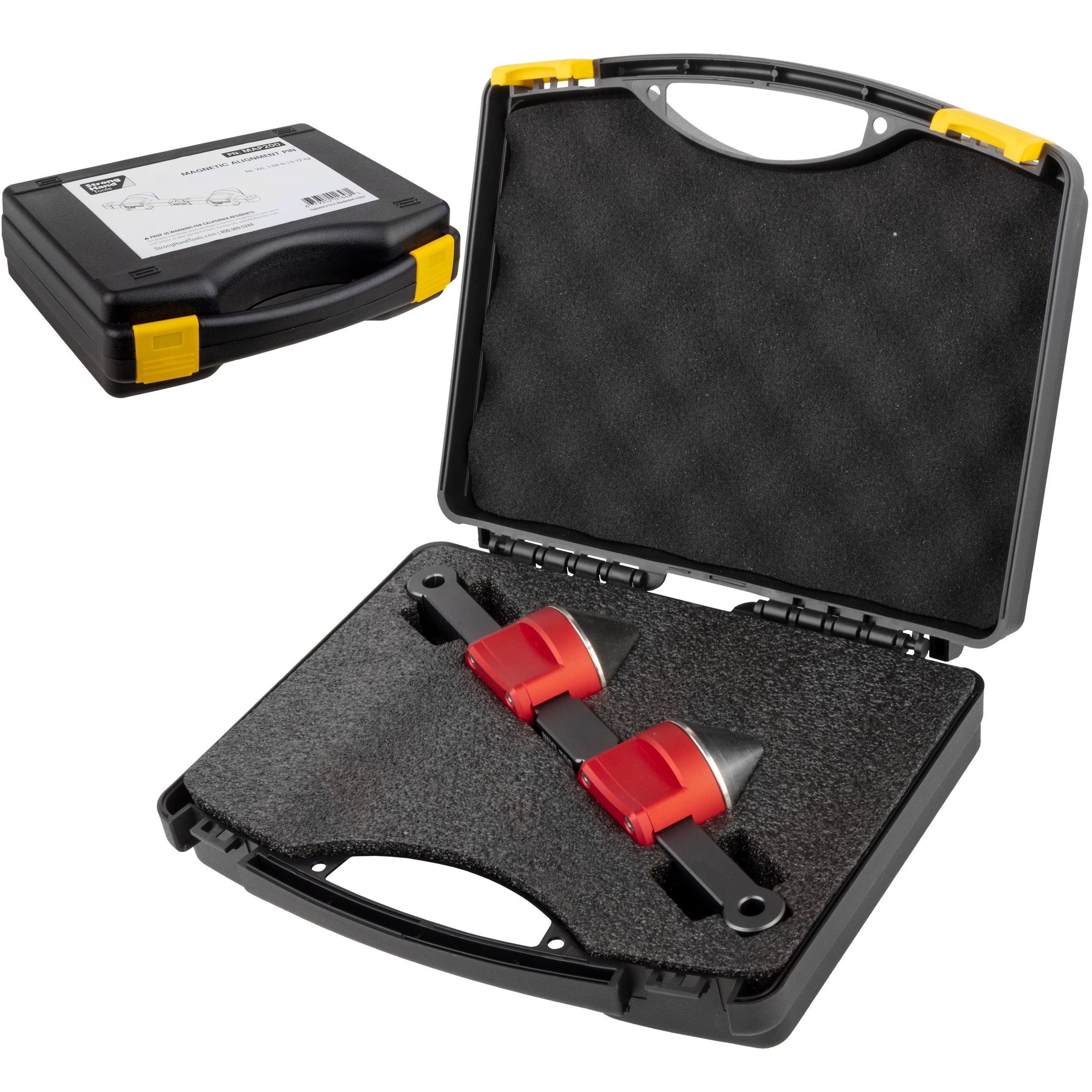

• Includes foam storage case
| Description |
| Product variants |
| Price |

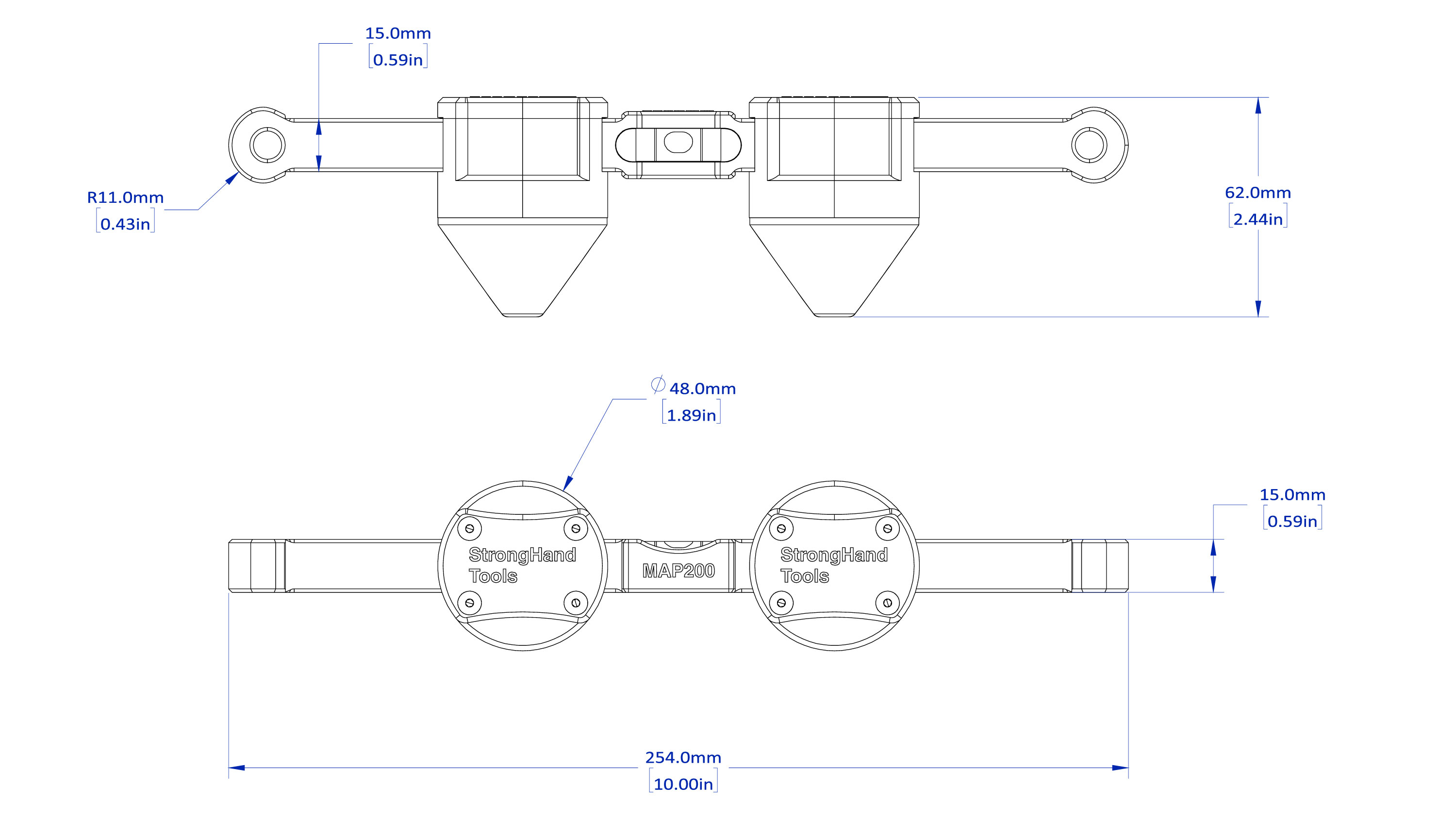

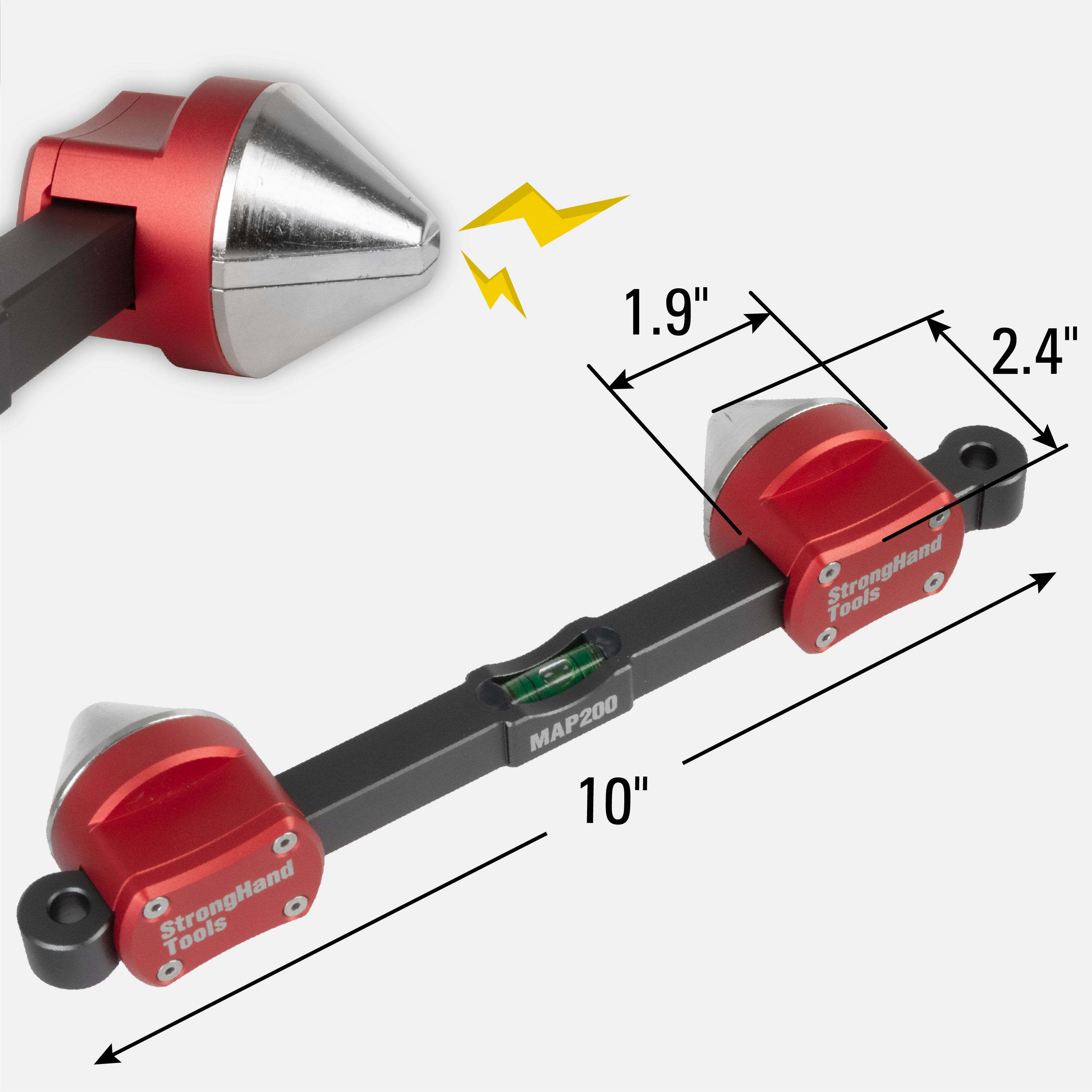

| Pin Span3.14" min – 6.97" maxPin Diameter0.5" - 2"Magnetic Hold4.4 lbStorageFoam CaseThe Magnetic Alignment Pin quickly aligns ferrous pipe flanges without removing gloves or fiddling with threaded fasteners. Drop the spring-loaded pin heads into two adjacent bolt holes, let the magnets seat, and read the built-in bubble vial for horizontal calibration. | Regular price
Sale price
$119.25
Regular price
|
Available in stock (56)
The Magnetic Alignment Pin quickly aligns ferrous pipe flanges without removing gloves or fiddling with threaded fasteners.
Drop the spring-loaded pin heads into two adjacent bolt holes, let the magnets seat, and read the built-in bubble vial for horizontal calibration.
