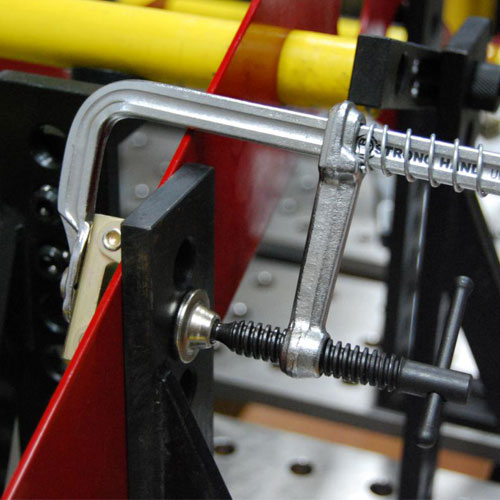

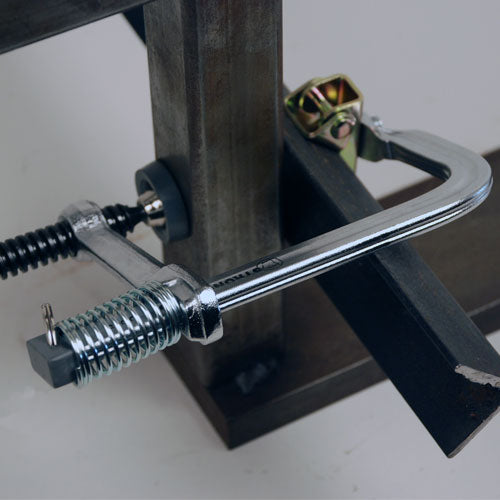

Magnetic Clamping Kit includes:

2x UBV45

– MagSpring™ Clamp
– Capacity : 3″ (75 mm)
– Throat Depth : 2-1/2″ (64 mm)

1x MS346C

– Standard Magnet Squares
– Hold at 30º, 45º, 60º, 90º
– Max. Pull Force : 85 lb (39 kg)

1x MS346A

– Original Mini Magnet
– Hold at 30º, 45º, 60º, 90º
– Max. Pull Force : 25 lb (10 kg)

2x XDV4

– Magnetic V-Pads
– Light duty & tight spot holding
– Build, hold, and position steel

Part No. Kit includes Weight (lb)
TSK104 2x MagSpring Clamp UBV45
1x Multi-Angle Magnet MS346C
1x Mini Magnet MS346A
2x Magnetic V-Pad XDV4
4.0
