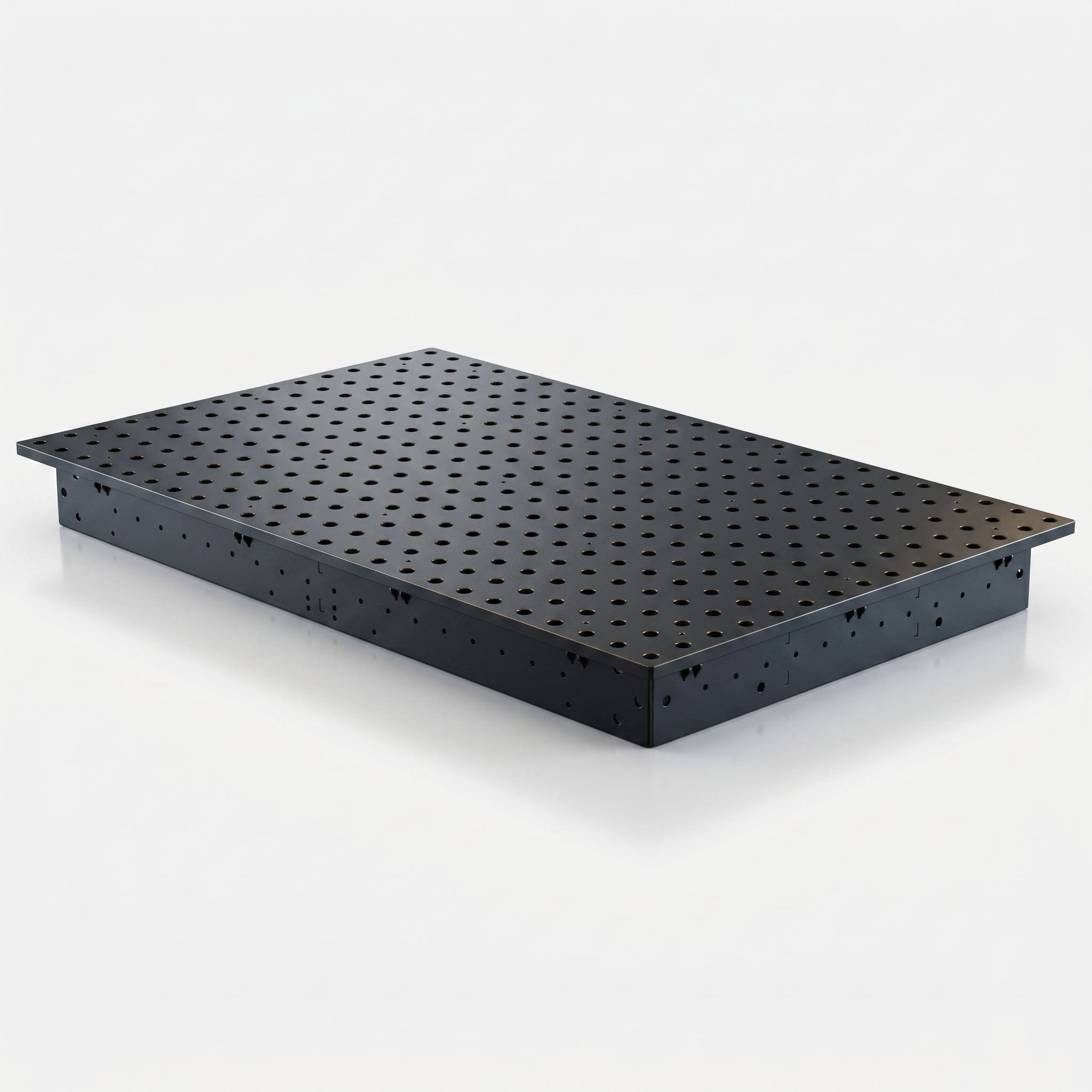

Double-Life Reversible Top: The 5/8-inch (16 mm) thick, heavy-duty steel table resists rust, scratches, and welding spatter. If one side ever gets worn out, you can flip the plates over for a brand-new work surface.
-
Precision Grid & Measurement: Features 5/8-inch (16 mm) holes spaced exactly 2 by 2 inches (51 by 51 mm) apart for easy clamping. One side has built-in letter and number grids, so you can record and repeat your exact setups without re-measuring.
-
Clean & Organized (F3 System): Built-in trays catch falling dust and slag to keep your shop clean, while center cutouts keep your electrical and robot cords organized and out of the way.
-
Roll or Lock Mobility: Heavy-duty wheels let you easily roll the cart across rough shop floors. Once in place, you can lower four independent leveling feet to lift the wheels and lock the bench completely flat and steady.
-
Ready-to-Go 66-Piece Tool Kit: Packages starting with a "K" include a full 66-piece clamping kit (clamps, pins, bolts, and brackets) so you can start precise, 3D building right out of the box.
U.S. PAT. 9896117
Other Systems
16mm System
28mm System
Metric Spacing
Inch Spacing
Tables
Fixtures

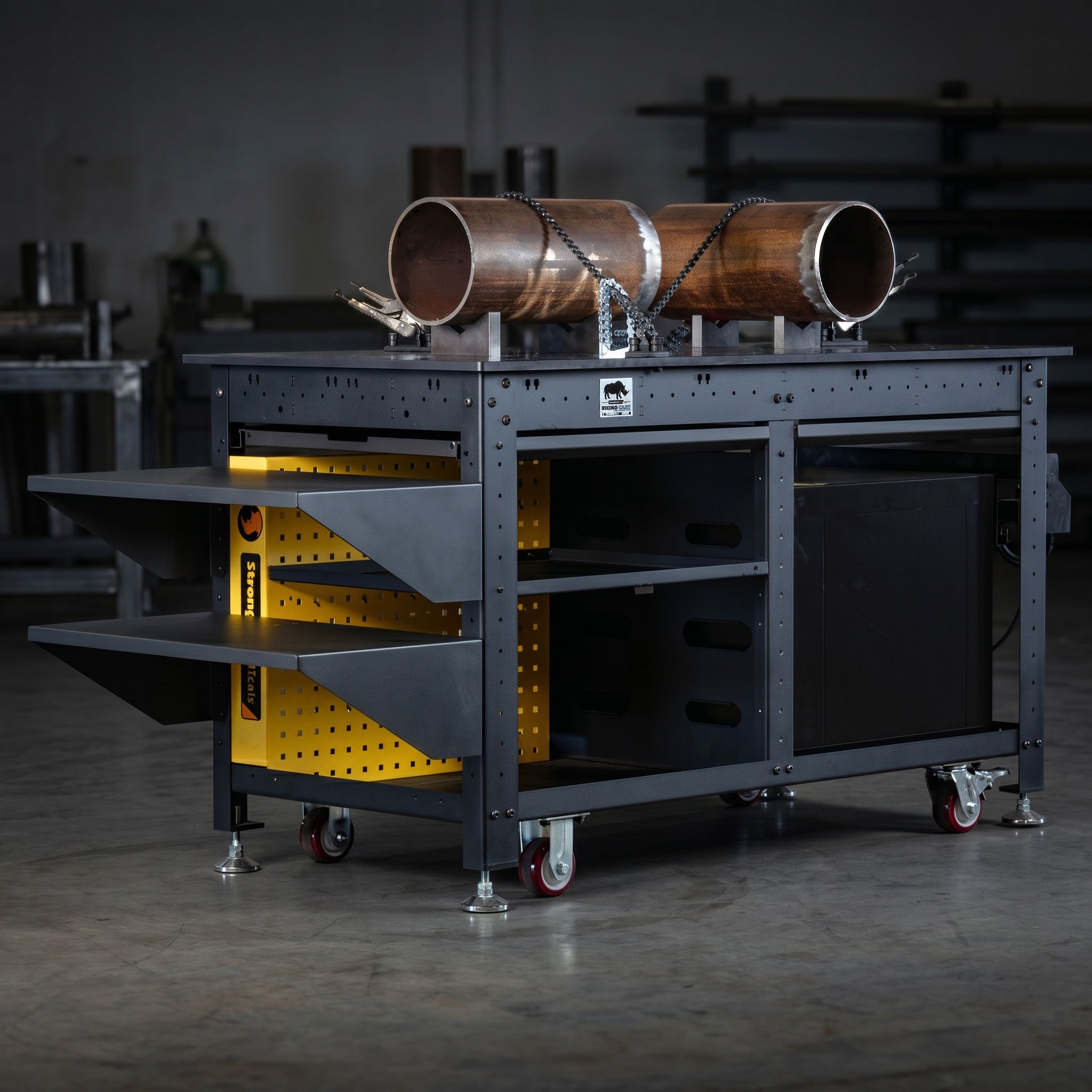

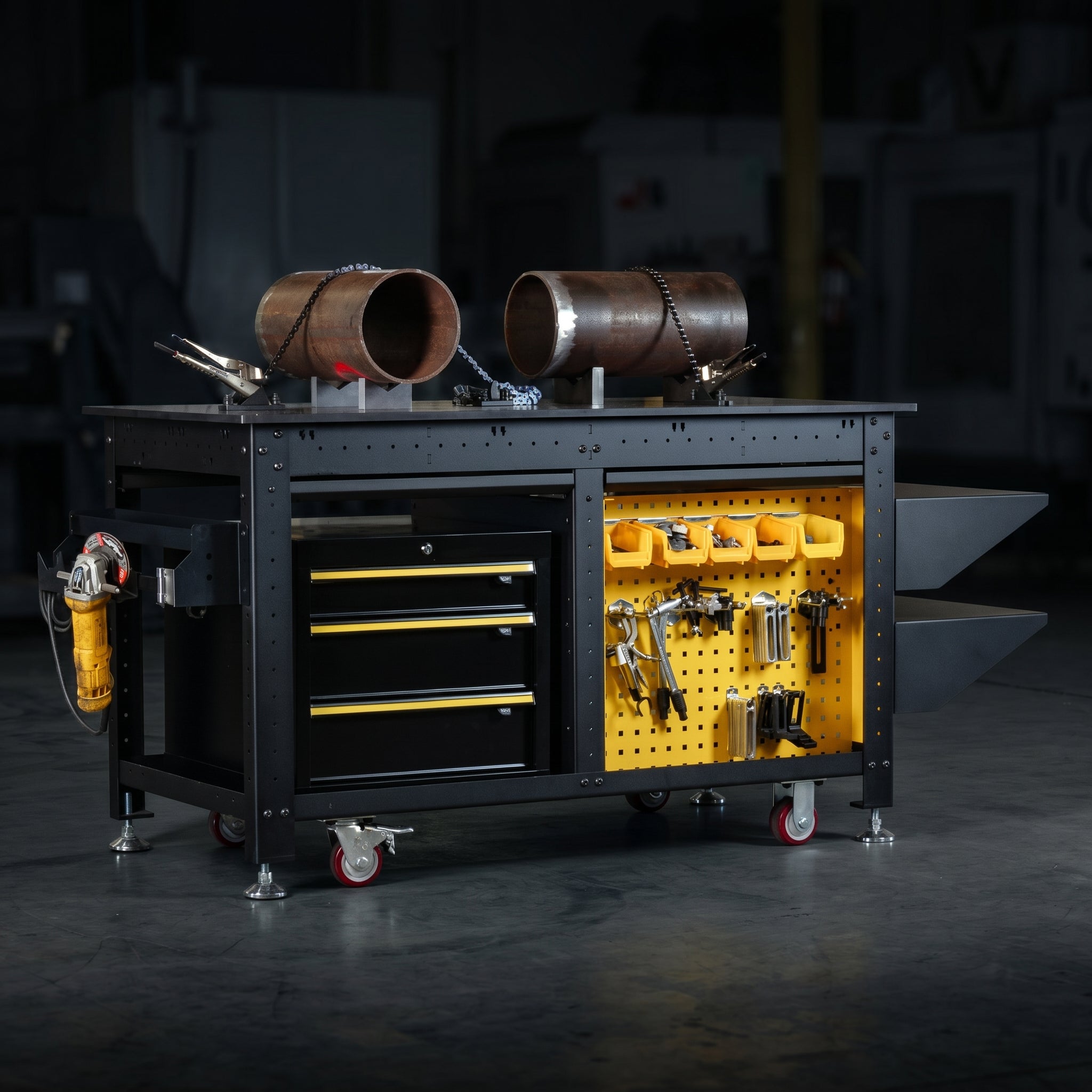

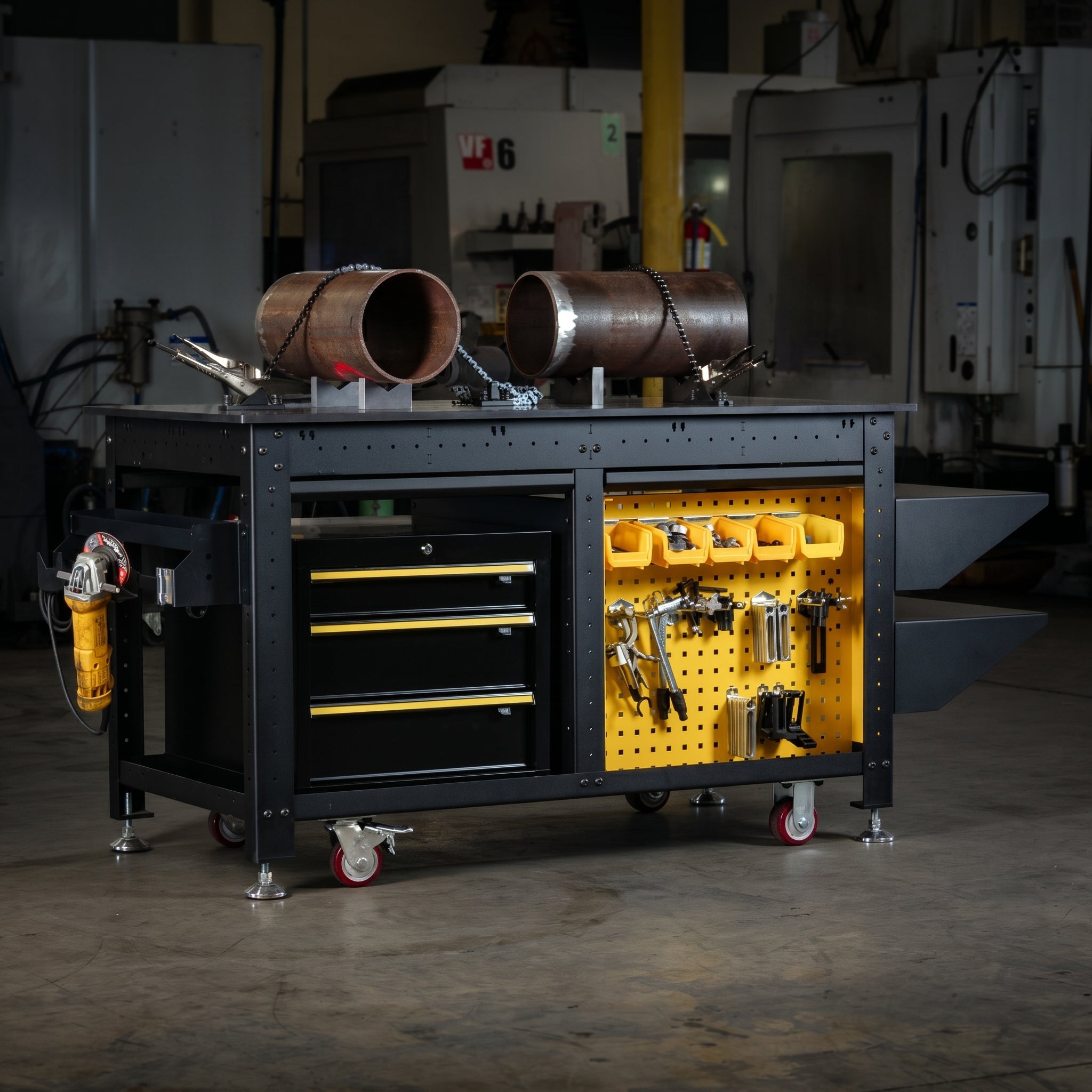

Rhino Cart 60" x 30" Mobile Work Station
Patented
-
Estimated delivery: Jun 30 - Jul 04
Estimate Shipping for this Item
Rhino Cart 60" x 30" Mobile Work Station
Product Overview
Hole Diameter:
0.625 in + 0.001 / + 0.003 in (16 mm nominal / 5/8 in nominal)
Hole Spacing Grid
2.000 in ± 0.002 in (50.8 mm) center-to-center
Tabletop Working Area
60 in x 30 in (1524 mm x 762 mm)
Tabletop Plate Thickness
0.630 in ± 0.004 in (16 mm nominal)
Table Flatness:
±0.015" per 24" x 24"
Table Height:
36″
Static Loading Capacity:
1,500 lbs (680kg)
Gross Weight:
660 lbs (299 kg)

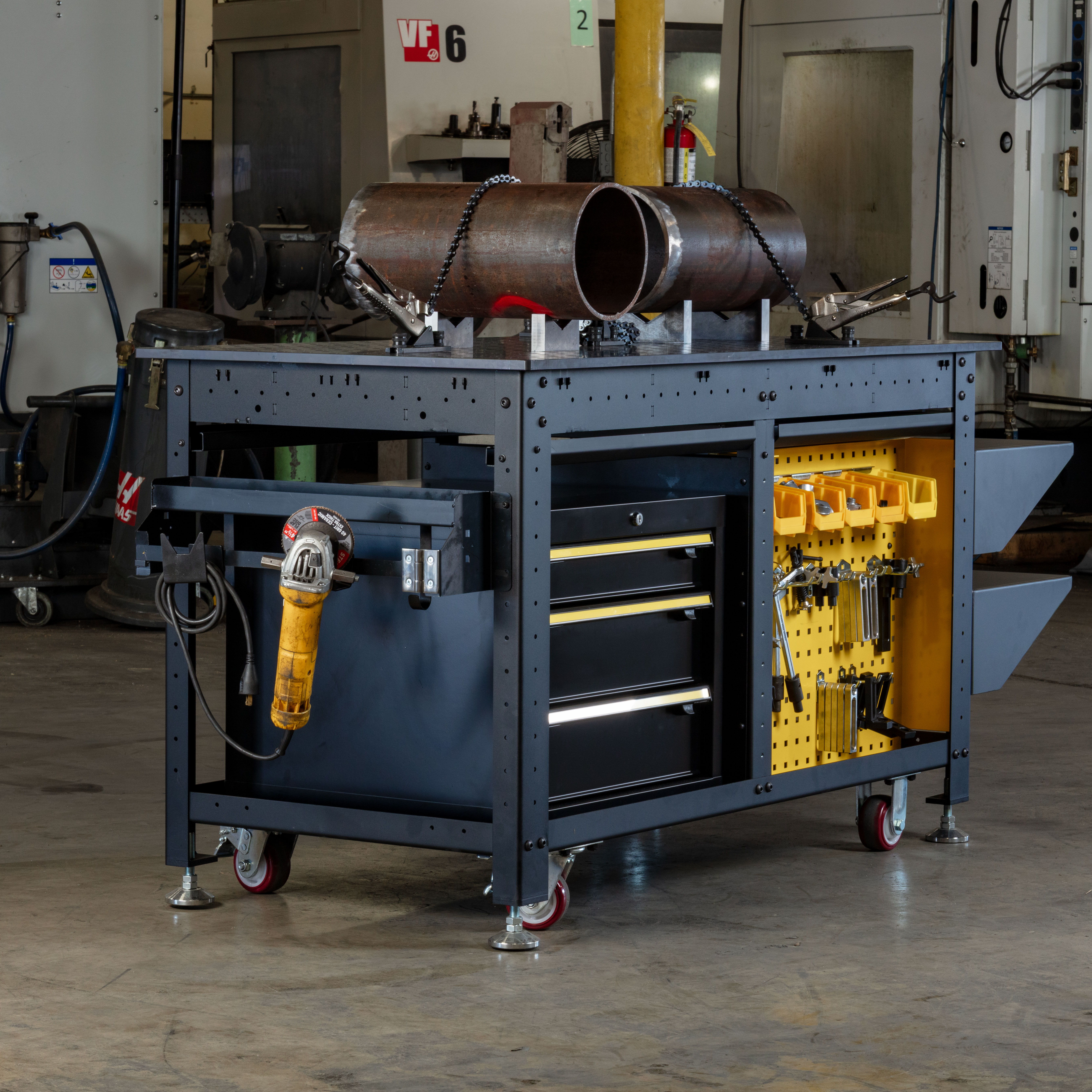

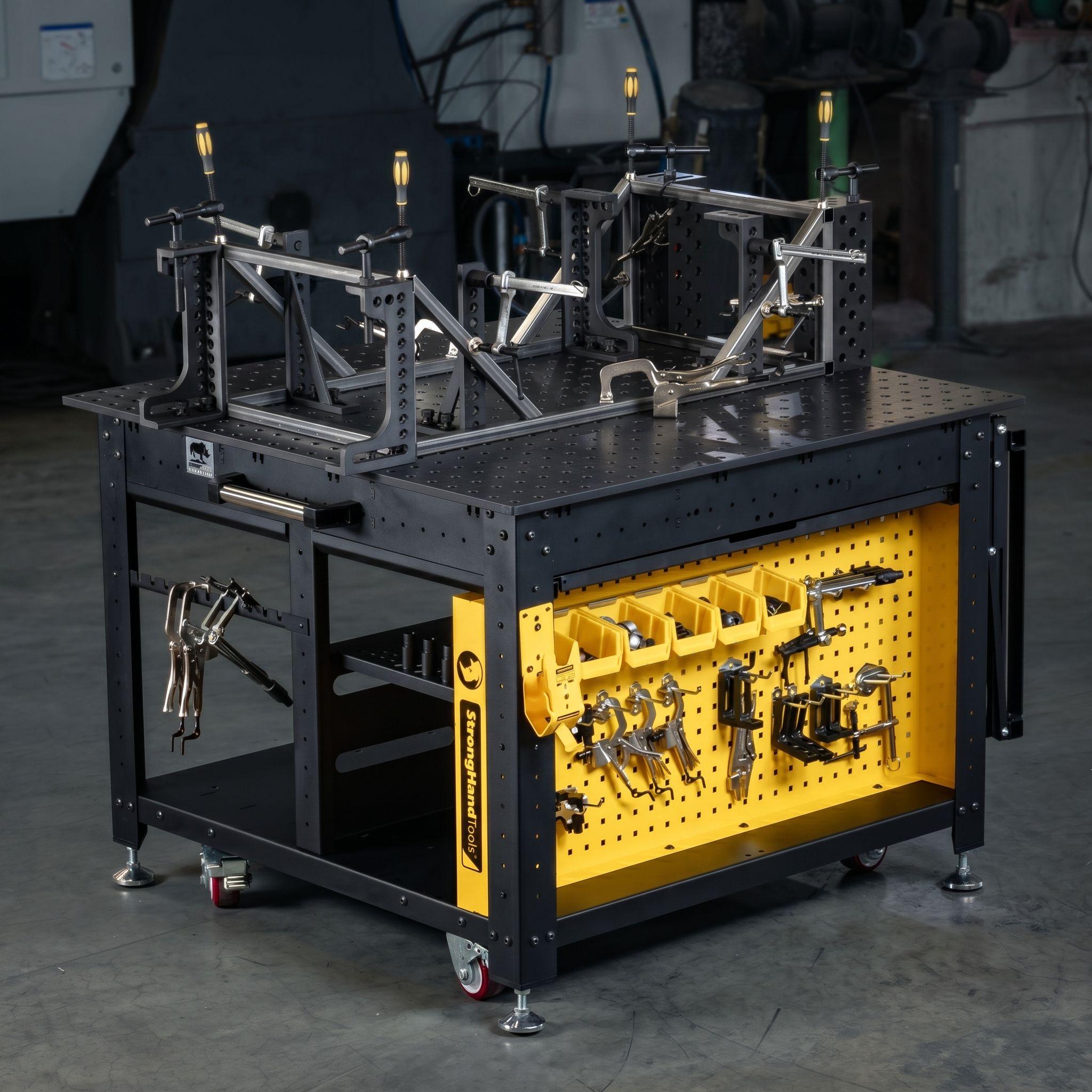

High-Precision Tubular Frame and Chassis Construction
Building roll cages, suspension components, or custom exhaust headers requires precise multi-axis holding power to prevent heat distortion during welding.

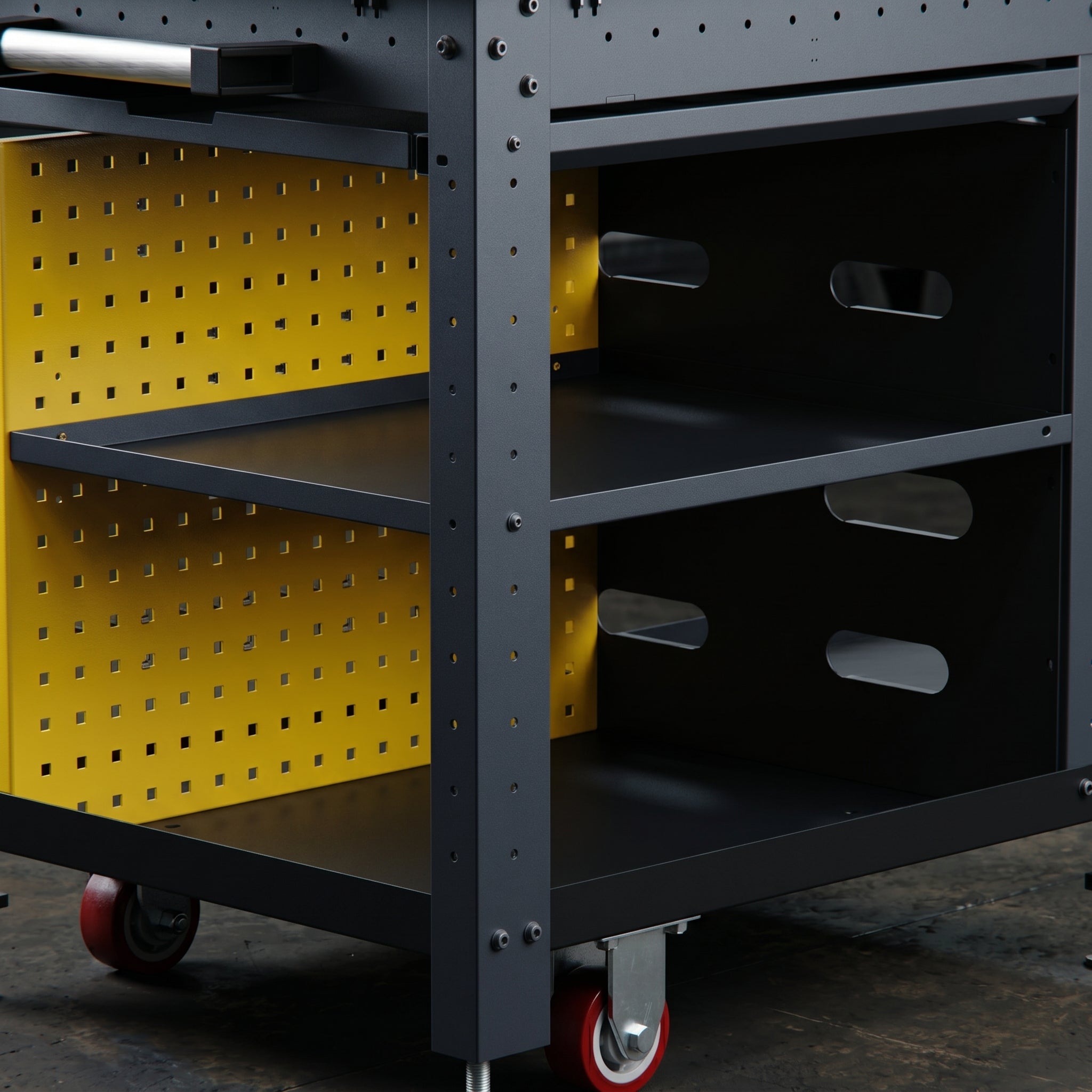

Advanced F3 Storage

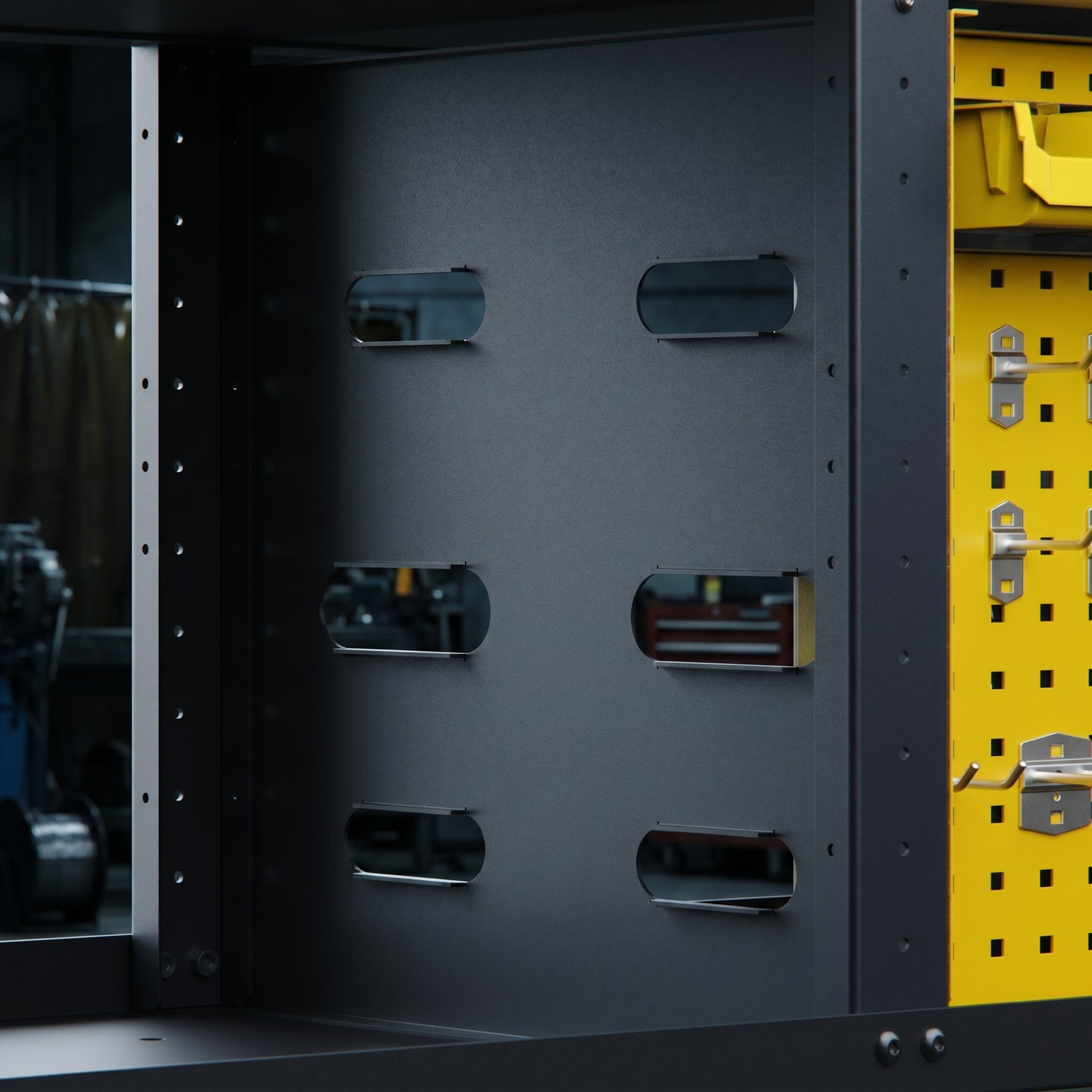

features dedicated routing cutouts in the center divider panel for neat electrical and communication cable organization, which is essential for collaborative robot (cobot) integrations.
Clean & Organized (F3 System)
The latest F3 generation introduces modular slag and dust trays that lock into position with a spring-loaded plunger mechanism, capturing falling debris and maintaining a clean work environment.

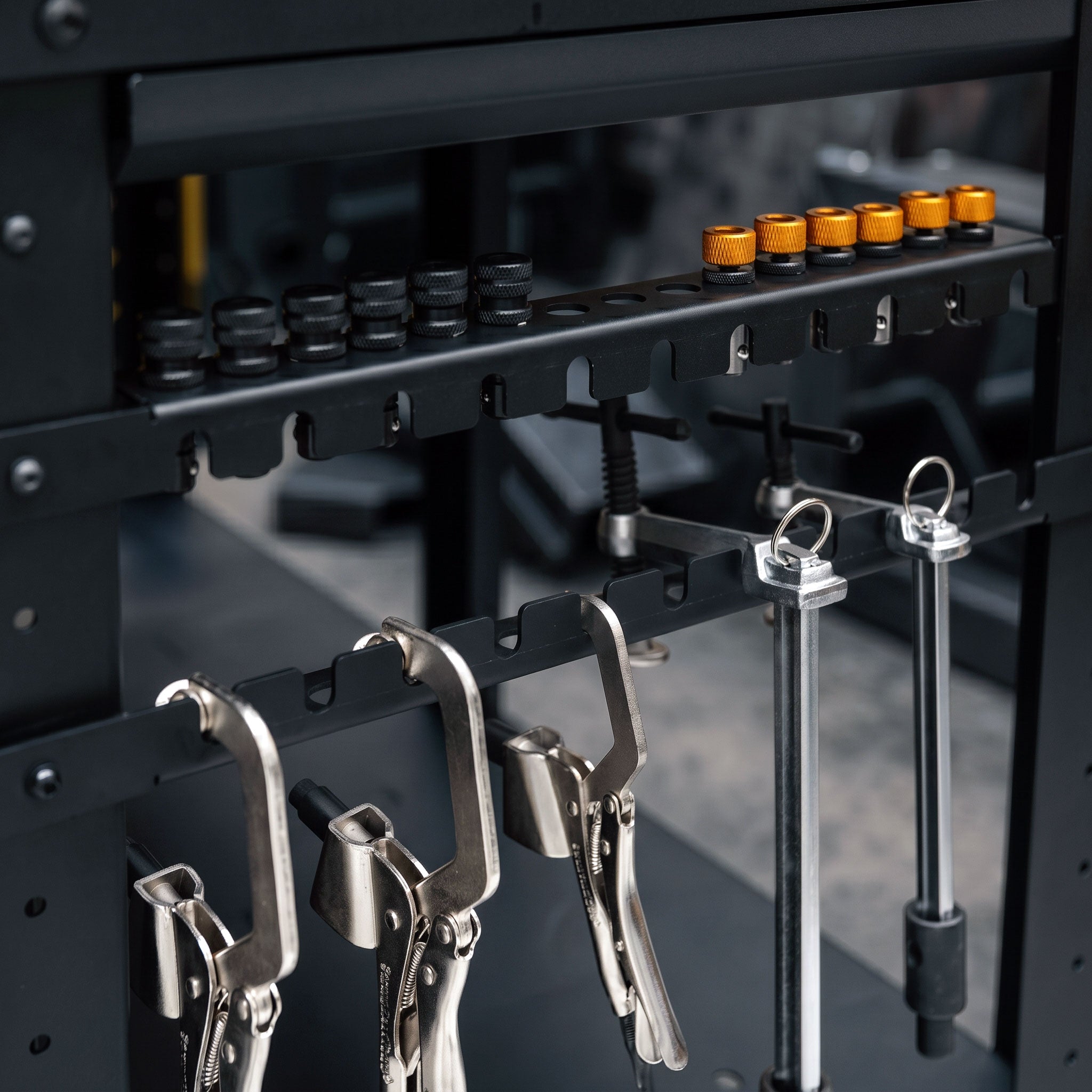

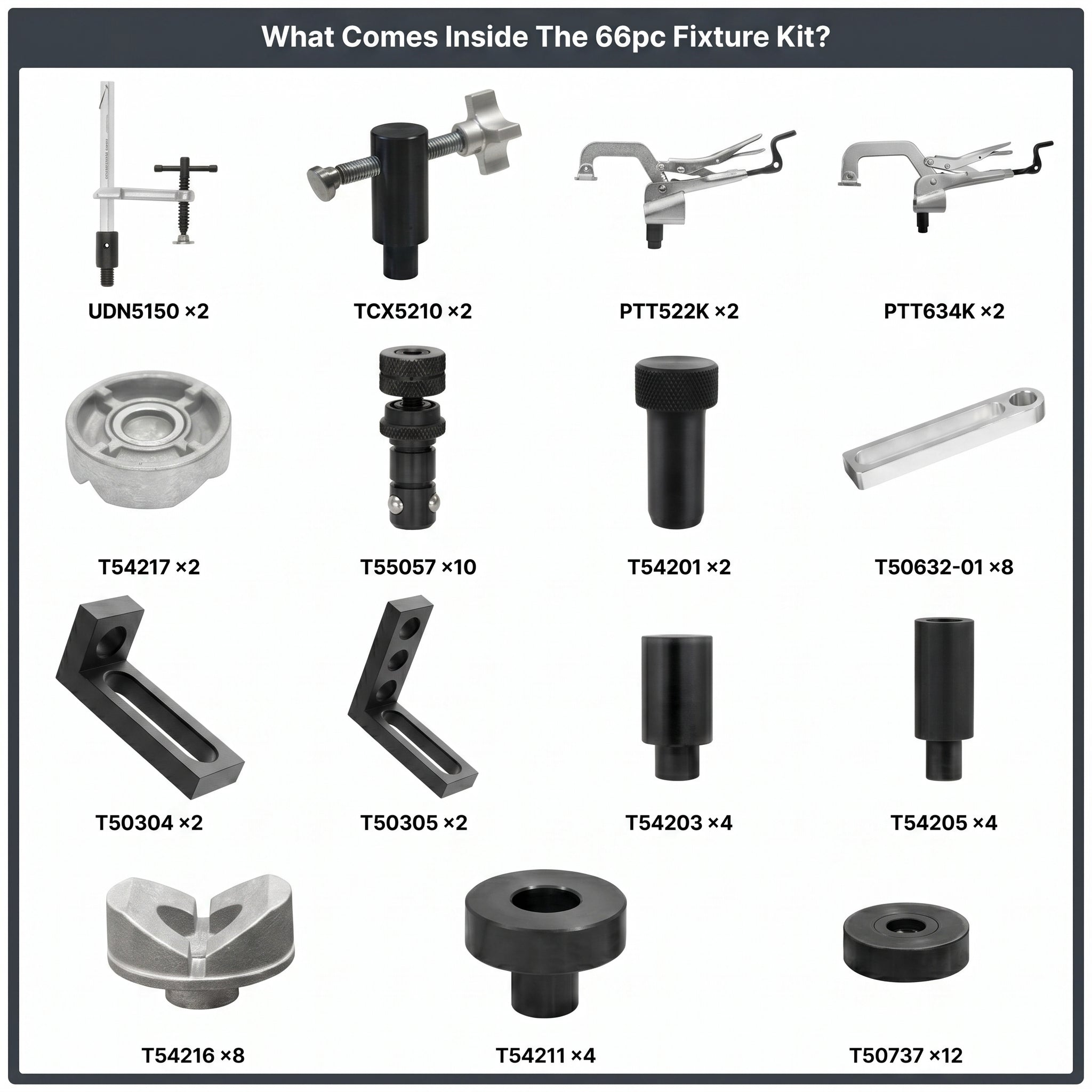

Turnkey 66-Piece Modular Fixturing Kit
TD5-6030Q-K3 the workstation comes complete with a comprehensive professional tooling kit. This package provides everything needed to establish highly precise, three-dimensional clamping setups right out of the box.

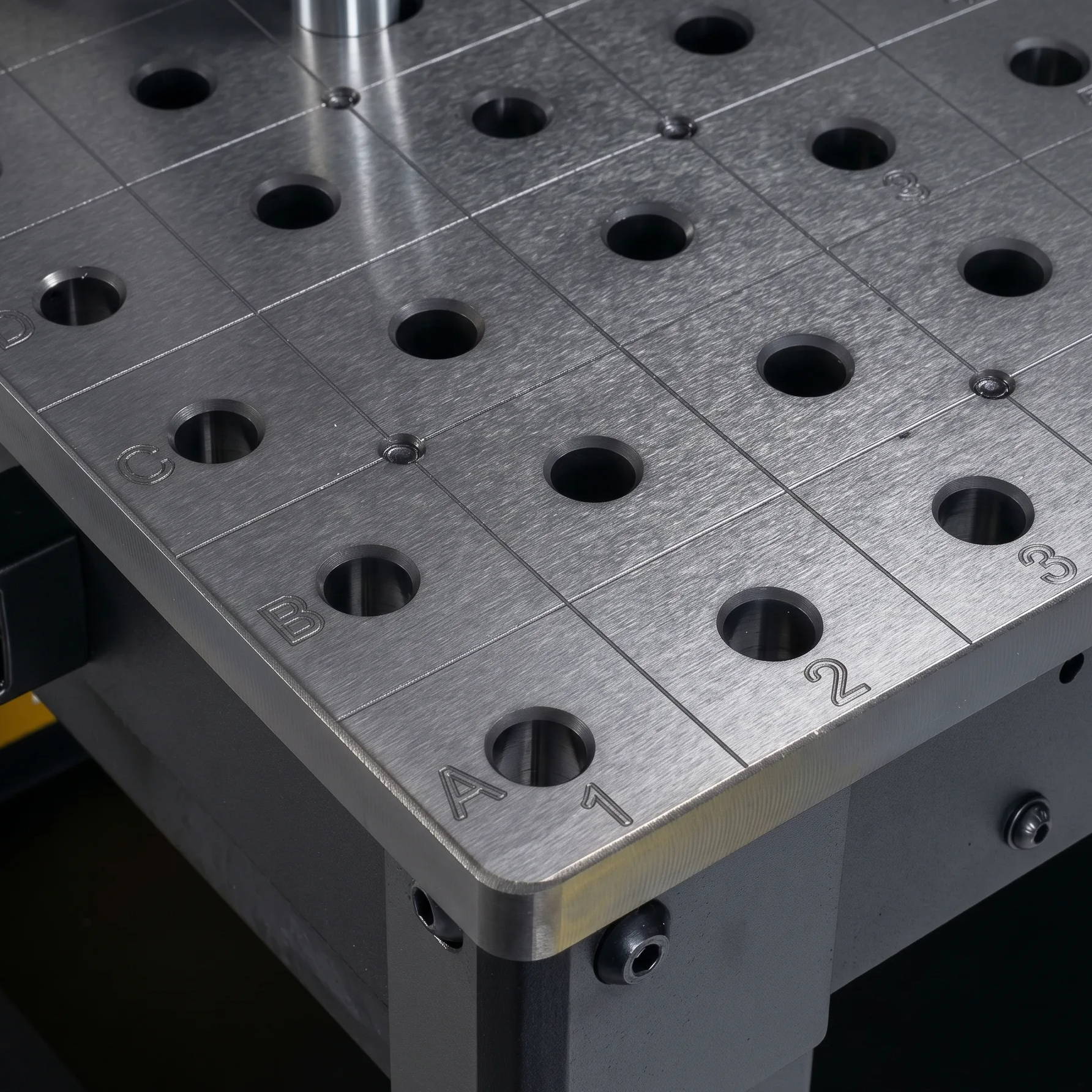

CNC Precision-Bored Fixturing Grid
Accurately positioned parts are secured using the integrated 5/8-inch (0.625-inch) diameter boreholes, which are CNC precision-machined at a strict 2-inch by 2-inch grid interval.
CNC Precision-Bored Fixturing Grid
Accurately positioned parts are secured using the integrated 5/8-inch (0.625-inch) diameter boreholes, which are CNC precision-machined at a strict 2-inch by 2-inch grid interval.

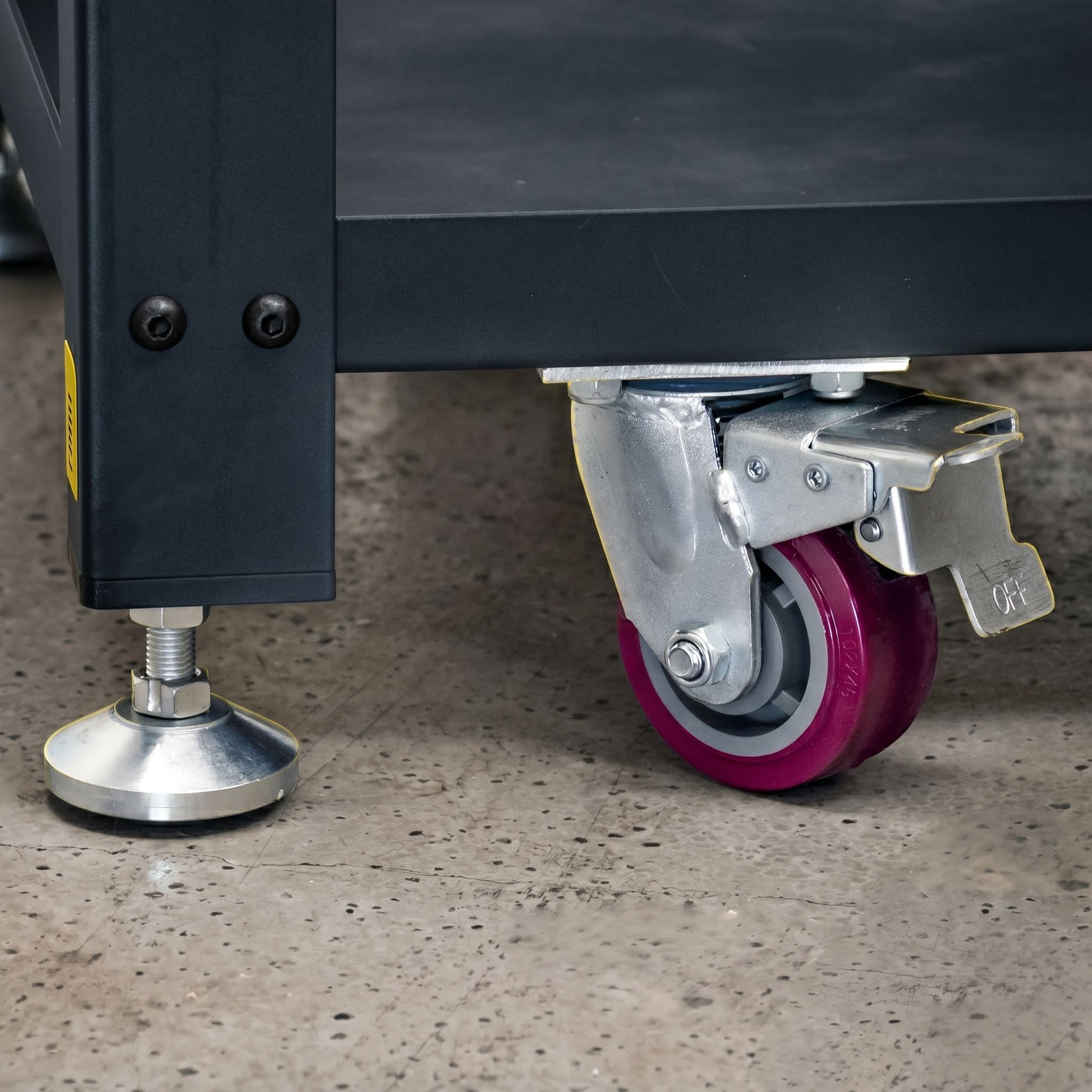

Easy to Move, Solid When Set
Equipped with four heavy-duty wheels that glide easily over rough workshop floors, cables, and doorways. Features two steering wheels with built-in brakes for easy maneuvering and secure parking.
Setup Time Reductions
Instead of manually squaring each joint, a fabricator can drop locating pins (T54201) and D-stop bars (T50632-01) directly into the indexed coordinates. This establishes a rigid template in minutes, reducing fit-up times by up to 80%.

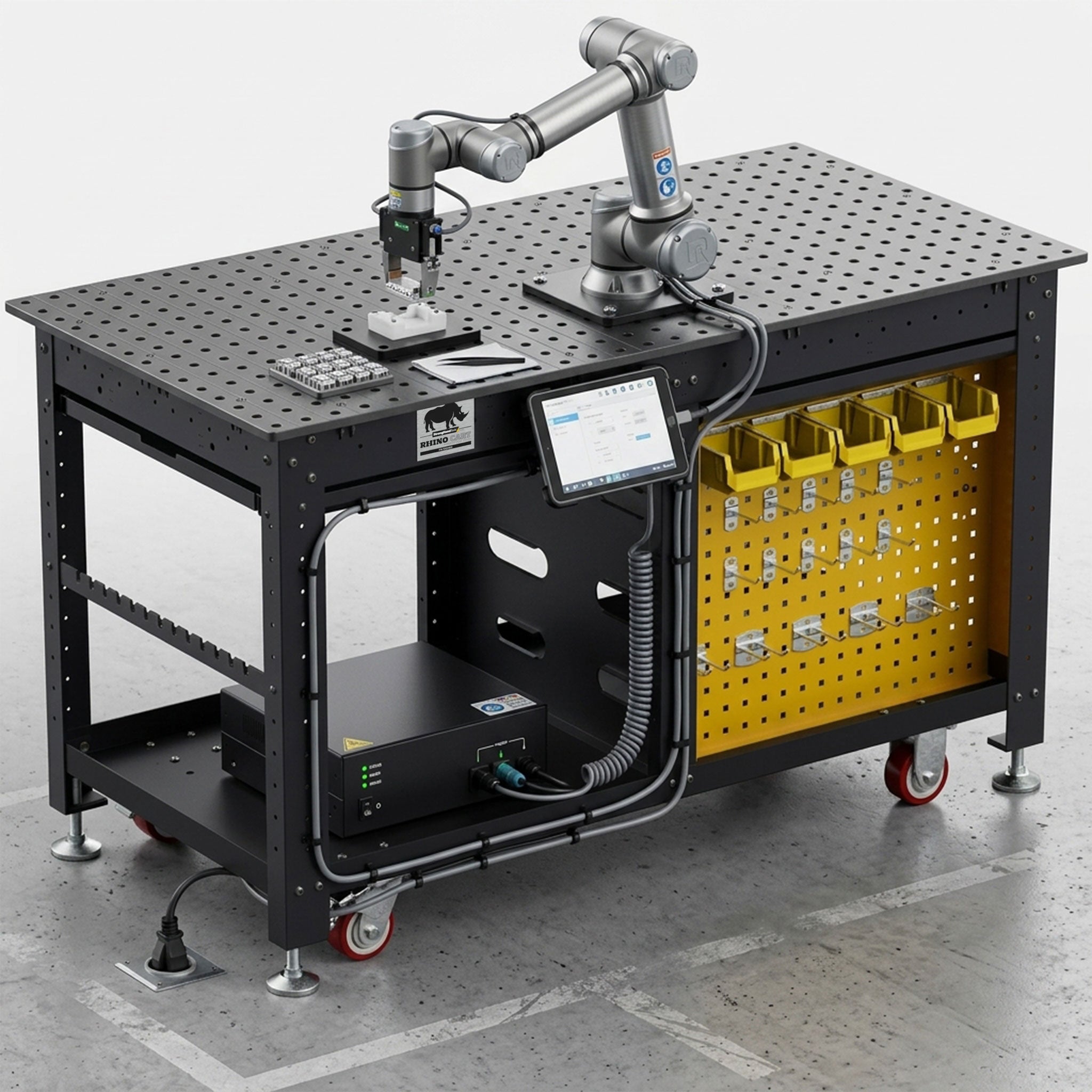

Collaborative Robot (Cobot) Welding Workcell
The rise of automated cobots has introduced new requirements for high-precision, space-efficient fixturing platforms.
-
Physical Setup: A compact cobot unit is bolted directly into the 5/8-inch boreholes on one end of the Rhino Cart. Since the table's coordinate grid is highly precise, the programmer can align the cobot's software coordinates directly with the table's physical X and Y grid.
-
Fixturing Workflow: Small to medium-sized assemblies are staged using locating pins, D-stop bars, and Inserta clamps. Once the jig coordinates are programmed, the cobot can execute precise, automated welds across multiple parts.
-
Utility Integration: The F3 series includes pre-machined slots in the center divider panel. This allows high-amperage welding cables, shielding gas hoses, and electrical lines to be routed neatly beneath the cart. This layout prevents cables from tangling on the outside of the cart, ensuring safe, unobstructed rotation for both the operator and the cobot.
