Double-Life Reversible Top: The 5/8-inch (16 mm) thick, heavy-duty steel table resists rust, scratches, and welding spatter. If one side ever gets worn out, you can flip the plates over for a brand-new work surface.
-
Precision Grid & Measurement: Features 5/8-inch (16 mm) holes spaced exactly 2 by 2 inches (51 by 51 mm) apart for easy clamping. One side has built-in letter and number grids, so you can record and repeat your exact setups without re-measuring.
-
Clean & Organized (F3 System): Built-in trays catch falling dust and slag to keep your shop clean, while center cutouts keep your electrical and robot cords organized and out of the way.
-
Roll or Lock Mobility: Heavy-duty wheels let you easily roll the cart across rough shop floors. Once in place, you can lower four independent leveling feet to lift the wheels and lock the bench completely flat and steady.
-
Ready-to-Go 66-Piece Tool Kit: Packages starting with a "K" include a full 66-piece clamping kit (clamps, pins, bolts, and brackets) so you can start precise, 3D building right out of the box.
U.S. PAT. 9896117
Other Systems
16mm System
28mm System
Metric Spacing
Inch Spacing
Tables
Fixtures

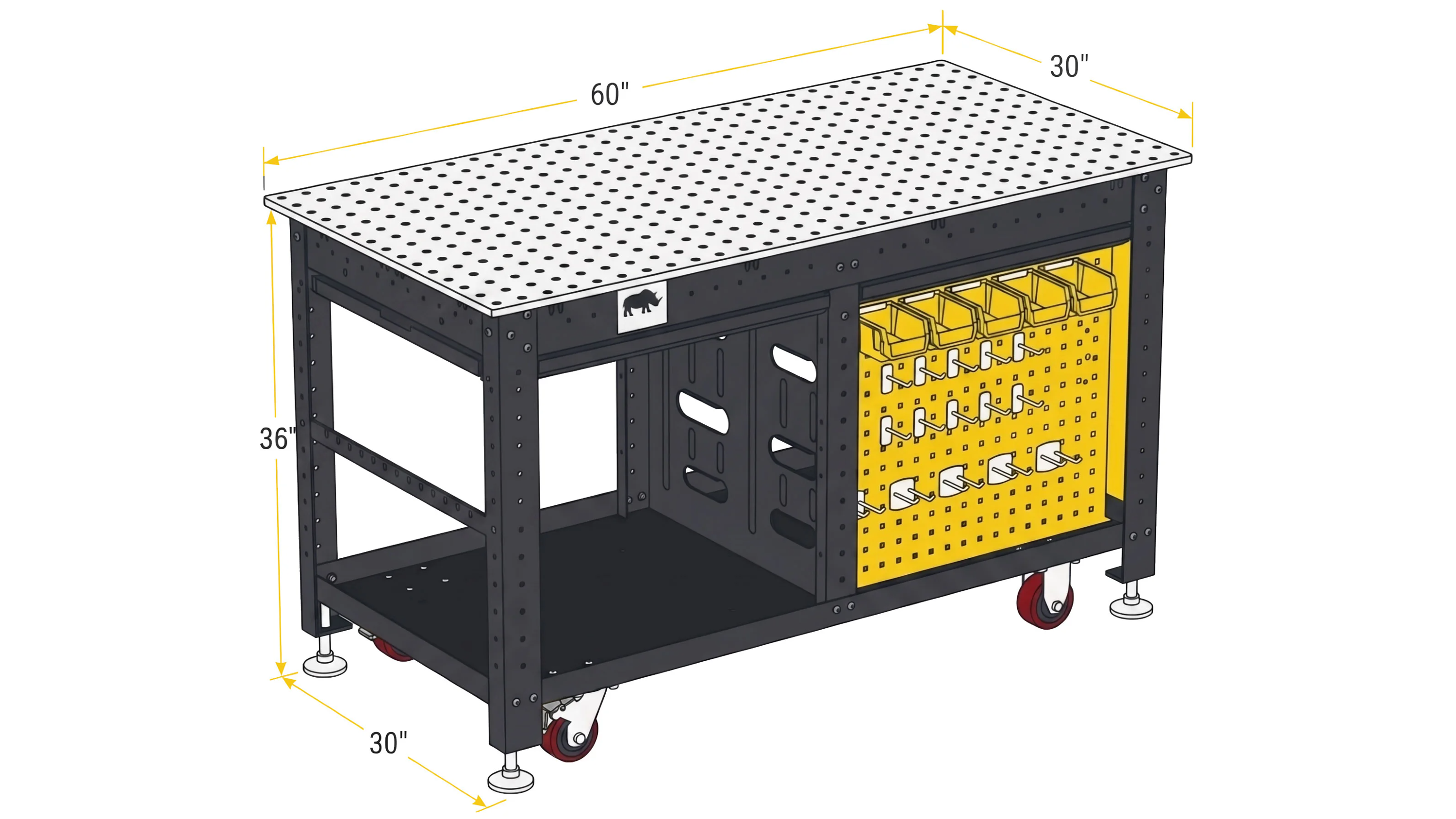

Rhino Cart 60" x 30" Mobile Work Station
Patented
Add the 66-pc Fixturing Kit now and get a FREE plasma cutting tray - offer won't last!
-
Estimated delivery: Jul 11 - Jul 15
Estimate Shipping for this Item
Rhino Cart 60" x 30" Mobile Work Station
Product Overview
Borehole Diameter:
0.625 in + 0.001 / + 0.003 in (16 mm nominal / 5/8 in nominal)
Hole Spacing Grid
2.000 in ± 0.002 in (50.8 mm) center-to-center
Tabletop Working Area
60 in x 30 in (1524 mm x 762 mm)
Tabletop Plate Thickness
0.630" / ±0.004 in (±0.10 mm)
Table Flatness:
±0.015" per 24" x 24"
Table Height:
36″
Static Loading Capacity:
1,500 lbs (680kg)
Assembled Gross Weight:
540 lbs (245 kg)
High-Precision Tubular Frame and Chassis Construction
Building roll cages, suspension components, or custom exhaust headers requires precise multi-axis holding power to prevent heat distortion during welding.
Advanced F3 Storage
features dedicated routing cutouts in the center divider panel for neat electrical and communication cable organization, which is essential for collaborative robot (cobot) integrations.
Clean & Organized (F3 System)
The latest F3 generation introduces modular slag and dust trays that lock into position with a spring-loaded plunger mechanism, capturing falling debris and maintaining a clean work environment.
Turnkey 66-Piece Modular Fixturing Kit
TD5-6030Q-K3 the workstation comes complete with a comprehensive professional tooling kit. This package provides everything needed to establish highly precise, three-dimensional clamping setups right out of the box.
CNC Precision-Bored Fixturing Grid
Accurately positioned parts are secured using the integrated 5/8-inch (0.625-inch) diameter boreholes, which are CNC precision-machined at a strict 2-inch by 2-inch grid interval.
CNC Precision-Bored Fixturing Grid
Accurately positioned parts are secured using the integrated 5/8-inch (0.625-inch) diameter boreholes, which are CNC precision-machined at a strict 2-inch by 2-inch grid interval.
Easy to Move, Solid When Set
Equipped with four heavy-duty wheels that glide easily over rough workshop floors, cables, and doorways. Features two steering wheels with built-in brakes for easy maneuvering and secure parking.
Setup Time Reductions
Instead of manually squaring each joint, a fabricator can drop locating pins (T54201) and D-stop bars (T50632-01) directly into the indexed coordinates. This establishes a rigid template in minutes, reducing fit-up times by up to 80%.
Collaborative Robot (Cobot) Welding Workcell
The rise of automated cobots has introduced new requirements for high-precision, space-efficient fixturing platforms.
-
Physical Setup: A compact cobot unit is bolted directly into the 5/8-inch boreholes on one end of the Rhino Cart. Since the table's coordinate grid is highly precise, the programmer can align the cobot's software coordinates directly with the table's physical X and Y grid.
-
Fixturing Workflow: Small to medium-sized assemblies are staged using locating pins, D-stop bars, and Inserta clamps. Once the jig coordinates are programmed, the cobot can execute precise, automated welds across multiple parts.
-
Utility Integration: The F3 series includes pre-machined slots in the center divider panel. This allows high-amperage welding cables, shielding gas hoses, and electrical lines to be routed neatly beneath the cart. This layout prevents cables from tangling on the outside of the cart, ensuring safe, unobstructed rotation for both the operator and the cobot.
What Comes Inside The 66pc Fixture Kit?
UDN5150 x2
TCX5210 x2
PTT522K x2
PTT634K x2
T54217 x2
T55057 x10
T54201 x2
T50632-01 x8
T50304 x2
T50305 x2
T54203 x4
T54205 x4
T54216 x8
T54211 x4
T50737 x12
Optional Accessories
Tailor Your Rhino Cart To Your Specifications
- Plasma Cutting Trays
- Accessory Shelves for Rhino Cart, Twin Pack
- Storage Tool Boxes for Rhino Cart
- Grinder Storage Rack for Rhino Carts
- Modular Tube & Pipe Notcher
- Turntables for Rhino Cart
- Rhino Plate Connecting Bridge Kit
Design for shops needing a reliable, easy-to-store plasma cutting solution that integrates seamlessly with our latest models of Rhino Carts.
Compatible Models:
- TPL3022 Plasma Cutting Tray fits the TD5-4830Q-F3 and TD5-6030Q-F3 tables.
- TPL4828 Plasma Cutting Tray fits the TD5-4848Q-F3 table.
Space-saving fold-away design
Up to 330 lb capacity for heavy parts.
Cushioned control for smooth fold & drop
Reversible / Replaceable Steel Slats
This twin pack includes two shelves that can be used face-up or face-down, and mounted on Rhino Carts' legs.
Efficiently organize and transport your tools with our Storage Tool Boxes for Rhino Cart.
These durable, high-quality boxes are specifically designed to fit onto the Rhino Cart, providing convenient storage space for all your essential tools.
Increase productivity and keep your workspace clutter-free with our Storage Tool Boxes.
The Grinder Storage Rack is the perfect companion for your Rhino Cart. Designed for welders and fabricators, this accessory takes organization and convenience to the next level, ensuring that your workspace remains efficient and clutter-free.
The Grinder Storage Rack provides a more organized and efficient workspace. Keep your grinders easily accessible, maximize space, and take your fixturing and welding projects to new heights with this essential accessory for the Rhino Cart, get yours today!
* This accessory is designed for 48" x 30" and 60" x 30" Rhino Carts only.
Seamless Integration
The Grinder Storage Rack is specifically designed to seamlessly integrate with the Rhino Cart Mobile Working Station. It effortlessly mounts to the side of the cart, creating a dedicated space to store your grinders.
Space Optimization
The base of the rack is made to securely mount to the cart providing a stable hold. The design allows for the arm to swing out for easy access to your grinders while also allowing you to reach items stored underneath the Rhino Cart.
Dual Grinder Capacity
The swinging arm boasts two sliding hooks, each designed to hold a separate grinder. This not only keeps your workspace organized but also ensures that your essential tools are within arm's reach when you need them.
Additional Storage Options
In addition to the grinder hooks, the Grinder Storage Rack comes equipped with four additional hooks. These offer additional storage options, allowing you to hang or store equipment and tools, further enhancing the functionality of your Rhino Cart.
