SKU: WAC35D

$148.00
$148.00
Shipping calculated at checkout.

Available in stock

Model: WAC35D
  • Eligible for Return Within 30 Days.
  • One Year Limited Warranty
  • Estimated delivery: Mar 02 - Mar 06

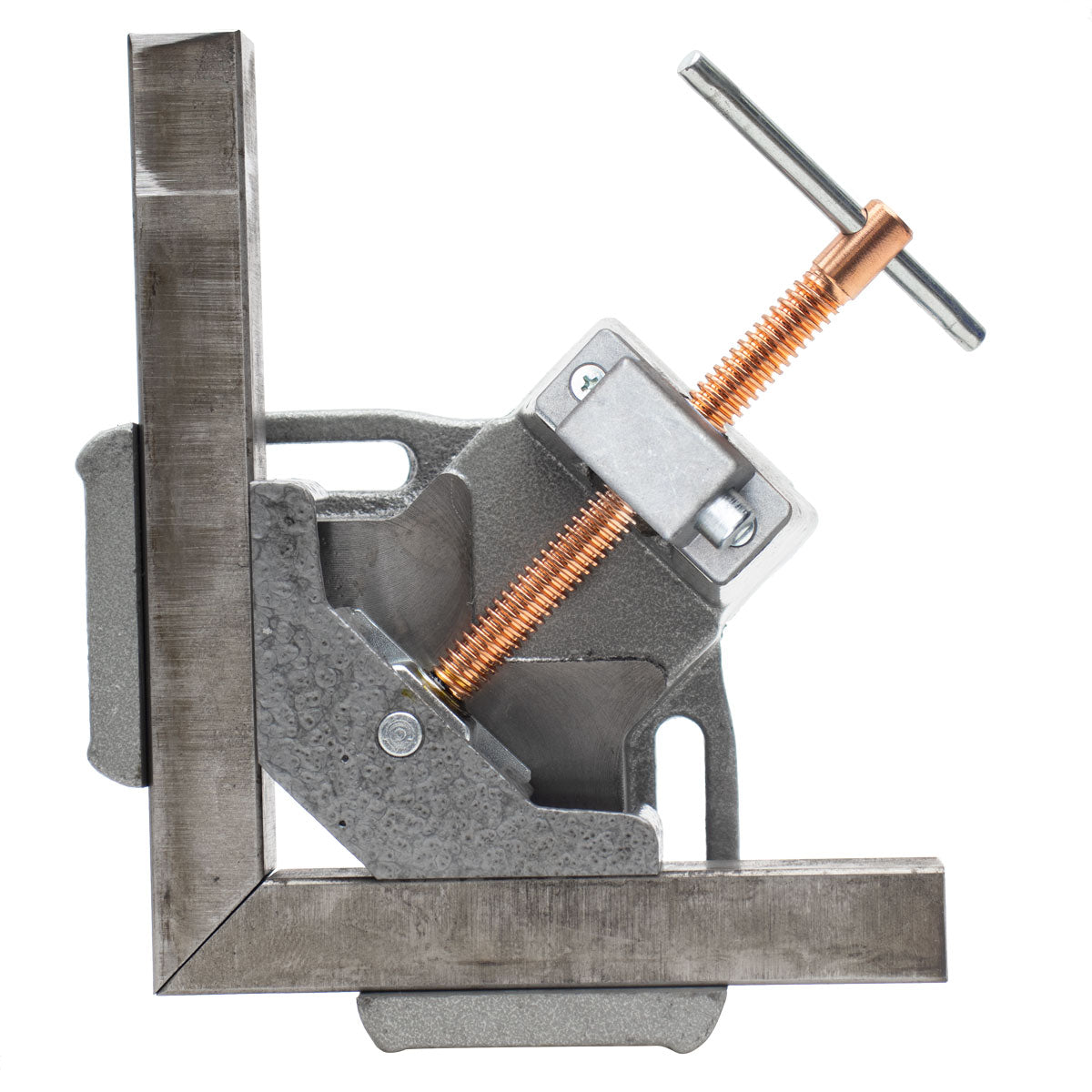

2-Axis Fixture Vises

Machined welding fixtures made of ductile cast iron.

  • Superb Weld Joint Access on all sides.
  • Quick Acting Button for fast adjustment (WAC35D and WAC45 Models).
  • Copper Plated Spindle Resists Weld Spatter.
A metal clamp with a threaded screw for holding materials securely.

Quick Acting Button

Press the Quick Acting Button (WAC35D & WAC45 models only) to allow the threaded screws to slide in and out for fast setup. (Release the button to re-engage the threaded screw for tightening.)

Close-up of a metallic object with a textured surface and angular edges.

Machined Outside Faces

for upright joint.

Magnetic Rest Blocks

2 Magnetic Rest Blocks to support & level long stock! FREE with models: WAC35D, WAC45

Close-up of a metal clamp securing two pieces of hardware together.

Stand-Offs

Use stand-offs for faster contact and clamping with angle iron.



Diagram of a mechanical clamping device with adjustable components.
Part #
WAC22
Base Slot Length (in)
1.4"
Base Slot Width (in)
0.4"
Miter Joints (in)
2.5"
Jaw Length (in)
3.1"
Clearance (in)
1.9″
Jaw Height (in)
1.3"
Gross Weight:
6 lb
Part #
WAC34
Base Slot Length (in)
1.6"
Base Slot Width (in)
0.4"
Miter Joints (in)
3.8"
Jaw Length (in)
4.2"
Clearance (in)
2.5"
Jaw Height (in)
1.4"
Gross Weight:
9.5 lb
Part #
WAC35D
Base Slot Length (in)
1.6"
Base Slot Width (in)
0.4"
Miter Joints (in)
3.8"
Jaw Length (in)
4.2"
Clearance (in)
2.5″
Jaw Height (in)
1.4"
Gross Weight:
10 lb
Part #
WAC45
Base Slot Length (in)
2"
Base Slot Width (in)
0.4"
Miter Joints (in)
5"
Jaw Length (in)
5.2"
Clearance (in)
4″
Jaw Height (in)
2.5"
Gross Weight:
22 lb
