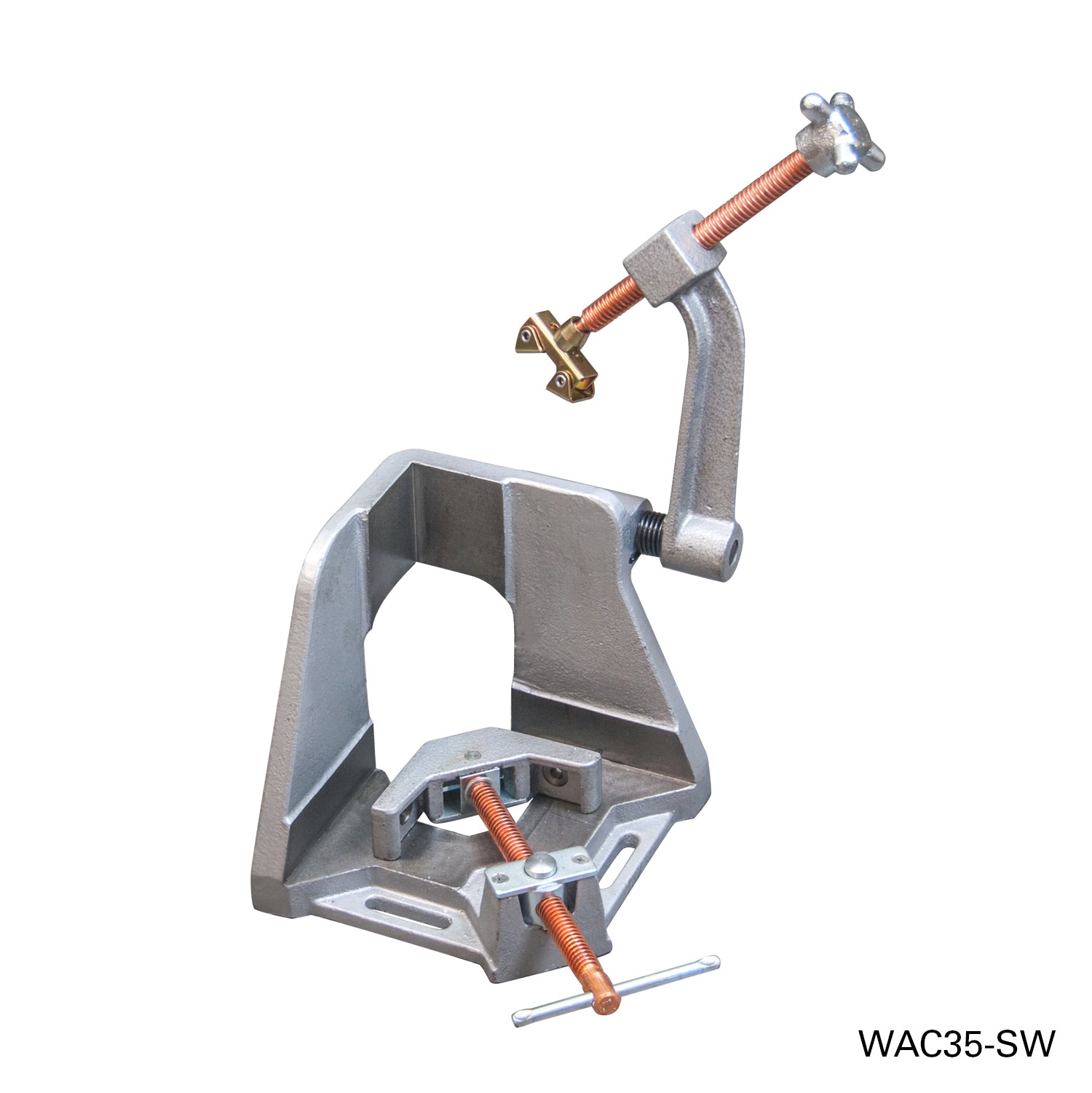

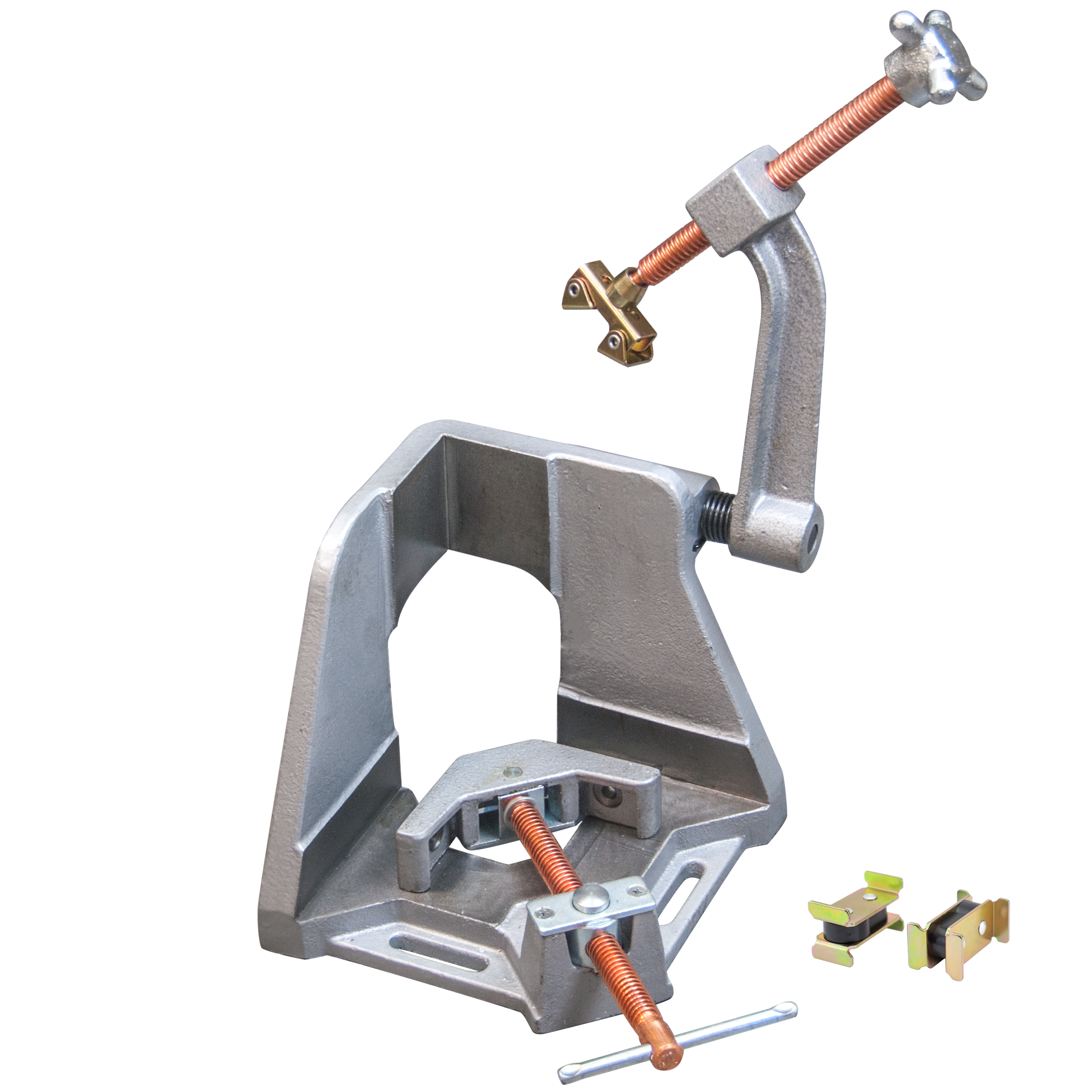

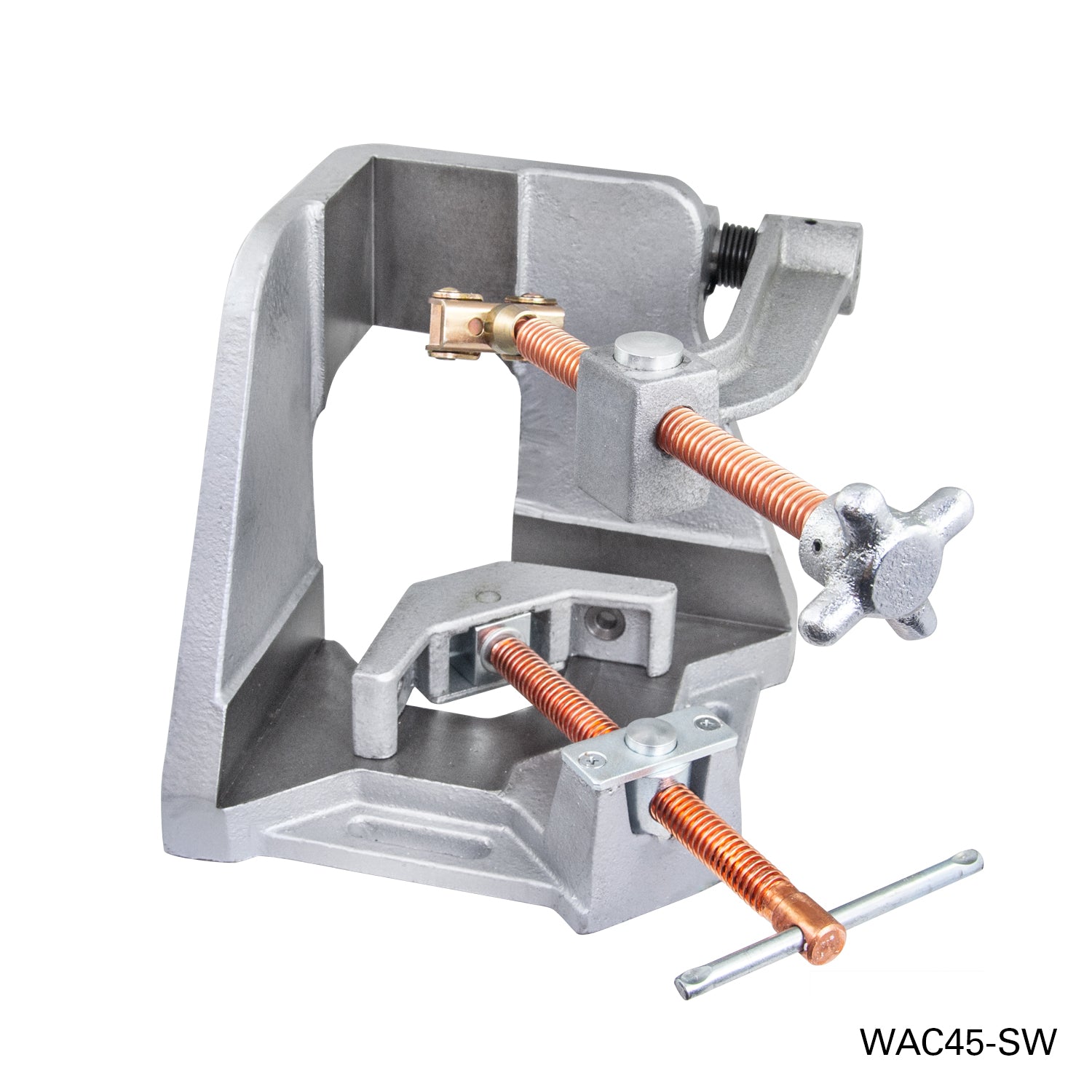

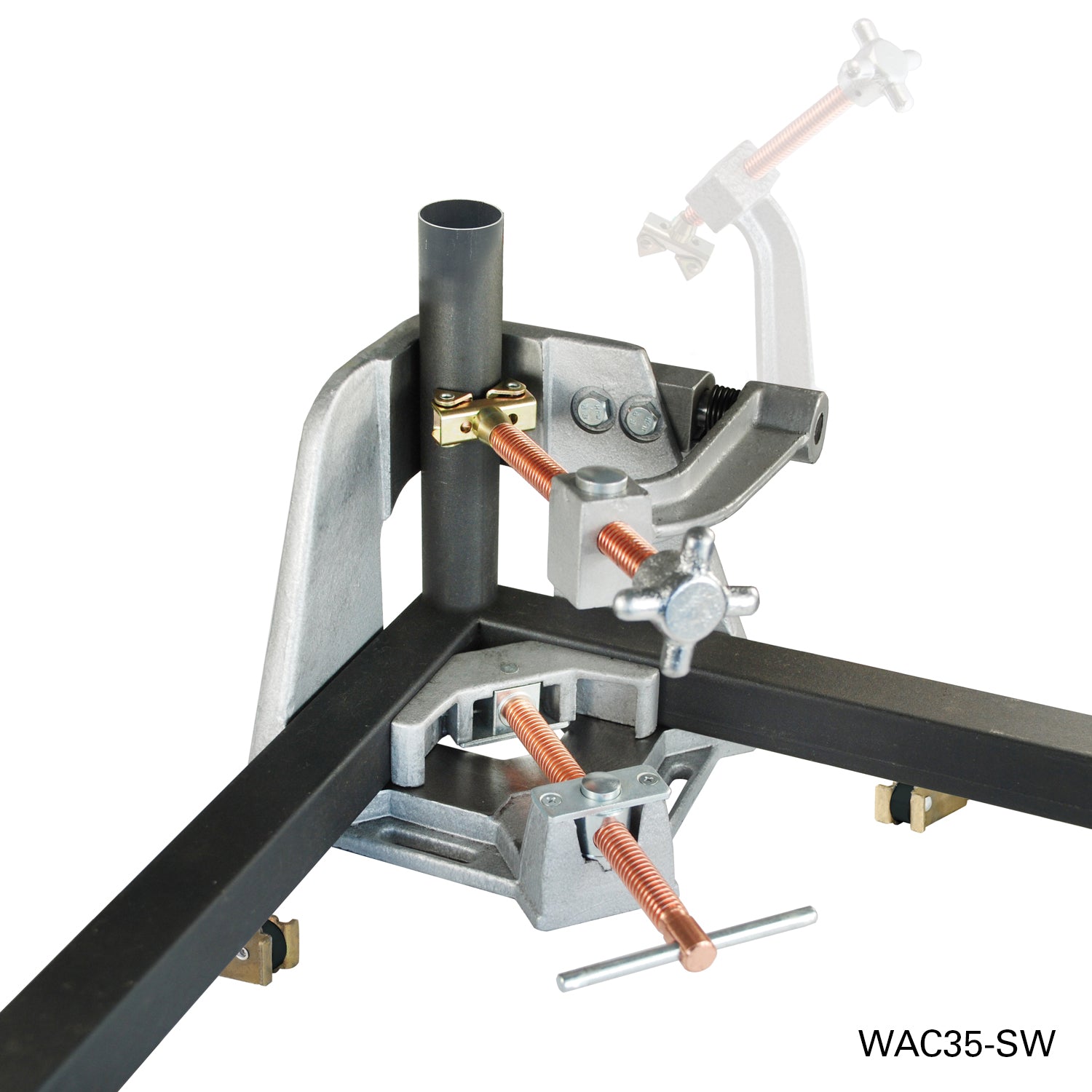

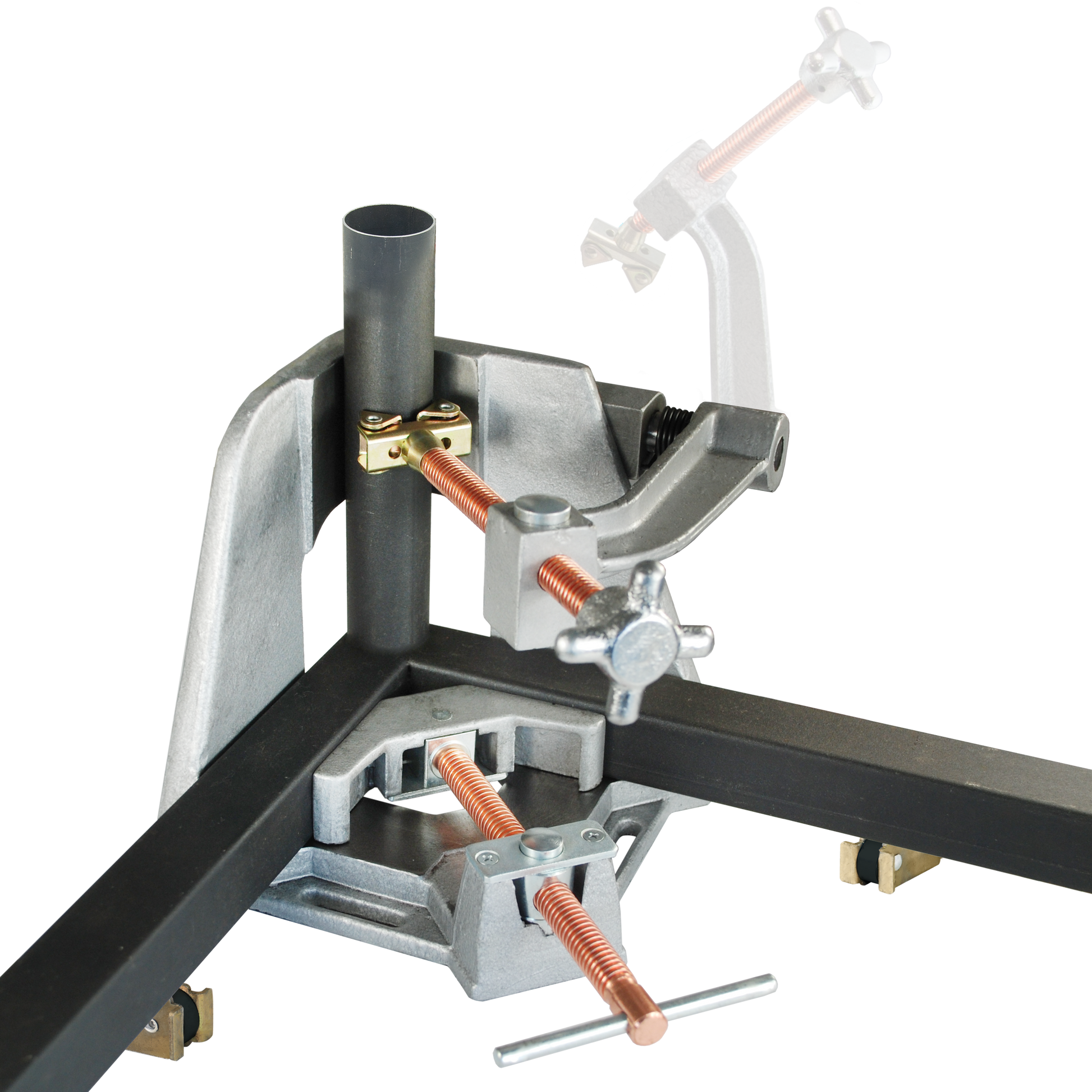

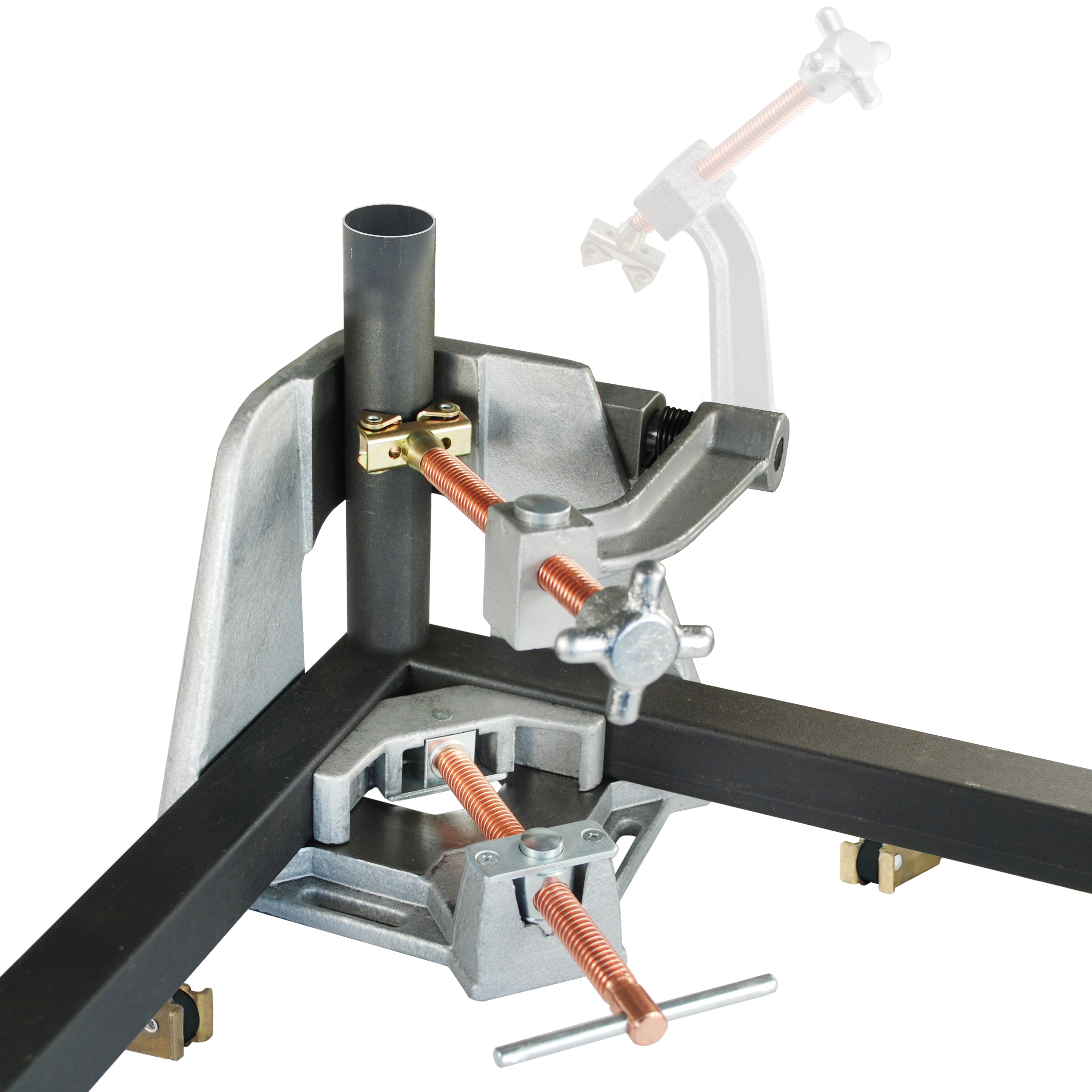

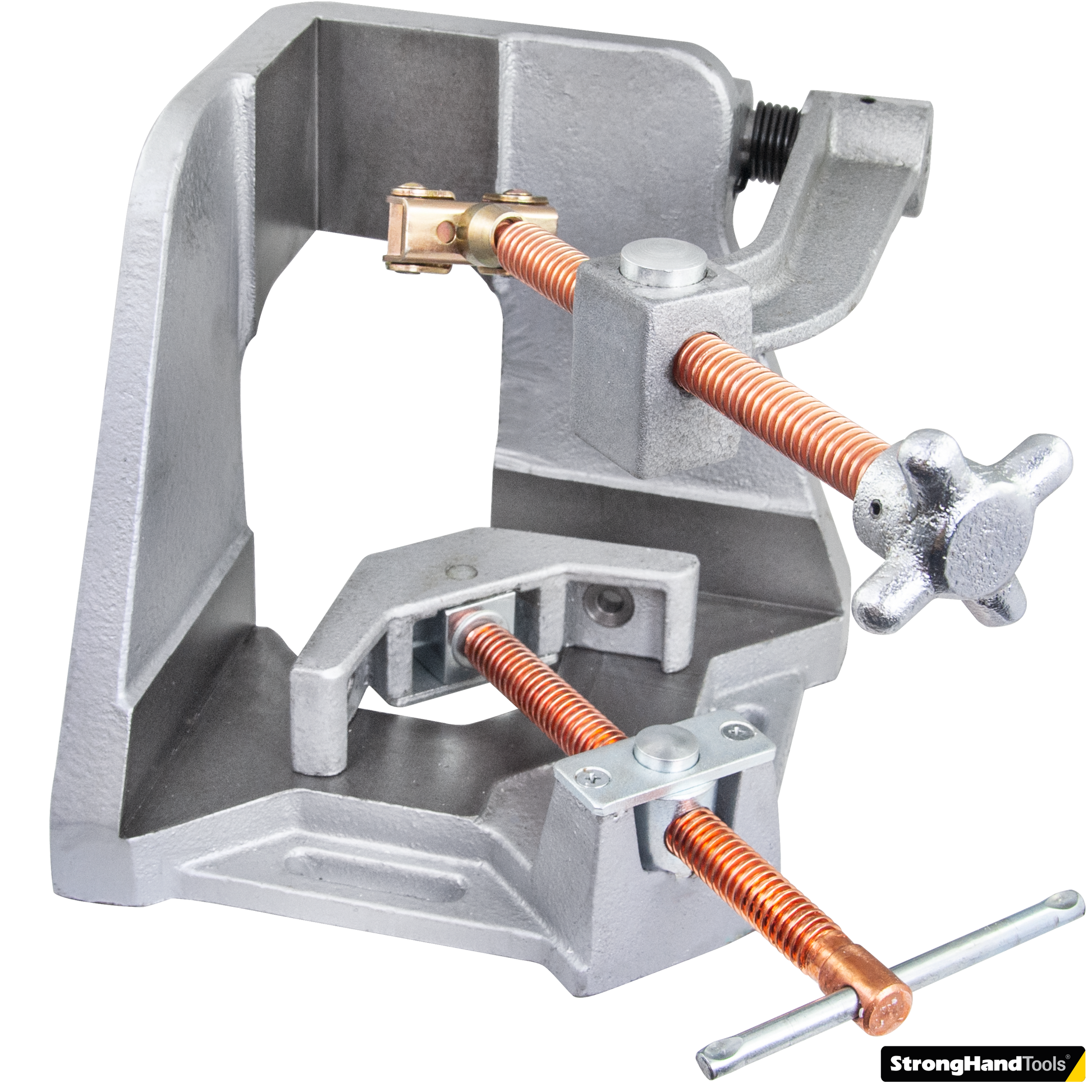

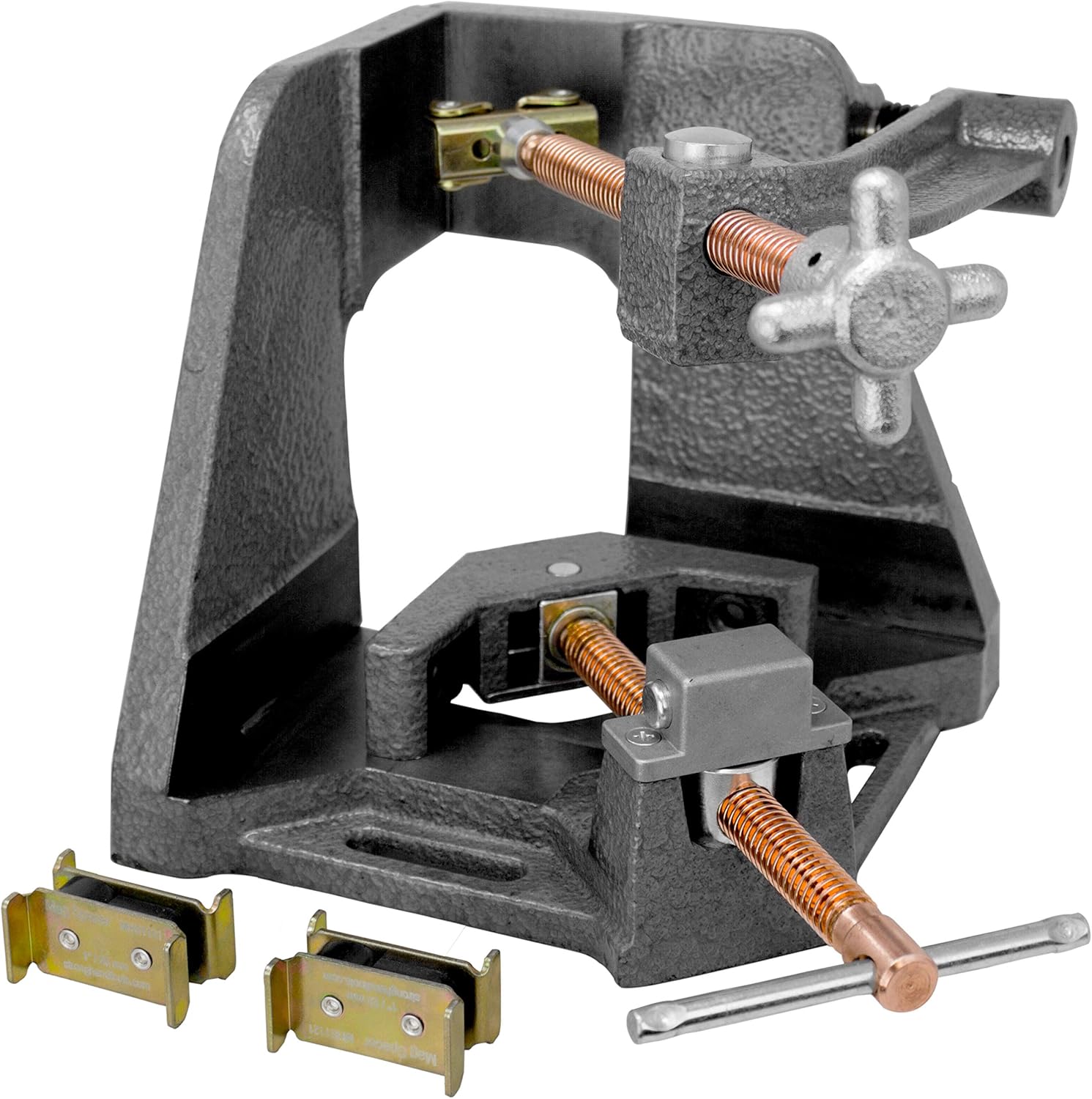

Features the Quick Acting Screws and “Swing Away” Arm. Holds a 3-axis workpiece in position before welding. Hold parts in position during cool down to minimize distortion due to contraction.
U.S. PAT. 6860475
Couldn't load pickup availability
California Prop 65 - This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more info: www.P65Warnings.ca.gov
| Part No. | A (in) | B (in) | C (in) | D (in) | E (in) | F (in) | H (in) | Weight (lb) |
|---|---|---|---|---|---|---|---|---|
| WAC35-SW | 1.6 | 0.4 | 3.8 | 4.8 | 2.5 | 1.4 | 8.3 | 24.0 |
| WAC45-SW | 2.0 | 0.4 | 5.0 | 5.2 | 4.0 | 2.5 | 9.5 | 35.0 |

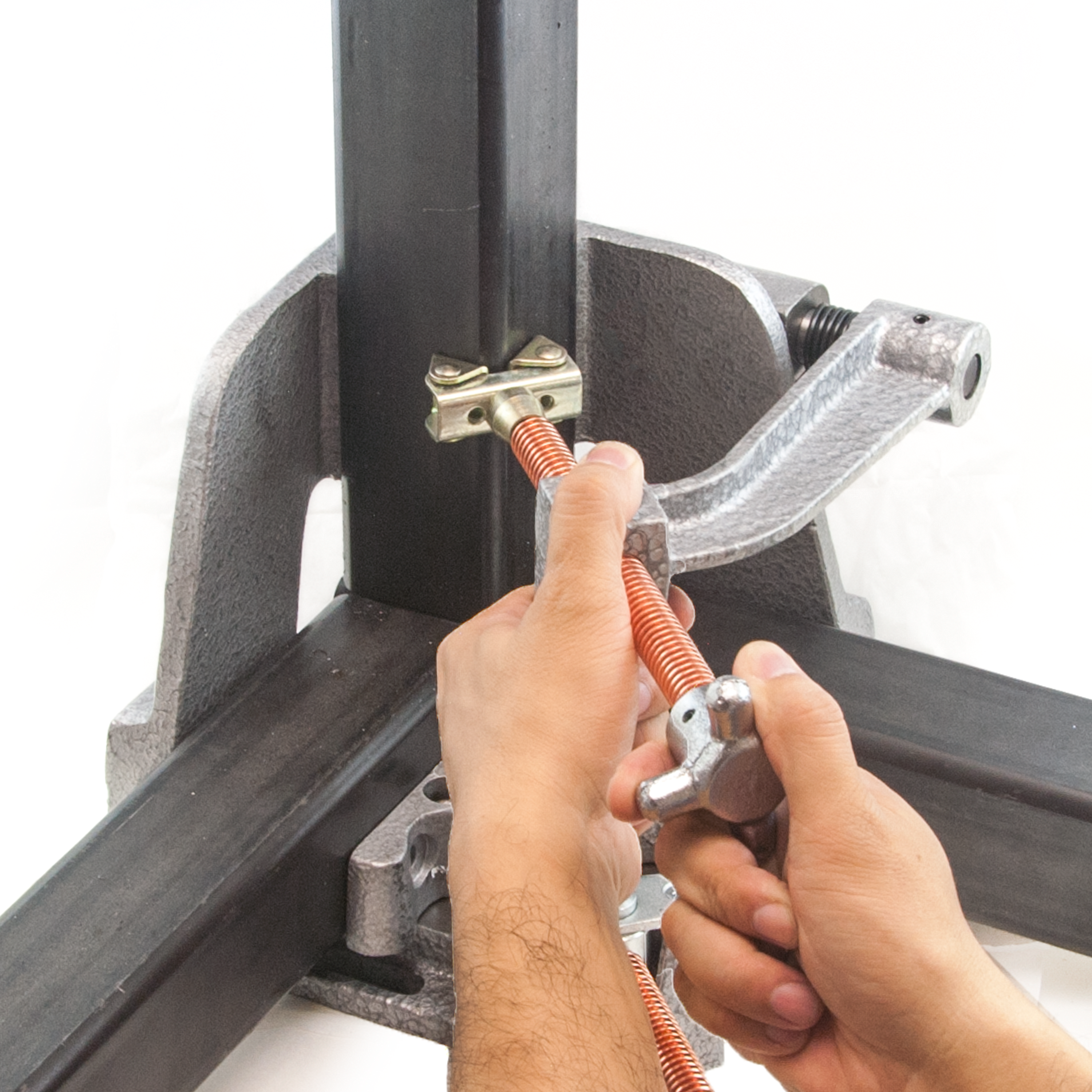

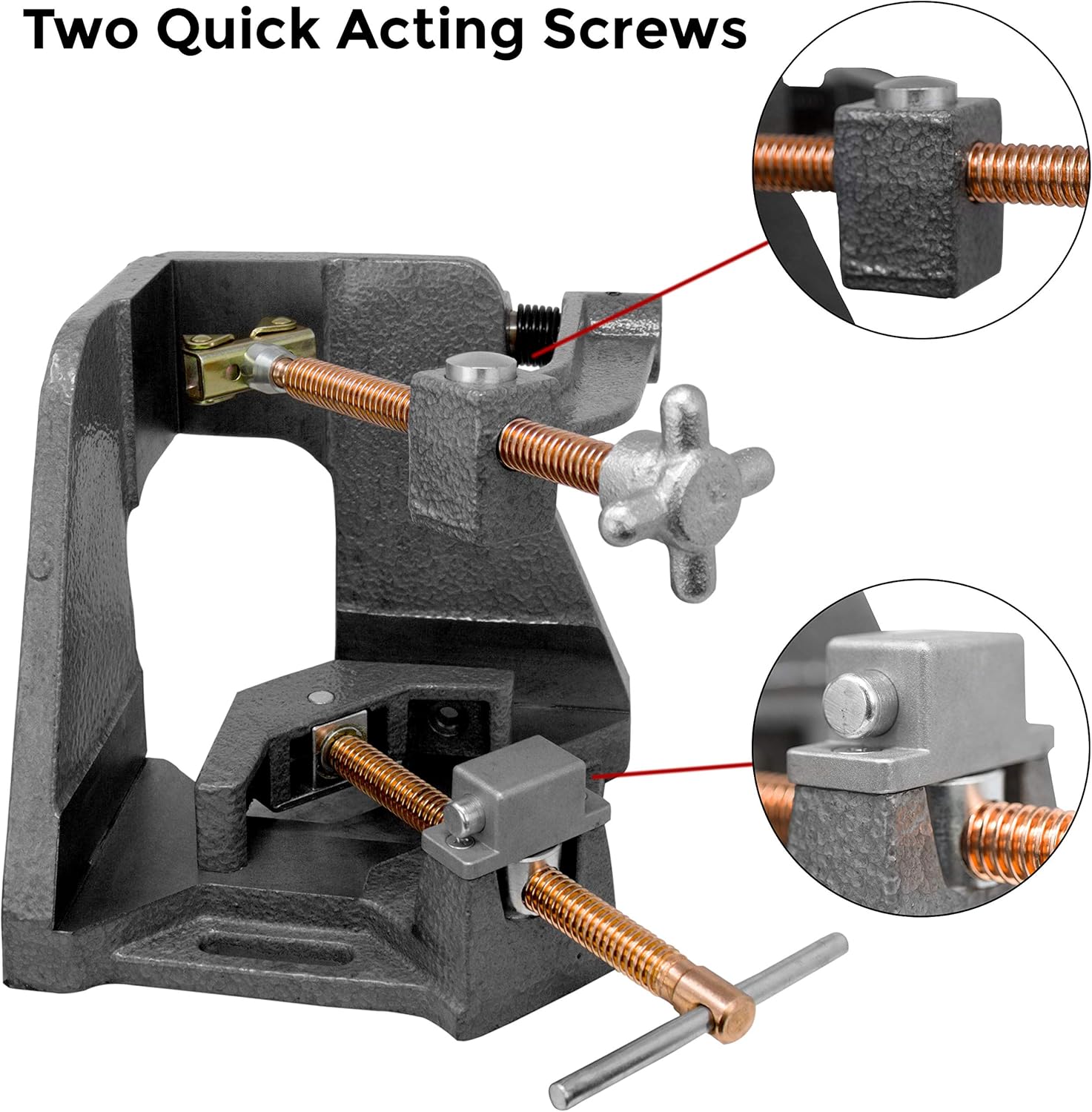

Press the Quick Acting Button (WAC35D & WAC45 models only) to allow the threaded screws to slide in and out for fast setup. (Release the button to re-engage the threaded screw for tightening.)

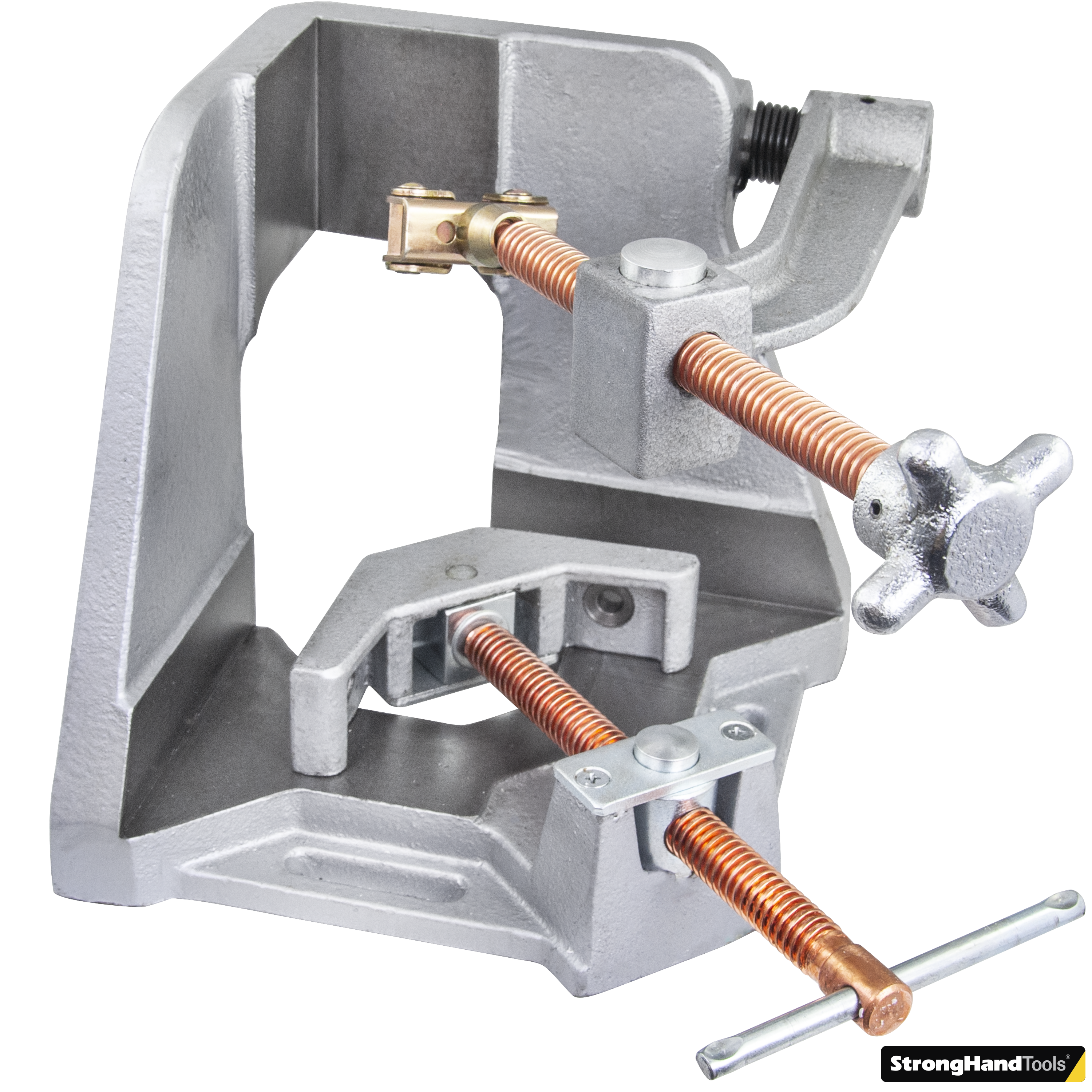

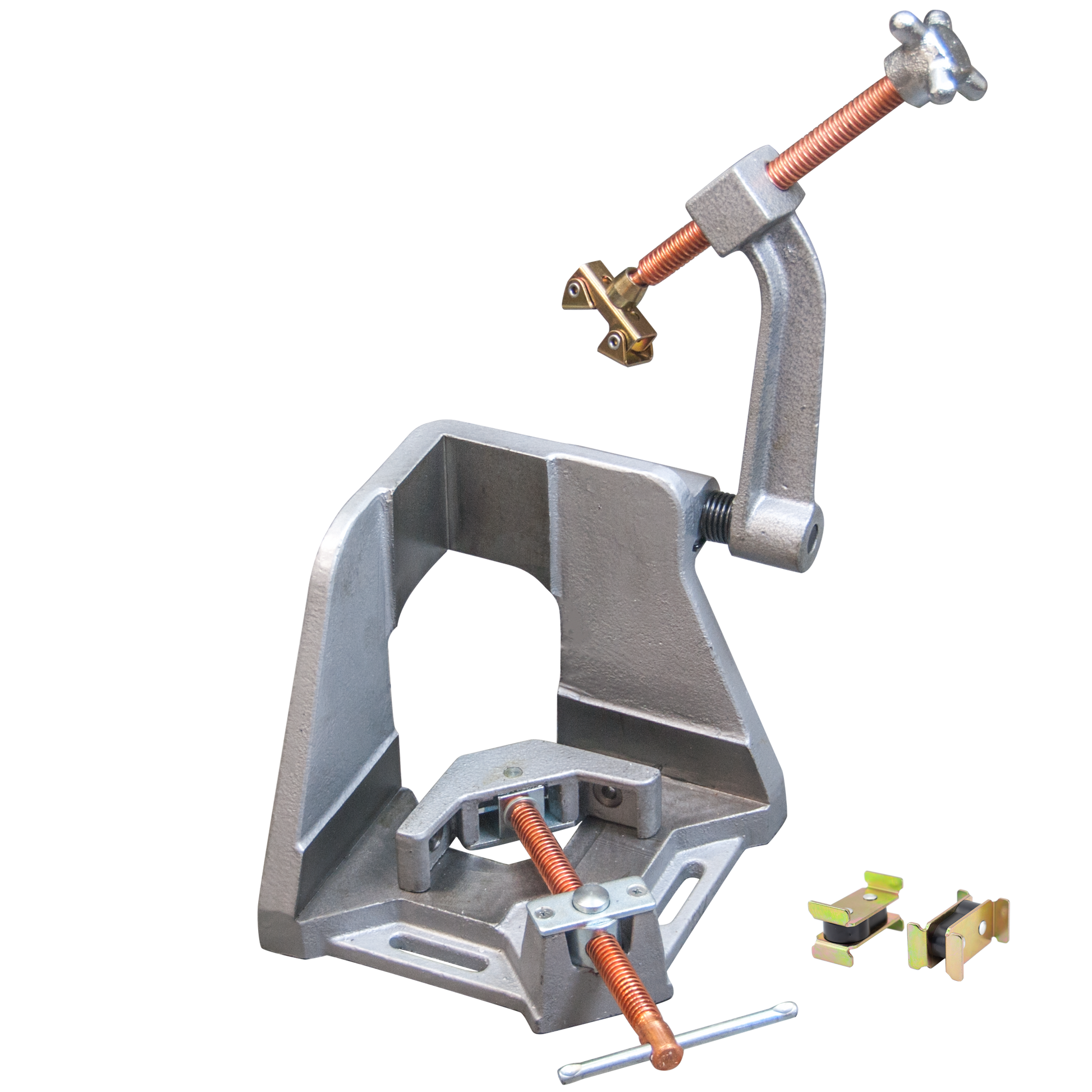

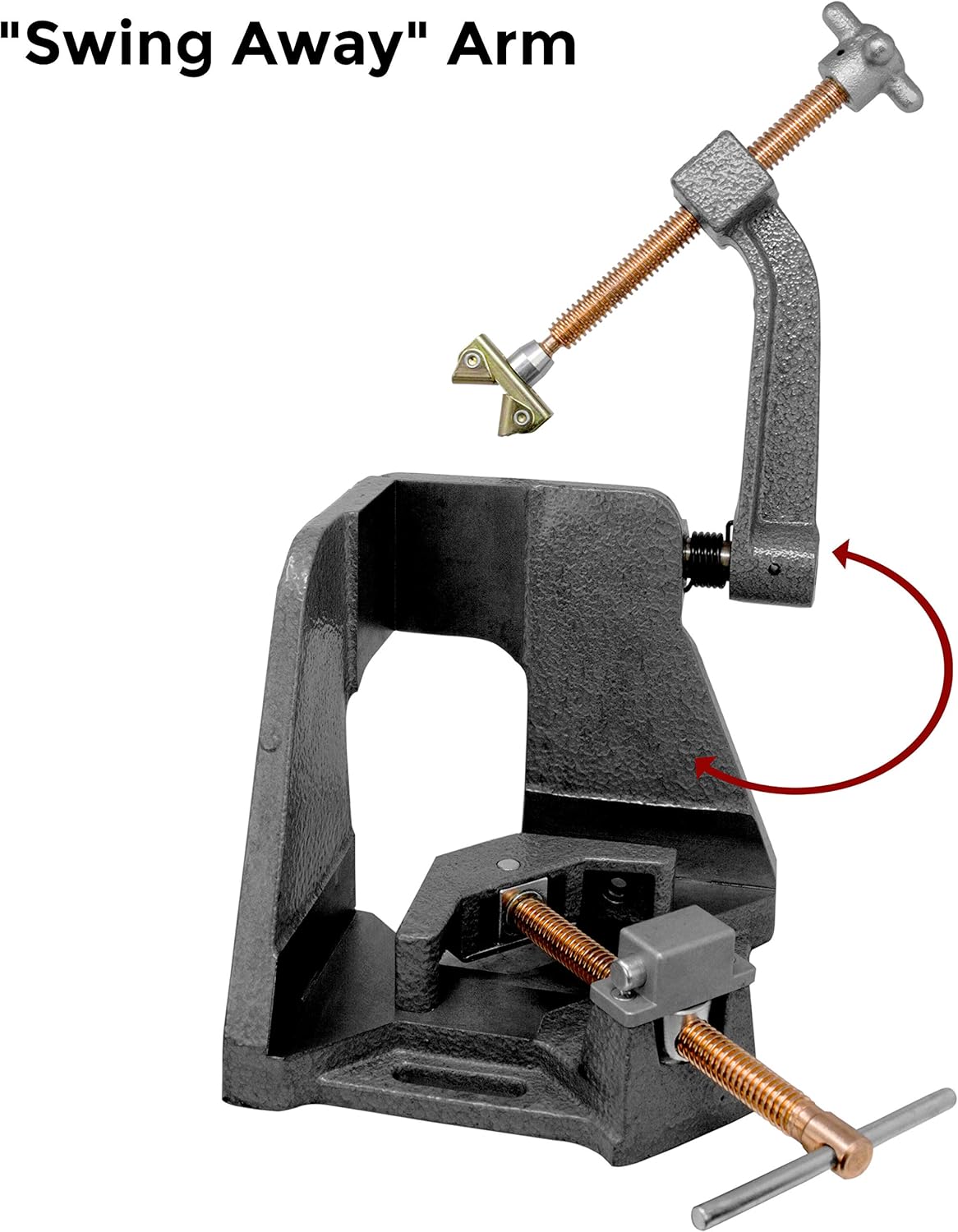

V-Pad and Quick Acting Button on the “swing-away” arm.
Use FREE Magnetic Rest Blocks 1″, 1-1/4″ and 2″ heights to support and stabilize long stock!
