Actual Table Surface Dimension: 72″ x 48″
Tabletop Side Height: 6-1/4″
* All load capacities are calculated based on static load.
* Optional Leg Brace Assembly TMLB72 is suggested.
U.S. PAT. 8065967
Other Systems
16mm System
28mm System
Metric Spacing
Inch Spacing
Tables
Fixtures

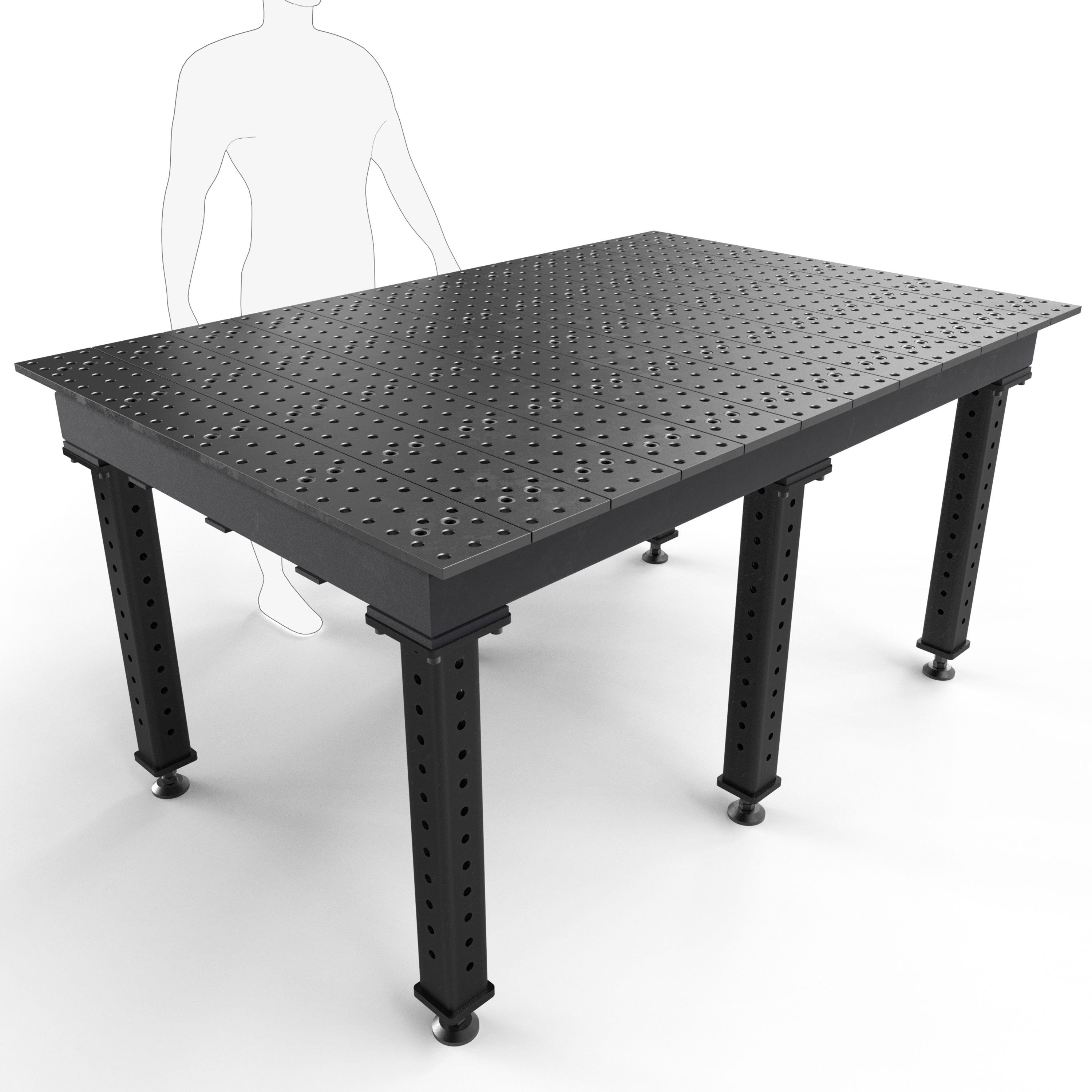

Max Tables, 6' × 4'
Max Tables, 6' × 4'
Patented
Regular price
$5,880 USD
Sale price
$5,880 USD
Regular price
Shipping calculated at checkout.
California Prop 65 - This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more info: www.P65Warnings.ca.gov
Manual Download
Manual Download
Spec Download
Spec Download
CAD Drawings Download
CAD Drawings Download

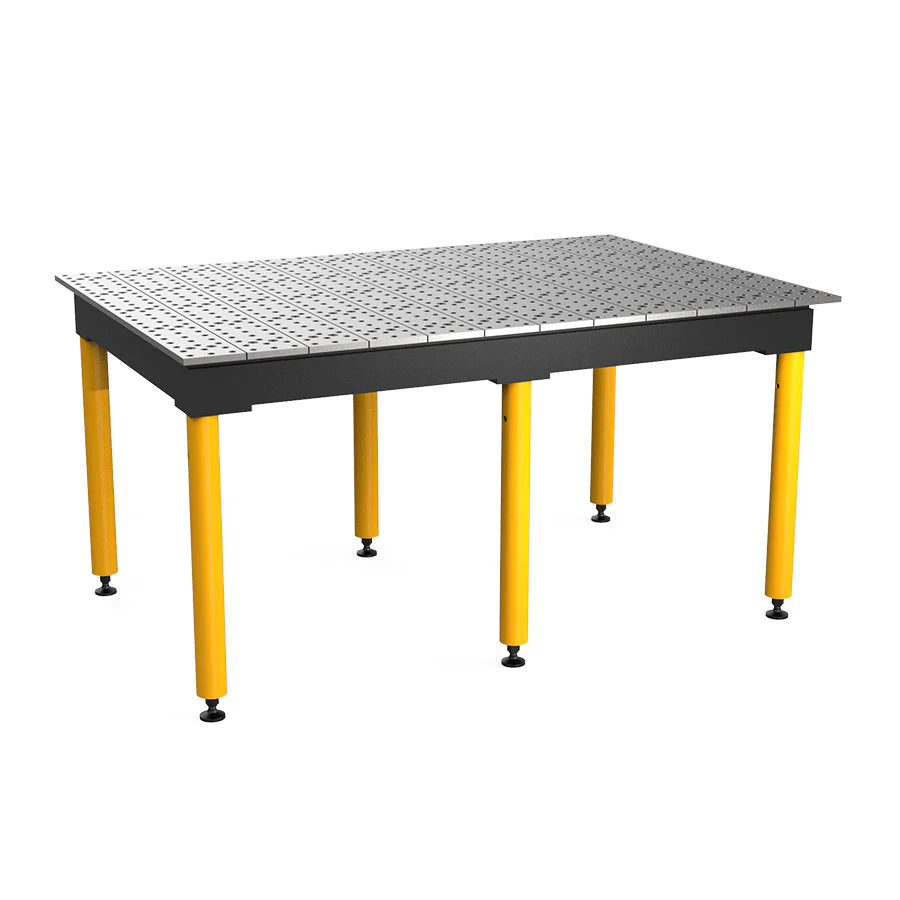

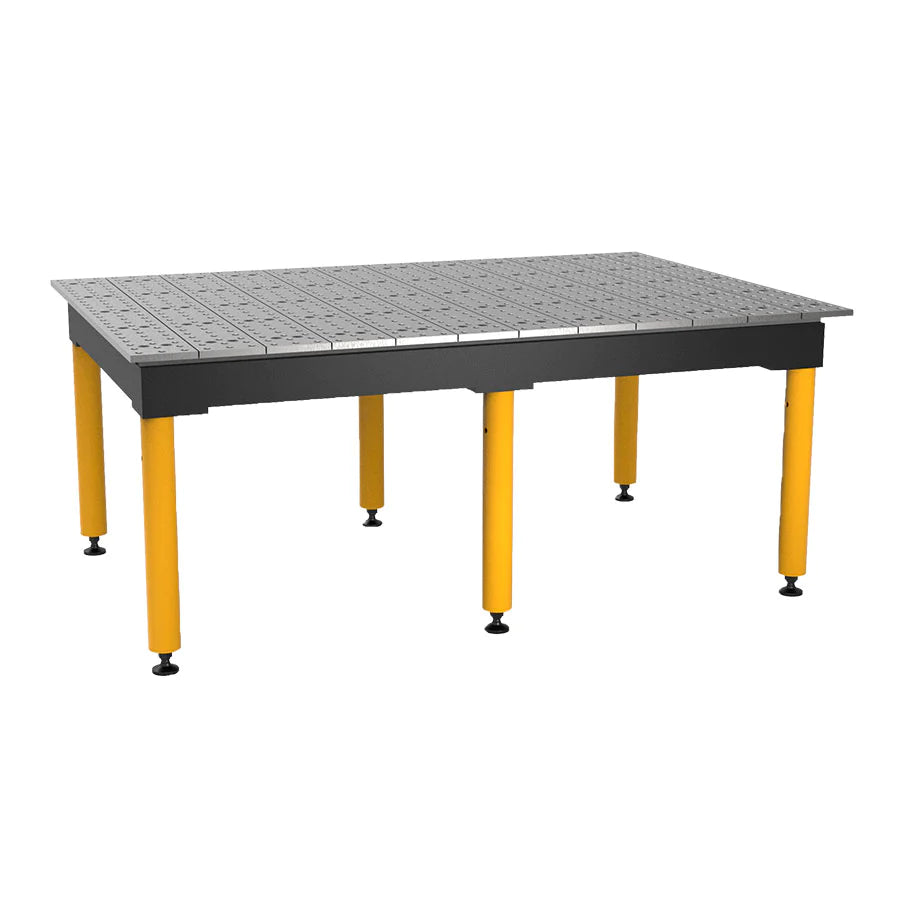

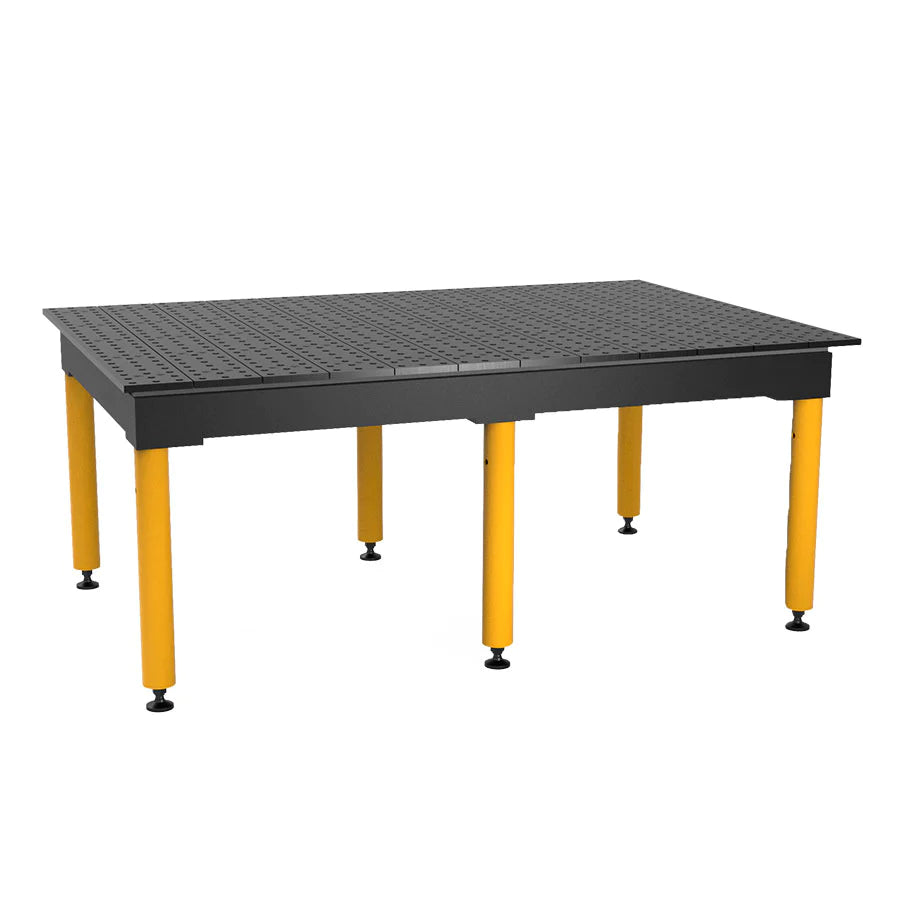

Use with 6x Heavy Duty Legs
| Part No. (Standard Finish) | Part No. (Nitrided Finish) | Use with Leg | Table Surface Height (in) | Gross Weight (lb) |
|---|---|---|---|---|

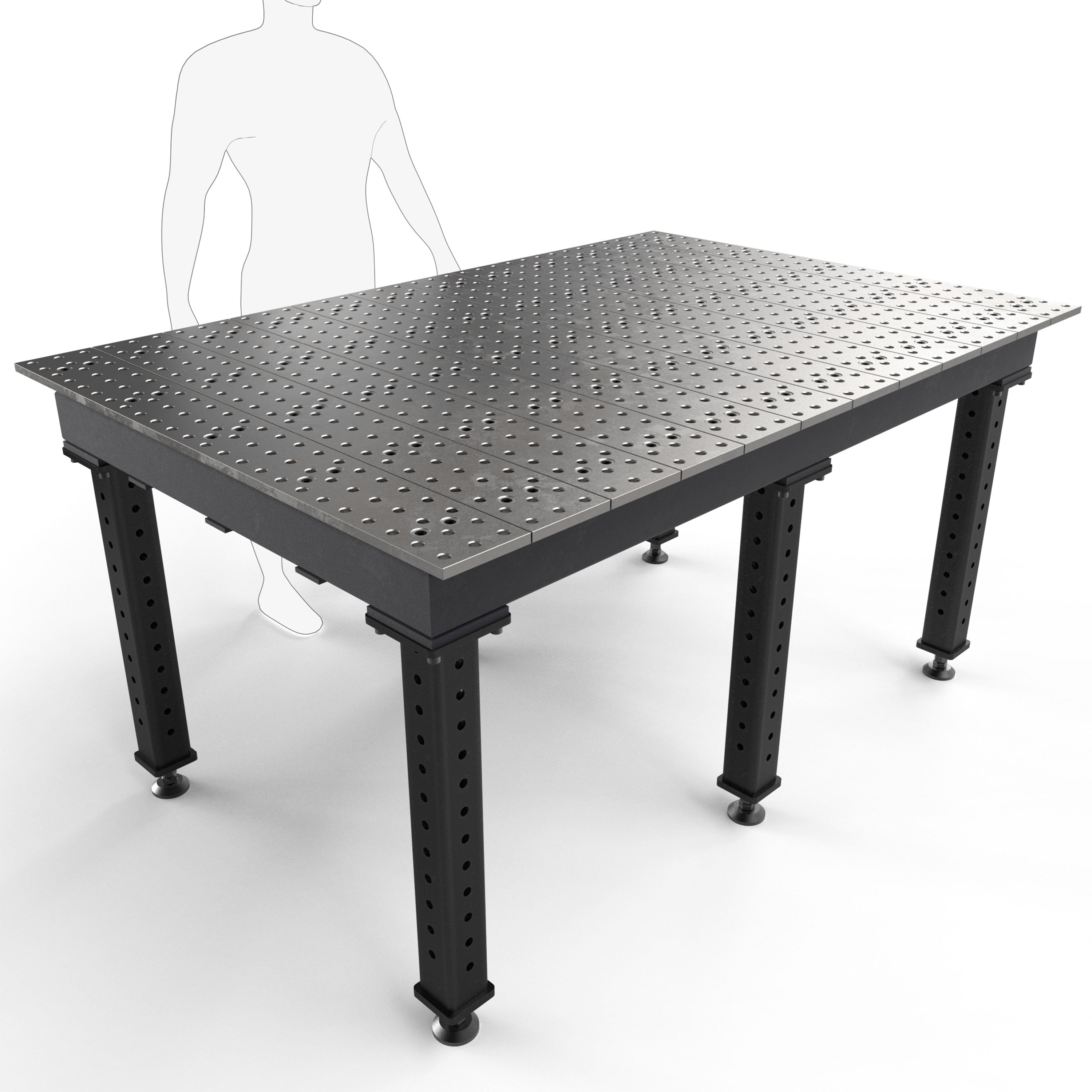

| TMA57248F | TMQA57248F | TML3130 | 36-1/2 | 1,069 |

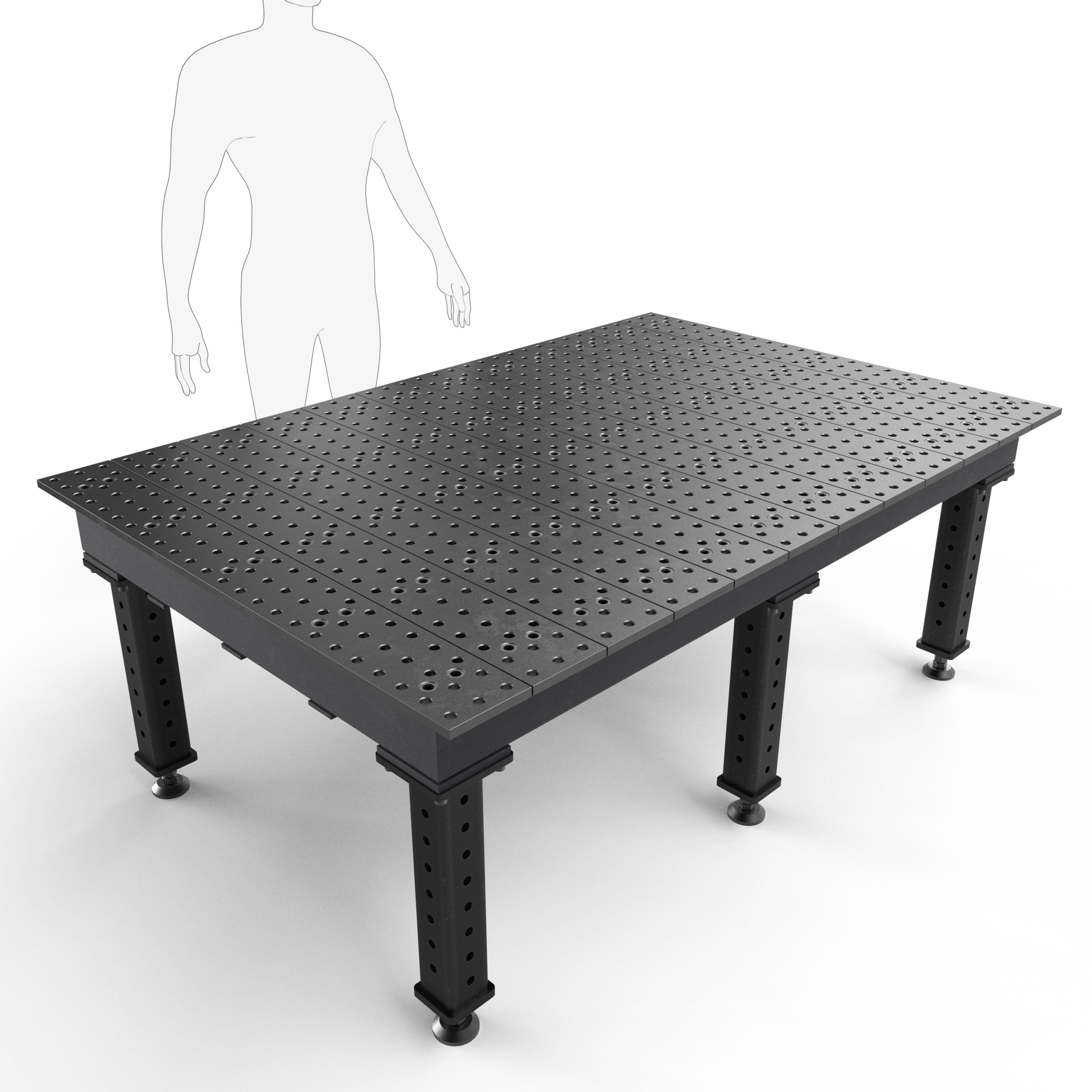

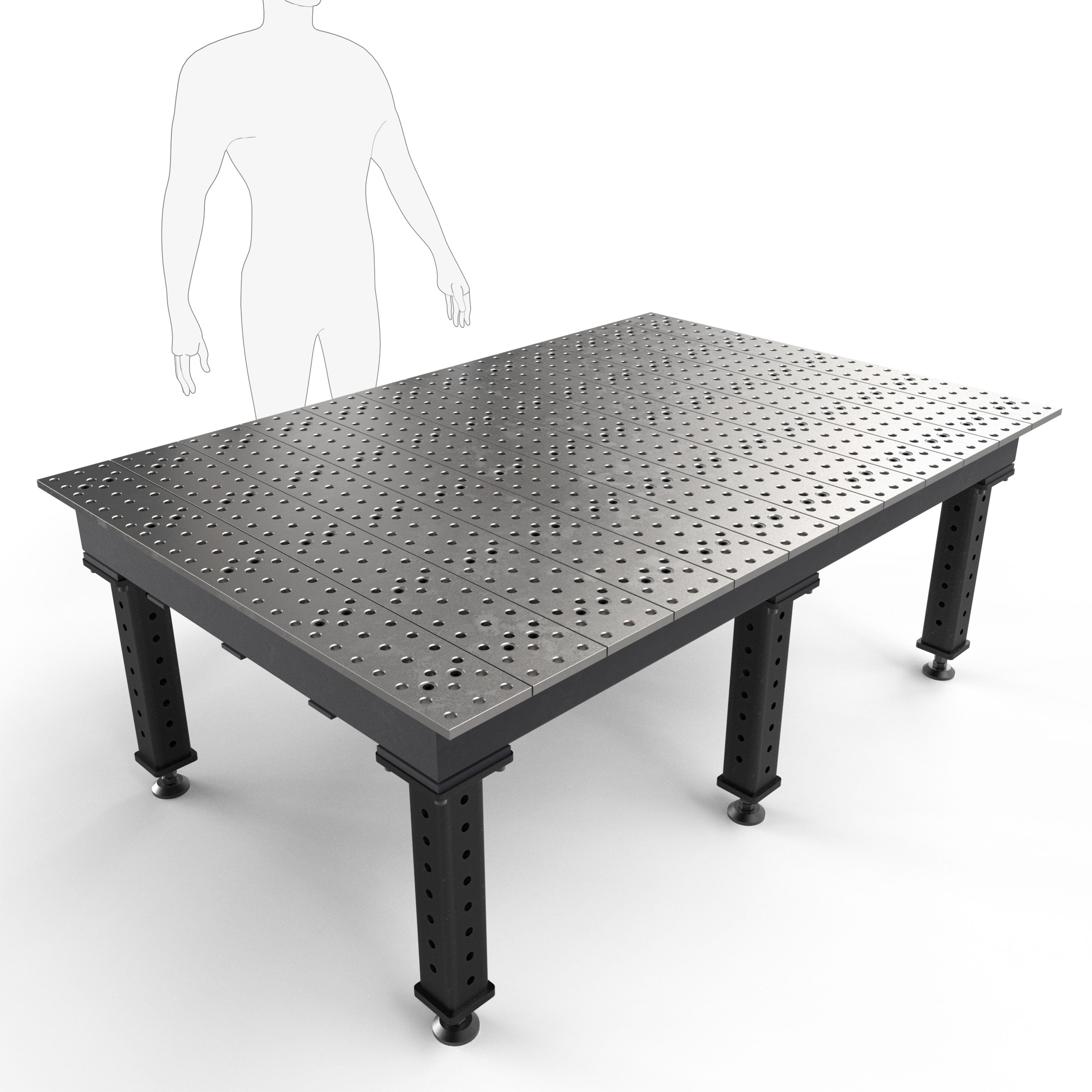

| TMB57248F | TMQB57248F | TML2530 | 30-1/2 | 1,057 |

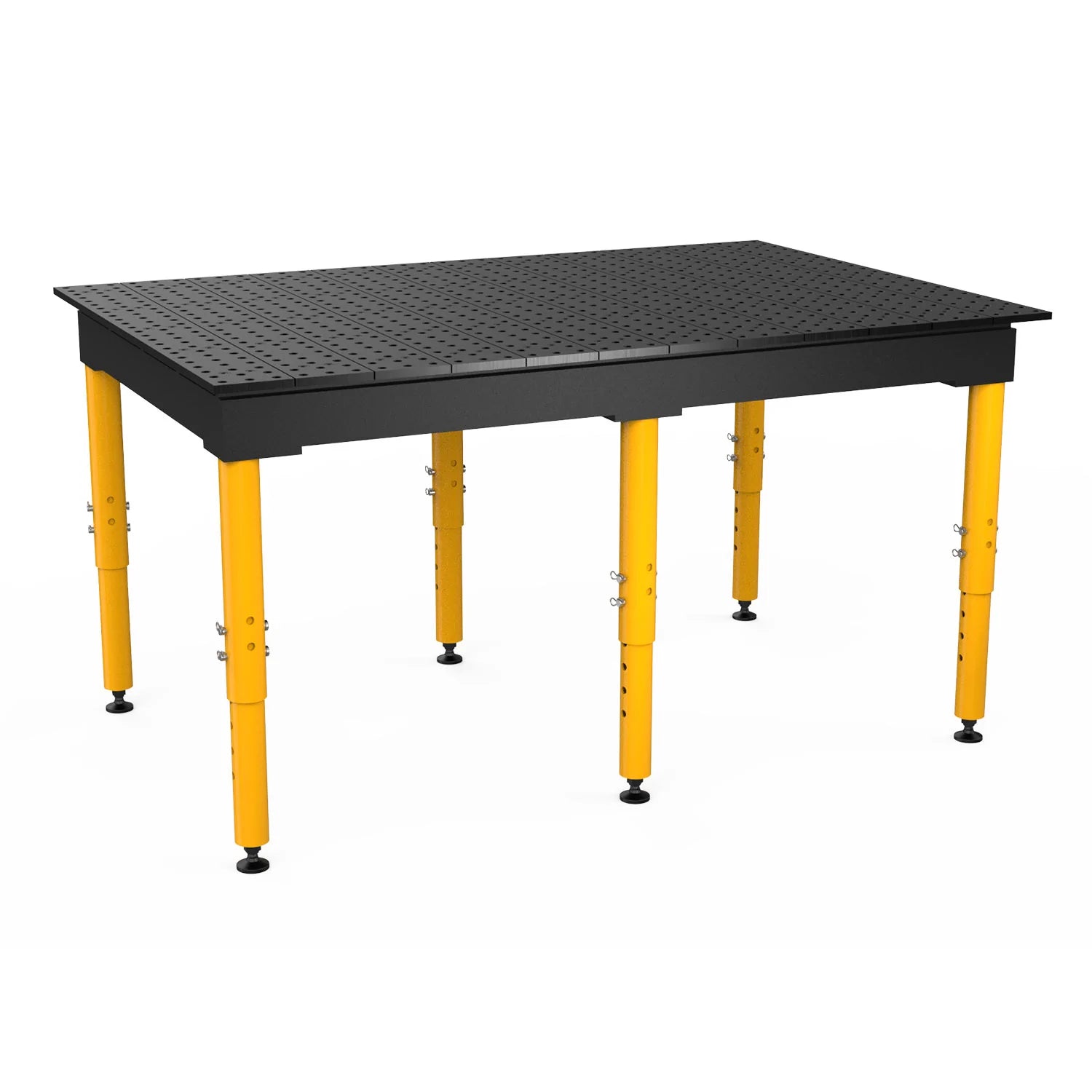

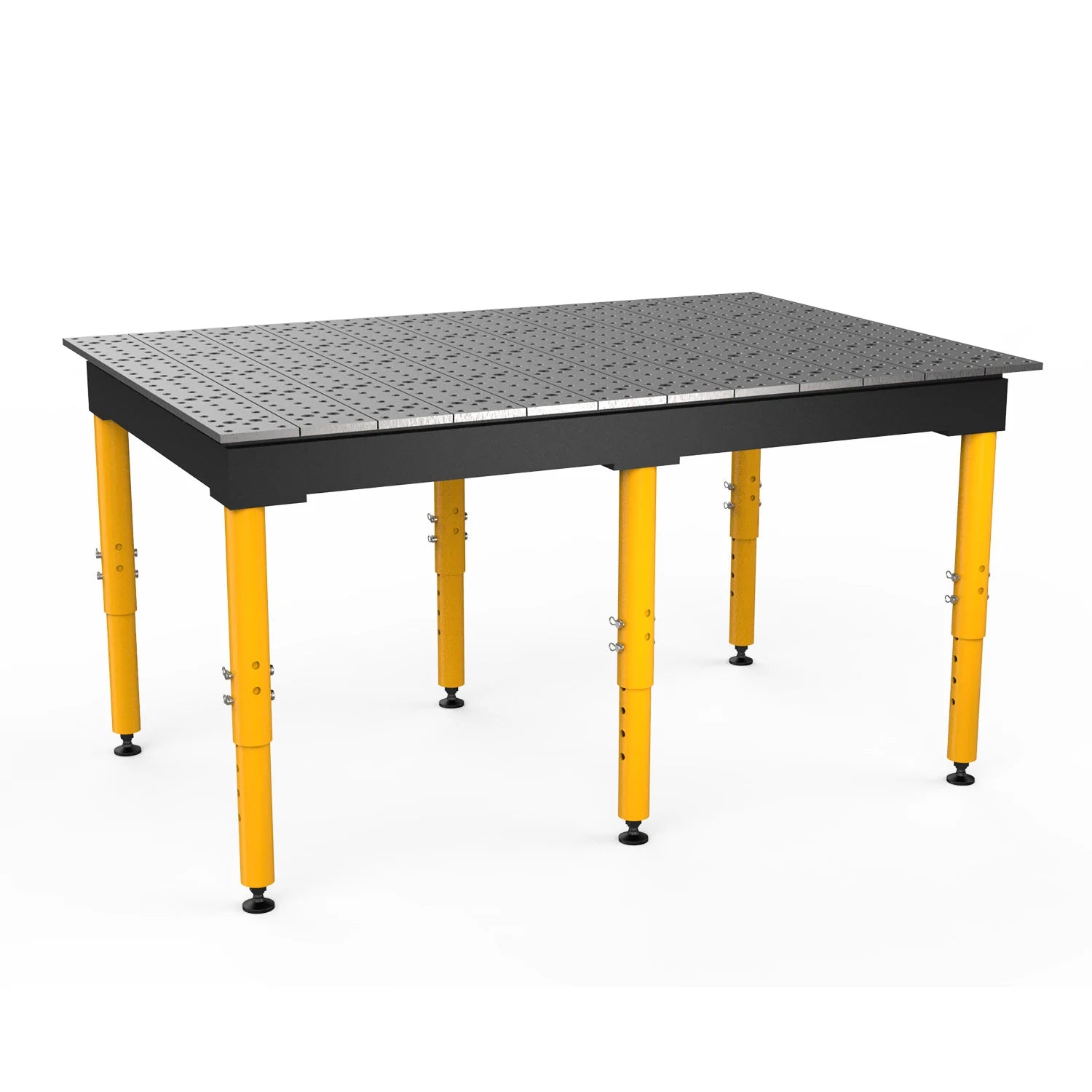

Use with 6x adjustable legs - adjustable at 1" increments
| Part No. (Standard Finish) | Part No. (Nitrided Finish) | Use with Leg | Table Surface Height (in) | Gross Weight (lb) |
|---|---|---|---|---|

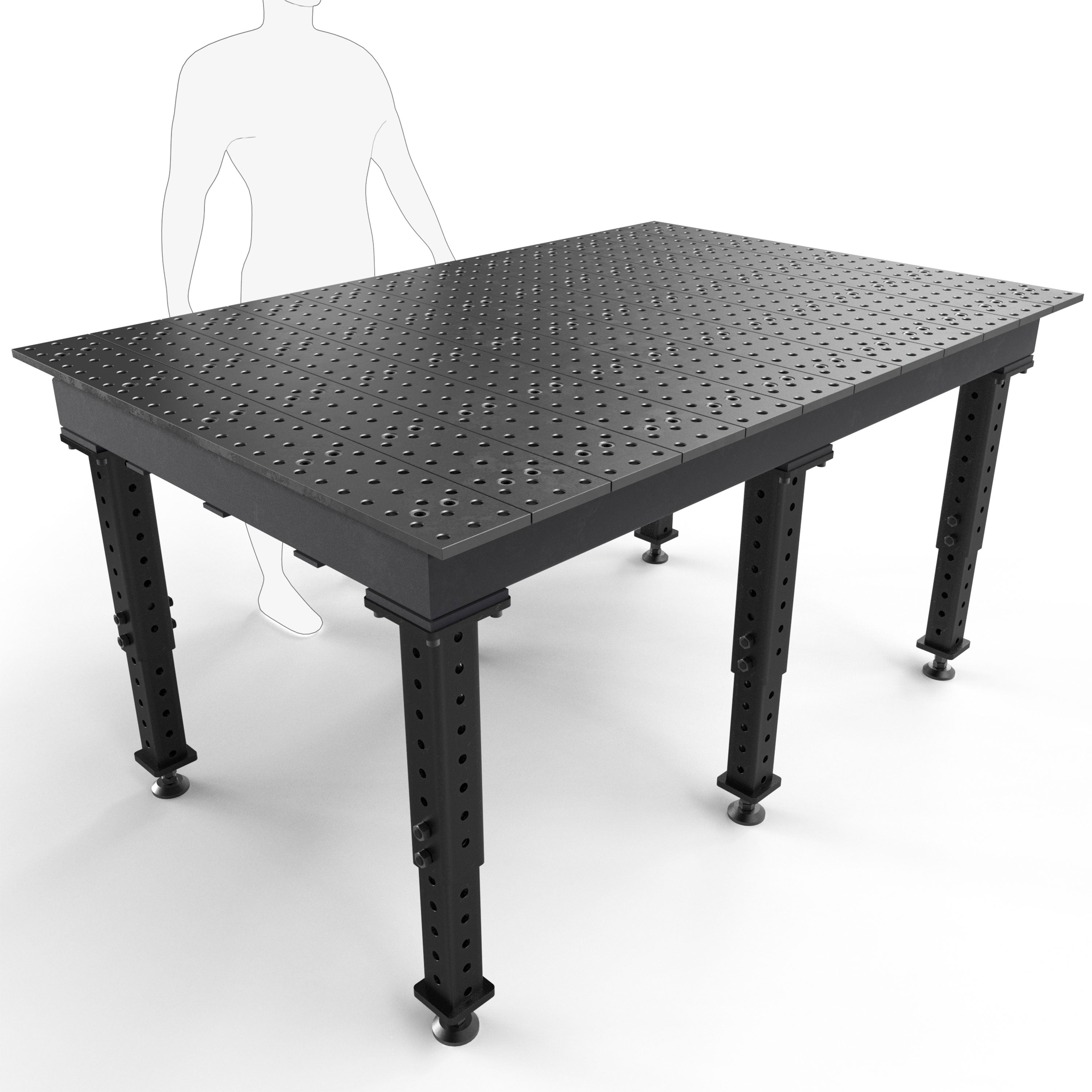

| TMR57248F | TMQR57248F | TMLR30 | 28-1/2 ~ 38-1/2 | 1,090 |

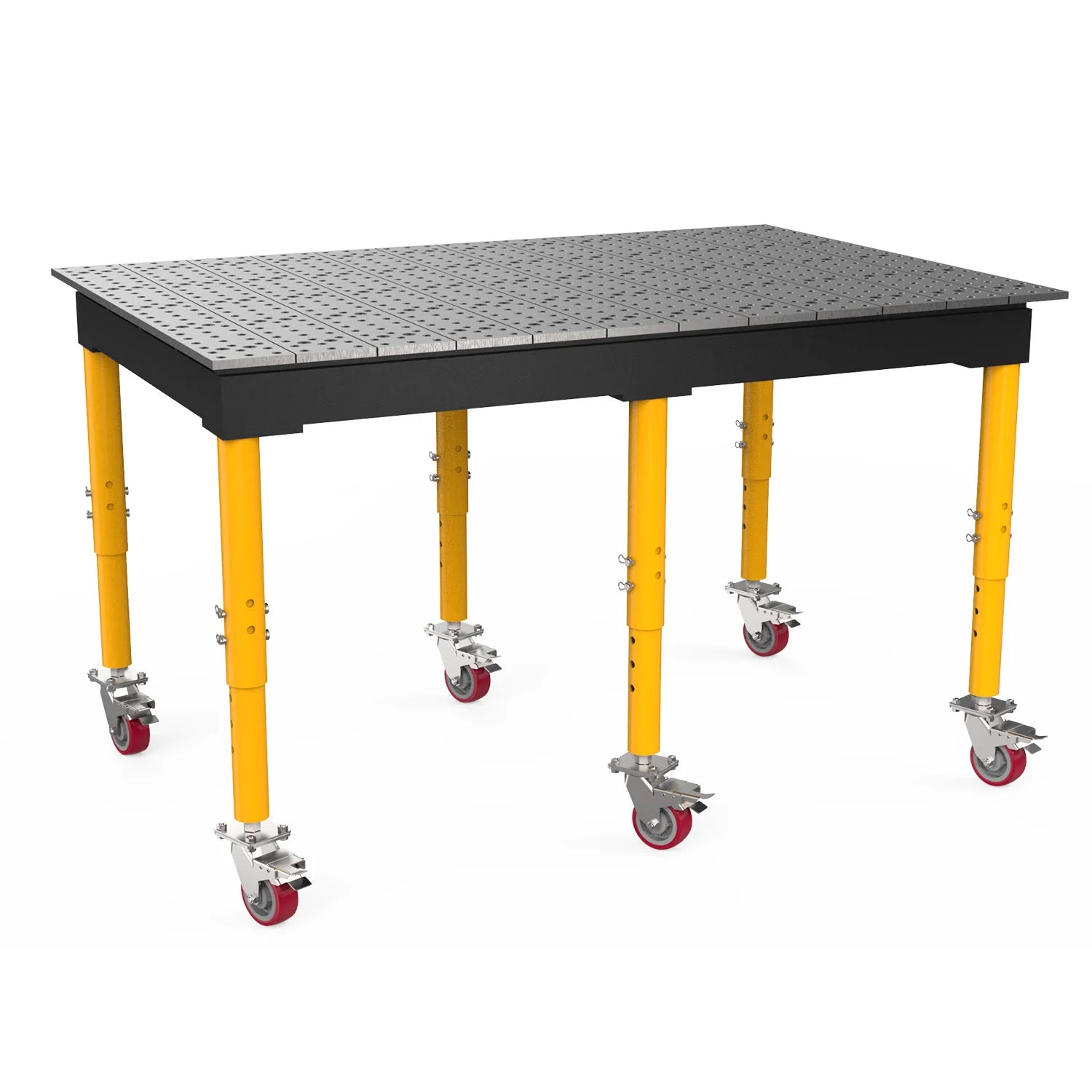

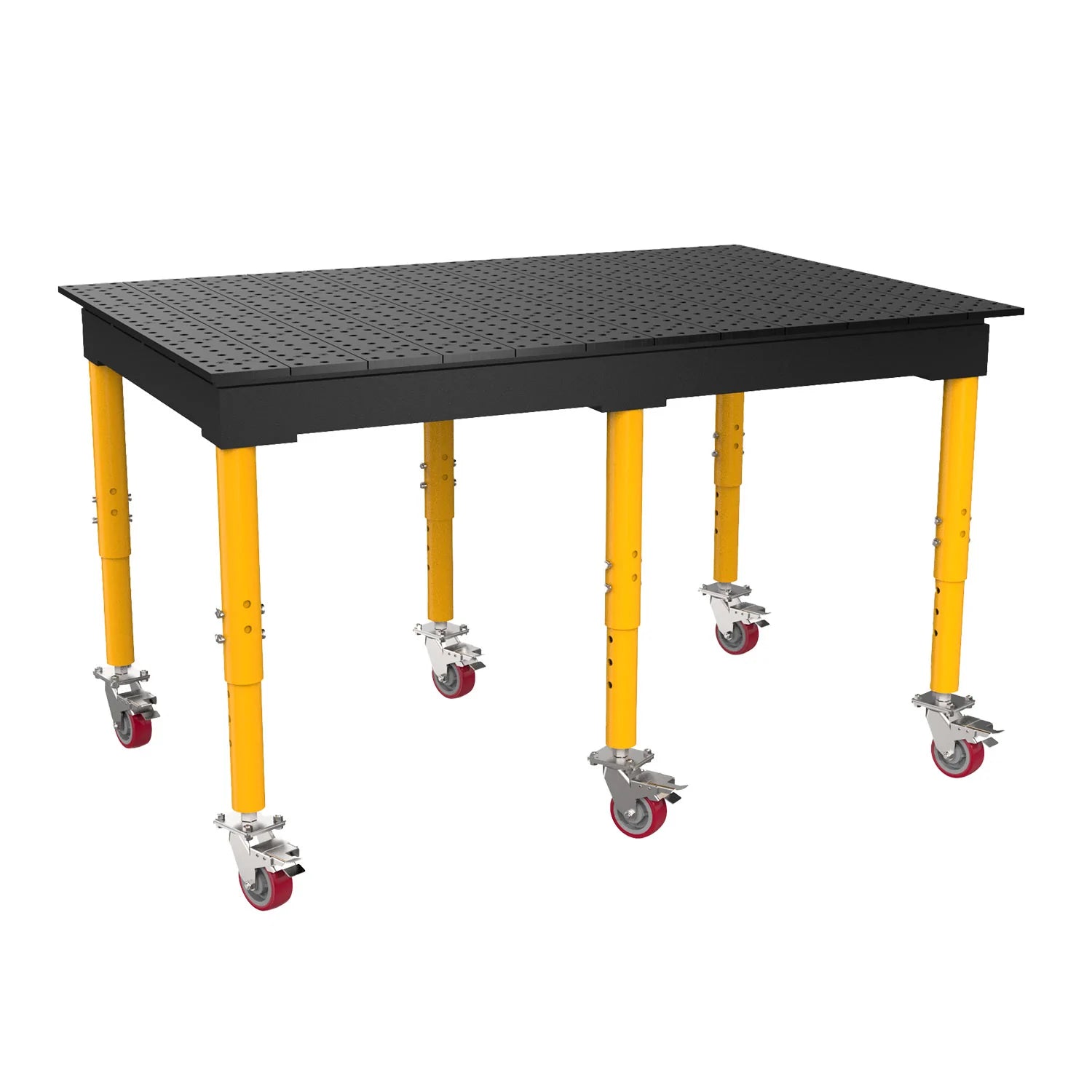

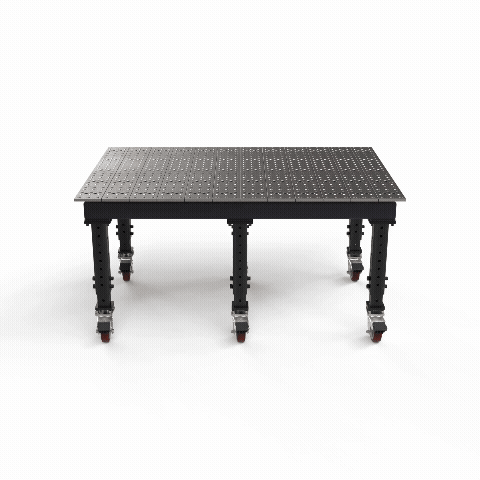

Use with 6x adjustable legs with mobility caster
| Part No.(Standard Finish) | Part No.(Nitrided Finish) | Use with Leg | Table Surface Height (in) | Gross Weight (lb) |
|---|---|---|---|---|

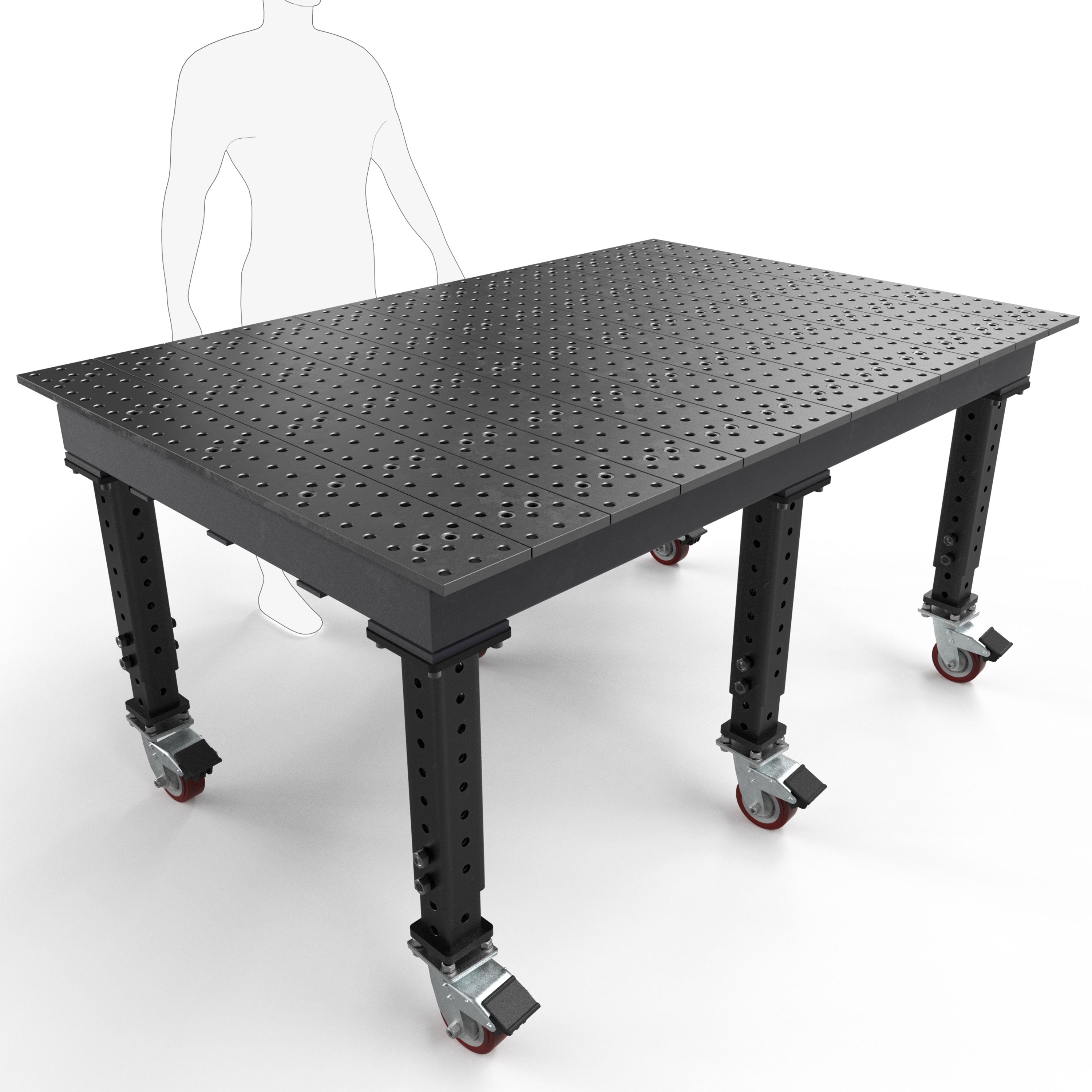

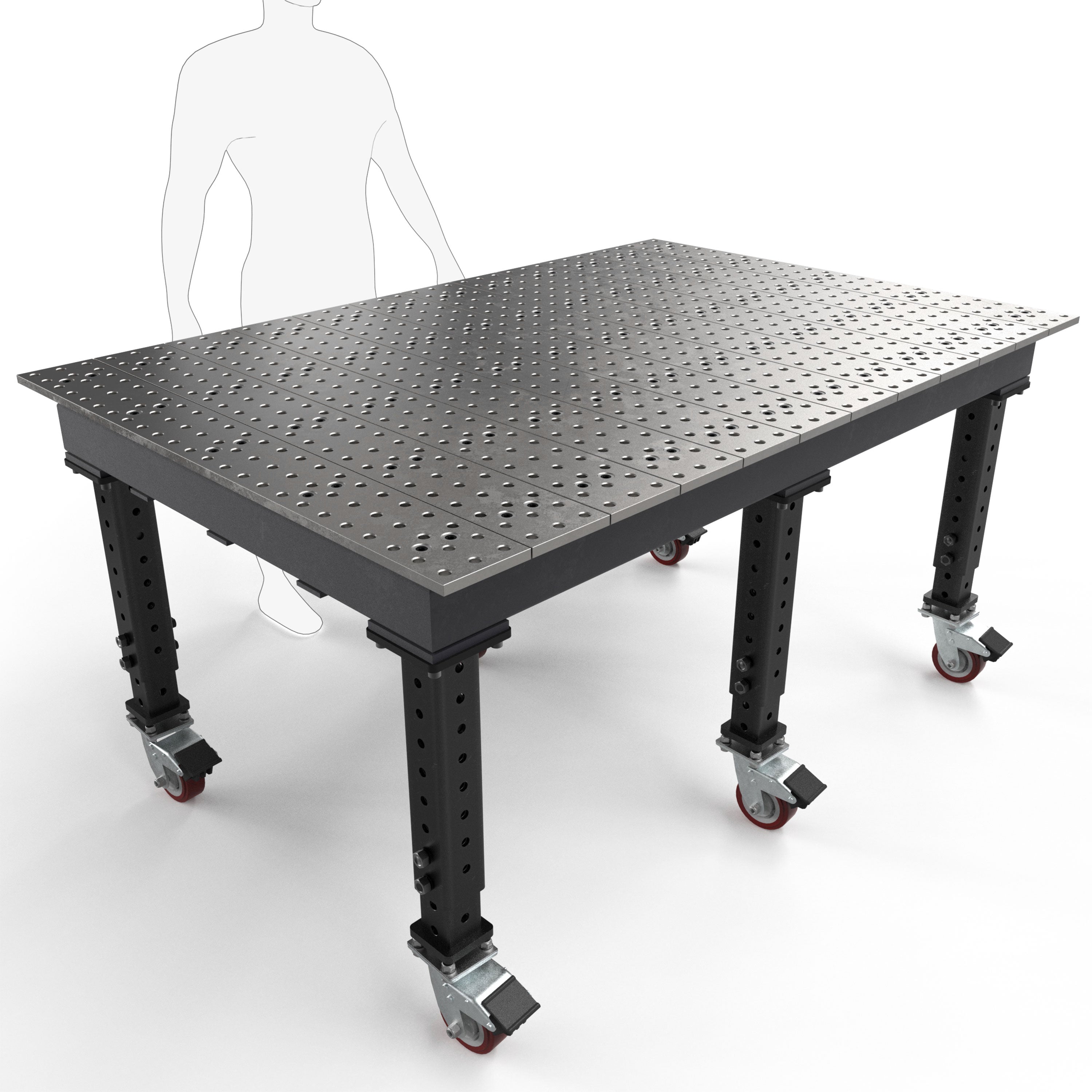

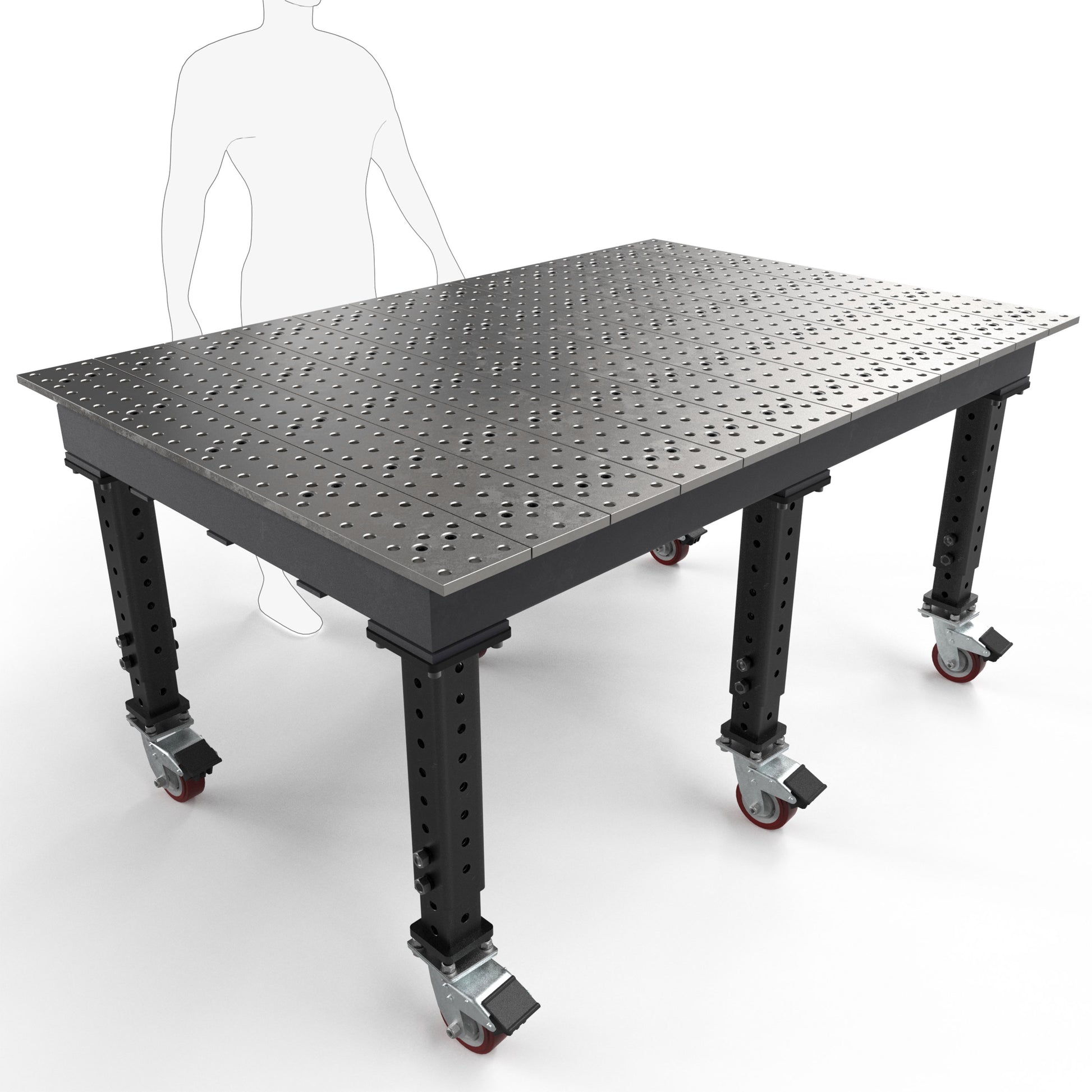

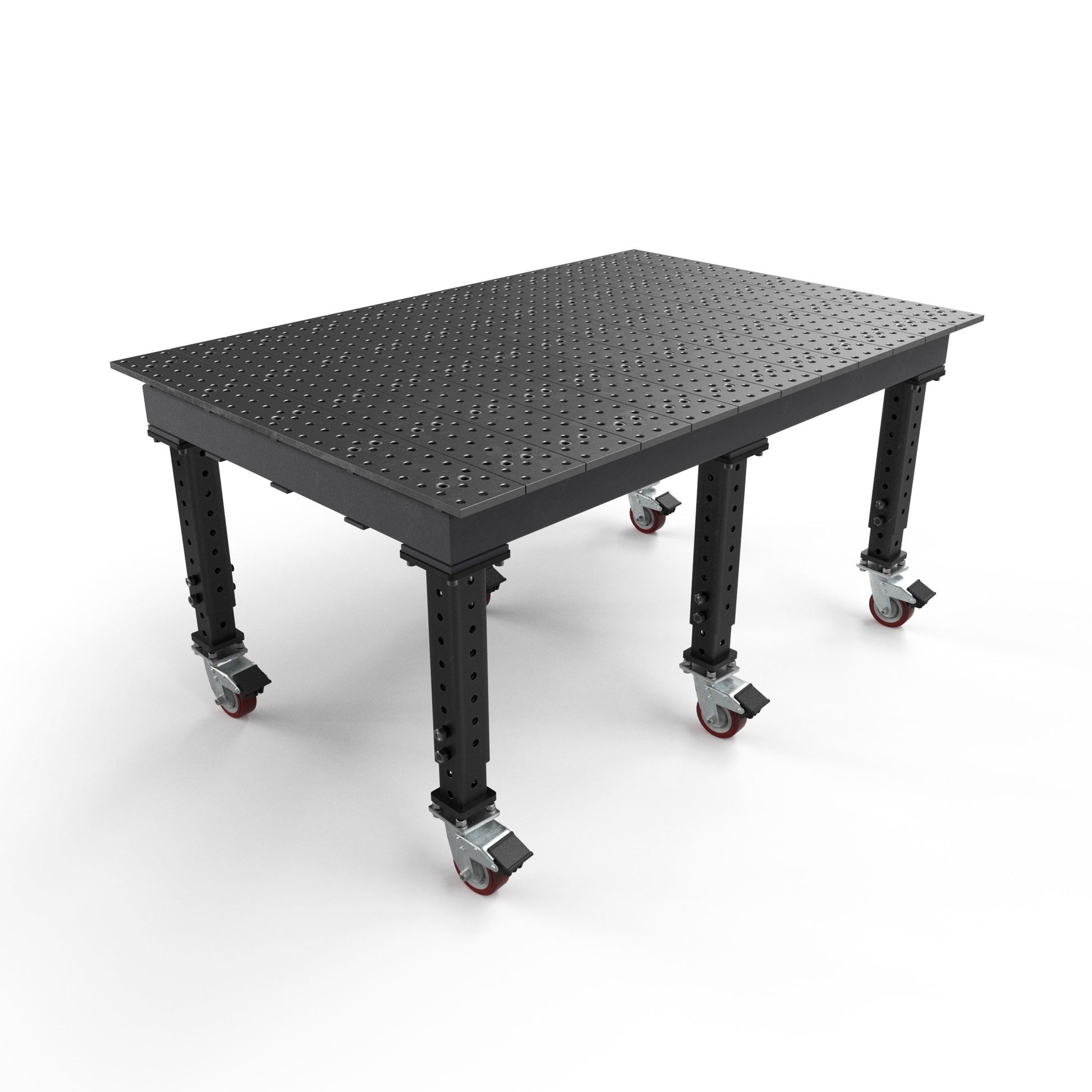

| TMRC57248F | TMQRC57248F | TMLC30 | 33-1/4 ~ 43-1/4 | 1,124 |
View this table in your shop
* All MAX TABLES ARE PATENTED: U.S. PAT. 8065967
Our single-sided heavy-duty tables feature boreholes on the top surface and feature patented self-locating and reversible table top plates. Maximum Table Surface, Maximum Capacity. Utilize the additional holes (33% more than slotted tables) for clamping at multiple points.
Available in standard and nitrided tabletop finishes.
Reversible Self-Locating Table Plates
Patented Bushing design allows you to remove, re-position, re-align, and reverse the table plates!
Tabletop Side Height
6-1/4″ for both MAX and MAX Slotted tables
Table Accuracy
Table flatness: ±0.005 per 24″ x 24″
Hole spacing: 2.000″ ±0.001
Hole diameter: 0.625″ +.002/-.000
Plate thickness: 0.630″ ±0.004
Standard (plain) / Nitrided Finish
Choose from standard finish (medium carbon steel) or Nitrided (heat-treating) finish.
