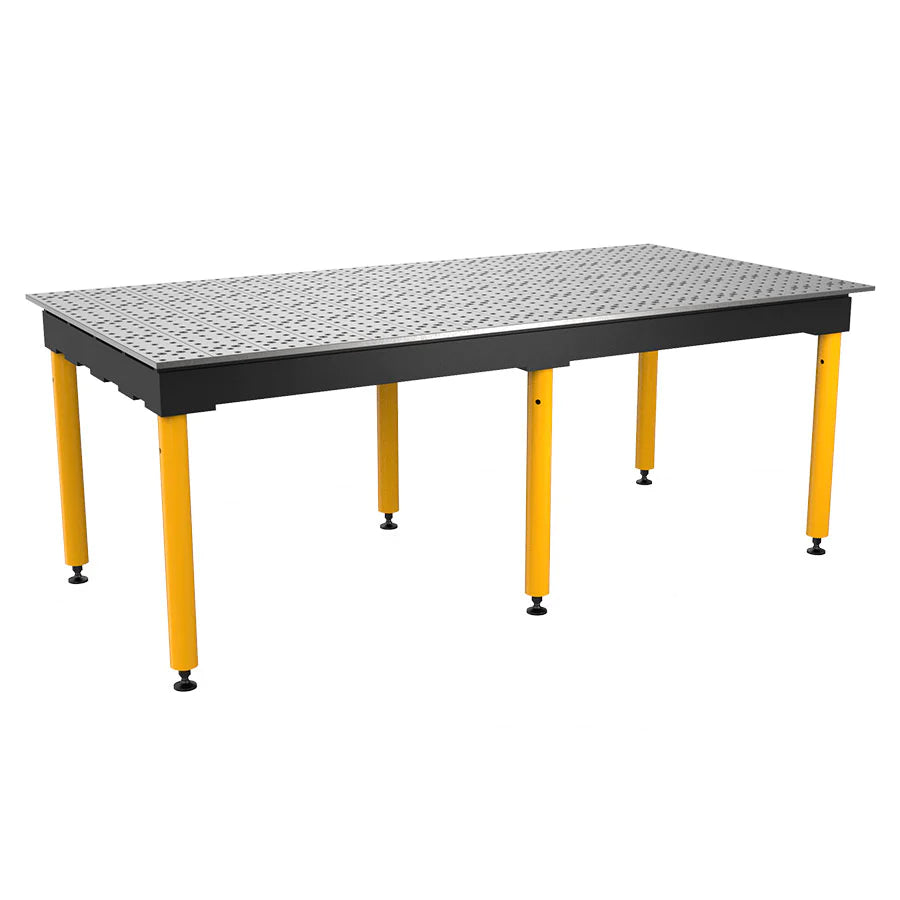

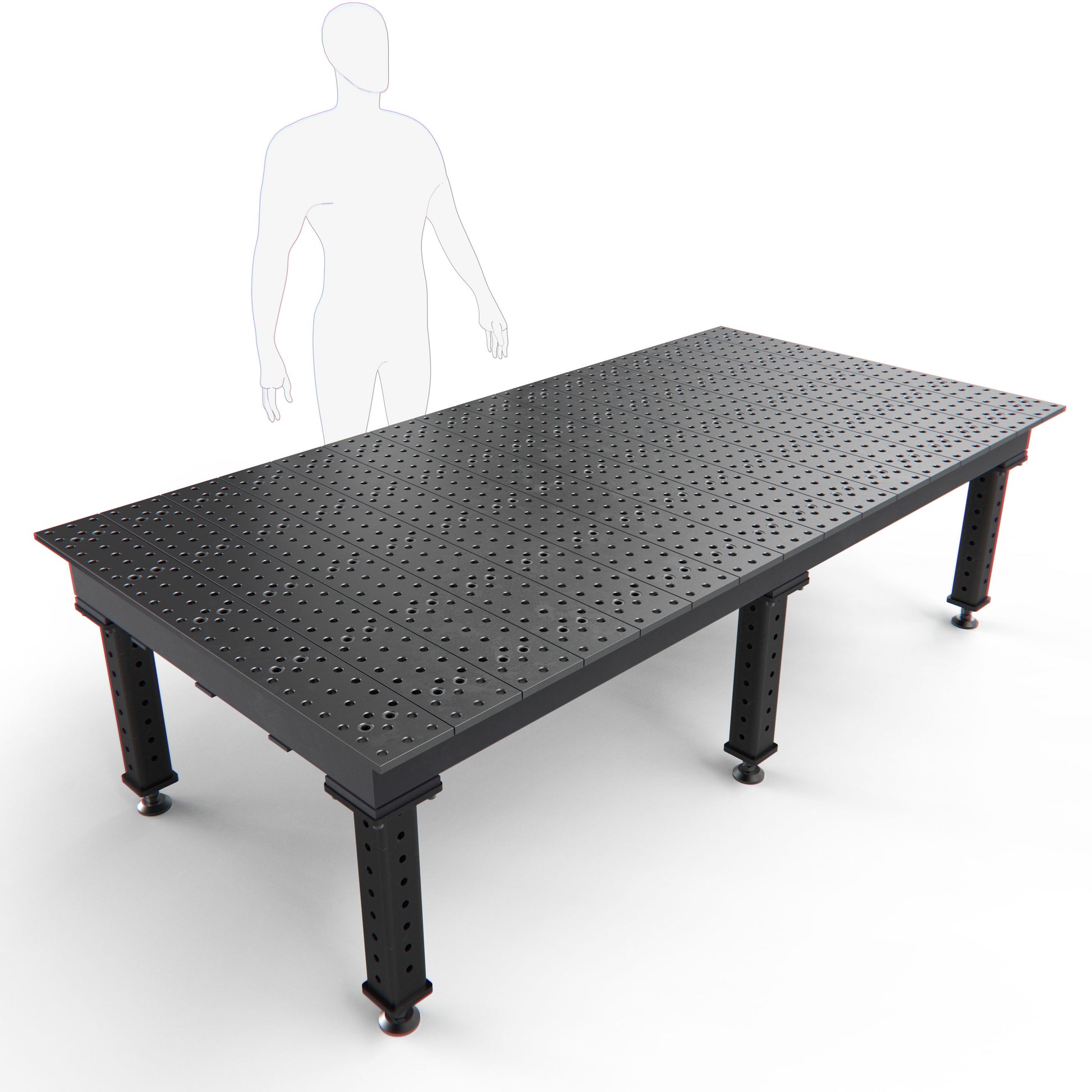

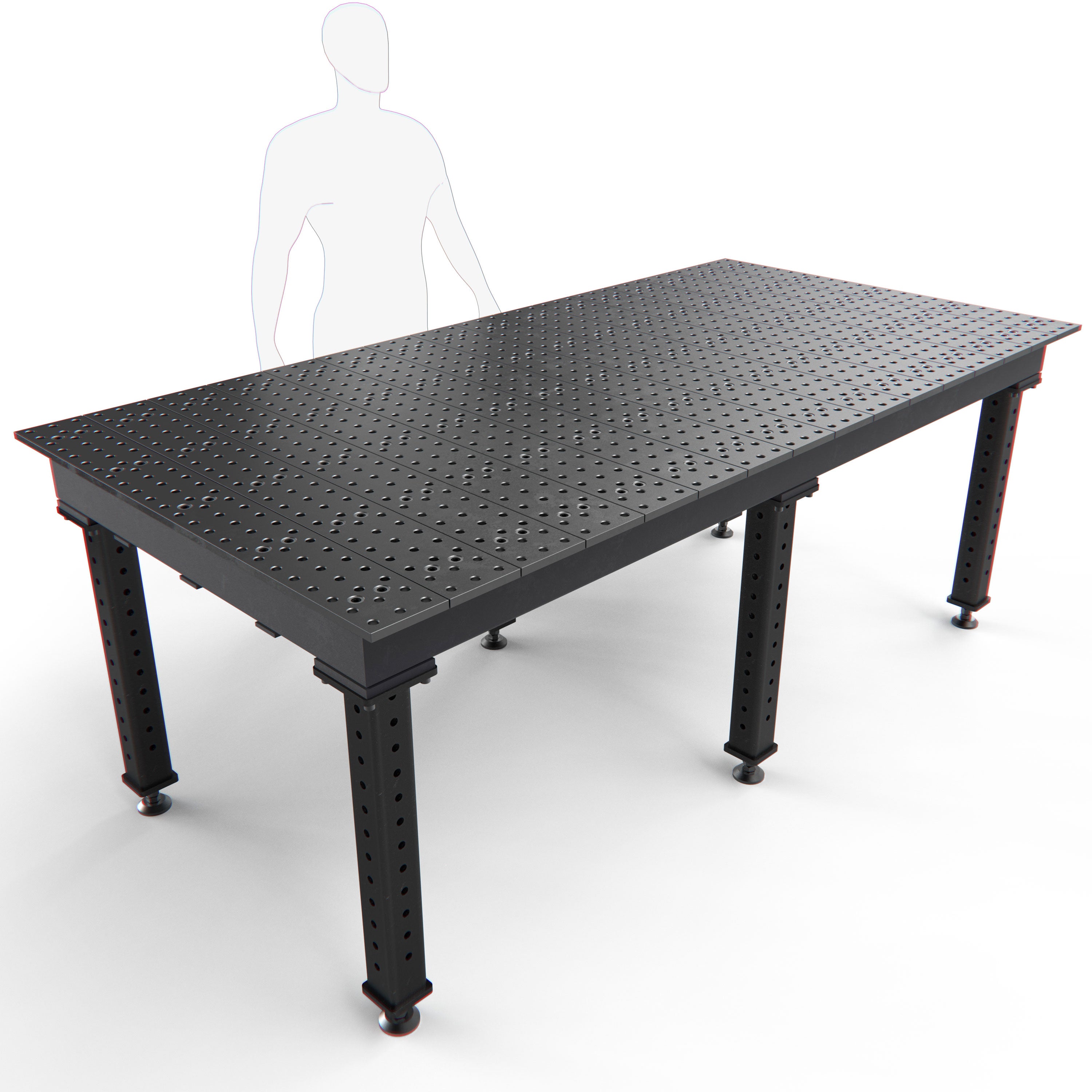

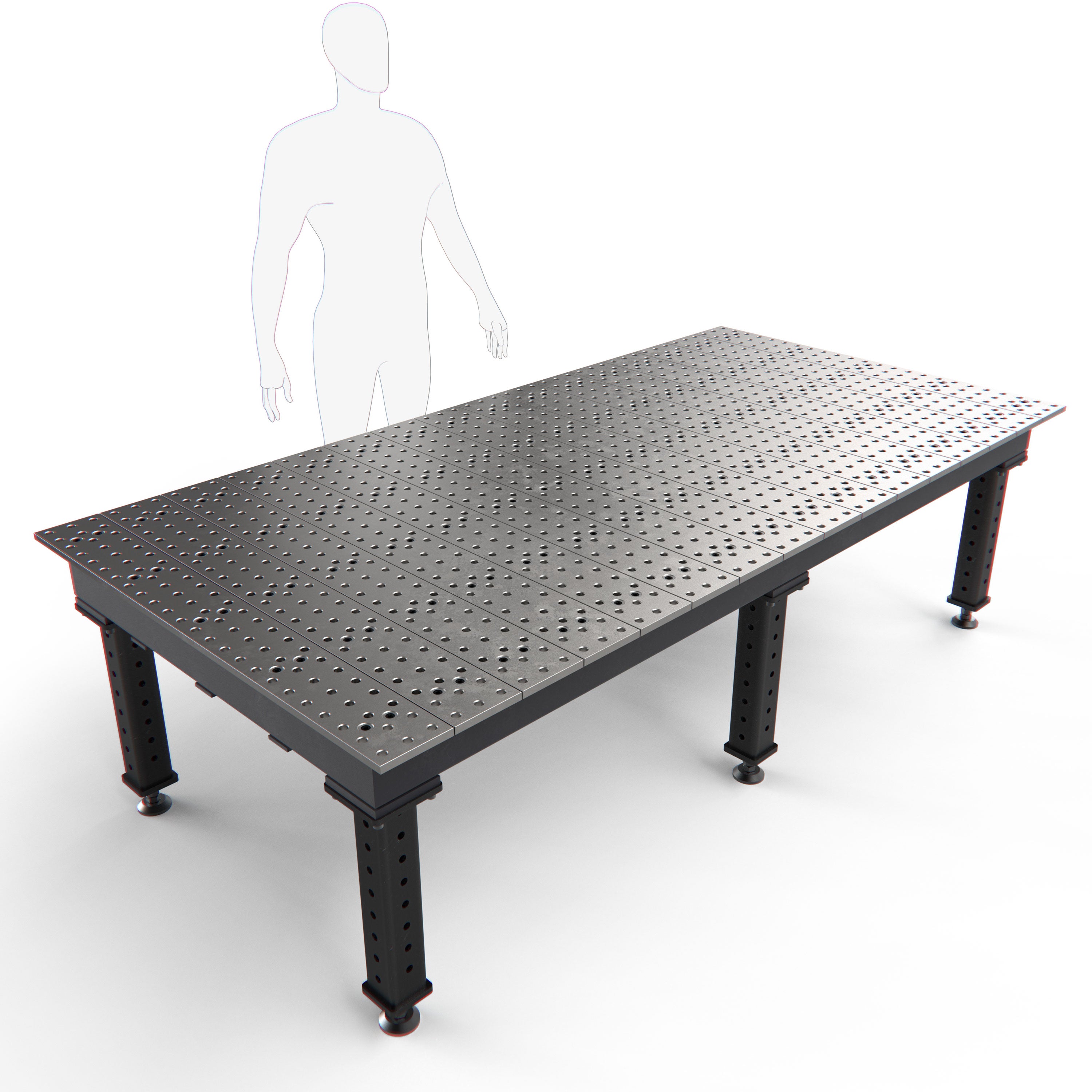

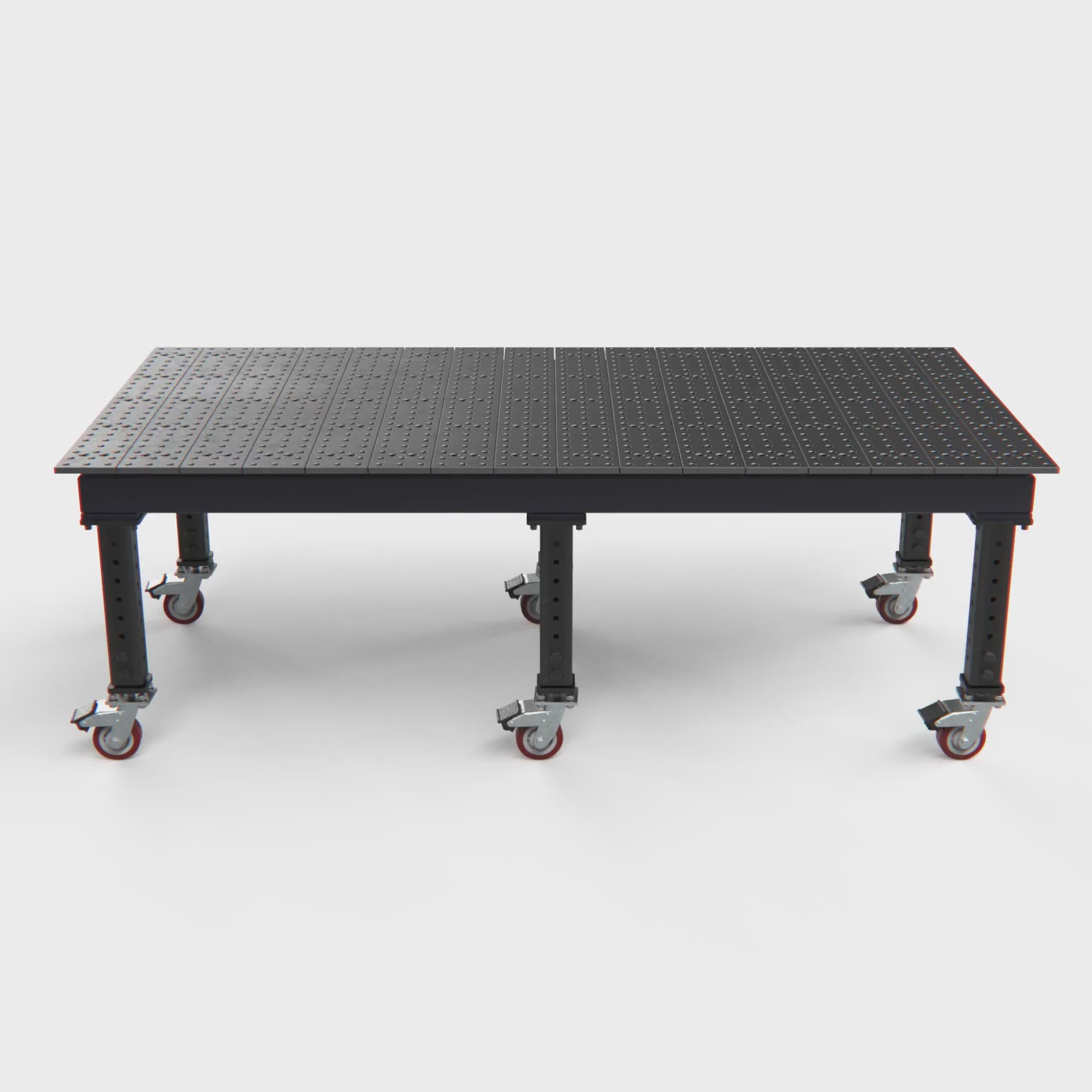

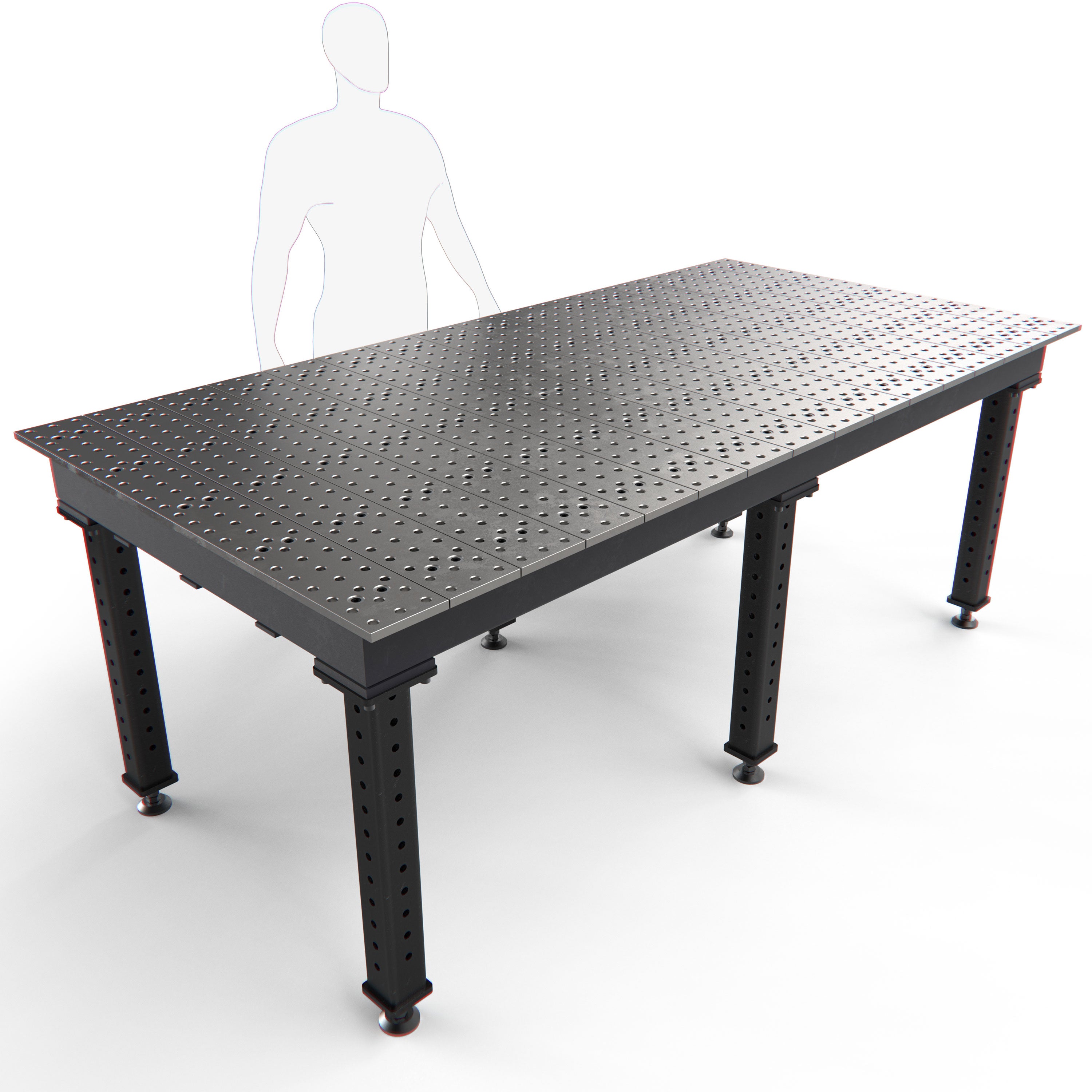

MAX 8' x 4' (96" x 48") Table, 5/8" System
MAX 8' x 4' (96" x 48") Table, 5/8" System
5/8"
Hole Diameter
2"
Hole Spacing
Nitrided
Optional Finish
Reversible
Plates
-
Estimated delivery: Nov 21 - Nov 25
* All MAX TABLES ARE PATENTED: U.S. PAT. 8065967
Our single-sided heavy-duty tables feature boreholes on the top surface and feature patented self-locating and reversible table top plates. Maximum Table Surface, Maximum Capacity. Utilize the additional holes (33% more than slotted tables) for clamping at multiple points.
Available in standard and nitrided tabletop finishes.
Tabletop Information
Hole Diameter:
5/8"
Grid Pattern:
2" x 2"
Tabletop Size:
96" x 48"
Table Top Thickness:
0.630" ±0.004
Surface hardness:
HV 550
Coefficient of friction
0.37
Optional Finish:
Nitrided (Heat-Treated)
Nitriding Case Depth
0.0004″ – 0.0008″
Table Flatness:
±0.005" per 24" x 24"
Tabletop Side Height:
6-1/4″
Static Loading Capacity:
1,500 LB
Gross Weight:
1,286 LB
Features
Reversible Self-Locating Table Plates
CNC Hole Pattern
Accurately position parts in CNC precision bored 5/8" diameter holes in 2" x 2" spacing pattern.

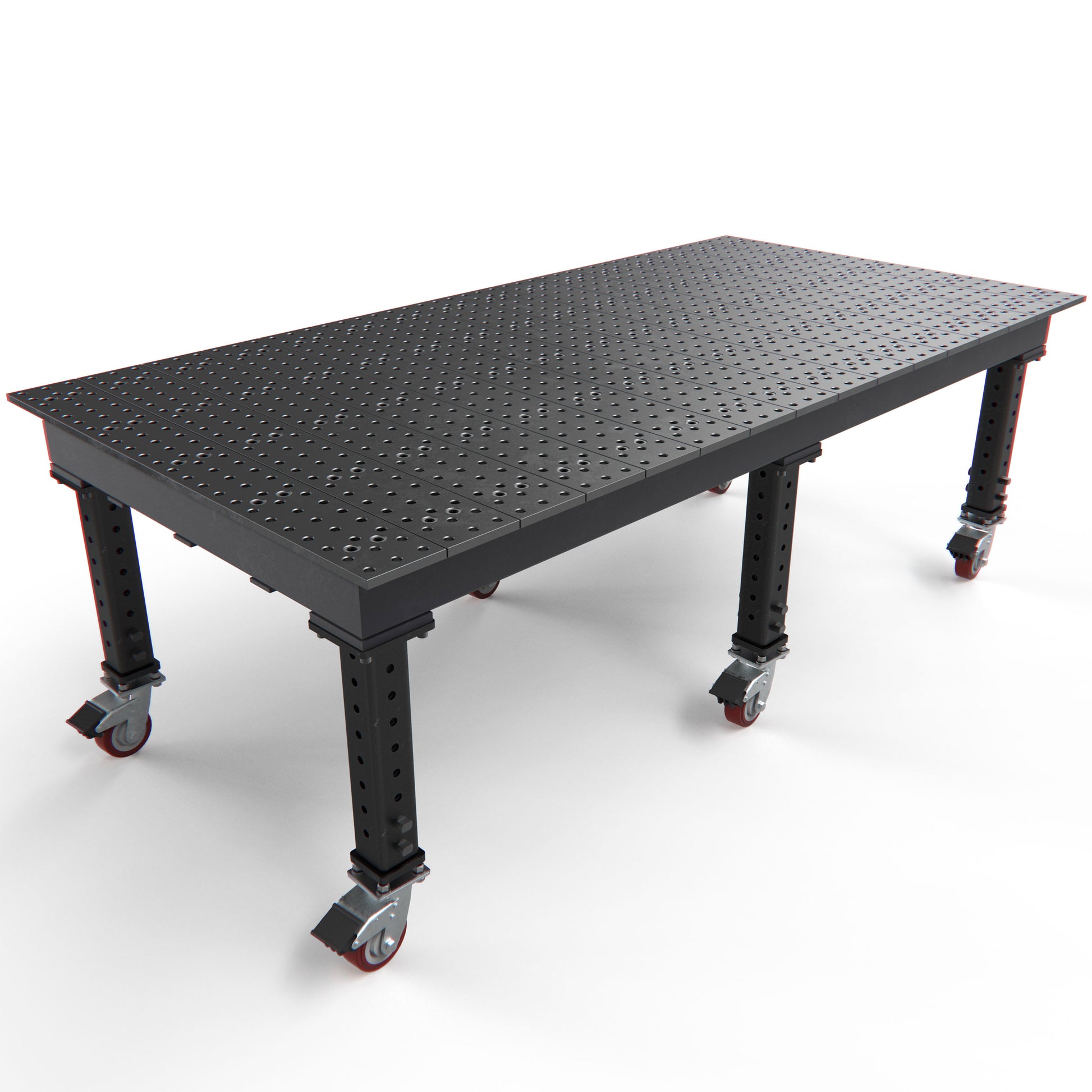

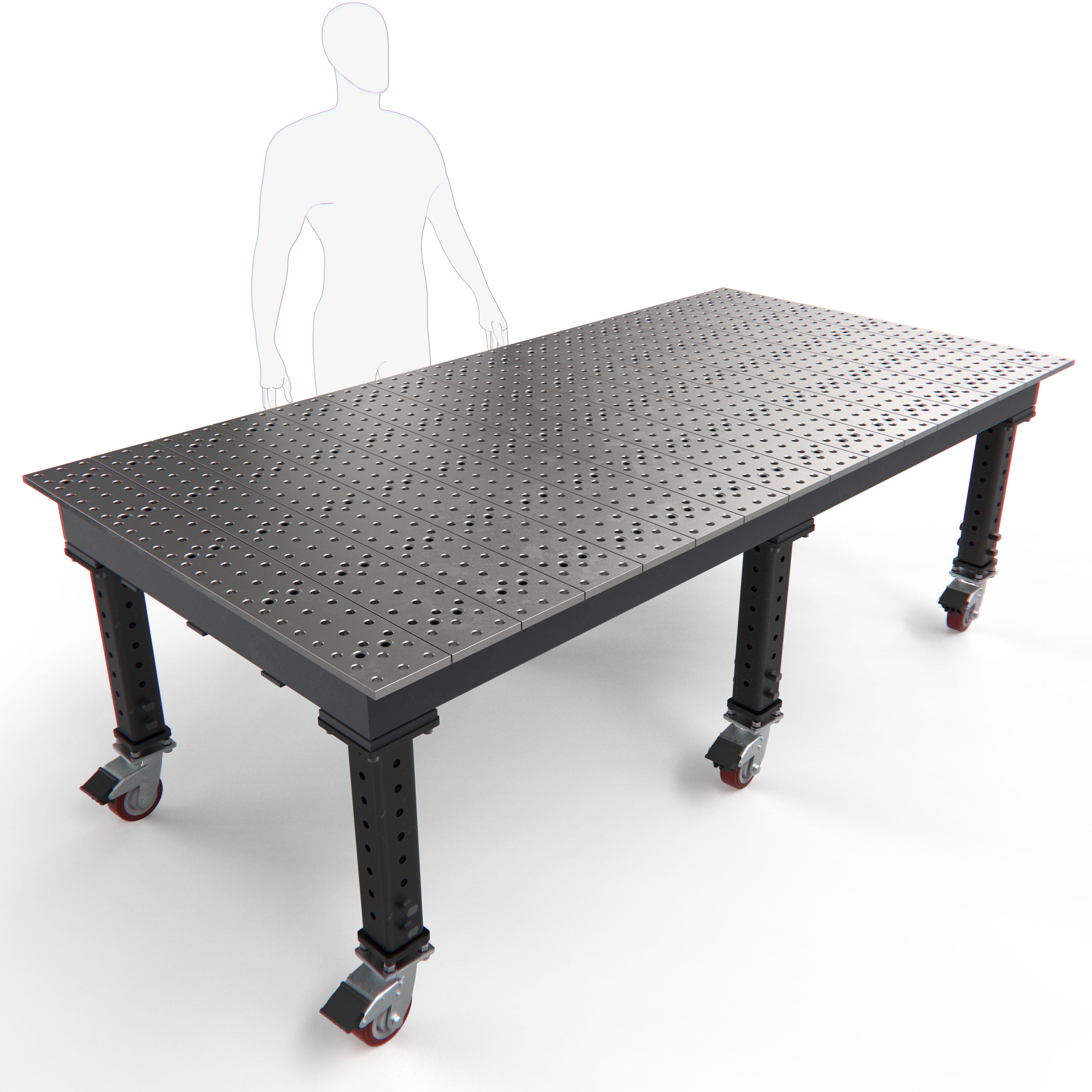

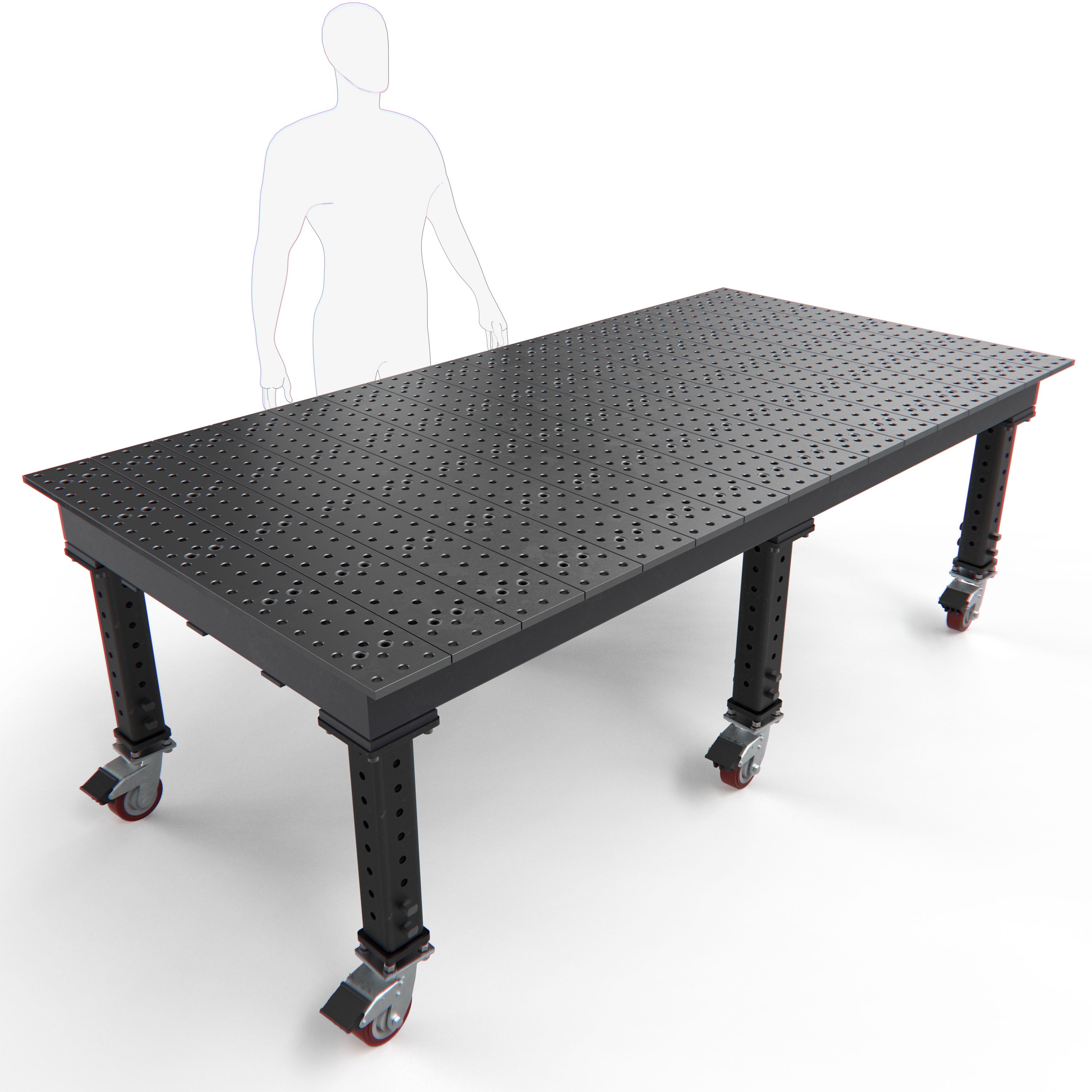

Locking Casters
Steel legs are equipped with four locking casters and leveling feet for mobile or stationary use.
Compatible with 5/8" Fixturing Elements
Compatible with all 5/8" System Components, & Fixtures.
Tabletop Side Height
6-1/4″ for both MAX and MAX Slotted tables
Table Accuracy
Table flatness: ±0.005 per 24″ x 24″
Hole spacing: 2.000″ ±0.001
Hole diameter: 0.625″ +.002/-.000
Plate thickness: 0.630″ ±0.004
Standard (plain) / Nitrided Finish
Choose from standard finish (medium carbon steel) or Nitrided (heat-treating) finish.
5' × 3' (60" x 36")
4' x 4' (48" x 48")
6' x 4' (72" x 48")
8' x 4' (96" x 48")
Reversible Plates
Frame
