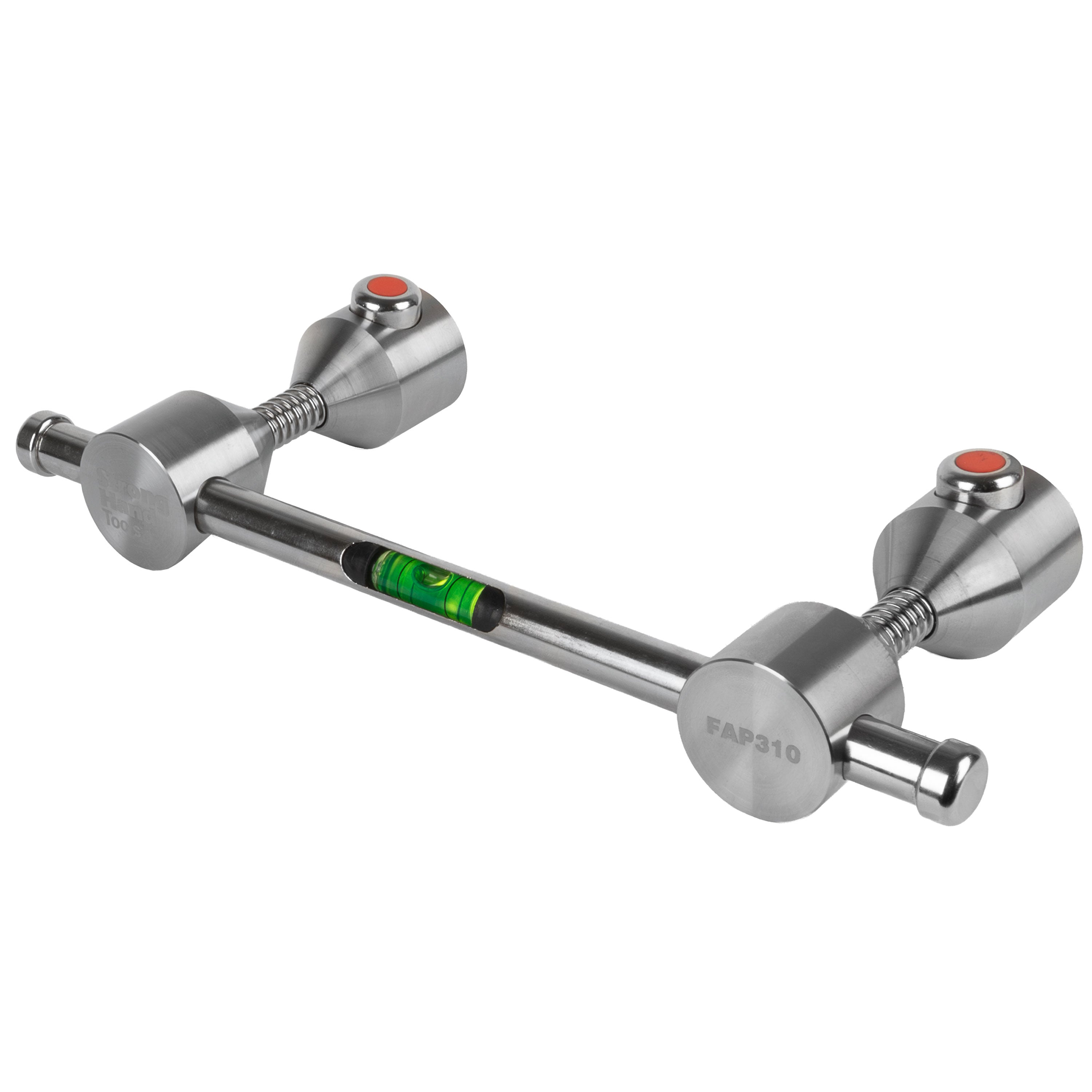

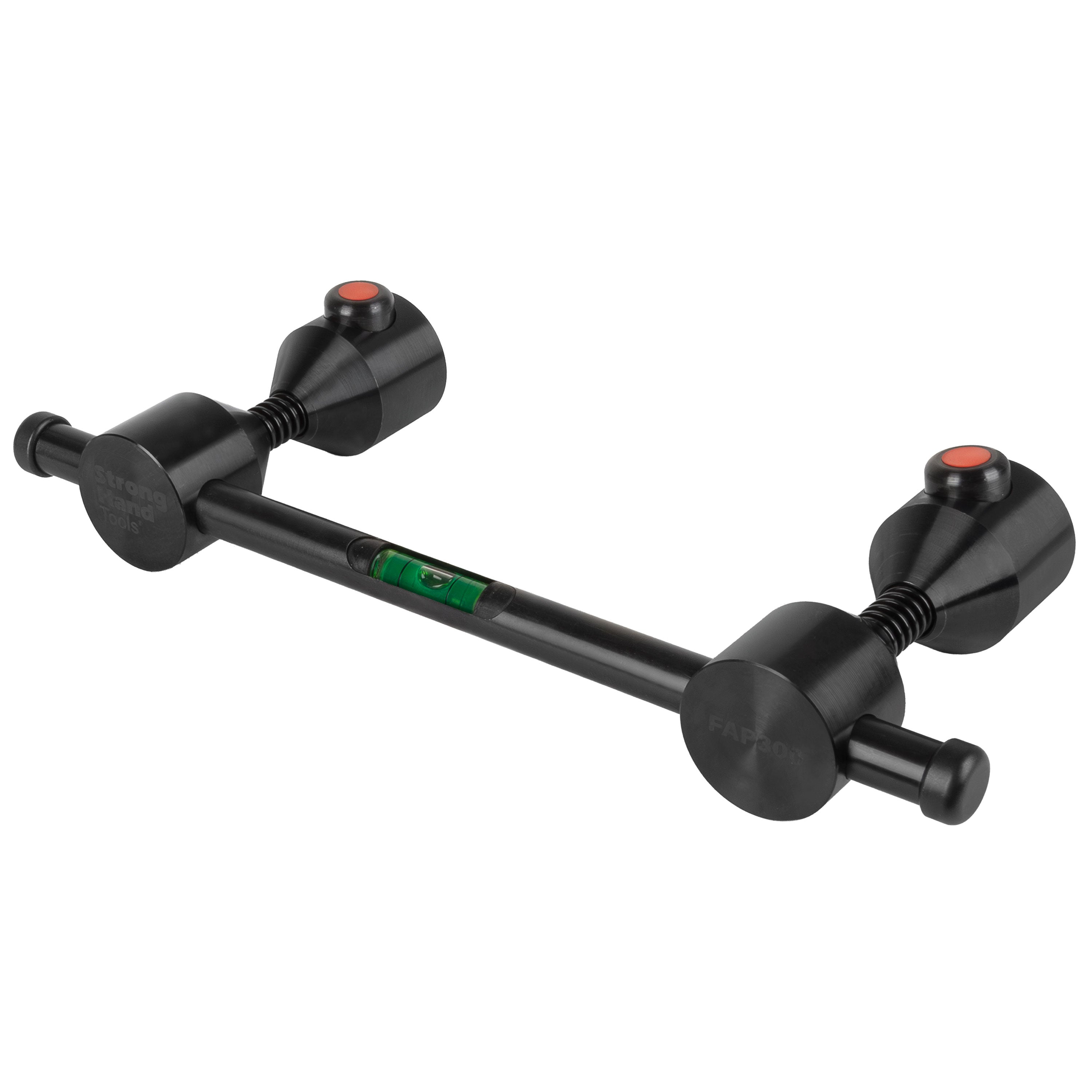

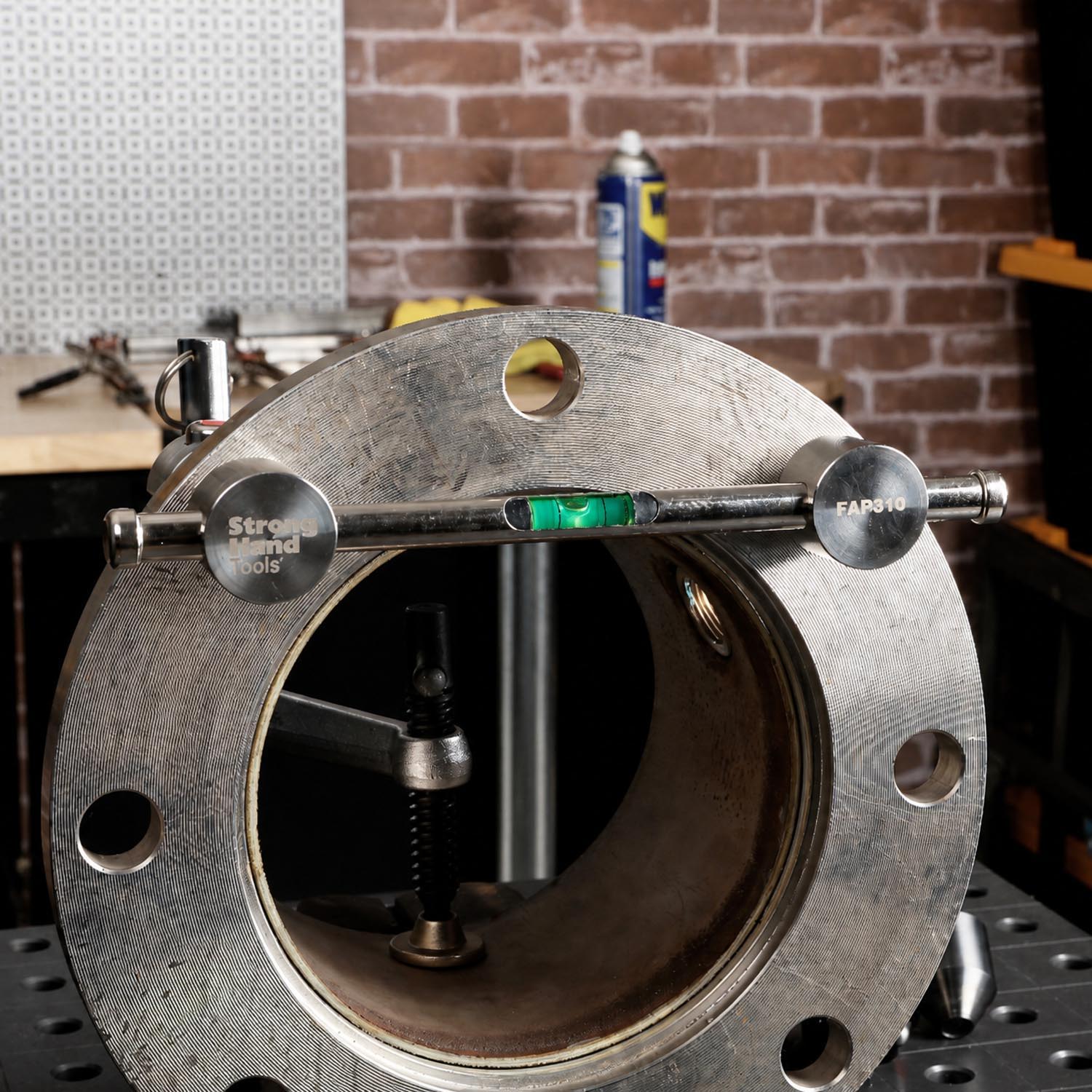

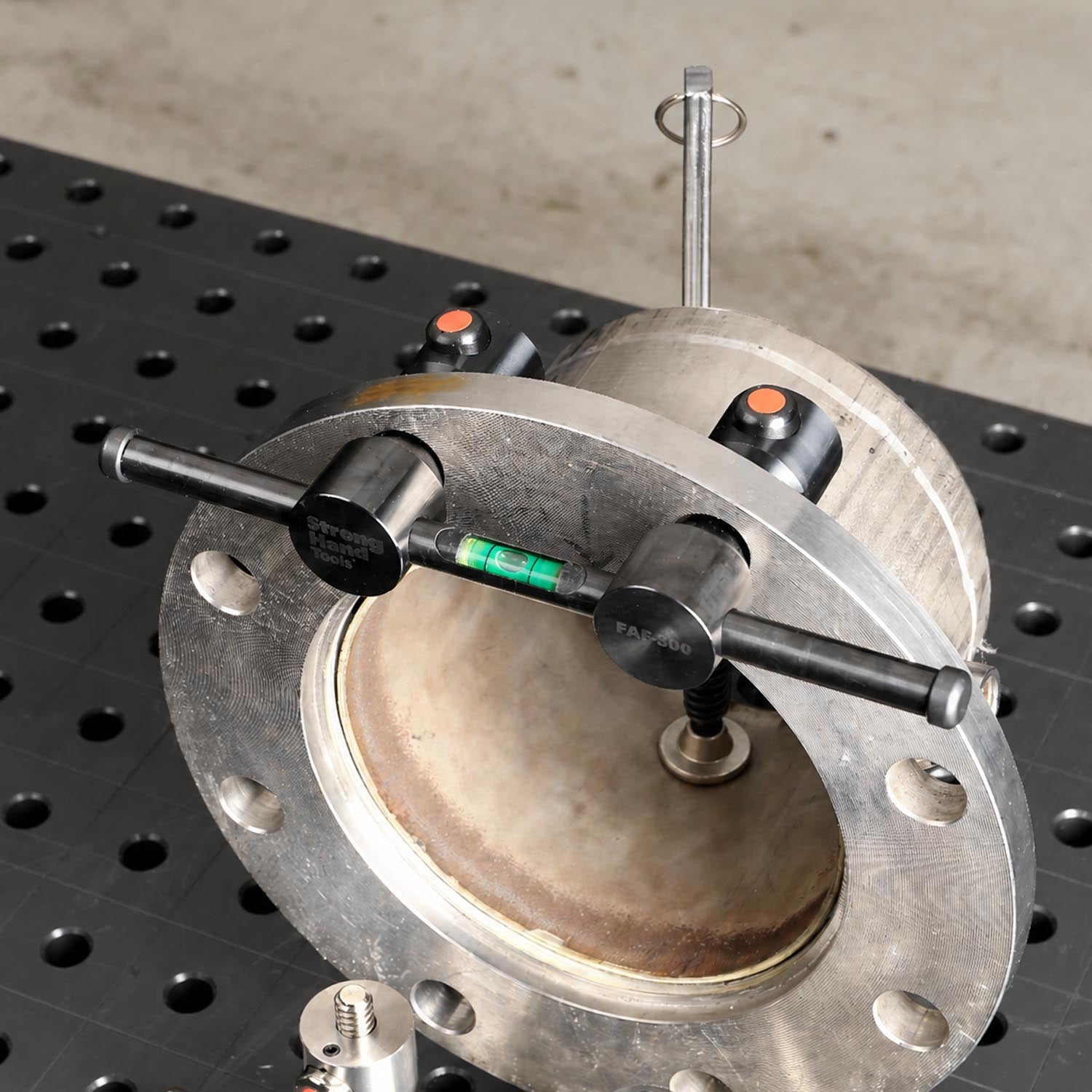

Streamline your flange fit-up process with the FAP300 and FAP310-SS Flange Alignment Pins, engineered to drastically reduce setup time while improving accuracy and consistency in pipe fabrication and welding workflows. This tool eliminates the need to balance an external level on traditional fit-up pins by integrating a built-in leveling system directly into its central cylinder and sliding bar.
Save 5%
Flange Alignment Pins
Regular price
Sale price
$85.50
Regular price
$90.00
Shipping calculated at checkout.

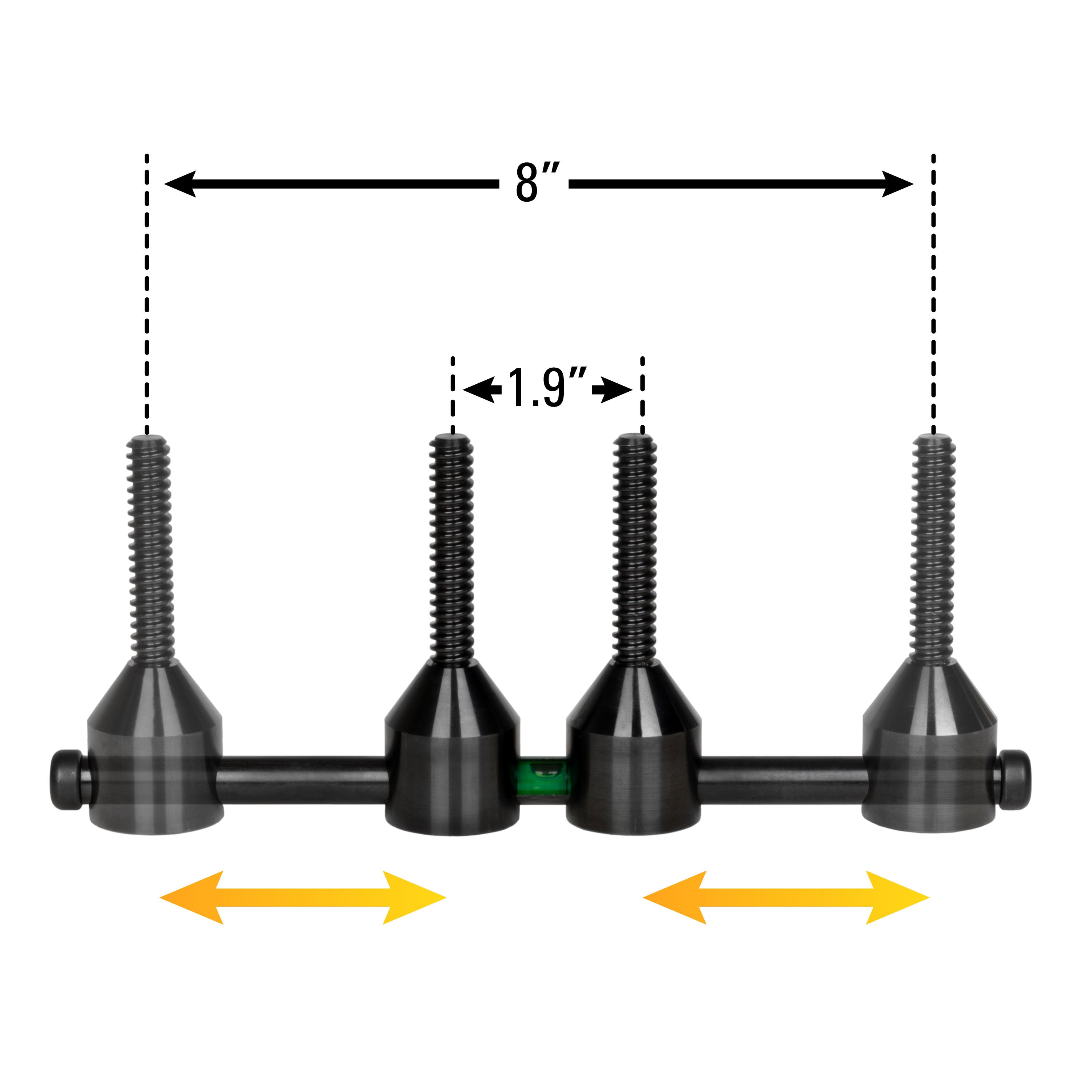

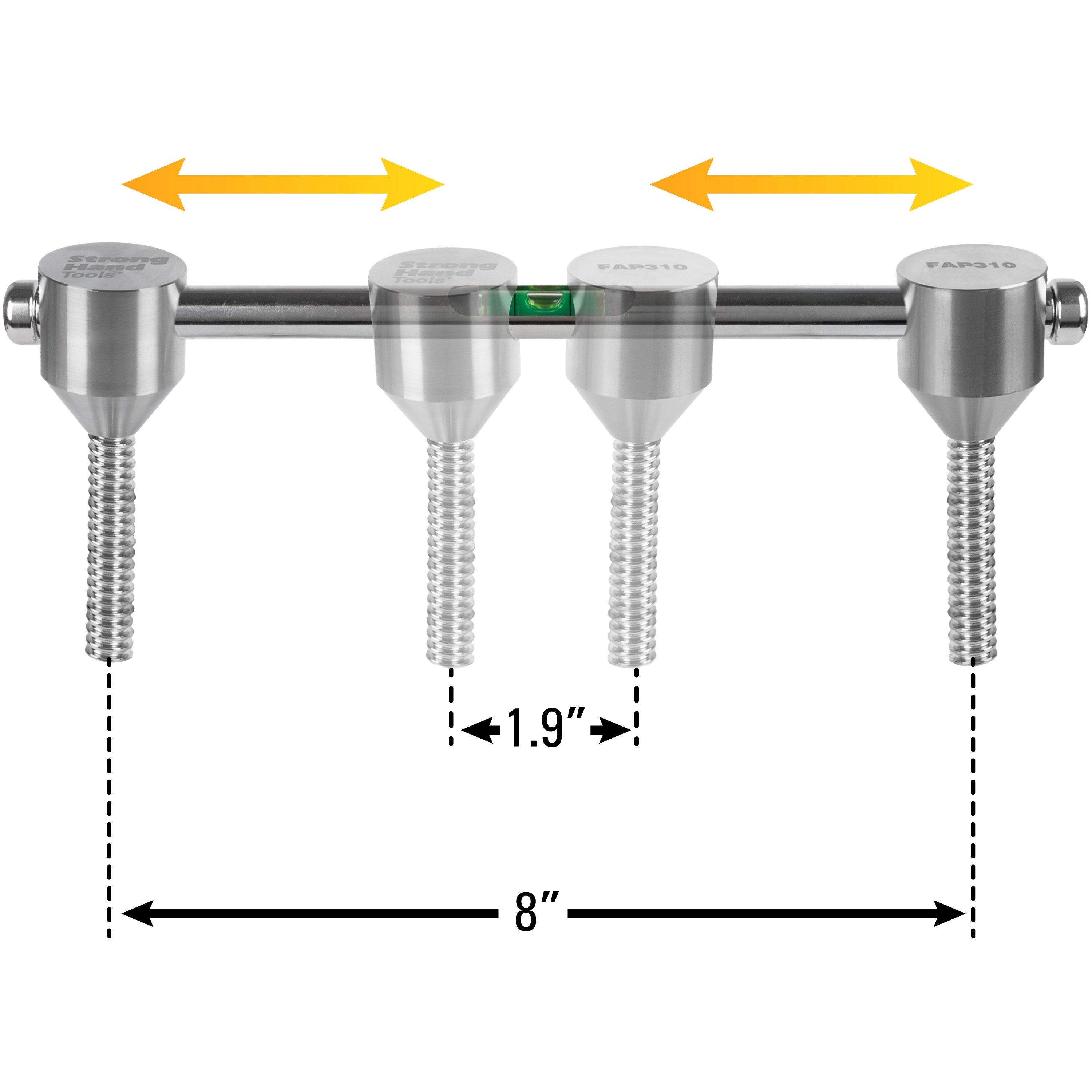

1.9" min – 8" max
Pin Span
1.40 in
Pin Diameter
Steel / Stainless Steel
Material
Quick Release
Button
-
Estimated delivery: Jul 11 - Jul 15
Couldn't load pickup availability
Flange Alignment Pins
Product Overview

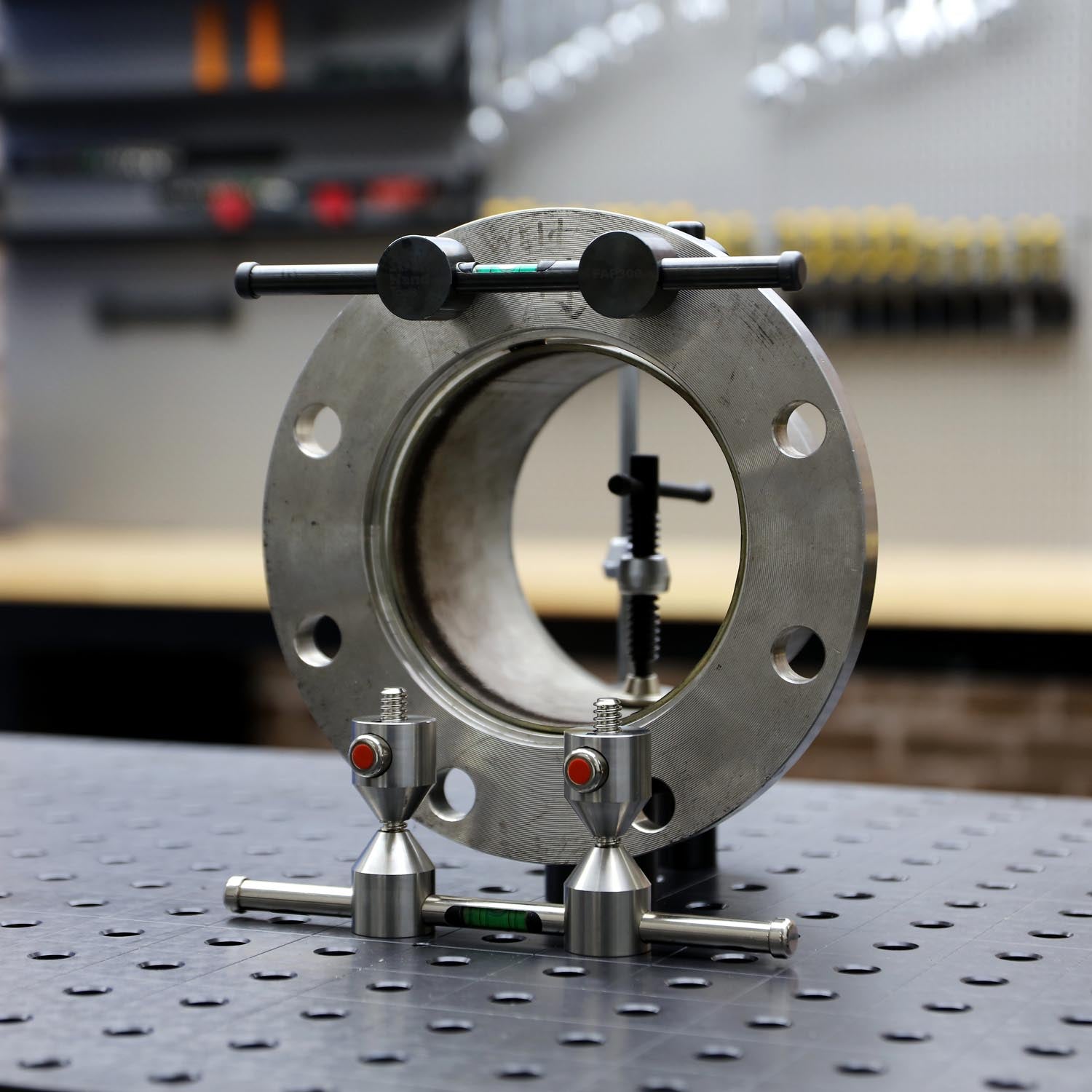

Built with precision C.N.C. machined components, it features a smart, user-friendly design where two smooth, dual conical pins slide easily into the flange holes to lock both sides perfectly in place before welding.

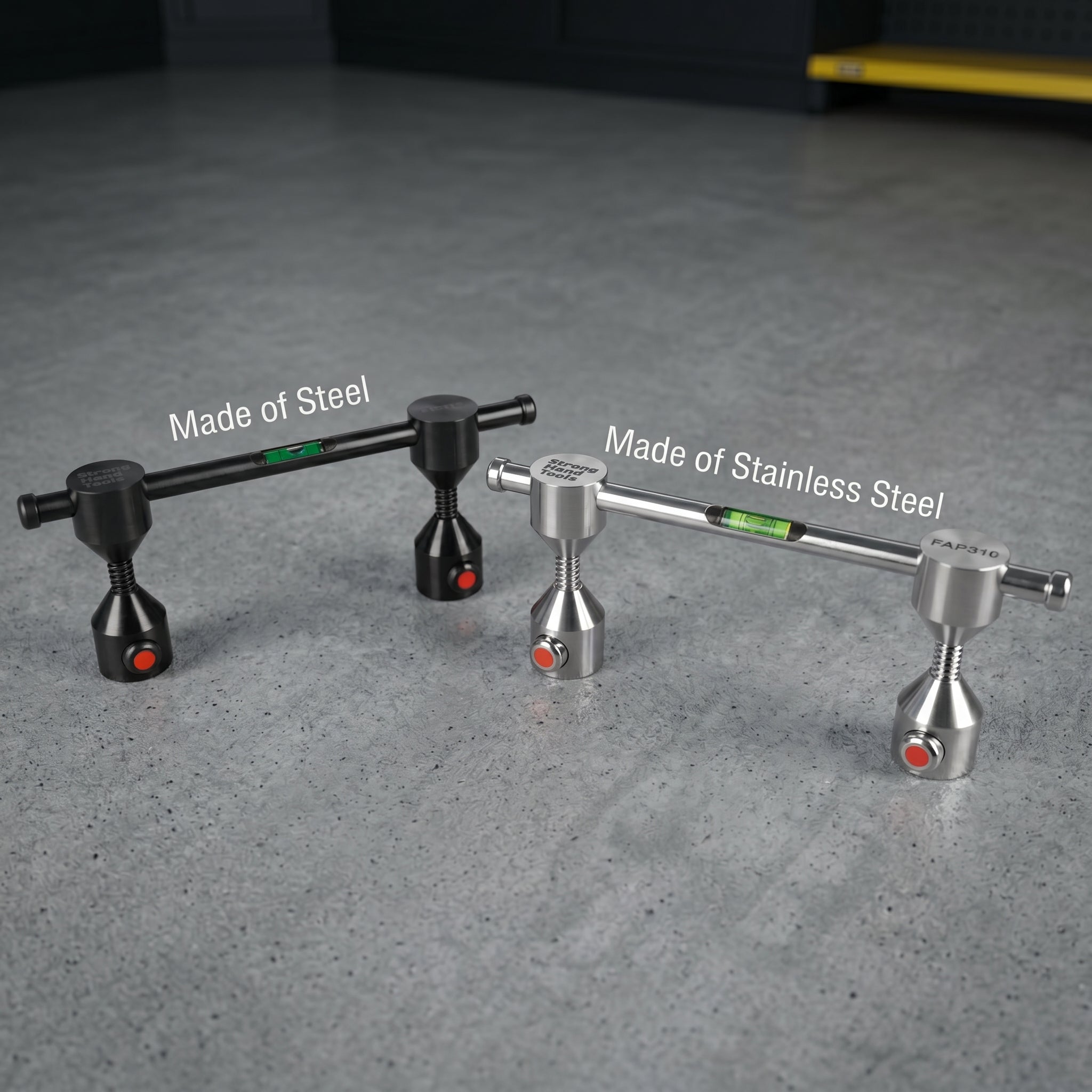

Application Tip: Use the standard steel FAP300 for everyday shop fabrication, or upgrade to the stainless steel FAP310-SS for specialized food-grade or highly corrosive marine environments.

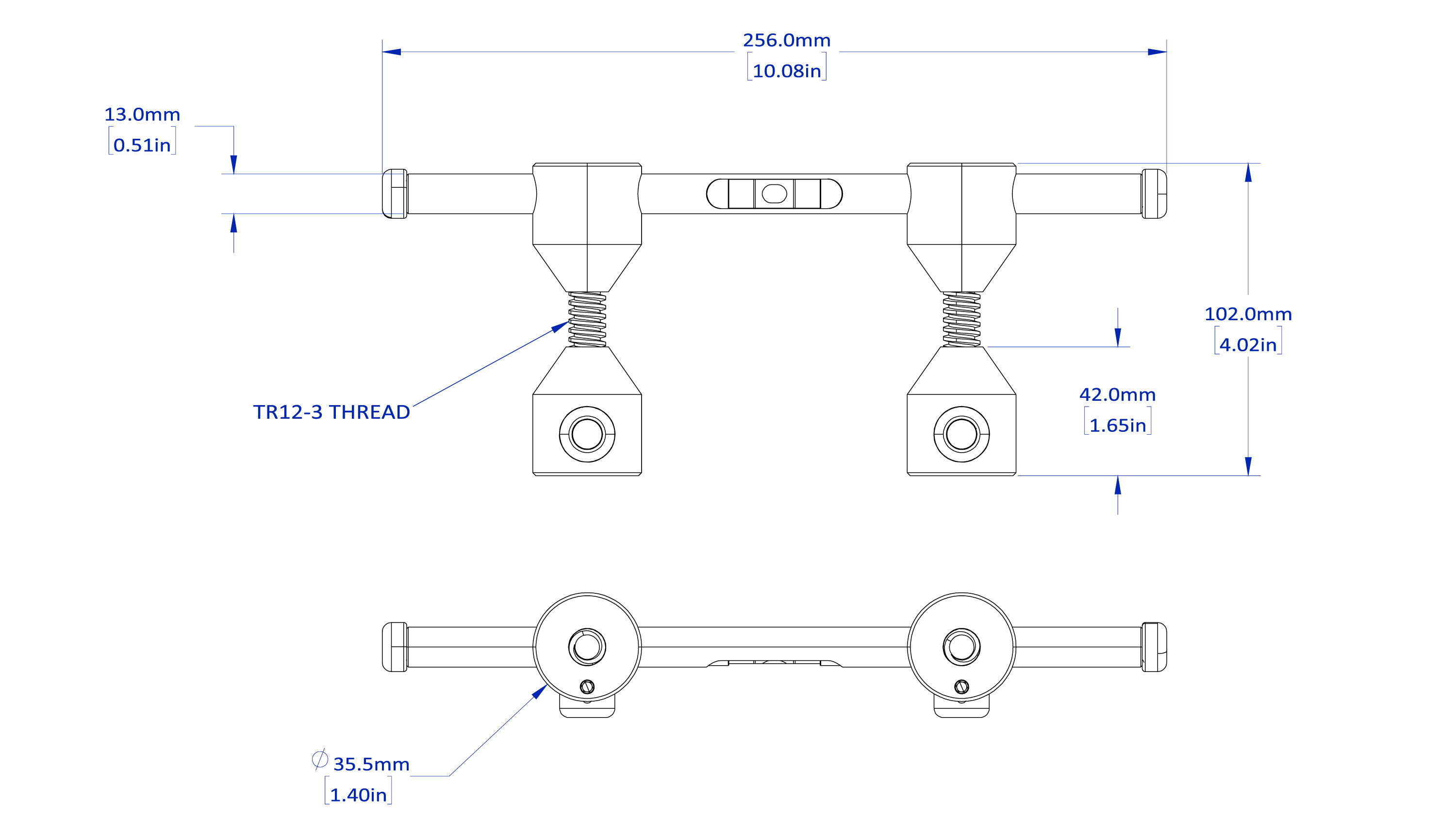

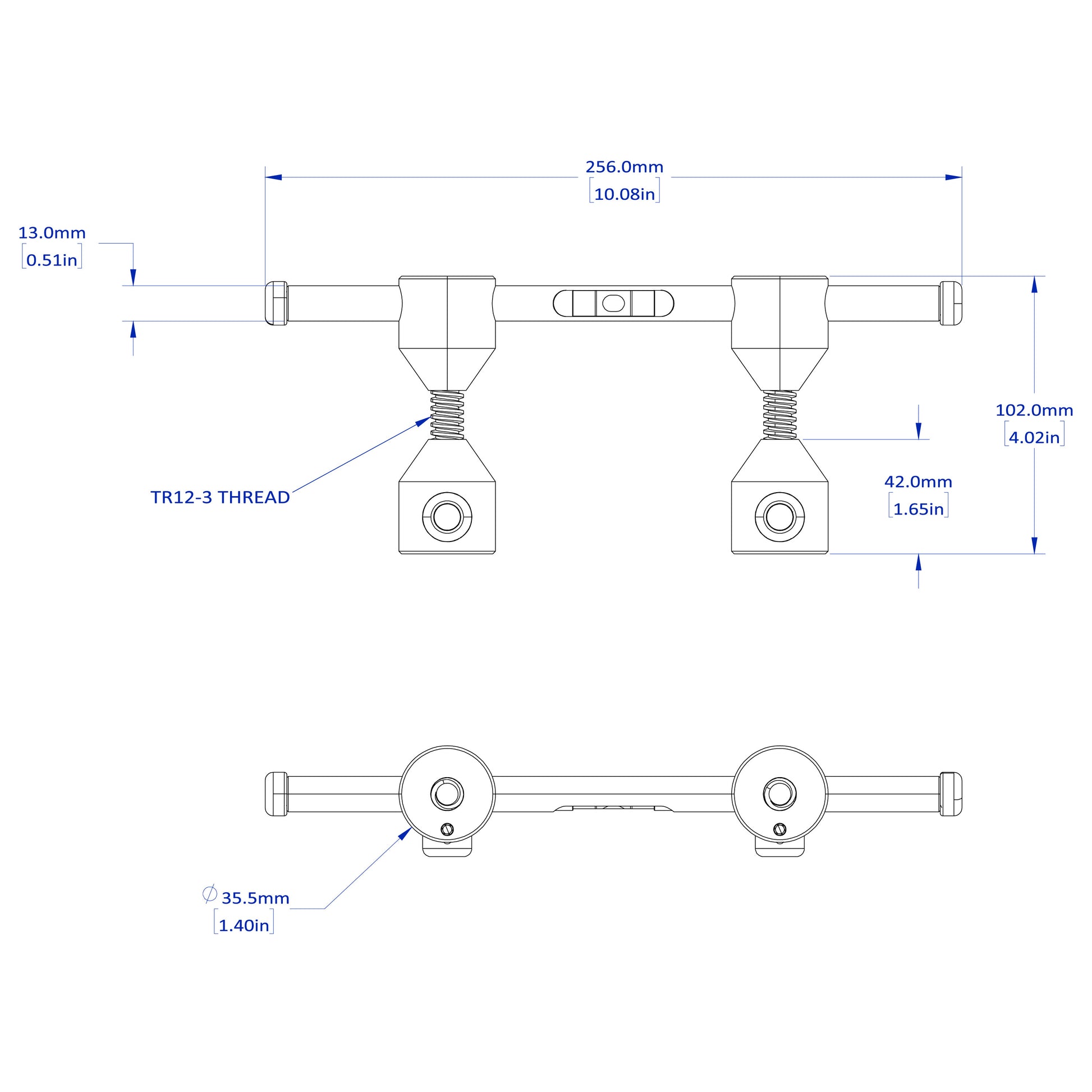

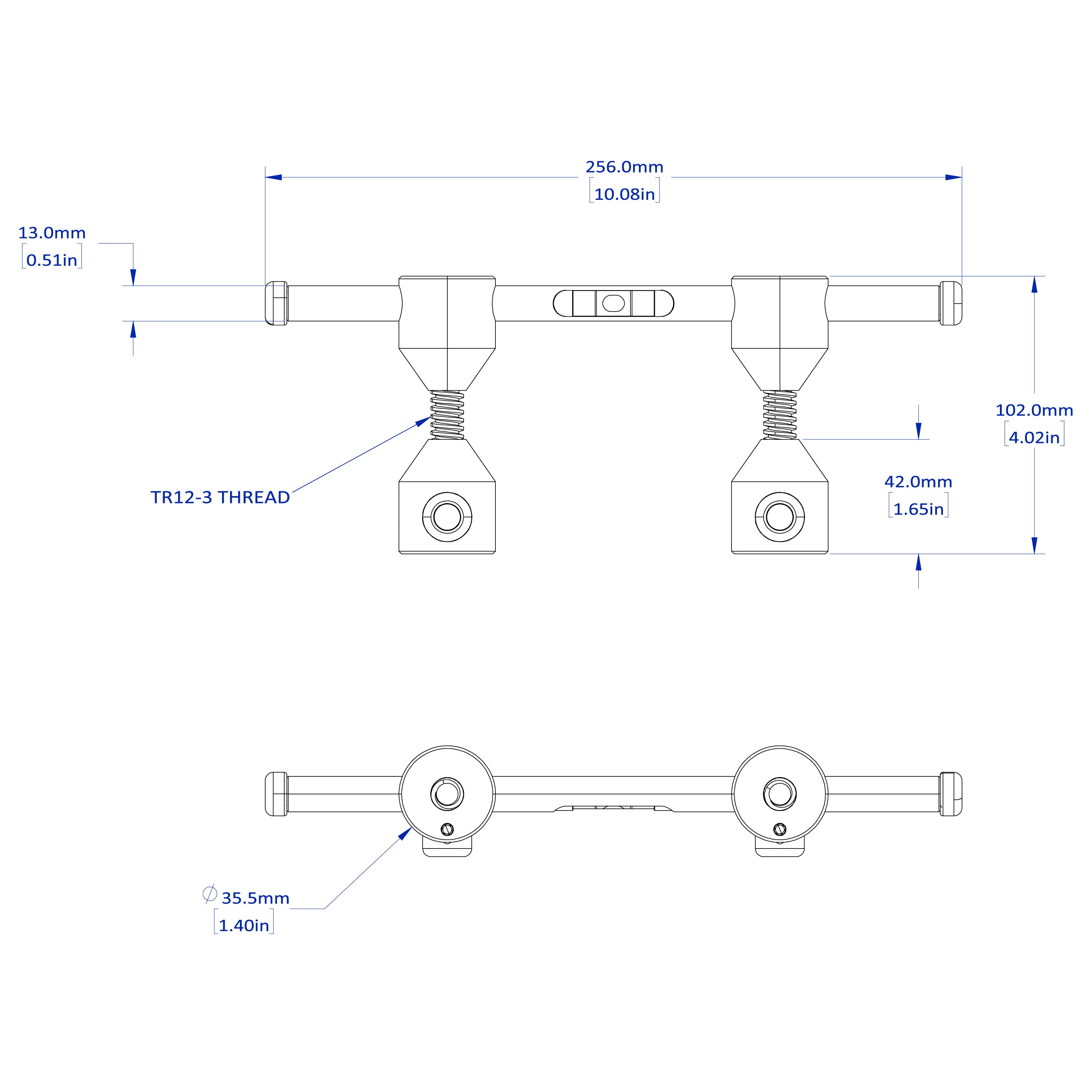

Slide Bar Length
10" (256 mm)
Pin Span
1.9" min – 8" max
Pin Base Diameter
1.40 in (35.5 mm)
Pin Base Height
1.65 in (42.0 mm)
Thread Type
TR12-3 Thread
Material Options
Heavy-Duty Steel / Stainless Steel
Why It Beats the Competition
No More Juggling Tools
Traditional alignment methods require balancing a separate torpedo level across your alignment pins. The FAP300 series integrates the bubble level directly into the main frame, keeping your hands entirely free to fit and weld.
Rapid, Toolless Operation
Forget endlessly spinning fine-threaded nuts to secure your pins. The integrated quick-release buttons allow you to slide, lock, and release the tool in a fraction of a second.
Zero-Error Consistency
Precision C.N.C. machining paired with smooth dual conical sliding pins prevents shifting and human error, providing repeatable accuracy from joint to joint.

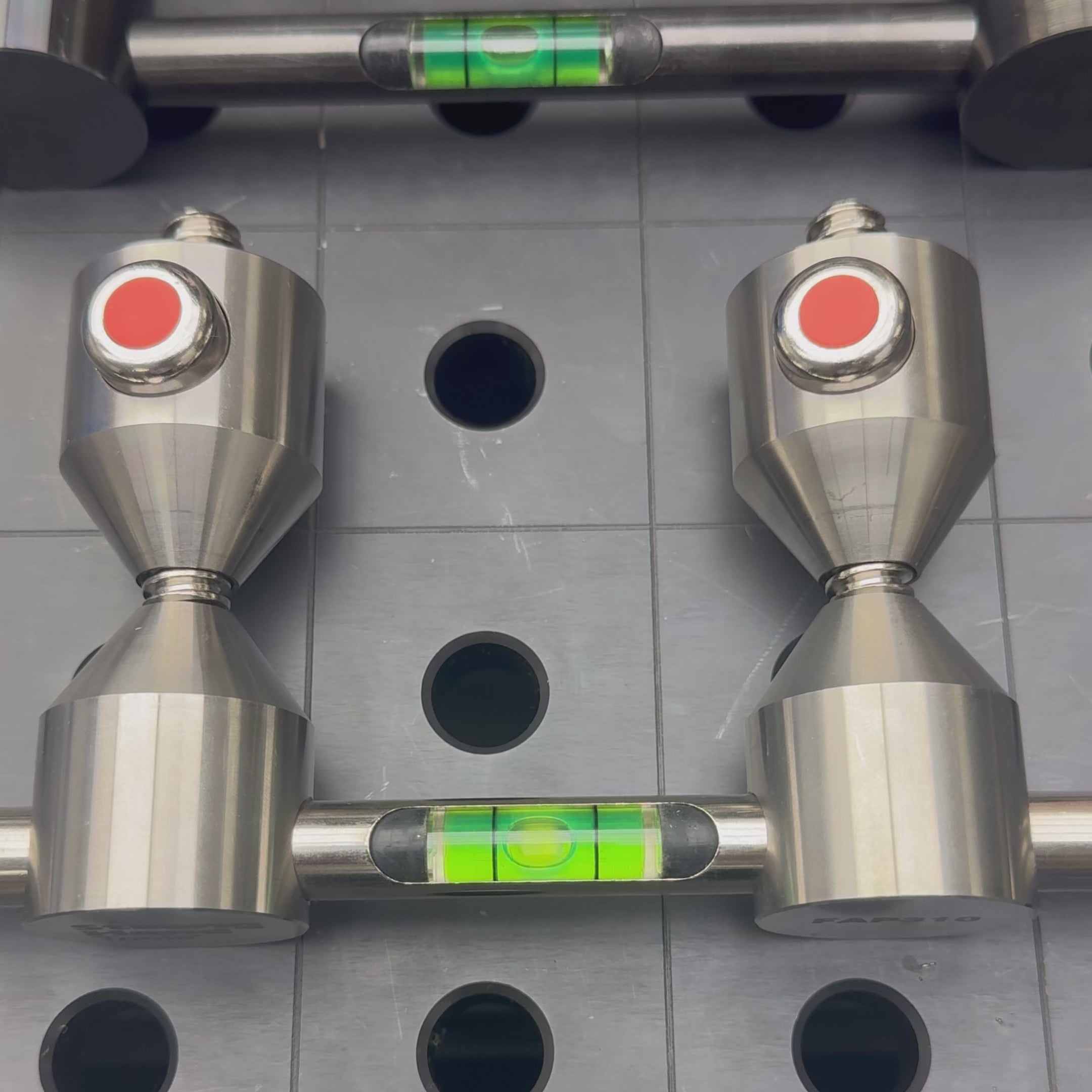

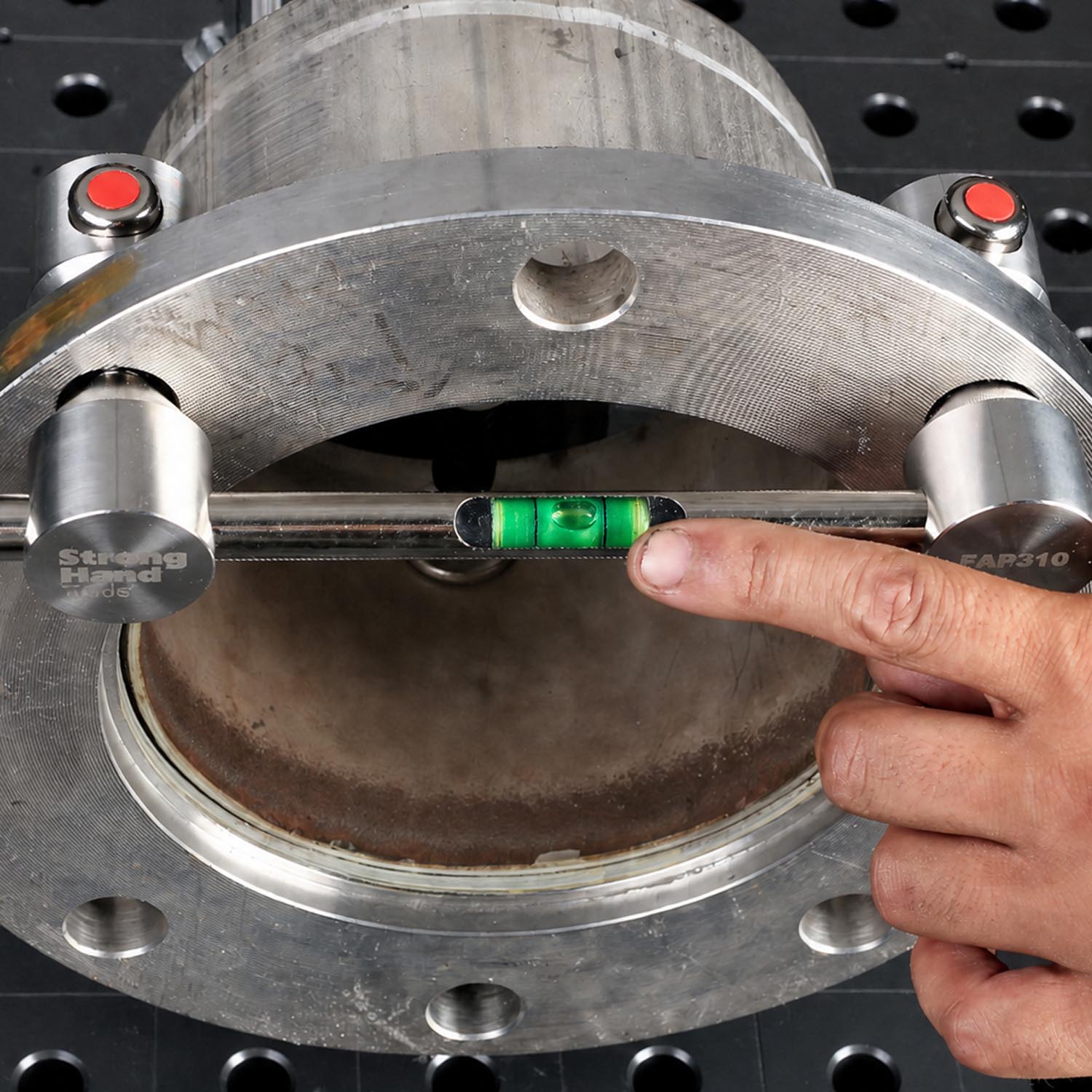

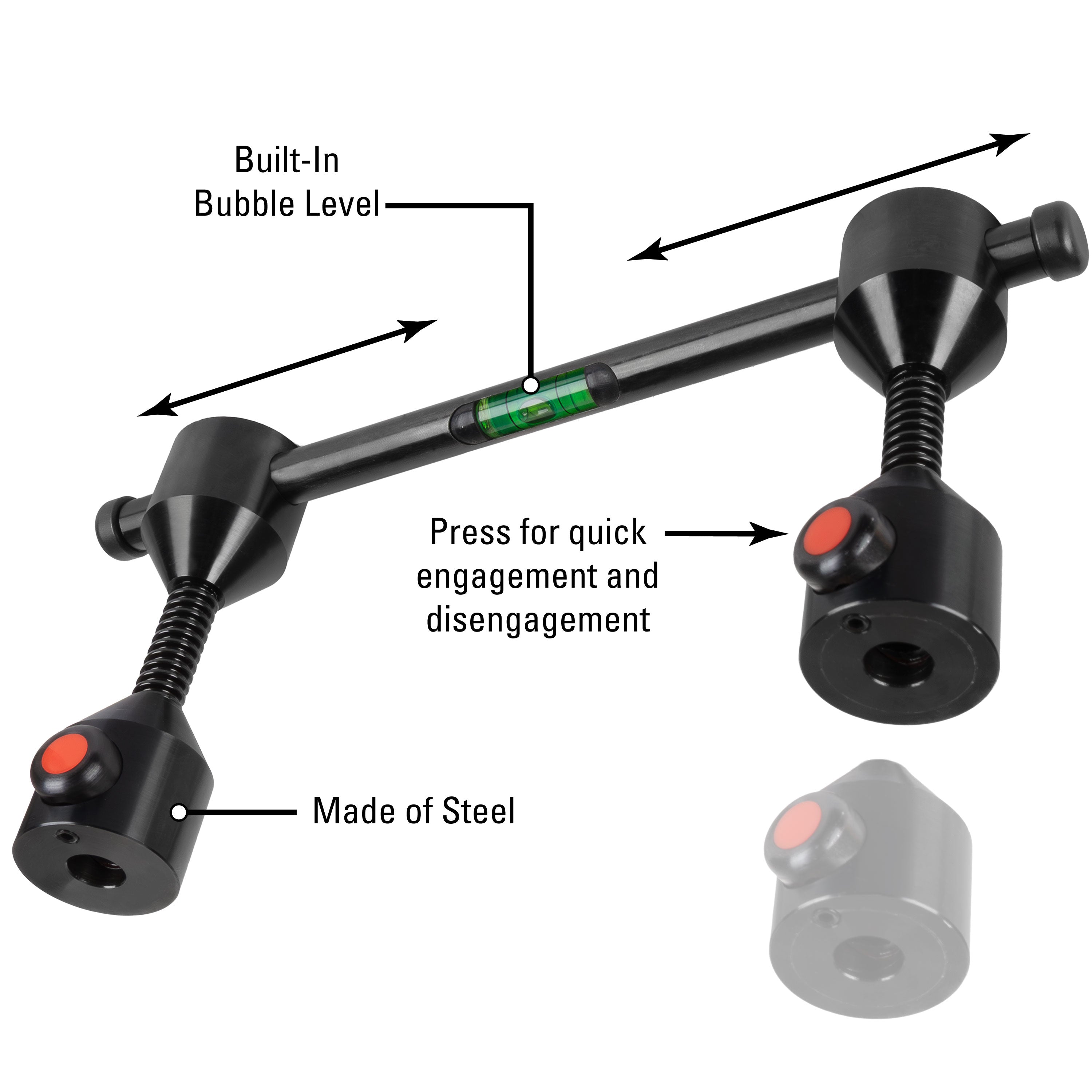

Integrated Bubble Level
Embedded directly into the central cylinder of the interconnecting slide bar to ensure proper orientation and quick, accurate horizontal alignment.
Smooth Dual Conical Pins
Designed to slide smoothly into flange holes, automatically centering and locking both sides securely in place.

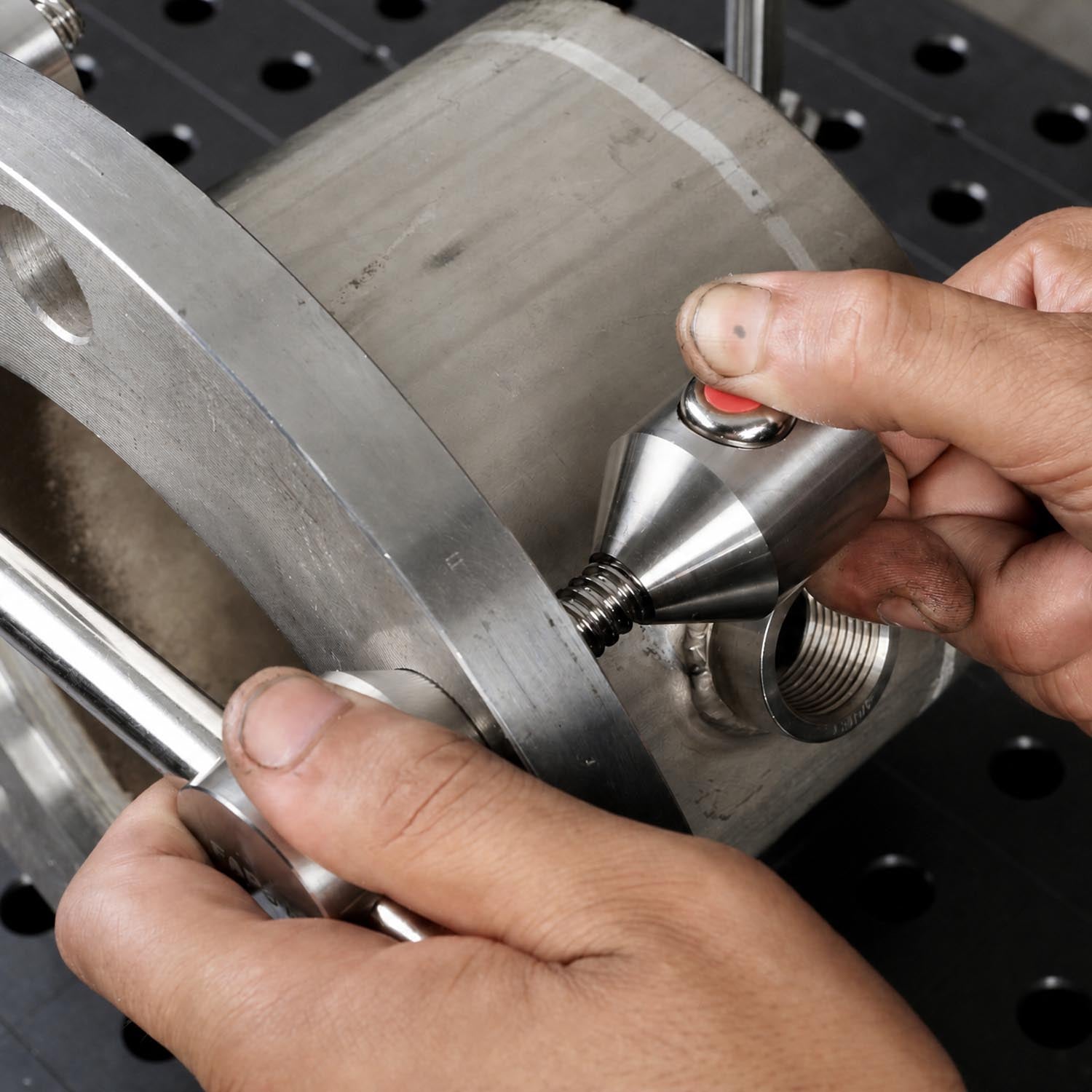

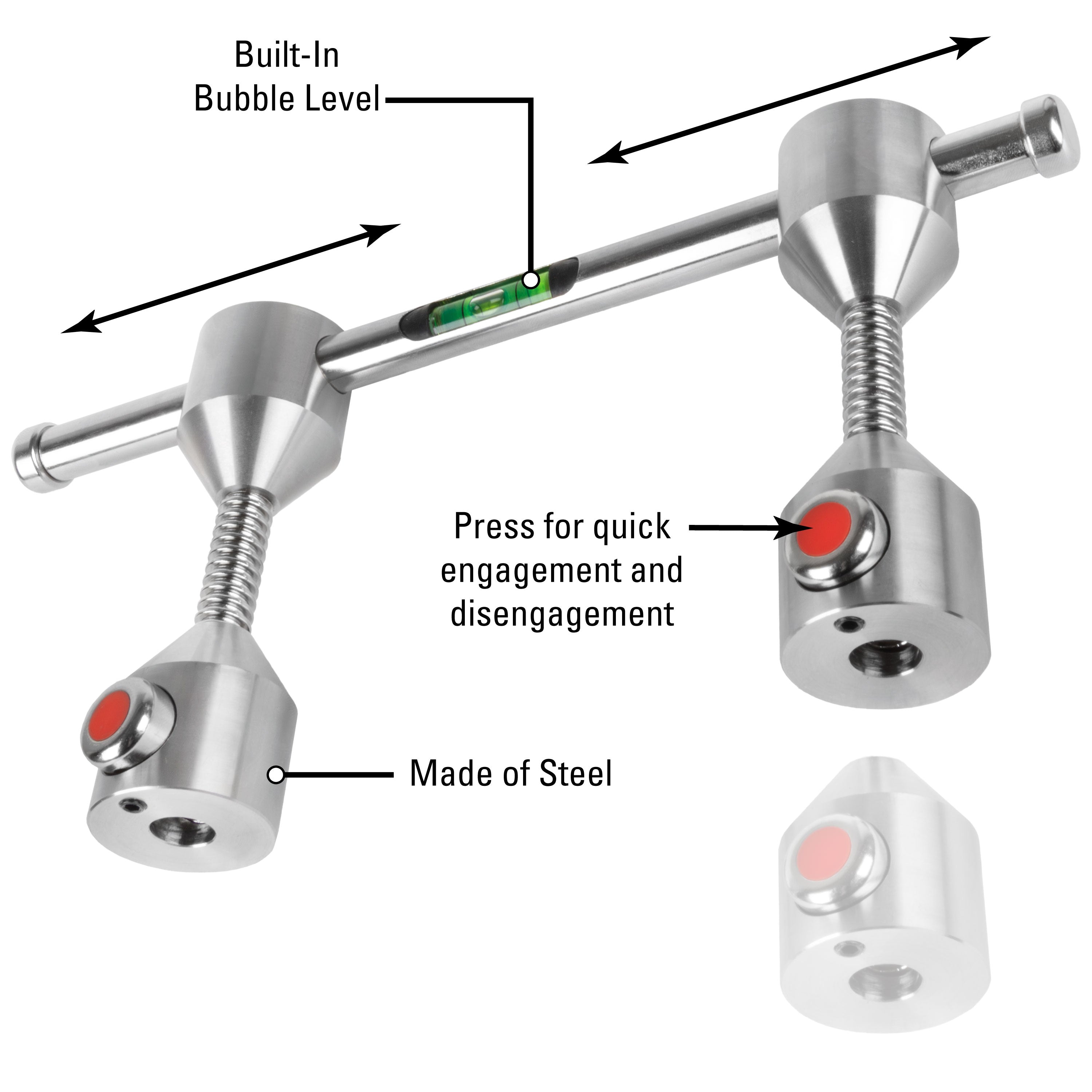

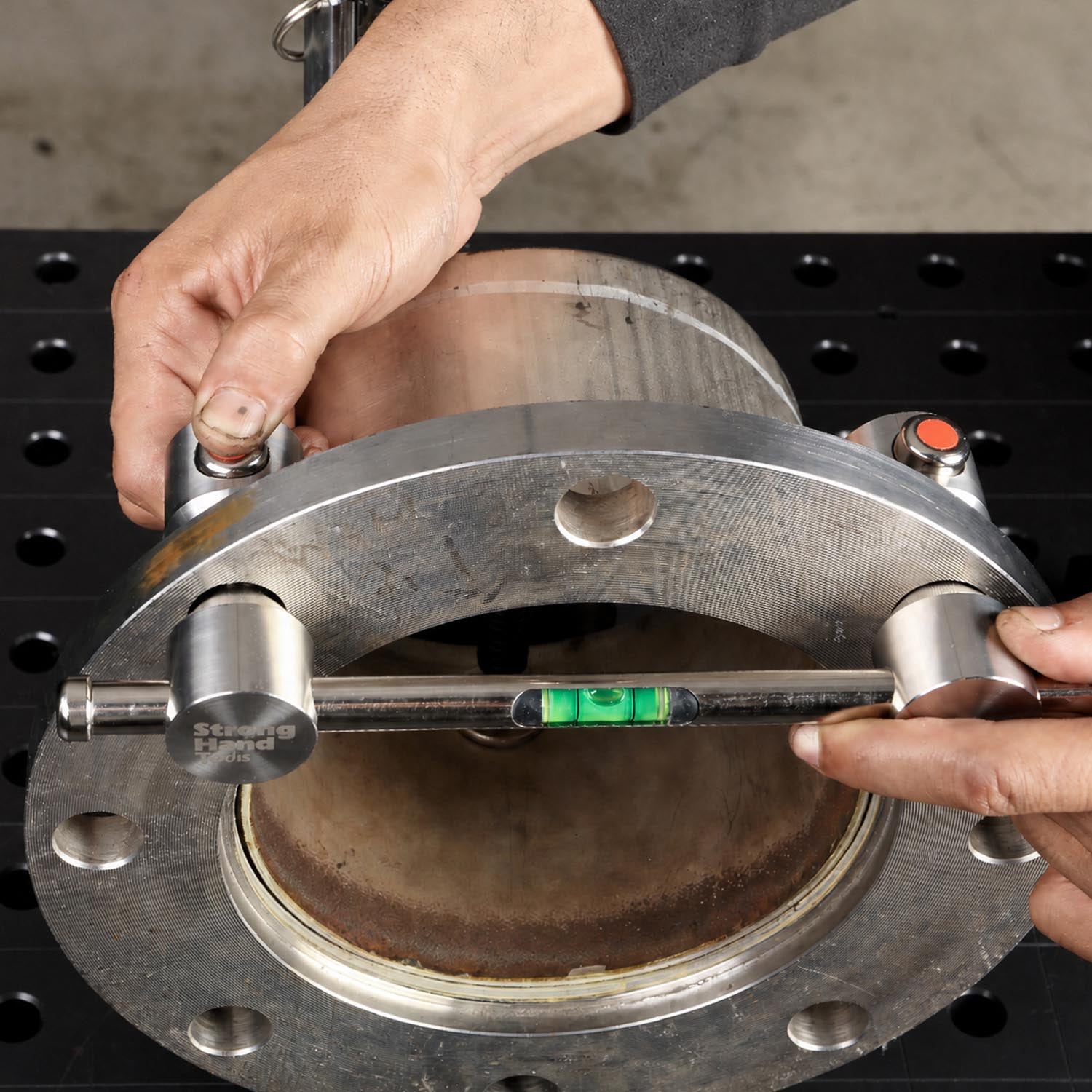

Quick-Release Buttons
Features a quick-action button on the pins for rapid engagement, effortless sliding adjustments, and instant disengagement.
Two-Hole Alignment Design
Ensures both flange holes are precisely leveled to the ground simultaneously, eliminating the guesswork of manual leveling.
