All fixturing plates are nitrided finished, 5/8" thick with 5/8" diameter boreholes. Model T52418 also has 1/2-13 tapped holes.
The versatile plate can be used as a fixturing element, or as a link to connect two tables together.
Other Systems
16mm System
28mm System
Metric Spacing
Inch Spacing
Tables
Fixtures
Fixturing Plates, 5/8 Holes
Fixturing Plates, 5/8 Holes
Regular price
$20 USD
Sale price
$20 USD
Regular price
Shipping calculated at checkout.
Available in stock
-
Estimated delivery: Aug 16 - Aug 20
Couldn't load pickup availability
California Prop 65 - This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more info: www.P65Warnings.ca.gov
Manual Download
Manual Download
Spec Download
Spec Download
CAD Drawings Download
CAD Drawings Download
| Part No. | Description | Dimension (in) | Weight (lb) |
|---|---|---|---|

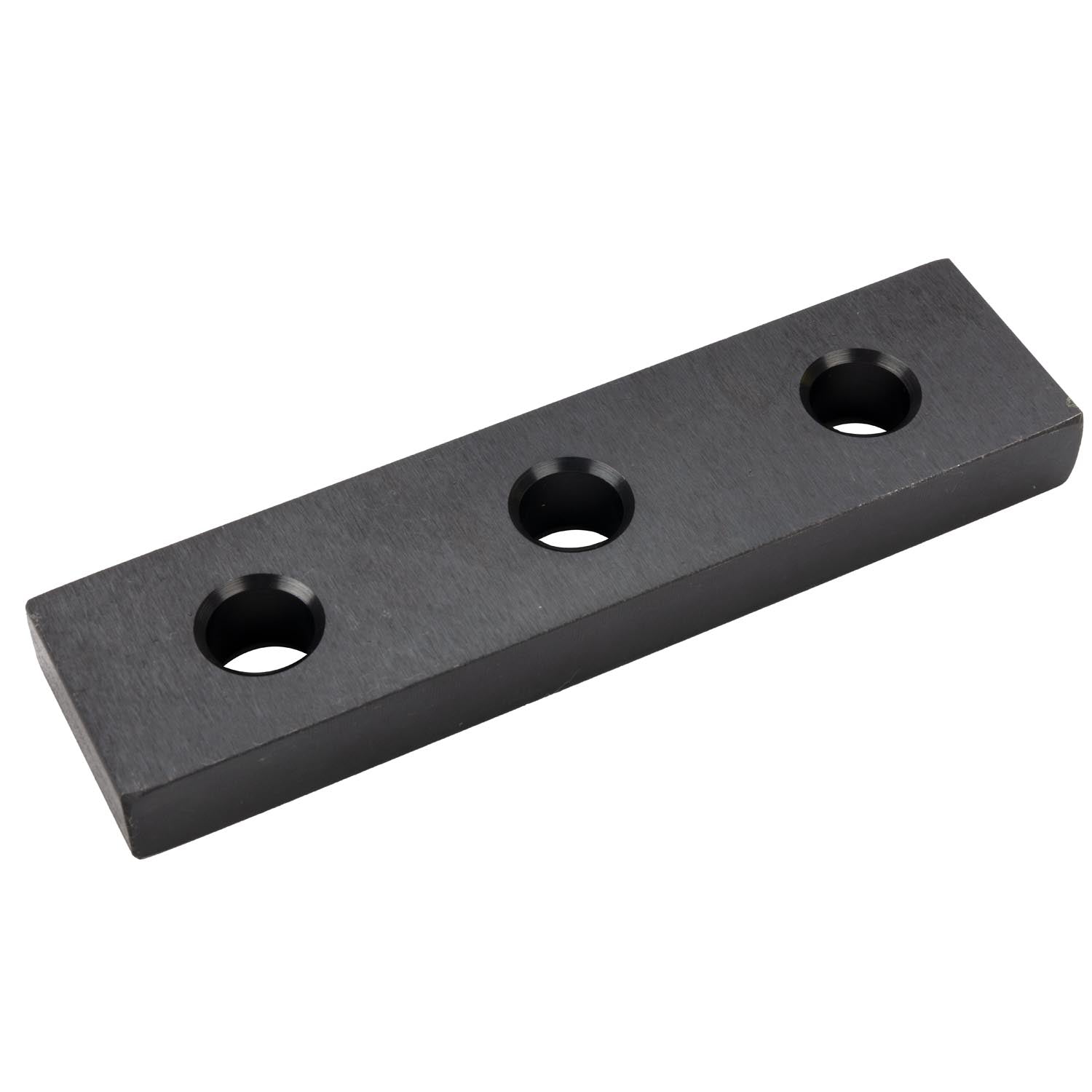

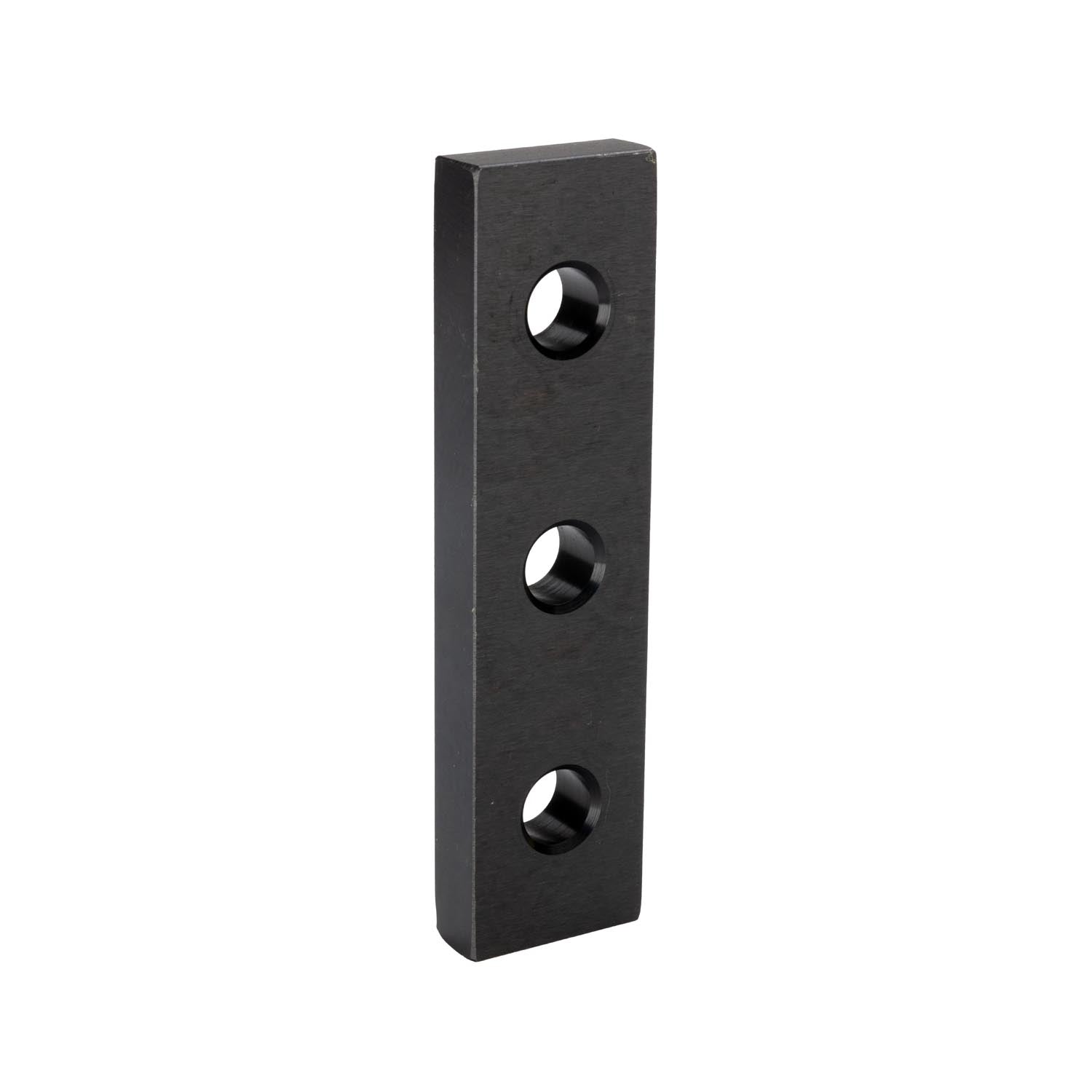

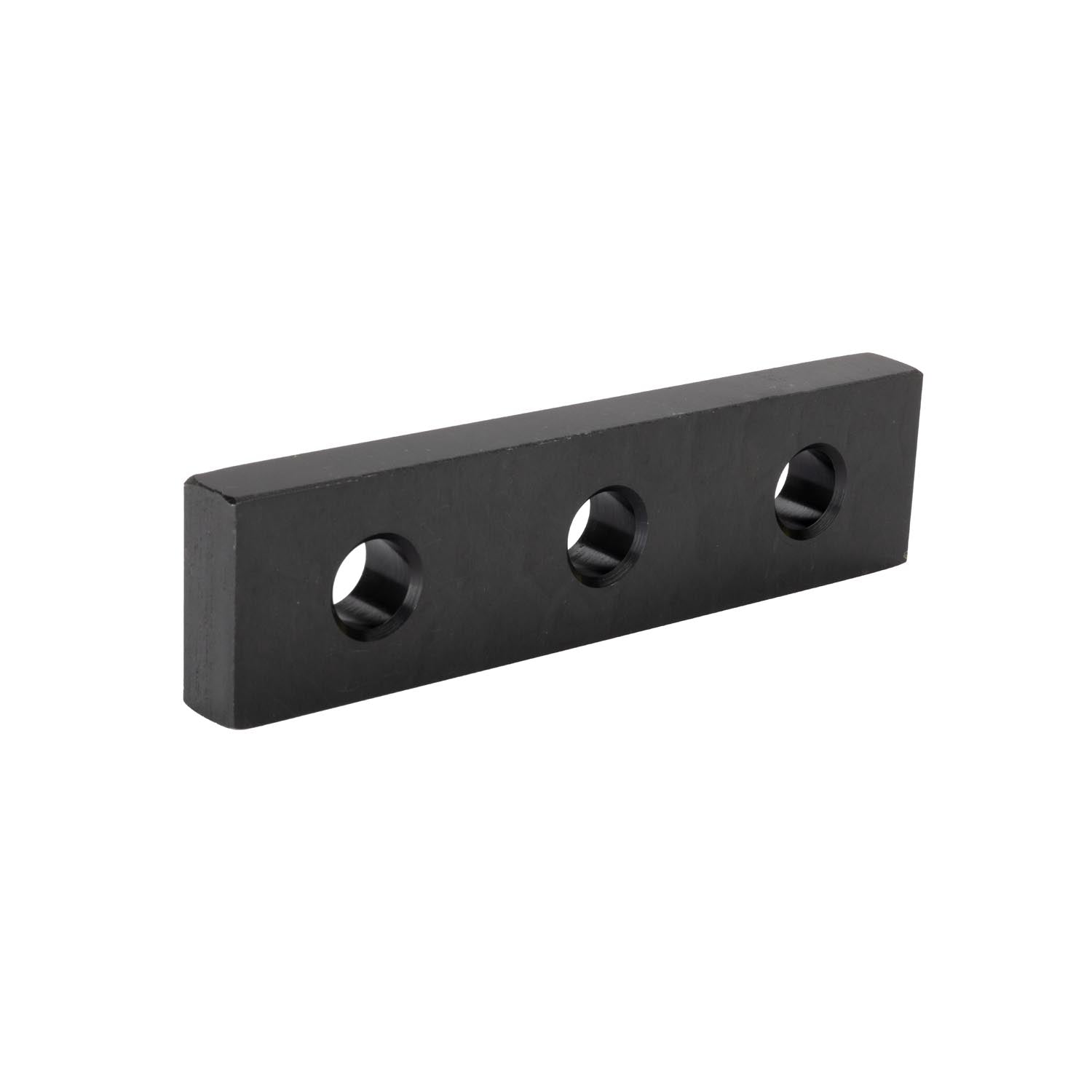

| T51003 | 3-hole Channel Block | 6.3 x 1.6 x 0.625 | 0.6 |

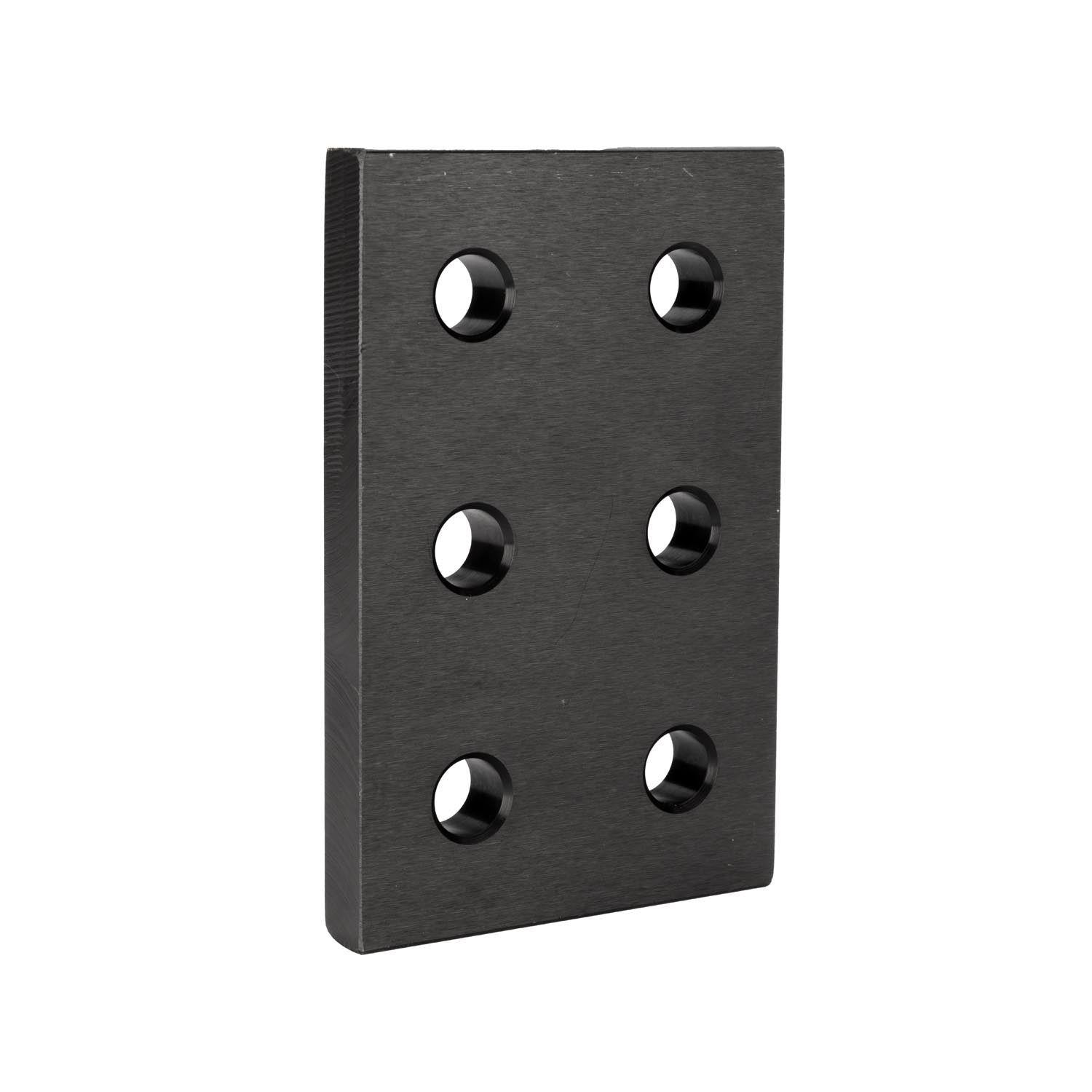

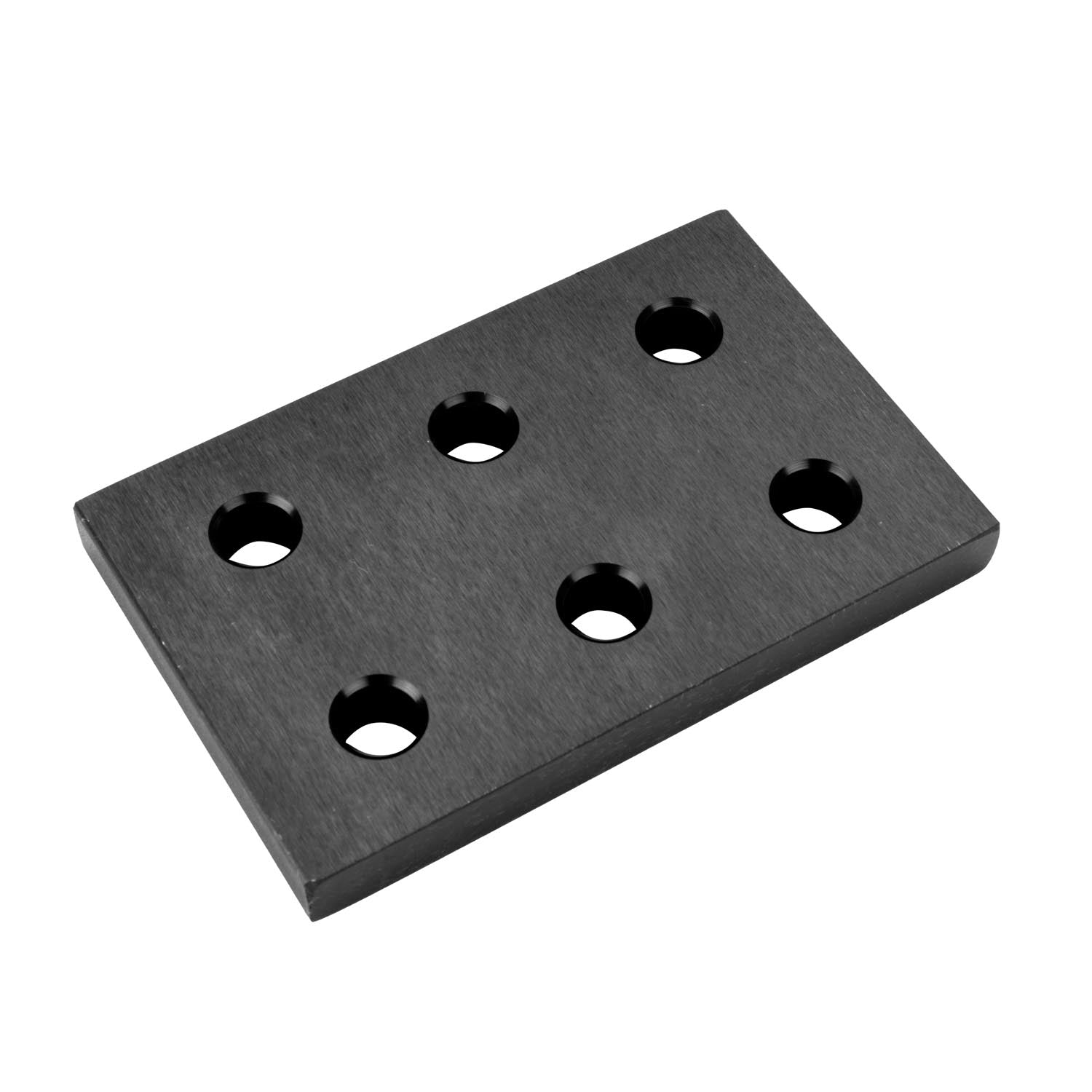

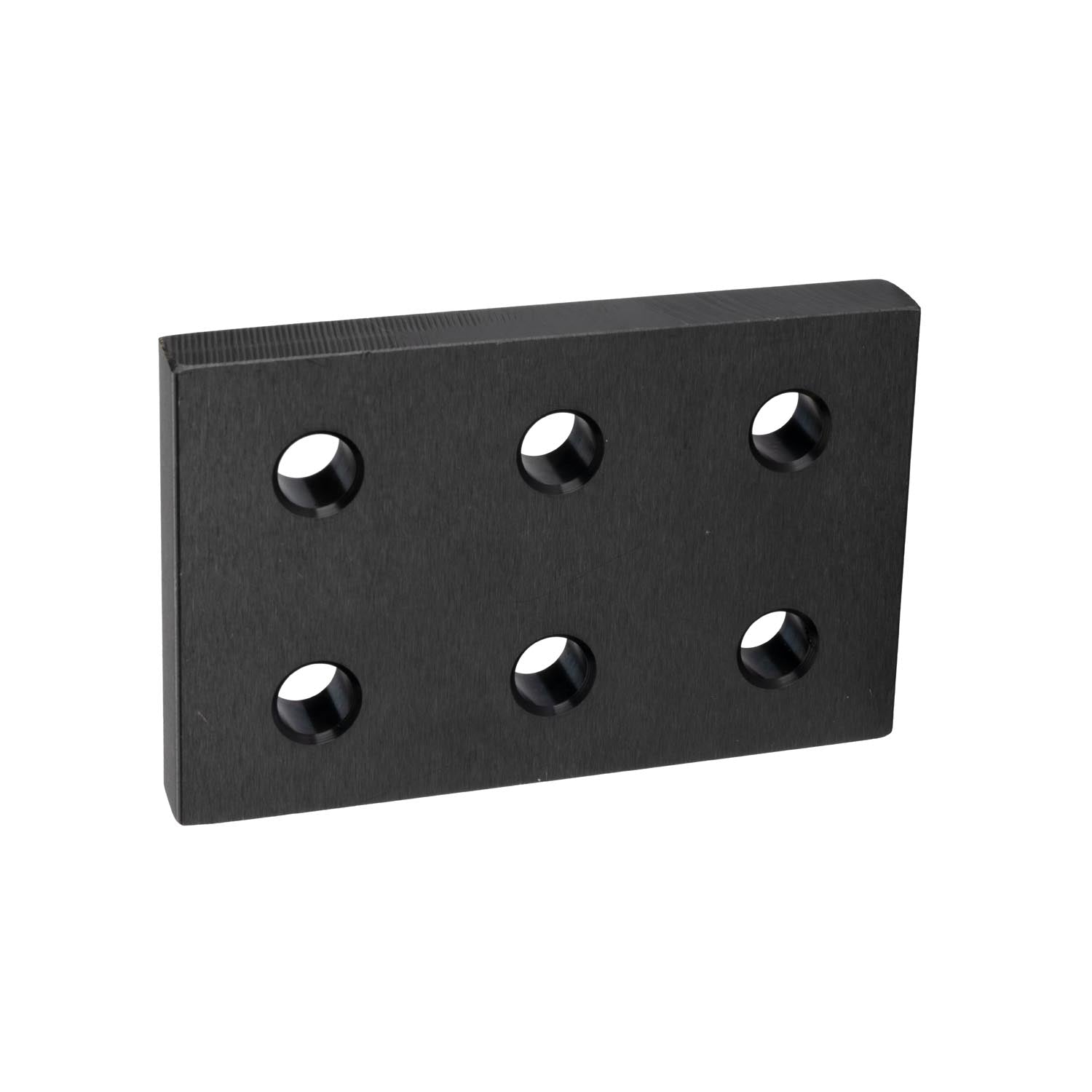

| T51006 | 6-Hole Fixturing Plate | 4 x 6.3 x 0.625 | 4.2 |

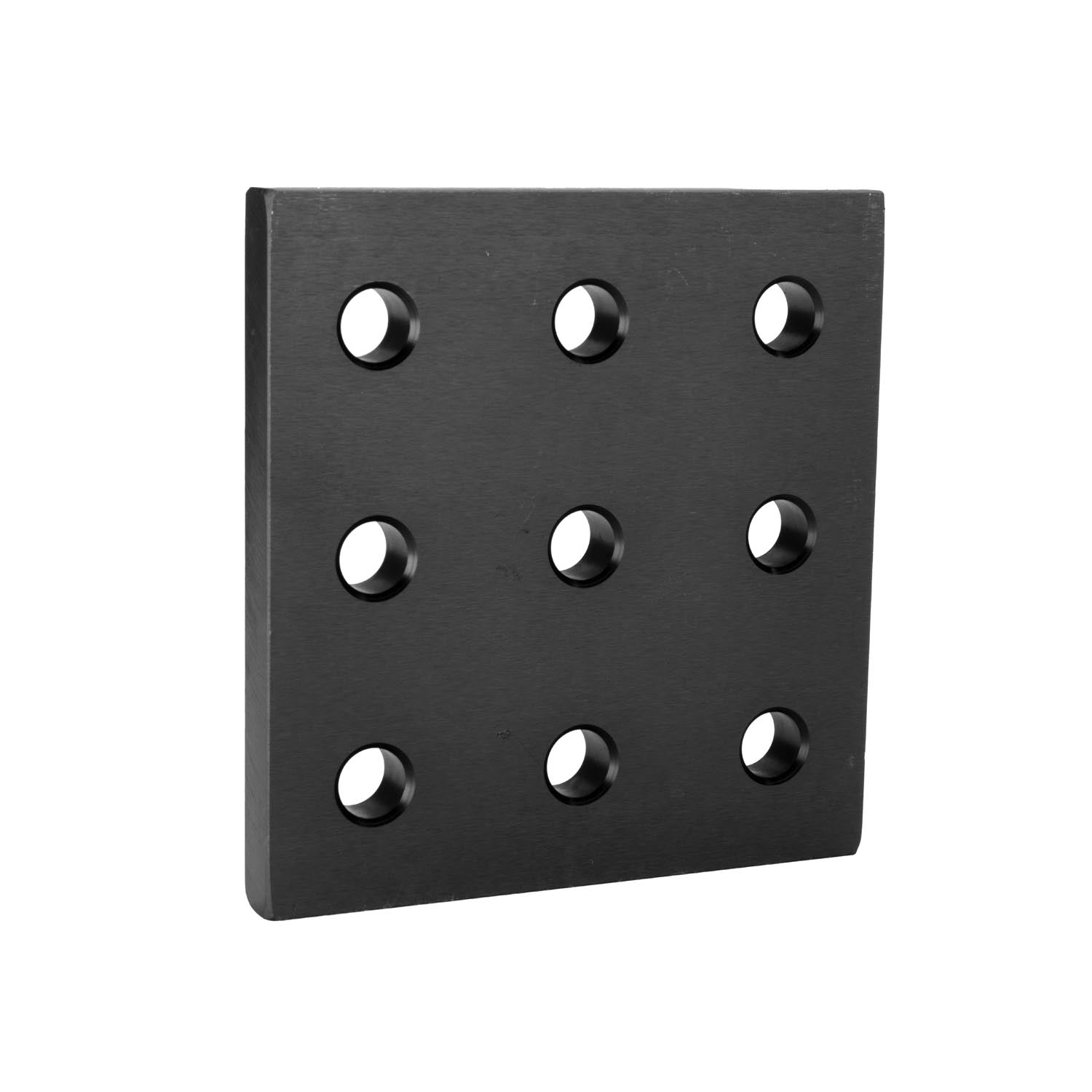

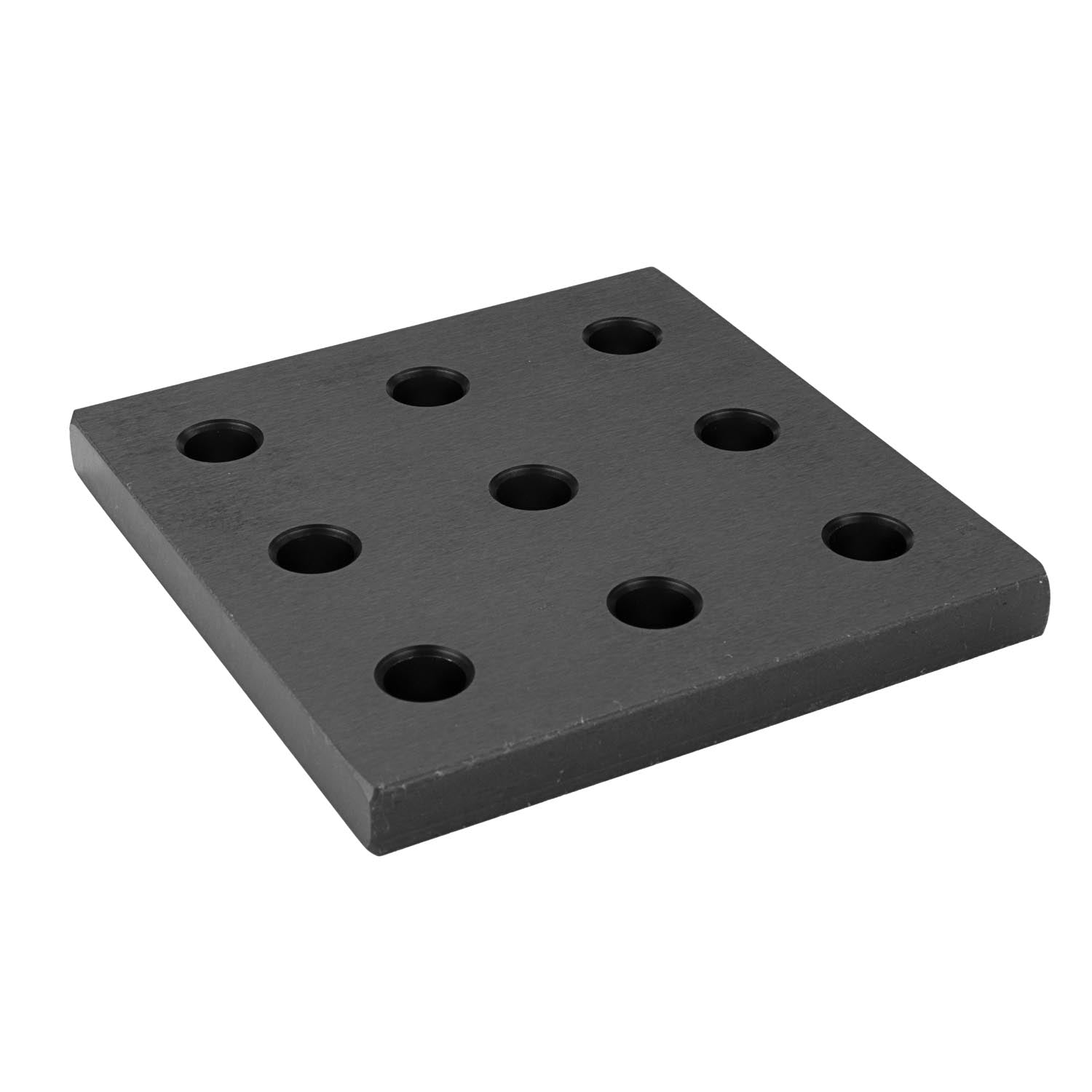

| T51009 | 9-Hole Fixturing Plate | 6 x 6.3 x 0.625 | 6.3 |

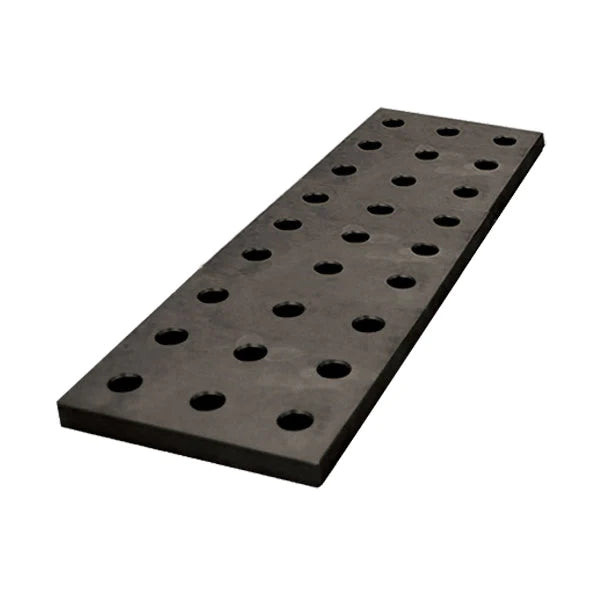

| T52005-01 | Fixturing Plate | 20 x 6.3 x 0.625 | 20 |

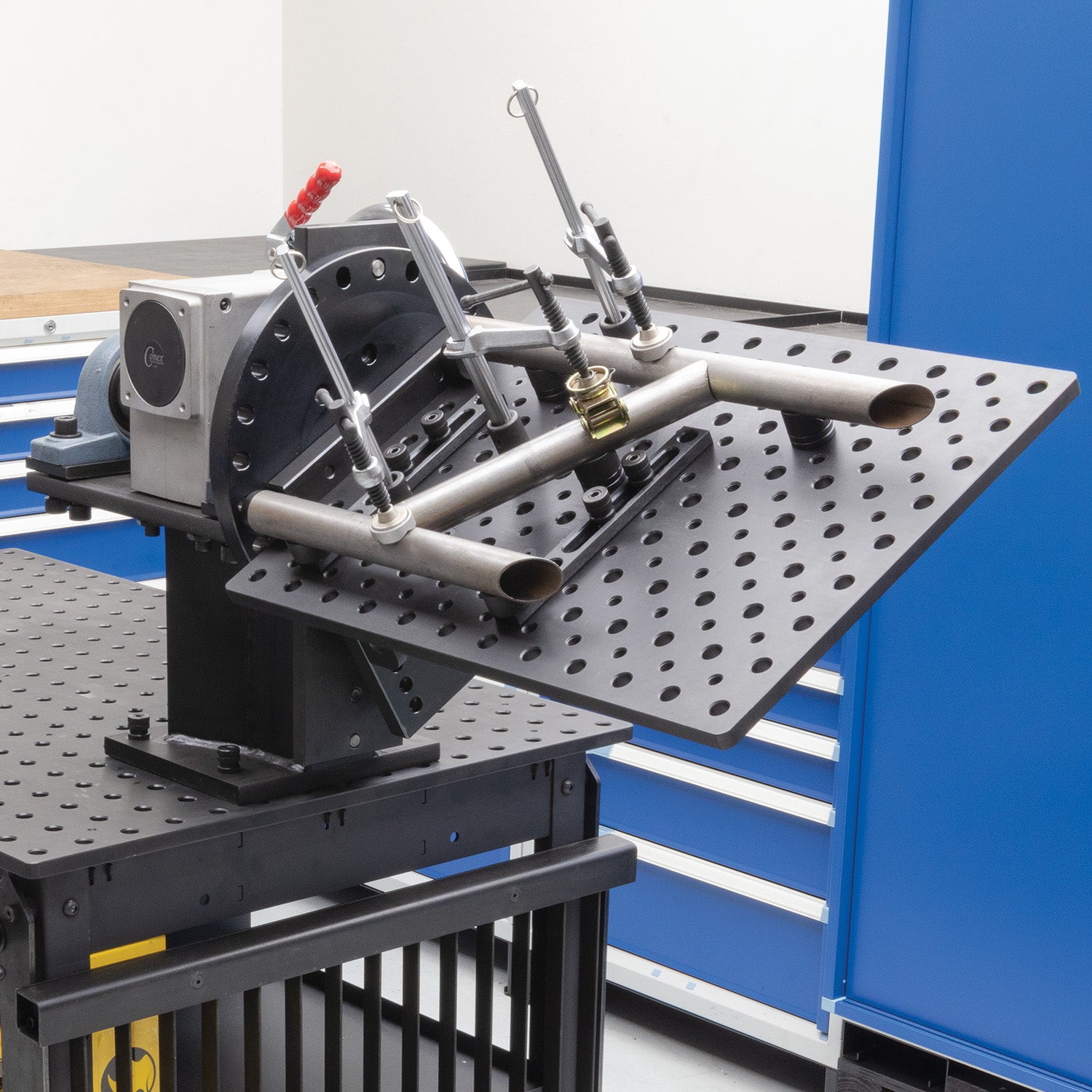

| T52418 | Fixturing Plate | 24 x 18 x 0.625 | 70 |

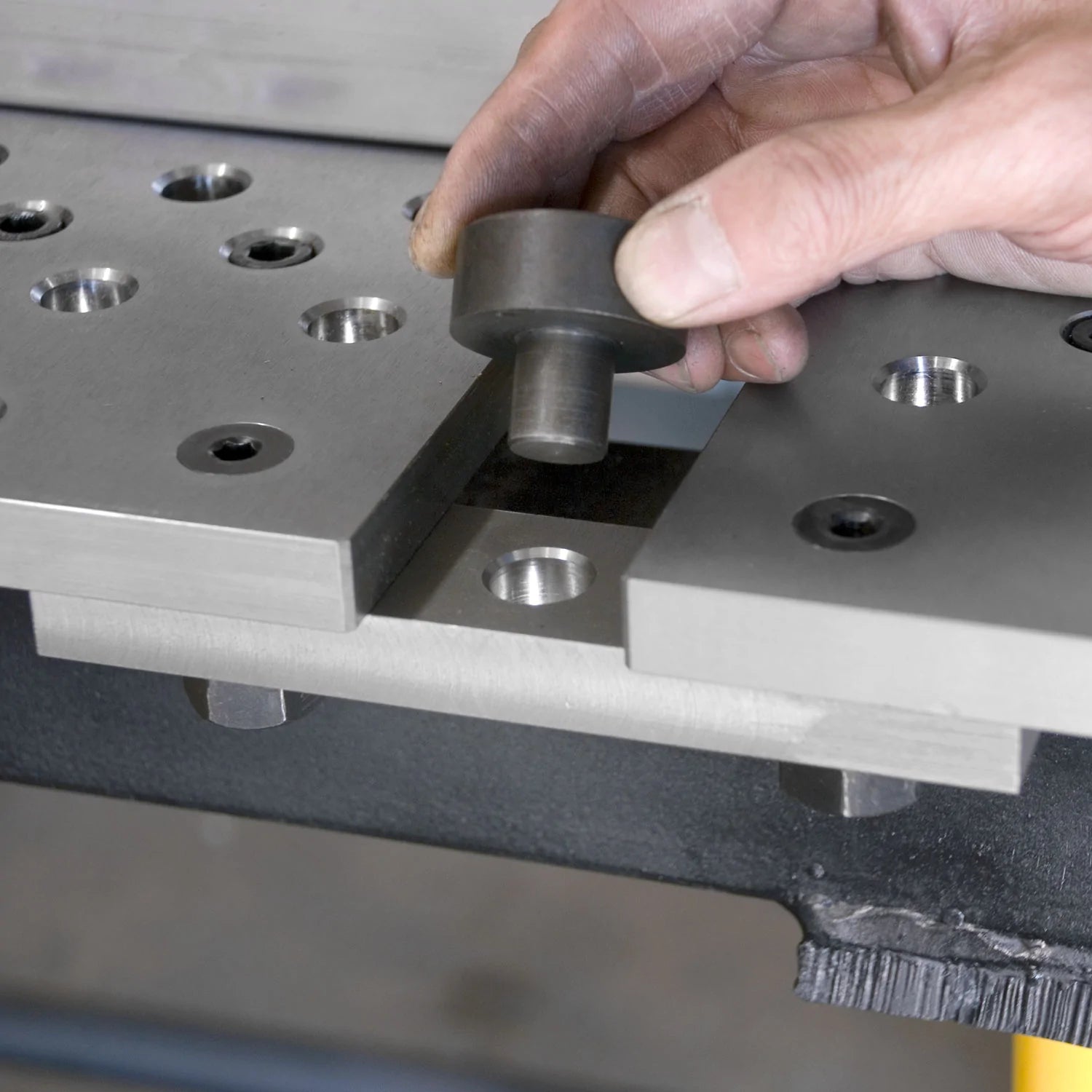

Provides a solid work surface directly over the 1.7″ slots in the BuildPro® Table.

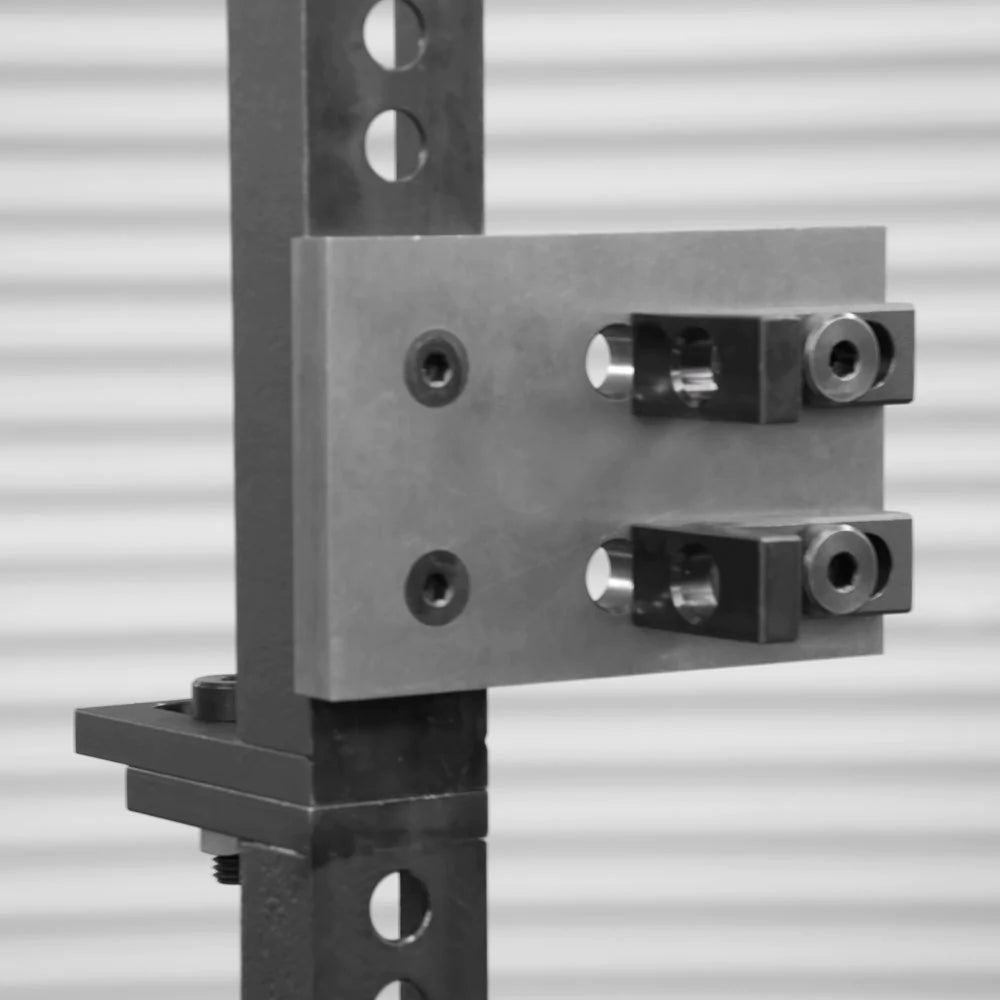

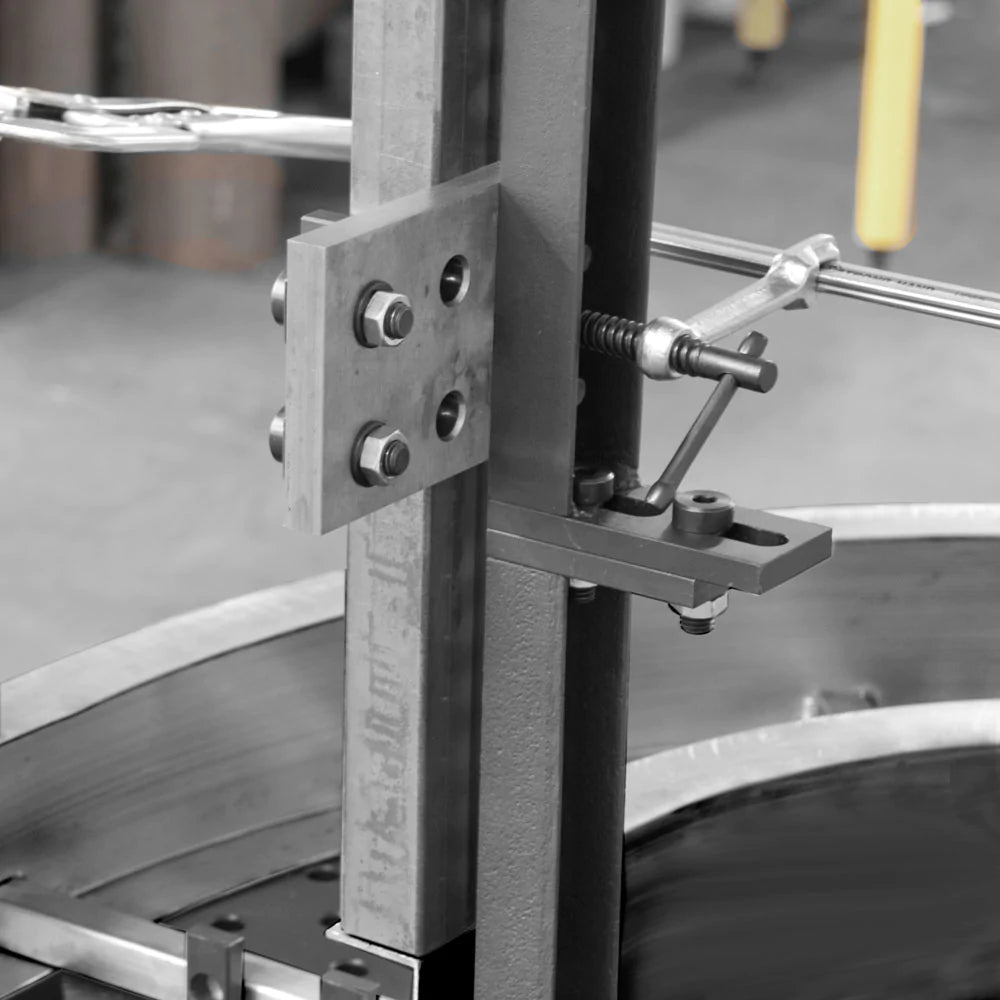

Use the 6-hole Fixturing Plate in any orientation to locate, stop, and position stock to be clamped.

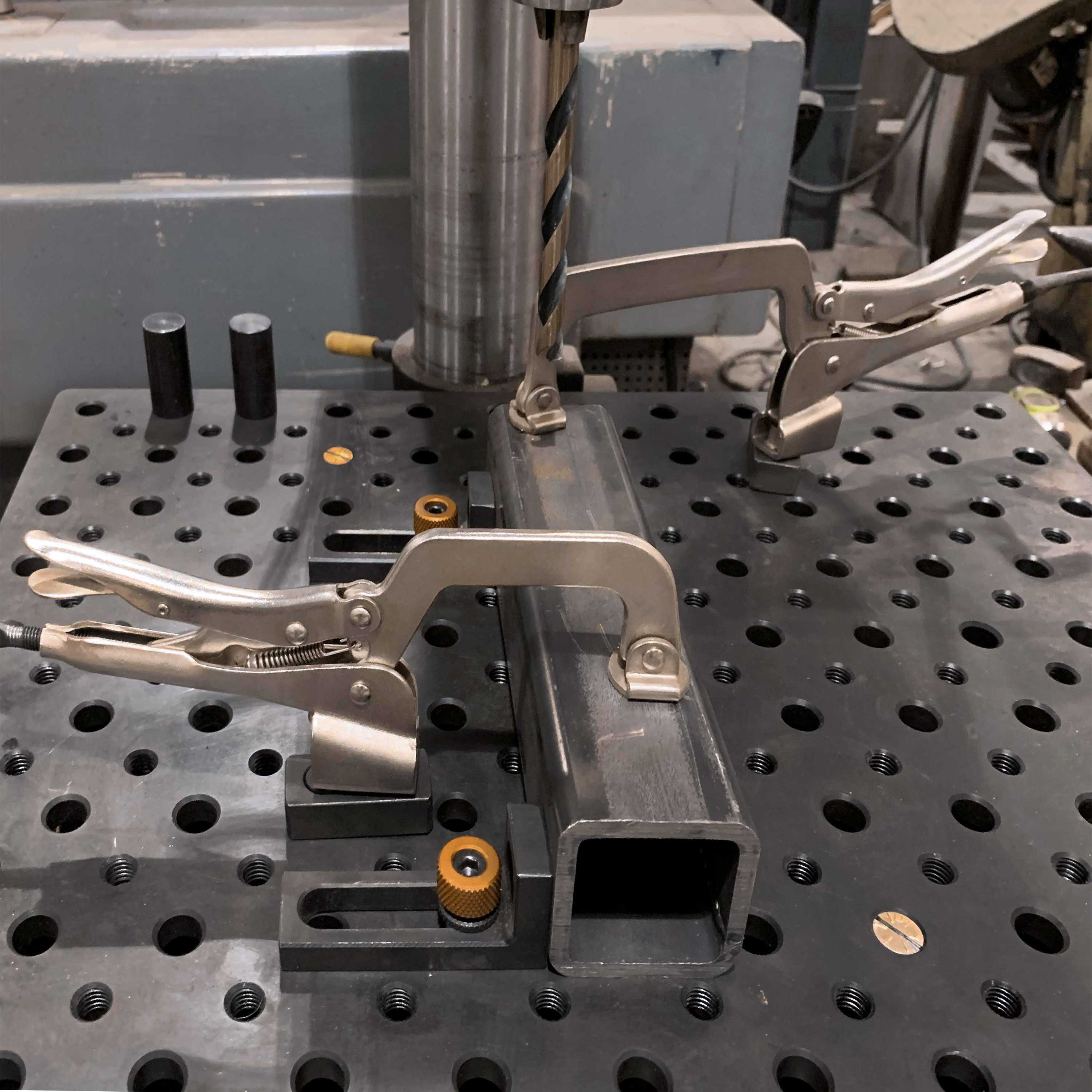

This 6-hole Fixturing Plate is a versatile base for the set-up of fixturing elements.

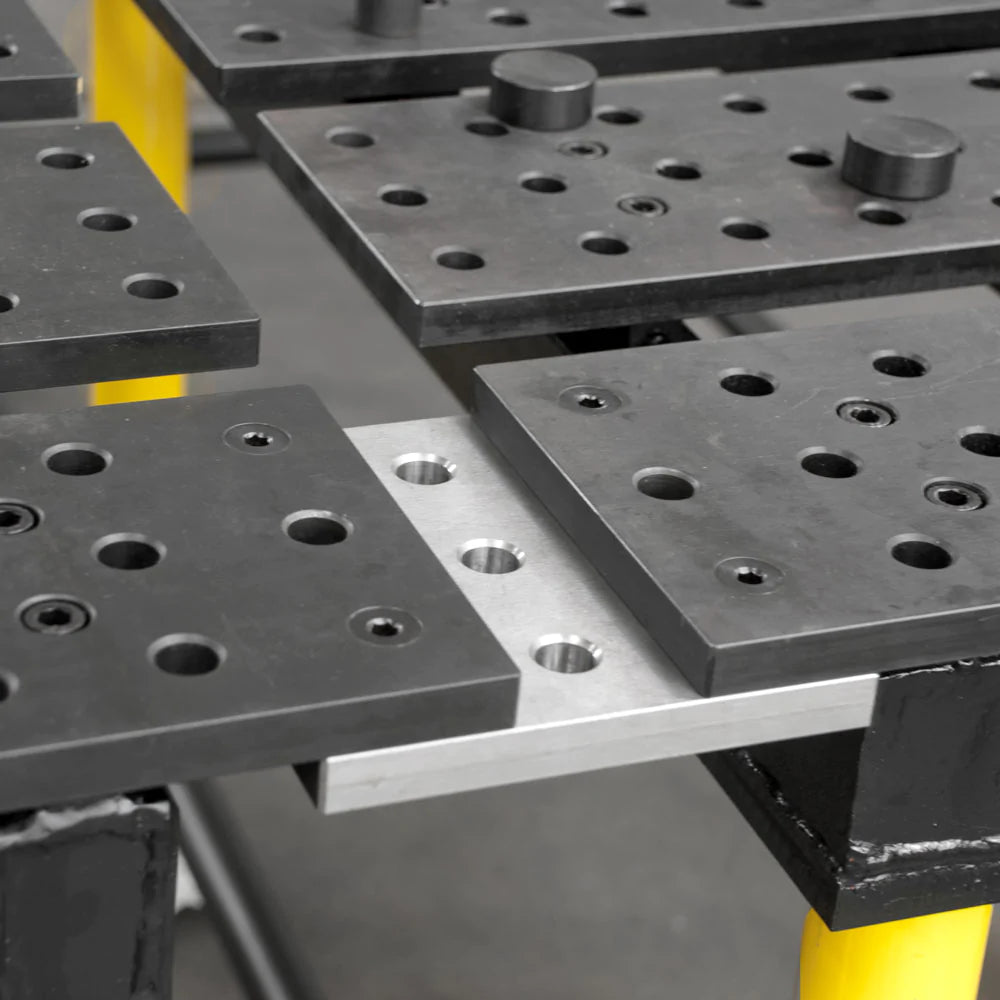

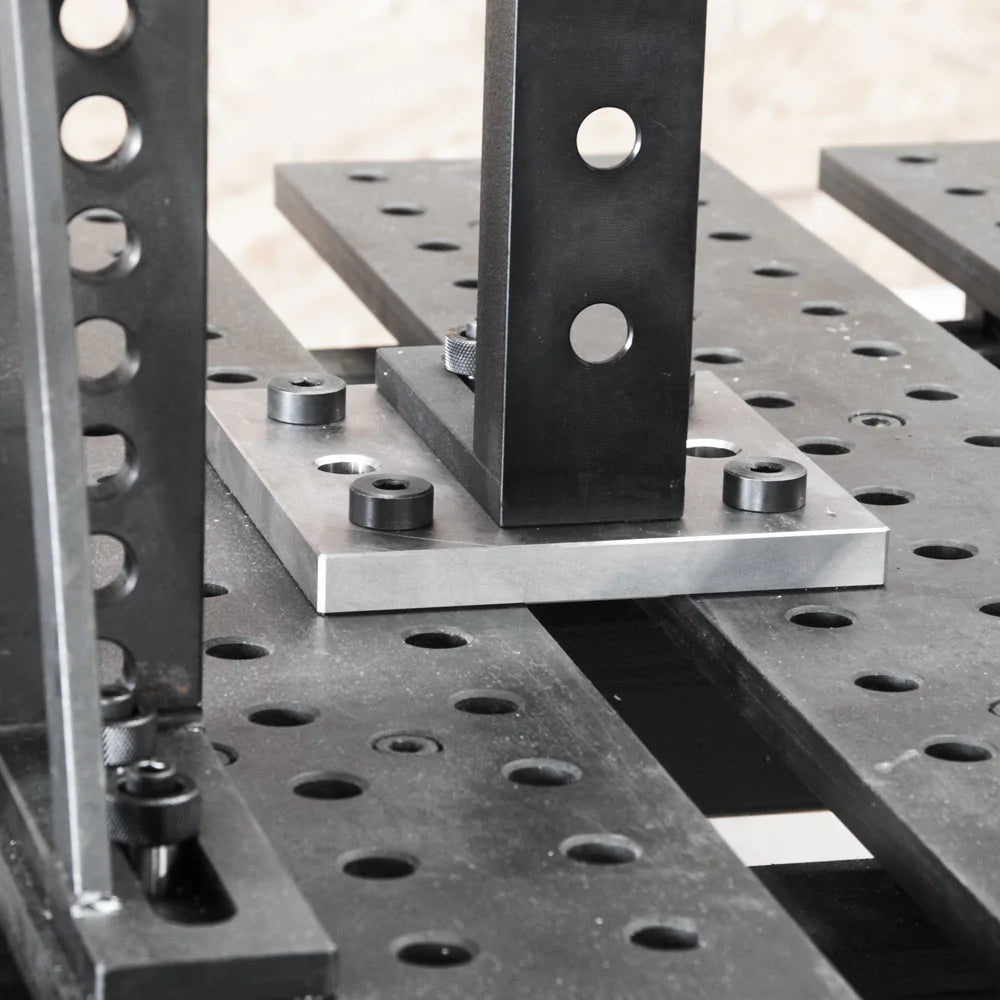

Use the 9-hole Fixturing Plate to join BuildPro® Tables together, side by side, or end to end.

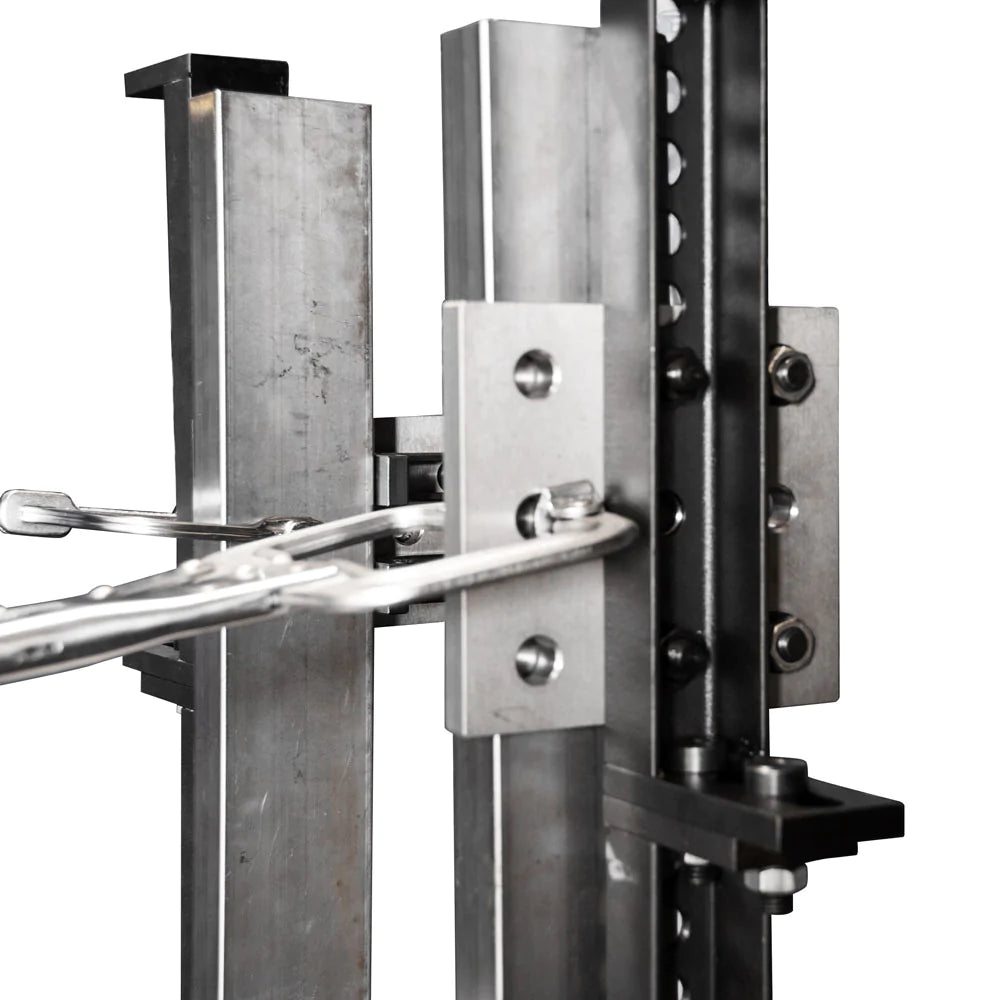

Use the 9-hole Fixturing Plate in any orientation to locate, stop, and position stock to be clamped.
This 9-hole plate is a versatile base for the set-up of fixturing elements.
