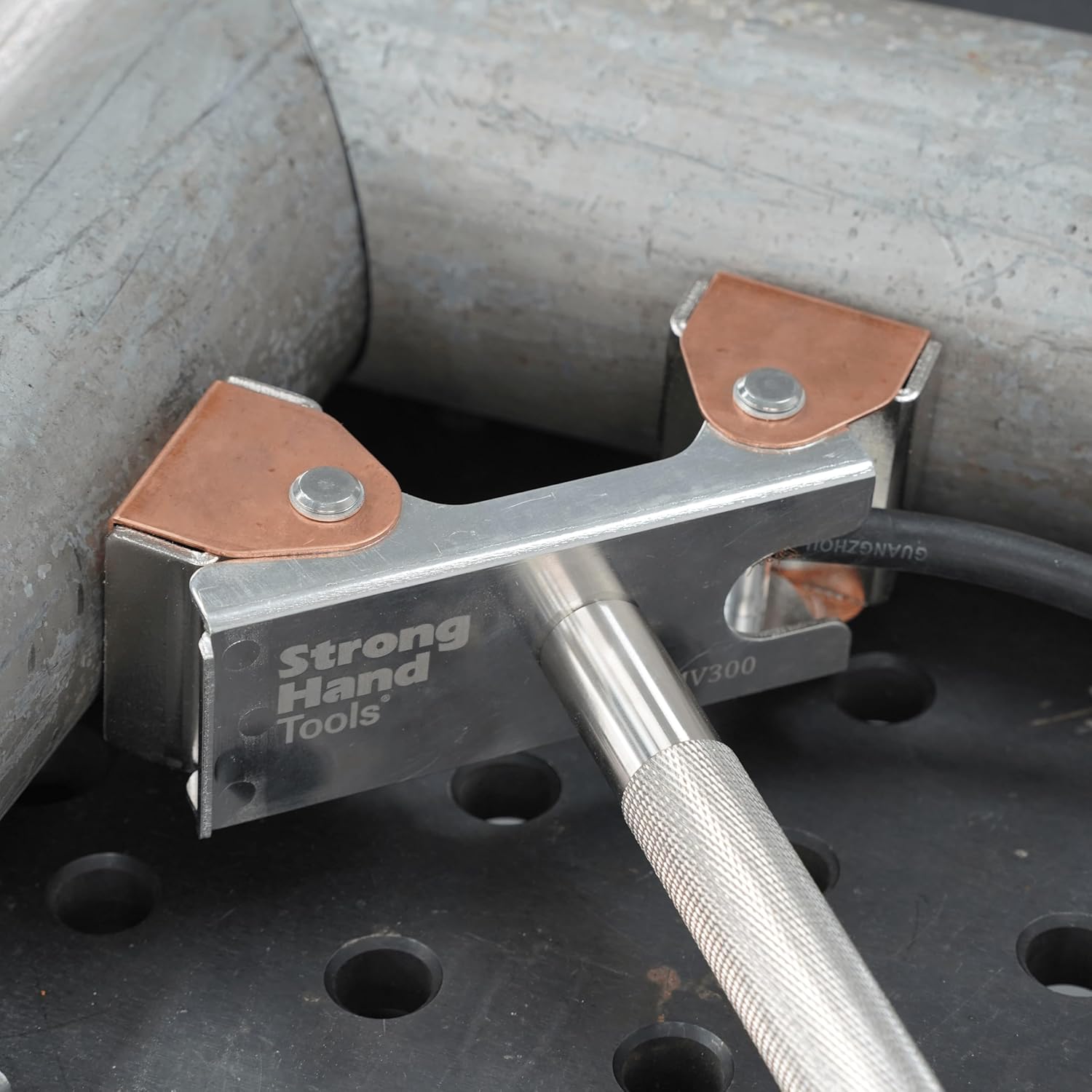

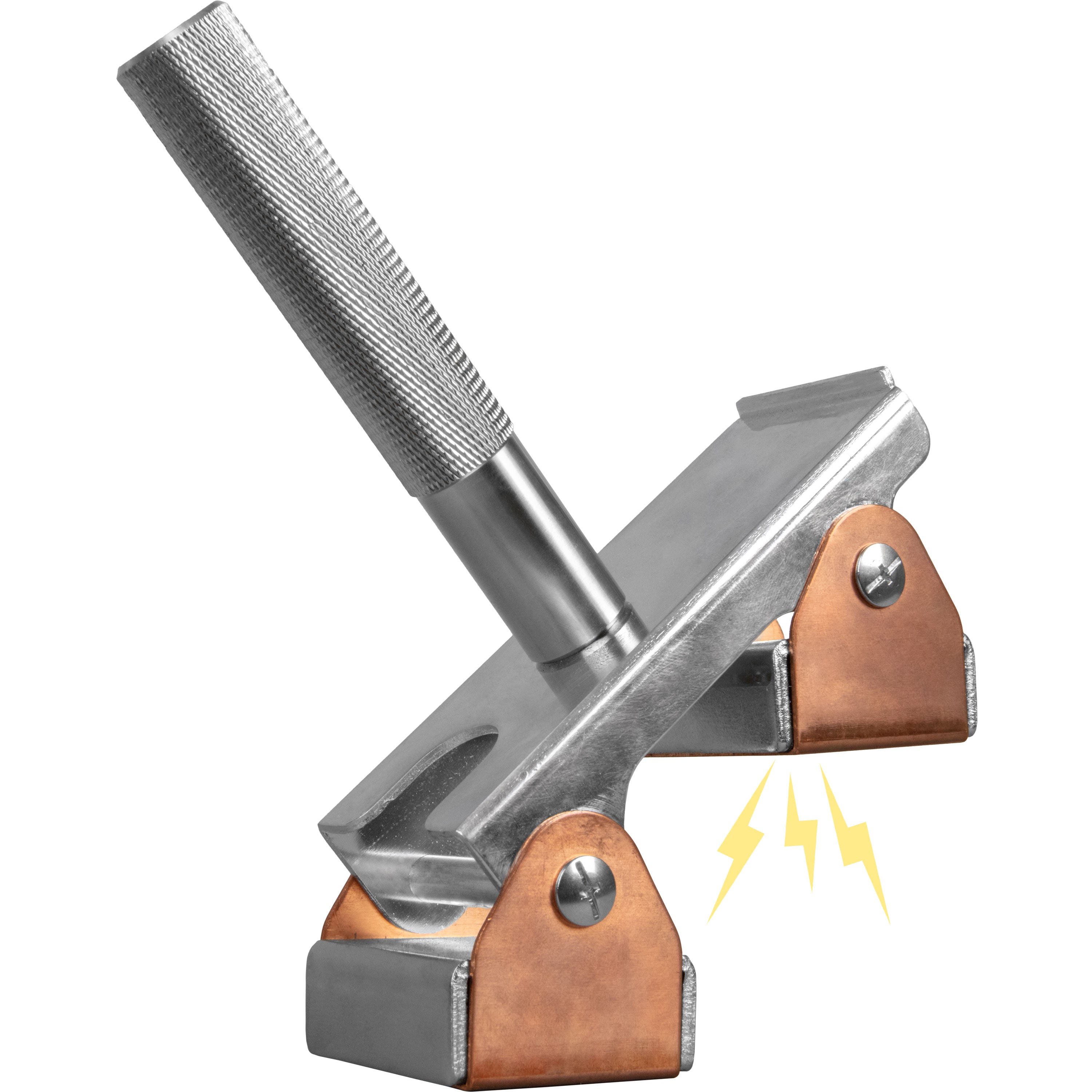

Hi-Temp Grounding Magnetic V-Pad


The Hi-Temp Grounding V-Pad is designed for high temperature applications, making it a durable and reliable choice for your grounding needs. With its specialized design, it provides excellent grounding capabilities, ensuring safety and efficiency in any environment. Trust in its high-quality construction and performance for your grounding needs.

  • Pure Copper contact surface with excellent conductivity contact surface
  • High quality aluminum handle, nickel plated treatment
  • Multiple optional ways to connect to the ground wire
  • Can be used in flat surfaces, circular tubes, and anisotropic surfaces

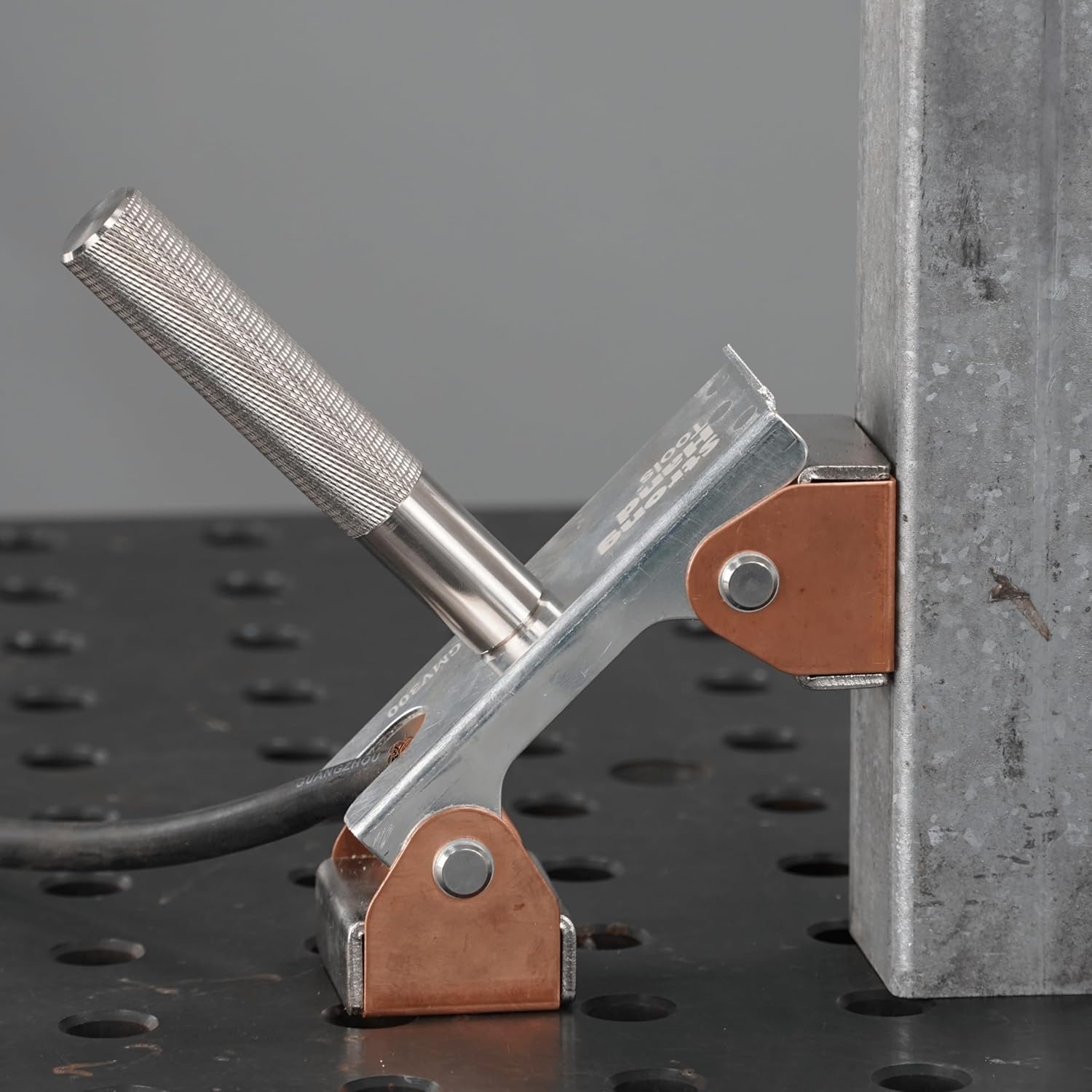

  • Can be used as a welding fixture/support fixture

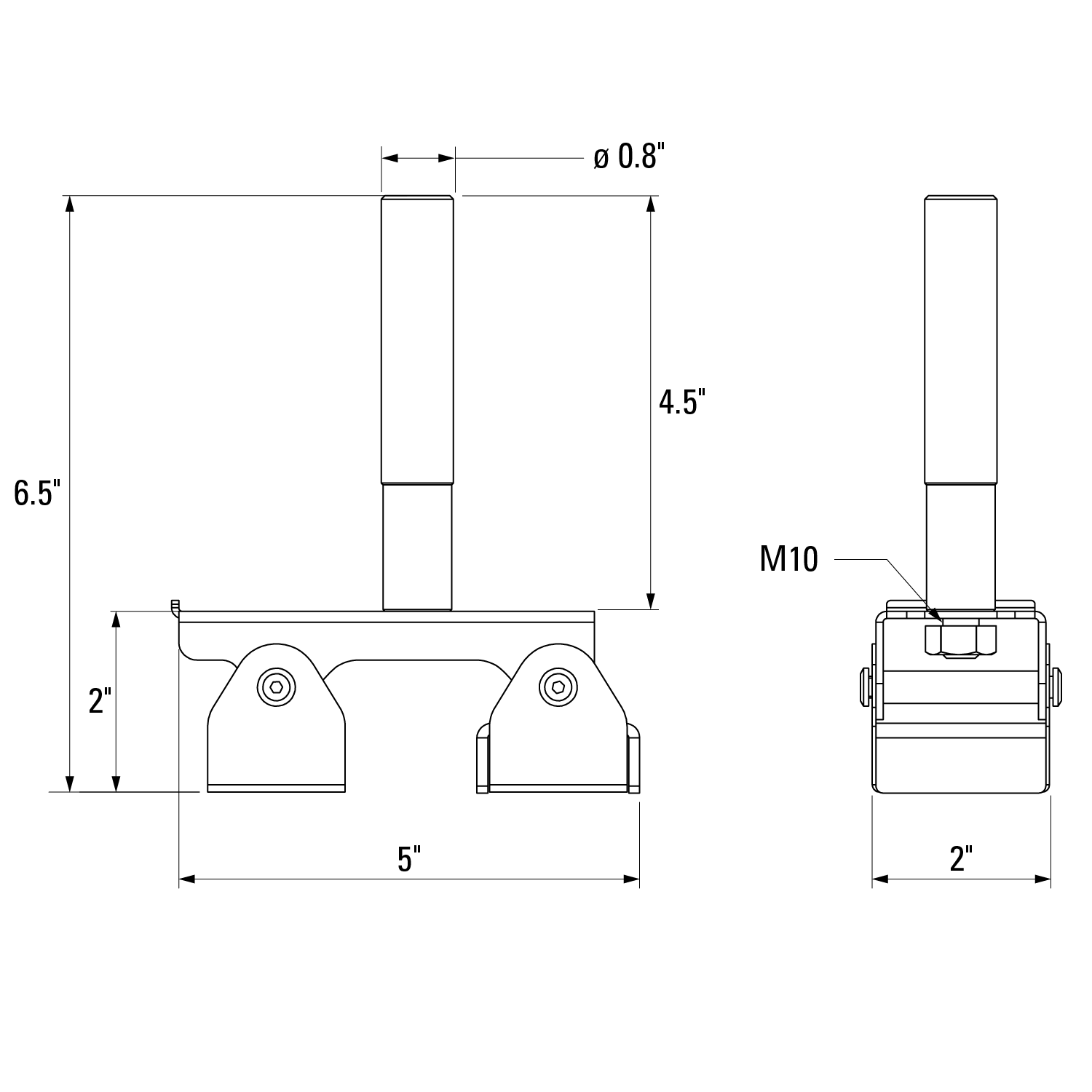

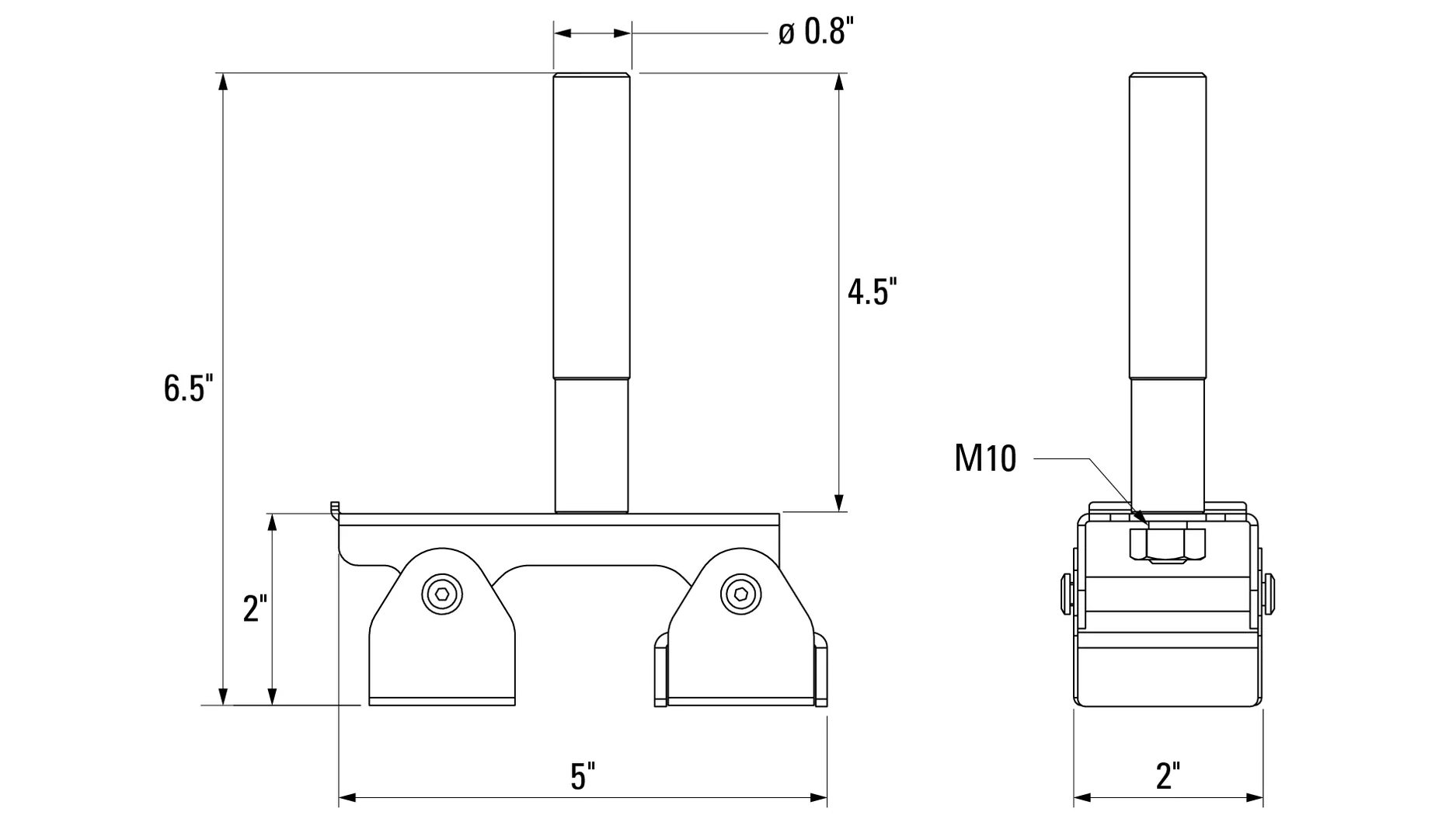

Technical drawing of a structural component with dimensions indicated.
Rated Current
500A
Dimension (in)
6.5" x 5" x 2"
Max Tolerable Temperature
390°F
Magnetic Force (lb)
20 LB

Features

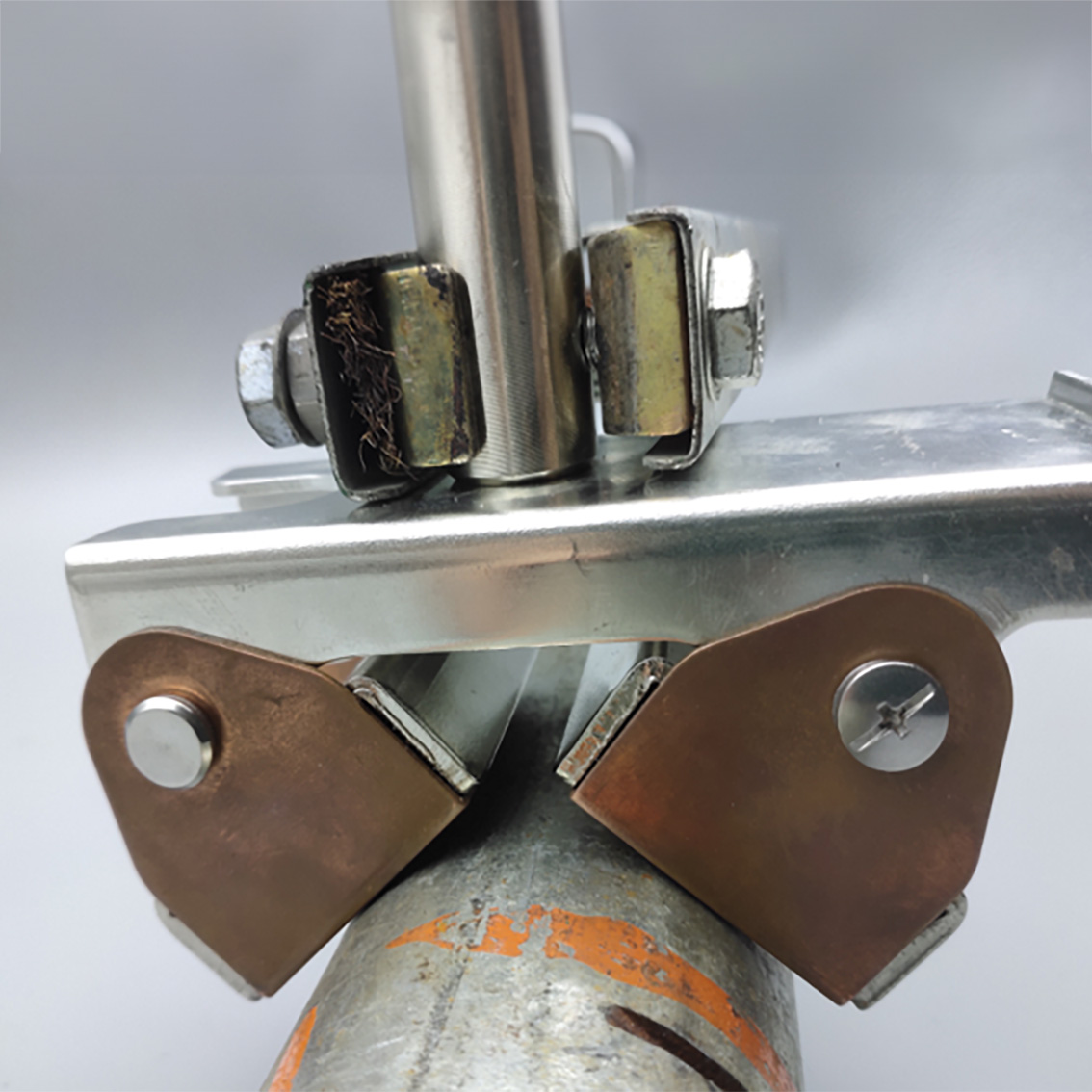

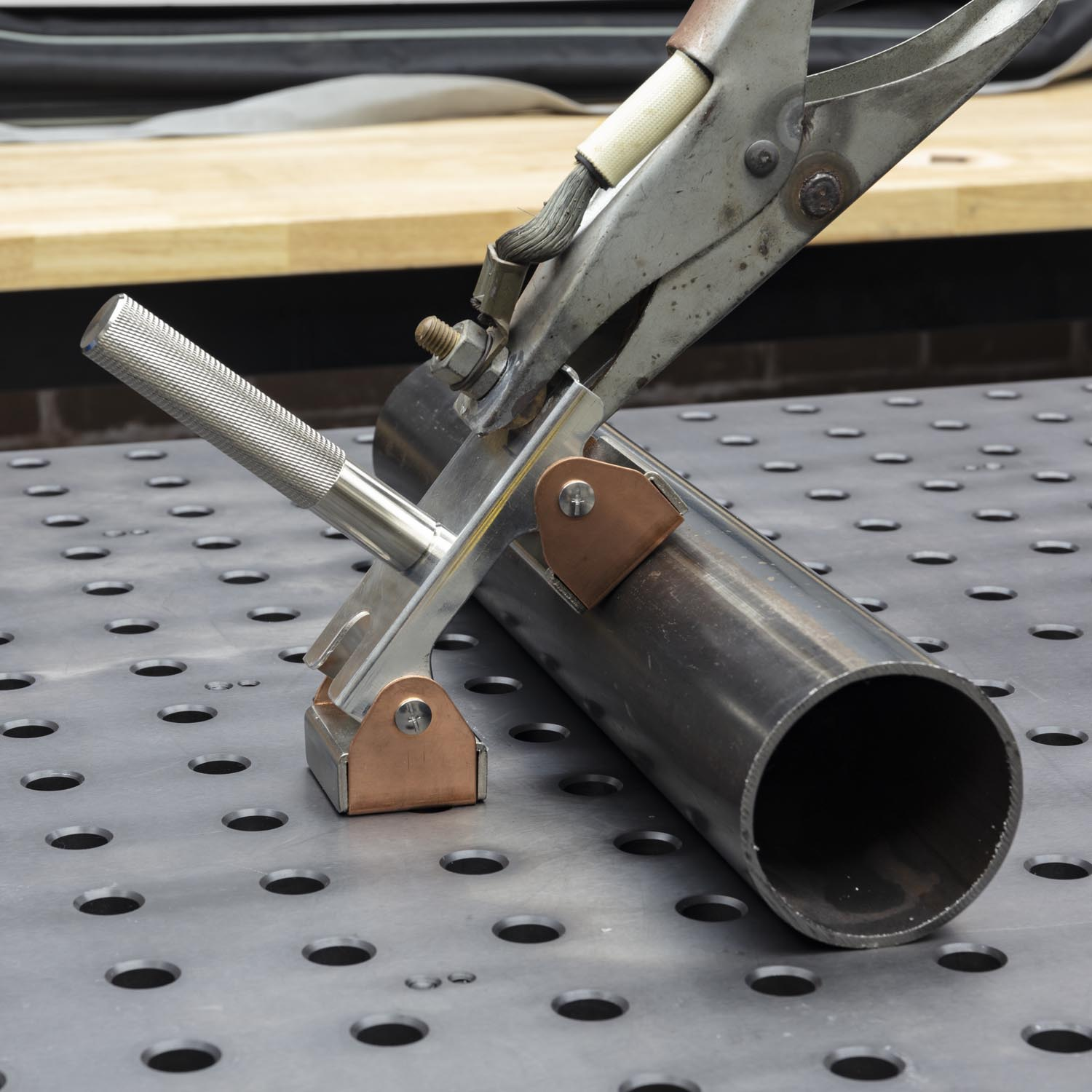

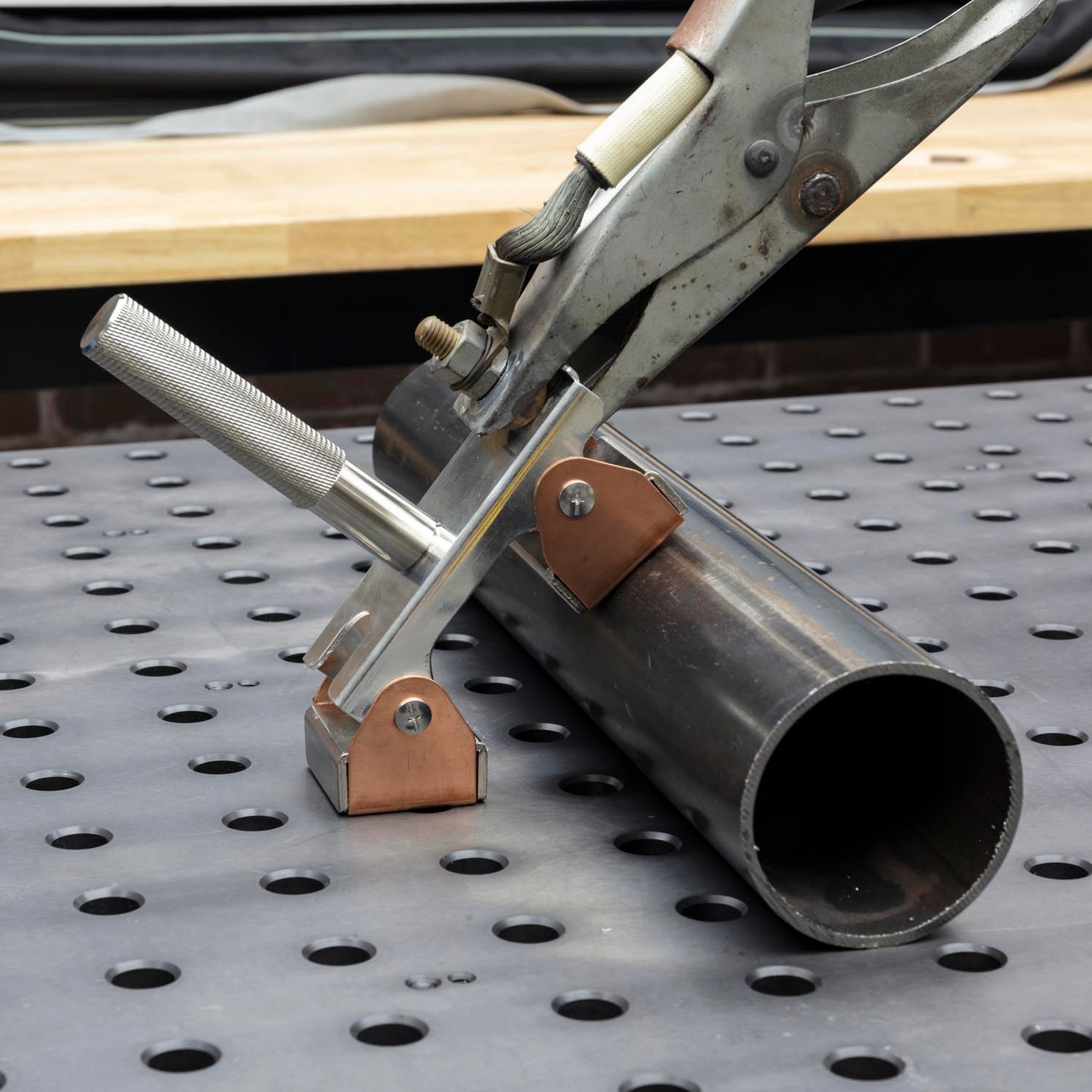

Metal pipe being held by clamps on a perforated work surface.

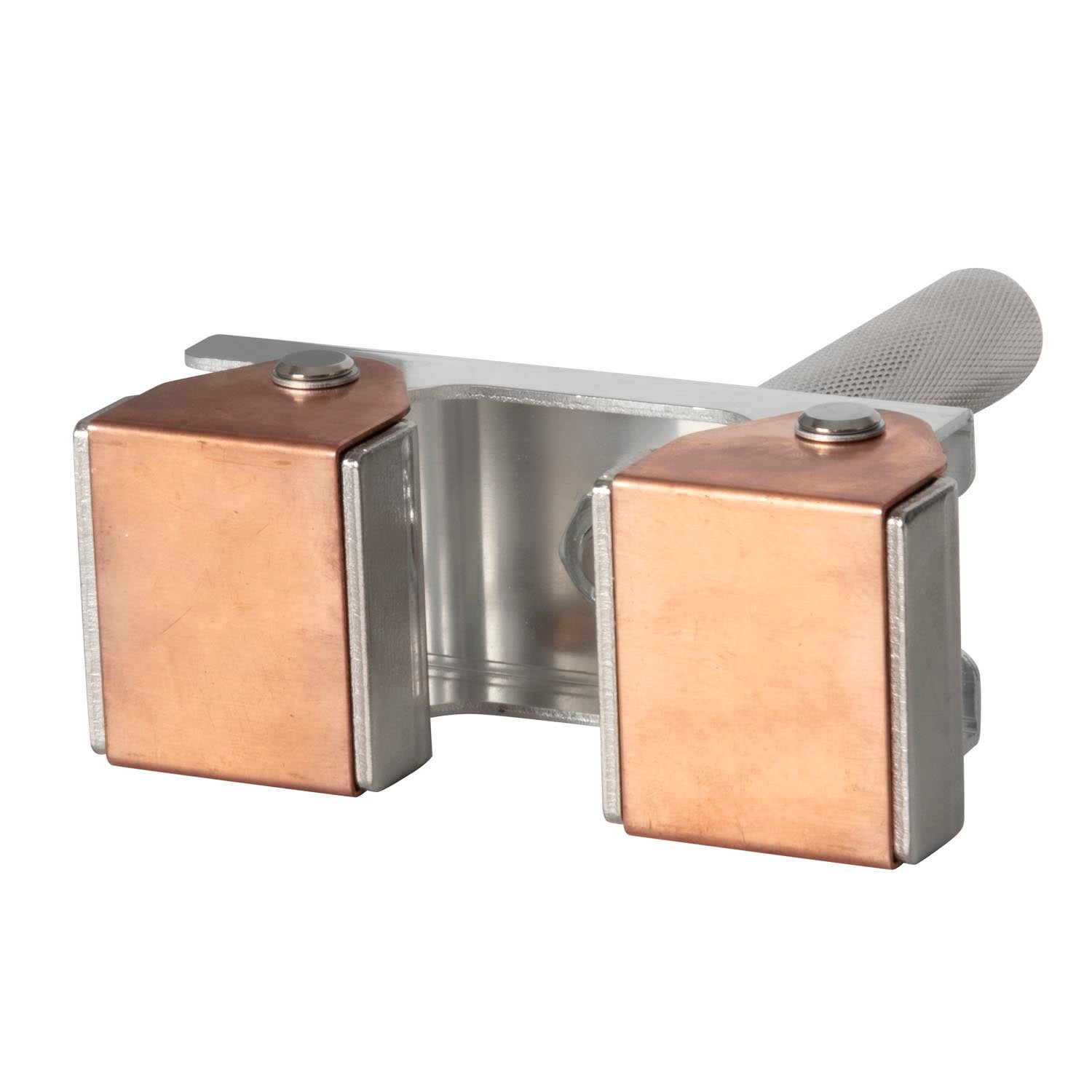

Pure Copper contact surface with excellent conductivity contact surface

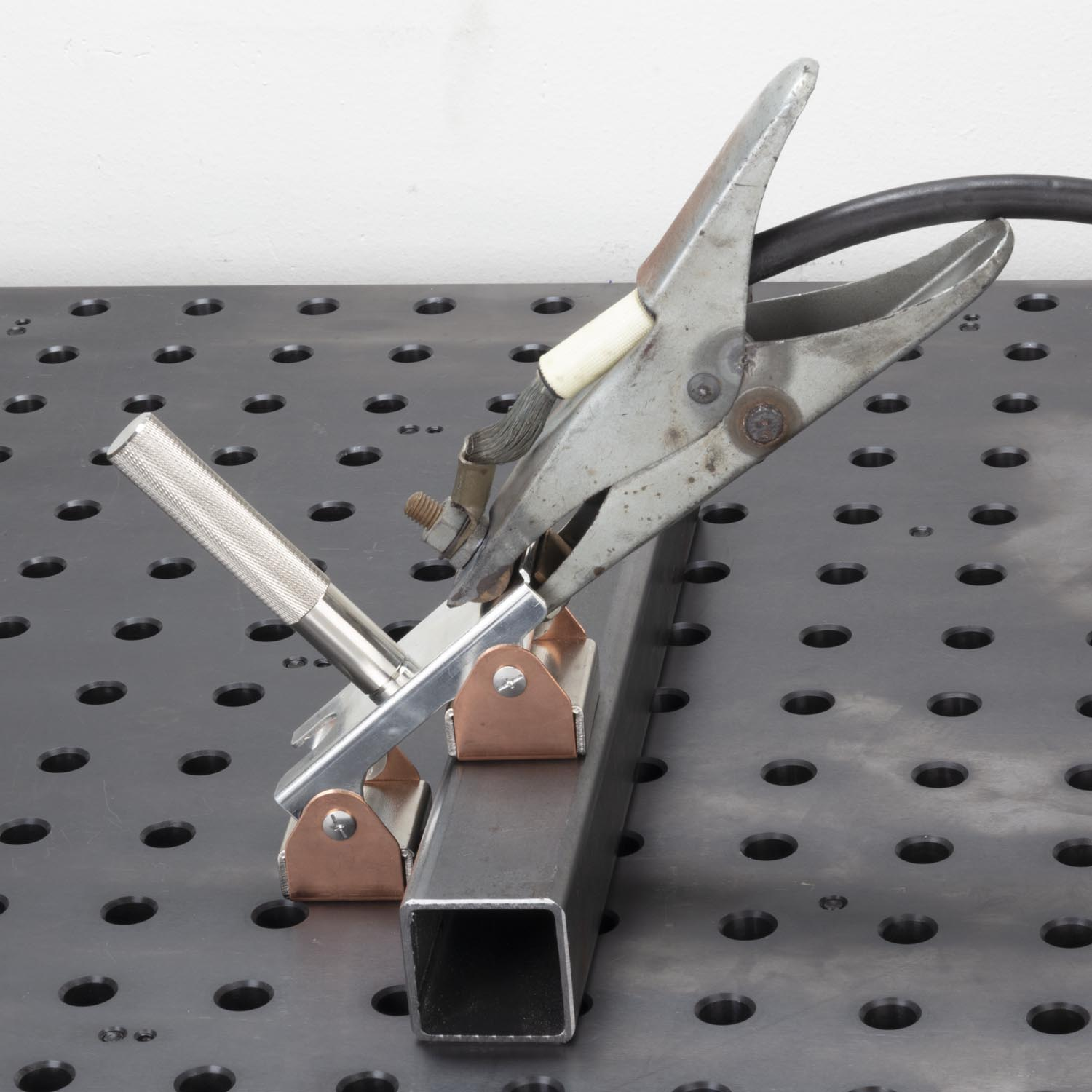

Welding clamp on a metal work surface with a cable attached.

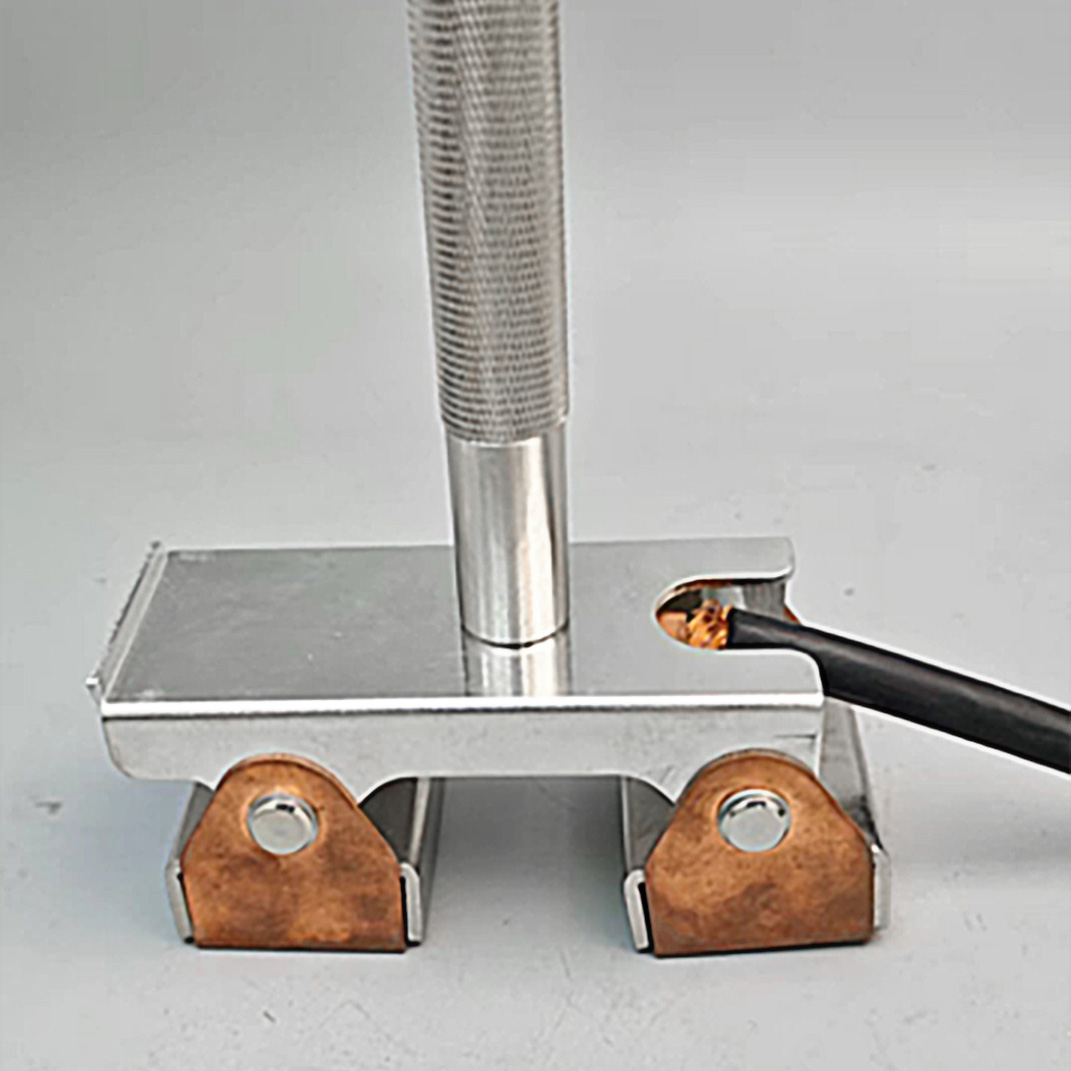

Multiple optional ways to connect to the ground wire

Metal clamp securing a pipe with a screwdriver nearby.

Can be used as a welding fixture/support fixture

High quality aluminum handle, nickel plated treatment

If you need some documents but not able to find them here, please fill out the form below. Our engineering team will get back to you shortly.

Downloads

Spec Drawing

Manual

CAD
