Part No. Type Angle Dimension (in) Max. Tube Size (in) Weight (lb)

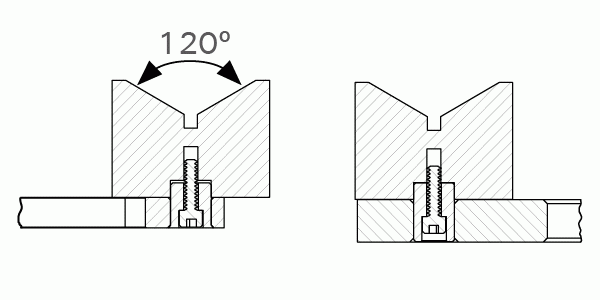

T54310 Heavy Duty 120° 2.4 Dia. x 1.7 3 1.2

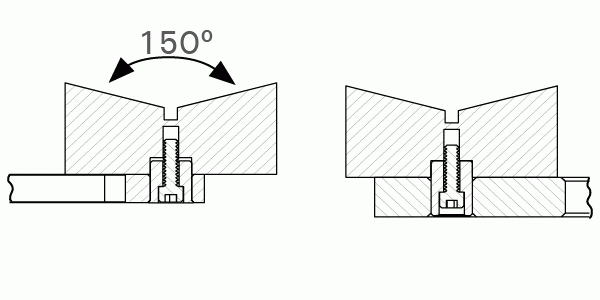

T54315 Heavy Duty 150° 3.2 Dia. x 1.4 8 1.5

If you need some documents but not able to find them here, please fill out the form below. Our engineering team will get back to you shortly.

Downloads

Spec Drawing

Manual

CAD

T54315 - STEP
