Part No. Handle Clamping Capacity (in) Throat Depth (in) Clamping Pressure (lb) Rail Size (in) Weight (lb) Replacement Pad

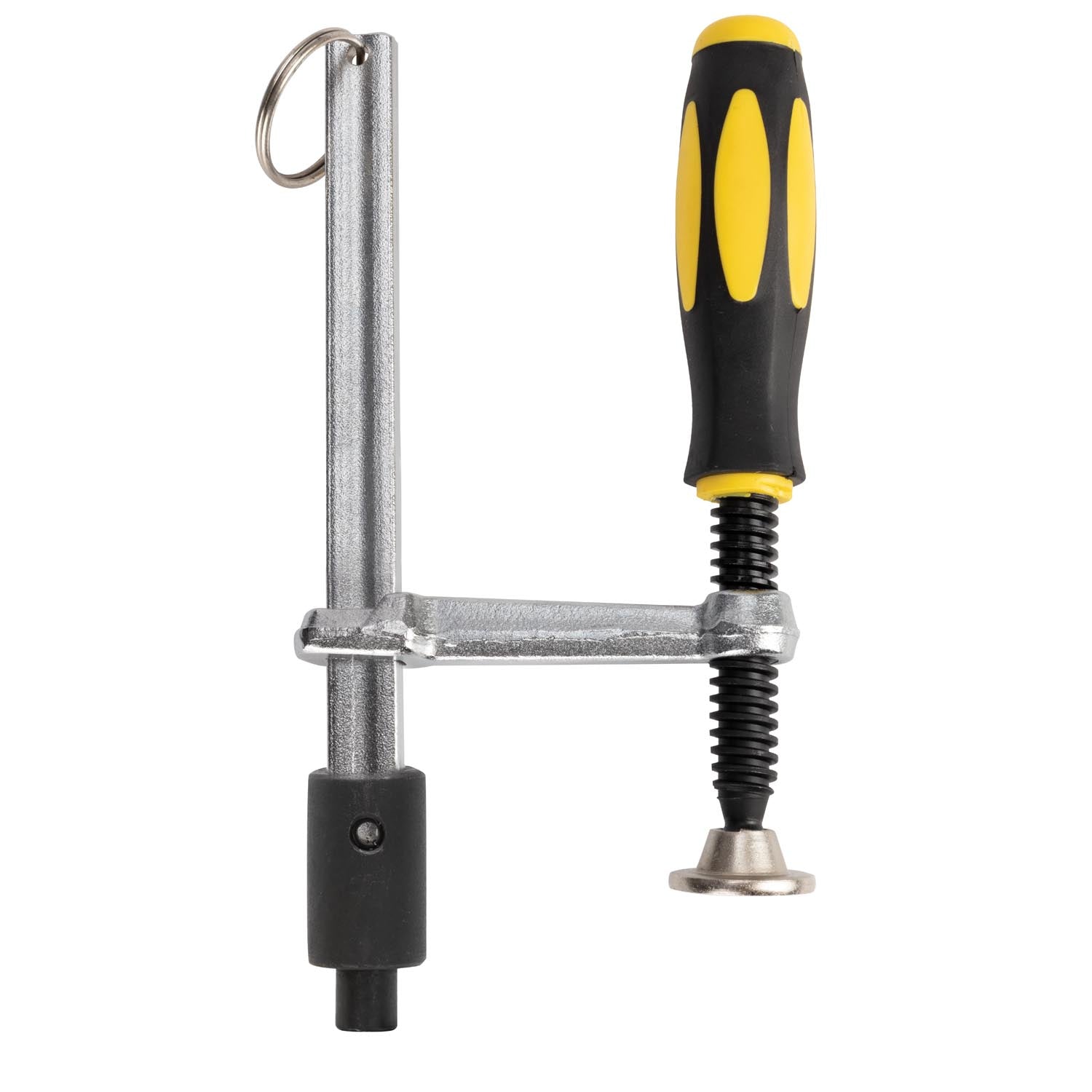

UDWN5150 Straight Handle 6-1/2 3-1/4 300 5/8 x 5/16 1.4 XDP
UDN5150 T-Handle 6-1/2 3-1/4 300 5/8 x 5/16 1.2 XDP
UEN5200 T-Handle 8-1/2 4 400 25/32 x 3/8 2.2 XFP
UERN5200 Ratchet Handle 8-1/2 4 400 25/32 x 3/8 2.2 -

If you need some documents but not able to find them here, please fill out the form below. Our engineering team will get back to you shortly.

Downloads

Spec Drawing

Manual

CAD

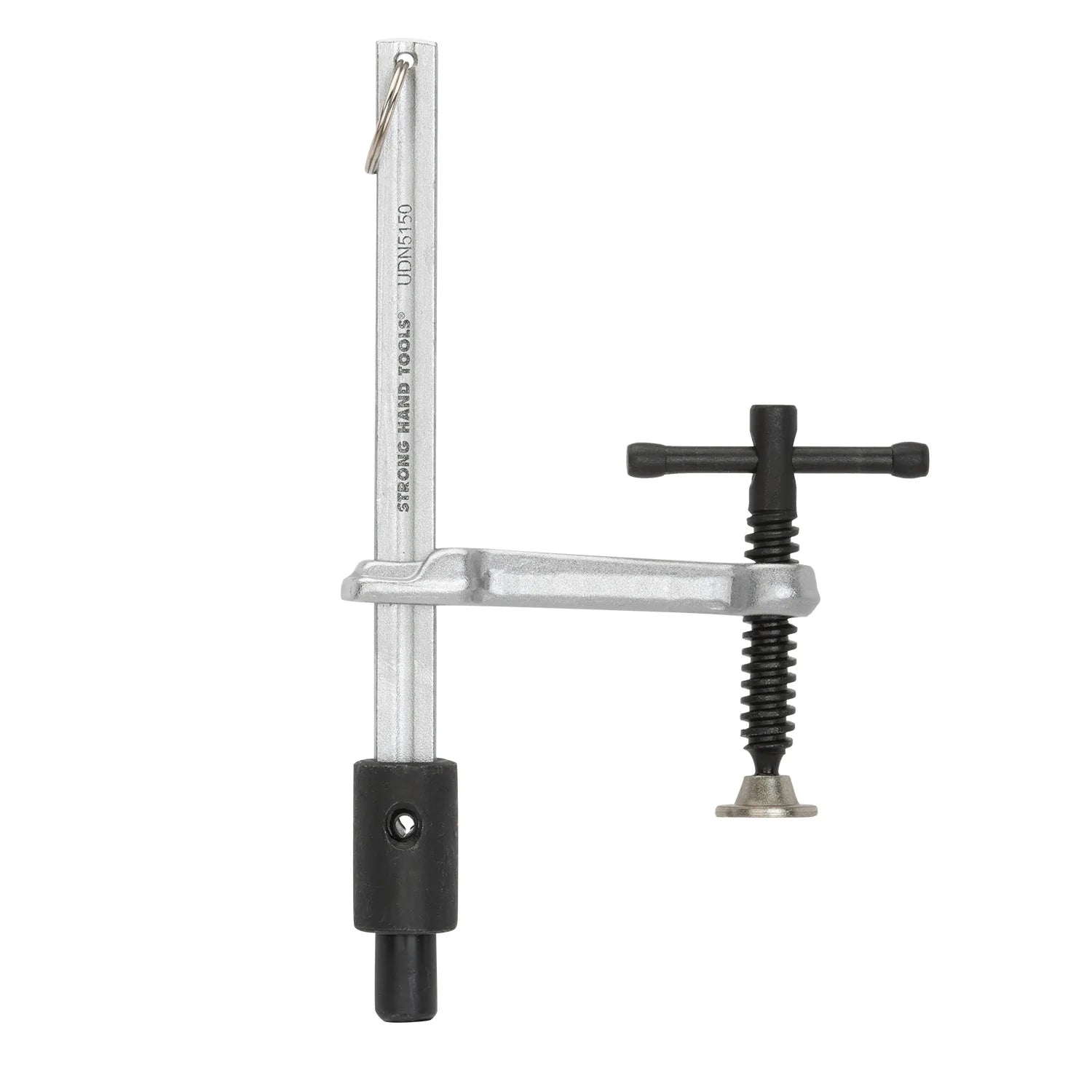

UDN5150 - STEP

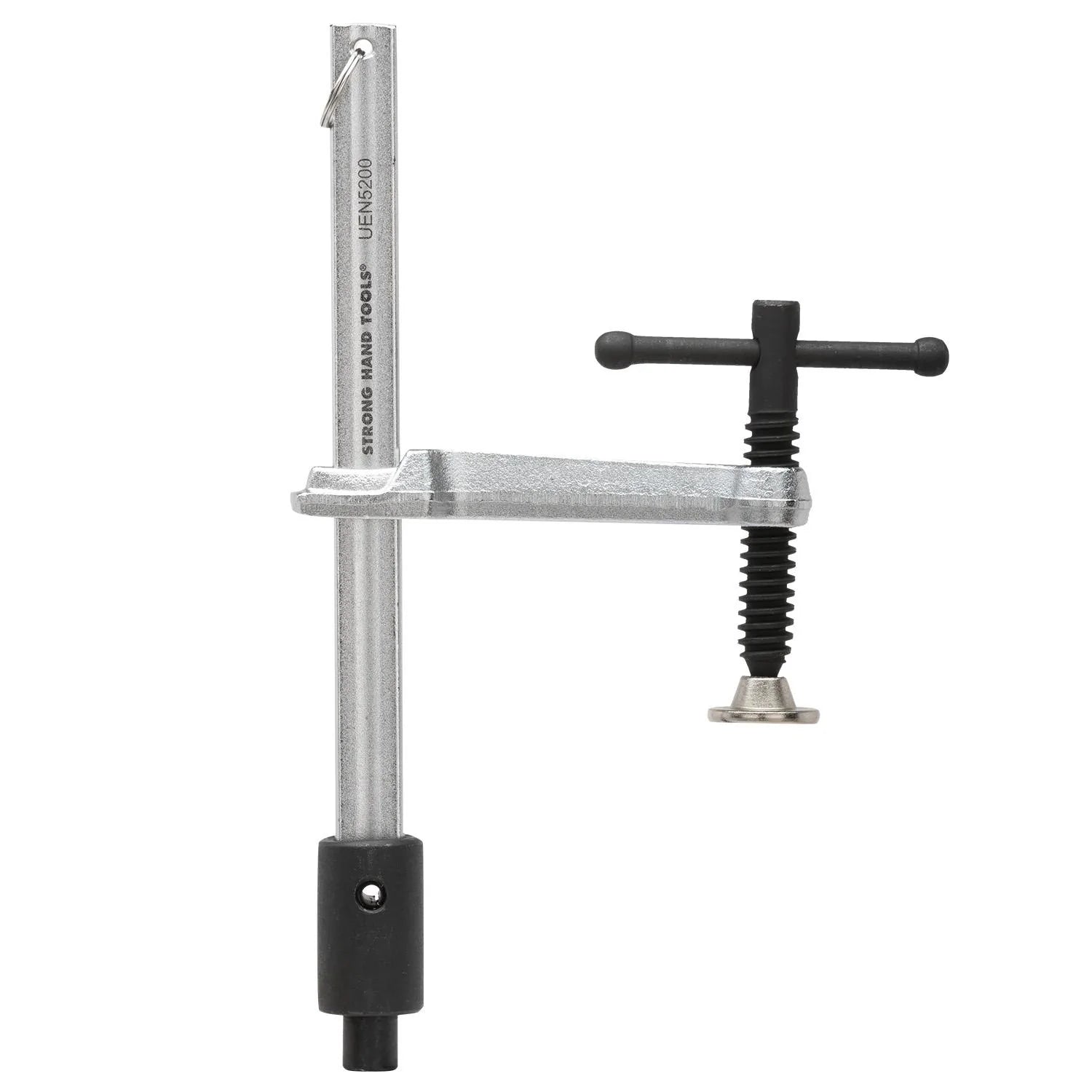

UEN5200 - STEP

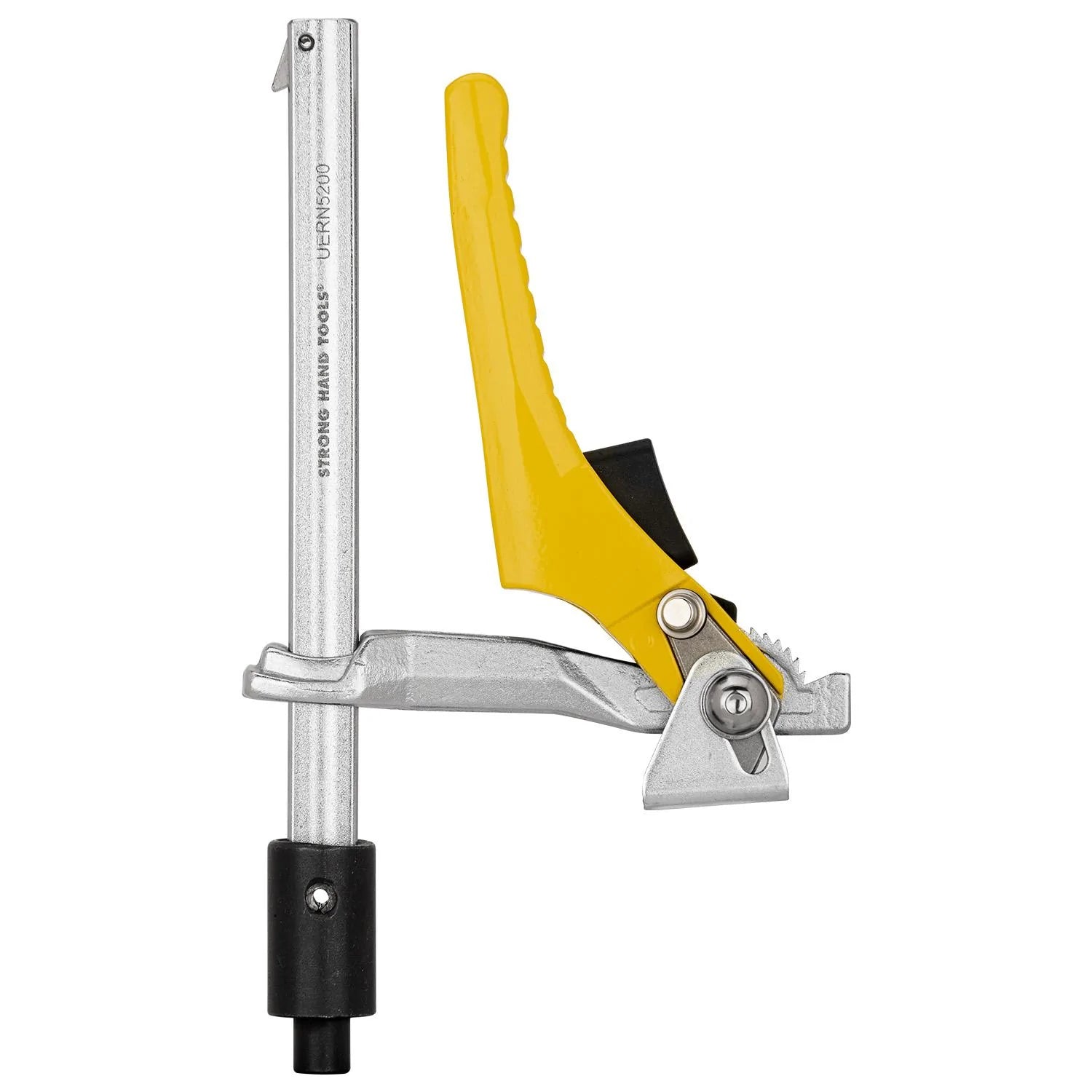

UERN5200 - STEP

UDWN5150 - STEP
