Integrated Adjustable Sawhorse Leg
- 26"–35" Height
- 29" Body Length
- 1,600 lb Capacity
- 20 lb Weight
-
Estimated delivery: Oct 04 - Oct 08
Couldn't load pickup availability
Overview
One piece,
four legs

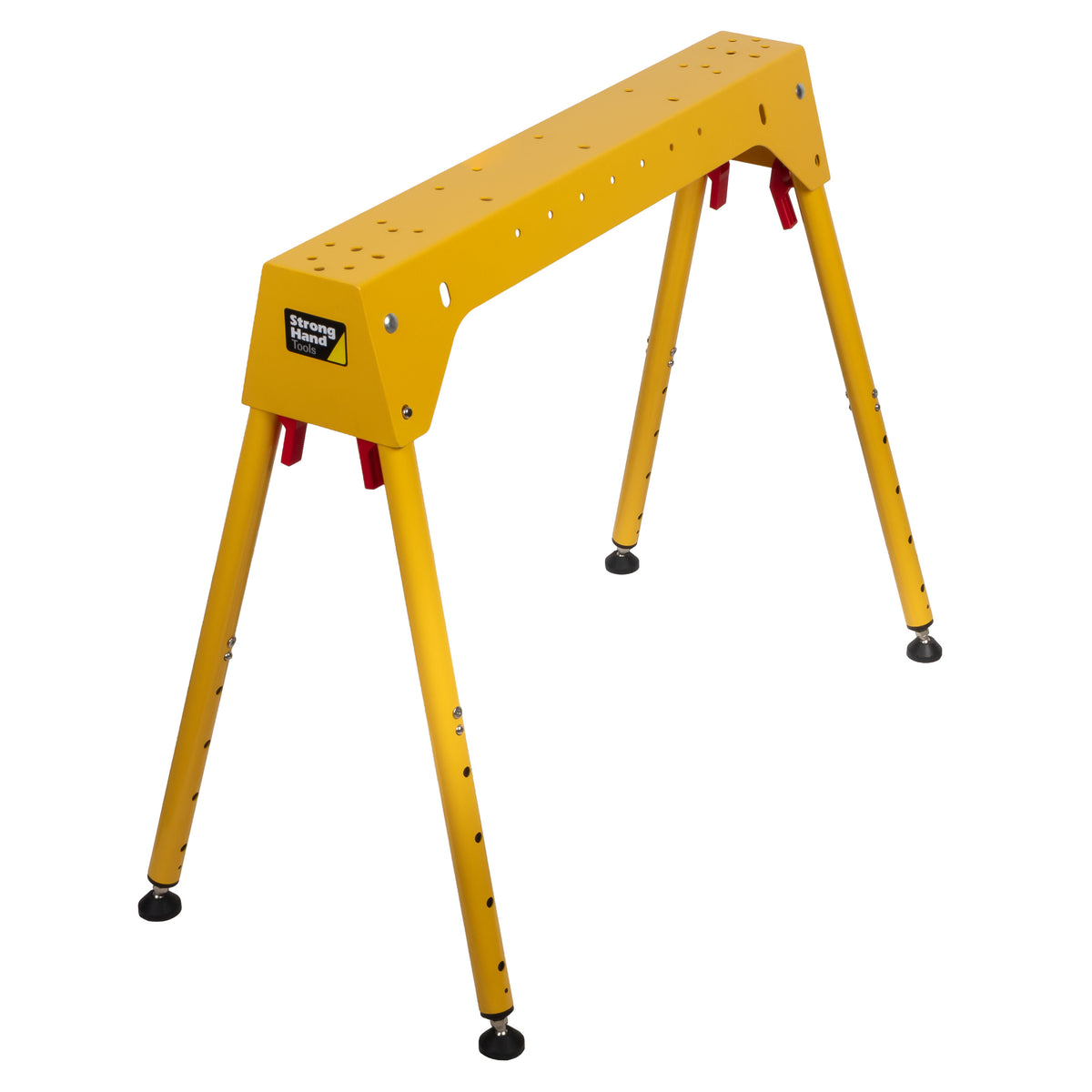

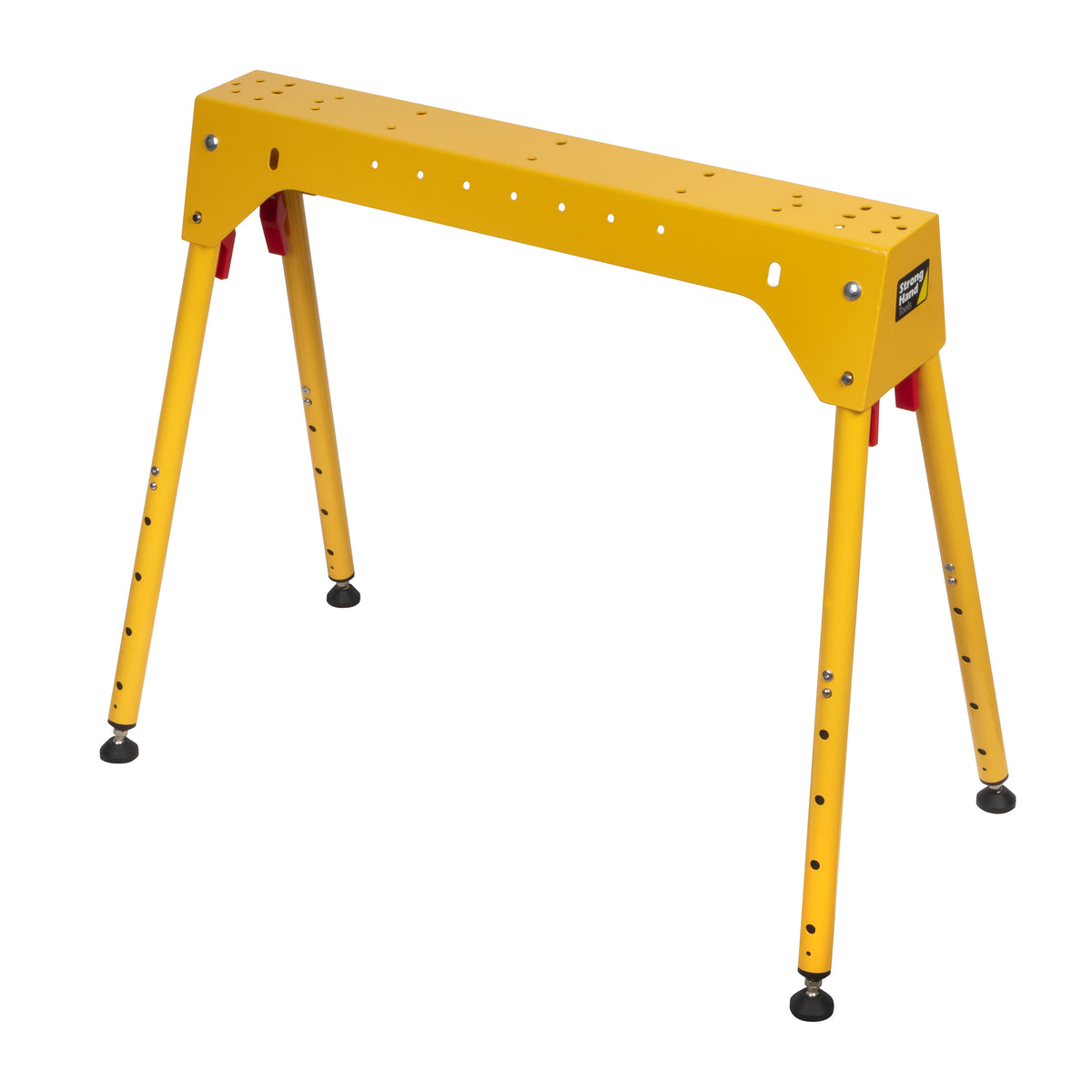

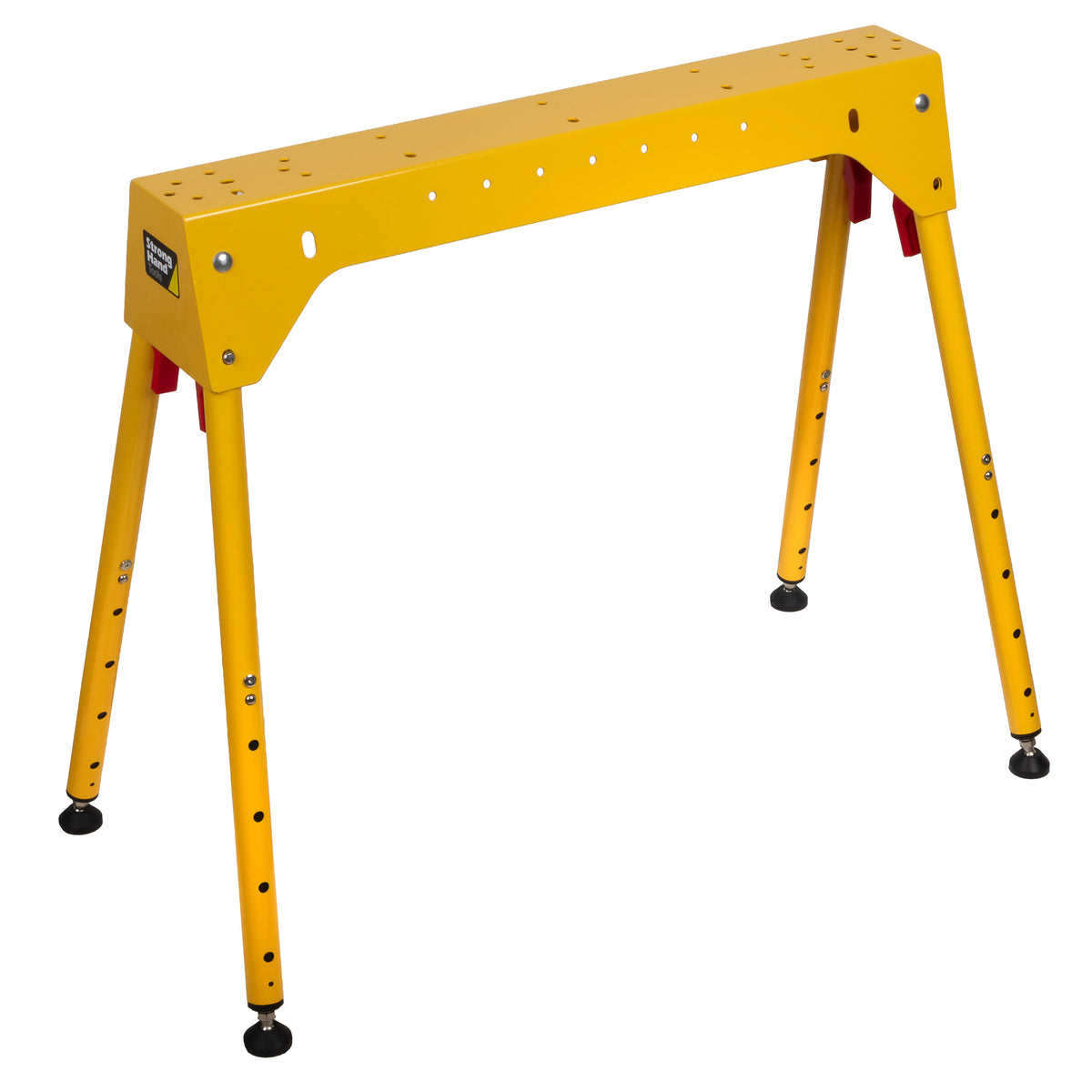

The TFSH50 is a complete sawhorse base: a one-piece body with four heavy-duty adjustable legs built in. The integrated design simplifies installation and provides greater load capacity.
The legs adjust for height from 26" to 35" (660–889 mm) and fold away into the body for storage. Leveling foot pads adapt to slightly uneven floors.
It is part of the Scout Series; add a top and the fixturing to match your work.
- Height
- 26"–35"660–889 mm, adjustable legs
- Body length
- 29"737 mm
- Capacity
- 1,600 lb726 kg per sawhorse
- Legs
- 4 foldingleveling foot pads
- Weight
- 20 lb9.1 kg

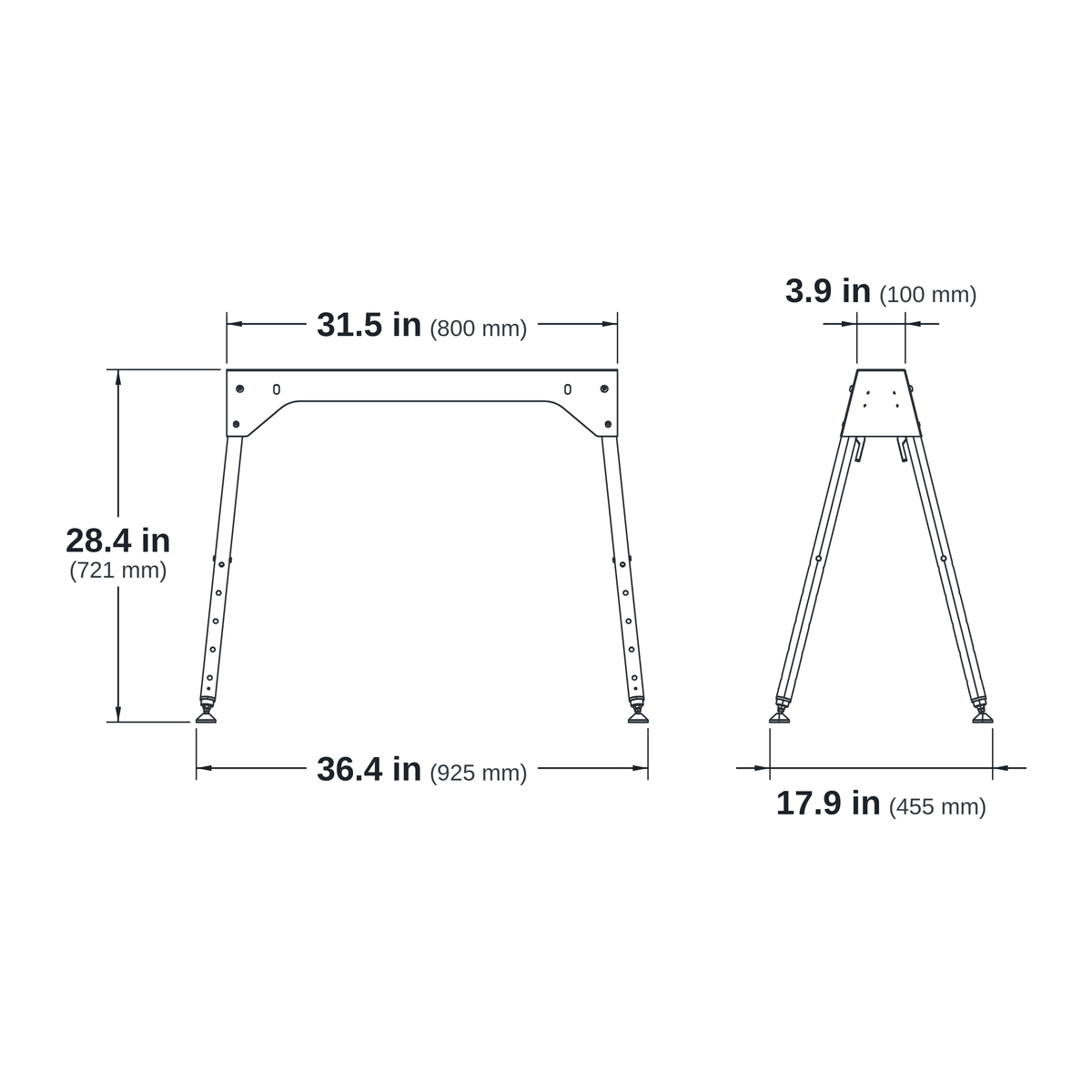

Dimensions
Set it at
26" to 35"
One body, one height range. The legs set the working height; the body stays the same.
- Load capacity
- 1,600 lb726 kg per sawhorse
- Height
- 26"–35"660–889 mm
- Height range
- 9"229 mm of adjustment
- Body length
- 29"737 mm
- Body top width
- 3.9"100 mm
- Legs
- 4fold into the body
- Weight
- 20 lb9.1 kg
How it works
Unfold, set,
level, fold away
Four legs, one body. Setting it up and putting it away is four moves.
-
Swing the legs out

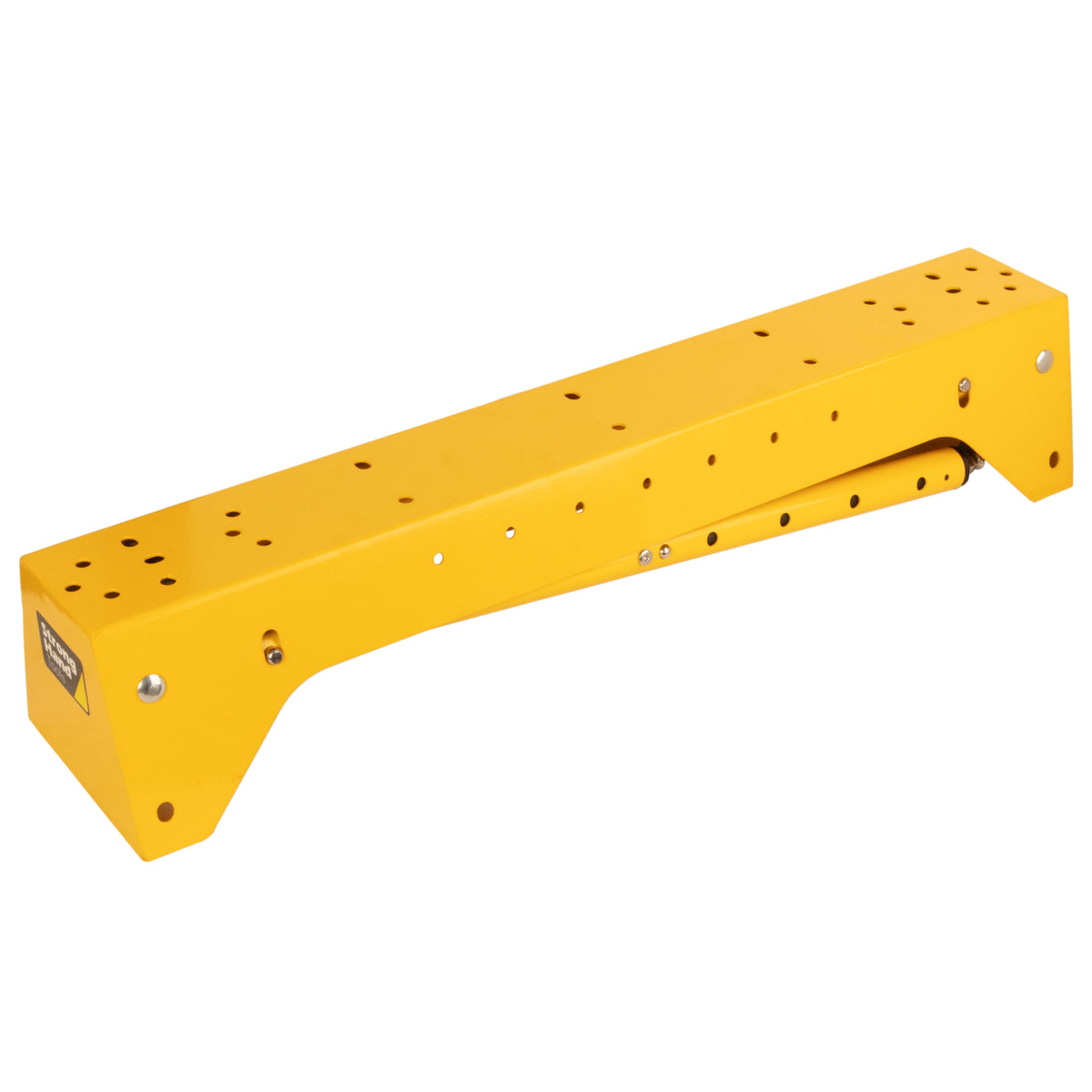

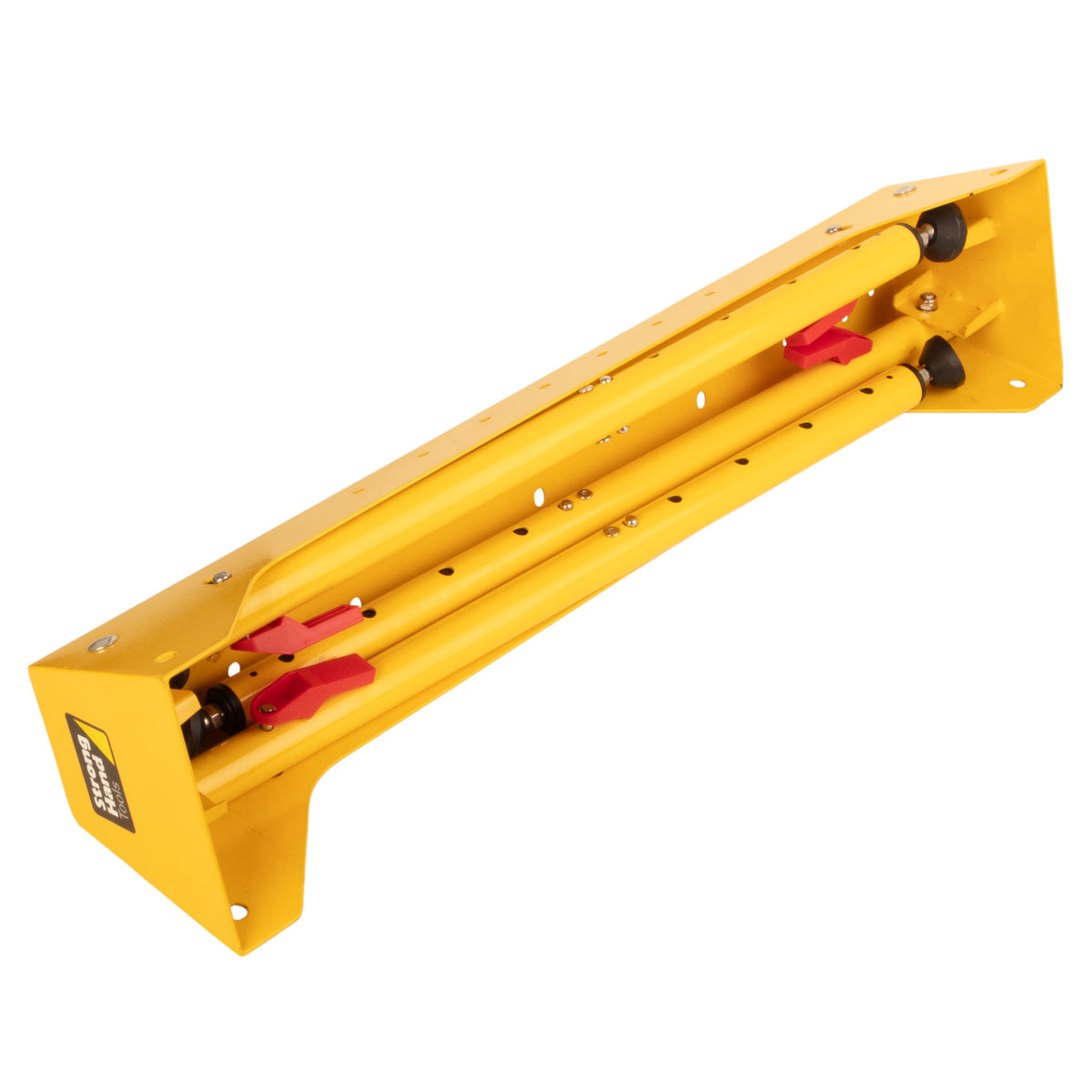

All four legs fold out of the body. Stored, they tuck up inside it, as shown.
-
Set the height
The legs adjust for height across a 26" to 35" (660–889 mm) range.
-
Settle the feet
Leveling foot pads adapt to slightly uneven floors.
-
Fold it away
The legs fold back into the body when the job is done.
Construction
Built in one piece
-
Body
One-piece design
The four legs are built into the body. One piece, from the top face down to the leveling feet.
-
Top face
Pre-drilled top
Hole clusters at both ends and along the center line of the 3.9" (100 mm) wide top face.
-
Sides
Rhino Cart hole row
A row of 1/4" (6 mm) through holes along each side, matching the Rhino Cart pattern for Rhino Cart accessories.
-
Legs
Heavy-duty legs
Four heavy-duty adjustable legs, each finished with a leveling foot pad.
Wide setup
Two legs,
three tops
Two TFSH50s carry three TSB366 top plates side by side. Spread the tops across the 29" (737 mm) bodies for a wide fixturing surface on just two sawhorse bases.
1
2What you need
- 2×TFSH50 Integrated Sawhorse LegOne at each end of the tops.
- 3×TSB366 Top Plate + Beam36" × 6" (914 × 152 mm), 5/8" holes on a 2" grid.
Scout Series
Pairs with
Built to carry the Scout 36 top plate (TSB366). Tops, kits and accessories from the same Scout Series family.
Shop the Scout Series
In the box
What's included
One complete sawhorse base. The work top is sold separately.
- 1×Integrated sawhorse legOne-piece body with four heavy-duty adjustable legs.
- 4×Leveling foot padsFitted to the ends of the legs.
- Sold separatelyA work top, clamps and fixturing. See the Scout Series.
Specifications
Every number
Height
26"–35"660–889 mmAdjustment range
9"229 mmAdjustment
Each leglegs adjust for height individually
Body length
29"737 mmBody top width
3.9"100 mmDesign
One piecelegs integrated into the bodyTop face
Pre-drilledhole clusters at both ends and along the center lineSides
1/4" (6 mm) hole rowalong each side, matching the Rhino Cart pattern for Rhino Cart accessories
Legs
4 heavy-dutyheight adjustableStorage
Fold into the bodyFeet
Leveling foot padsadapt to slightly uneven floors
Weight
20 lb9.1 kgLoad capacity
1,600 lb726 kg per sawhorse
FAQ
Questions, answered
What comes in the box, how it compares, and how far it goes.
- Does it come with a work top?
- No. The TFSH50 is the base: a one-piece body with four adjustable legs. Tops, clamps and fixturing from the Scout Series are sold separately.
- How is it different from the TFSH48 Sawhorse Legs?
- The TFSH50 is one piece. The TFSH48 legs are sold as a pair that you fasten to your own beam; the TFSH50 has the body and all four legs built together.
- Does the Scout 36 top plate mount on it?
- Yes. The TSB366 36" × 6" top plate and beam bolts to the top of the body.
- Can I join several together?
- Yes. With tops fitted, TFSH50 sawhorses can be set up end to end, side by side, or in T and L layouts.
- How much weight can it hold?
- 1,600 lb (726 kg) per sawhorse. In load testing, two TFSH50s held 3,200 lb together.
- Does it need assembly?
- No. The body and legs are one piece; swing the legs out and set the height.
