F-Clamps with the Removable / Reversible Clamp Arm, set-up 10x faster than a C-Clamp!
- Clamping Pressure: 500 – 2,400 lb
- Tapped Hole: 3/8-16
UD, UF, UG Series with Standard Pads
UM Series with Heavy Duty Replaceable Pads
| Part No. | Capacity (in) | Throat Depth (Return) (in) | Clamping Pressure (lb) | Rail Size (in) | Tapped Hole | Weight (lb) |
|---|---|---|---|---|---|---|

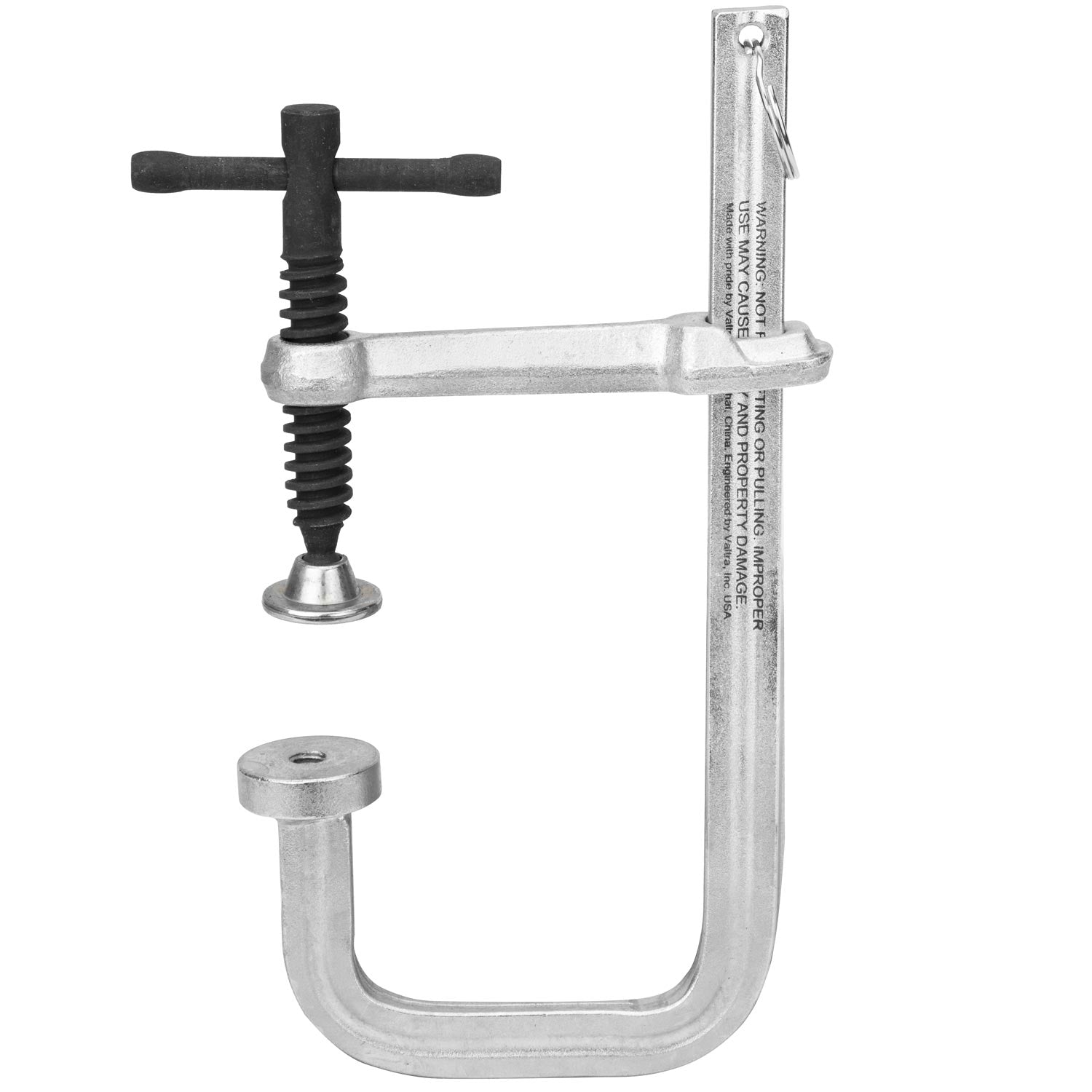

| UD45J | 4-1/2 | 3-1/4 (2) | 500 | 5/8 x 5/16 | 3/8-16 | 1.2 |

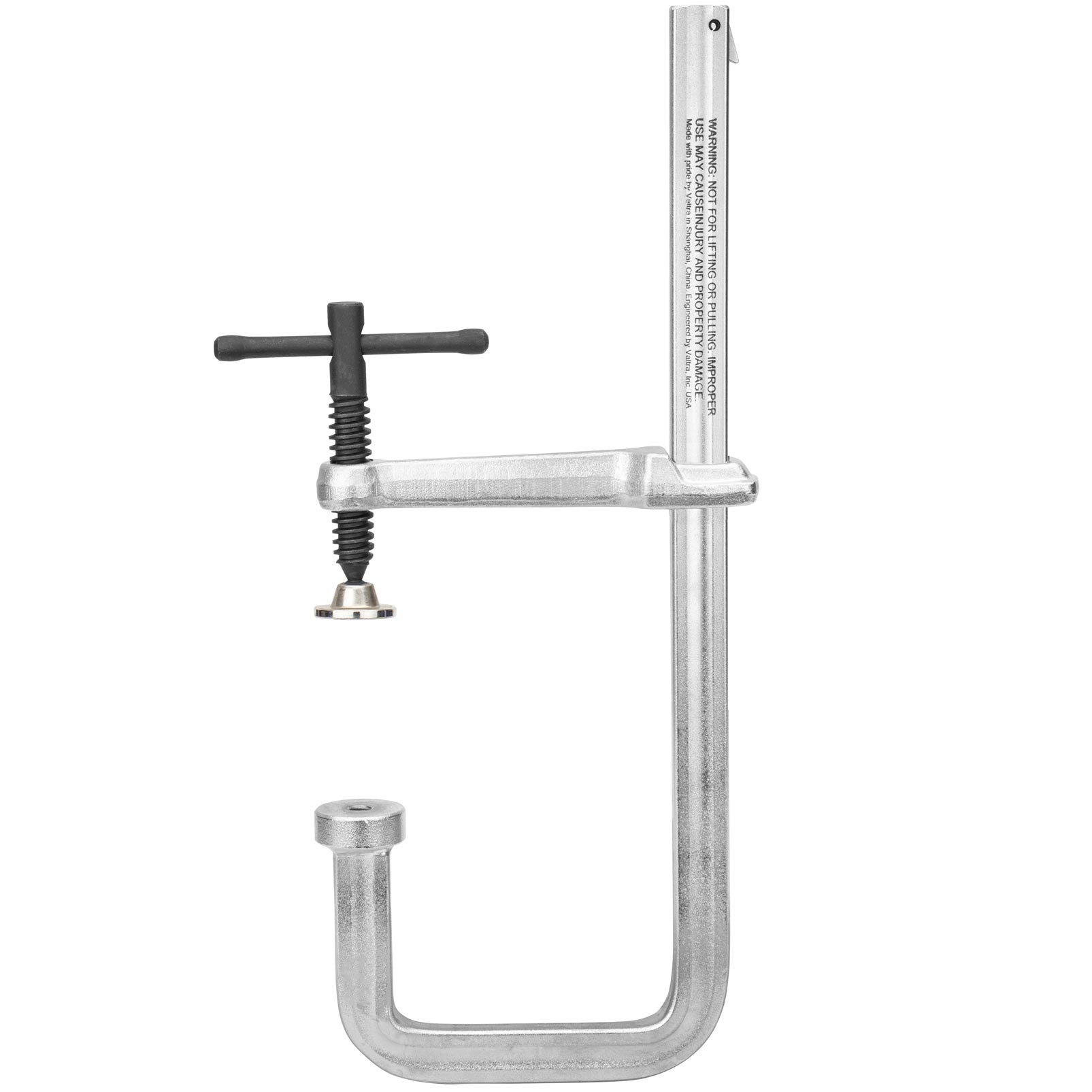

| UF100J | 10 | 4-3/4 (3) | 1,000 | 7/8 x 7/16 | 3/8-16 | 3.2 |
| UG105J | 10-1/2 | 4-3/4 (3) | 1,200 | 1 x 15/32 | 3/8-16 | 5.0 |

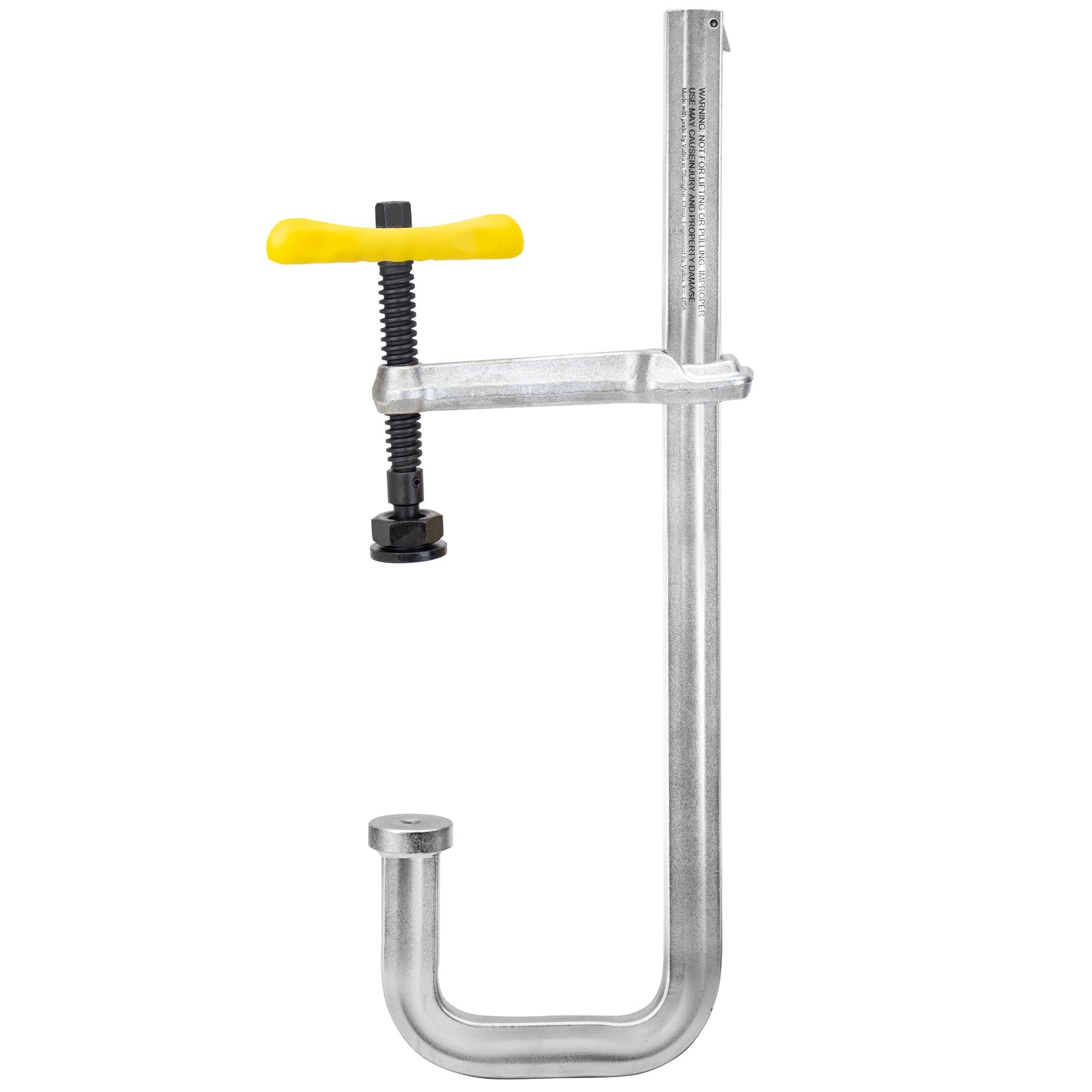

| UM125J | 12-1/2 | 5-1/2 (4) | 2,400 | 1-3/16 x 9/16 | 3/8-16 | 8.1 |

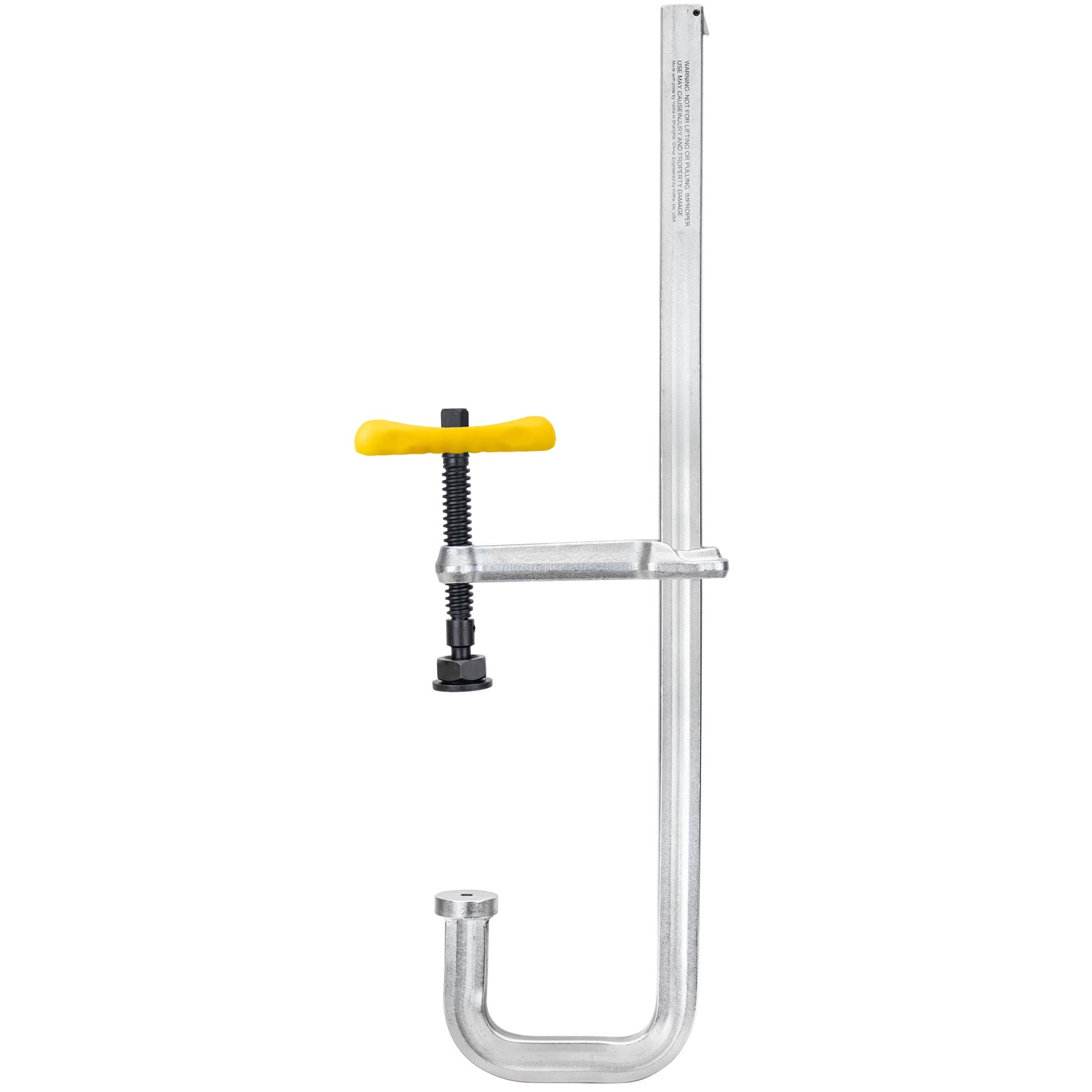

| UM205J | 20-1/2 | 5-1/2 (4) | 2,400 | 1-3/16 x 9/16 | 3/8-16 | 9.2 |
