Lifting Brackets, 5/8"

Safely and securely lift and reposition BuildPro welding tables with 5/8" holes using our heavy-duty lifting brackets. Available with an Eye Nut or Swivel Hoist Ring, these brackets provide reliable lifting solutions for different applications.

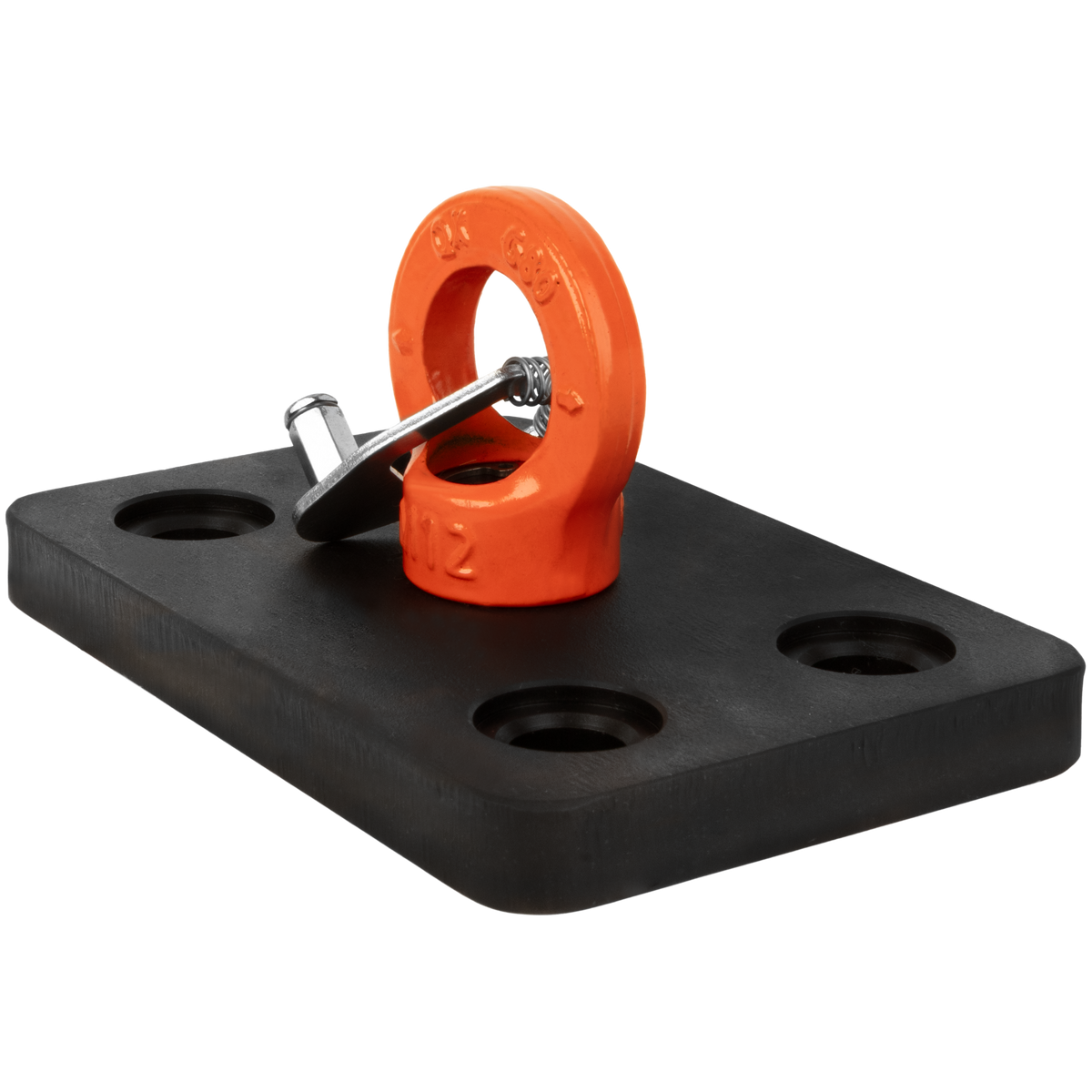

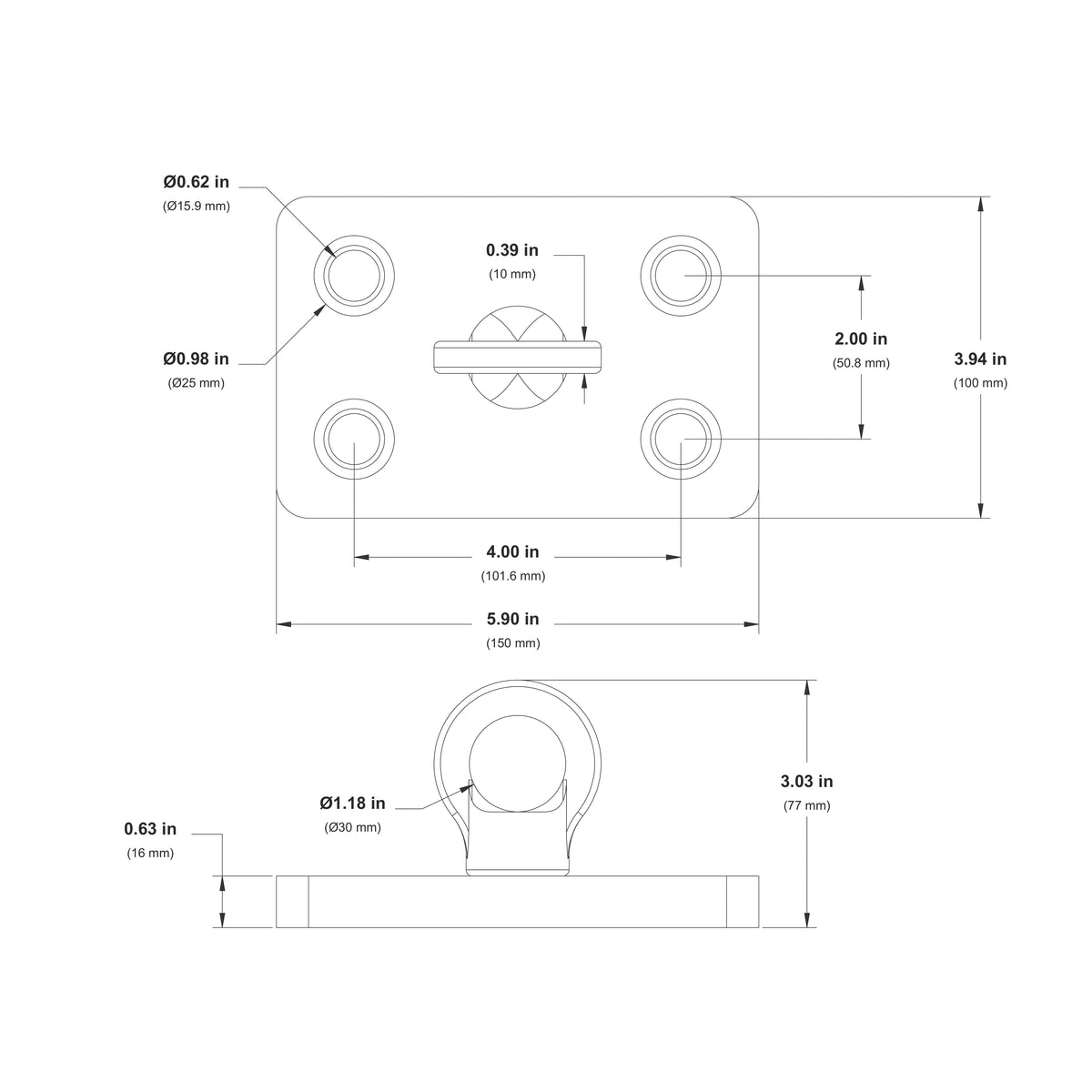

T59120 – Lifting Bracket with Eye Nut

• 750 kg (1,653 lb) Lifting Capacity: Designed for stable vertical lifting.
• Secure Mounting: Attaches to the tabletop using four T55057 clamping bolts.
• Anti-Rotation Design: Features an anti-rotation retention device for added security.
• Vertical Lifting: Fixed eye nut provides a secure lifting point for straight vertical lifts.

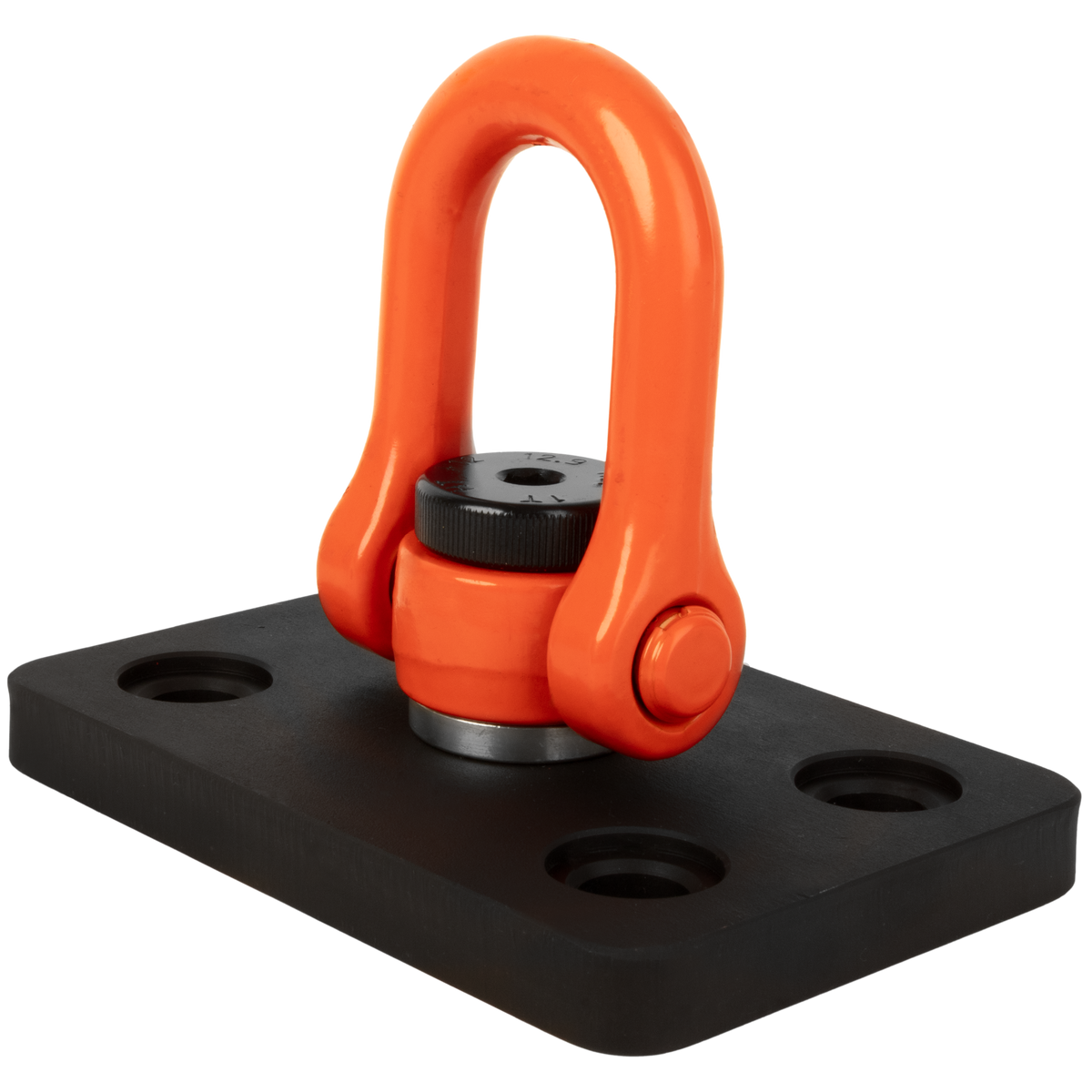

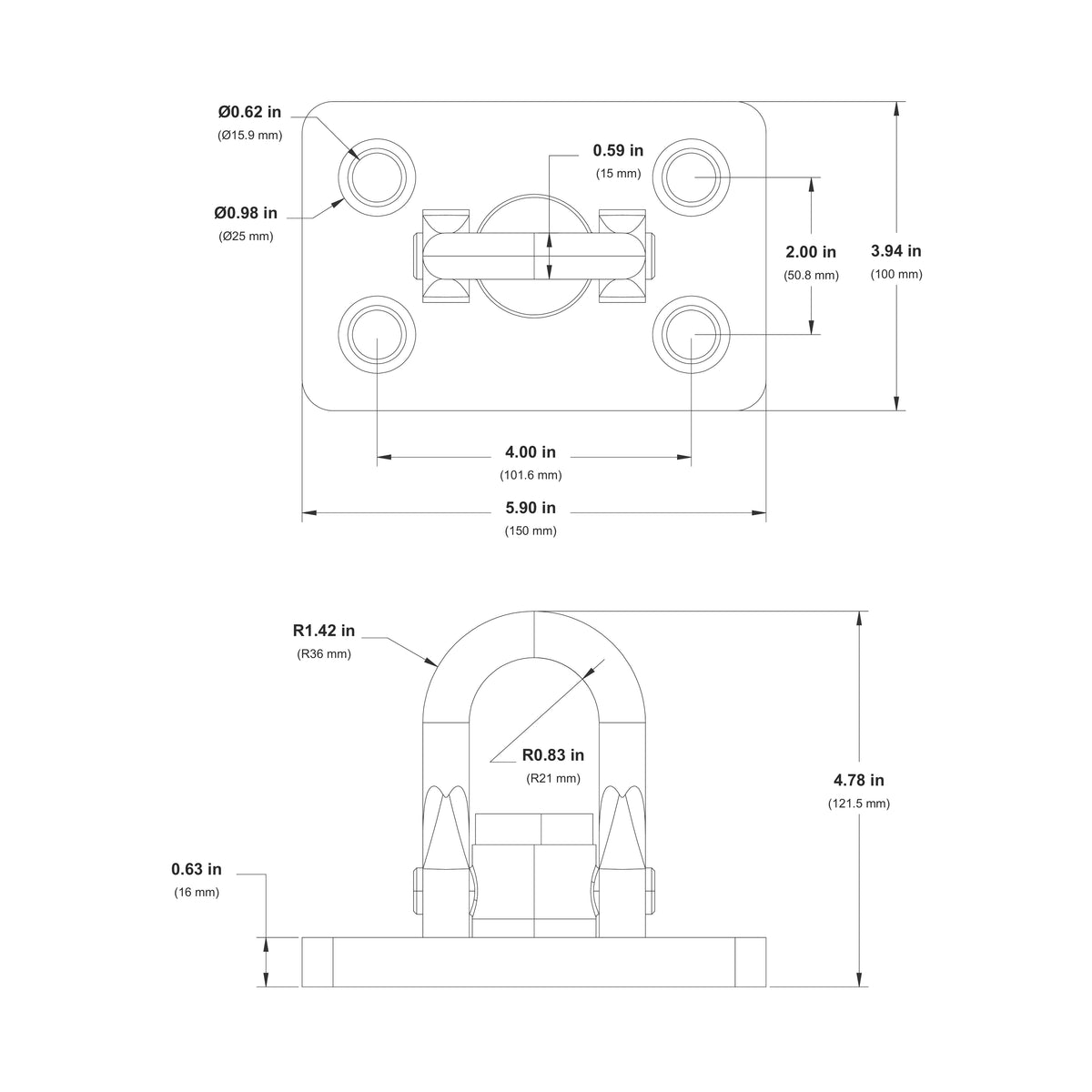

T59129 – Lifting Bracket with Swivel Hoist Ring

• 1,000 kg (2,205 lb) Lifting Capacity: Heavy-duty lifting solution with greater flexibility.
• Secure Mounting: Attaches to the tabletop using four T55057 clamping bolts.
• 180° Pivot & 360° Swivel: Allows the lifting connection to adjust to different lifting directions.
• Forged-Steel Construction: Built for strength and durability.
• Extended Hook Clearance: Accommodates larger lifting hooks.

Shared Features & Safety Guidelines

• Compatibility: Designed for BuildPro welding tables with 5/8" (16 mm) holes.
• Installation: Secure each lifting bracket using four T55057 clamping bolts. Ensure all bolts are fully seated before lifting.
• Rated Capacity: Never exceed the specified lifting capacity of each bracket or the capacity of the complete lifting assembly.
• Eye Nut Safety: For T59120, ensure the eye nut is fully threaded and seated flat against the bracket. Avoid lateral loading.
• Safe Operation: Keep personnel clear of suspended loads and follow approved lifting procedures.

Choose the Eye Nut model (T59120) for standard vertical lifting or the Swivel Hoist Ring model (T59129) for greater flexibility and higher lifting capacity.
