Magnetic Alignment Pin

Name: Magnetic Alignment Pin
Brand: Strong Hand Tools
SKU: MAP200
Price: 119.25 USD
Availability: InStock

SKU: MAP200

$119.25 ~~$132.50~~

Shipping calculated at checkout.

Pin Span

3.14" min – 6.97" max

Pin Diameter

0.5" - 2"

Magnetic Hold

4.4 lb

Open briefcase with yellow ear protection inside.

Storage

Foam Case

Eligible for Return Within 30 Days.
One Year Limited Warranty

Estimated delivery: Jul 17 - Jul 21

Magnetic Alignment Pin

Product Overview MAP200

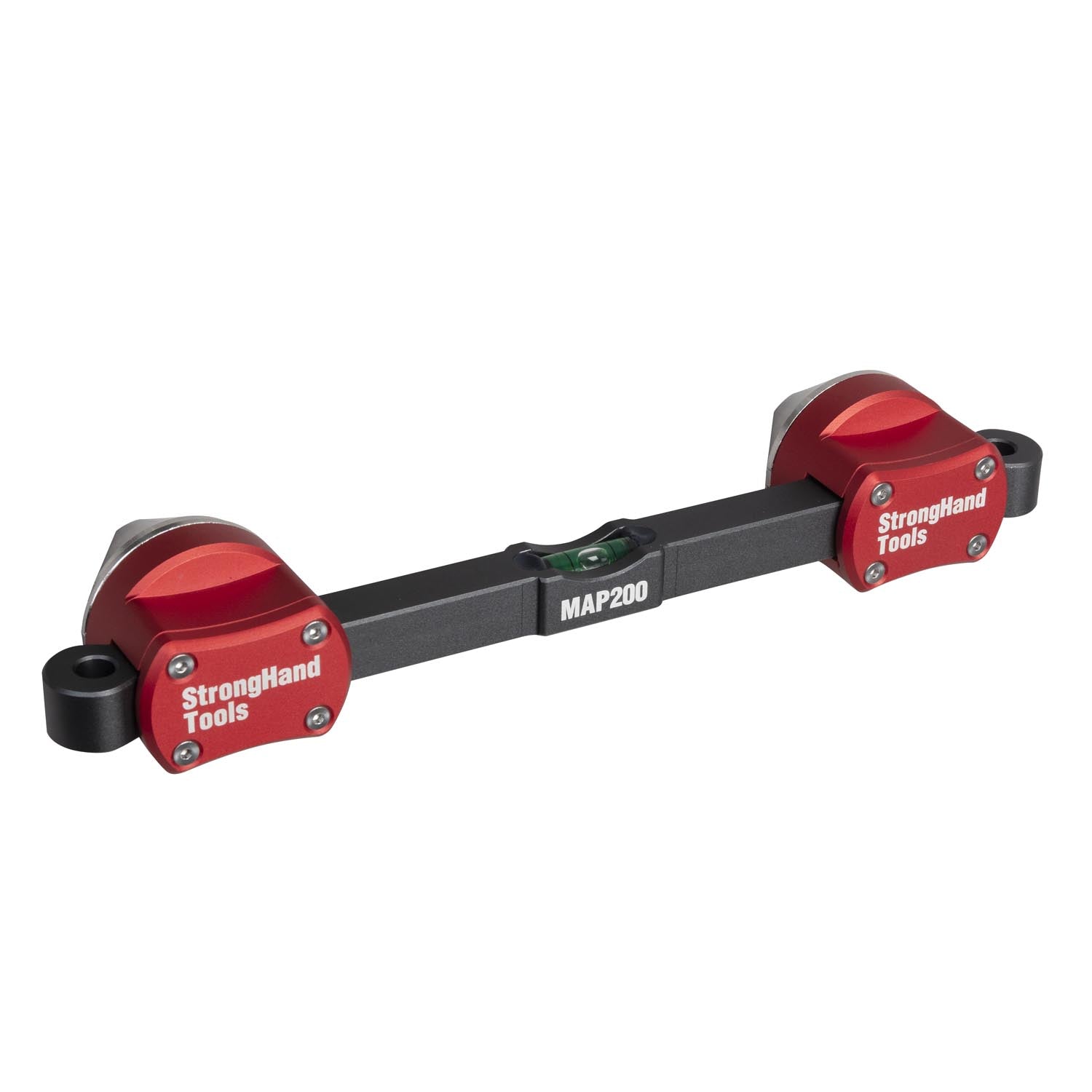

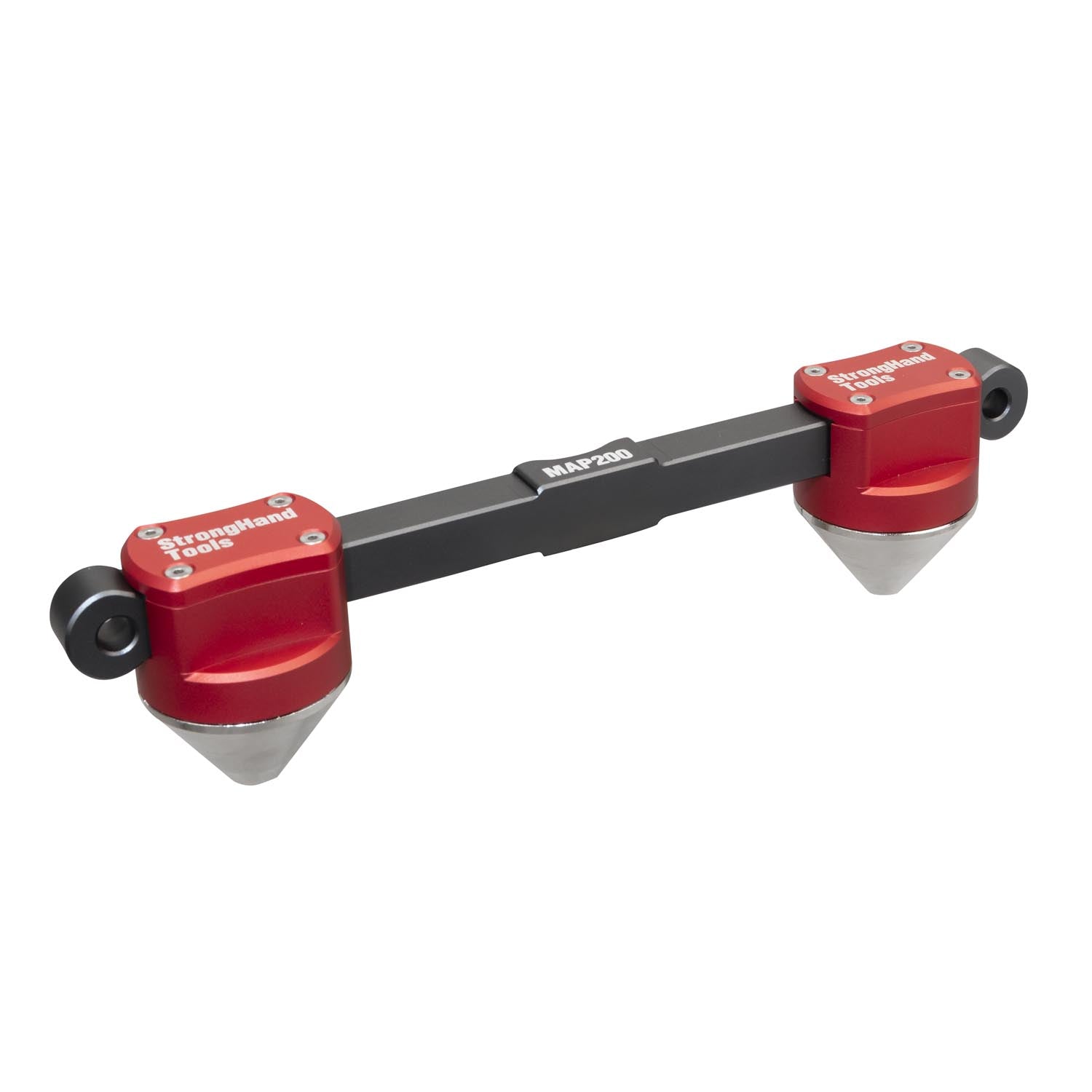

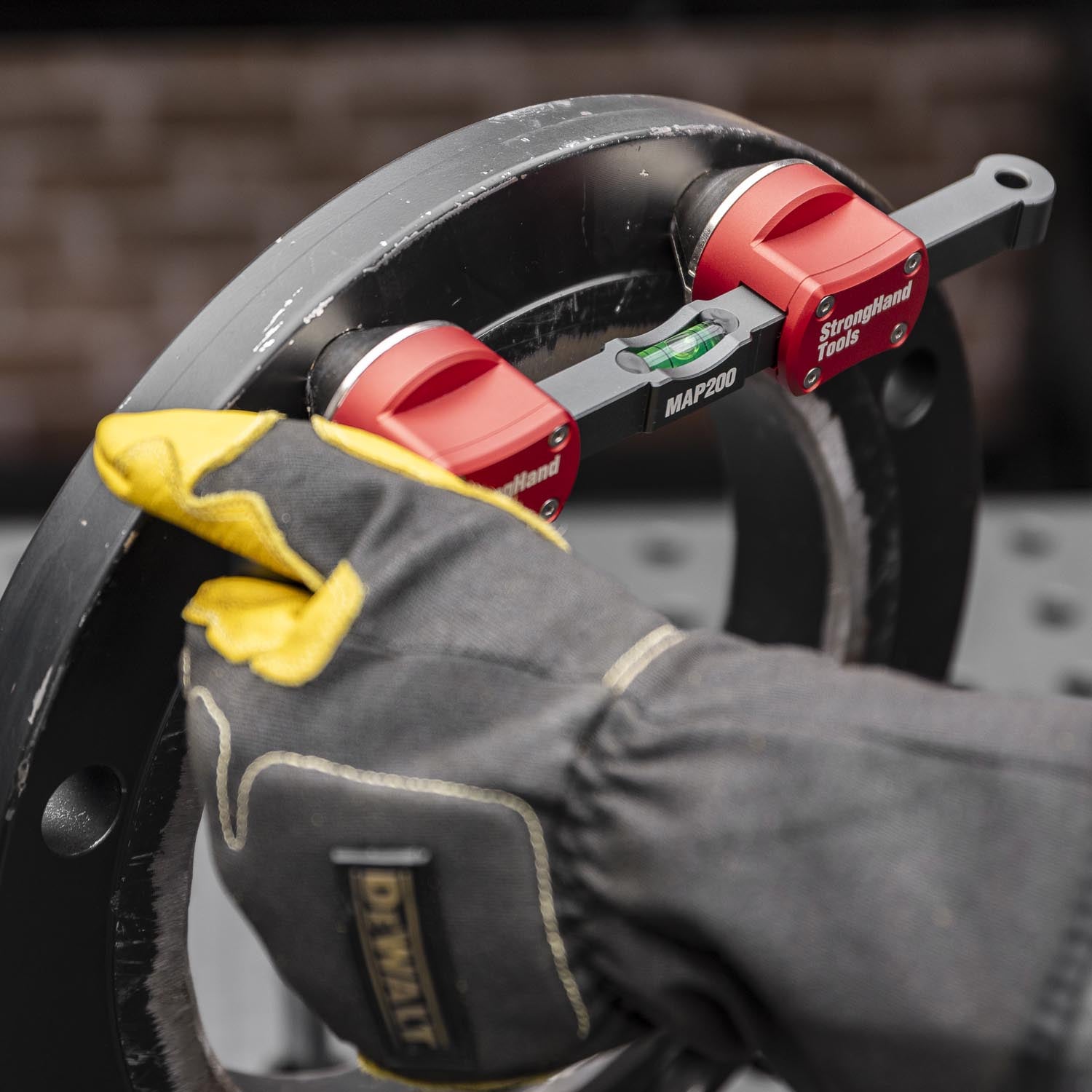

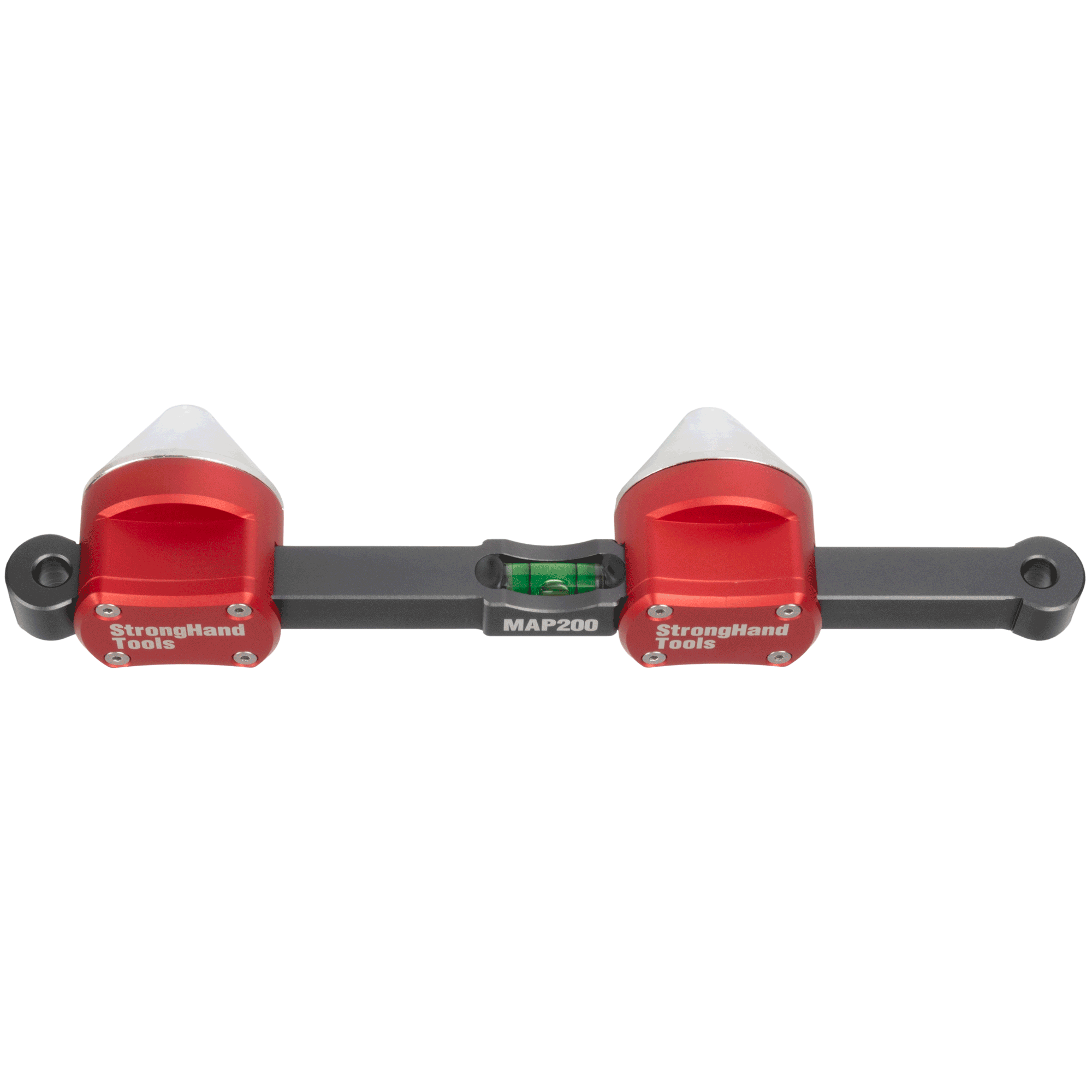

The Strong Hand Tools Magnetic Alignment Pin (MAP200) is a compact, 1.58 lb (0.72 kg) pipe-fitting tool engineered from CNC-machined, anodized aluminum to streamline the leveling and alignment of ferrous pipe flanges.

• Designed for easy operation: Functions efficiently even while wearing heavy welding gloves.

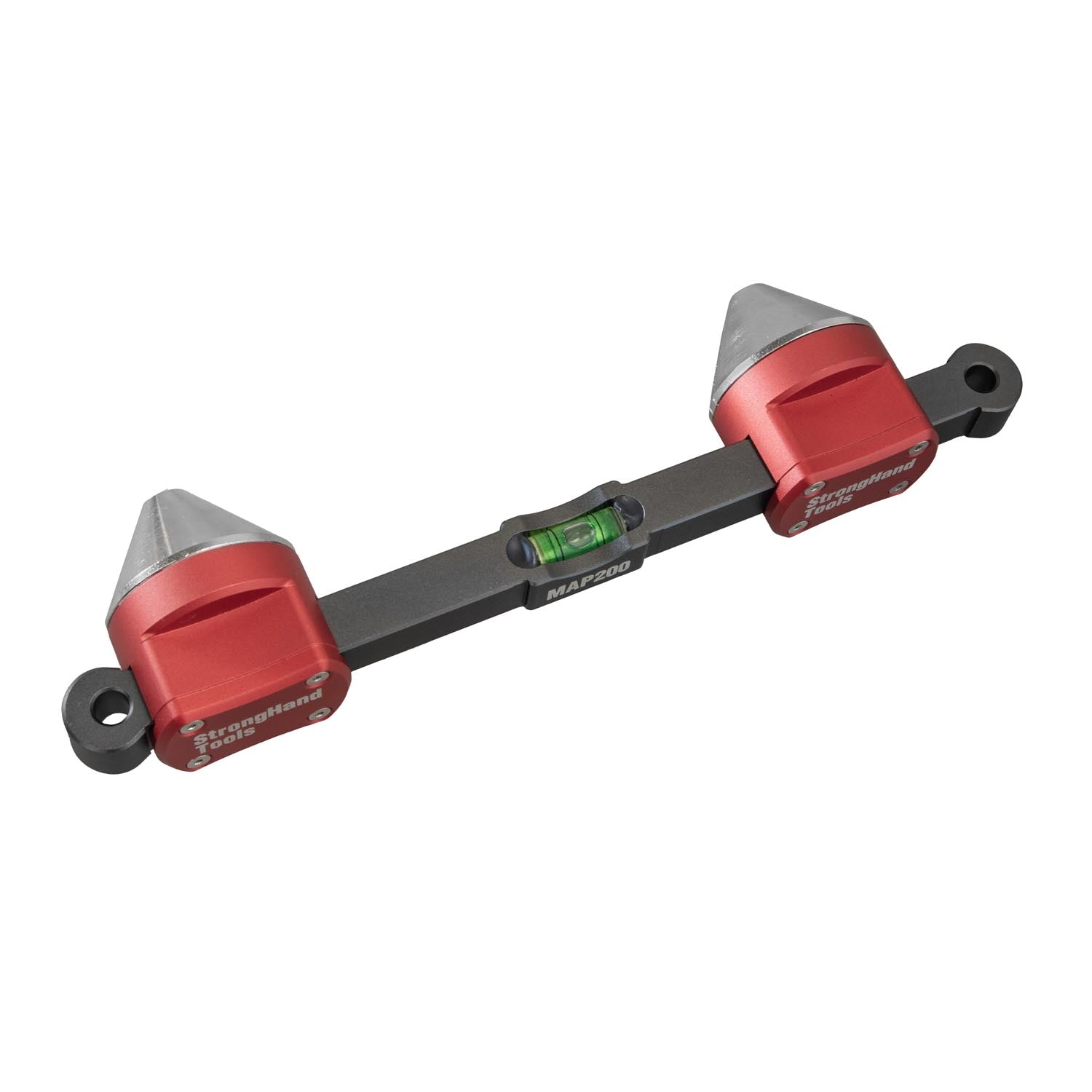

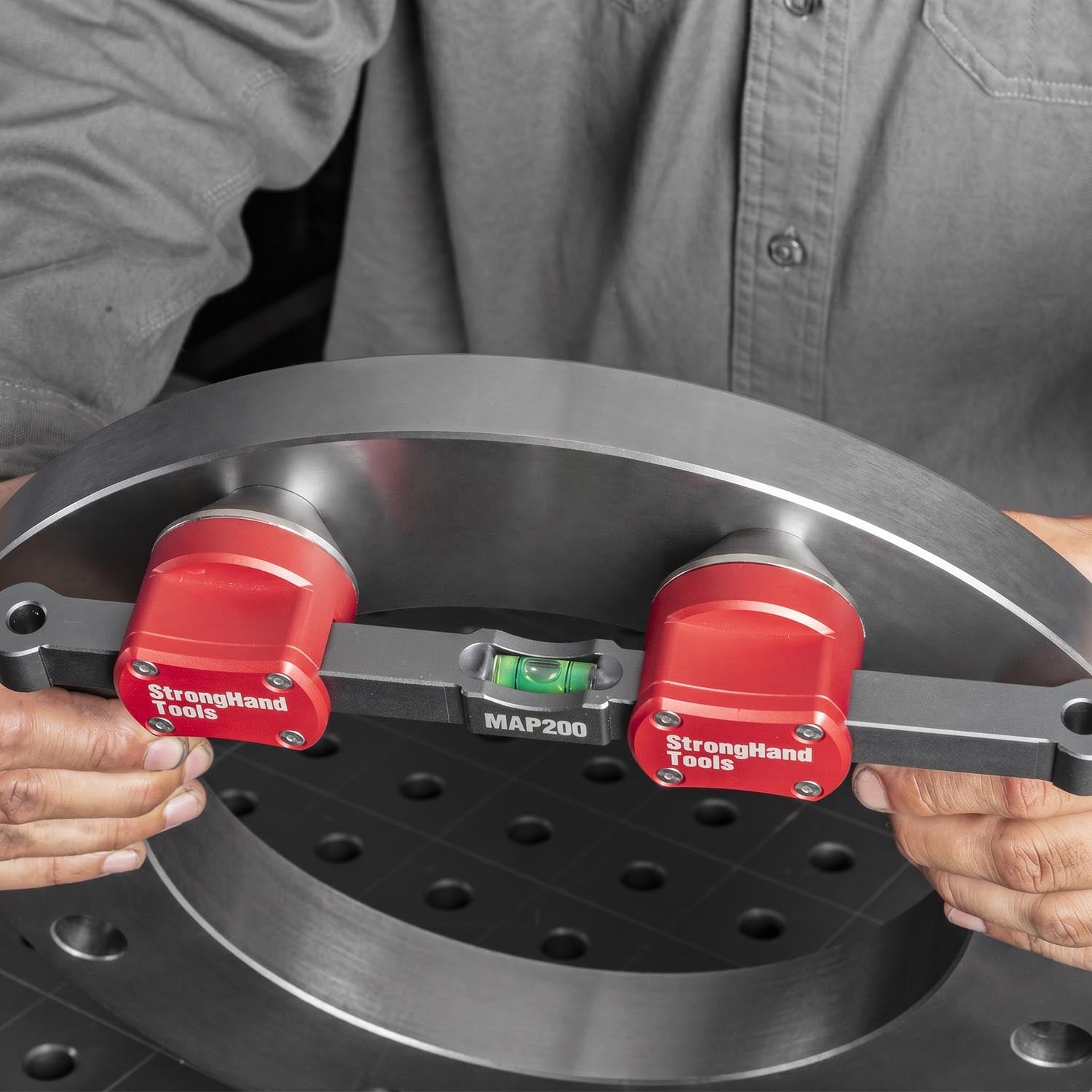

• Spring-loaded, self-aligning pin heads: Drop directly into adjacent bolt holes for quick, accurate alignment.
• Ultra-strong integrated magnets: Instantly secure the tool to steel surfaces for hands-free positioning.
• Built-in bubble vial: Provides fast horizontal calibration during setup.

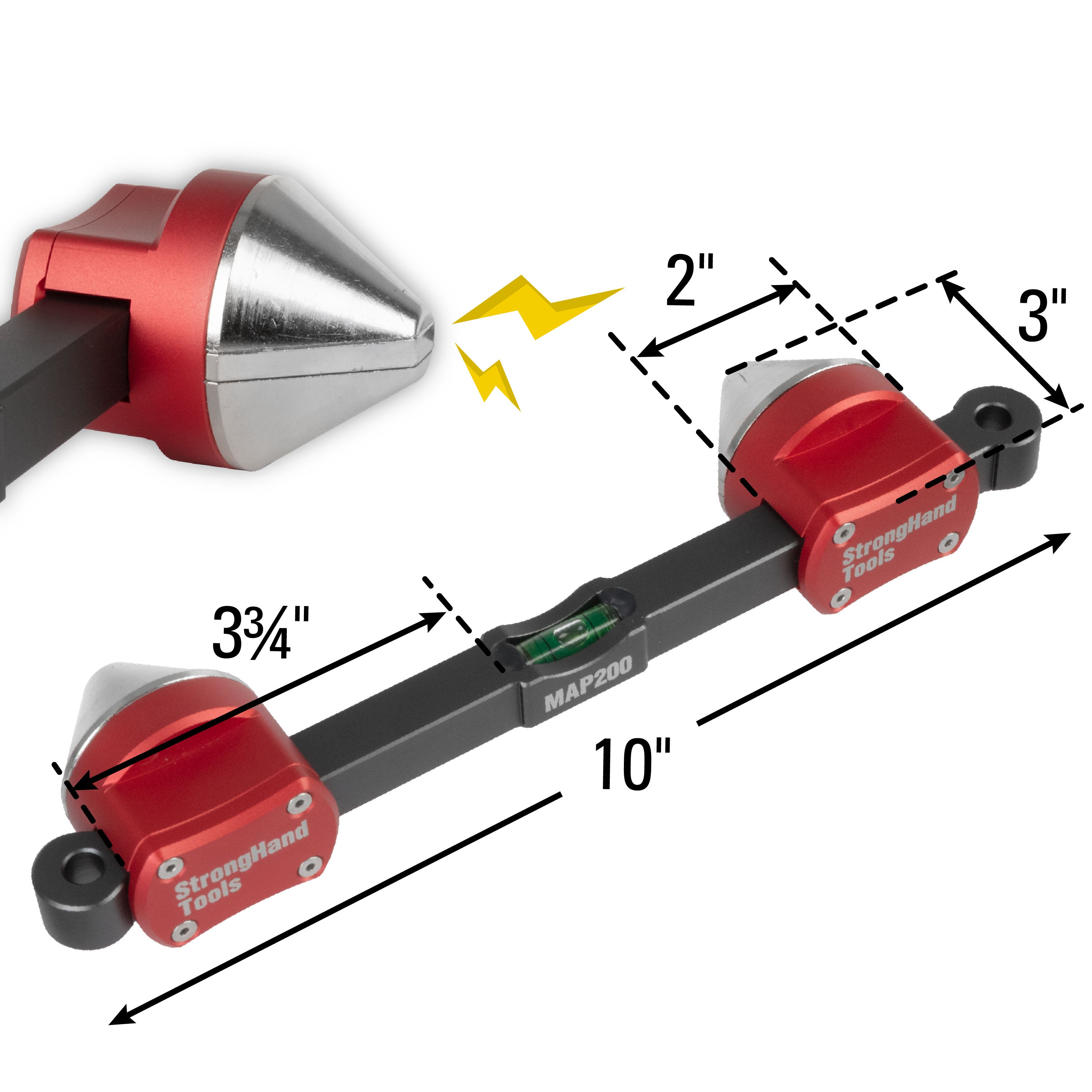

• Adjustable pin diameter range: Fits bolt holes from 0.5" to 2" (12.7 mm to 50.8 mm).
• Adjustable pin spacing: Accommodates center-to-center hole spacings from 3.14" to 6.97" (79.8 mm to 177.0 mm).

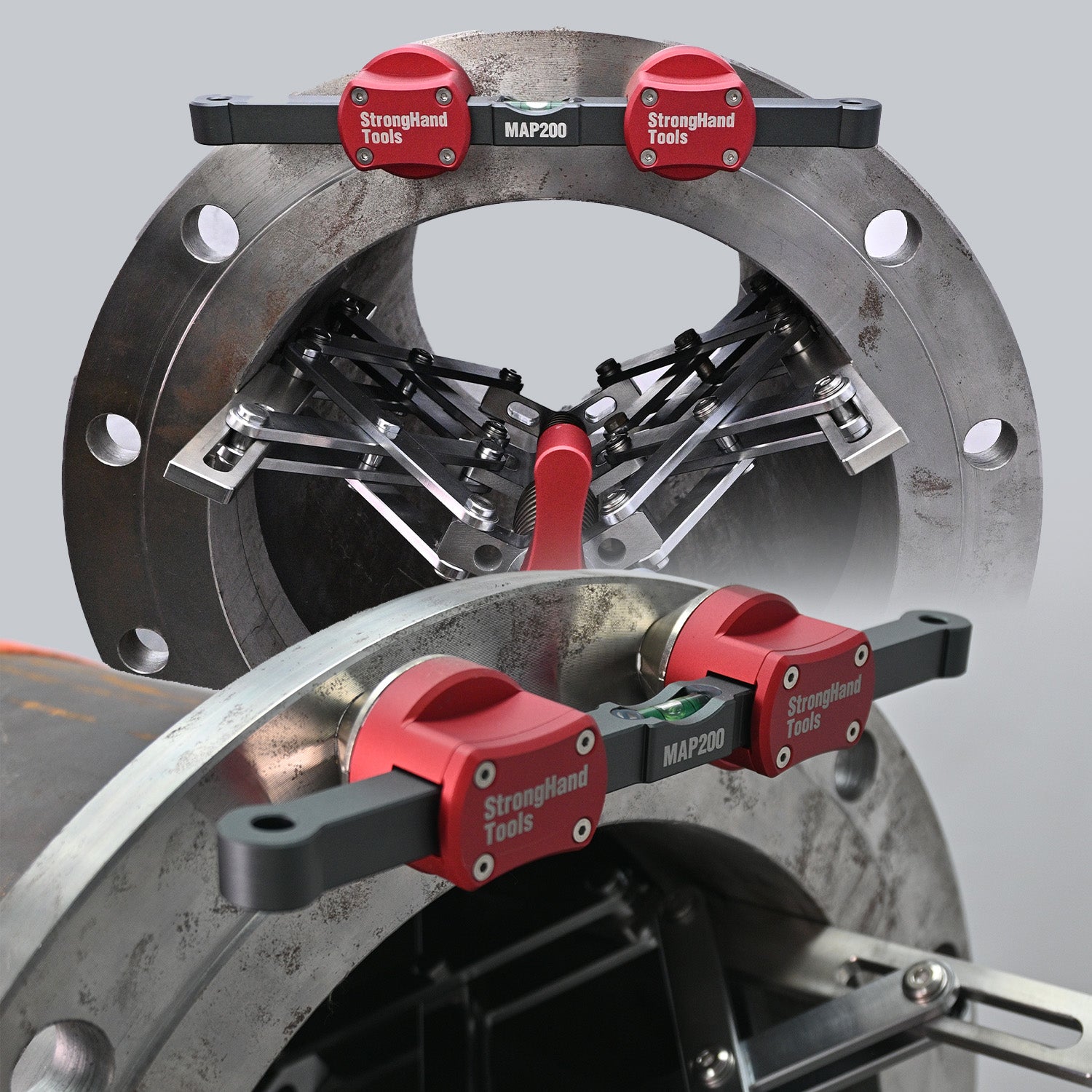

• Wide flange compatibility: Suitable for standard flanges ranging from 0.5" to 20" (12.7 mm to 508.0 mm).
• Protective storage included: Supplied with a rugged foam storage case to safeguard precision components between tasks.

Pin Spand

3.14" min – 6.97" max

Pin Diameter

0.5" - 2"

Magnetic Hold

4.4 lb ( 2.0 kg )

Weight

1.58 lb

Adjustable Pin Span

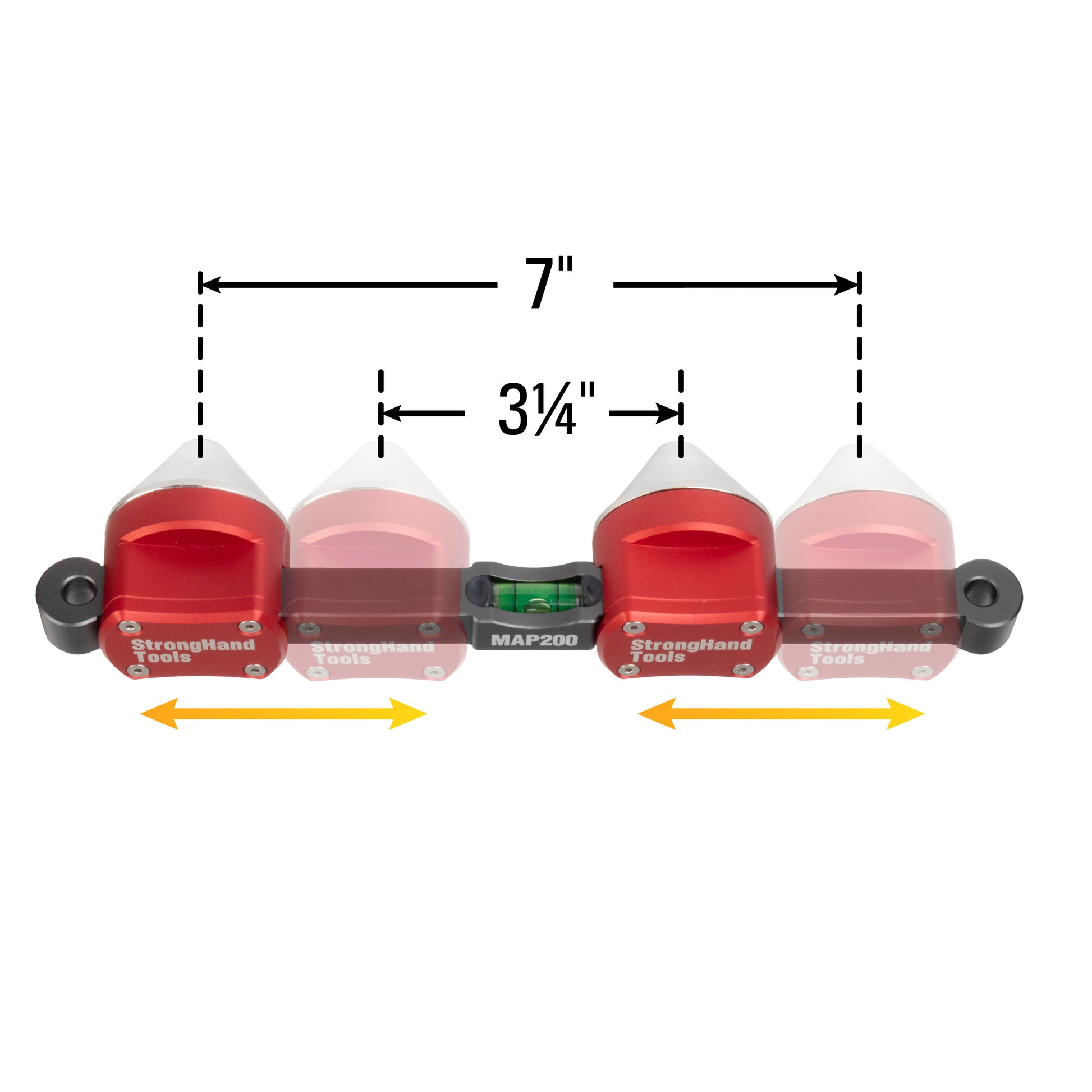

Slides smoothly to accommodate a center-to-center distance from a minimum of 3.14" (79.8 mm) up to a maximum of 6.97" (177.0 mm).

Magnetic Pull Force

A strong 4.4 lb (2.0 kg) magnetic hold that locks the tool tight against the steel flange face so it won't slip or sag.

Body Material

Premium CNC-machined, anodized aluminum construction built to survive rough field drops while maintaining exact geometric tolerances.

Storage

Ships in a custom-fit protective foam case to shield the precision vial and machined surfaces from being scratched up in a heavy job box.

No-Fumble, Threadless Setup

Eliminates the frustration of spinning dirty, slag-covered nuts or dealing with crossed threads.

One-Handed Operation

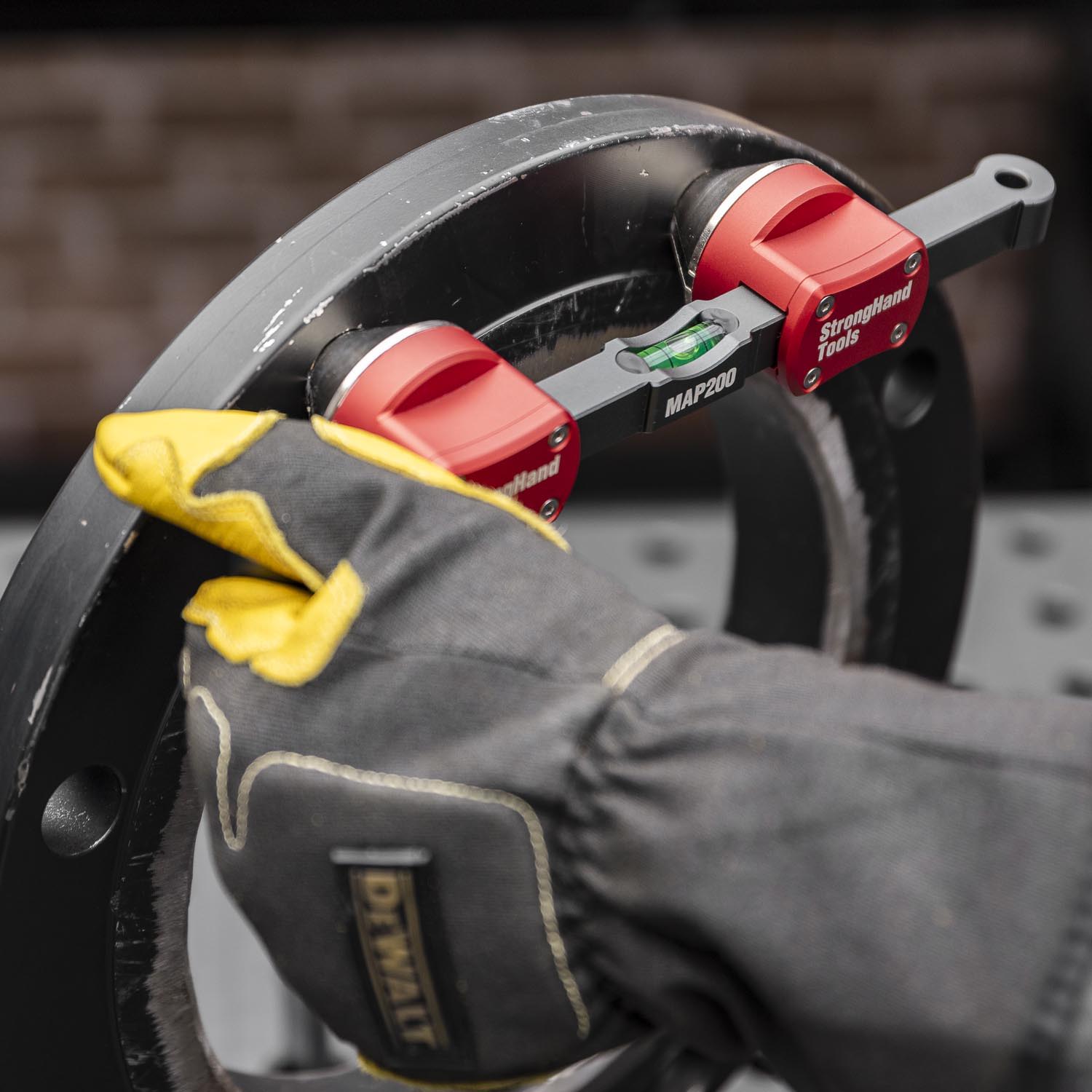

Designed to be used completely while wearing heavy welding gloves. You simply snap it in and go to work.

Simultaneous Leveling

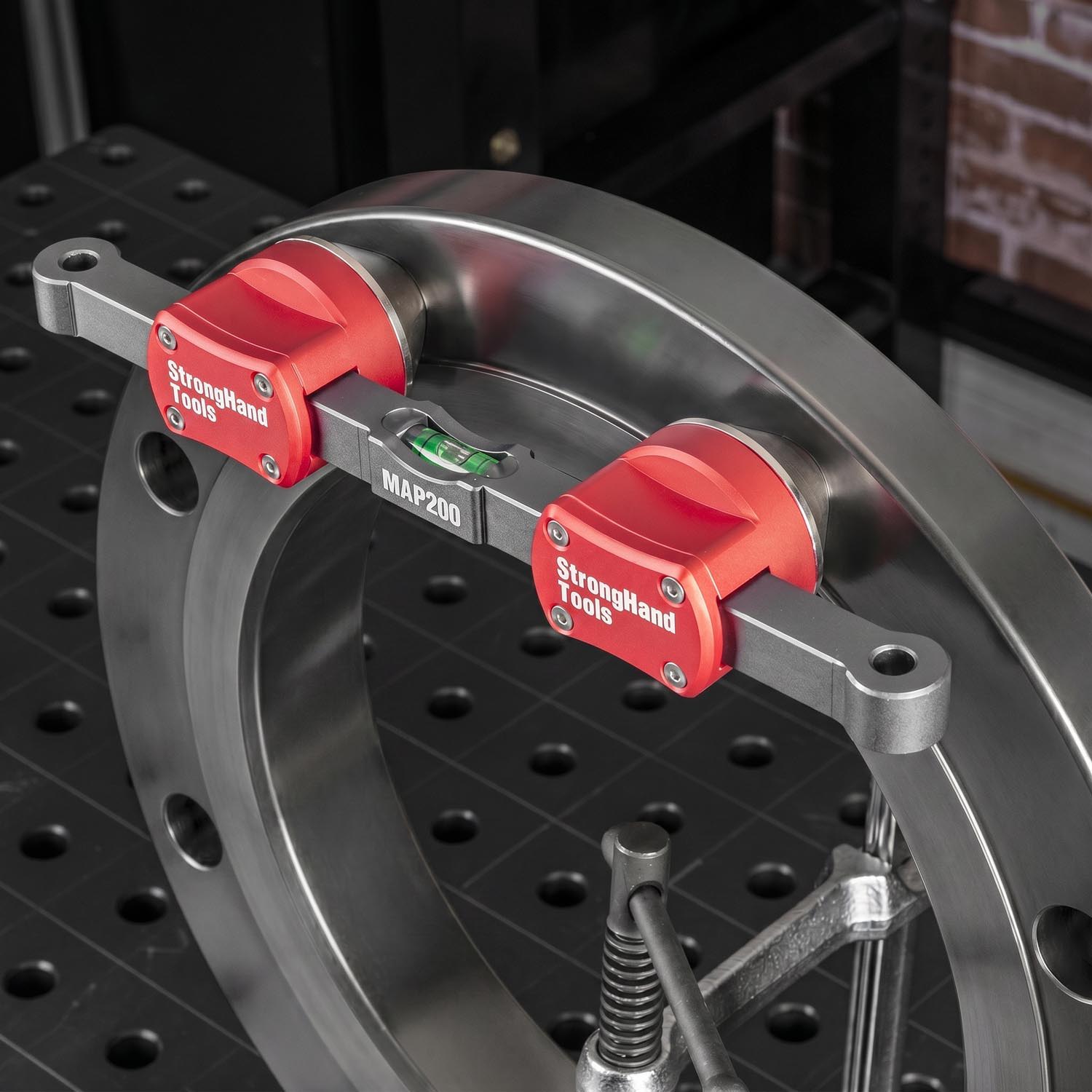

Features an integrated horizontal bubble vial right in the center frame, allowing you to align the holes and check your level in one movement without grabbing a separate torpedo level.

Spring-Loaded Self-Centering

The tapered pin heads instantly seat themselves firmly against the edges of the bolt holes for perfect concentric accuracy.

Why a Fabricator Needs It in Their Workshop

Traditional alignment pins turn a simple fit-up into a multi-step balancing act: you insert the pins, struggle to tighten them down with slick gloves, grab a separate level, and constantly tap the flange into place. If you drop a loose nut down a pipe or into the dirt, your momentum stops entirely.

The MAP200 turns this into a 5-second task. Because it uses internal springs and powerful rare-earth magnets, it clamps itself flush against the ferrous flange face automatically. It dramatically reduces setup time on repeat weldments, freeing up your hands to position the pipe, check your square, and lay down your tack welds without fighting your tools.

MAP200 Flange Compatibility Chart

Flange Size	Bolt Count	Bolt Circle Dia.	Adj. Hole Spacing	Compatible?
1/2" (12.7 mm)	4	2.375" (60.3 mm)	1.68" (42.7 mm)	No (Below Min)
3/4" (19.1 mm)	4	2.750" (69.9 mm)	1.94" (49.3 mm)	No (Below Min)
1" (25.4 mm)	4	3.125" (79.4 mm)	2.21" (56.1 mm)	No (Below Min)
1-1/4" (31.8 mm)	4	3.500" (88.9 mm)	2.47" (62.7 mm)	No (Below Min)
1-1/2" (38.1 mm)	4	3.875" (98.4 mm)	2.74" (69.6 mm)	No (Below Min)
2" (50.8 mm)	4	4.750" (120.7 mm)	3.36" (85.3 mm)	Yes
2-1/2" (63.5 mm)	4	5.500" (139.7 mm)	3.89" (98.8 mm)	Yes
3" (76.2 mm)	4	6.000" (152.4 mm)	4.24" (107.7 mm)	Yes
3-1/2" (88.9 mm)	8	7.000" (177.8 mm)	2.68" (68.1 mm)	No (Below Min)
4" (101.6 mm)	8	7.500" (190.5 mm)	2.87" (72.9 mm)	No (Below Min)
5" (127.0 mm)	8	8.500" (215.9 mm)	3.25" (82.6 mm)	Yes
6" (152.4 mm)	8	9.500" (241.3 mm)	3.64" (92.5 mm)	Yes
8" (203.2 mm)	8	11.750" (298.5 mm)	4.50" (114.3 mm)	Yes
10" (254.0 mm)	12	14.250" (362.0 mm)	3.69" (93.7 mm)	Yes
12" (304.8 mm)	12	17.000" (431.8 mm)	4.40" (111.8 mm)	Yes
14" (355.6 mm)	12	18.750" (476.3 mm)	4.85" (123.2 mm)	Yes
16" (406.4 mm)	16	21.250" (539.8 mm)	4.15" (105.4 mm)	Yes
18" (457.2 mm)	16	22.750" (577.9 mm)	4.44" (112.8 mm)	Yes
20" (508.0 mm)	20	25.000" (635.0 mm)	3.91" (99.3 mm)	Yes
