A next-generation pipe layout tool designed for high-accuracy marking and angle measurement on both interior and exterior pipe surfaces. Built for professionals who demand faster setup, tighter tolerances, and repeatable precision.
Save 5%

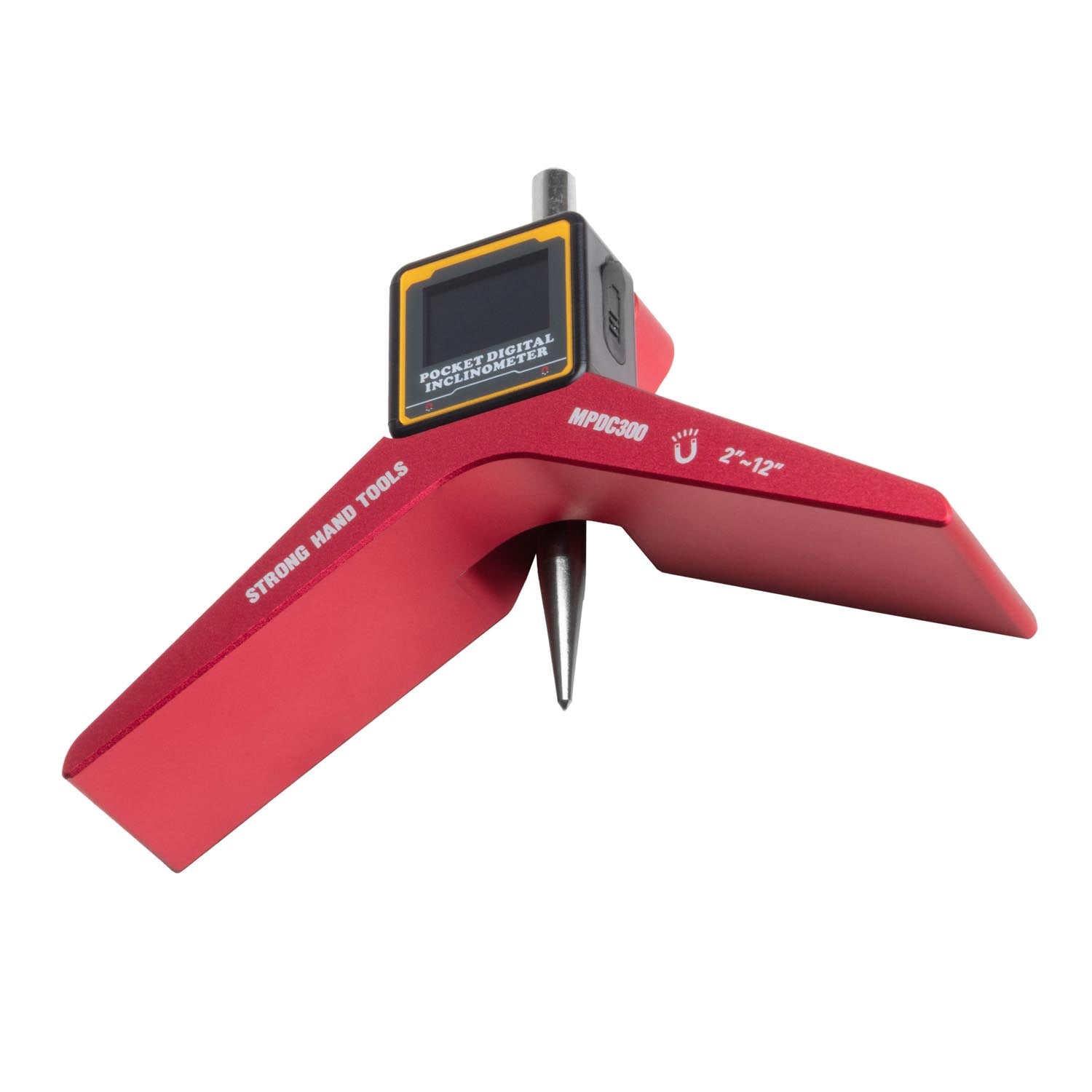

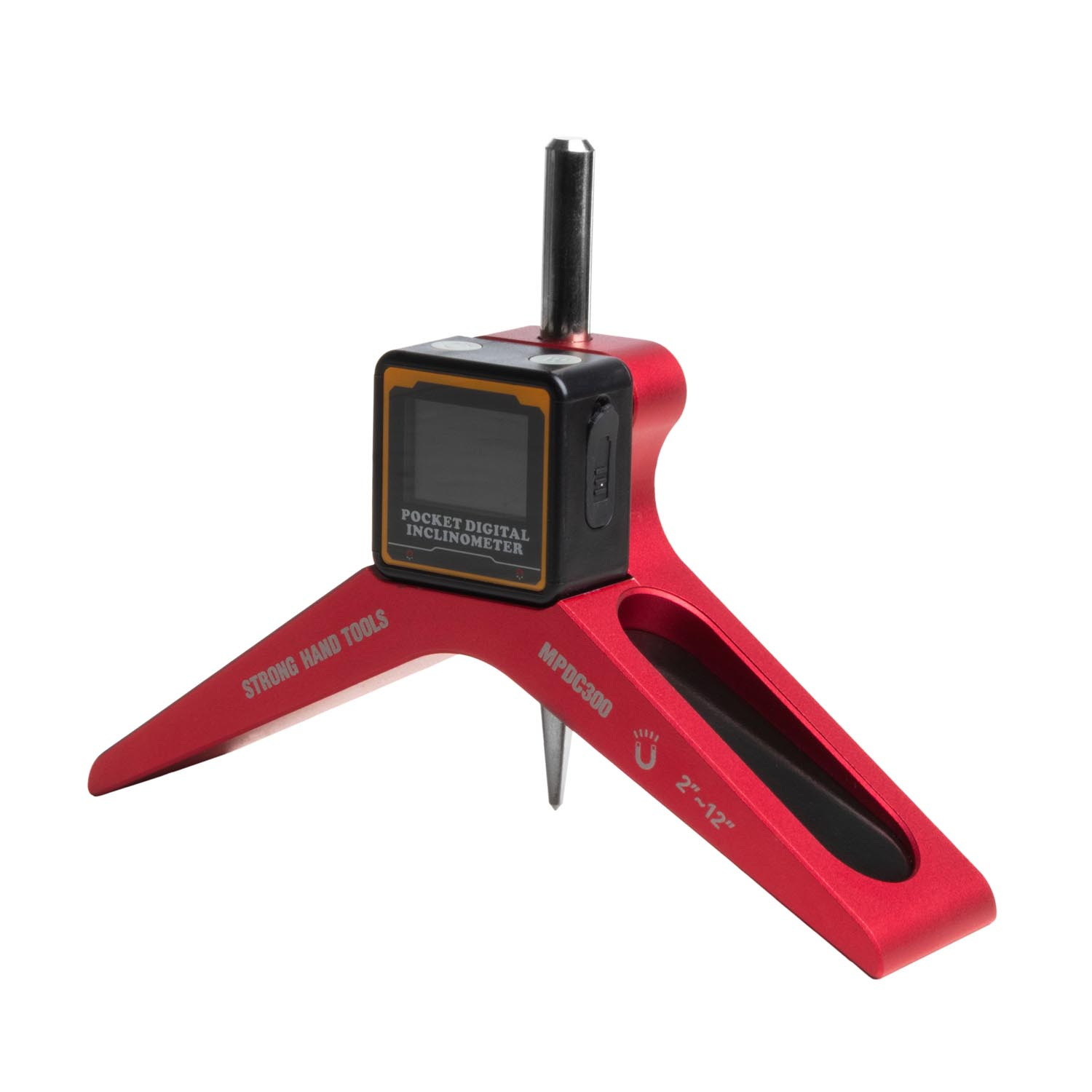

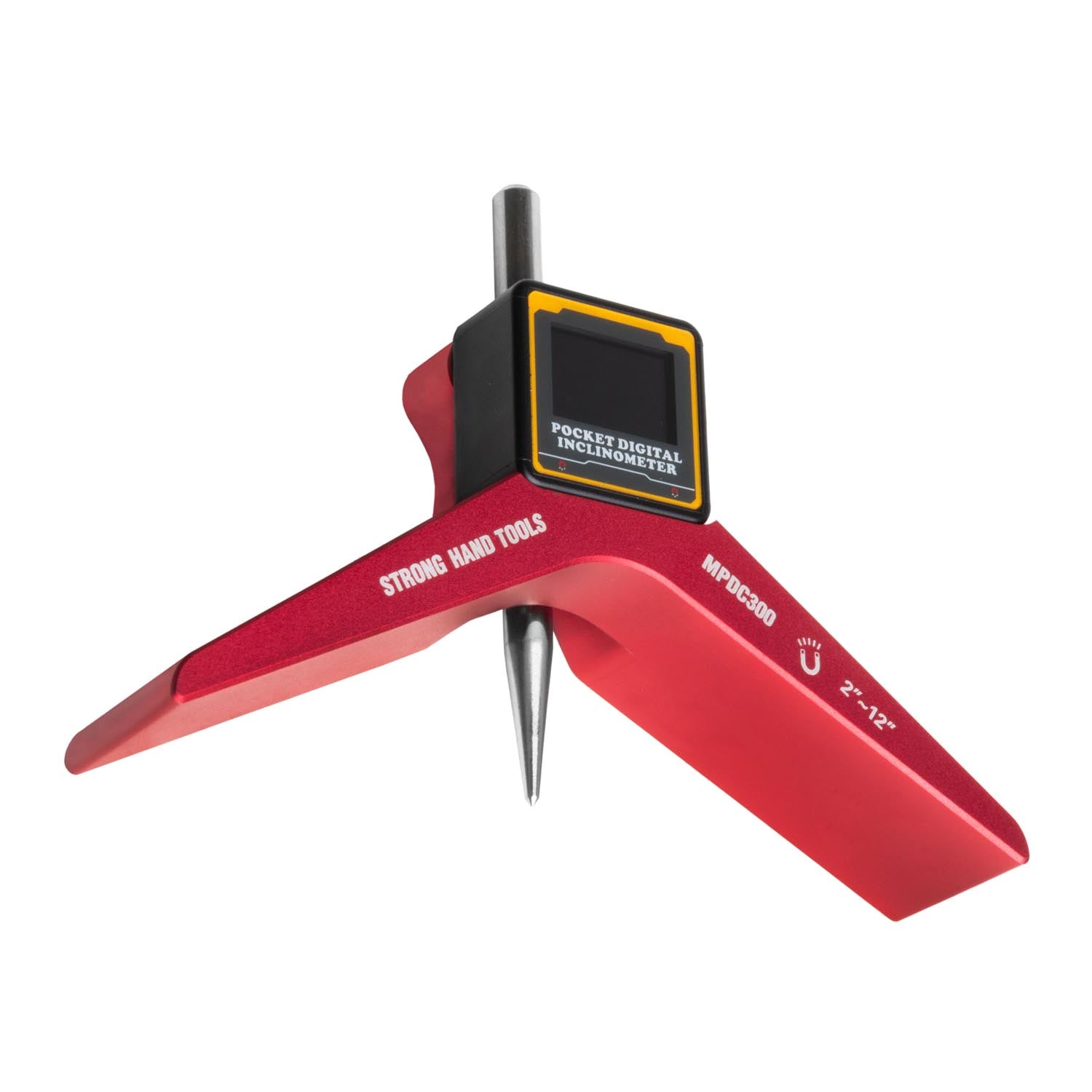

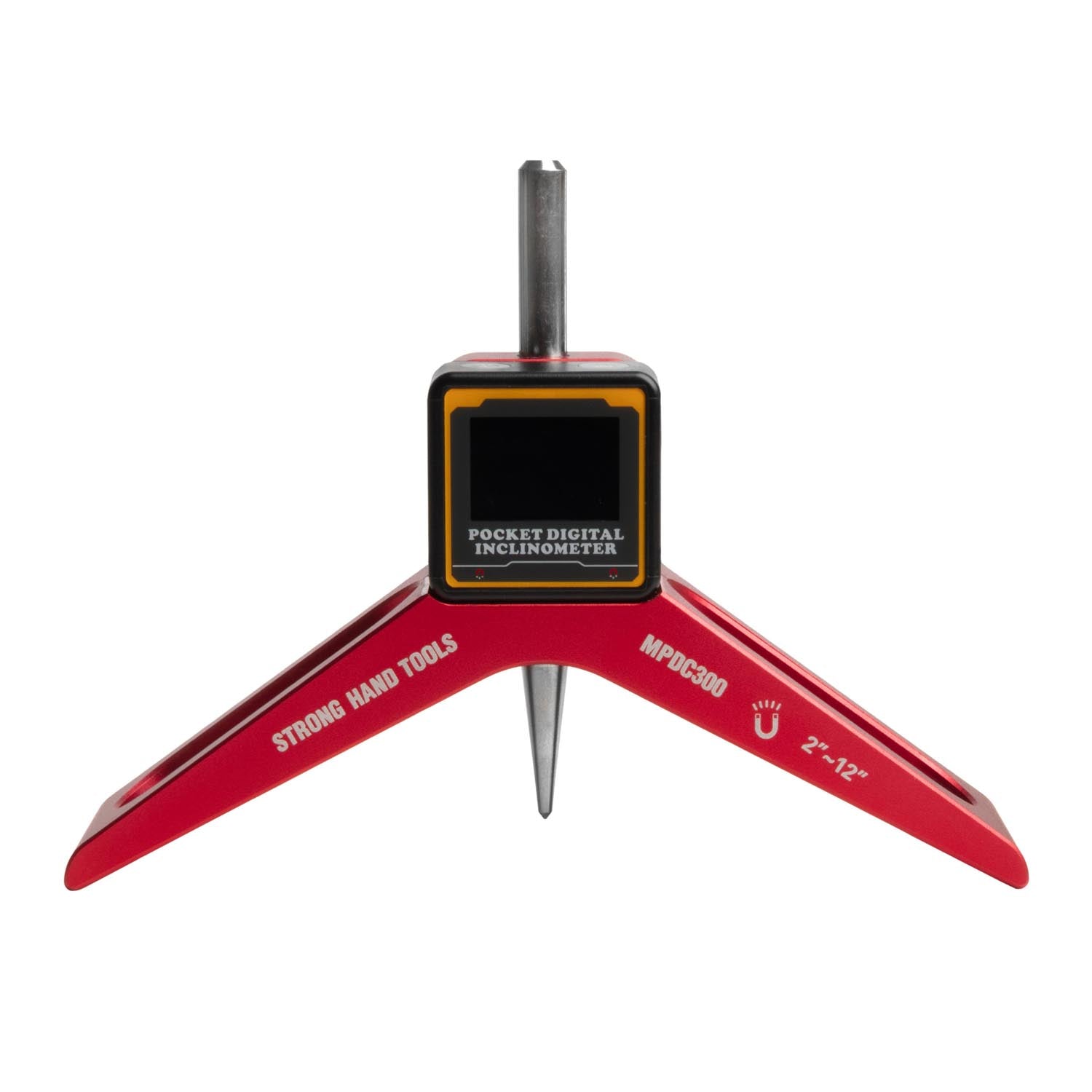

Magnetic Pipe Centering Head, Digital Precision Model
Regular price
Sale price
$71.25
Regular price
$75.00
Shipping calculated at checkout.
±0.2° Accuracy
Digital Angle Display
Max. 5.5 LB
Magnetic Hold
2" to 12"
Pipe Diameter Compatible
HD Carry Case
Included
-
Estimated delivery: Jul 11 - Jul 15
Couldn't load pickup availability
Magnetic Pipe Centering Head
Digital Precision Model
- Fits pipe diameters from 2" to 12"
- High-precision digital angle display with ±0.2° accuracy
- Designed to precisely mark center points on the exterior of pipes.

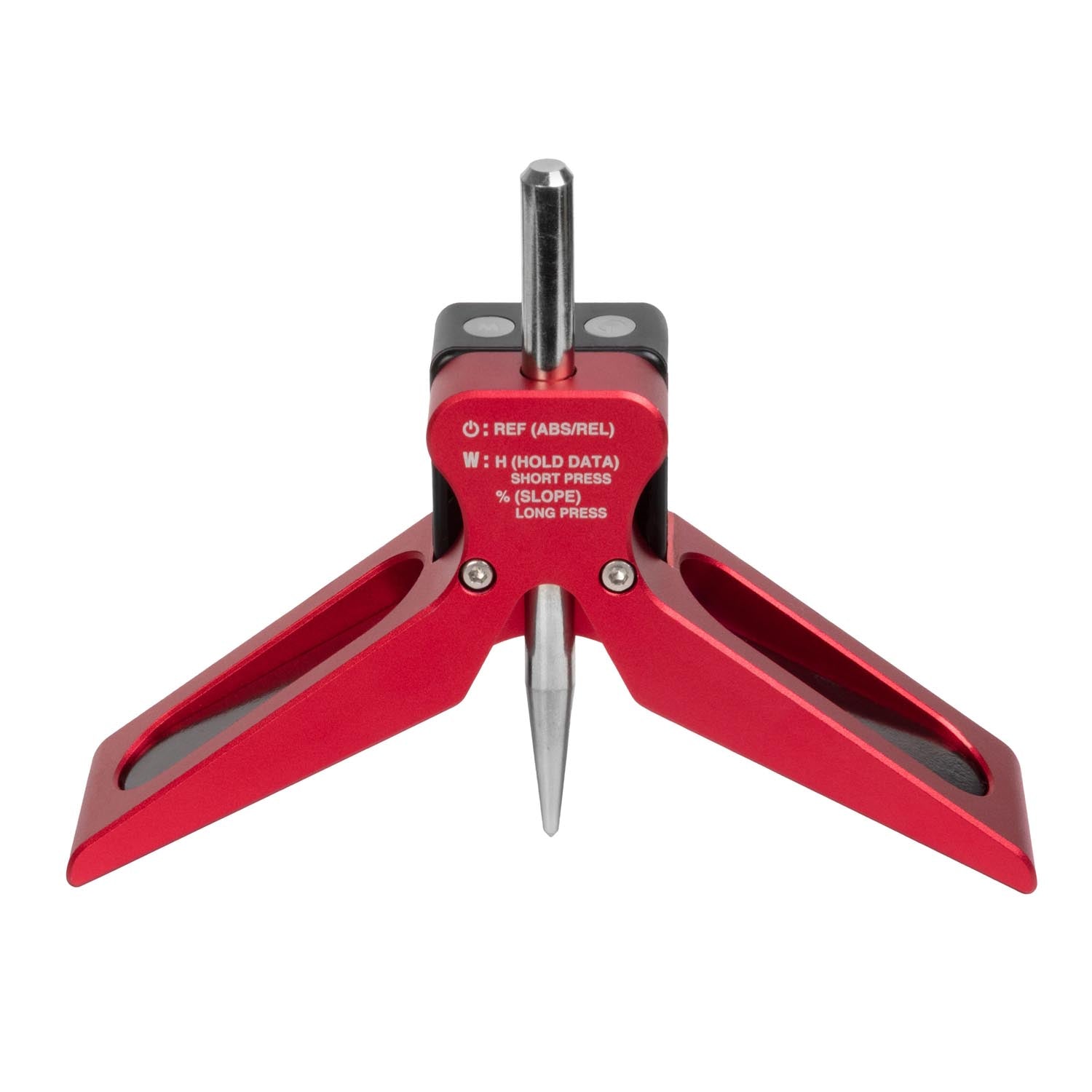

- Switchable Absolute and Relative measurement modes for flexible reference setup
- Automatic angle-to-slope conversion for faster layout calculations
- Data Hold function to freeze readings for easy viewing and marking
- One-touch zeroing function for quick calibration
- Auto power-off after 3 minutes to conserve battery life
- Adjustable dial bubble protractor with 2.5° increments
- Precision-machined anodized aluminum construction for durability
- Reduces manual measurement errors for faster, cleaner layout work
- Ideal for locating TDC (Top Dead Center) and BDC (Bottom Dead Center)
Included: Heavy-duty protective hard case for storage and transport
Fits Pipe Diameters
2" to 12"
Precision
±0.2°
Measurement Modes
Absolute & Relative
Zero Function
One-touch quick calibration
Auto Power-Off
3 Minutes
Precision-machined
Anodized Aluminum
Add-Ons
HD Hard Carry Case
Weight
2 LB
NEW UPGRADE

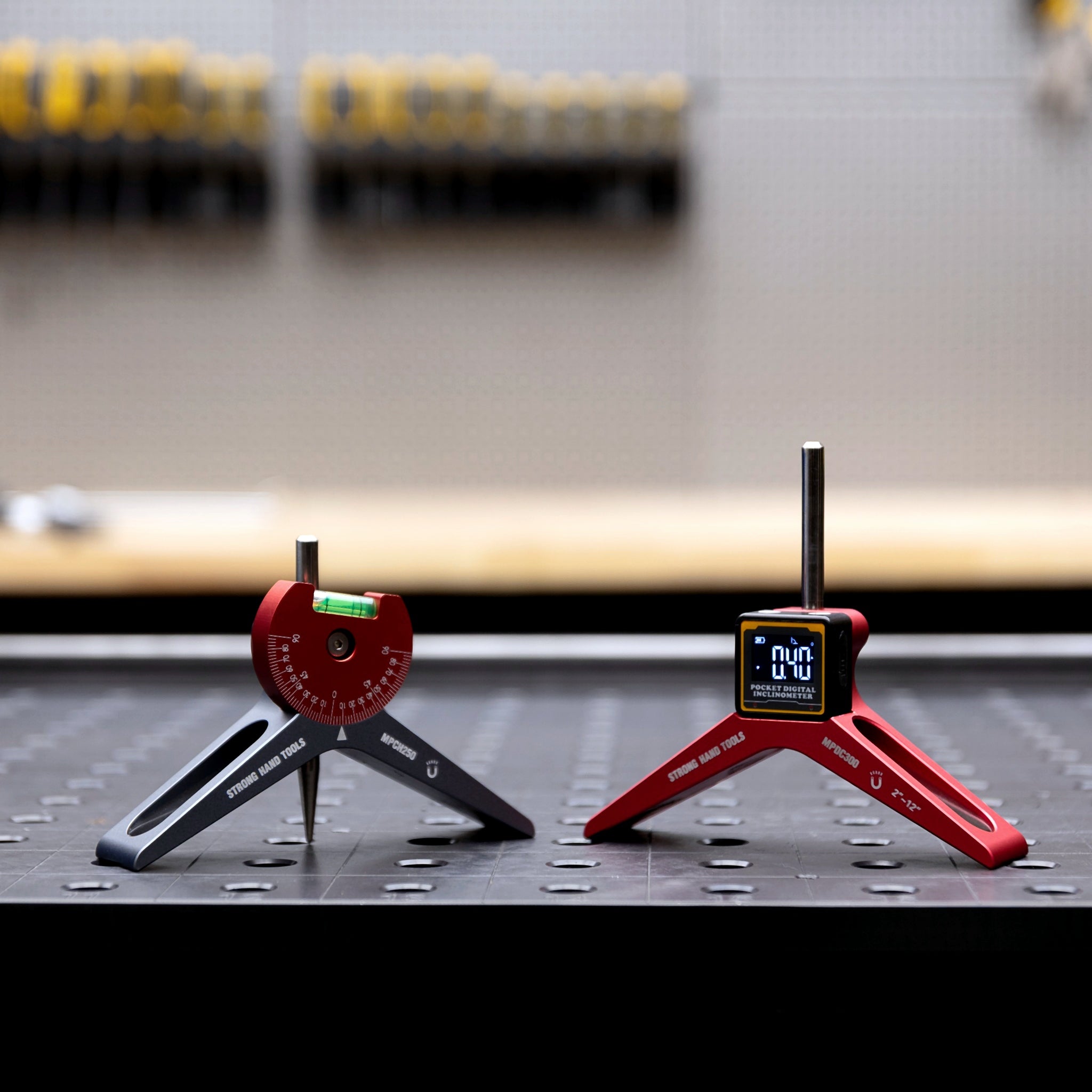

Digital vs. Standard Model:
Digital (MPDC300):
✔ Real-time angle readout
✔ ±0.2° accuracy
✔ One-touch zeroing & Data Hold
✔ Absolute & Relative modes
✔ Angle-to-slope conversion
✔ Faster setup & higher precision

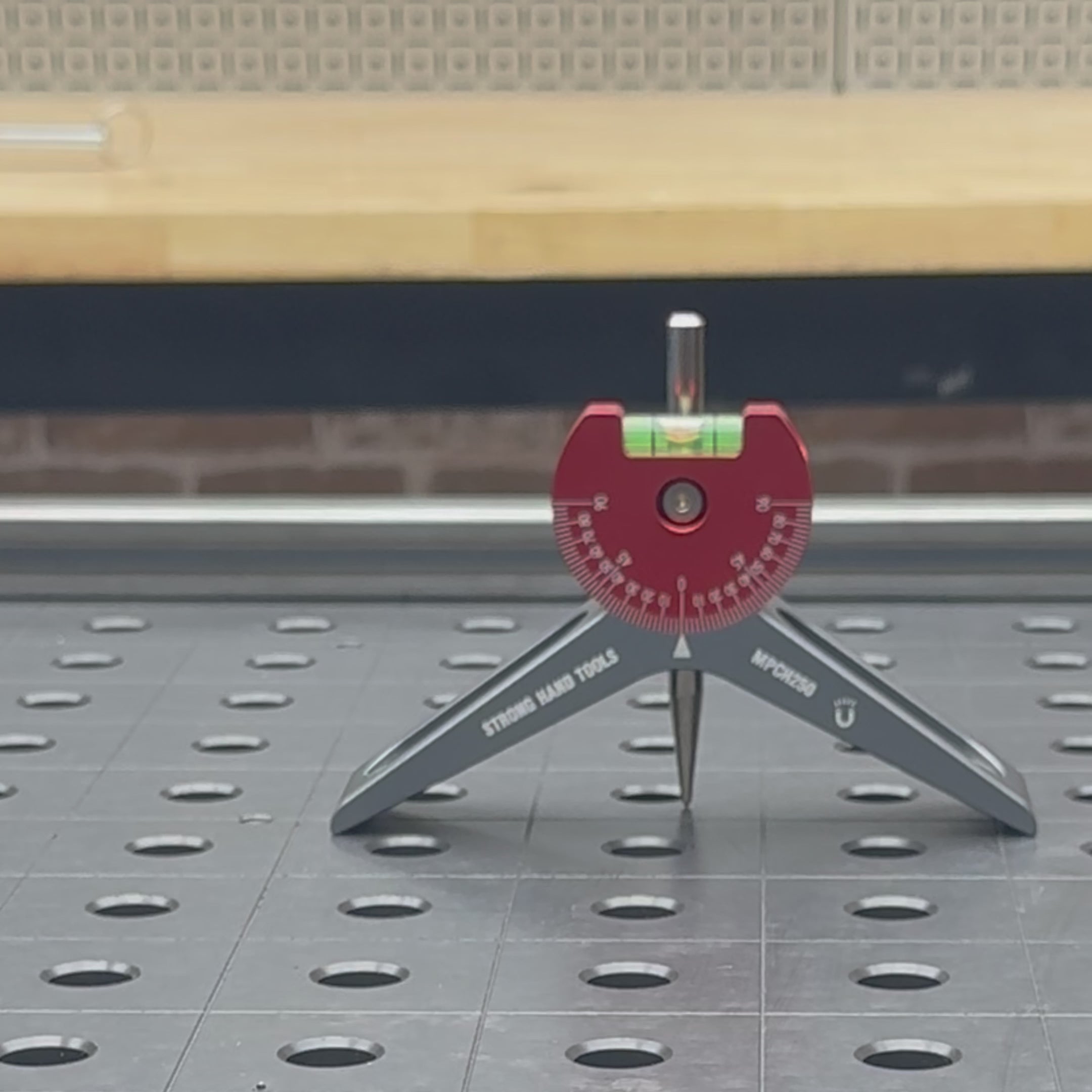

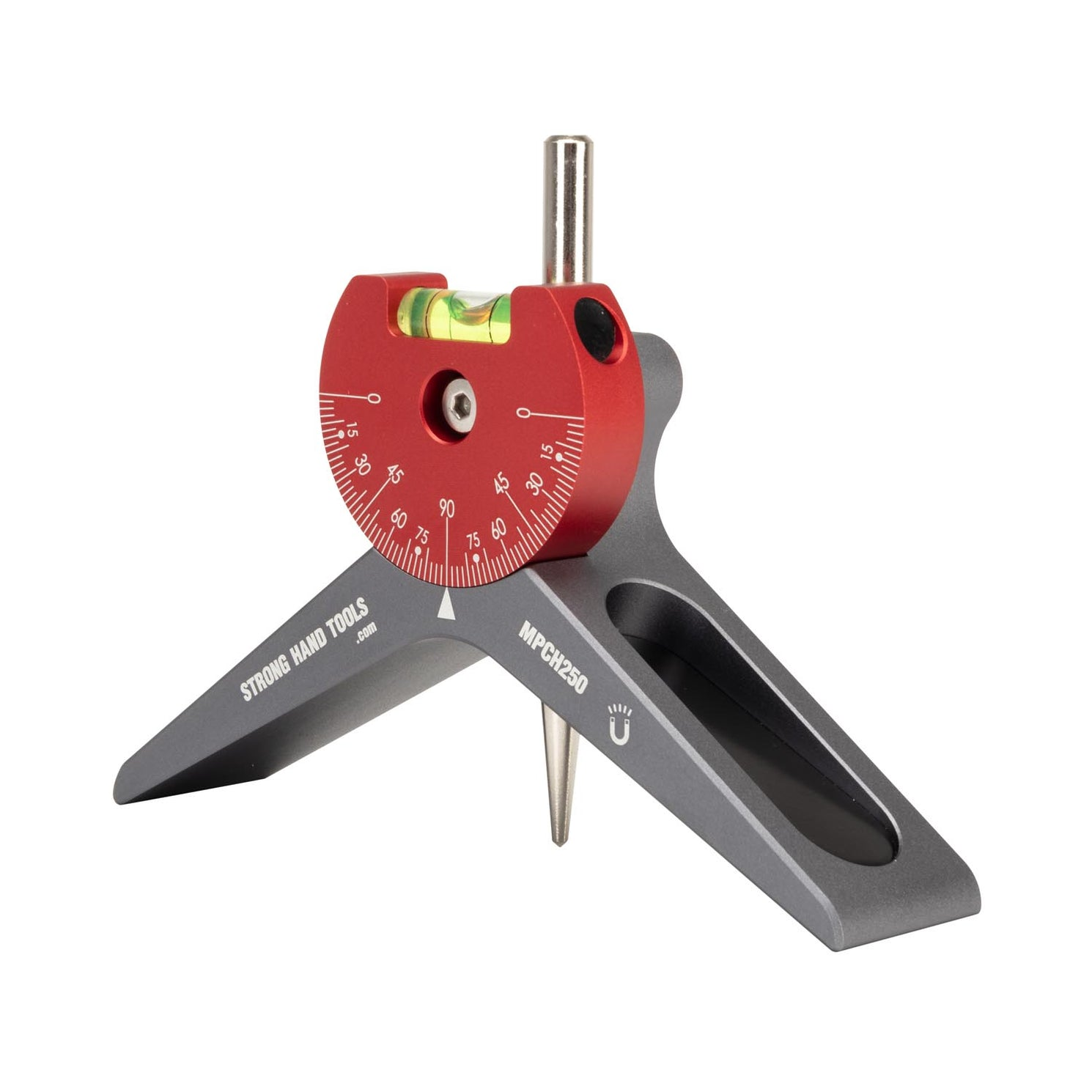

Standard (MPCH250):
✓ Manual layout with bubble protractor
✓ 2.5° graduated dial markings
✓ 360° rotatable degree dial with bubble vial
✓ No digital readout
✓ Manual angle measurement and layout
✓ Magnetic pipe centering and marking tool
Features

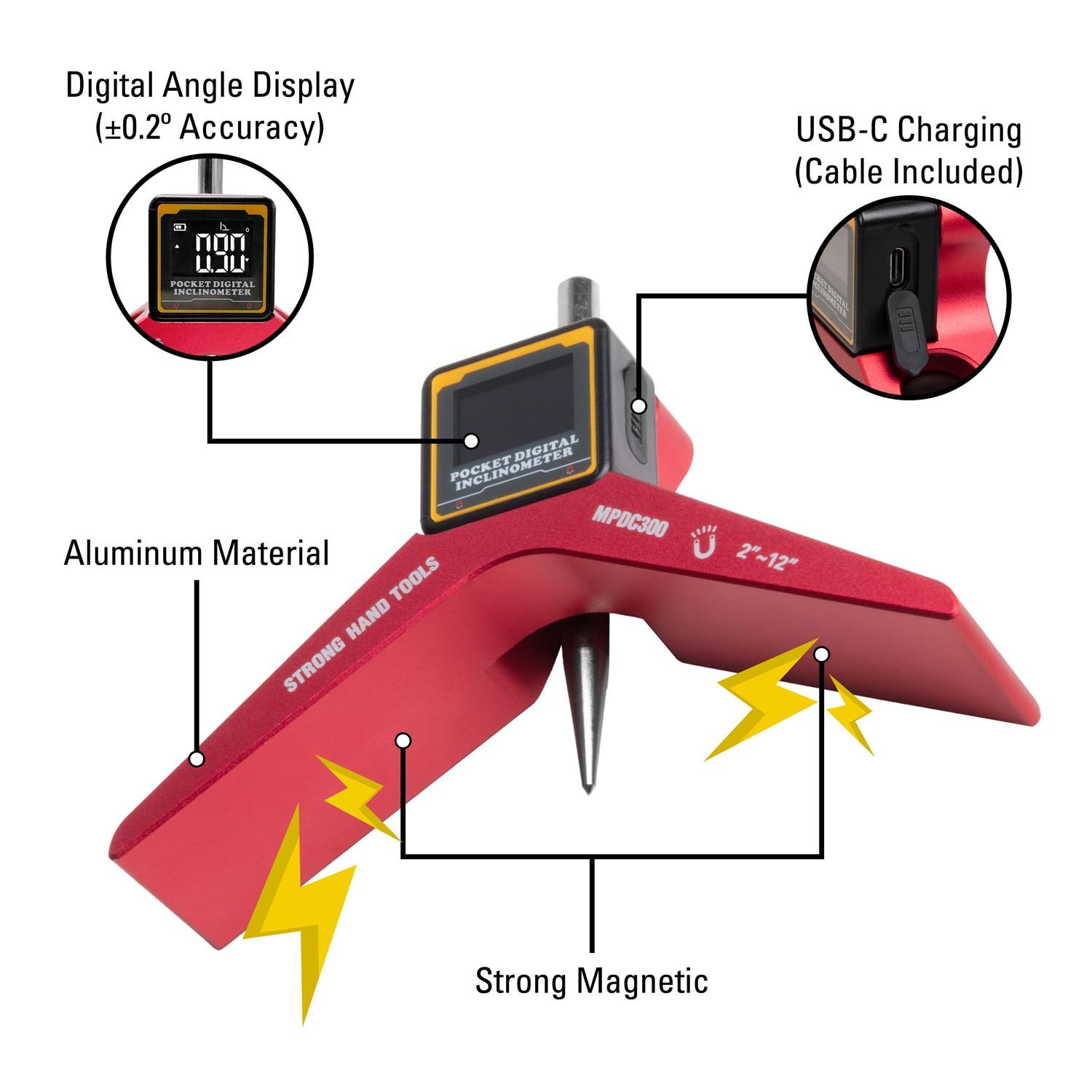

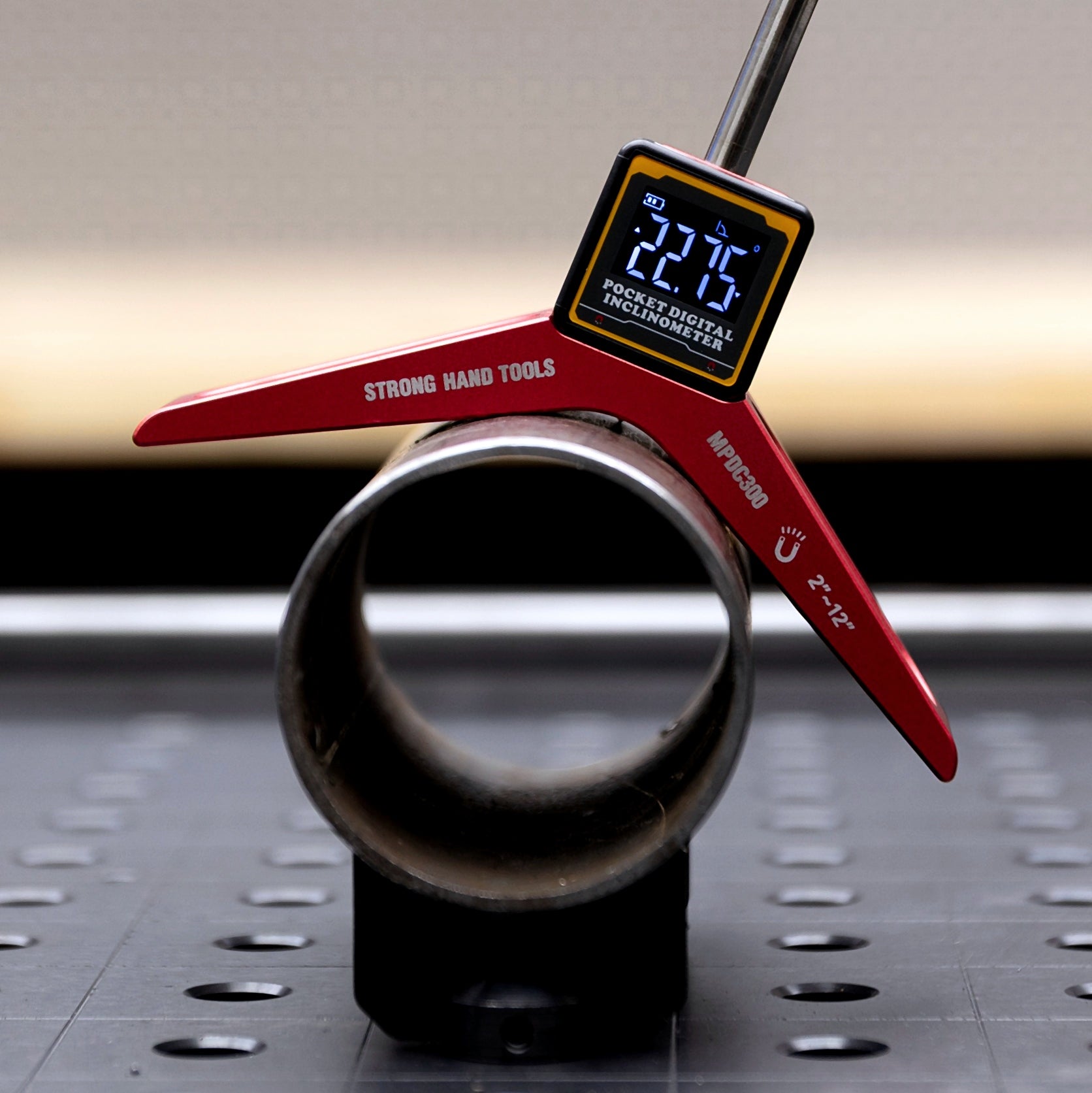

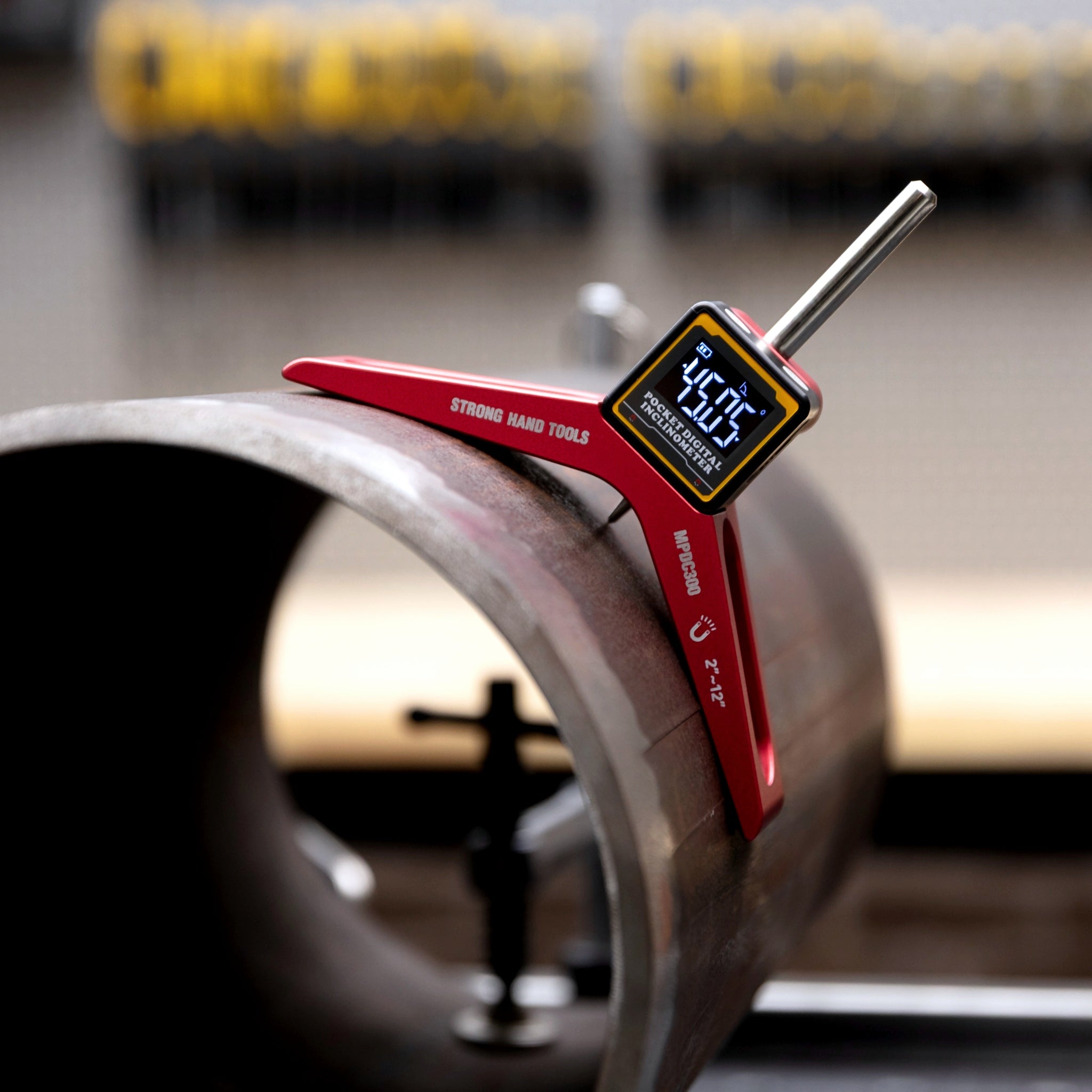

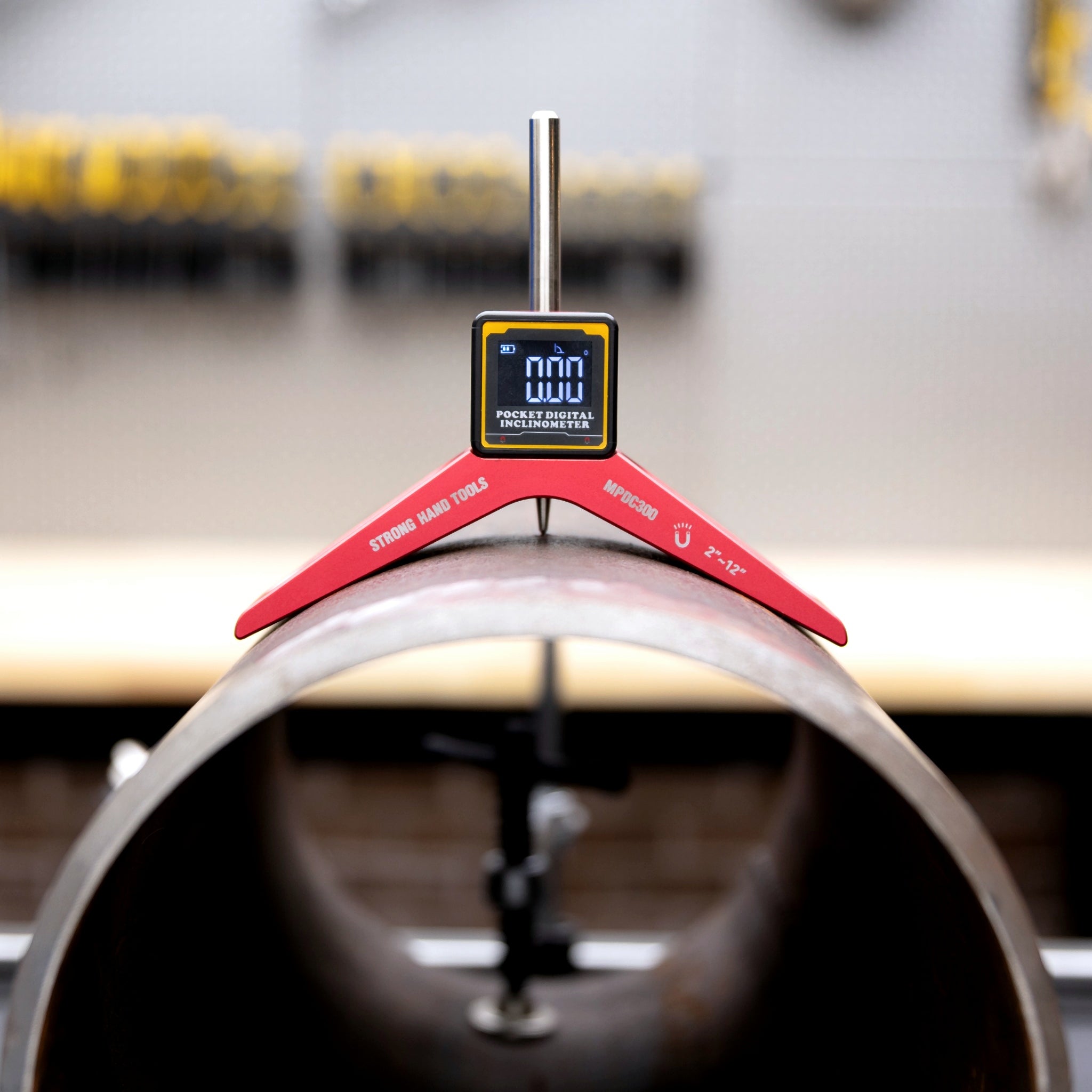

Real-Time Digital Angle Readout

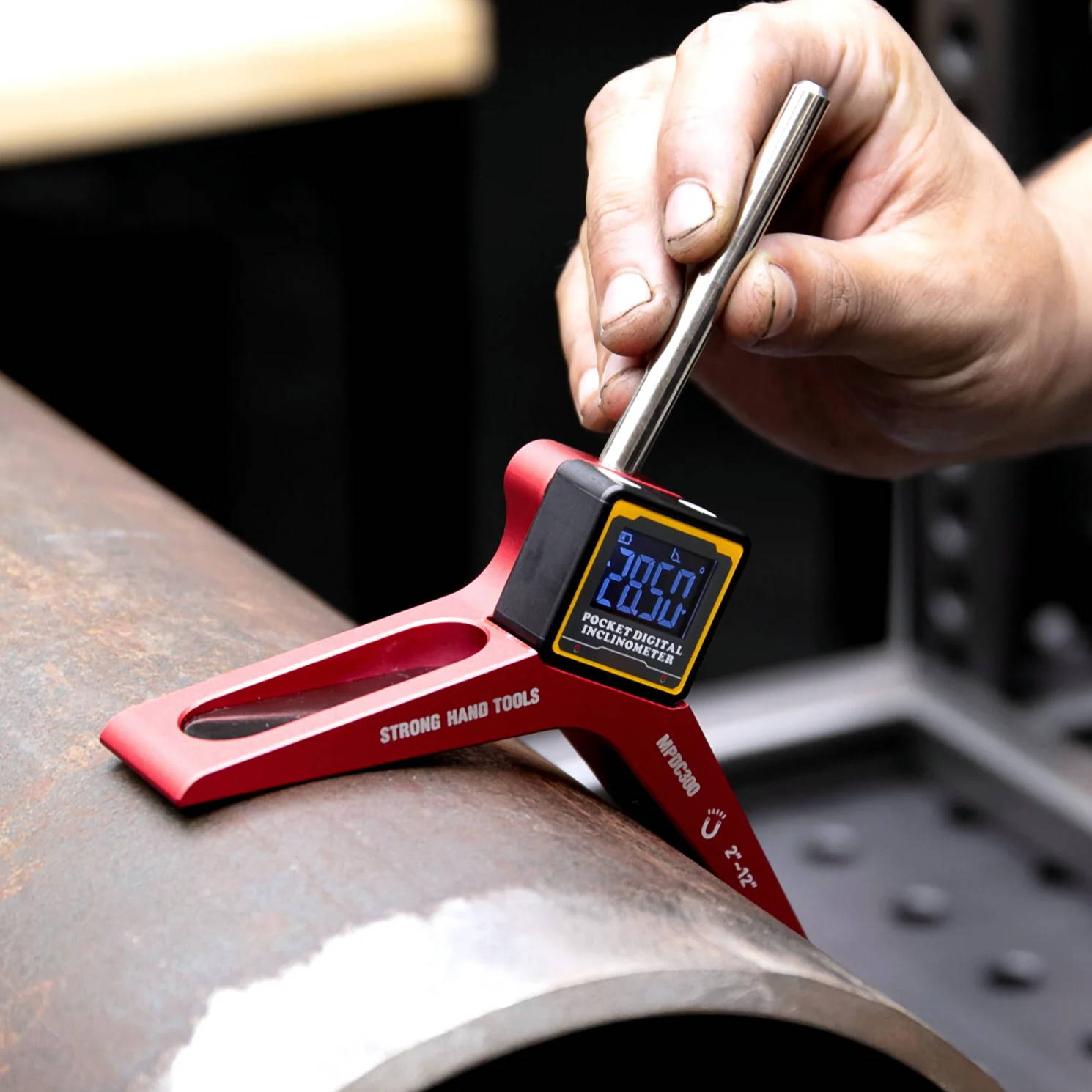

Measure pipe angles instantly with a bright digital display accurate to ±0.2°. The integrated electronic gauge provides fast, repeatable measurements without relying on manual protractors, improving setup speed and reducing errors in fabrication and fit-up work.

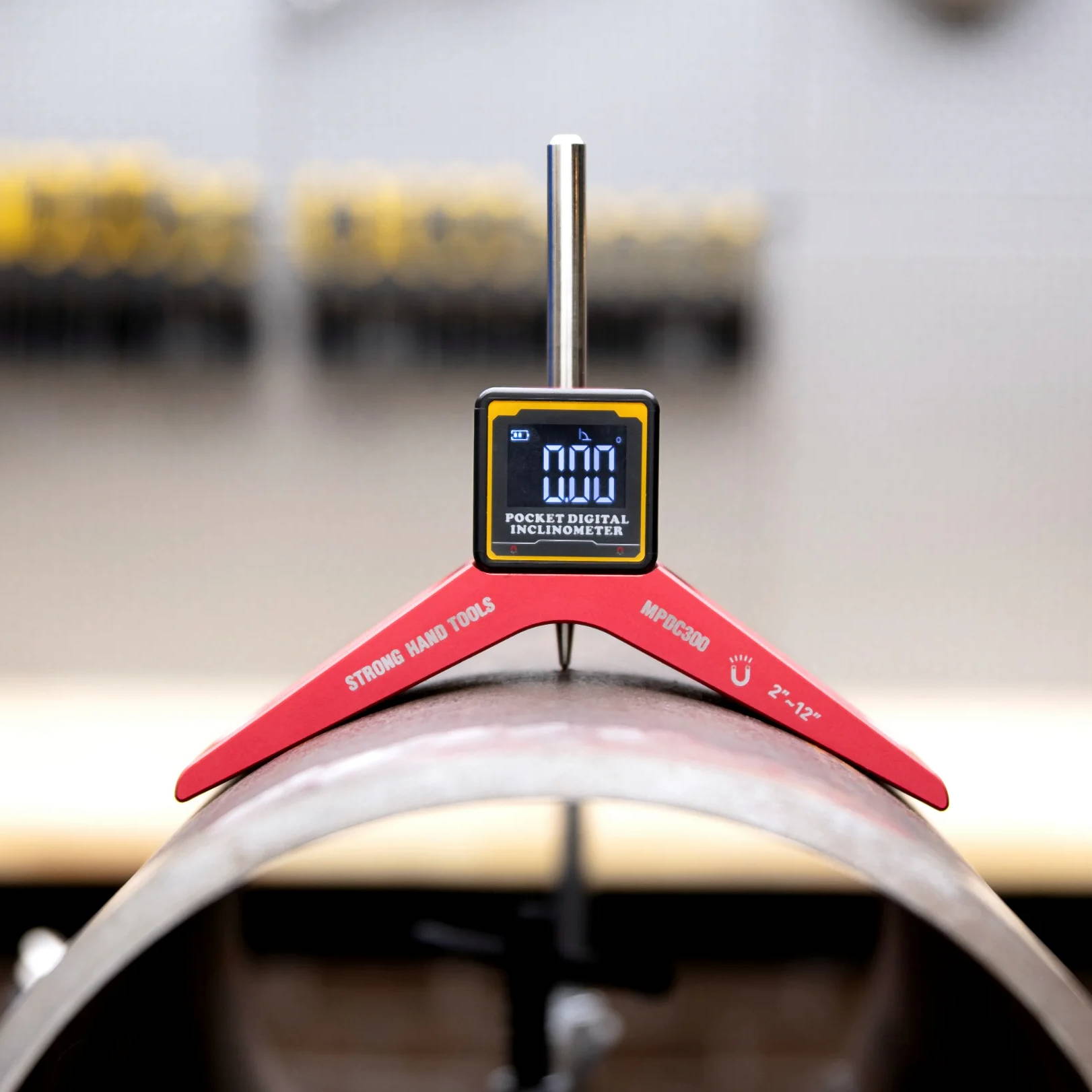

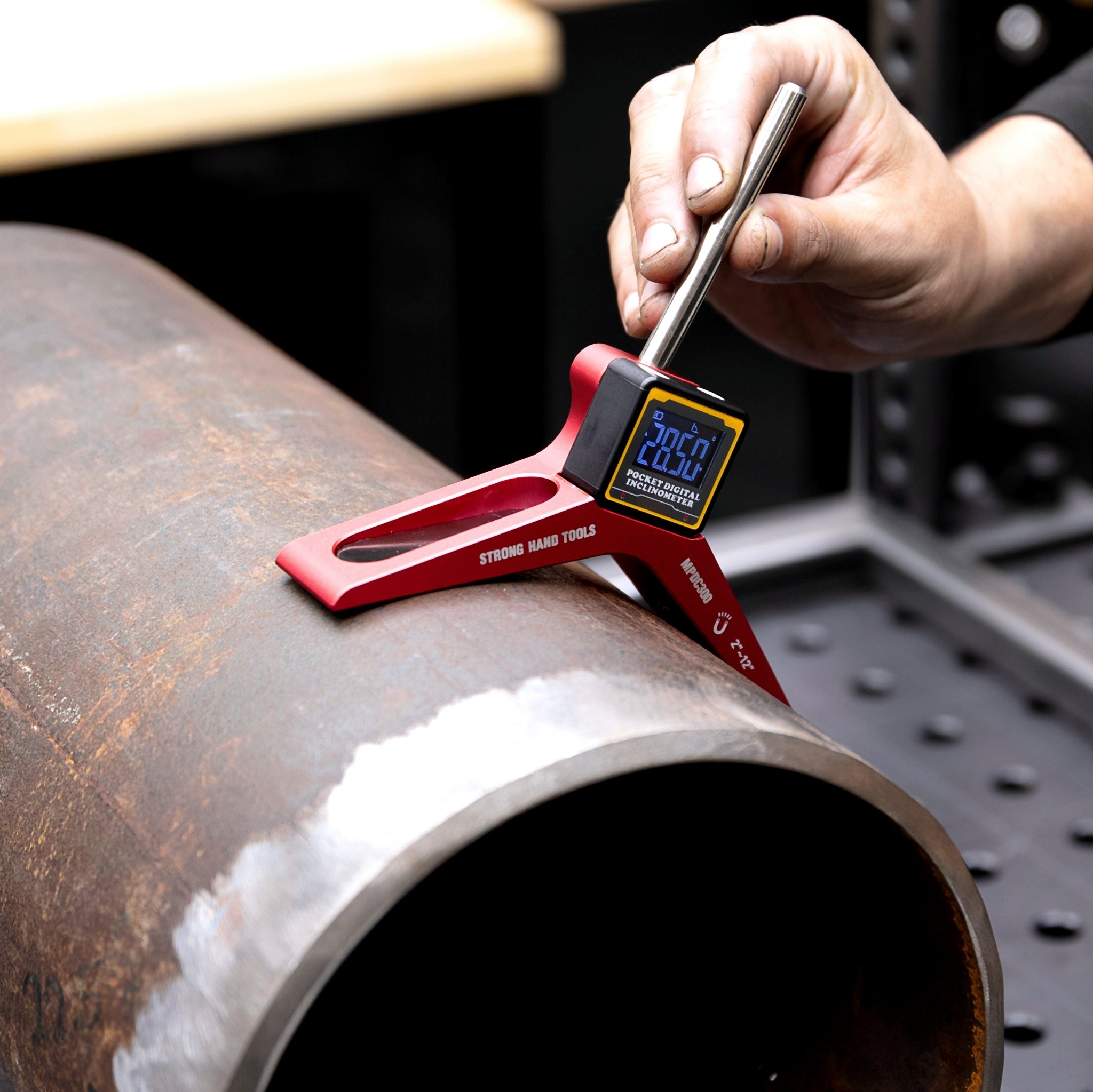

Accurate Center Finding on Any Surface

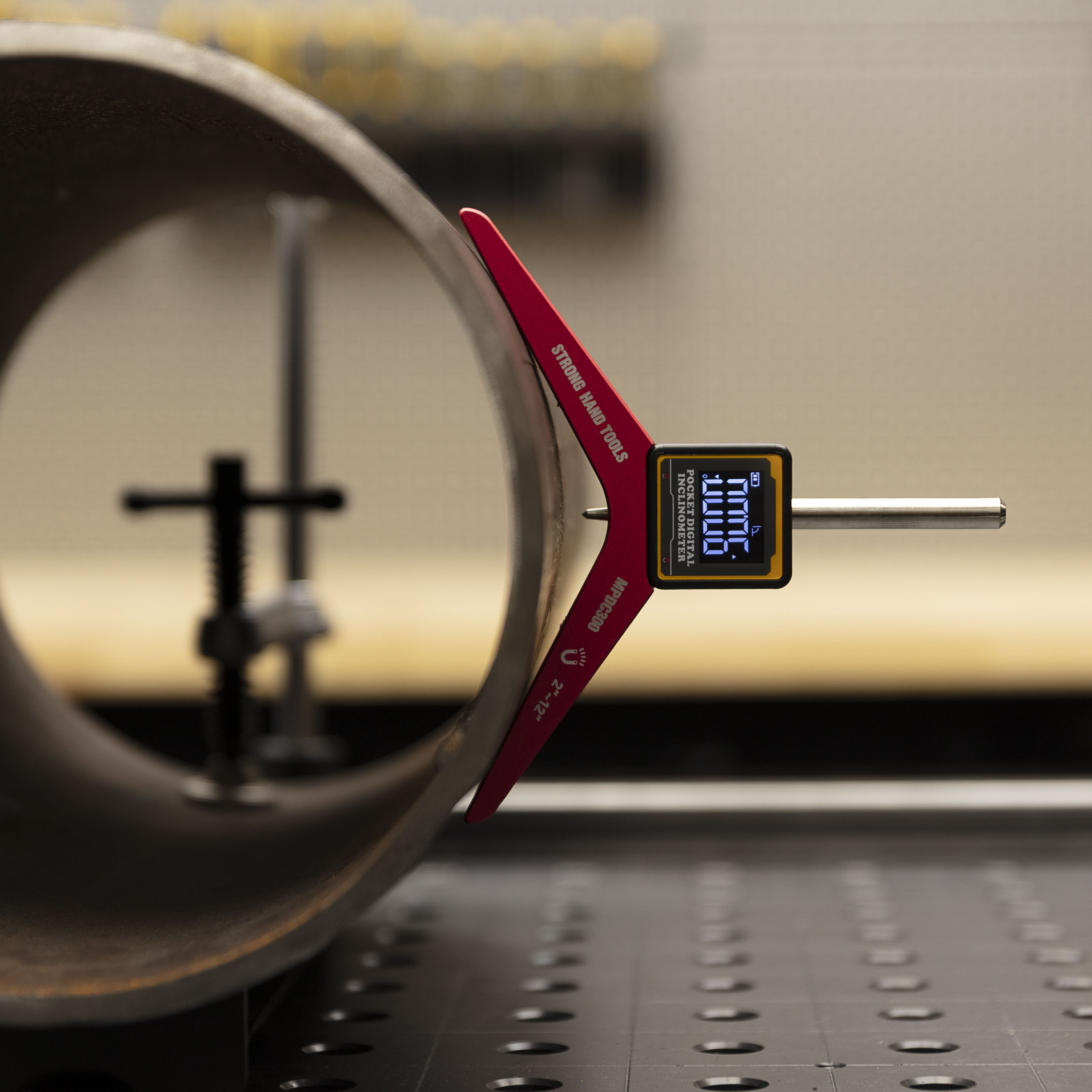

The precision marking pin allows users to quickly identify center points on both the interior and exterior of pipe surfaces. Ideal for layout, cutting, fitting, and alignment applications where accurate centerline reference is critical.

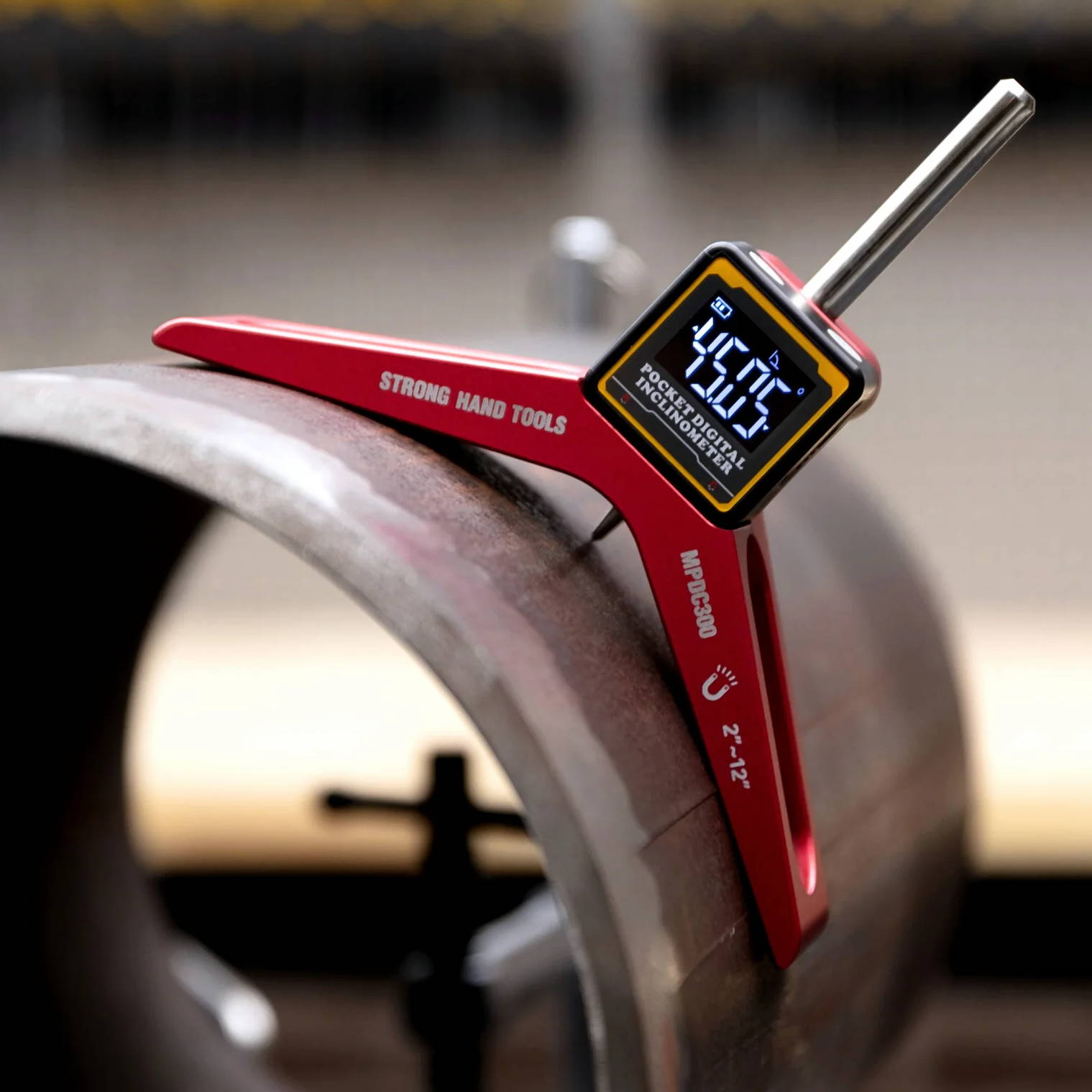

Strong Magnetic Hold
Integrated high-strength magnets securely attach the centering head to steel pipe surfaces, keeping the tool stable during marking and measurement operations. This hands-free design improves efficiency and consistency in the field or shop.
Flexible Measurement Functions
Switch between Absolute and Relative measurement modes to establish custom reference points and perform comparative angle measurements. Built-in angle-to-slope conversion helps simplify layout calculations and improves workflow efficiency.
Built for Jobsite Durability
Manufactured from precision-machined anodized aluminum, the Digital Precision Centering Head is designed to withstand demanding fabrication environments while maintaining measurement accuracy and long-term reliability.
Fast Calibration & Data Hold Function
The one-touch zeroing function allows rapid calibration before use, while the Data Hold feature freezes measurements on screen for easier viewing and marking. Automatic power-off helps maximize battery life between jobs.
Ideal for Pipe Alignment & Weld Preparation
Integrated high-strength magnets securely attach the centering head to steel pipe surfaces, keeping the tool stable during marking and measurement operations. This hands-free design improves efficiency and consistency in the field or shop.

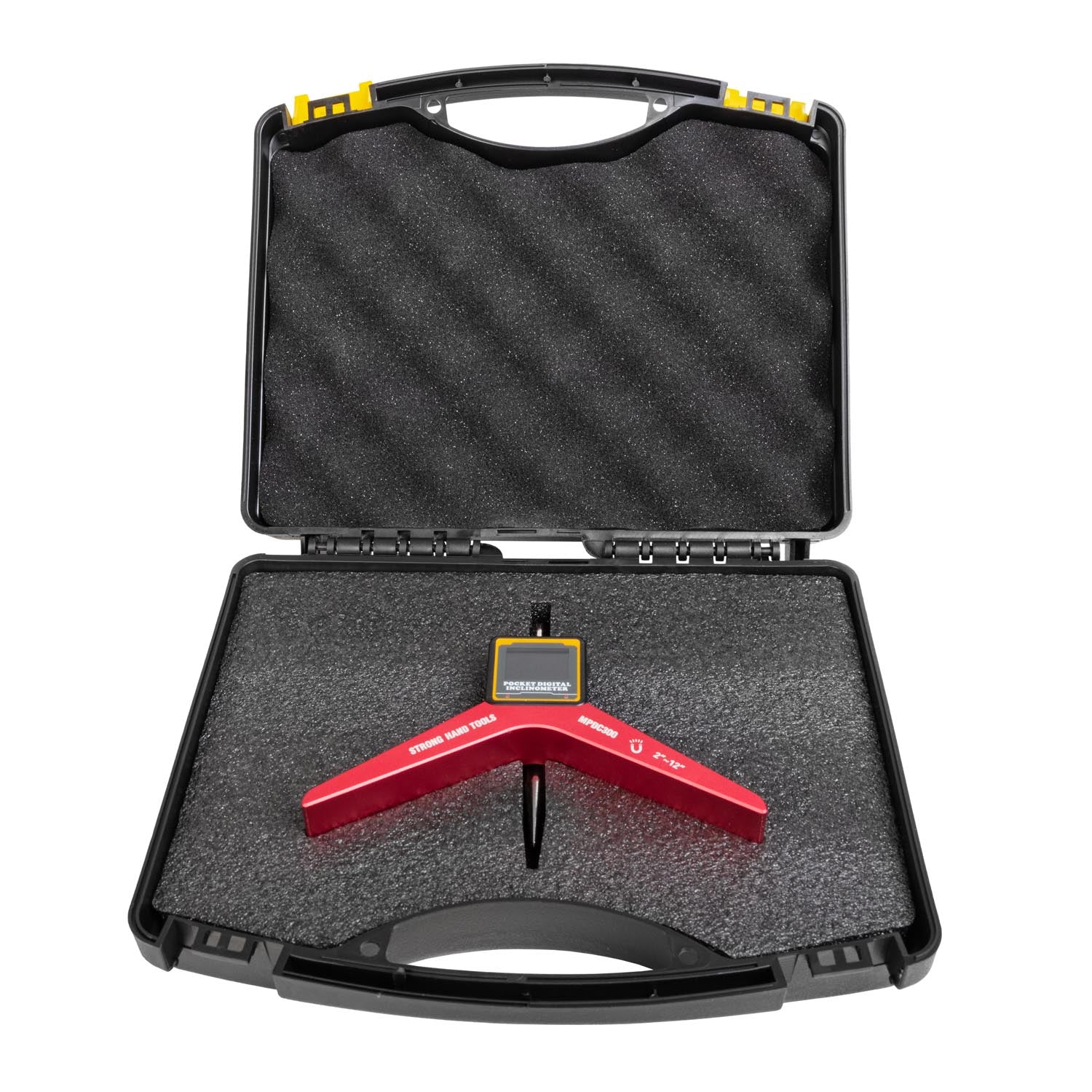

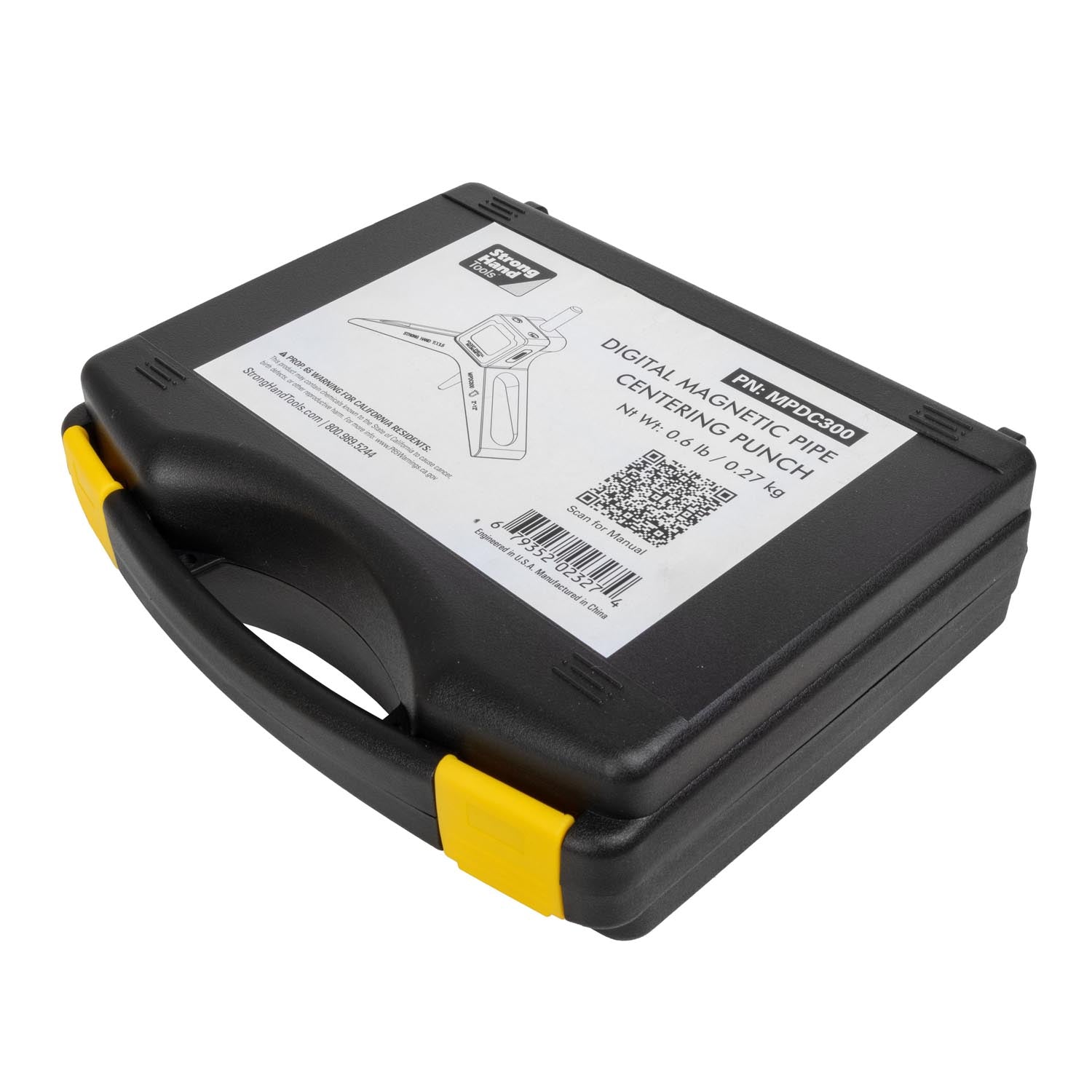

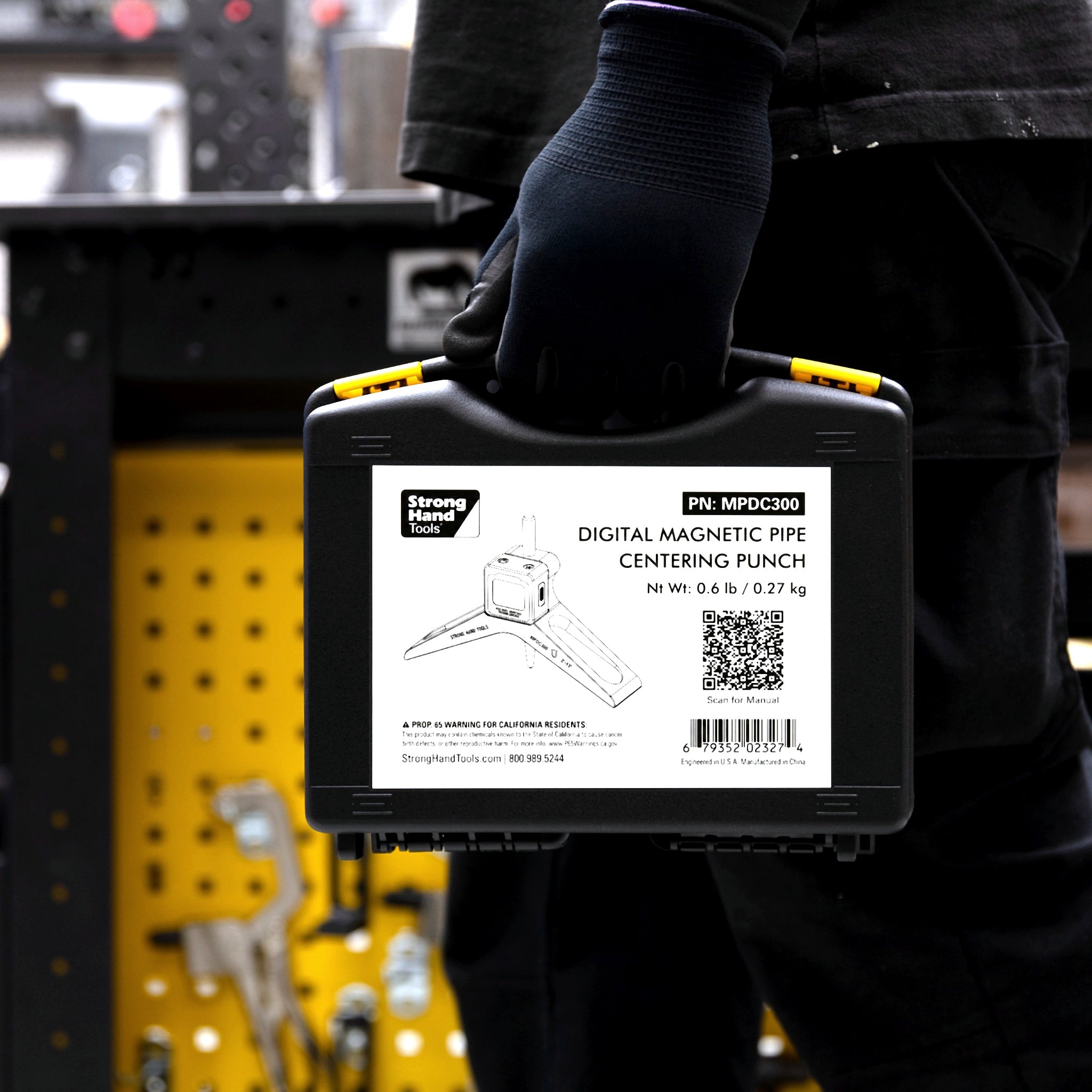

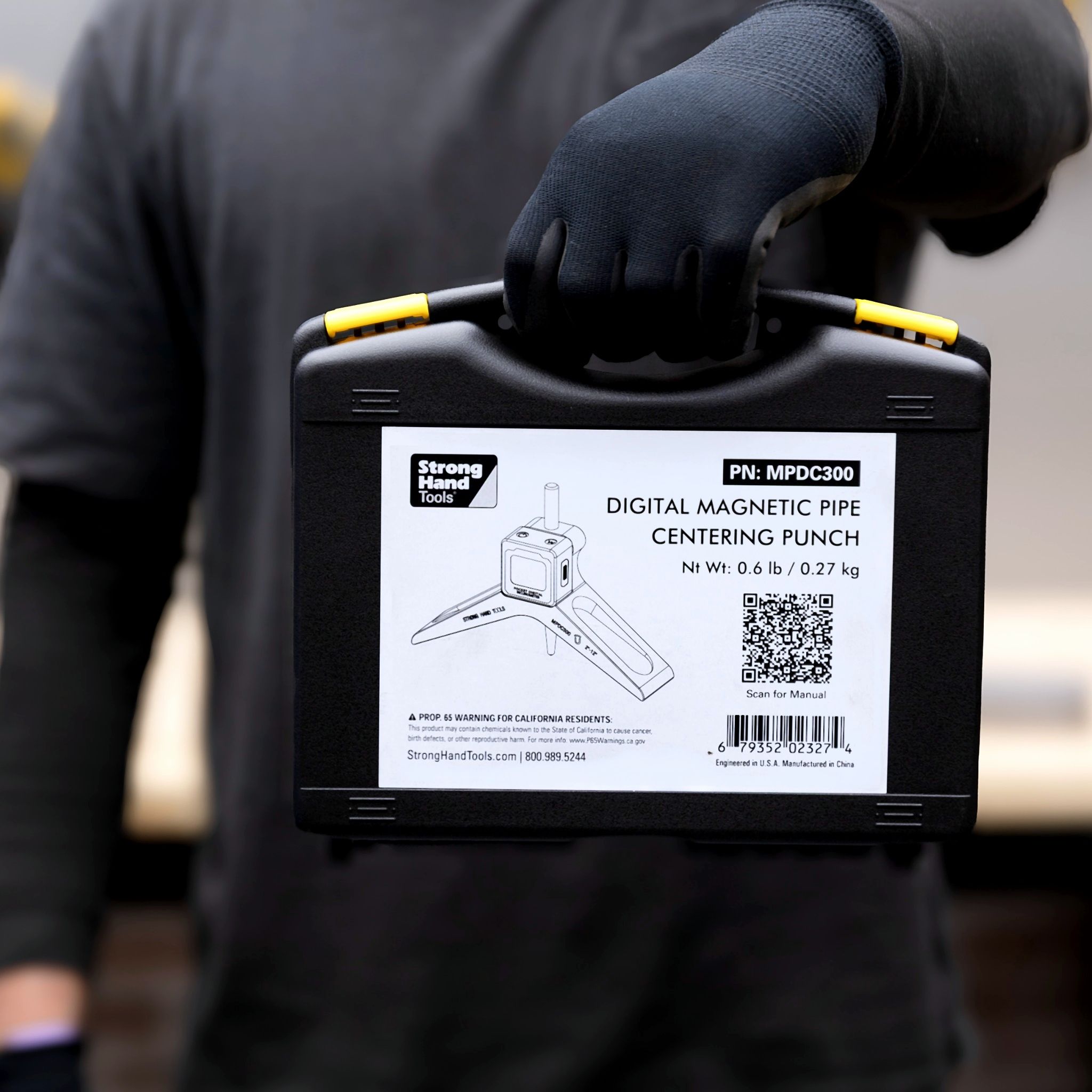

Protective Hard Carrying Case
Protect your investment with the included heavy-duty storage case featuring custom foam inserts for secure transport and organization.
