Nomad Pro 30"x20"
- 30" × 20" Table Top
- 150 holes 5/8" on a 2" Grid
- 5/16" plate 8 mm Steel
- Tilts & folds Locking Top
-
Estimated delivery: Oct 05 - Oct 09
Couldn't load pickup availability
BuildPro · 5/8" System
Nomad
Pro

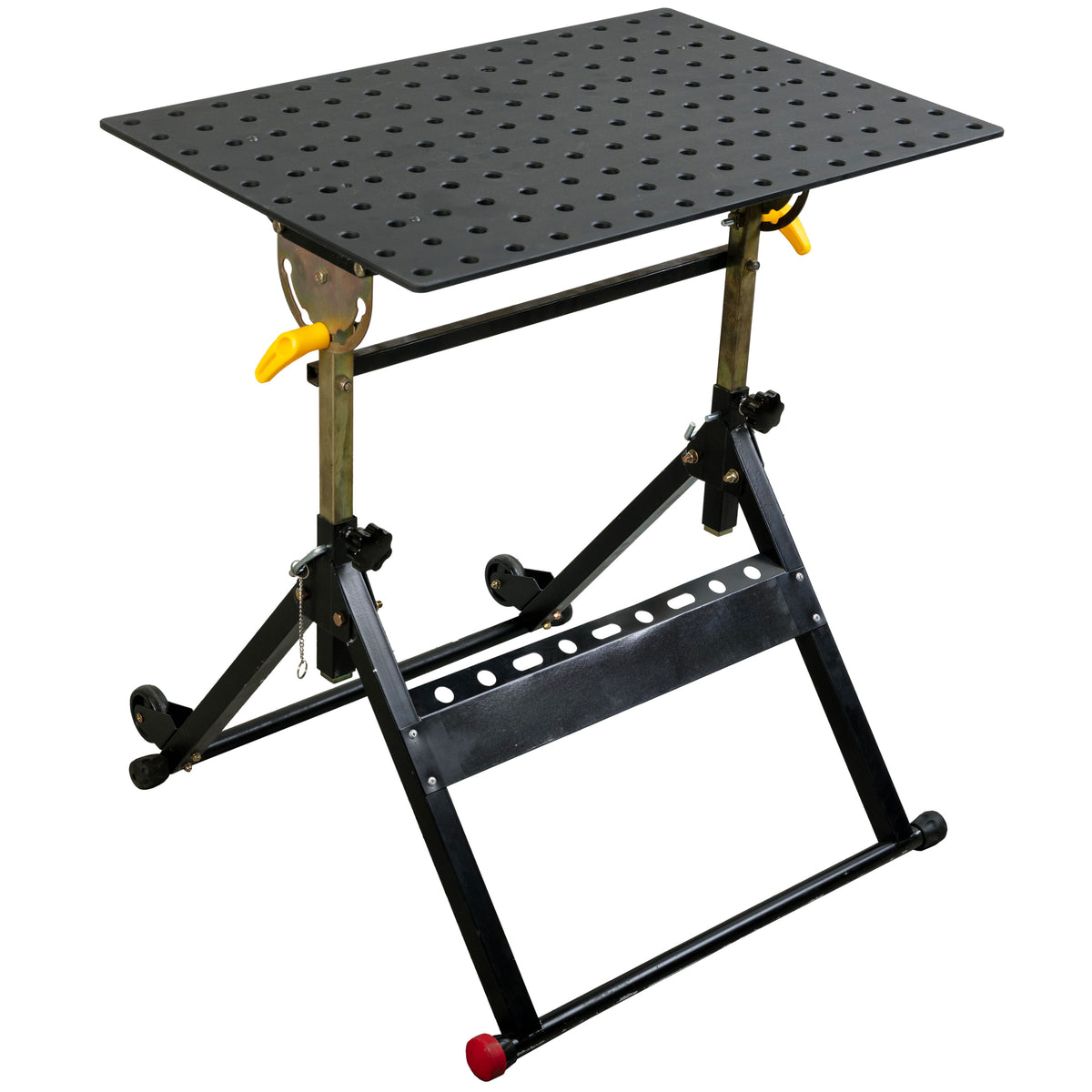

The Nomad, with a heavier-duty top. A 30" × 20" manganese-phosphate steel plate with 150 Ø5/8" holes on a 2" grid, on a folding base with a tilting top.
- 30" × 20" top
- Tilts & folds
Overview
A heavier-duty top for the Nomad
The Nomad Pro is the Nomad folding welding table with an upgraded top. The 30" × 20" plate is 5/16" (8 mm) steel finished in manganese phosphate, with 150 Ø5/8" holes on a 2" grid for 5/8" clamps and fixturing tools.
Two locking handles hold the top flat or at an angle, and the folding base rolls on two casters with an eccentric foot to level it.
Buy it as the complete table (TUP3020-TS), or as the conversion kit (TUP3020-HF): the top and its support plates only, for a base you already own.
- Table top
- 30" × 20"762 × 508 mm
- Plate
- 5/16" thick8 mm steel, manganese phosphate
- Fixturing holes
- 150Ø5/8" on a 2" (50.8 mm) grid
- Table height
- 34.3"871 mm as drawn · [CONFIRM: adjustable range]
- Complete table
- 64.4 lb29.2 kg
Two ways to buy
Complete table
or top only
Pick an option to see its drawing and specs. Both carry the same Nomad Pro top; the conversion kit leaves out the base.
- Rated capacity
- [CONFIRM]manual draft lists 1,000 lb (454 kg); no factory load test on file
- Table height
- 34.3"871 mm as drawn · [CONFIRM: range]
- Base footprint
- 26.0" × 25.8"661 × 656 mm
- Between posts
- 22.8"580 mm
- Casters & foot
- 2 + 12 casters, 1 eccentric leveling foot
- Product weight
- 64.4 lb29.2 kg
- Assembly
- Requiredhardware included
- Fits
- Original Nomad basesupport plates in the standard orientation. On a compatible third-party base, swap the left and right plates to line up with its holes; no drilling.
- Table top
- 30" × 20"5/16" (8 mm) steel
- Fixturing holes
- 150Ø5/8" on a 2" grid
- Mounting
- 8 × M520 mm flat-head screws, washers, nuts
- Kit weight
- 48.9 lb22.2 kg
- Not included
- Base & poststable base, height-adjustment posts and base mounting hardware
How it works
Set it, tilt it,
fold it away
Two pins set the height and two handles set the angle. Clear the top before you adjust, tilt or fold it.
-
Set the height
Loosen both knobs and pull both pins, move the two posts evenly, then re-pin and tighten. Two people support the top.
-
Unlock the top
Loosen the two yellow locking handles and the top rotates on its angle-adjustment plates.
-
Tilt and lock
Stop at a preset notch or anywhere between them, then retighten both handles to hold the angle.
-
Fold and roll
Lock the top vertical, close the legs and roll the folded table away on its two casters.
Construction
A fixturing top
on a folding base
-
Plate
5/16" steel
An 8 mm (0.31") steel plate, 30" × 20", finished in manganese phosphate.
-
Hole pattern
150 holes, 2" grid
Ø5/8" (15.9 mm) holes, 15 across and 10 deep, on 2" (50.8 mm) centers: a 28" × 18" hole field.
-
Tilt
Notched angle plates
A notched angle-adjustment plate on each post, each clamped by its own yellow locking handle.
-
Base
Powder-coated frame
Two folding leg assemblies, one with a tool shelf, pinned height posts, two casters and an eccentric leveling foot.
5/8" System
Works with your 5/8" tools
Ø5/8" holes on a 2" grid take the same Inserta clamps, Inserta pliers and fixturing tools used on the BuildPro tables. Anything that fits 5/8" holes drops straight into the top.
In the box
What ships with
each option

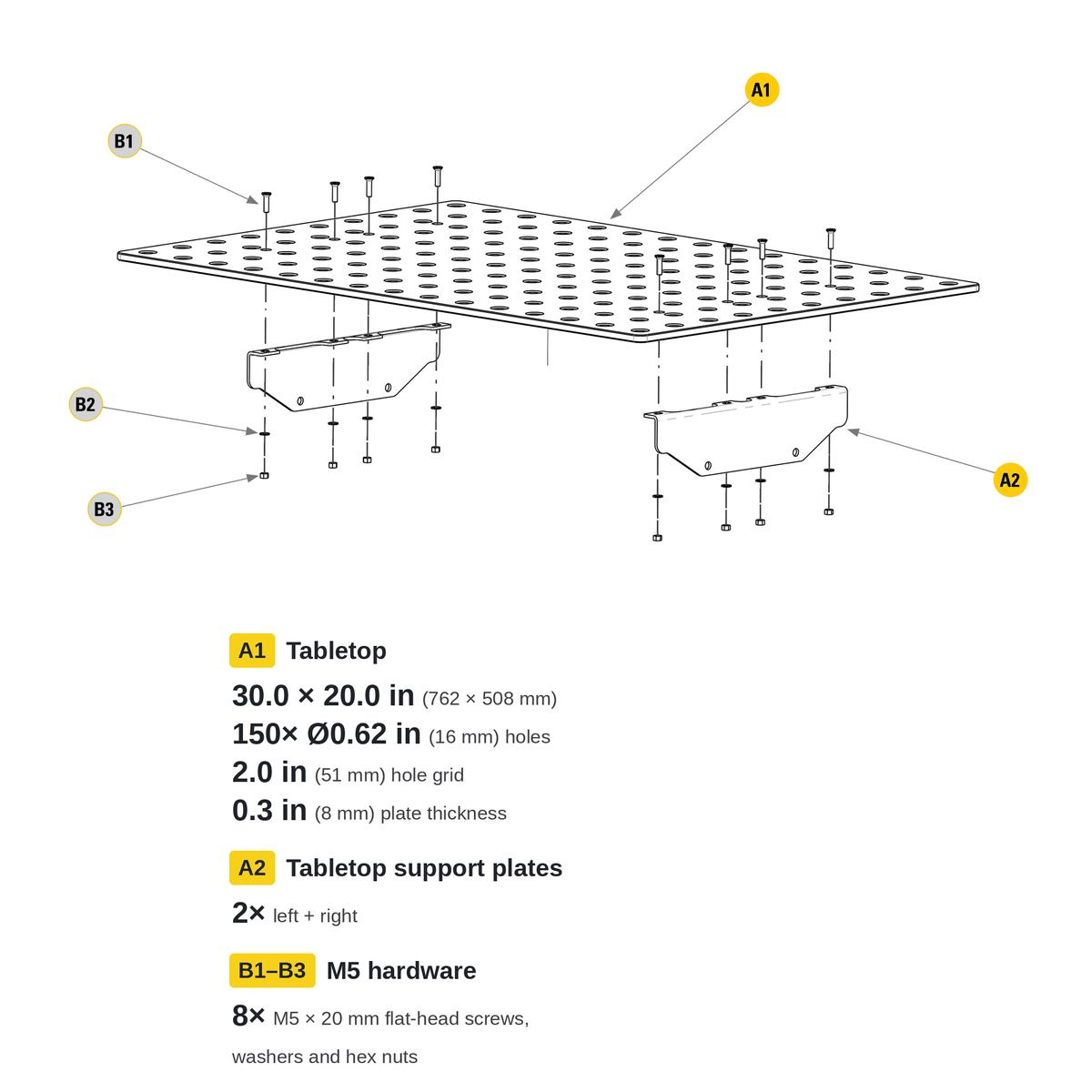

The complete table ships for assembly, hardware included. The conversion kit is the top, its two support plates and eight screw sets.
- 1Tabletop30" × 20", 150 holes
- 2Tabletop support platesleft and right
- 2Table leg assembliesone with the tool shelf
- 2Joint assembliesthe folding pivots
- 2Height-adjustment postswith pins on chains and locking knobs
- 2Angle-adjustment plateswith two locking handles
- 1Crossbarties the two posts
- 2Caster assemblieson one leg assembly
- 1Eccentric leveling footturn to level
- HardwareM8, M6 and M5 bolts, washers and nuts
- 1Tabletop30" × 20", 150 holes
- 2Tabletop support platesleft and right
- 8M5 screw sets20 mm flat-head screws, washers, nuts
- Not includedtable base, height posts, base hardware
Packed loose, no assembly. Bolt the support plates to your base and the top to the plates.

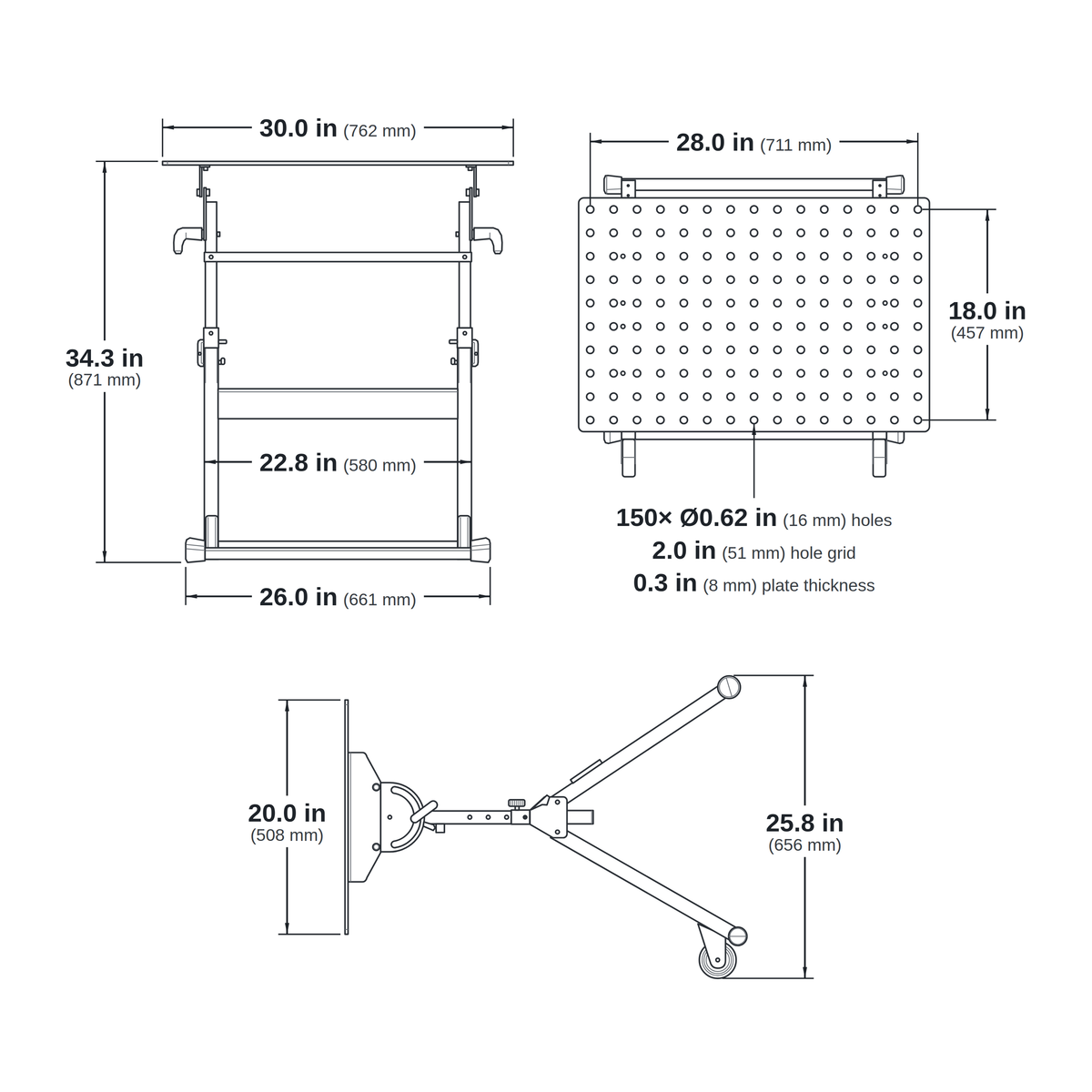

Specifications
Every number,
both options
Top size
30" × 20"762 × 508 mmBoth optionsThickness
5/16"0.31" (8 mm)Both optionsFixturing holes
15015 across × 10 deepBoth optionsHole size & grid
Ø5/8" on 2" centersØ0.62" (15.9 mm) · 2" (50.8 mm) gridBoth optionsHole field
28" × 18"711 × 457 mmBoth optionsTop finish
Manganese phosphatesteel plateBoth options
Table height
34.3" as drawn871 mm · [CONFIRM: adjustable range]TUP3020-TSHeight adjustment
2 pinned postslocating pins on chains + plastic locking knobsTUP3020-TSTilt
2 locking handlespreset notches, locks anywhere between; turns vertical to foldTUP3020-TSCasters
2on one leg assemblyTUP3020-TSLeveling
Eccentric footturn clockwise to raise, counterclockwise to lowerTUP3020-TSFrame finish
Powder coatedTUP3020-TS
Base width
26.0"661 mmTUP3020-TSBase depth
25.8"656 mm, legs openTUP3020-TSBetween posts
22.8"580 mmTUP3020-TS
Weight
TUP3020-TS64.4 lb29.2 kgTUP3020-HF48.9 lb22.2 kgAssembly
TUP3020-TSRequiredlegs, casters, posts, topTUP3020-HFBolt-on8 × M5 screwsRated capacity
[CONFIRM]manual draft: 1,000 lb (454 kg)TUP3020-TSWarranty
1-year limiteddefects in materials and workmanshipBoth options
Contents
Top + 2 support platesplus 8 M5 × 20 mm flat-head screws, washers and nutsTUP3020-HFOriginal Nomad base
Bolts onsupport plates in the standard orientationTUP3020-HFThird-party base
Swap the platesleft plate on the right, right on the left; no drillingTUP3020-HFNot included
Base & poststable base, height-adjustment posts, base hardwareTUP3020-HF
FAQ
Questions, answered
Fit, adjusting, leveling and warranty.
- Can I put the Pro top on my original Nomad?
- Yes. Choose the TUP3020-HF conversion kit and bolt its support plates to the Nomad base in the standard orientation.
- Will the conversion kit fit other welding table bases?
- On a compatible third-party base, yes. Swap the left and right support plates so their holes line up with the base's hole pattern; no drilling of the top or the base. Check the alignment before you tighten the hardware.
- Can I adjust or fold it with work on the top?
- No. Take off all workpieces and accessories before you change the height, tilt the top or fold the table.
- What angles does the top lock at?
- Any angle from flat up to vertical. The angle plates have preset notches, and the two locking handles also hold the top anywhere in between. [CONFIRM: notch angles]
- How do I level it on an uneven floor?
- Turn the eccentric leveling foot. Clockwise raises that corner, counterclockwise lowers it; stop when every foot and caster sits firmly on the floor.
- How much weight can it hold?
- [CONFIRM: rated capacity] On the conversion kit, the limit is the lower of the top's rating and your base's rating.
- What is the warranty?
- One year, limited, against defects in materials and workmanship. Keep your proof of purchase and contact cs@stronghandtools.com.
