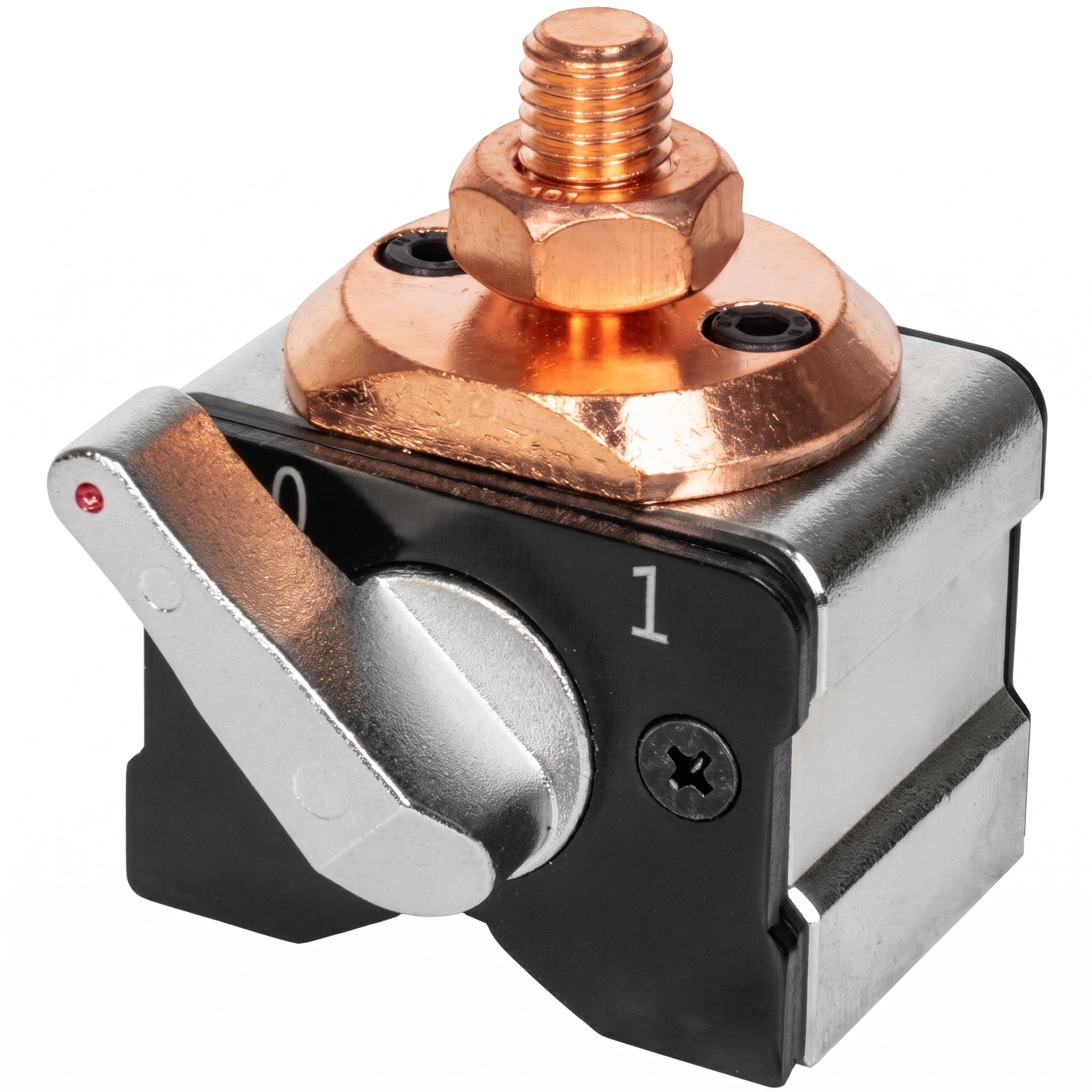

PowerBase Grounding Magnets

Product Overview

Power through your grounding applications! Start grounding instantly!

  • The PowerBase™ Grounding Magnet sets up quickly and easily.
  • Powerful rare earth magnet delivers heavy duty holding power.
  • The “V” machined surface grips round parts.
  • The copper connector stud allows for better conductivity.

Features

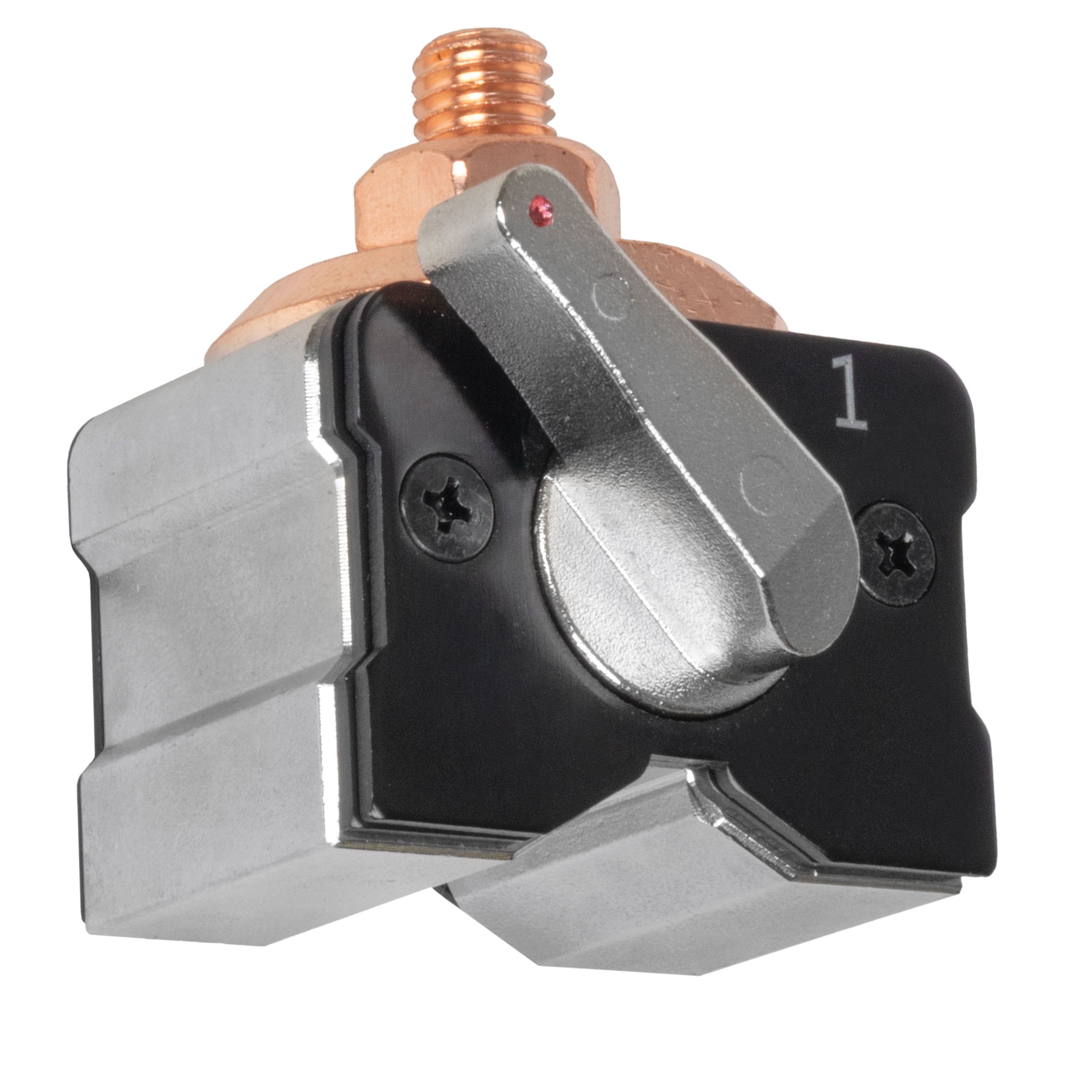

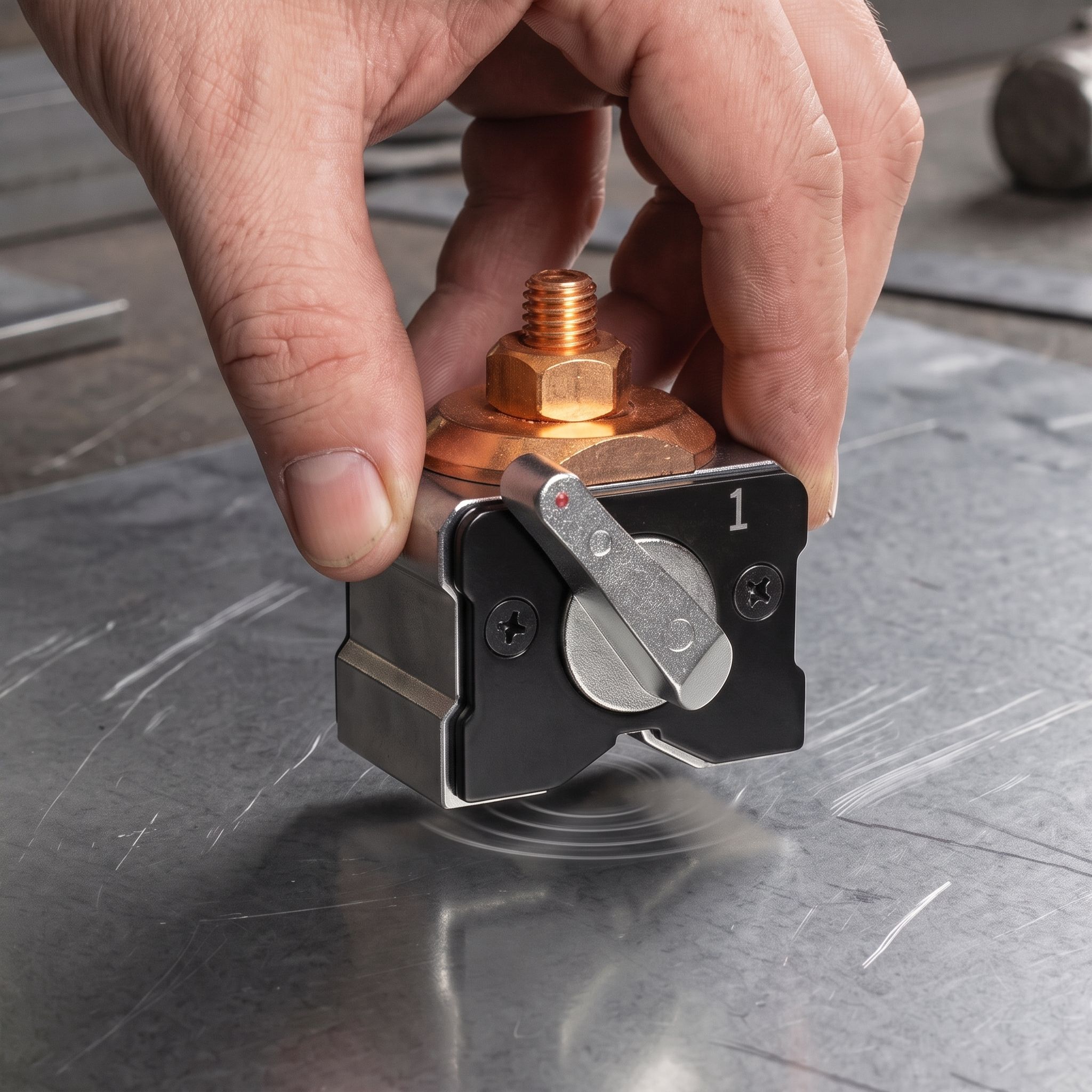

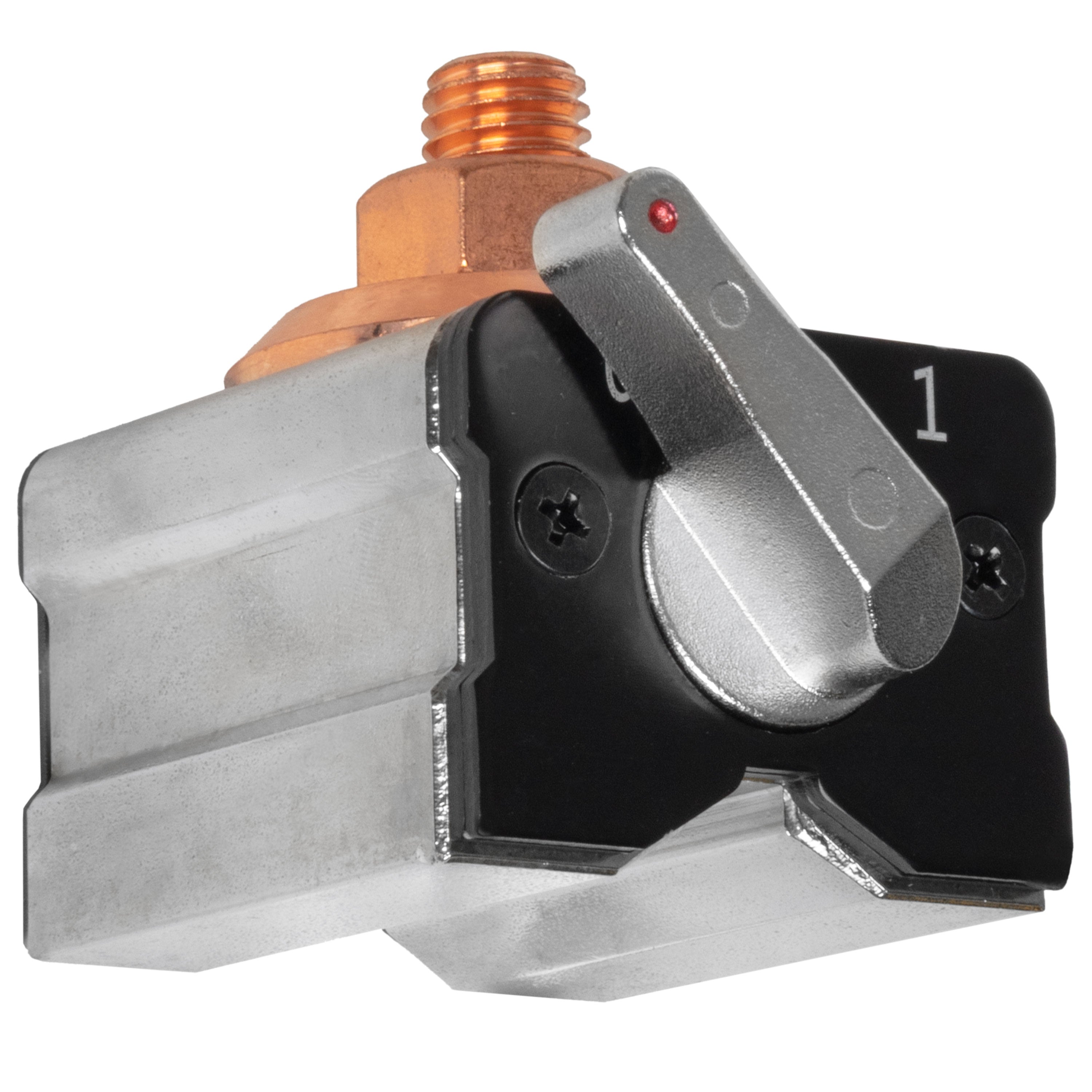

ON/OFF Magnetic Switch

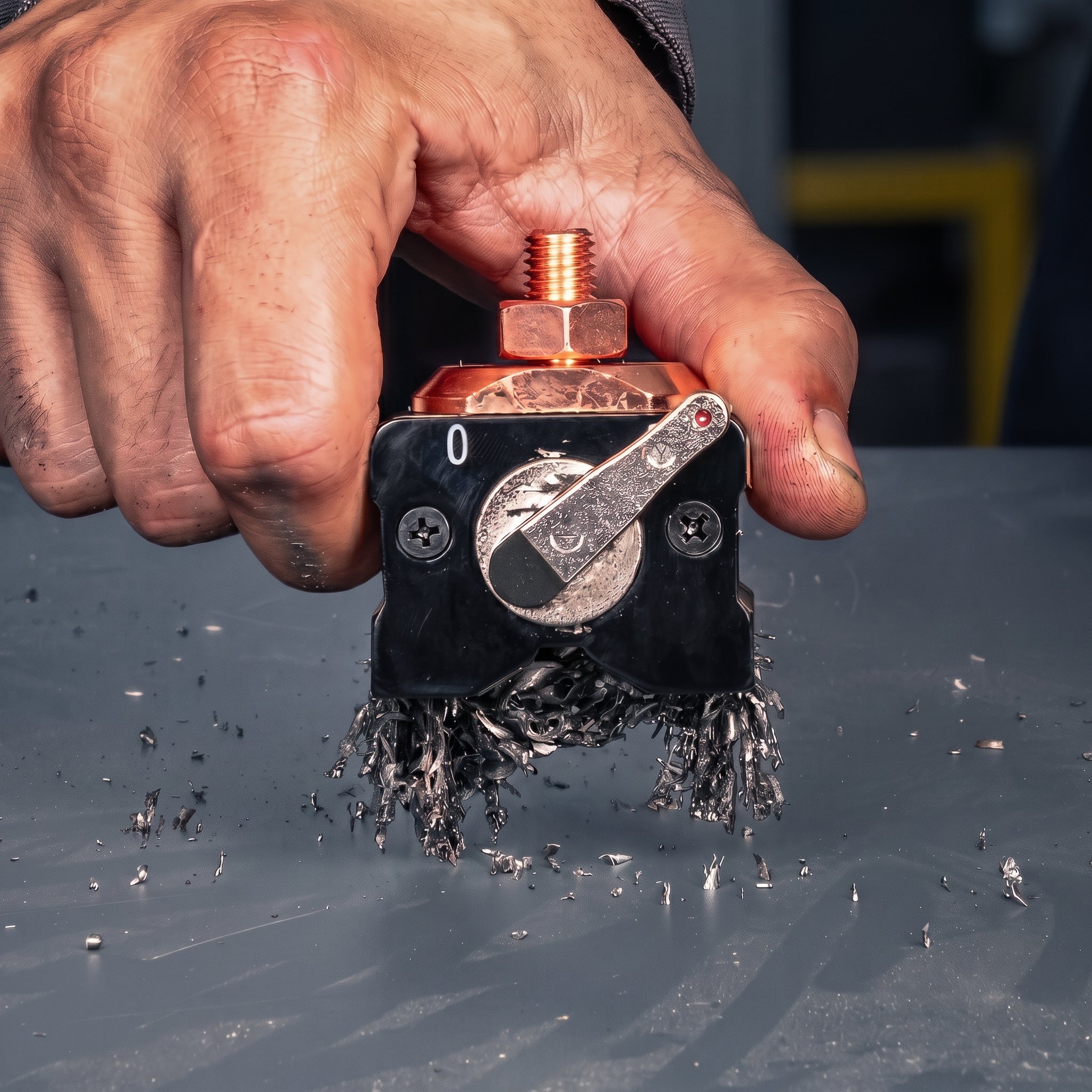

Engage the magnet for maximum holding power. Turn the switch OFF for quick, effortless removal without prying the magnet from the workpiece.

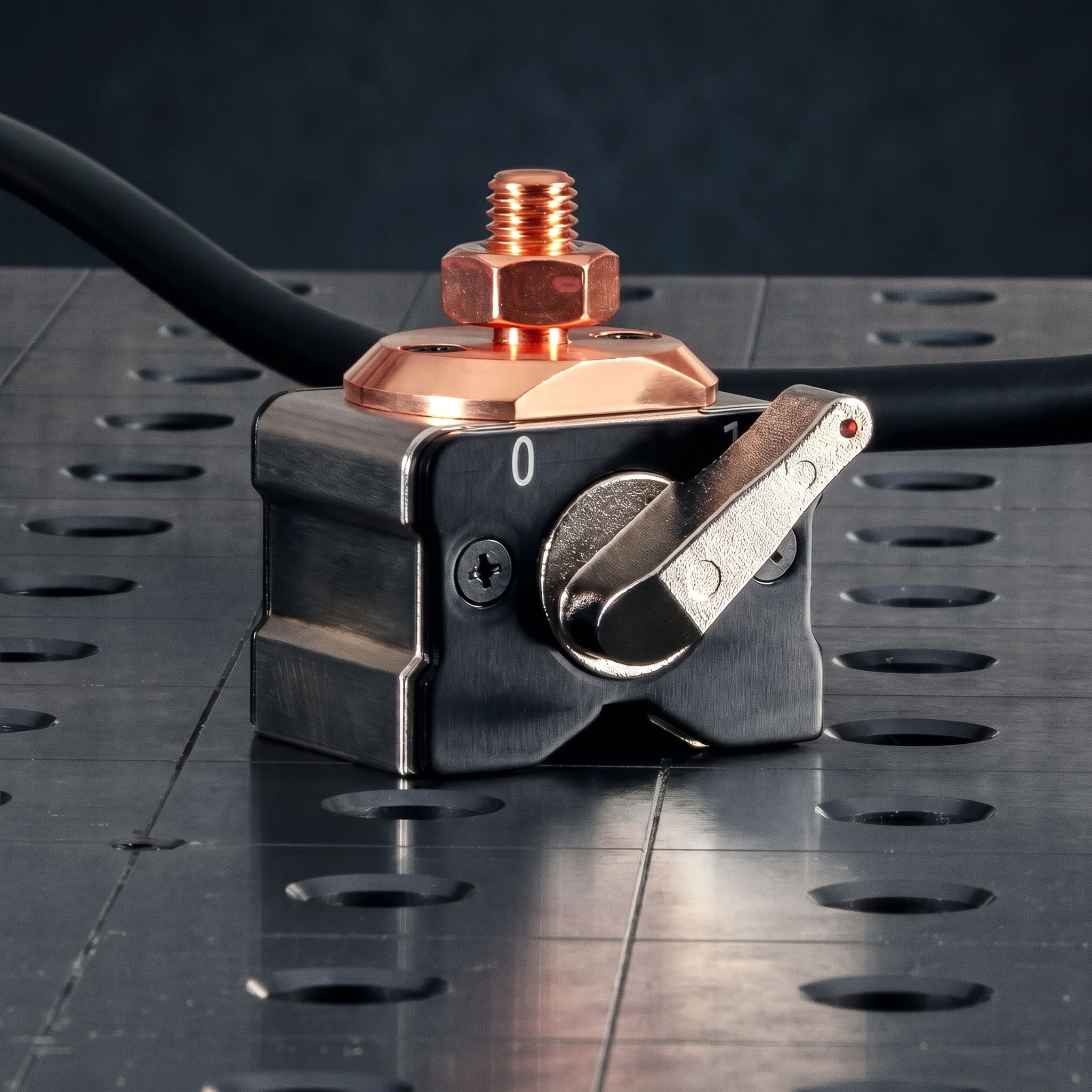

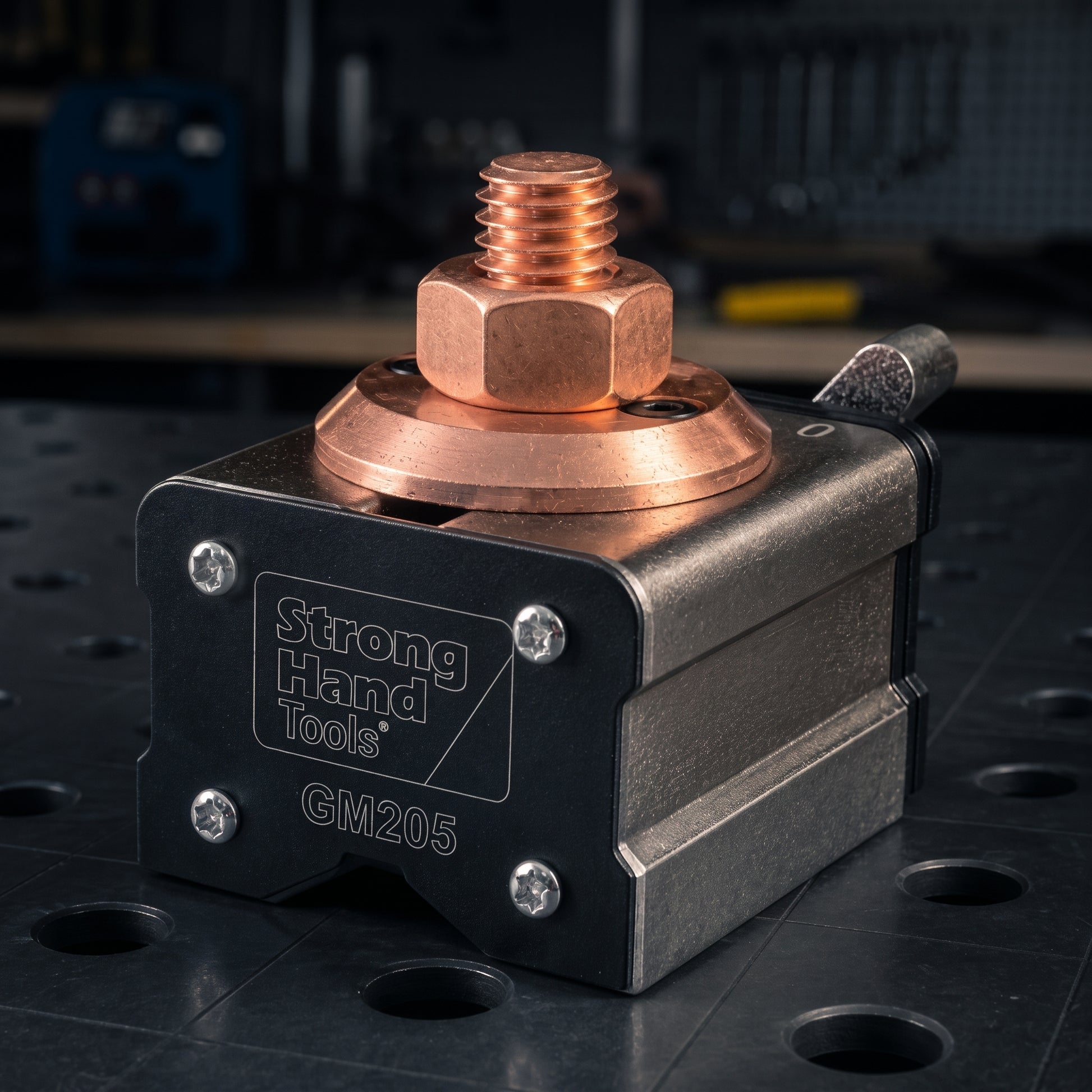

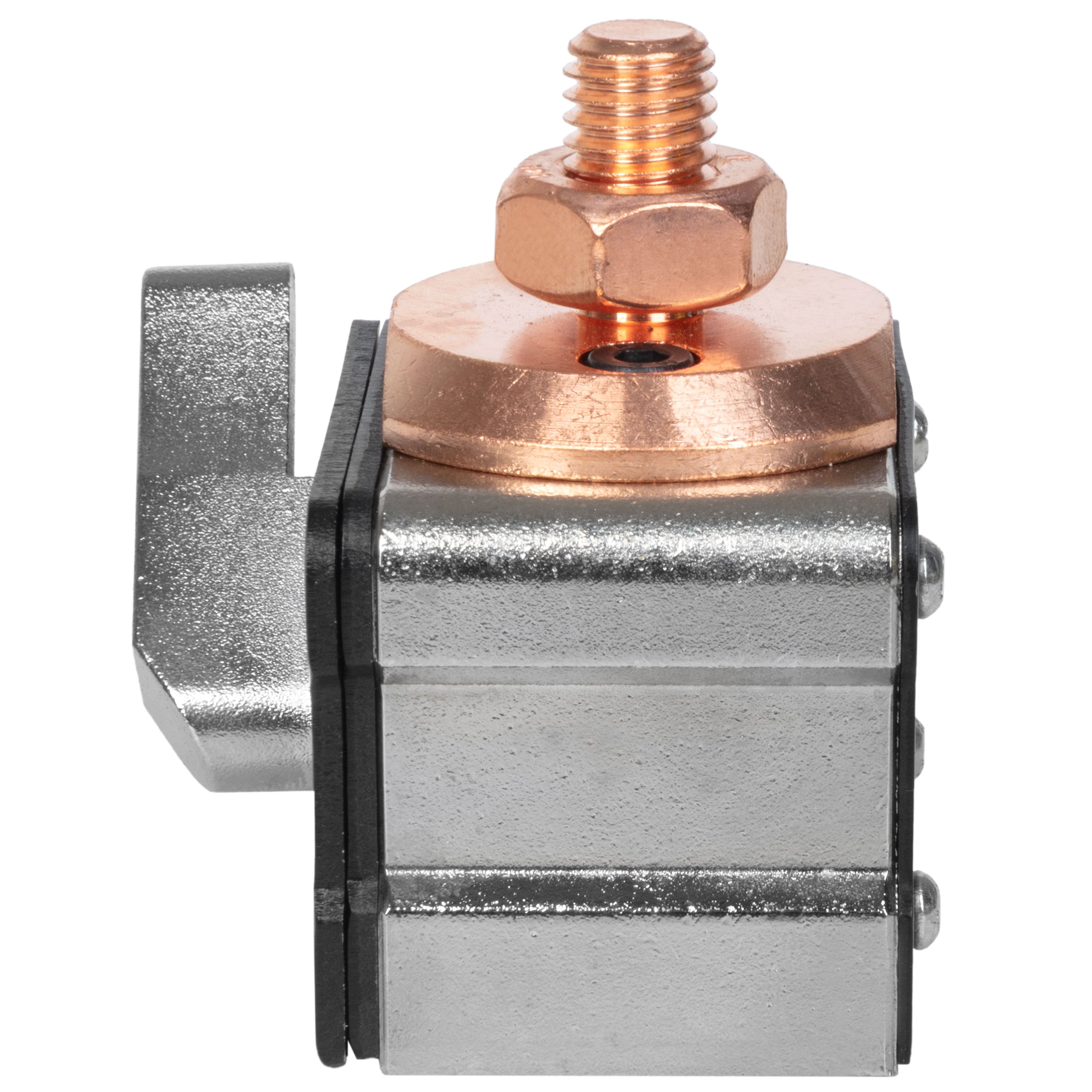

Large Copper Connector

The oversized copper terminal provides a low-resistance electrical connection for efficient current transfer and reliable grounding.

Powerful Rare Earth Magnet

High-strength rare earth magnets deliver exceptional holding force to keep the grounding point securely attached to steel workpieces.

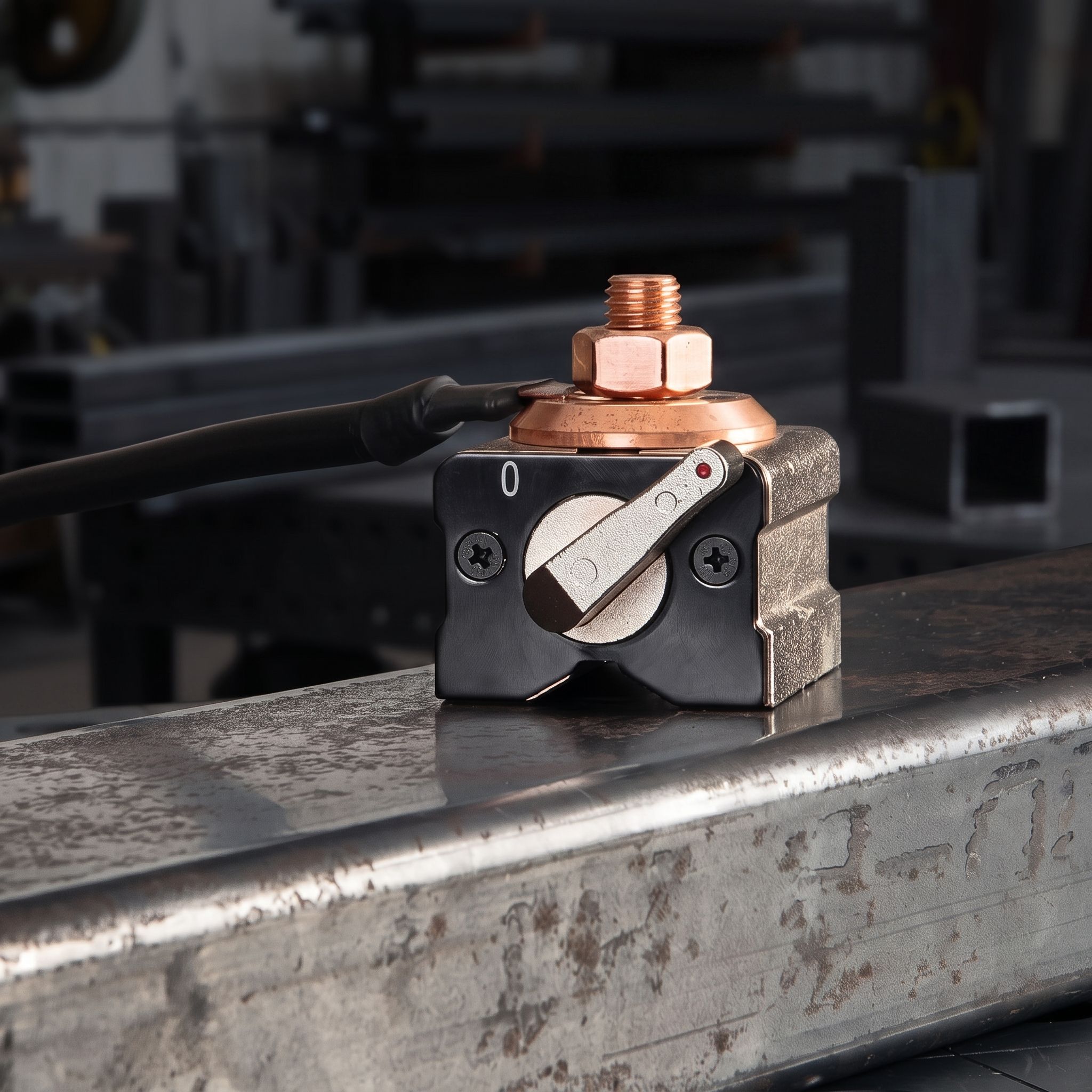

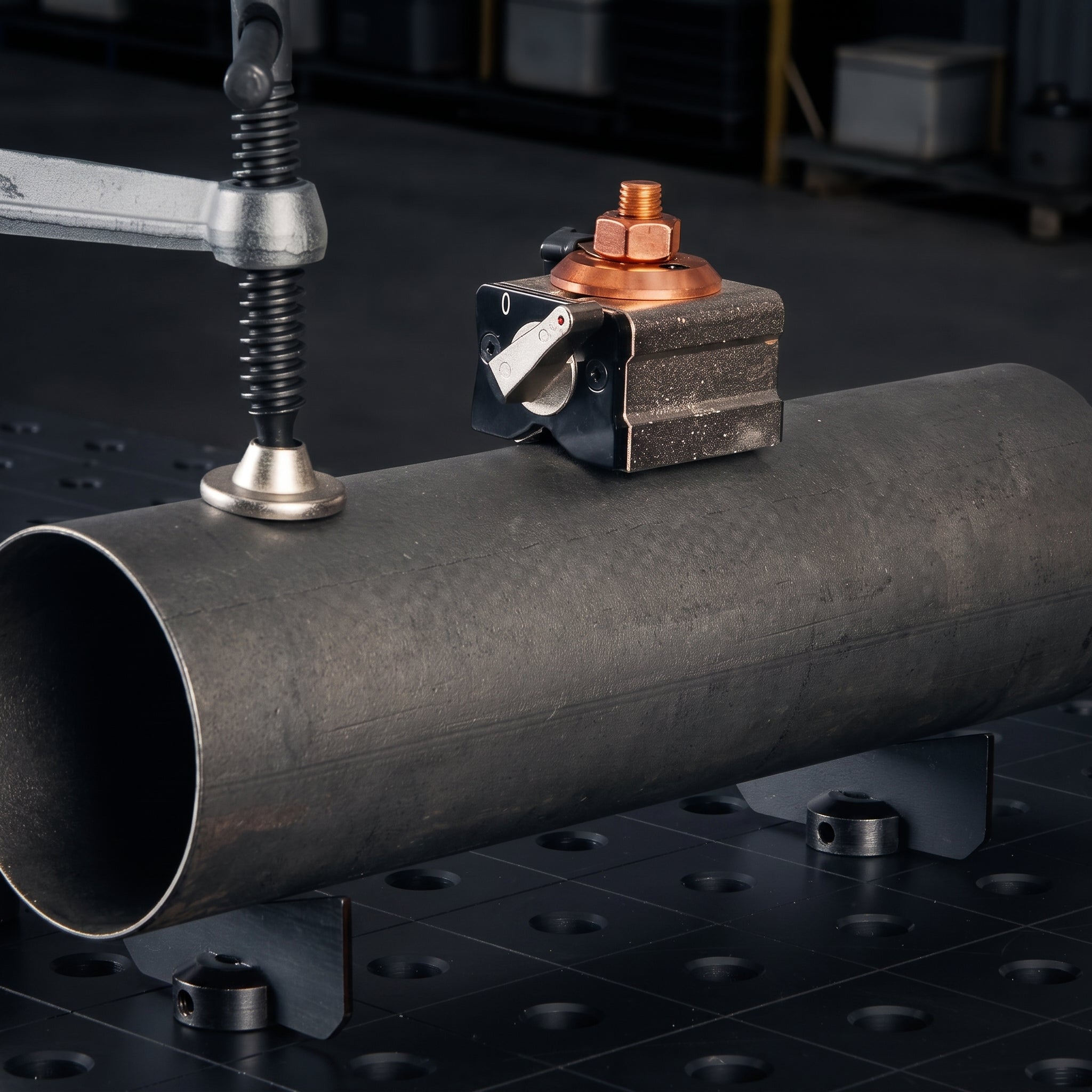

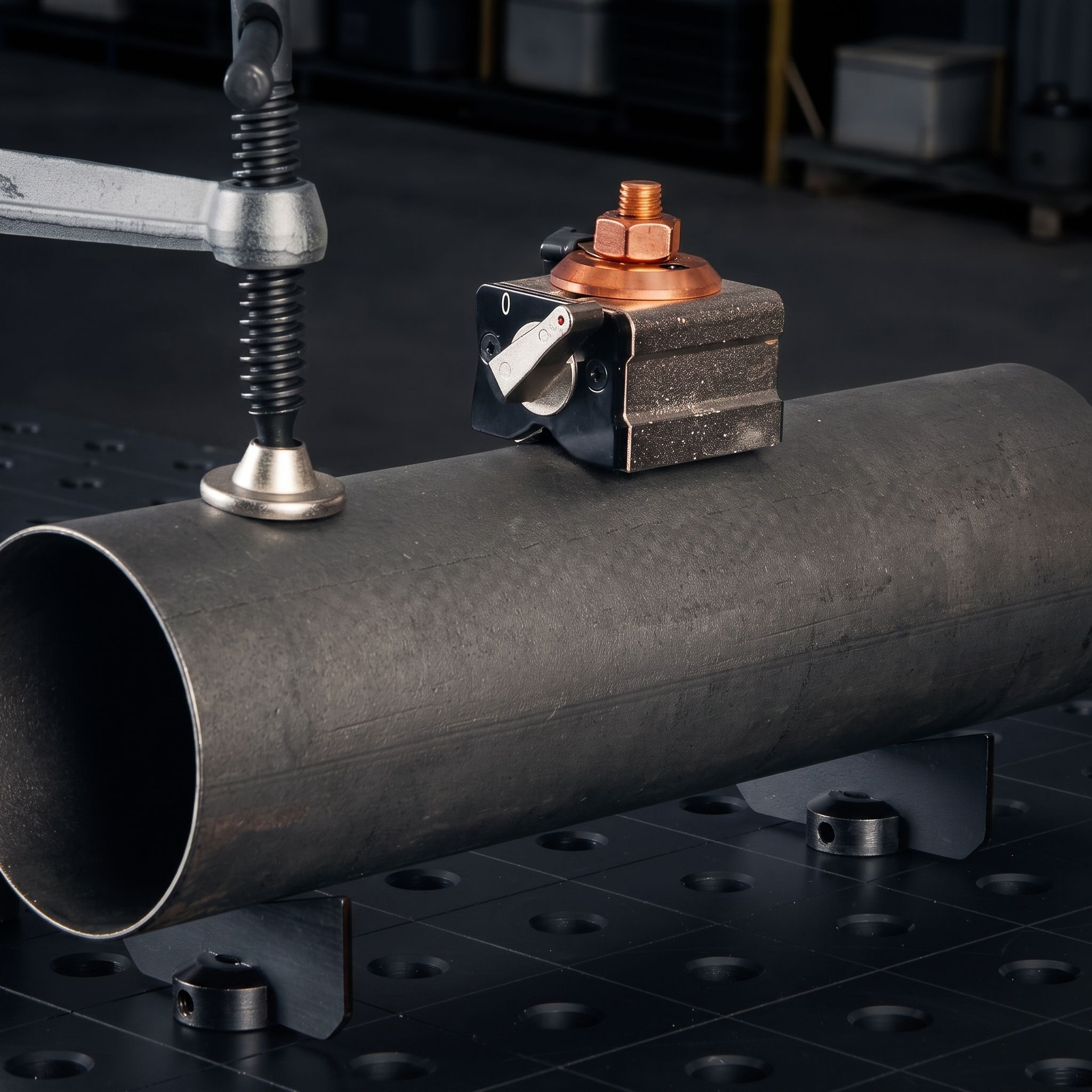

Works on Flat & Round Steel

Securely attaches to flat plate, structural tubing, angle iron, and round pipe for maximum application versatility.Securely attaches to flat plate, structural tubing, angle iron, and round pipe for maximum application versatility.

V-Machined Base

The precision V-groove base provides stable contact on both flat surfaces and round pipe for dependable grounding.

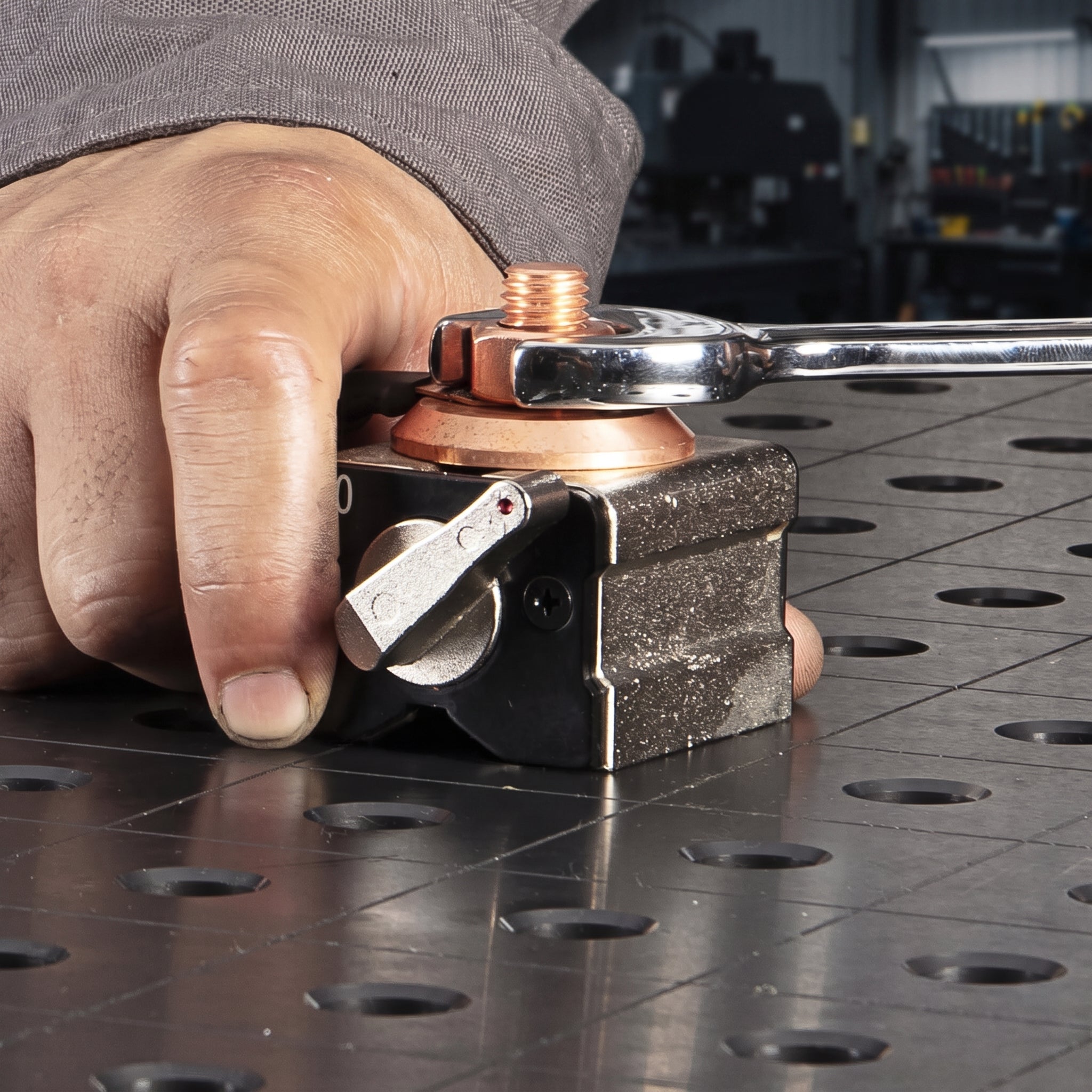

Reposition in Seconds

Quickly move the grounding point wherever it's needed to improve workflow and reduce cable clutter during fabrication.

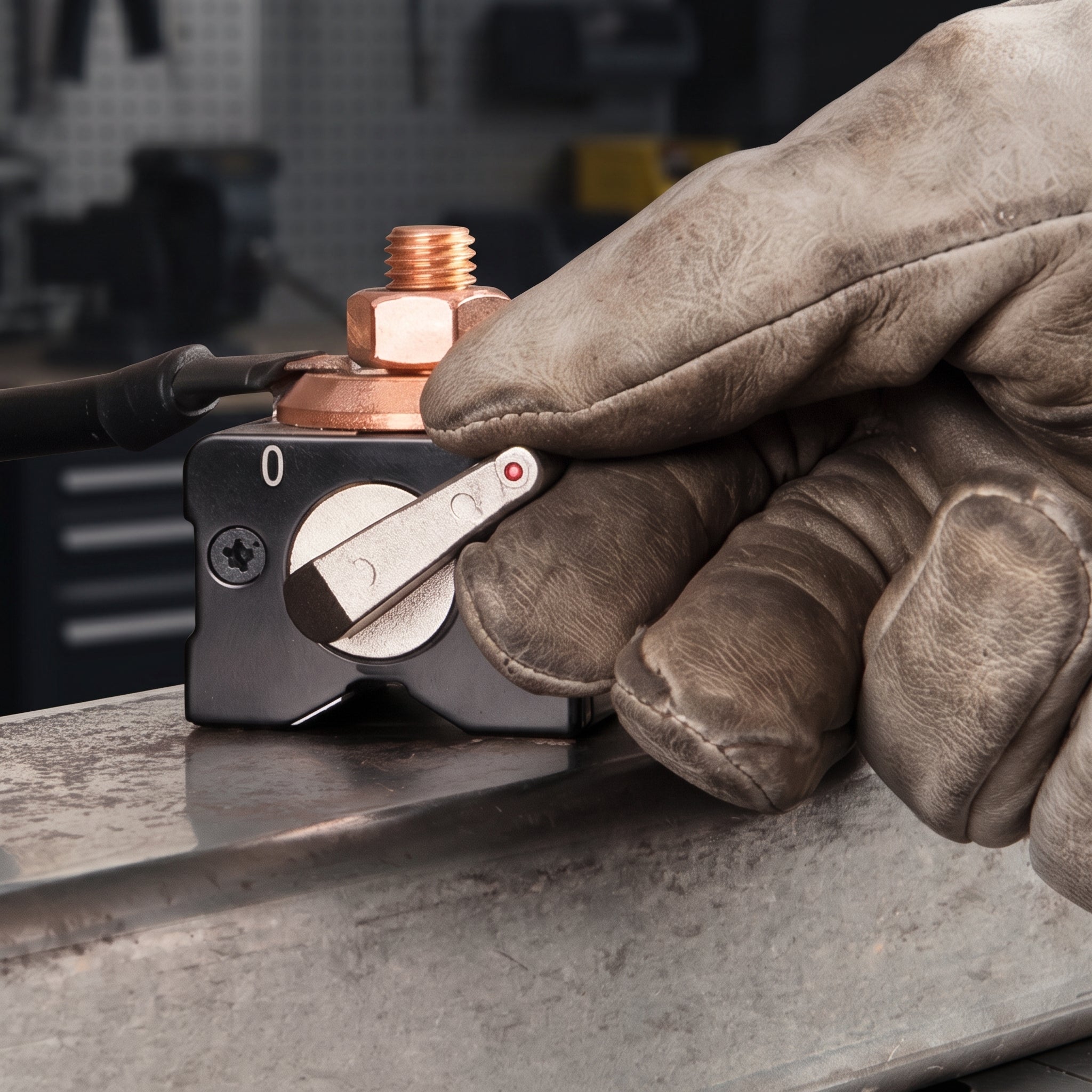

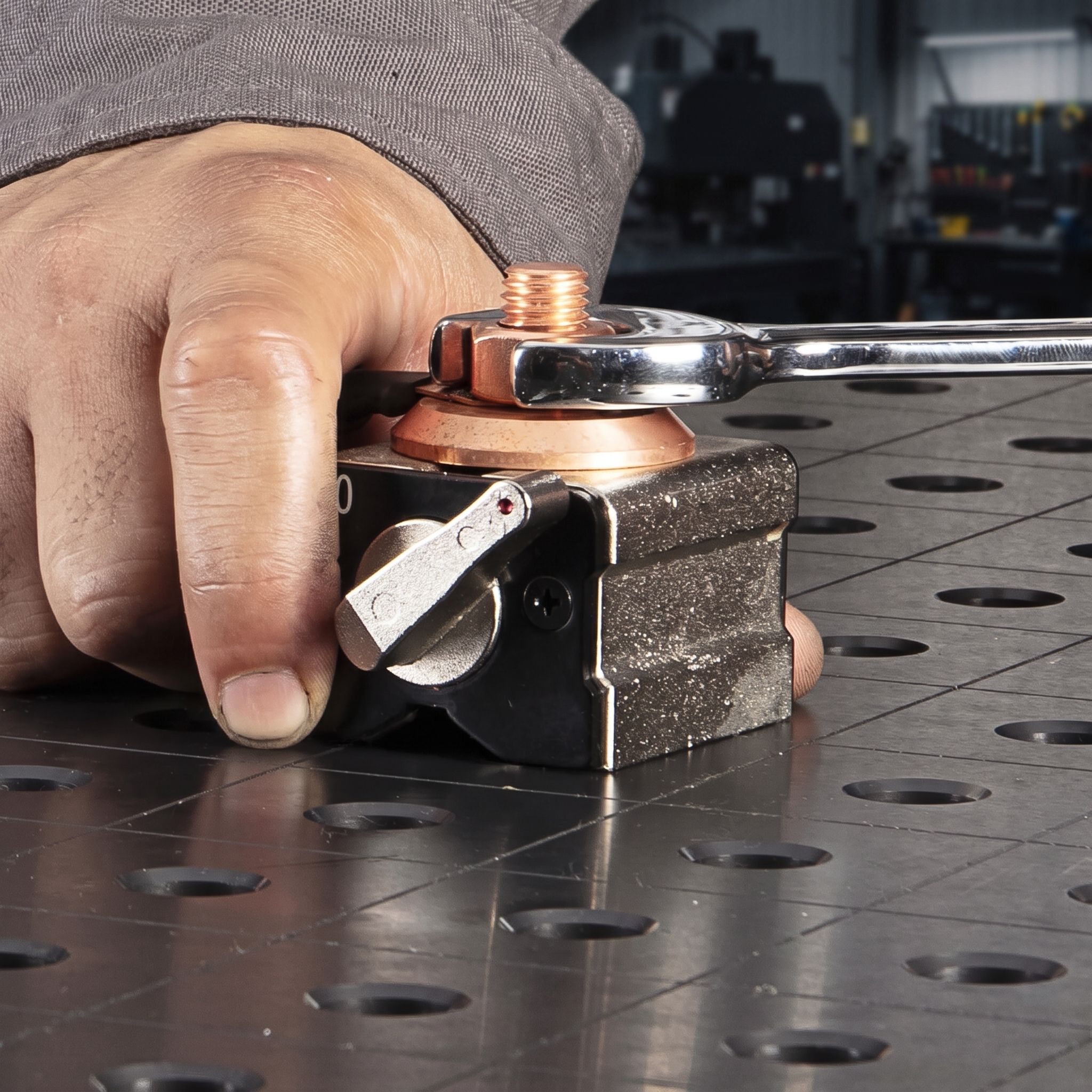

Easy to Operate with Gloves

The oversized switch lever is easy to grip and operate, even while wearing welding gloves.

Built for Daily Shop Use

Heavy-duty construction is designed for demanding fabrication, welding, and industrial shop environments.

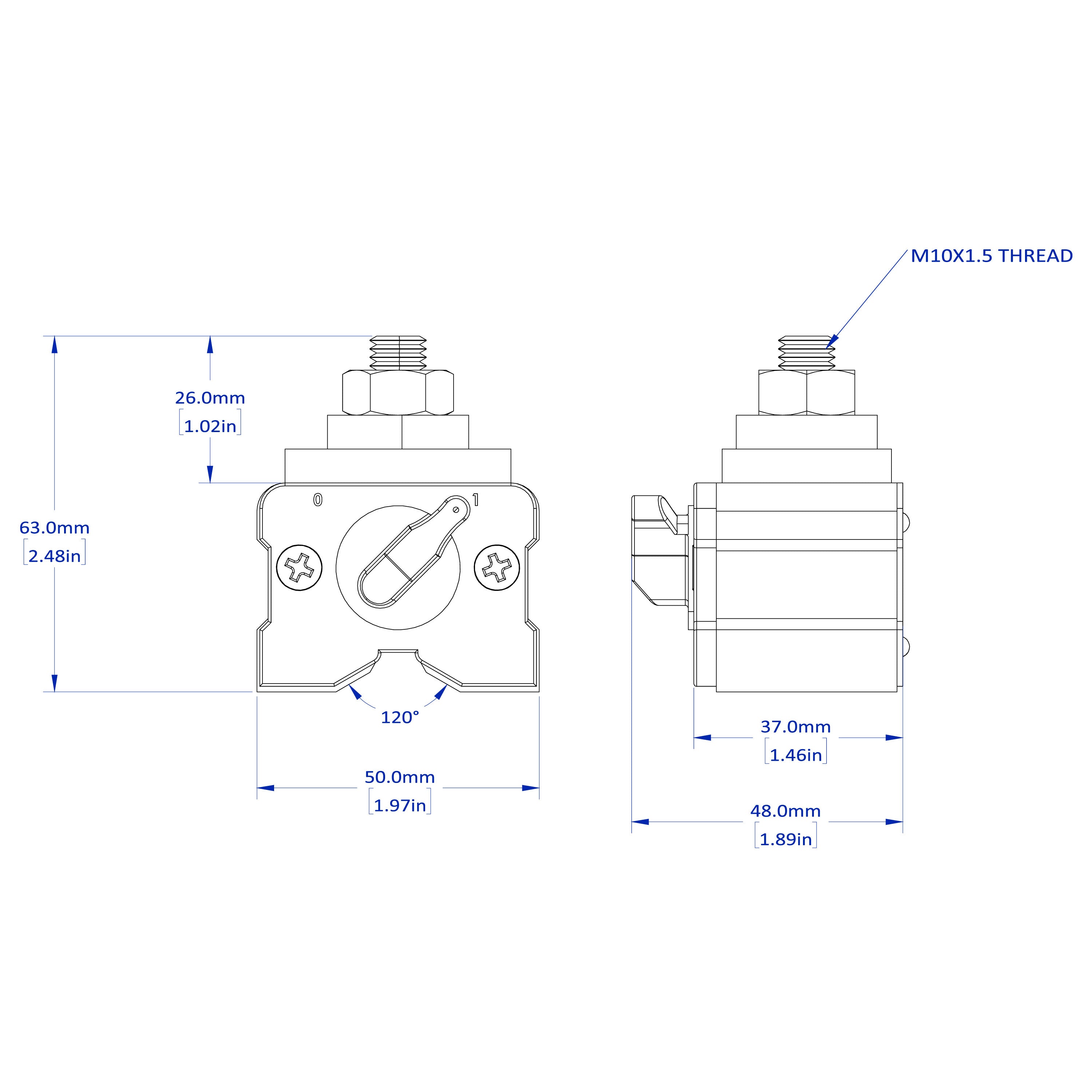

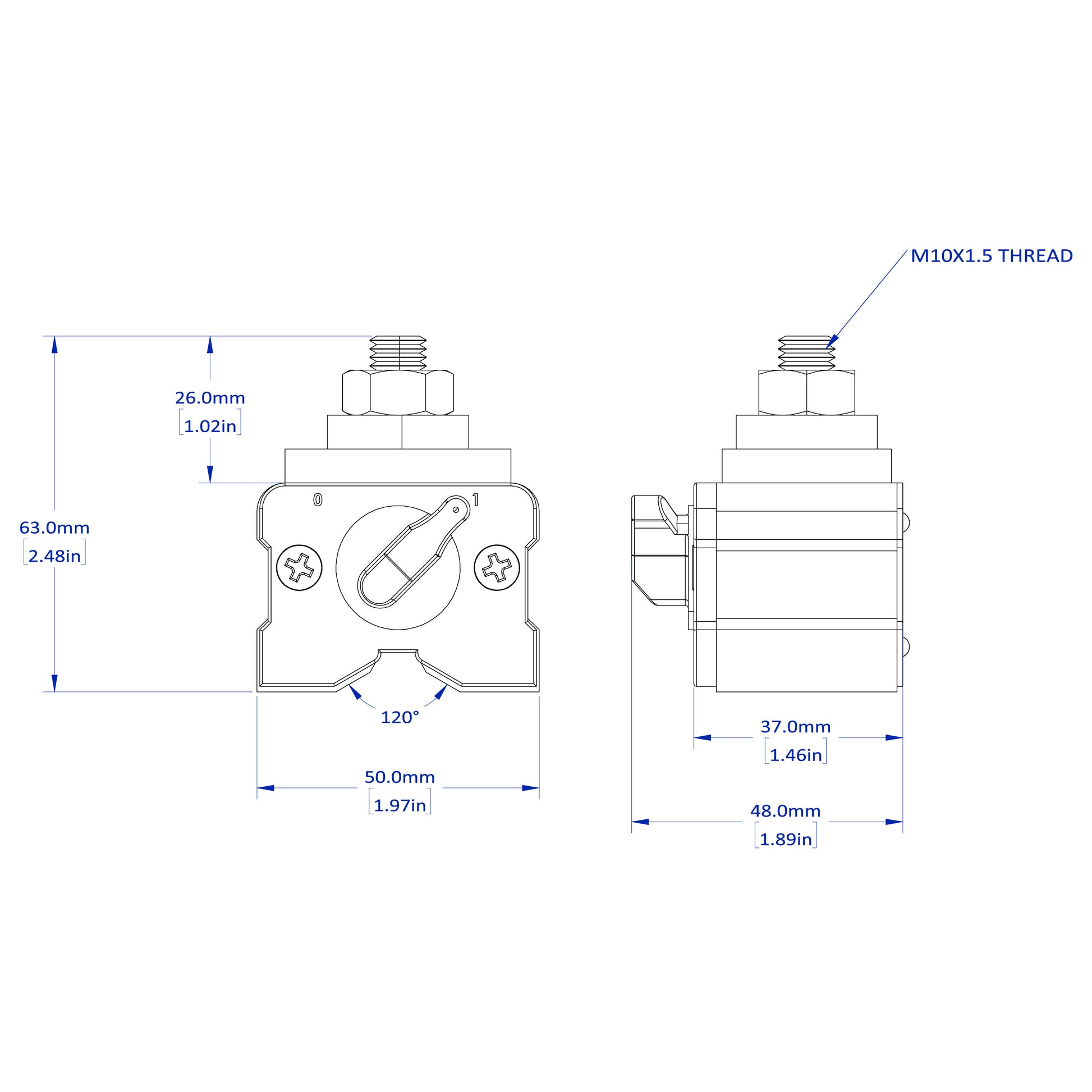

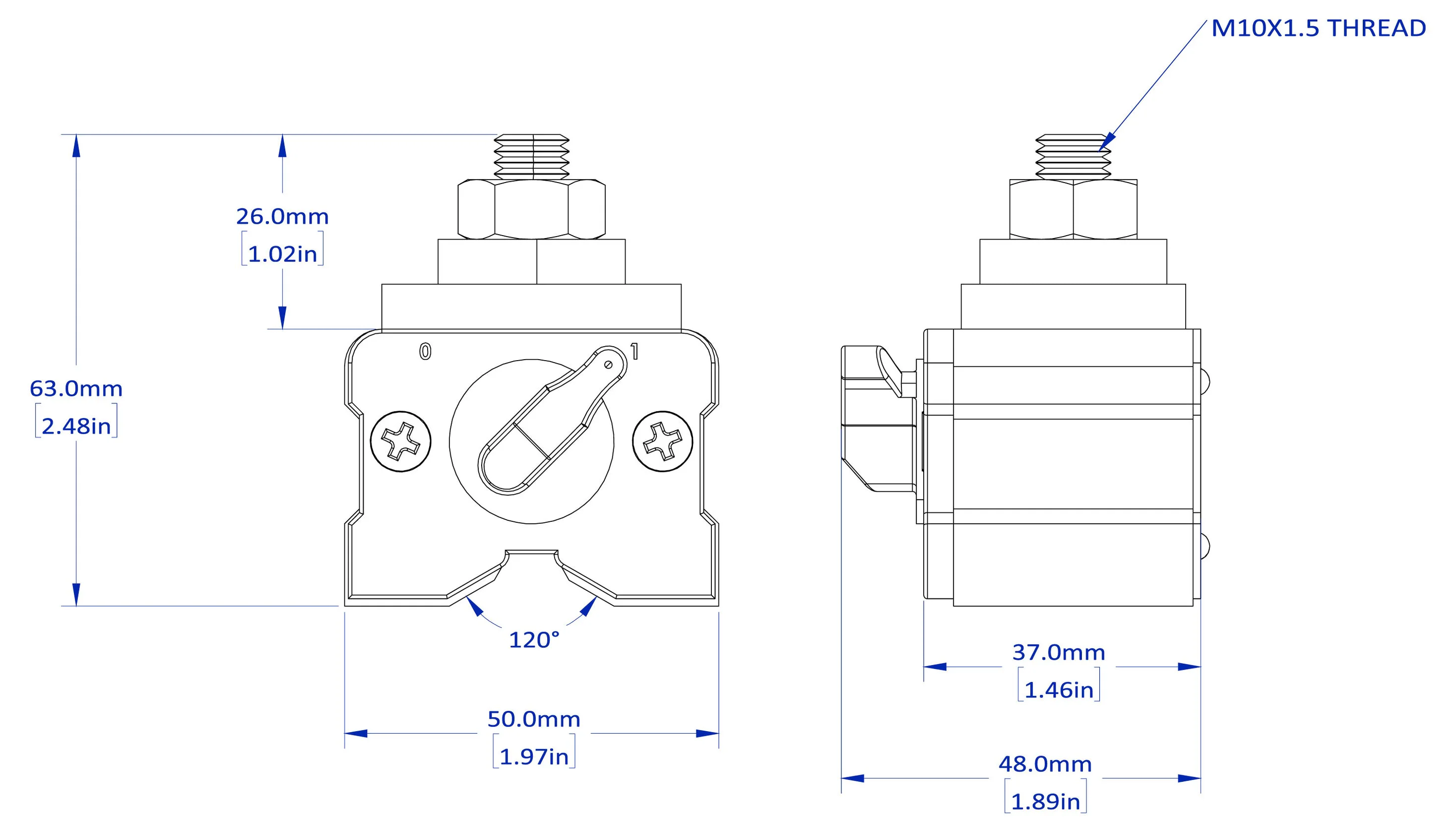

Diagram of a valve with dimensions and specifications.

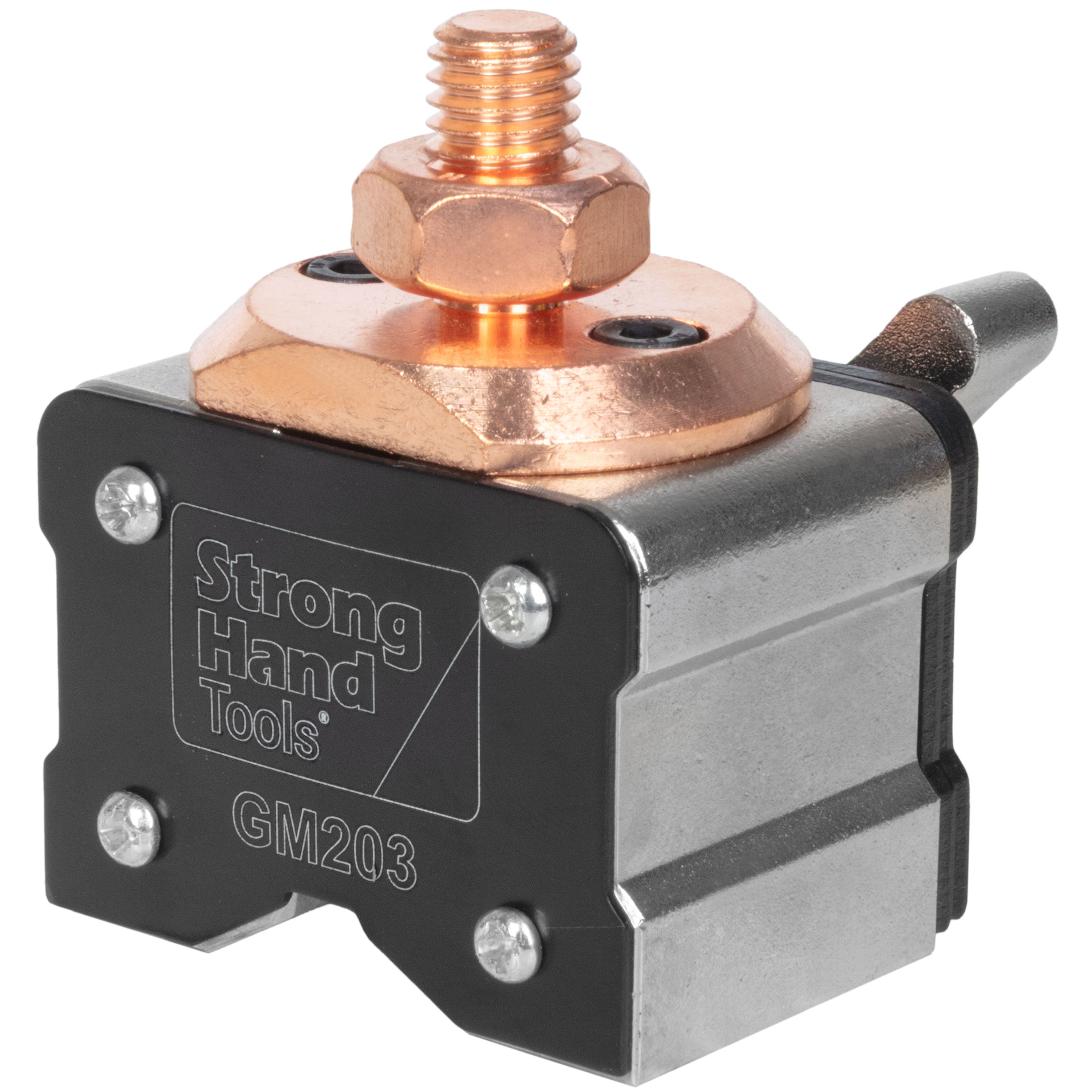

SKU:
GM203
Amperage:
300A @ 60% Duty Cycle
Dimensions (IN):
2.0 x 2.0 x 1.4
Thread:
M10 x 1.5
Magnetic Force (LB)
44
Weight (LB):
1.2

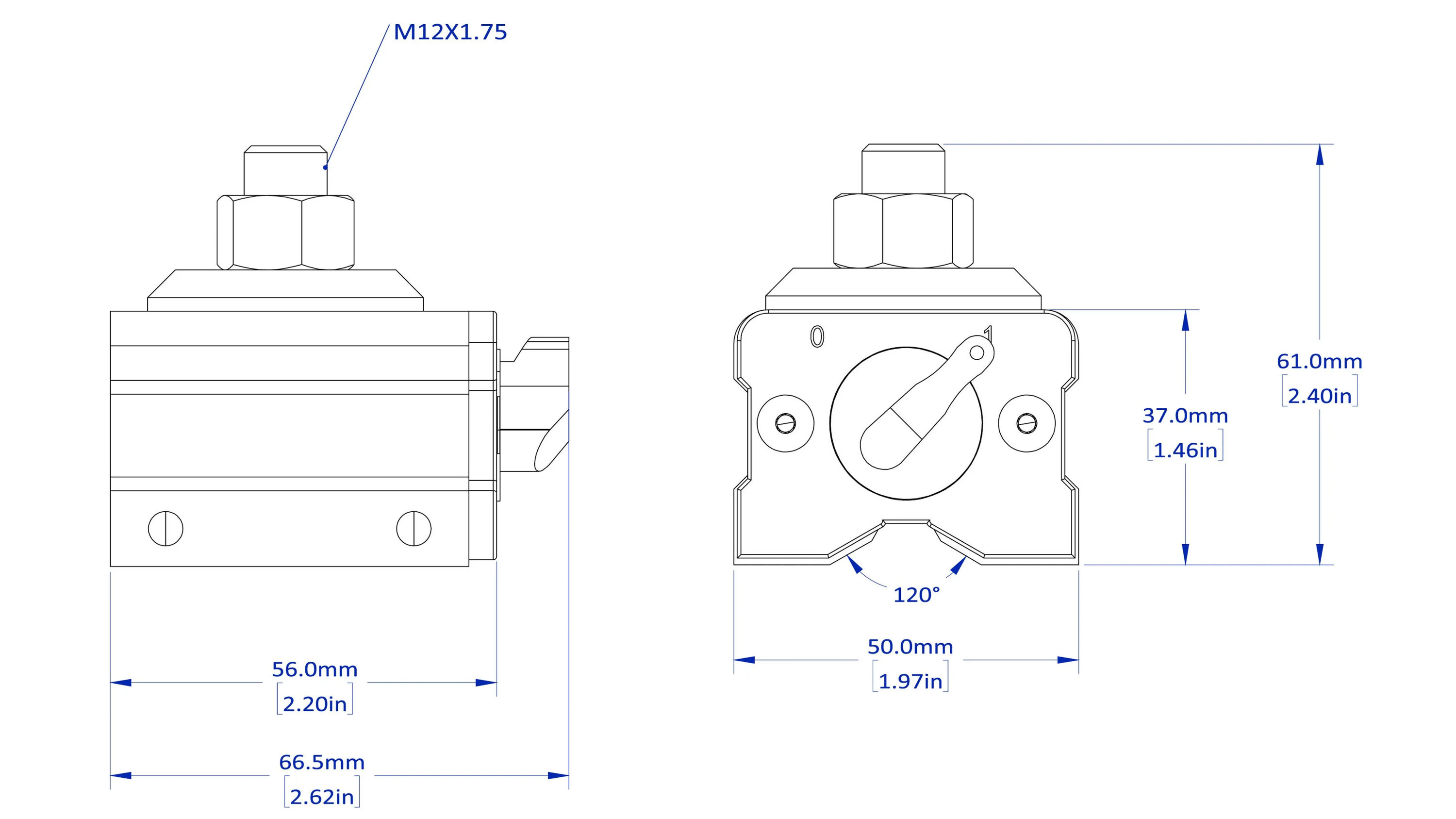

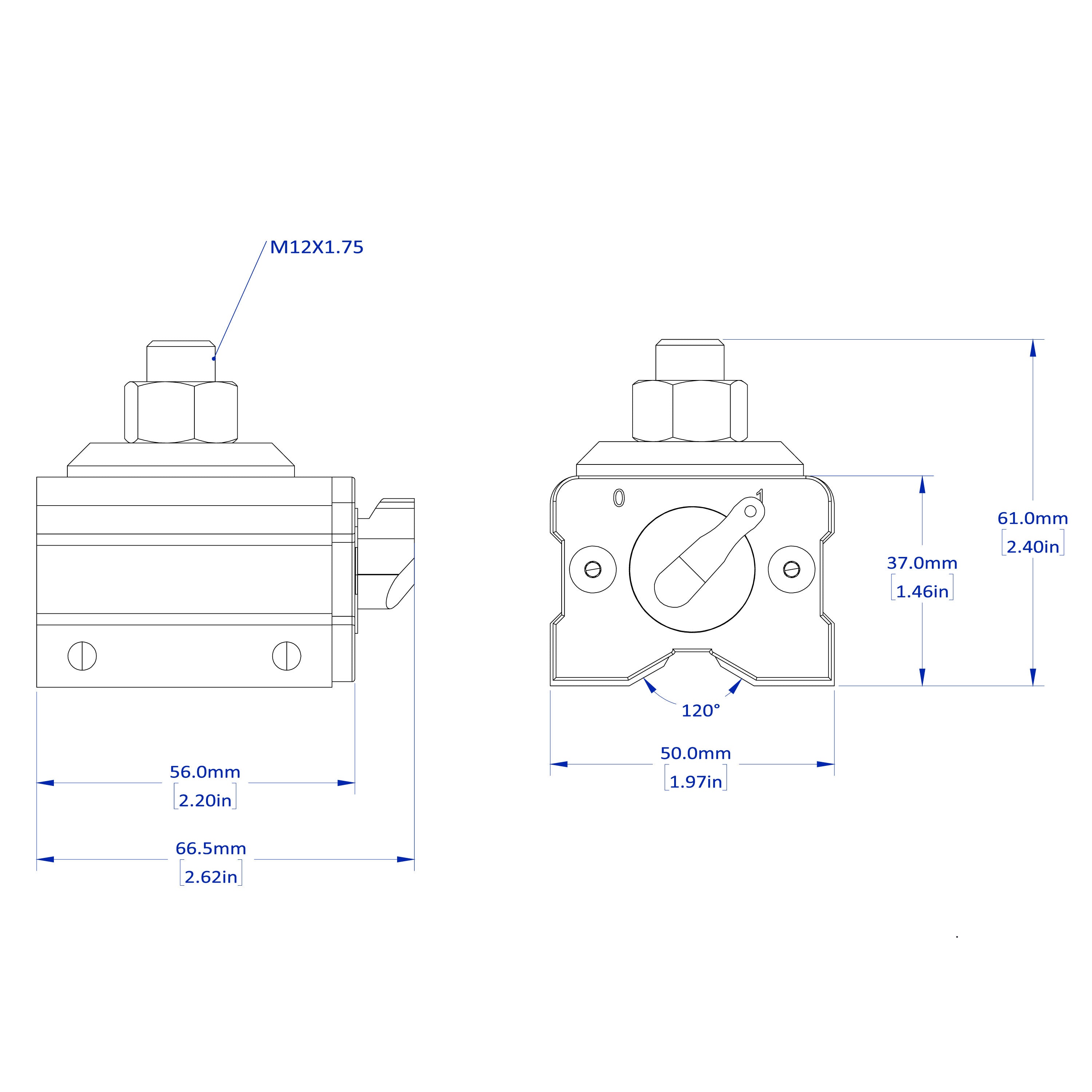

Diagram of a mechanical valve with dimensions and labels.

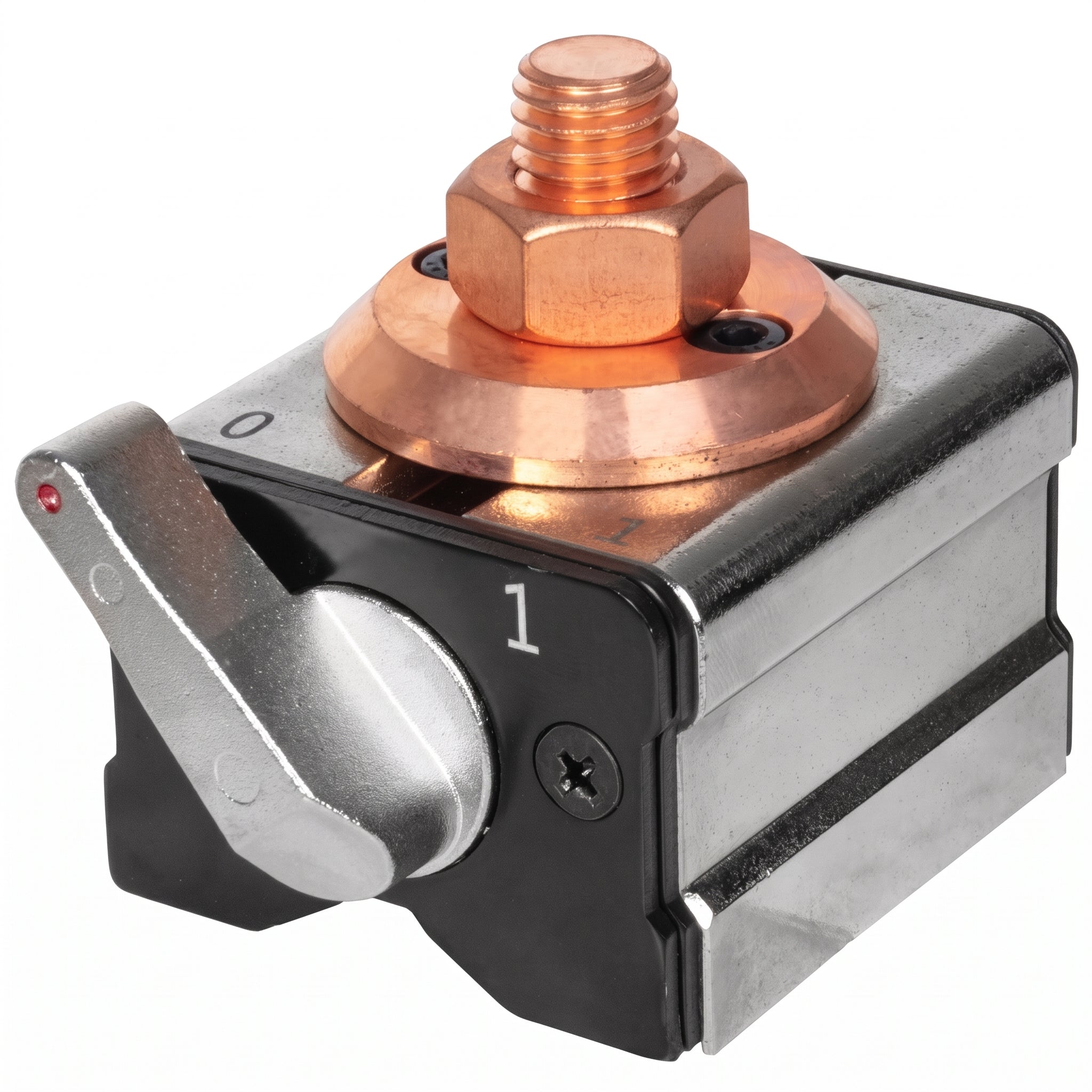

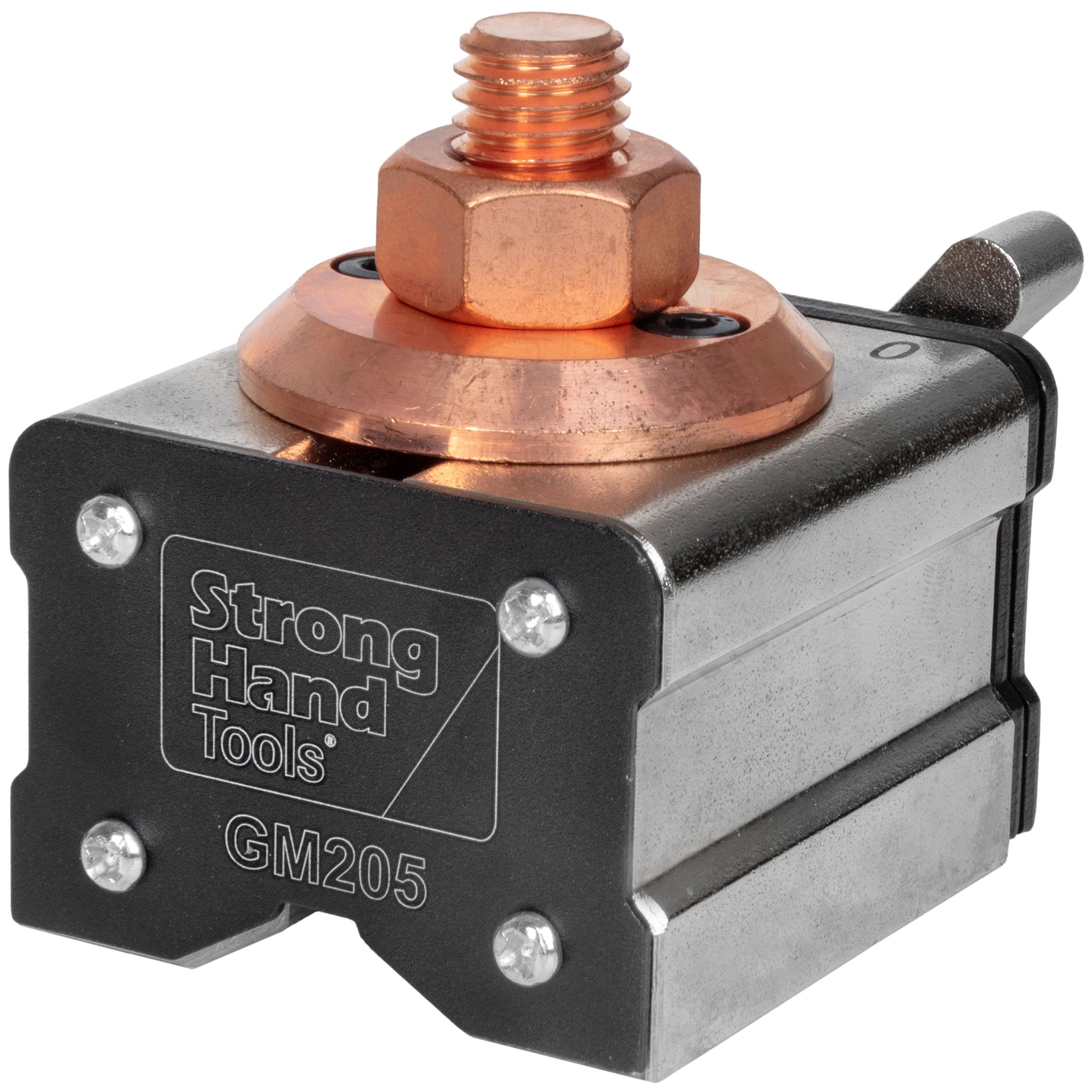

SKU:

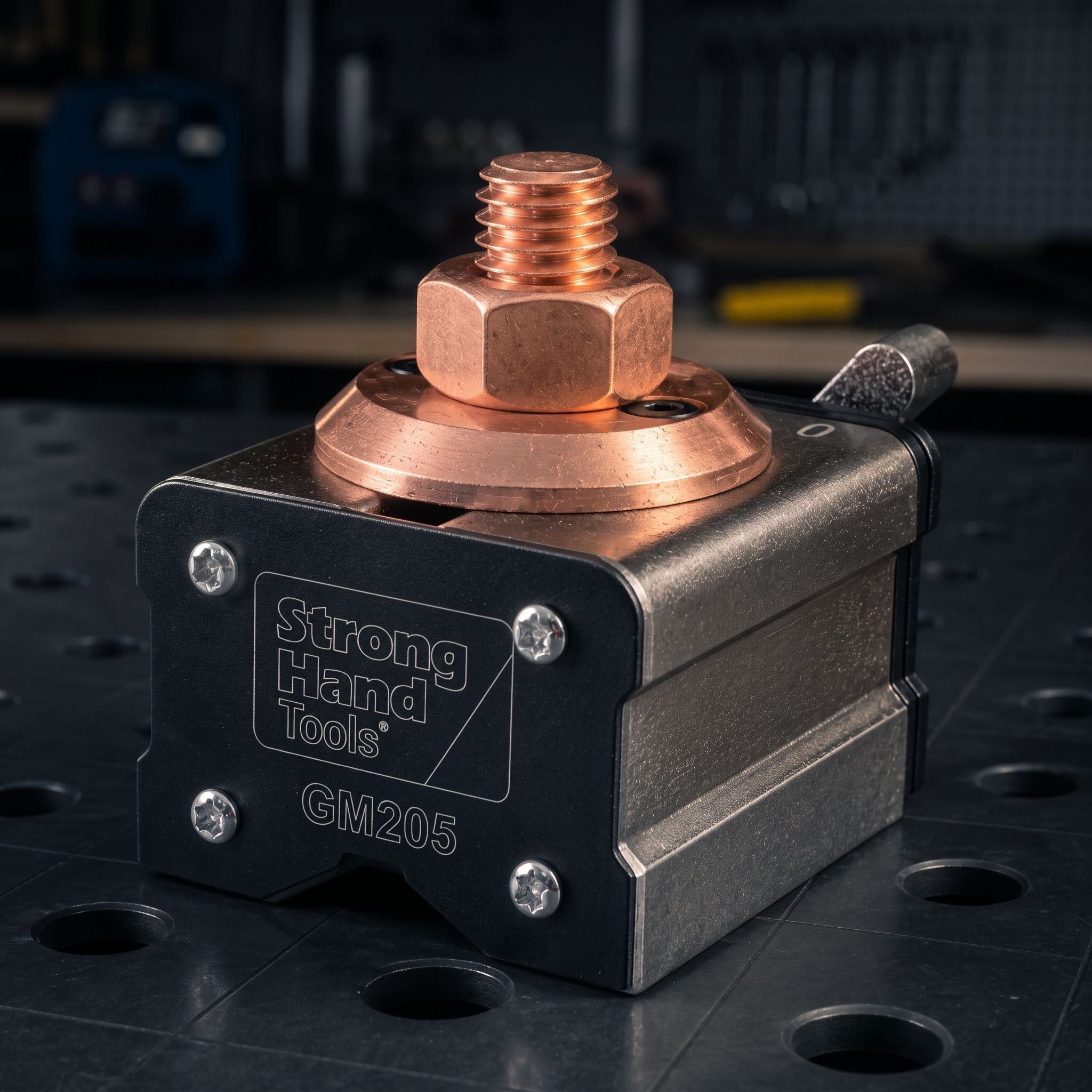

GM205
Amperage:
500A @ 60% Duty Cycle
Dimensions (IN):
2.0 x 2.8 x 1.4
Thread:
M12 x 1.75
Magnetic Force (LB)
110
Weight (LB):
2.4
