Riser Block, 500x200x100mm (Plasma Nitrided)

This is an "Open Box" item that is unused and fully functional, with minor cosmetic wear from warehouse storage. Sold as-is—no exchanges or returns.

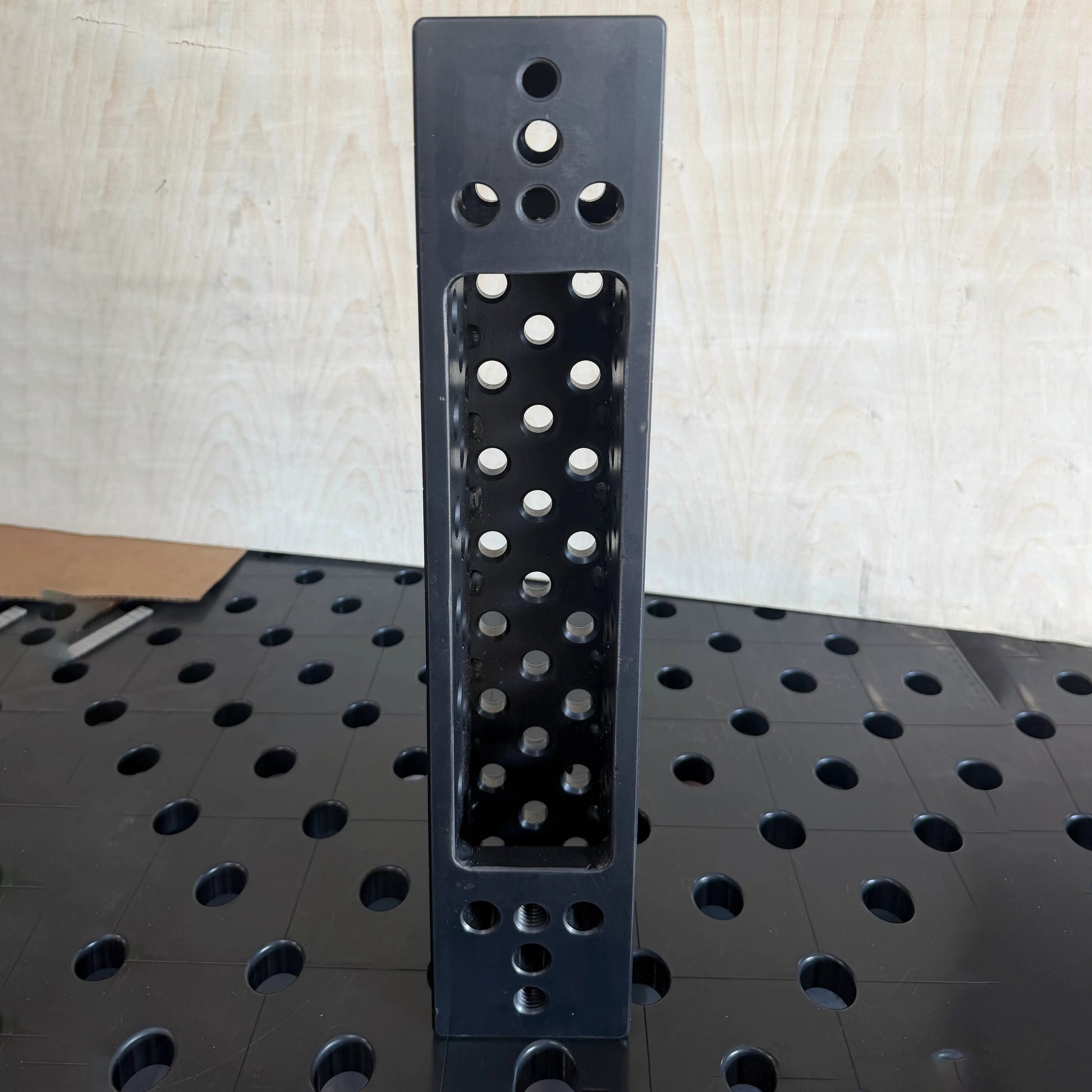

The Siegmund Square U-Shape 200/100 Riser Blocks (sides 200mm/7.87") are perfectly suited as a table extension, for vertical setups, as well as a sturdy connection between two welding tables. The Square is firmly screwed to the table with Connecting Bolts (Item No. 2-160560.N).

From a length of 500mm (19.68") all U-shaped squares have mounting holes on the back to attach table legs.

If the Square is used as a table extension exceeding 1,000mm (39.37"), it has to be supported by a table leg.

A multitude of clamping- and combination options with other squares and stops are facilitated by the five-sided bore holes and the optional diagonal hole arrangement.

50x50mm (1.96"x1.96") grid simplifies orientation.

Specs and Features:
- Item No. 2-160360.1.P
- Plasma Nitrided
- Length: 500mm (19.68")
- Width: 200mm (7.87")
- Height: 100mm (3.93")
- Weight: 37.9 Ibs.
