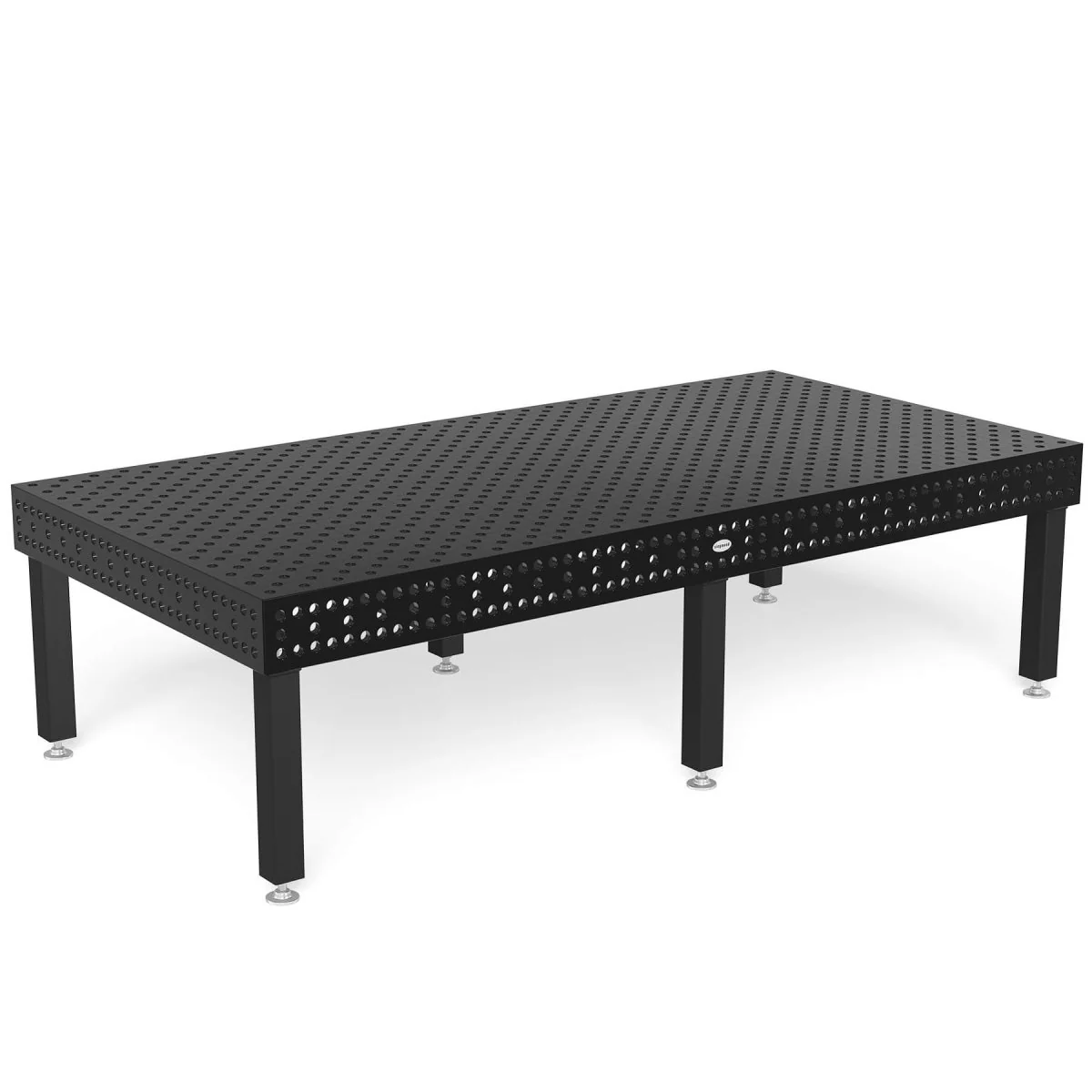

3,000x1,500mm 8.7 Series Siegmund System 28 Welding Tabletop
Please note that this listing is for the tabletop only. Legs can be purchased separately here:
750mm H Leg
650mm H Leg
Siegmund Welding Table Specs and Features:
Overall Tabletop Size: 3,000 x 1,500 x 200mm (118" x 59" x 7.87")
Borehole: Ø 28mm (1.10")
Welding Table Series: Professional Extreme 8.7 Series
Welding Table Material Thickness: Approx. 24.5 – 27mm (0.96" - 1.06")
Welding Table Material Type and Finish: Professional Extreme 8.7 Hardened Tool Steel, Plasma Nitrided and BAR-Coated
Table Surface Hardness: 450-850 Vickers
Approximate Table Weight: 3,141 lbs. / 1,425 kg.
Boreholes on the Surface are in a Diagonal Grid Configuration.
Boreholes have a radius of 3mm (0.118").
Radius 3mm (0.118") / 6mm (0.236") on table edges and corners.
Height of table side 200mm (7.87") - Borehole spacing of table side 50mm (1.96")

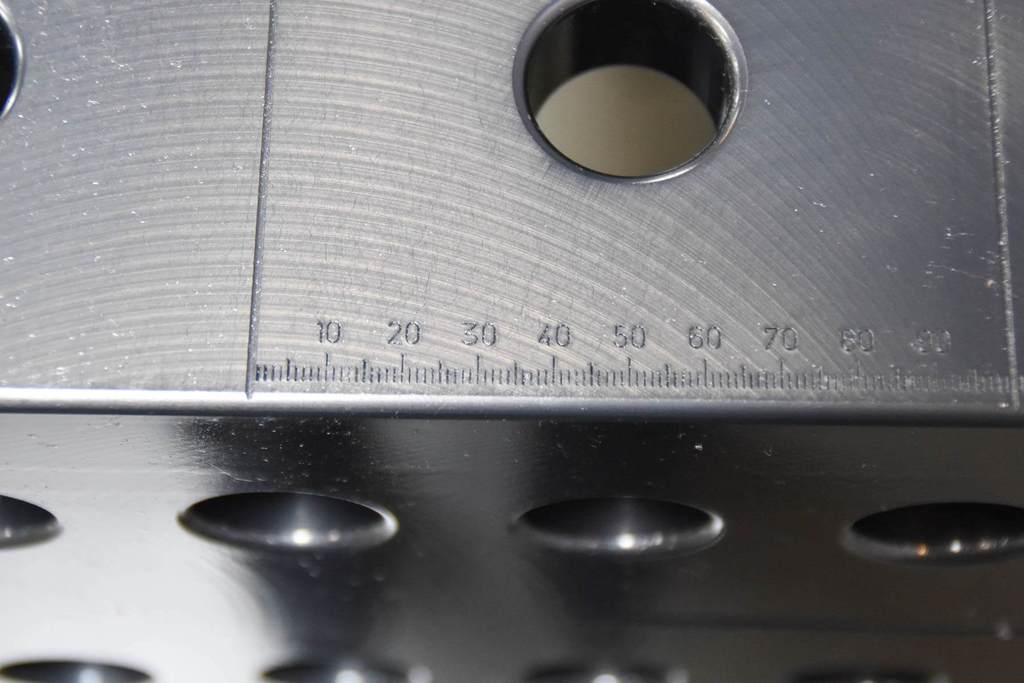

Metric Scaling on the surface.

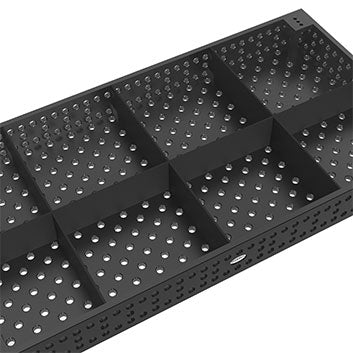

Construction reinforced with ribbing.
-
