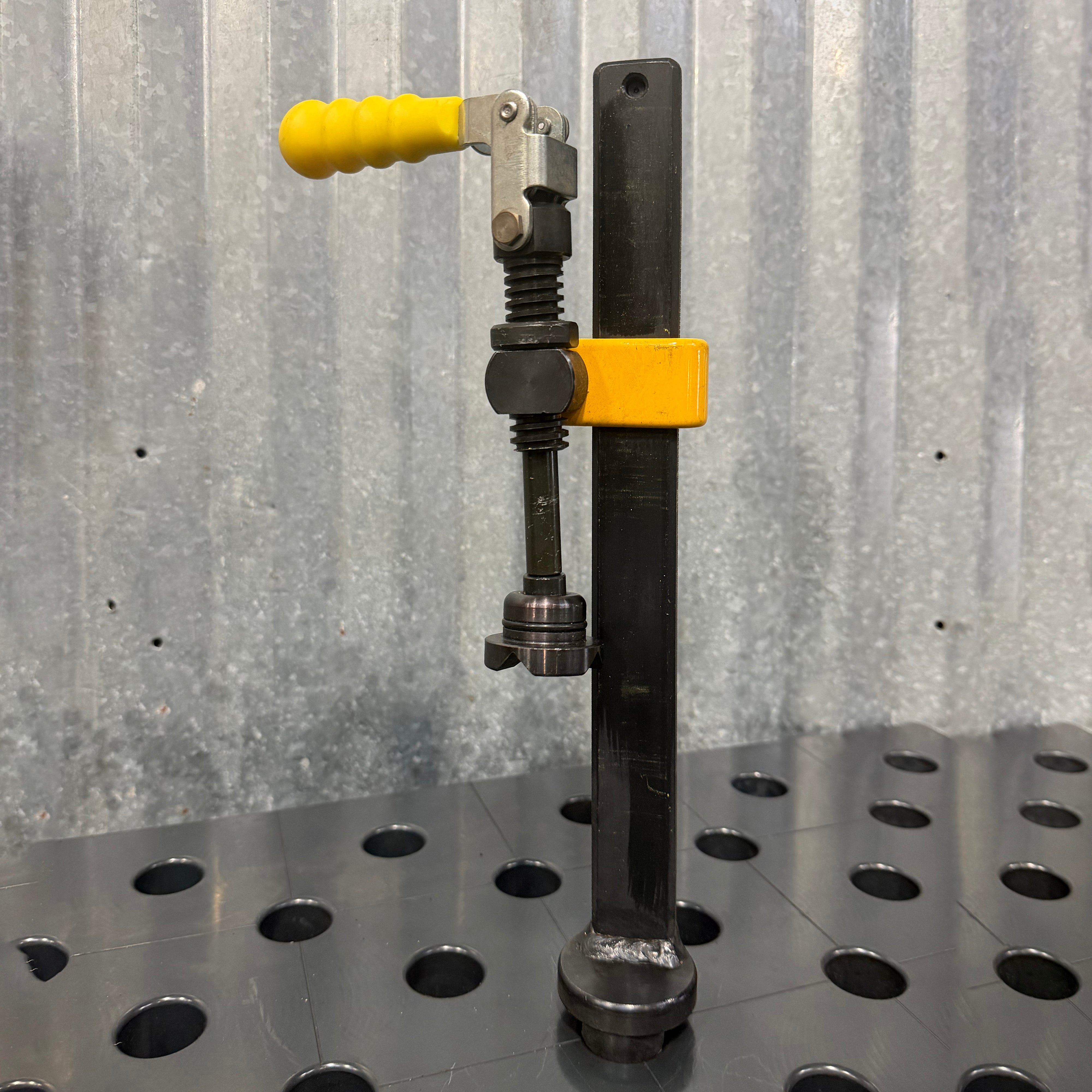

45°/90° Professional Screw Clamp with Vertical Action Toggle, 28mm

This is an "Open Box" item that is unused and fully functional, with minor cosmetic wear from warehouse storage. Sold as-is—no exchanges or returns.

The Siegmund Professional Screw Clamp 45°/90° with vertical action toggle provides stable, quick, and powerful clamping at common working angles. Designed for the System 28 series, it combines vertical clamping strength with reinforced construction and a nitrided finish for durability in demanding fabrication environments.

- Provides 310mm (12.20" Inches) clamping height for versatile applications.
- Delivers up to 2.5 kN (562.0 lbf.) of vertical clamping force for secure holding.
- Supports 45° and 90° positioning with reinforced bar design.
- Nitrided finish ensures resistance to wear and extended service life.
- Weighs 5.51 lbs. (2.5 kg.), strong yet manageable for daily shop use.
- Cast iron cross handwheel allows quick and precise height adjustment.

Key Features:
- Vertical stroke provides stronger stability than fast tension clamps.
- Compatible with 45° and 90° setups for flexible fixturing.
- Nitrided finish increases wear resistance and durability.
- Reinforced bar ensures rigidity under heavy use.

Specifications:
- Item No.: 2-280611.2
- System: Siegmund System 28 Metric Series
- Height: 310mm (12.20" Inches)
- Weight: 5.51 lbs. (2.5 kg.)
- Max. Clamping Force: 2.5 kN (562.0 lbf.)
- Finish: Nitrided Steel

Common Uses:
This Professional Screw Clamp 45°/90° with vertical action toggle provides adaptable clamping solutions for System 28 setups, allowing precise positioning at common angles with the added strength of a vertical clamping stroke. It is ideal for welding, fabrication, and fixturing that require secure and stable overhead pressure with repeatable accuracy.
