SKU: T51670

$46.00
Shipping calculated at checkout.

5/8"

Hole Diameter

Horizontal Clamping

Clamping Options

2 Types

Alternative Handles

Top V-Pads

Optional

Model: Multi-Directional Pivoting / Straight Handle
  • Eligible for Return Within 30 Days.
  • One Year Limited Warranty
  • Estimated delivery: Jul 11 - Jul 15

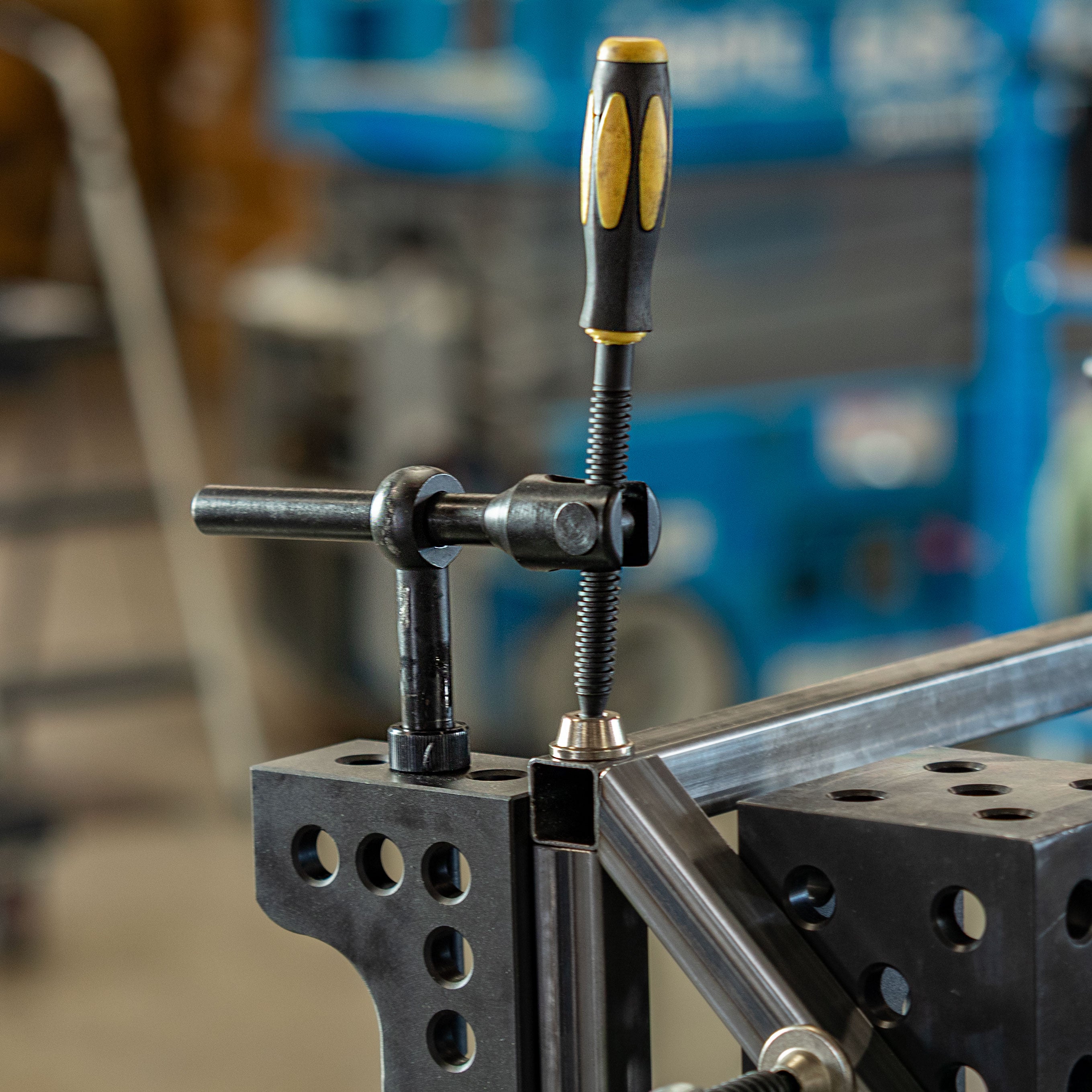

T-Post Clamps - 5/8" System Fixture

Multi-Directional Pivoting Model

Overview & Capabilities

  • Hole Compatibility: Fits โŒ€5/8" (โŒ€16mm) holes on BuildPro Tabletops or Heavy Duty Riser Blocks.

  • Multi-Axis Rotation: * Features a 360° rotating horizontal arm.

    • Features a 360° rotating vertical post.

    • The pivoting model provides a 70° angled clamping range.

  • Versatility: Capable of clamping stock both horizontally and vertically.

  • Bonus Accessory: Includes a magnetic top V-Pad (Part No. T54217) designed for clamping round stock and square tubing edges.

Clamping Modes

  • Vertical / Angled Clamping: Uses the fixed vertical clamp arm with the pivoting spindle inserted into the clamp post for vertical hold-down or angled pressure.

  • Horizontal Clamping: The fixed vertical clamp arm and pivoting spindle can be removed from the clamp post and placed directly into the tabletop holes for low-profile horizontal clamping.

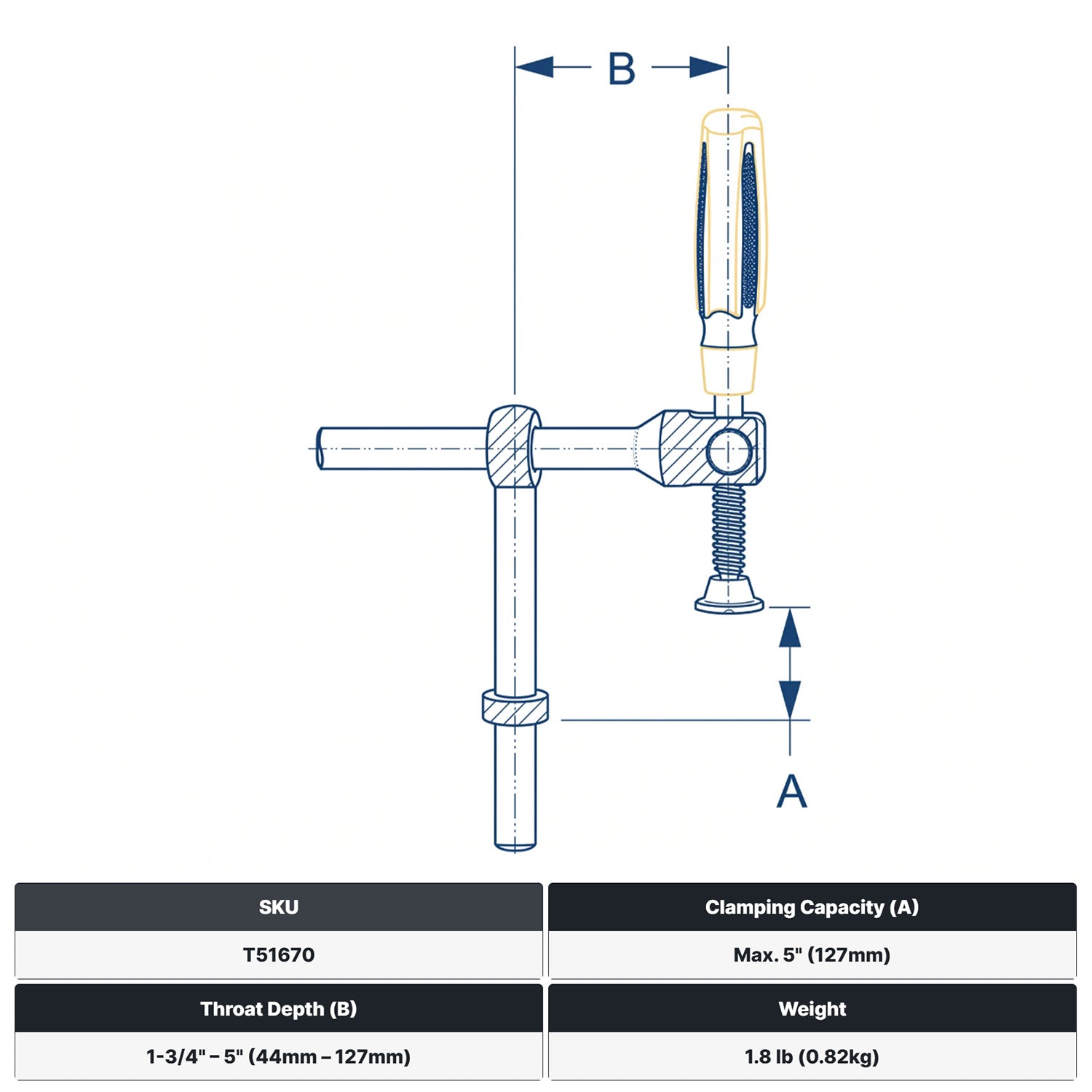

SKU
T51670

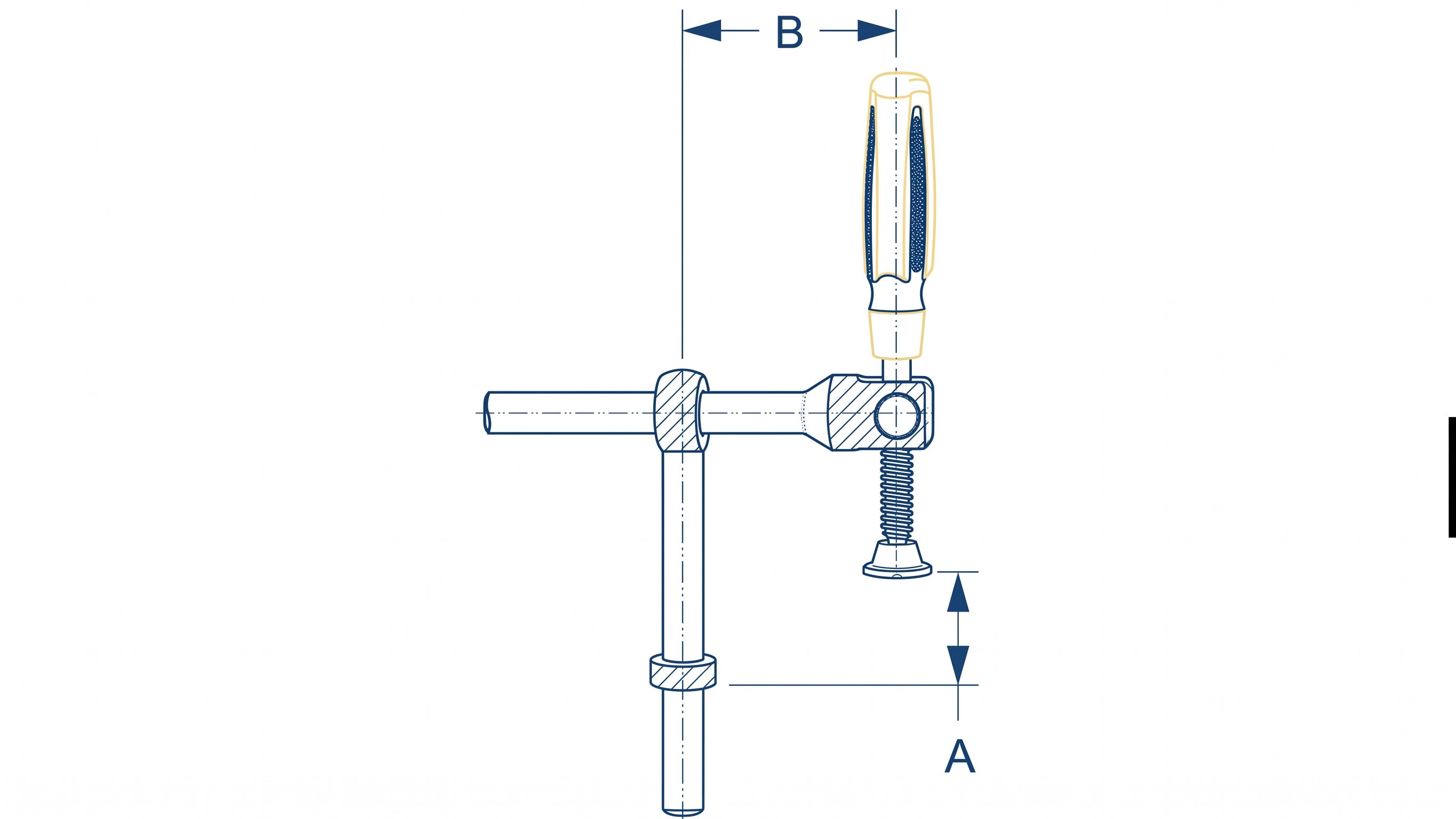

Clamping Capacity (A)
Max. 5" (127mm)
Throat Depth (B)
Min: 1-3/4" โ€“ Max: 5" (44mm โ€“ 127mm)
Weight
1.8 lb (0.82kg)

Multi-Axis Rotation

Features a 360° rotating vertical post. 70° angled clamping range.

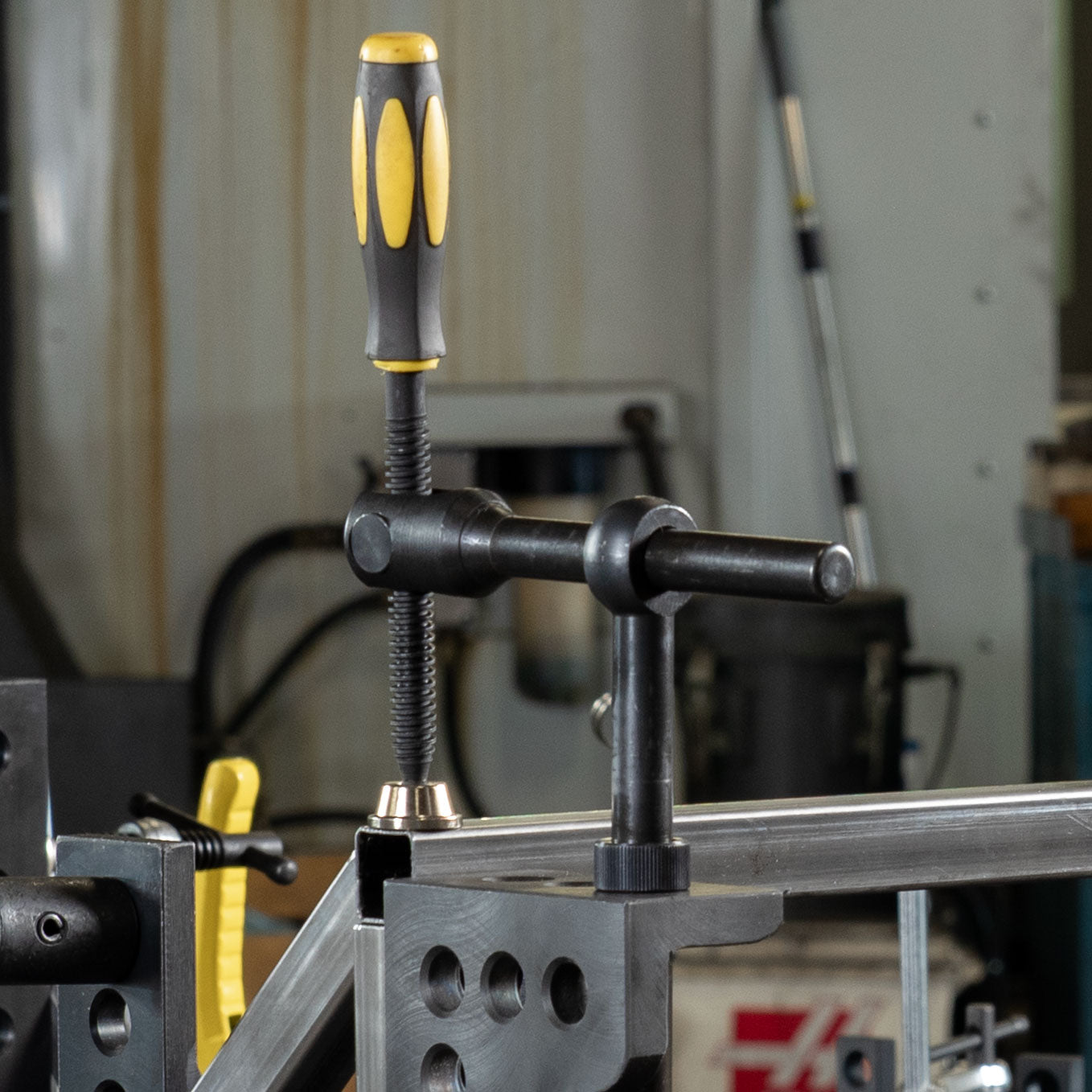

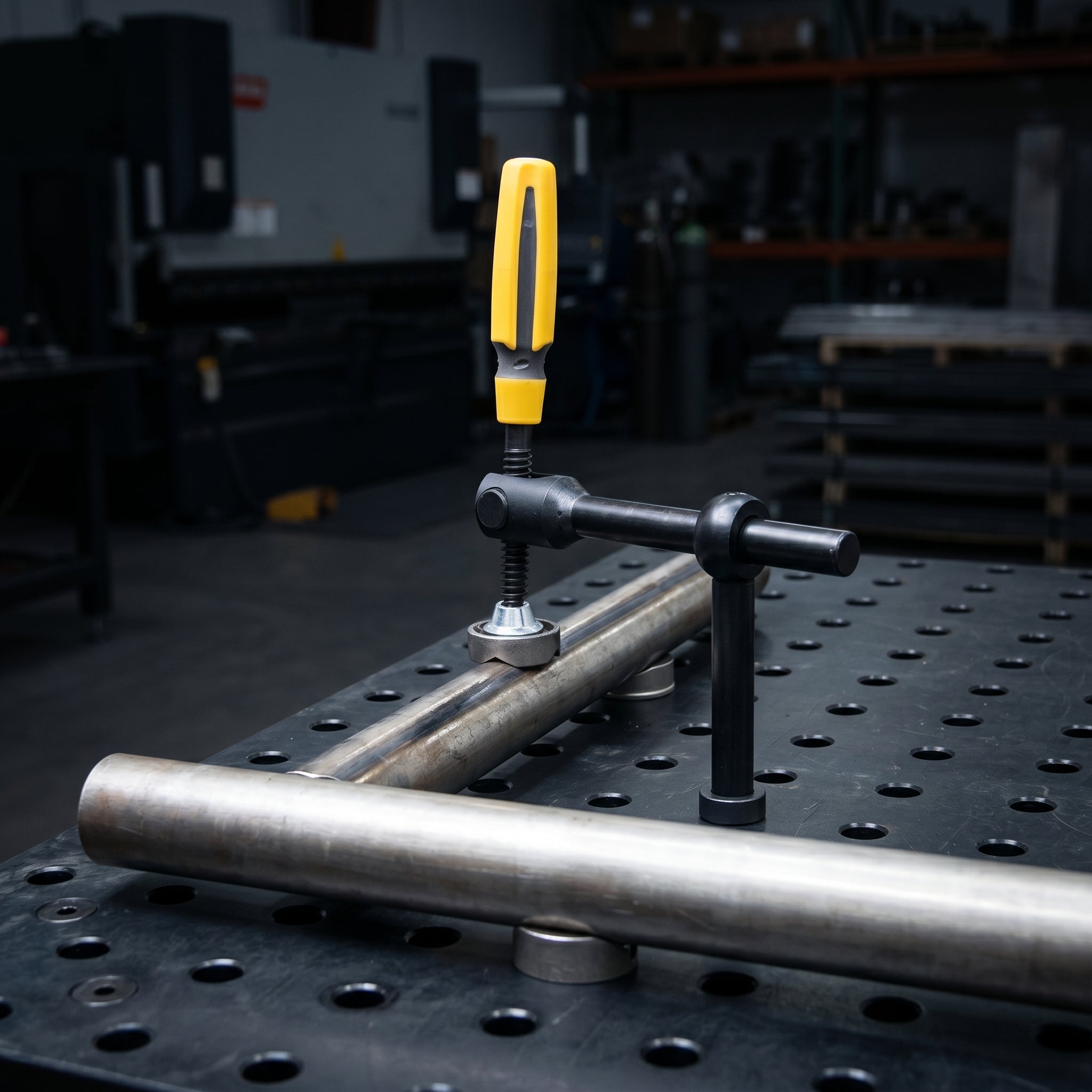

Vertical Hold Down Clamping

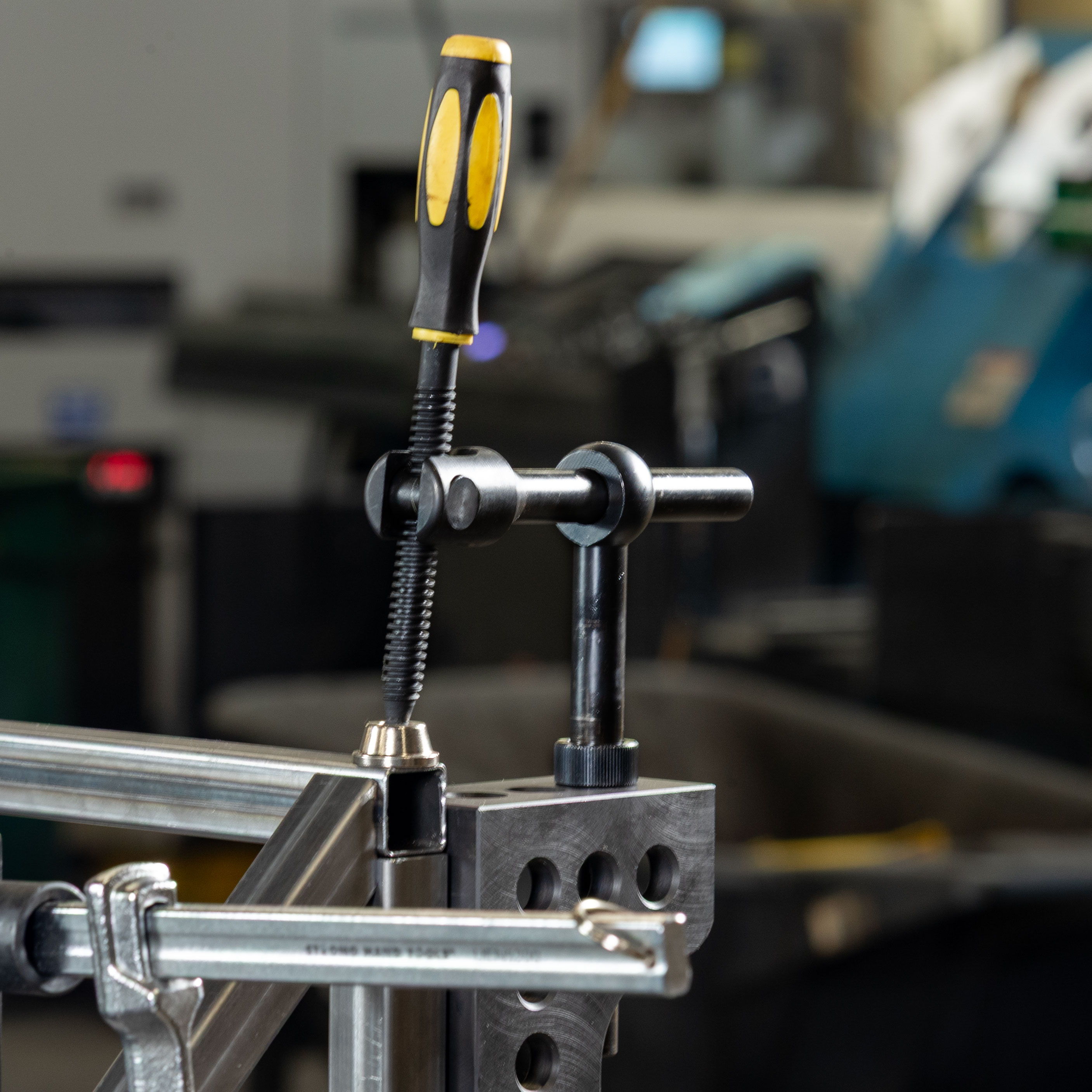

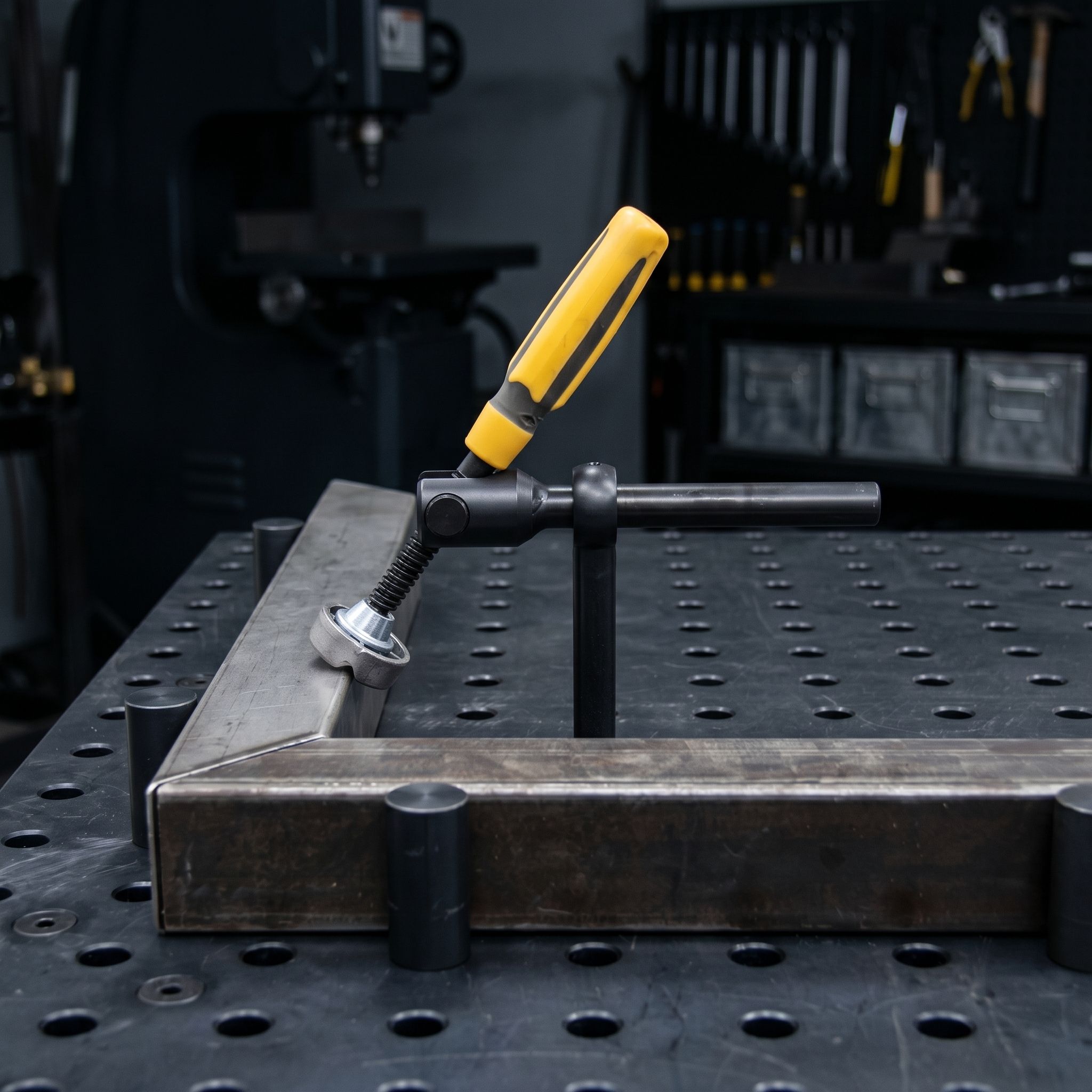

Angled Clamping

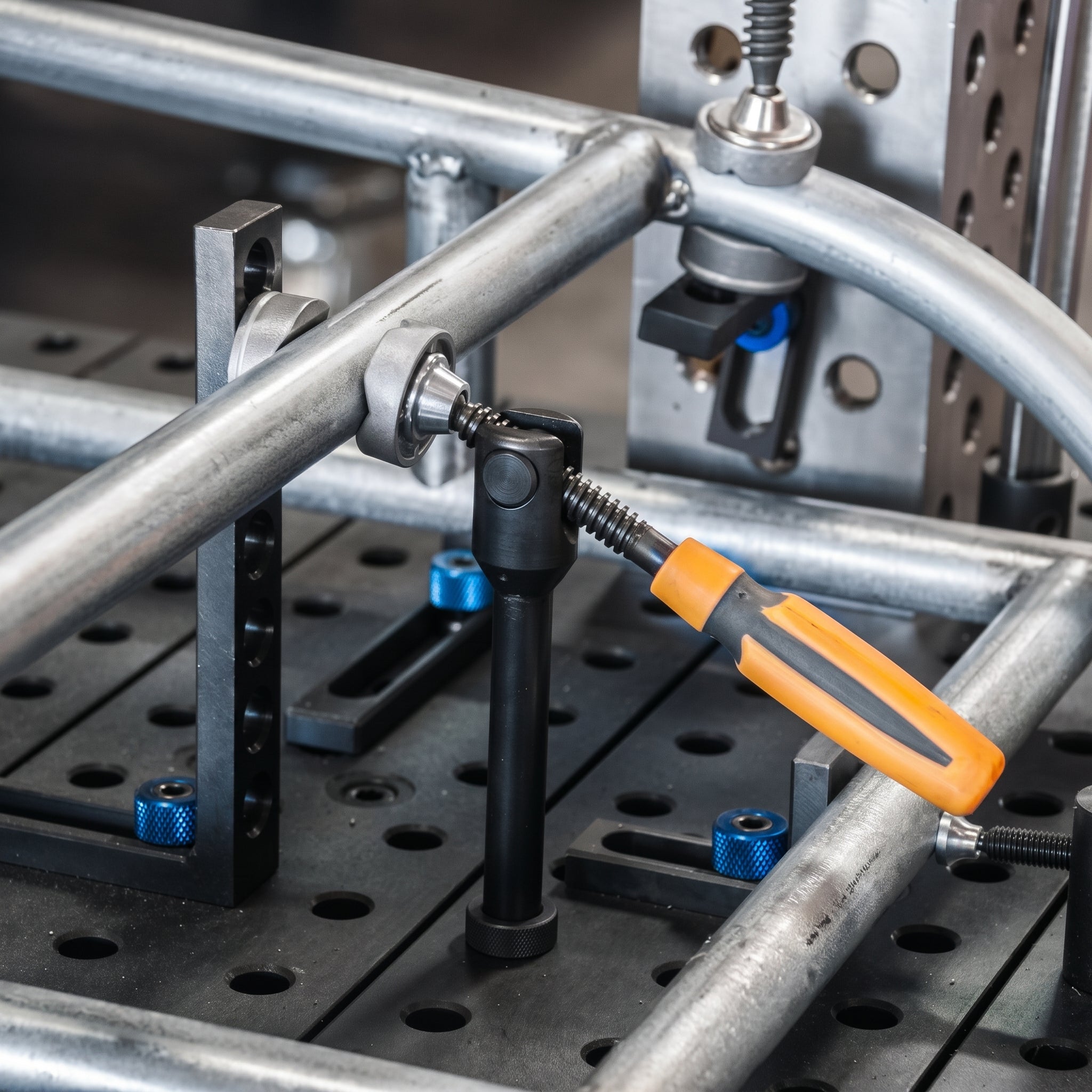

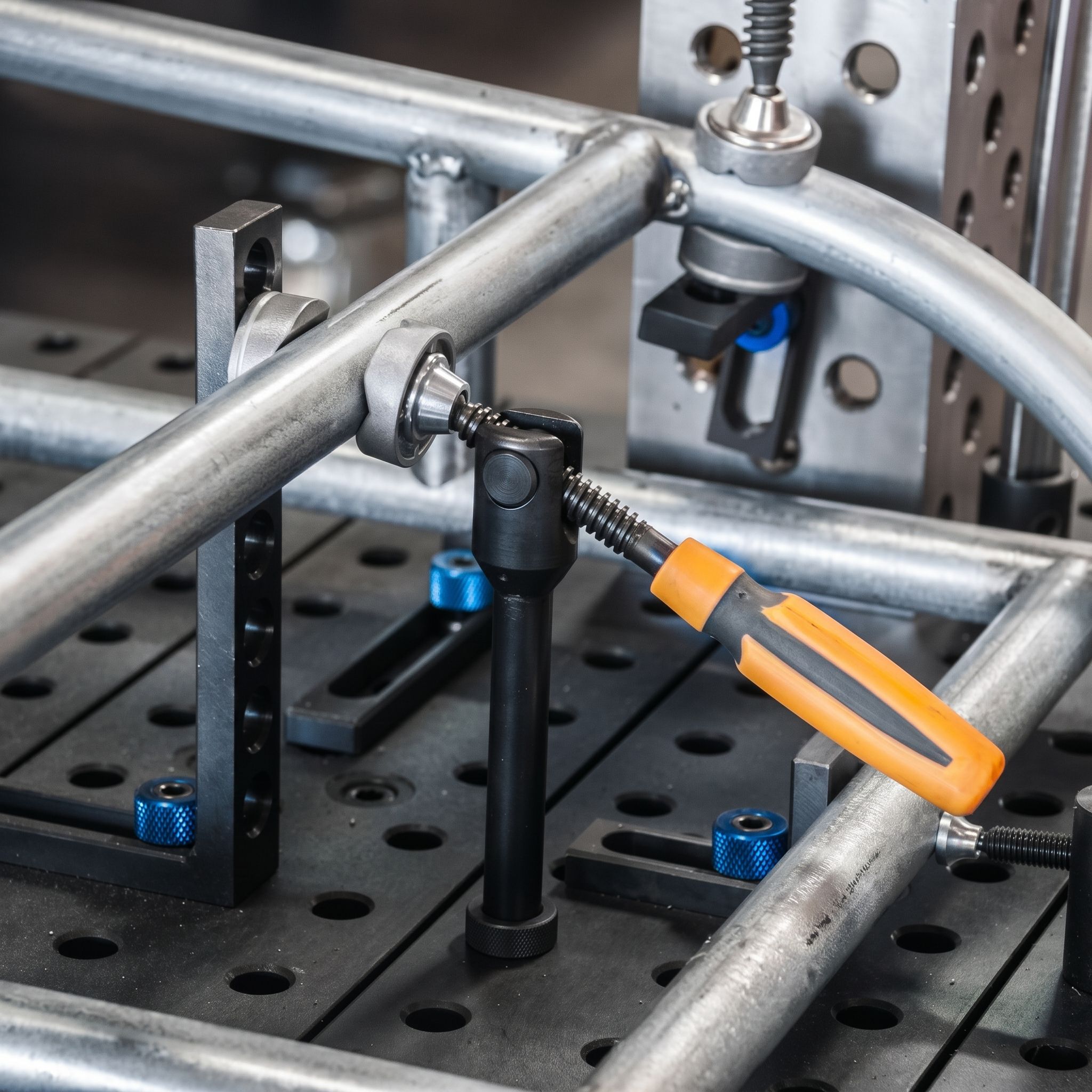

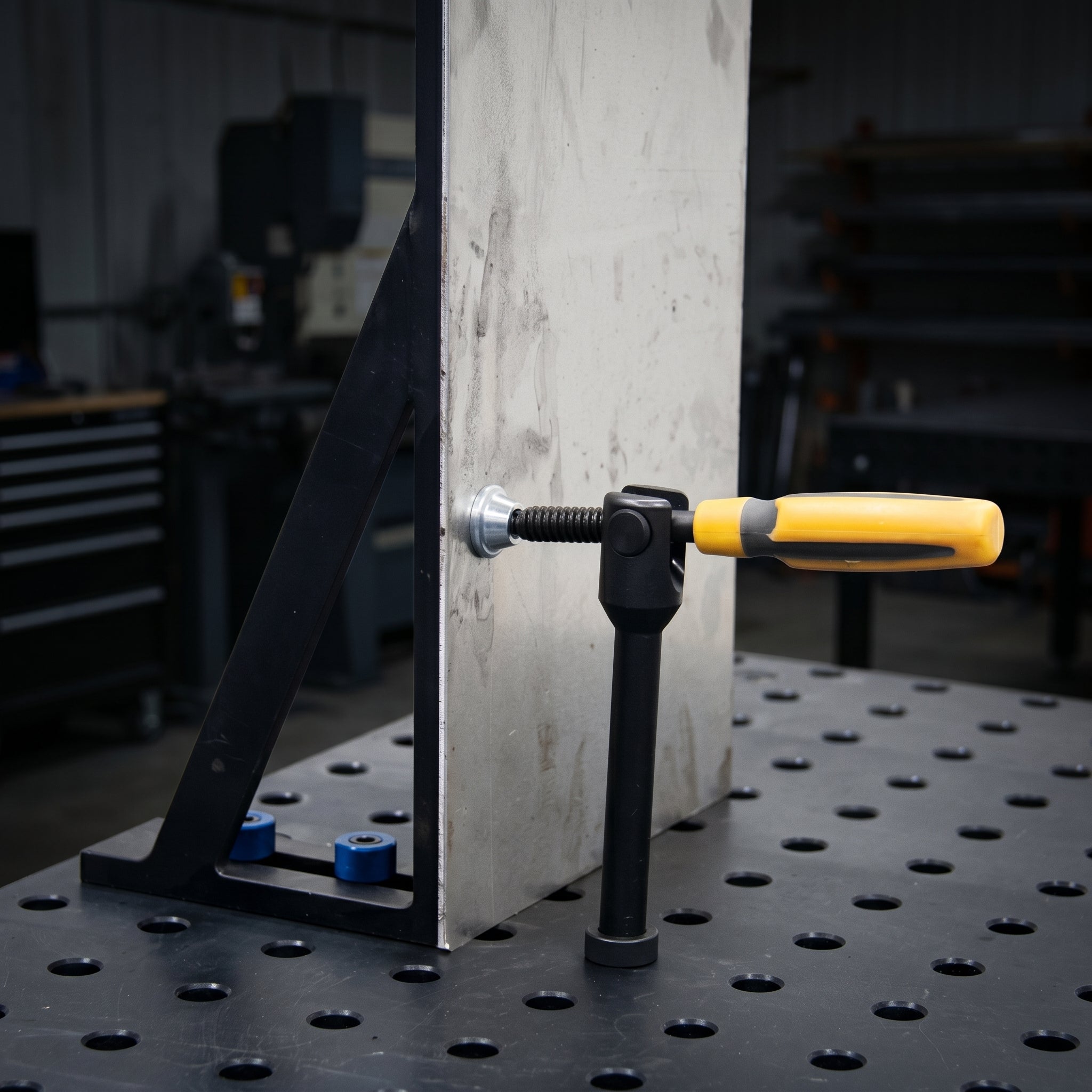

Horizontal Clamping

Remove the fixed Vertical Clamp arm and Pivoting Spindle from the clamp post, and place directly into the tabletop holes.

Standard Models - T51650 (Straight Handle) & T51655 (T-Handle)

Product Overview & Usage

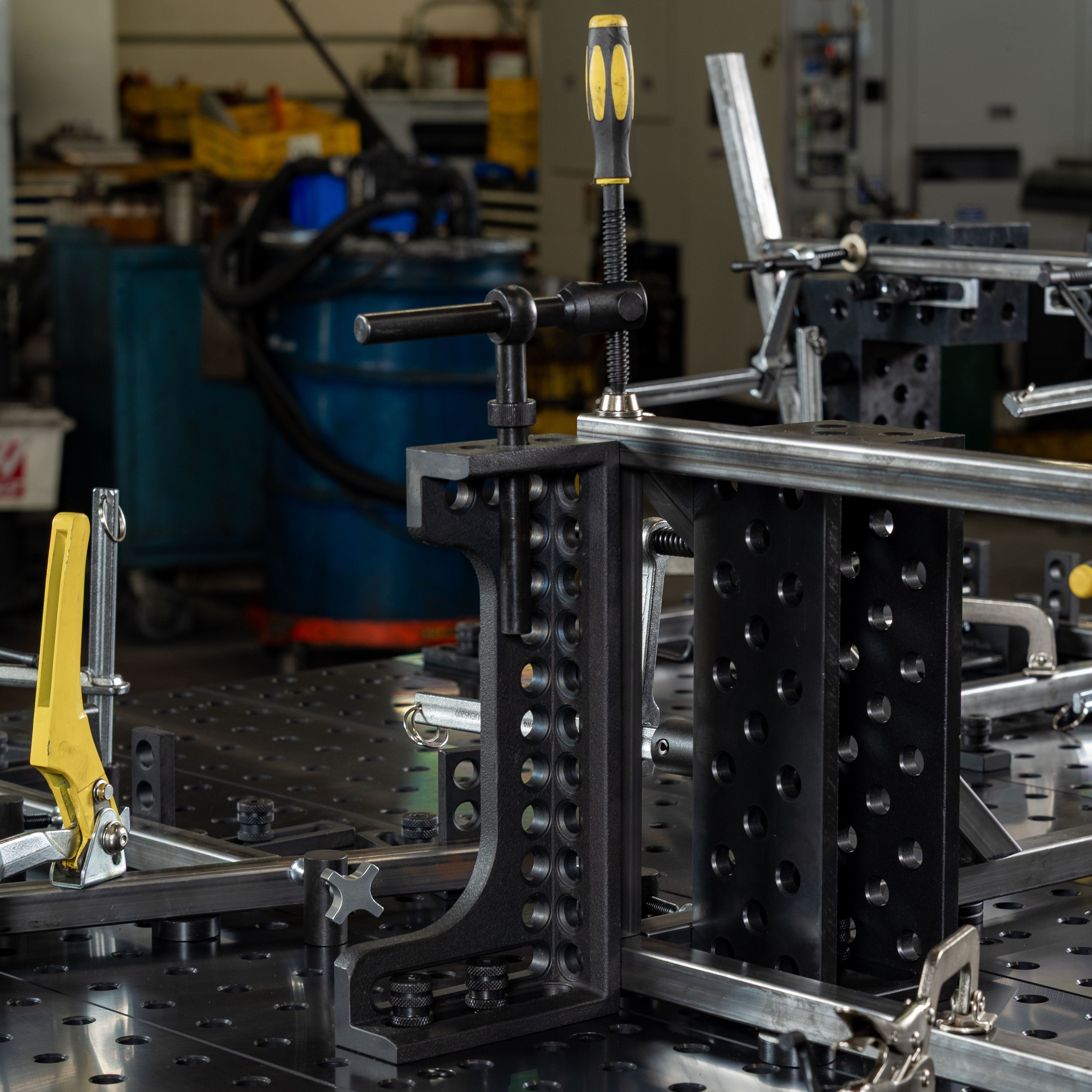

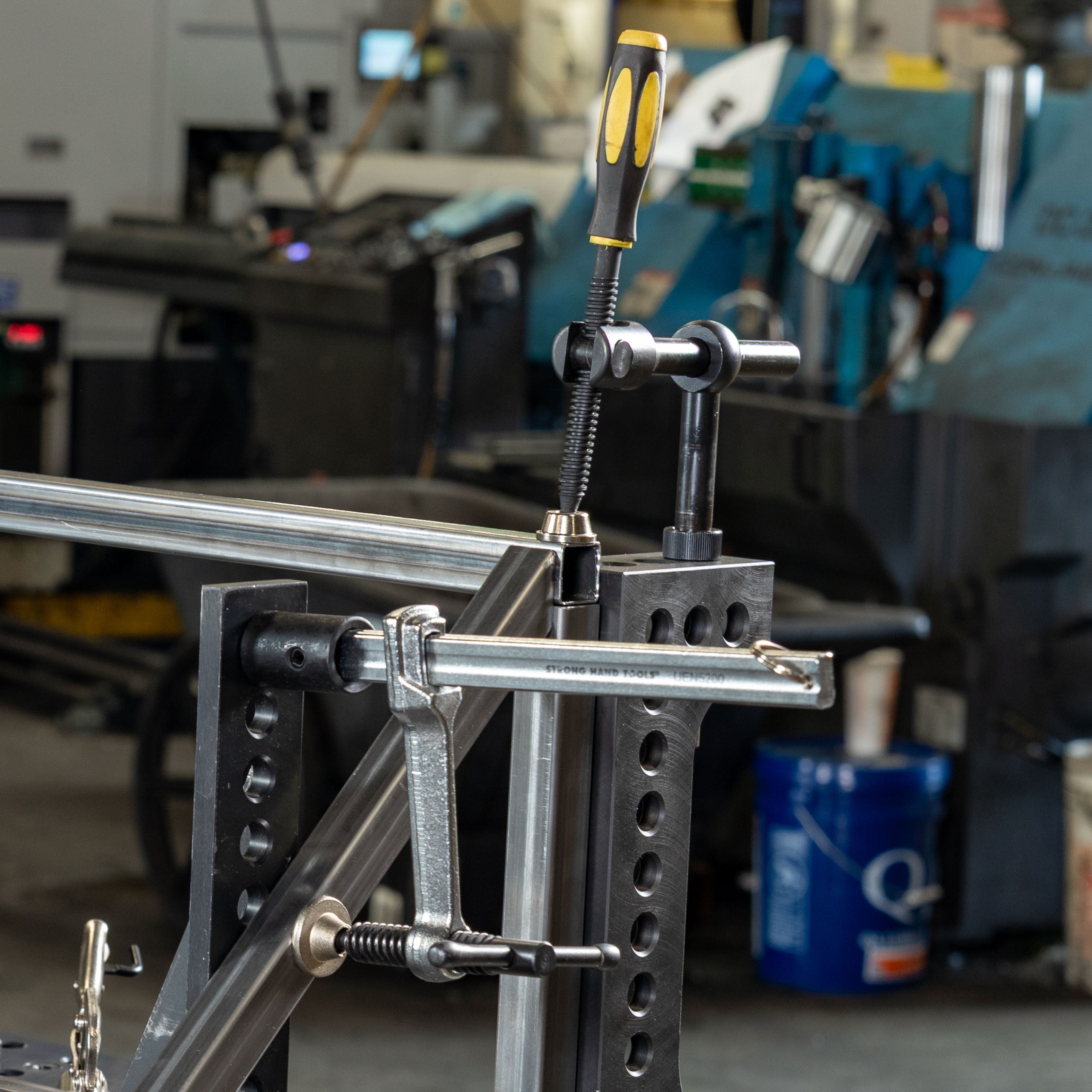

  • Application: Designed for vertical hold-down clamping on BuildPro Tabletops or Heavy Duty Riser Blocks.

  • Installation: Fits into any standard Ø5/8" (Ø16 mm) table hole.

  • Versatility: The pivoting/adjustable model applies angled clamping forces, allowing stock to be clamped both horizontally and vertically.

Key Features & Adjustments

  • Adjustable Arm: Slides the spindle smoothly to any desired pressure point for precise clamping locations.

  • Dual-Axis Adjustment: The clamp arm can be adjusted along either the vertical or horizontal axis to fit unique hold-down applications.

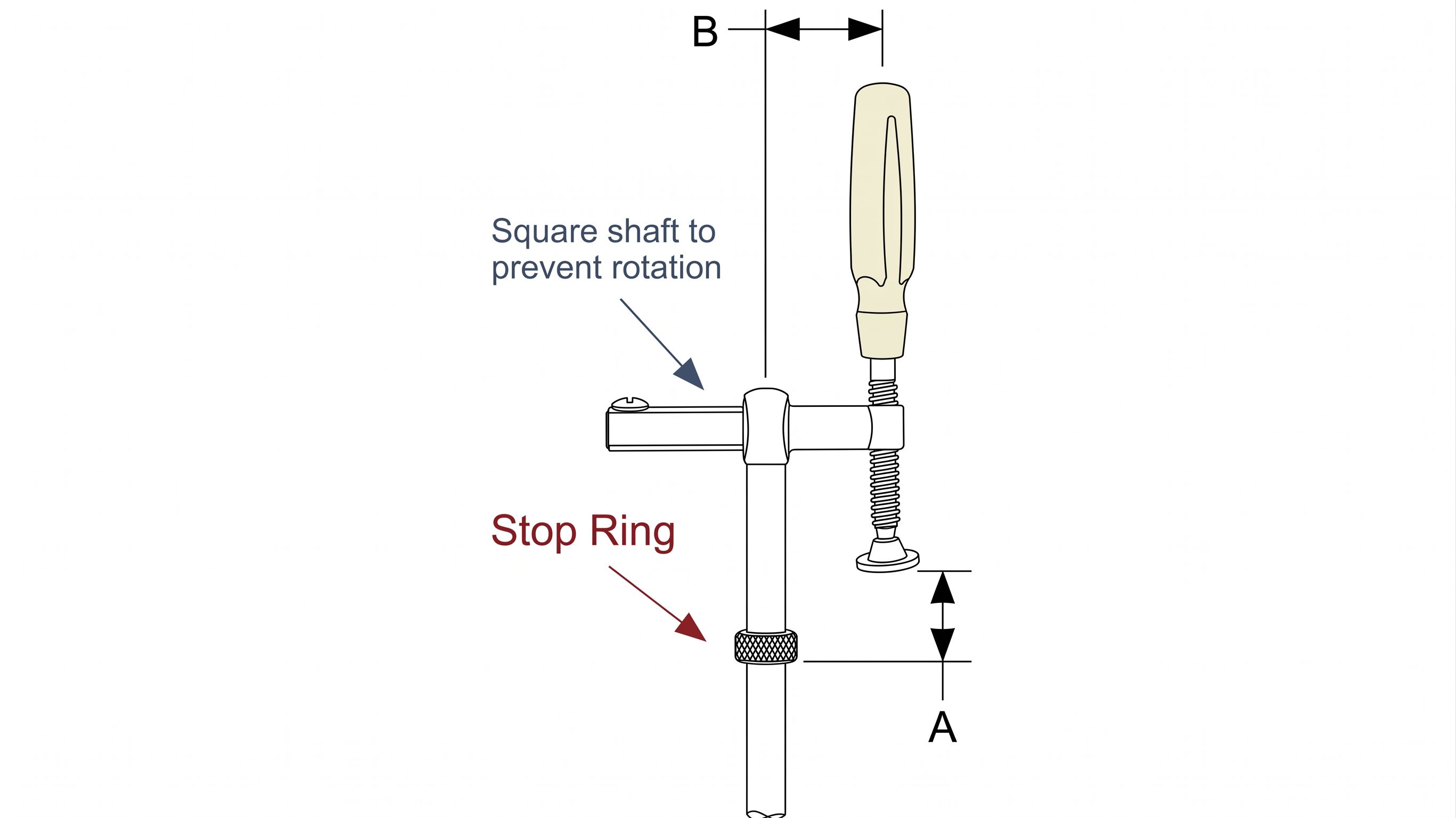

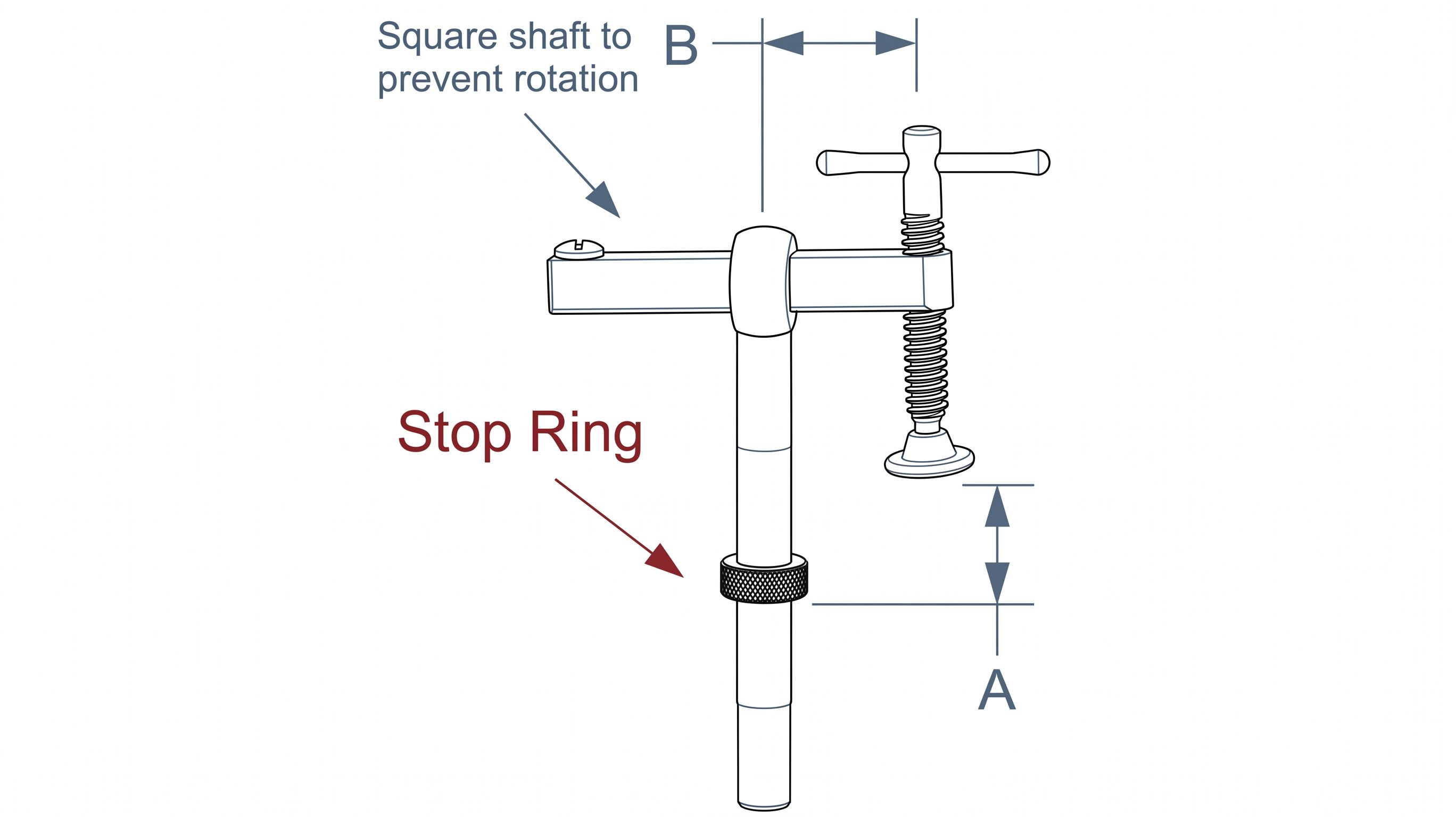

  • Anti-Rotation: Features a square shaft design to prevent unwanted arm rotation.

  • Height Control: Includes a Stop Ring that can be moved as needed to securely set and lock the height of the clamp.

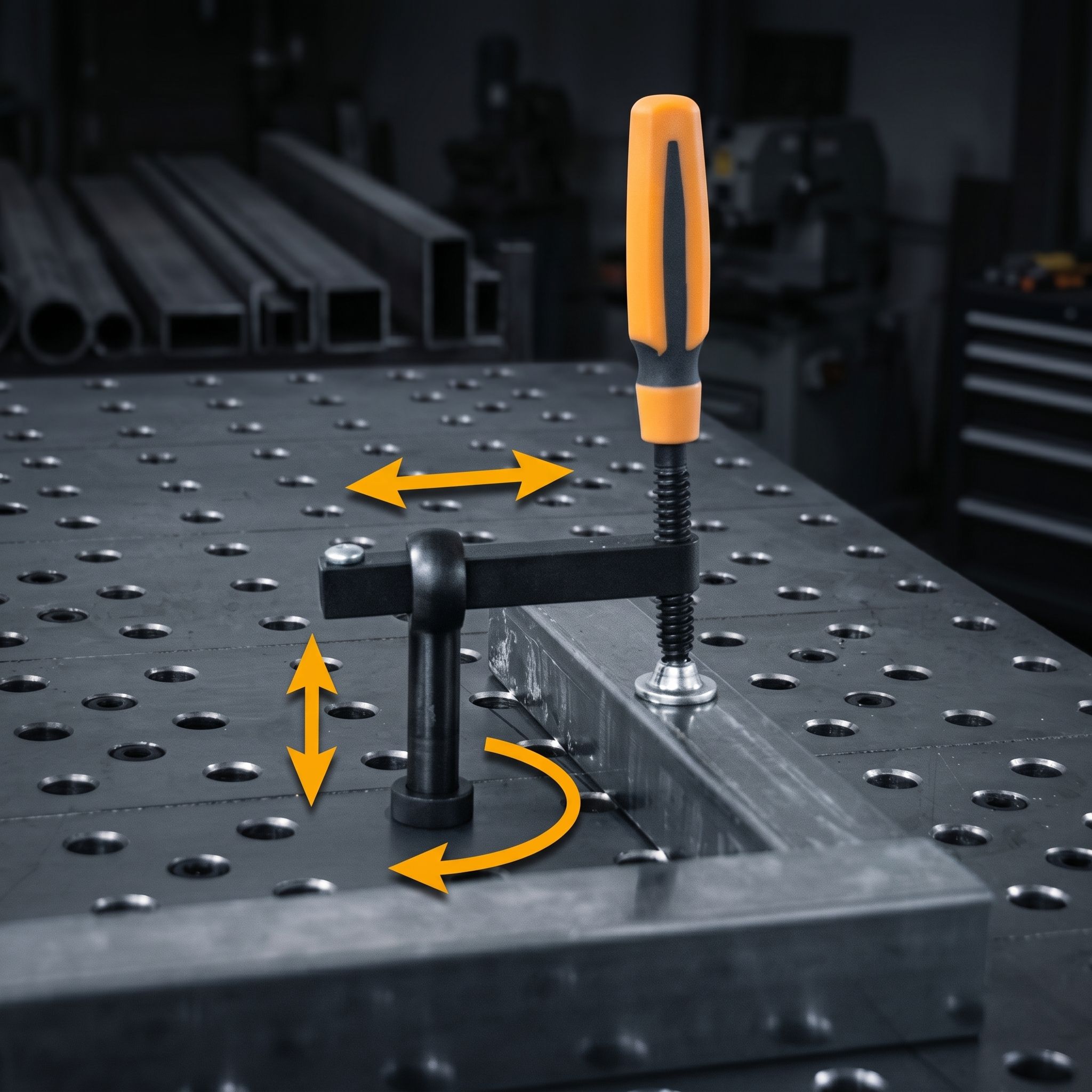

Adjustable arm provides precise clamping location by sliding the spindle to any desired pressure point.

Adjust the clamp arm along the vertical or horizontal axis for each unique hold down application.

Move the Stop Ring as needed to set the height of the clamp.

Compatible with all 5/8" system fixtures

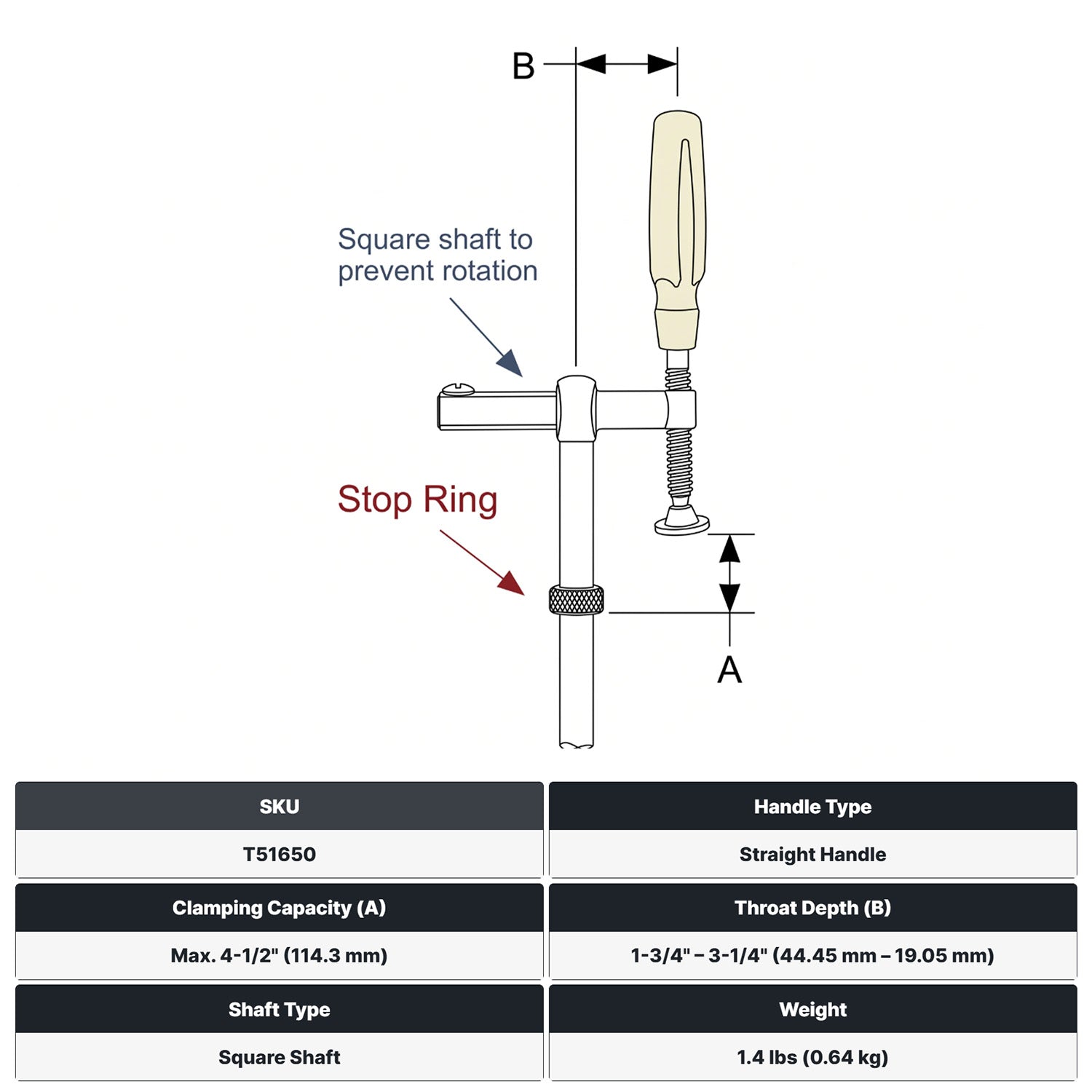

SKU
T51650
Handle Type
Straight Handle
Clamping Capacity (A)
Max. 4-1/2" (114.3 mm)
Throat Depth (B)
Min: 1-3/4" โ€“ Max: 3-1/4" (44.45 mm โ€“ 19.05 mm)
Shaft Type
Square Shaft
Weight
1.4 lbs (0.64 kg)

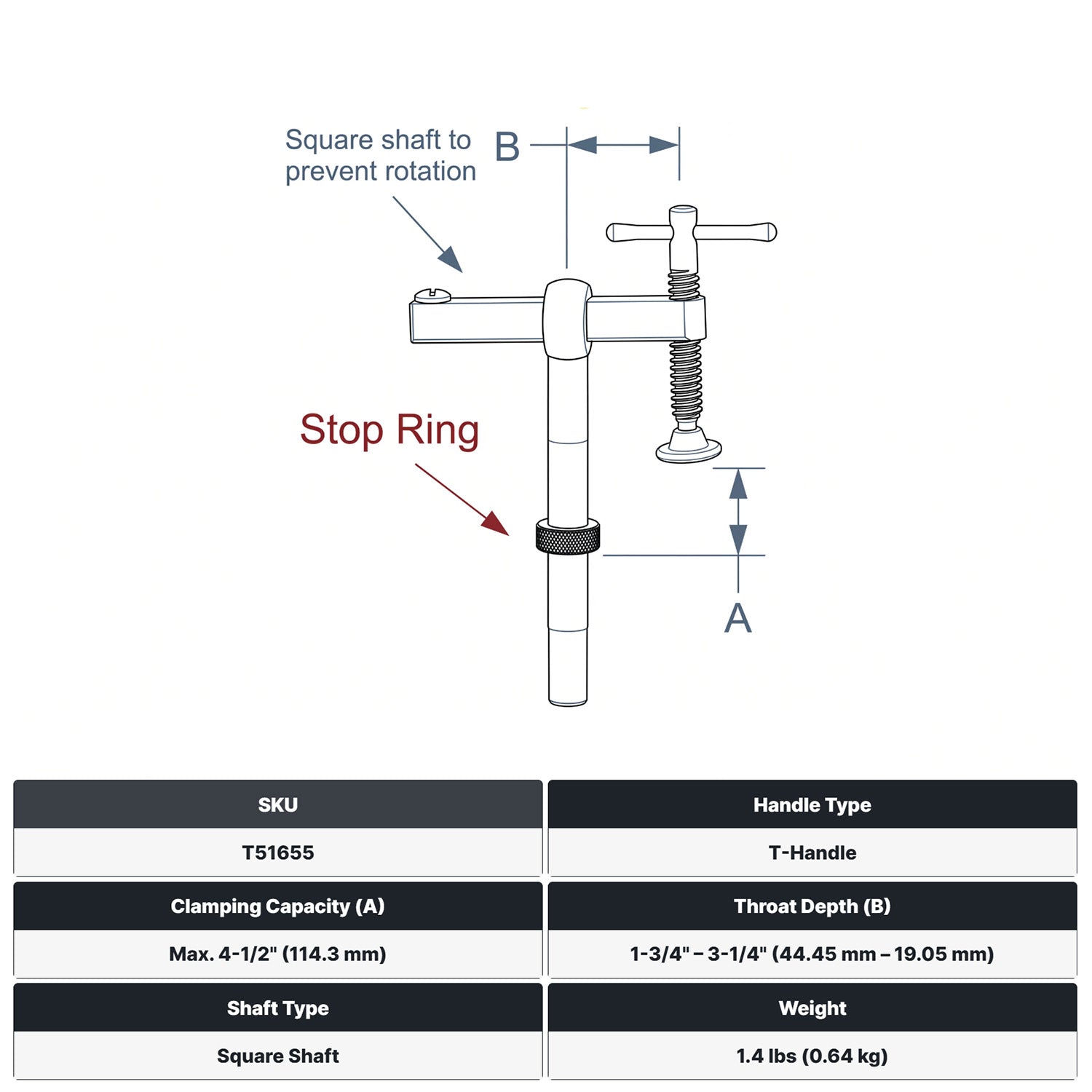

SKU
T51655
Handle Type
T-Handle
Clamping Capacity (A)
Max. 4-1/2" (114.3 mm)
Throat Depth (B)
Min: 1-3/4" โ€“ Max: 3-1/4" (44.45 mm โ€“ 19.05 mm)
Shaft Type
Square Shaft
Weight
1.4 lbs (0.64 kg)

Optional Accessories

Sold out

Sold out

If you need some documents but not able to find them here, please fill out the form below. Our engineering team will get back to you shortly.

Downloads

Spec Drawing

Manual

CAD

T51650 - STEP

T51655 - STEP

T51670 - STEP
