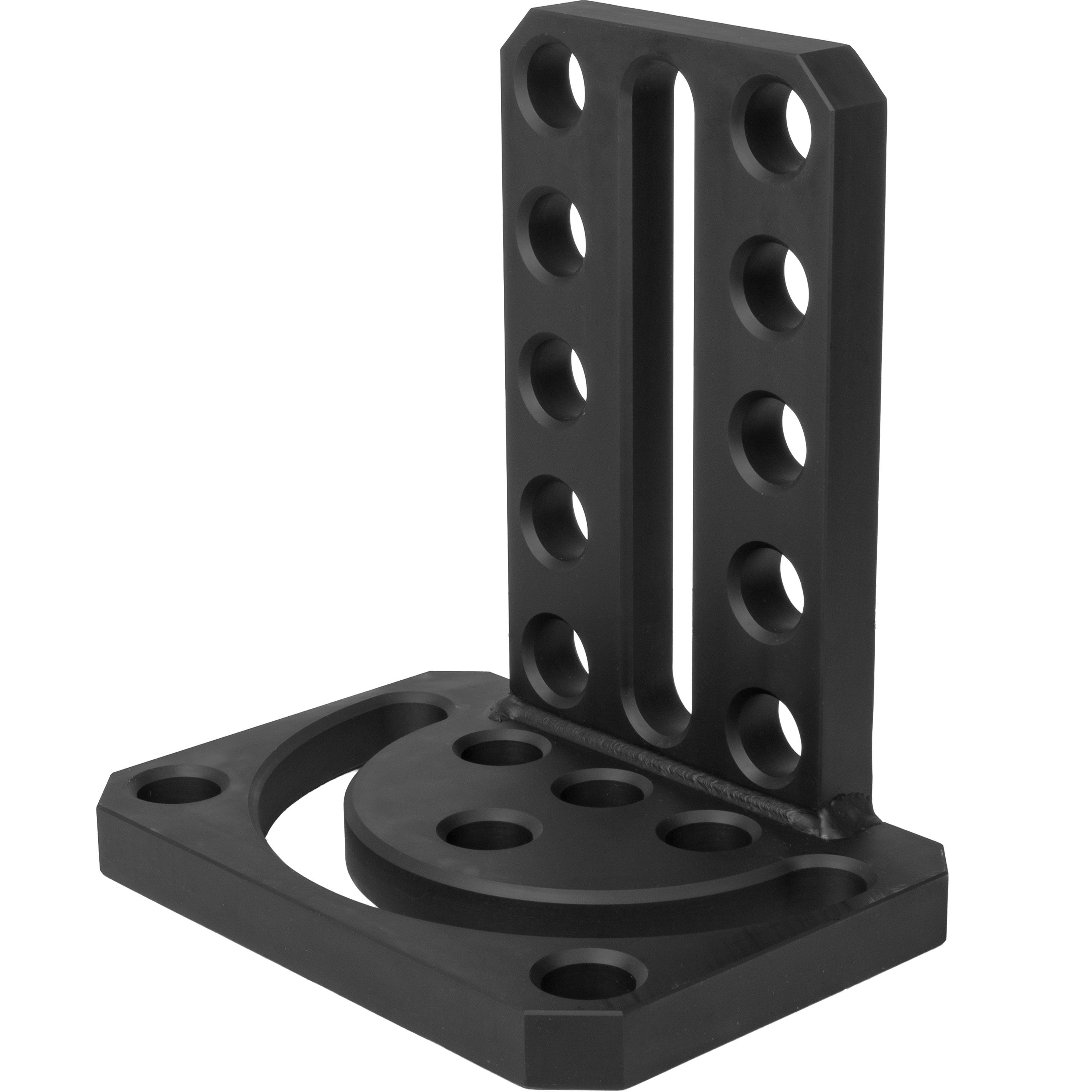

Rotation Angle Square, 28 mm

SKU: T28-32810

$203.00
Shipping calculated at checkout.

28mm

Hole Diameter

50mm

Hole Spacing

Nitrided Steel

Material

Rotation

180°

Save to wishlist
  • Eligible for Return Within 30 Days.
  • One Year Limited Warranty
  • Estimated delivery: Oct 23 - Oct 27

Rotation Angle Square T28 System

  • Designed fast clamping bolts to work with 28 mm tables
  • Rotation Angle allows for infinite clamping angles for those hard to reach spots

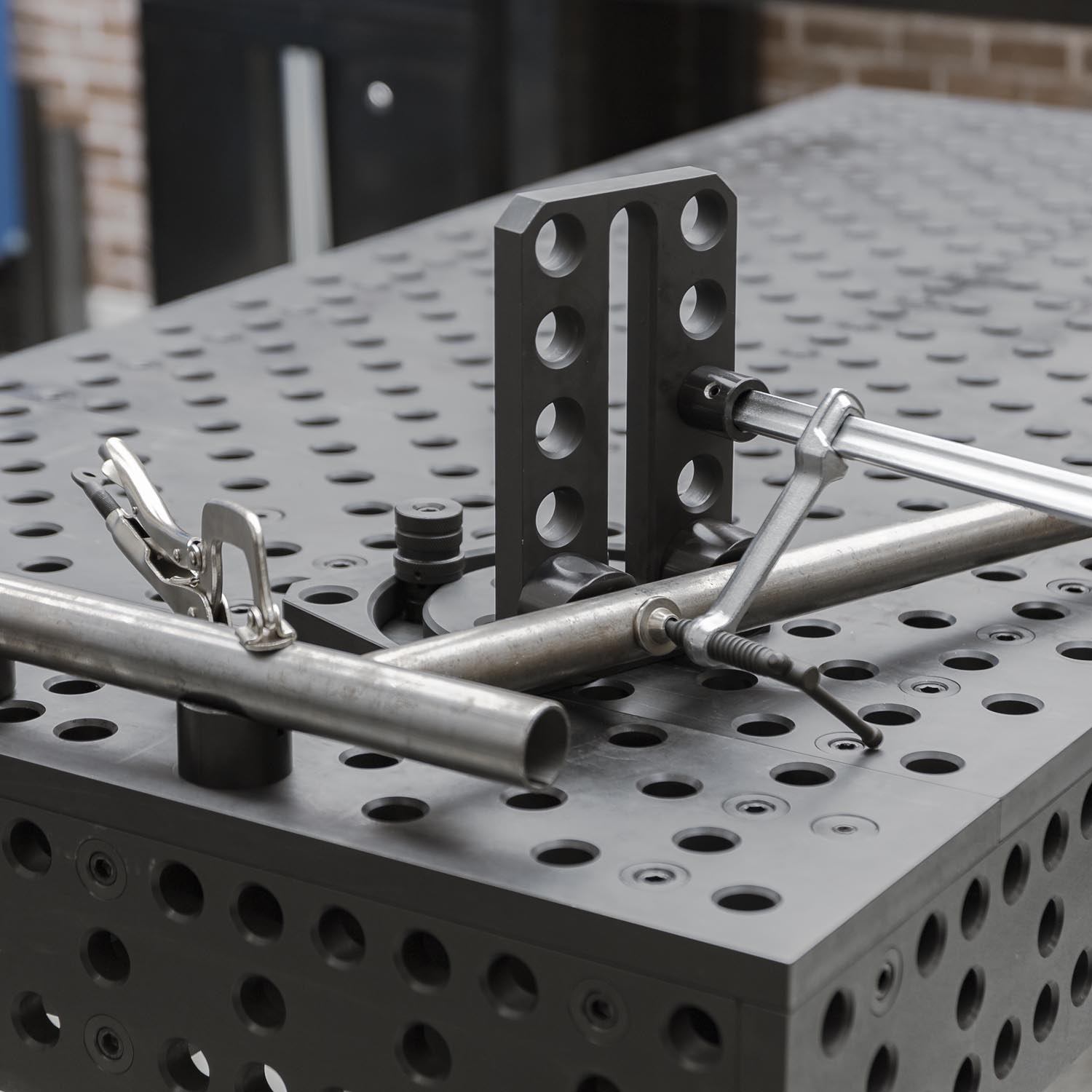

  • It can be used in several different configurations and applications as shown in the pictures

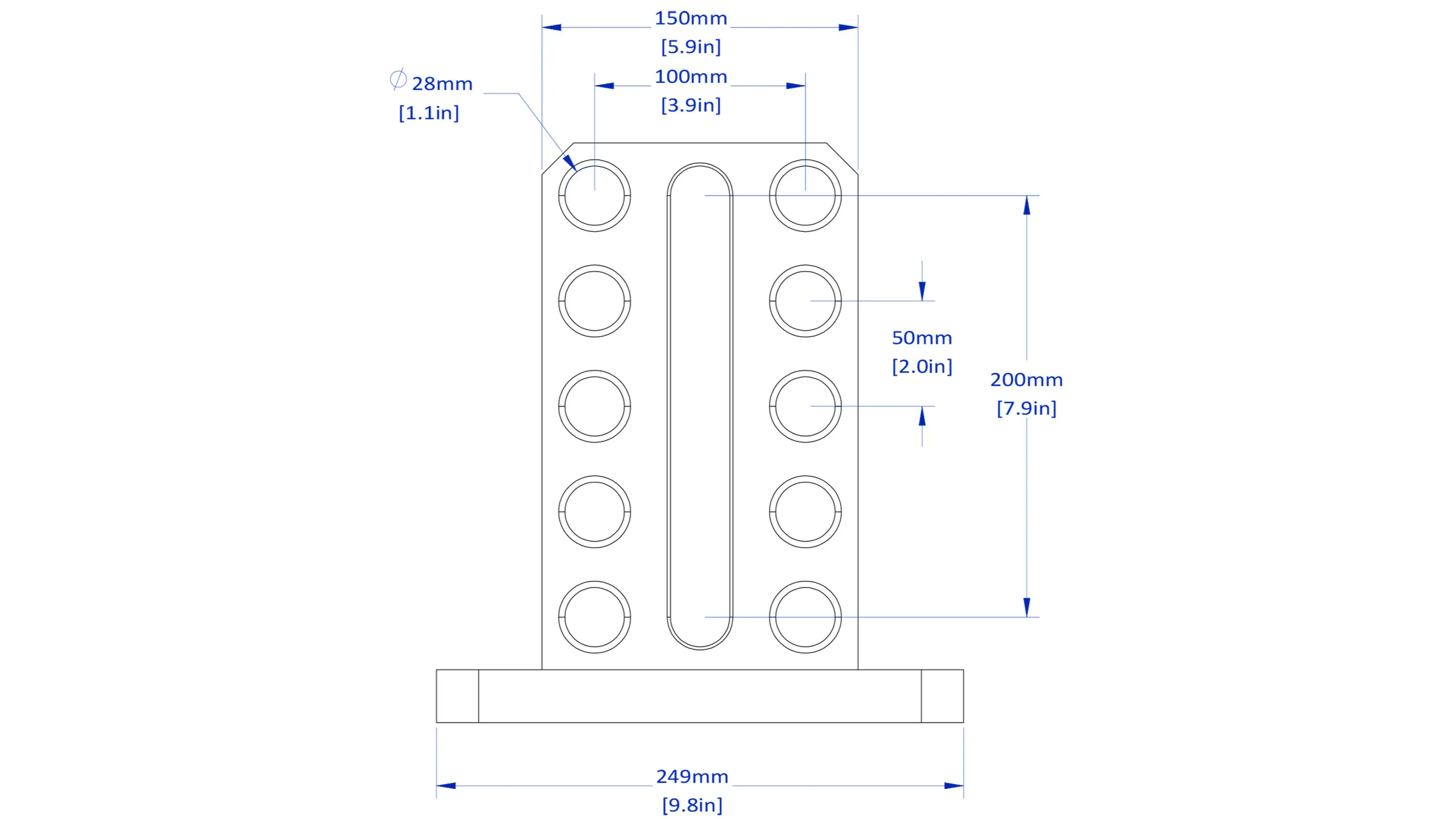

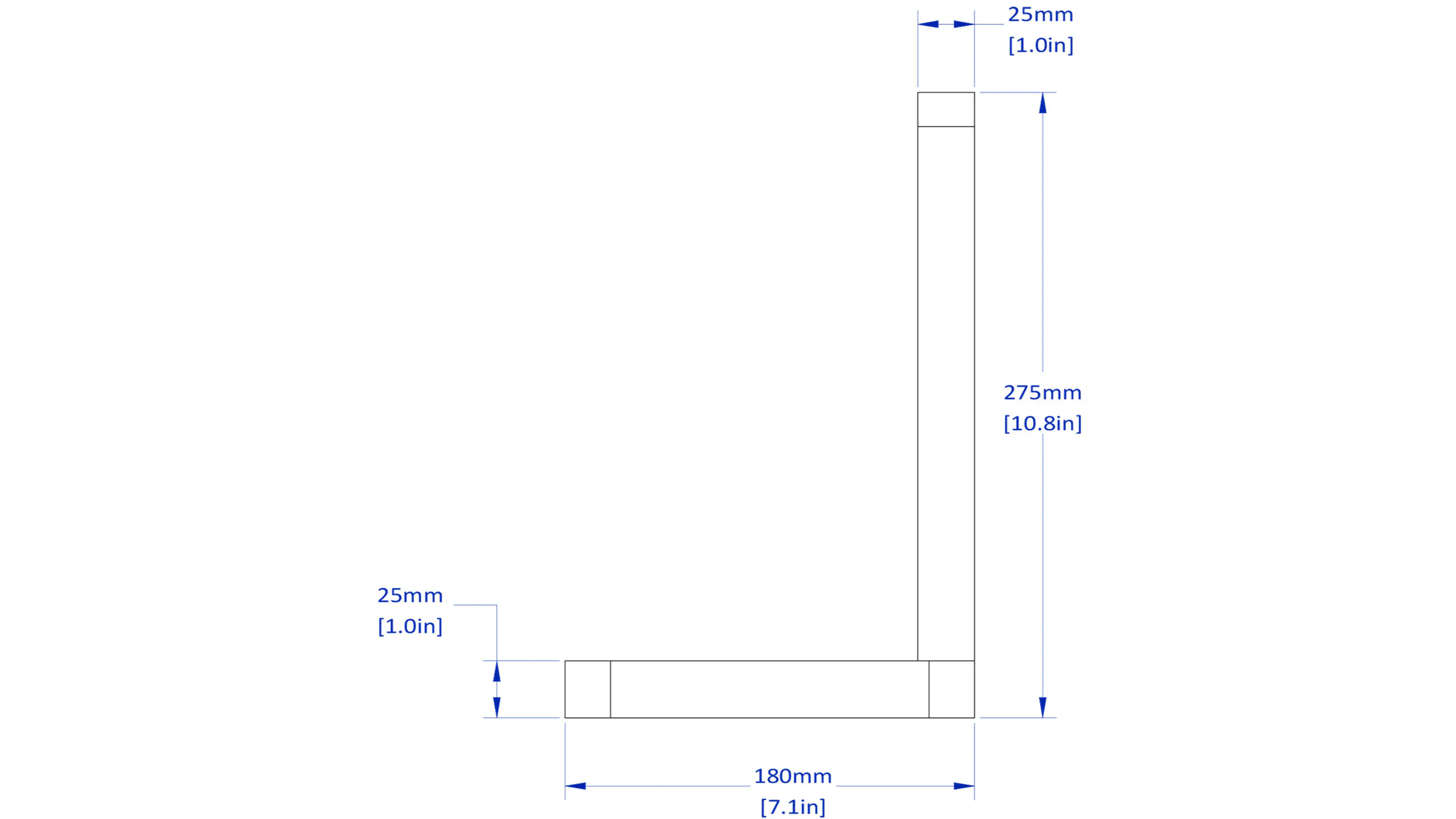

  • Designed for 28 mm diameter holes on a 50 mm grid spacing and 25 mm fixture and table thickness.
  • The material is 1045 steel.

Multi-Functional Use

The Angle of Rotation allows the infinitely variable adjustment of clamping elements with system boreholes at an angle range of 180°.

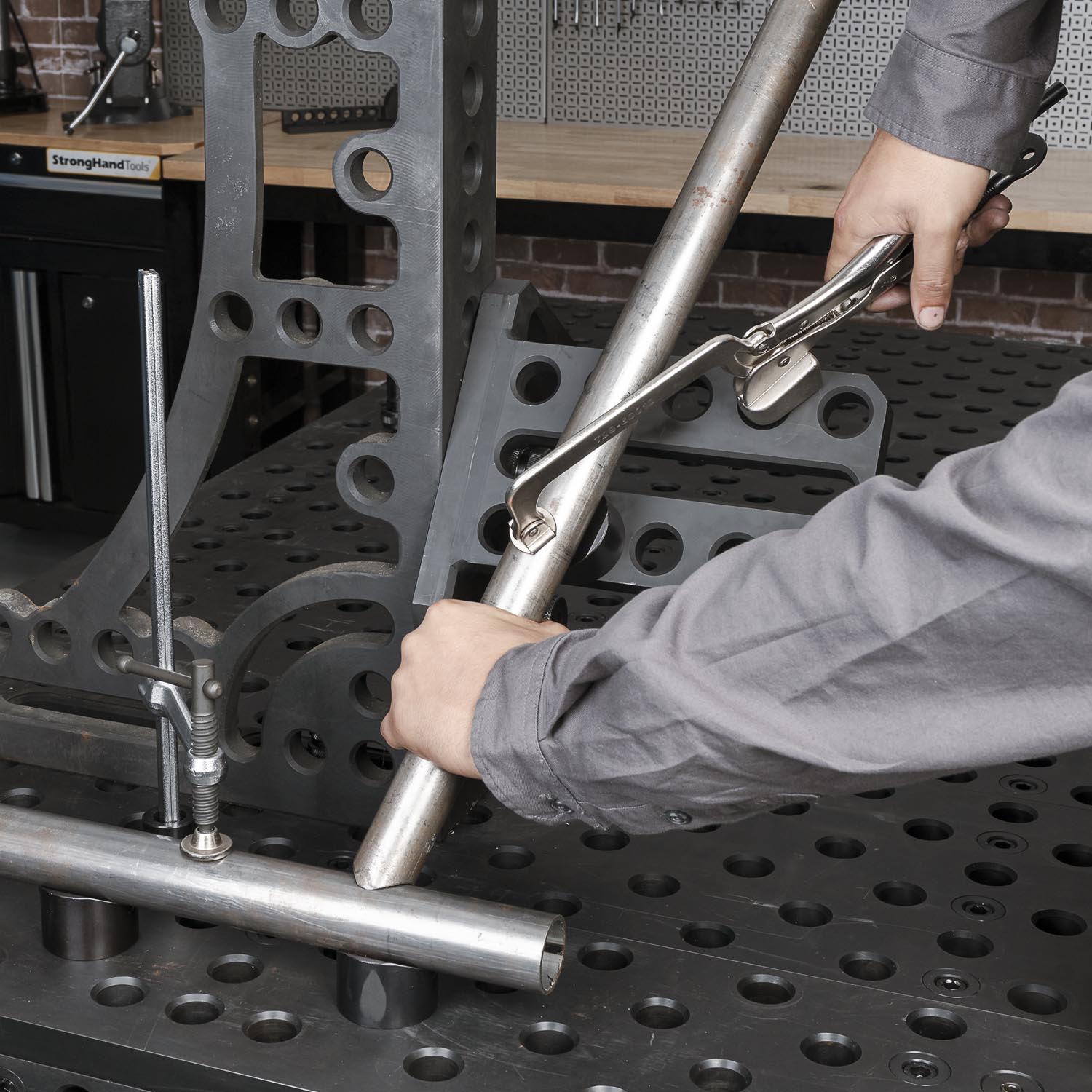

Person using a tool on a metal work surface with holes.

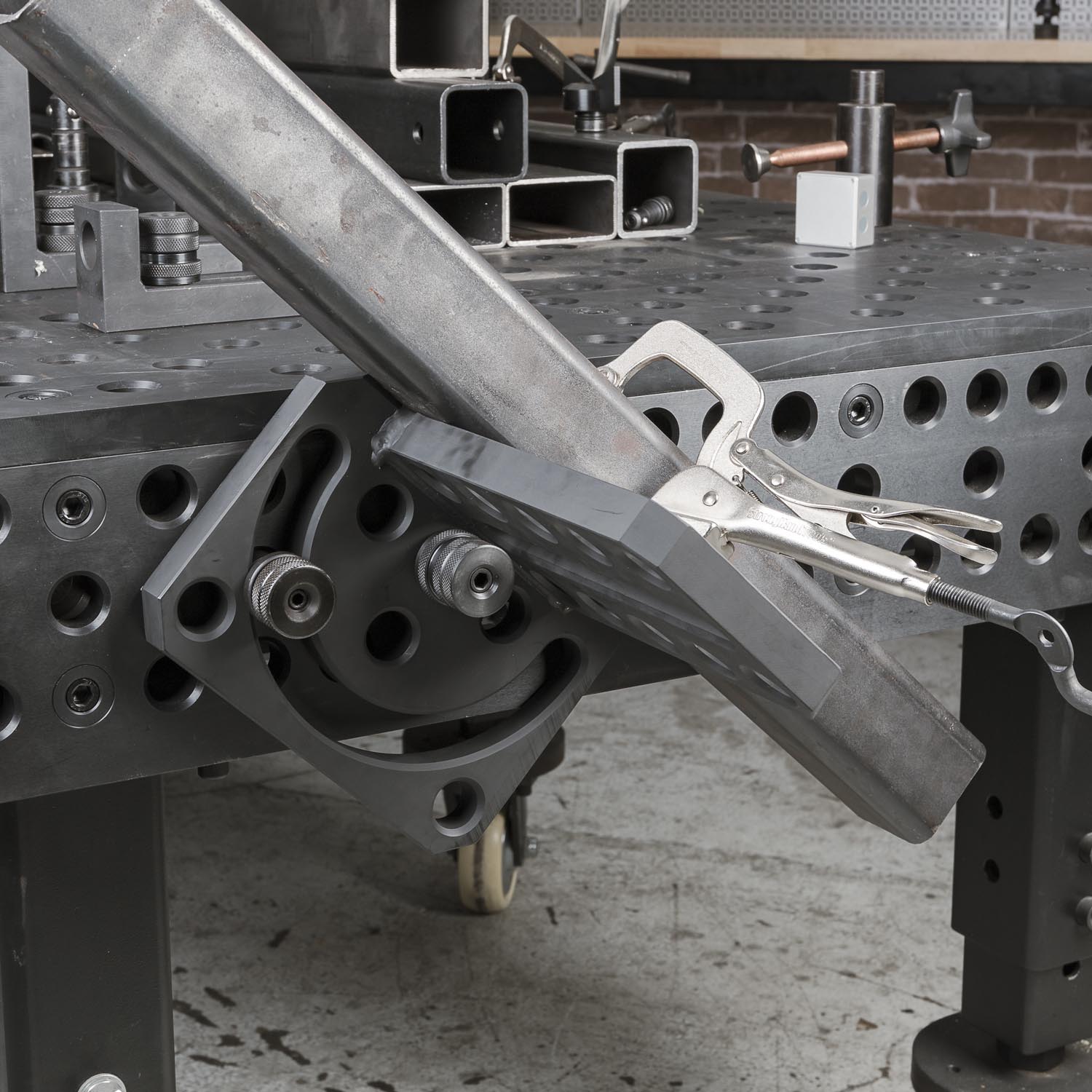

Metalworking tool mounted on a workbench with various attachments and fixtures.
Hole Diameter:
28 mm
Grid Pattern:
50 mm
Angle Rotation:
180°
Material (Finish)
1045 Steel (Nitrided)
