Fastens using four clamping bolts
Lifting Brackets, 28 mm
Lifting Brackets, 28 mm
Regular price
$93 USD
Sale price
$93 USD
Regular price
Shipping calculated at checkout.
Available in stock
Designed for the safe and efficient handling of heavy components, our Lifting Brackets provide a reliable lifting solution for 28 mm tables and similar equipment. Two models are available to meet a range of lifting needs:

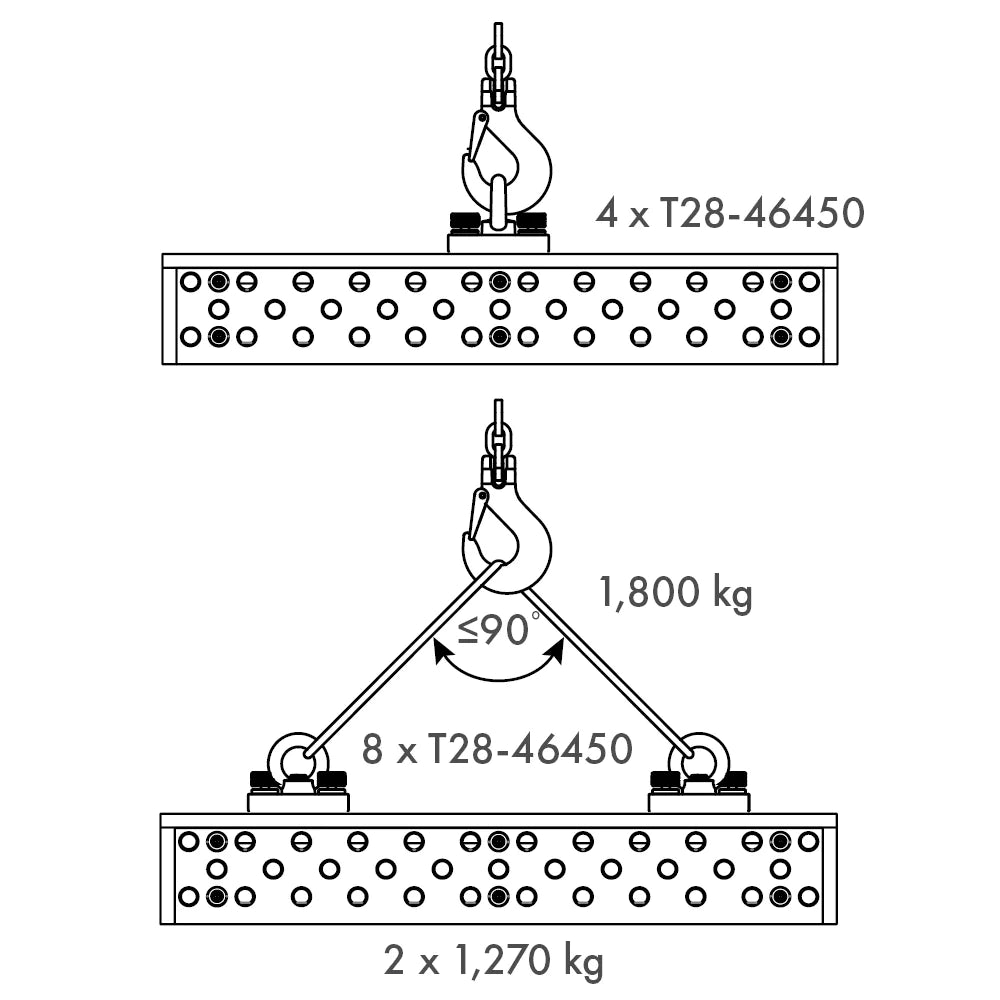

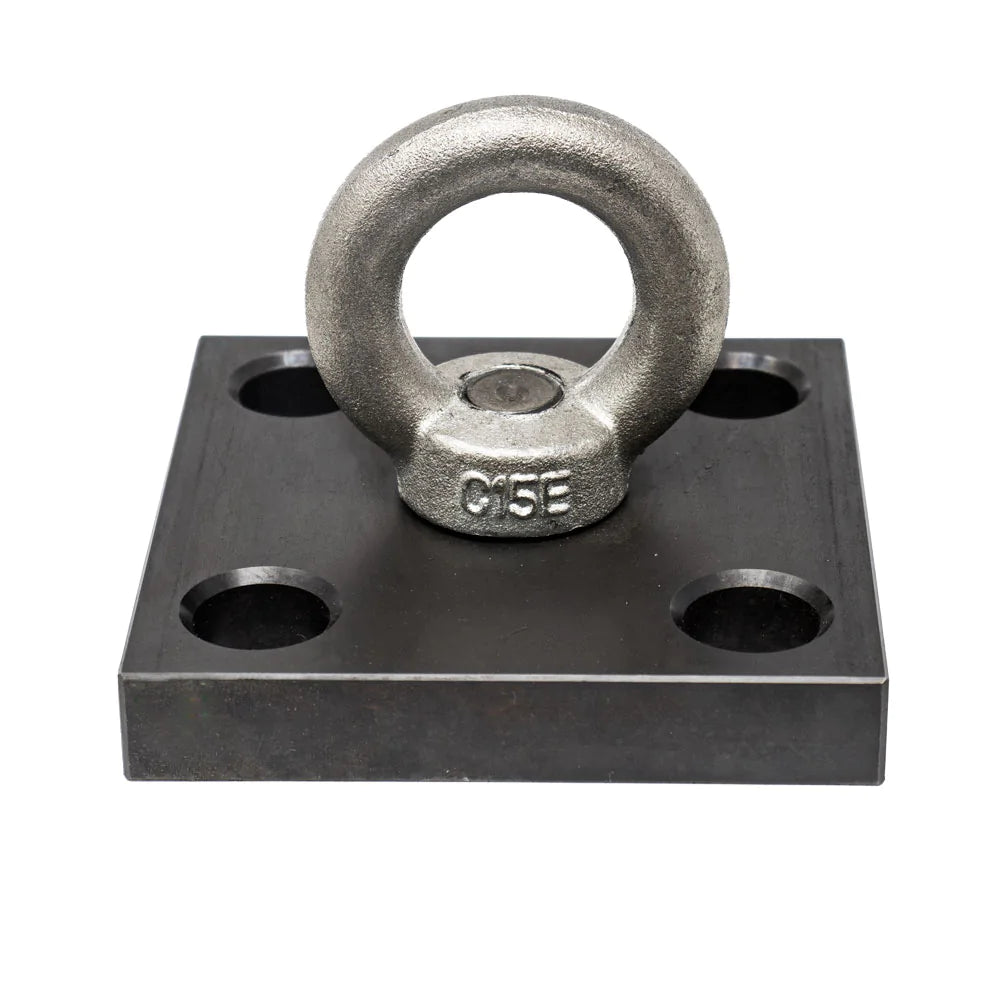

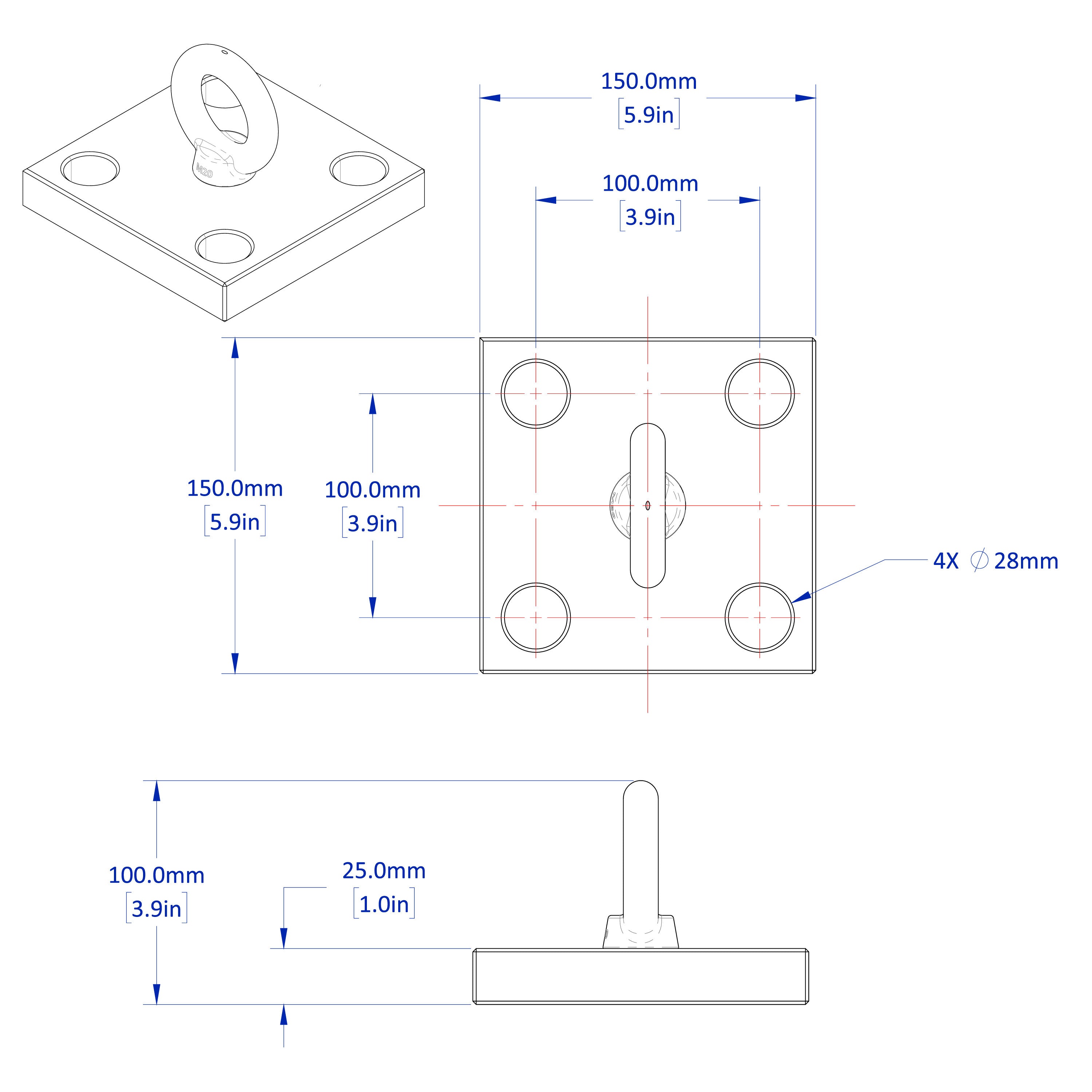

1. Lifting Bracket w/ Eye Nut (T28-97150)
- Load Capacity: Rated up to 1,800 kg for secure lifting.
- Quick Installation: Fastens using four clamping bolts (T28-46450).
- Purpose: Ideal for stable vertical lifts; lateral forces must be avoided on the eye nut to maintain load capacity.
- Safety Note: Ensure eye nut is fully threaded and seated flat on the bracket. Clamping bolts must be fully seated to achieve proper clamping force.

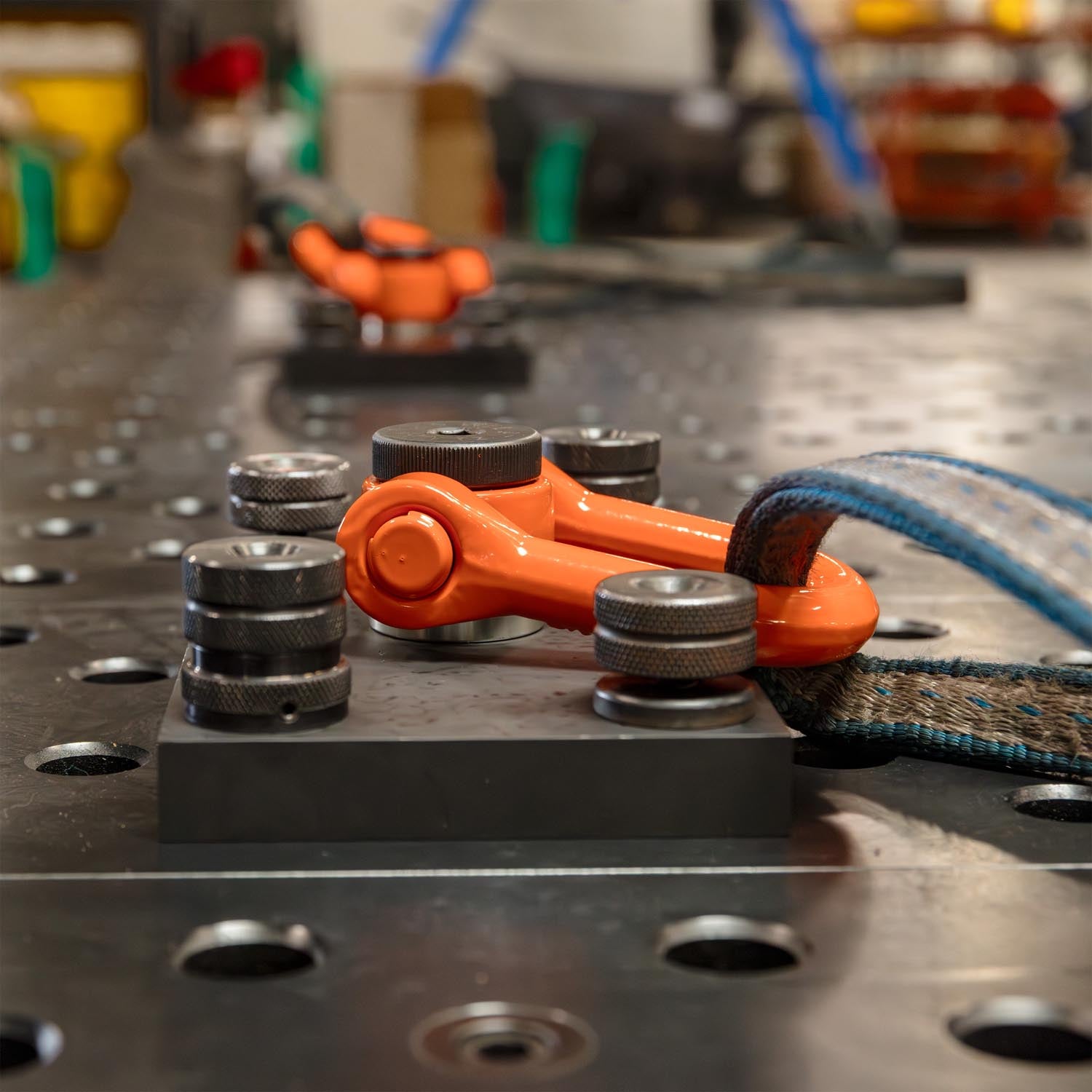

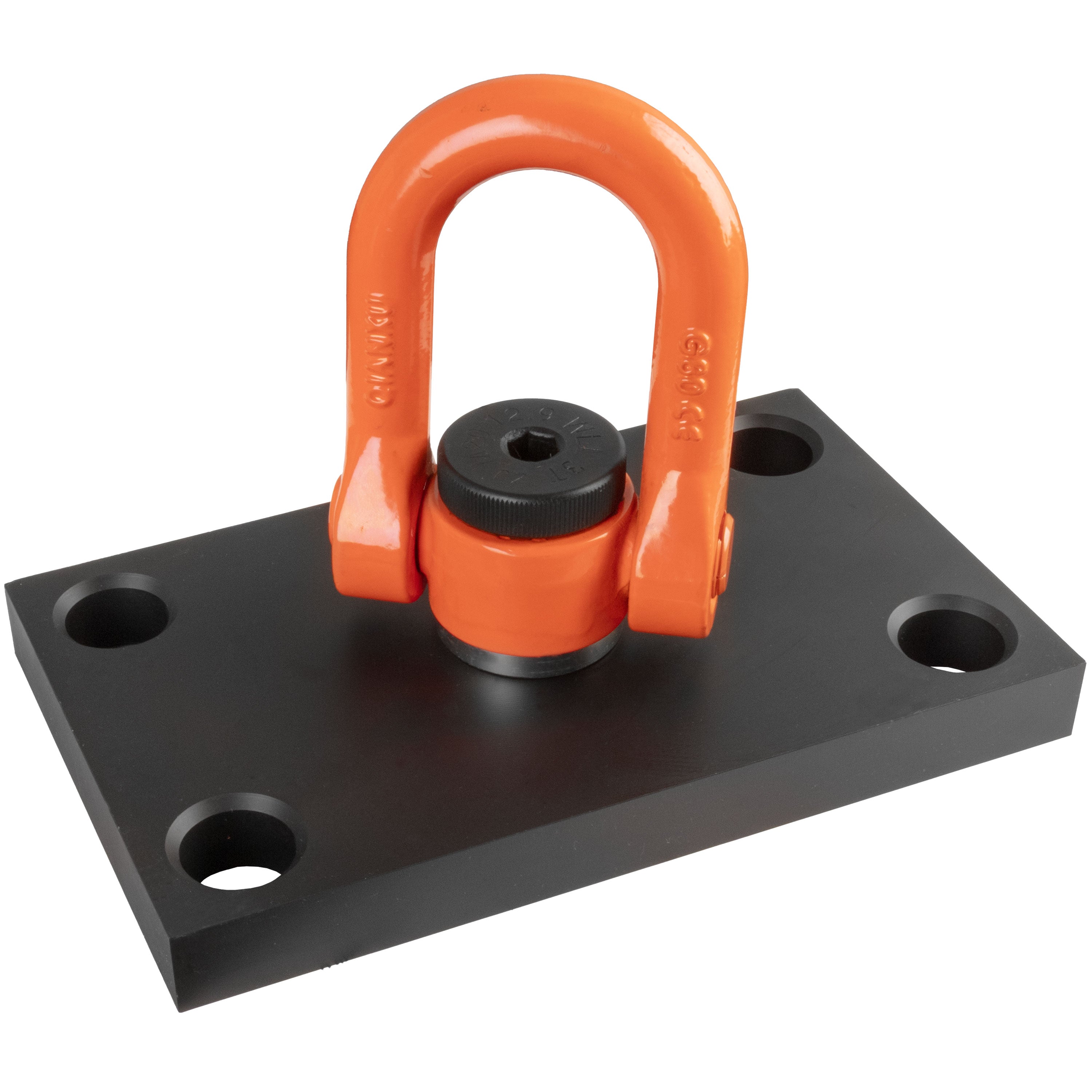

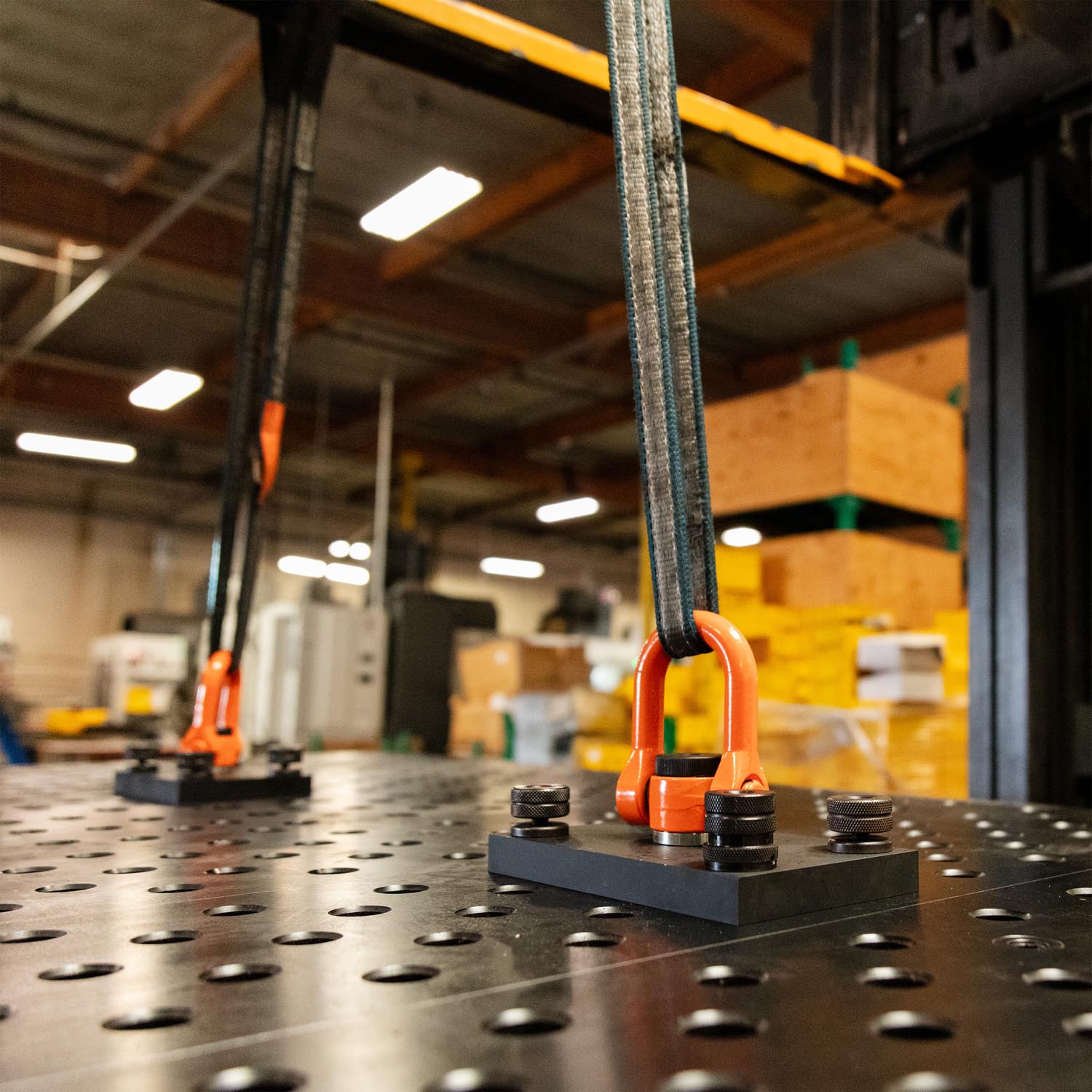

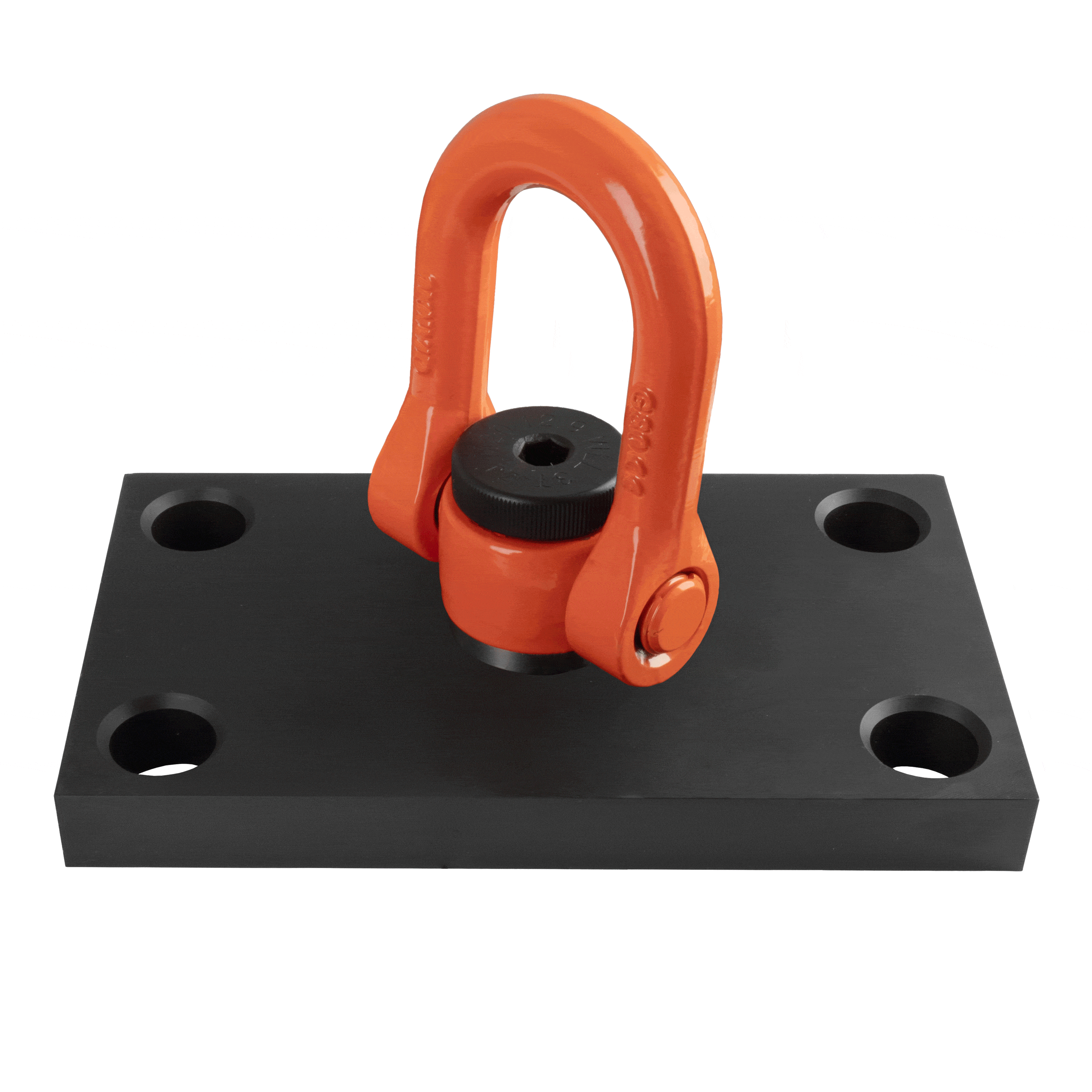

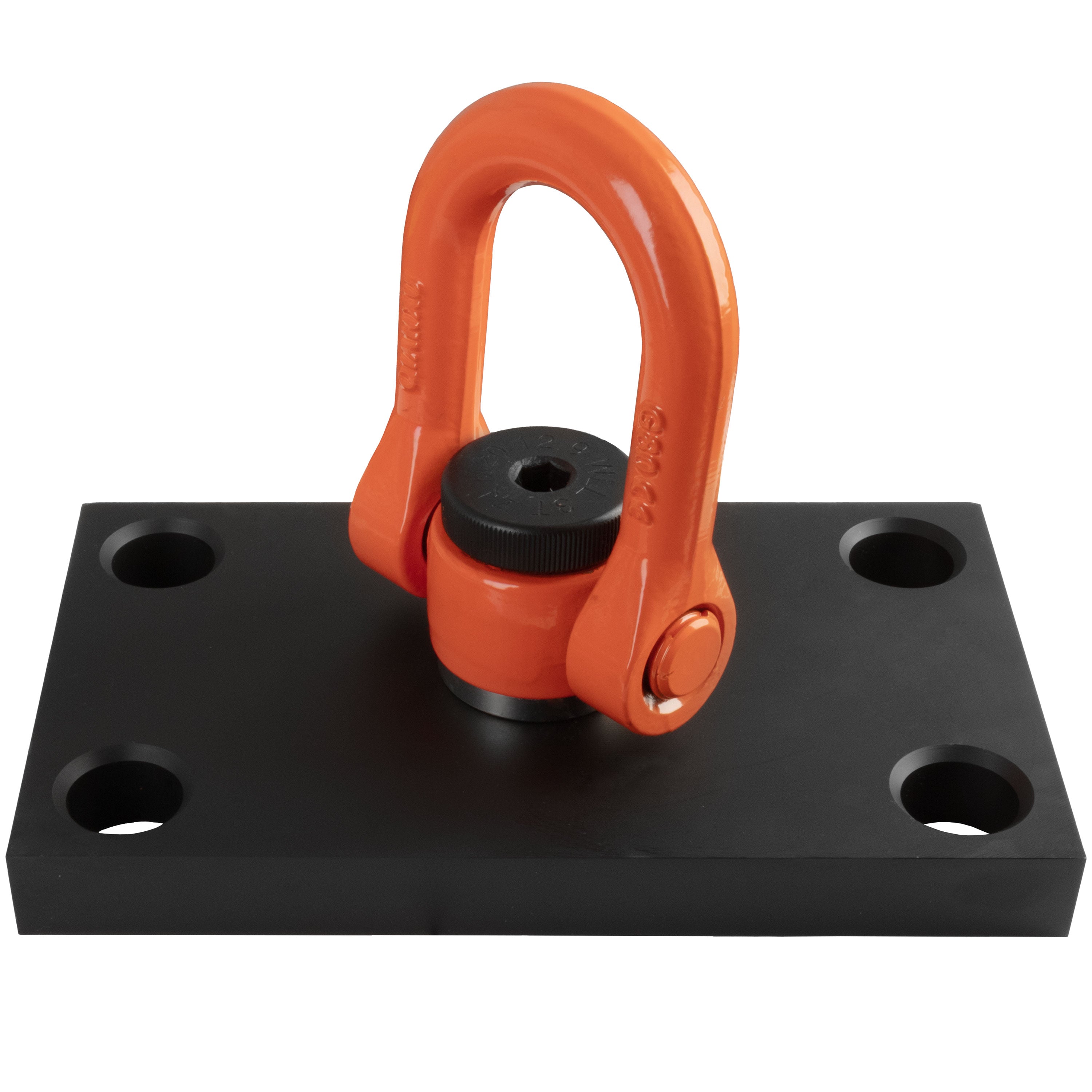

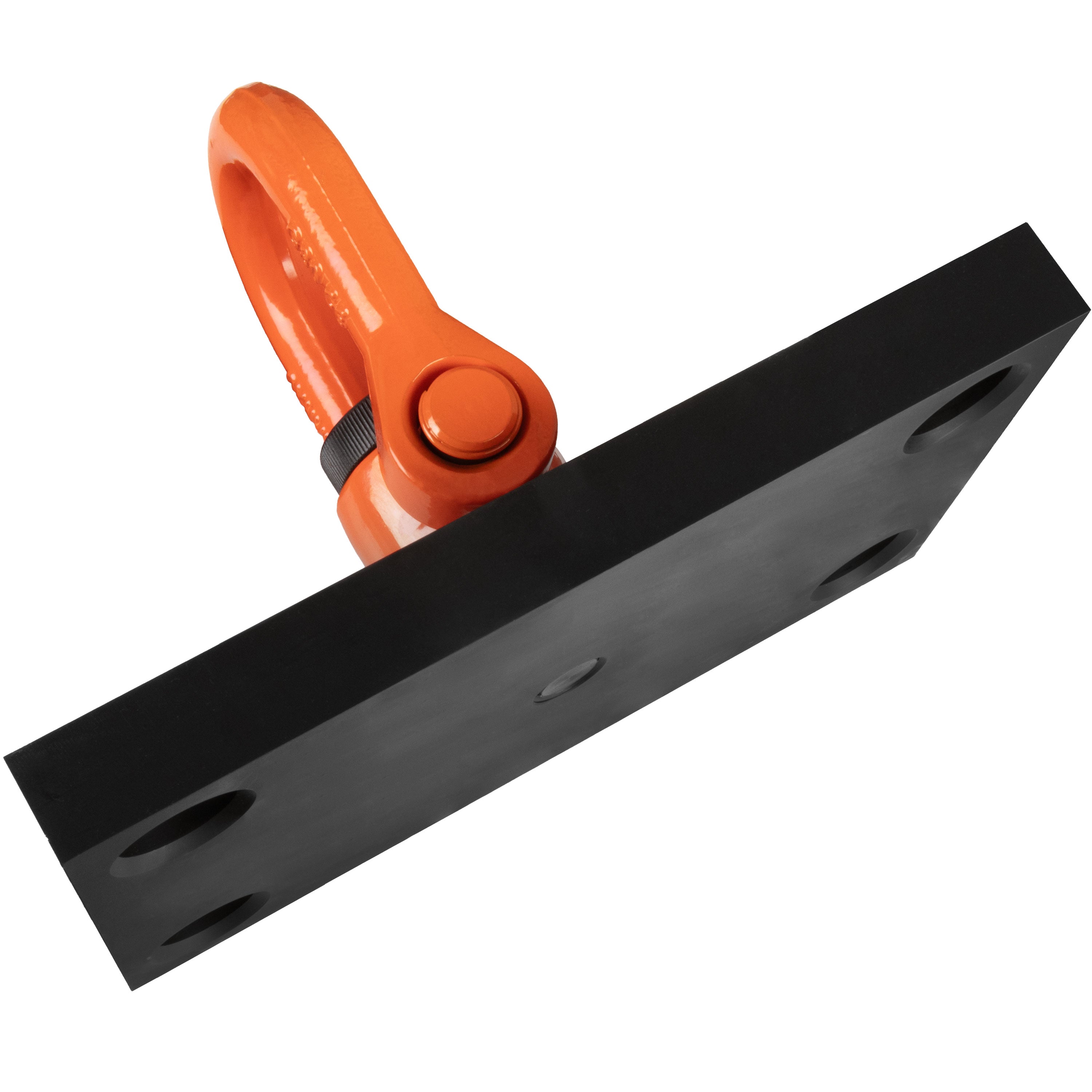

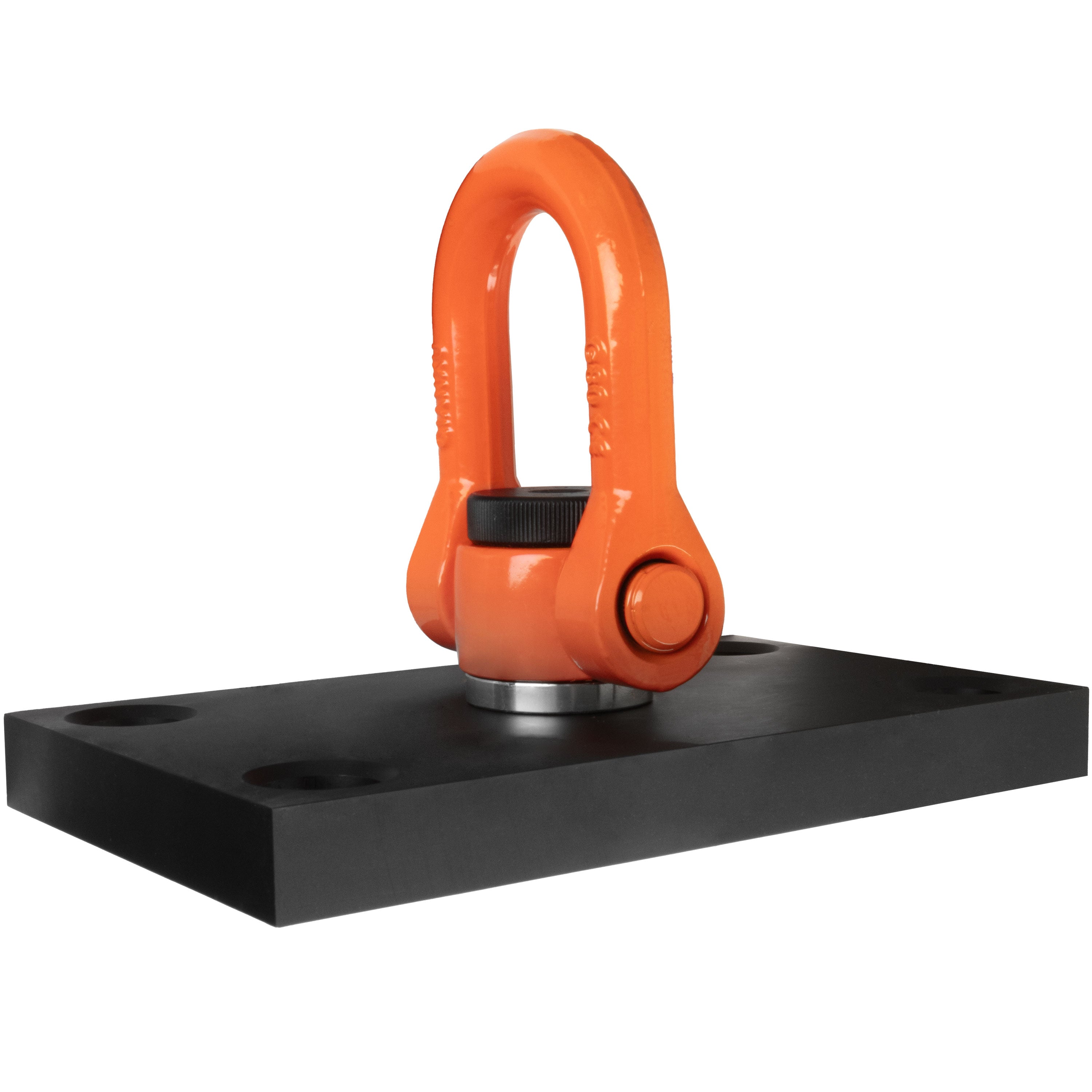

2. Lifting Bracket w/ Swivel Hoist Ring (T28-97159)
- Heavy-Duty Capacity: Rated up to 2,700 kg for more demanding lifting tasks.
- Flexible Mounting: Compatible with ball lock bolts (T28-46450 or T28-47455) for quick and secure setup.
- Forged-Steel Construction: Built for maximum durability and long service life.
- Extended Reach: Extra clearance accommodates larger lifting hooks.
- Full Range of Motion:180° pivot and 360° swivel for safe lifting from virtually any angle.
Shared Features & Safety Guidelines
- Compatibility: Both models are fully compatible with 28 mm tables.
-
Usage Guidelines:
- Always ensure lifting components (Eye Nut or Hoist Ring) are fully threaded and seated flat on the bearing surface.
- Do not lift objects more than 100 mm off the ground.
- Never allow personnel underneath lifted or suspended loads.
- Follow all applicable material handling safety standards.
Choose the Eye Nut model (T28-97150) for standard vertical lifts or the Swivel Hoist Ring model (T28-97159) for enhanced flexibility and higher-capacity lifting. Both ensure quick setup, safe operation, and long-lasting performance in industrial and workshop environments.
-
Estimated delivery: Oct 17 - Oct 21
Couldn't load pickup availability
California Prop 65 - This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more info: www.P65Warnings.ca.gov
Manual Download
Manual Download
Spec Download
Spec Download
CAD Drawings Download
CAD Drawings Download

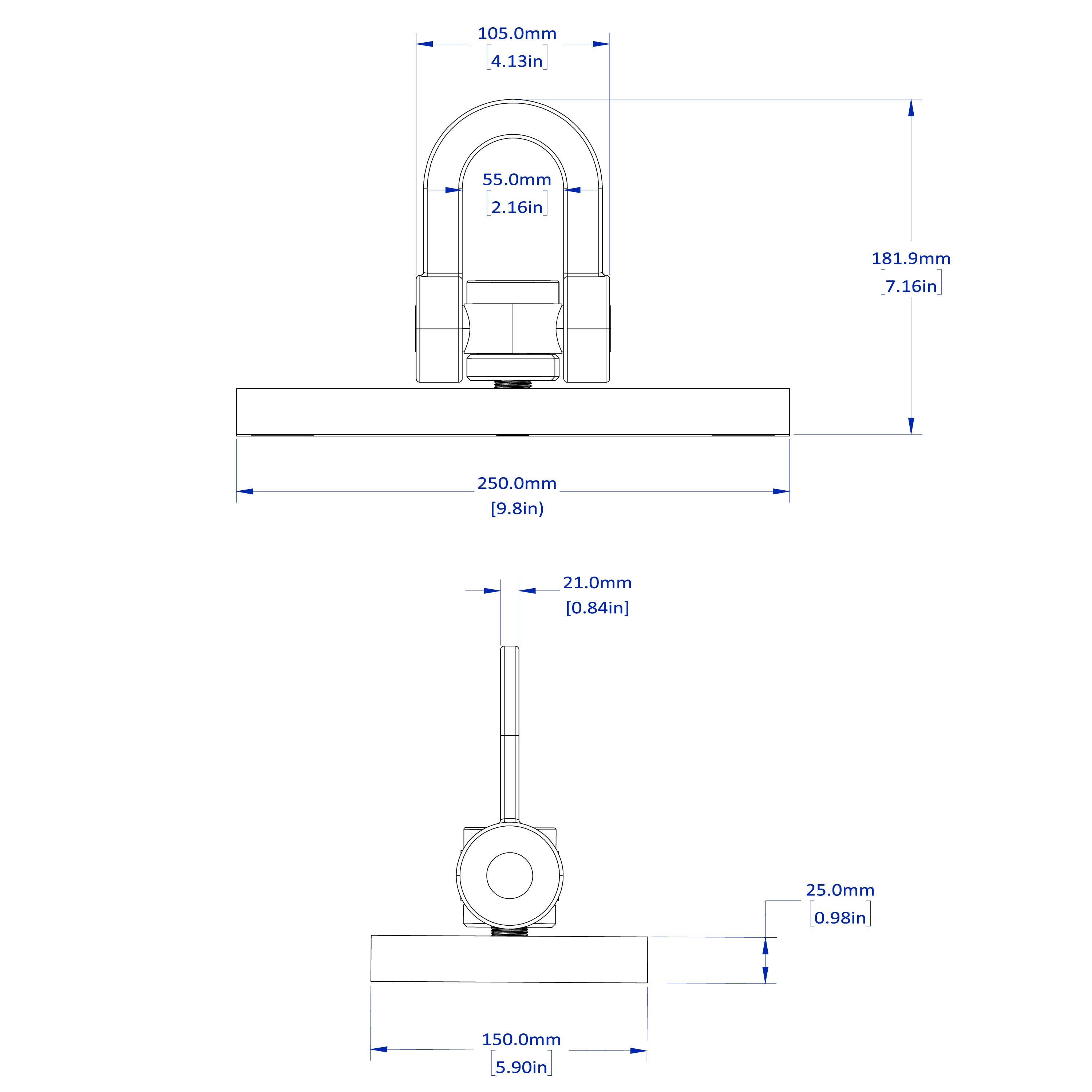

| Part No. | Length (mm) | Width (mm) | Plate Height (mm) | Weight (kg) |
|---|---|---|---|---|
| T28-97150 | 150 | 150 | 25 | 4.7 |
| T28-97159 | 250 | 150 | 25 | 8.8 |

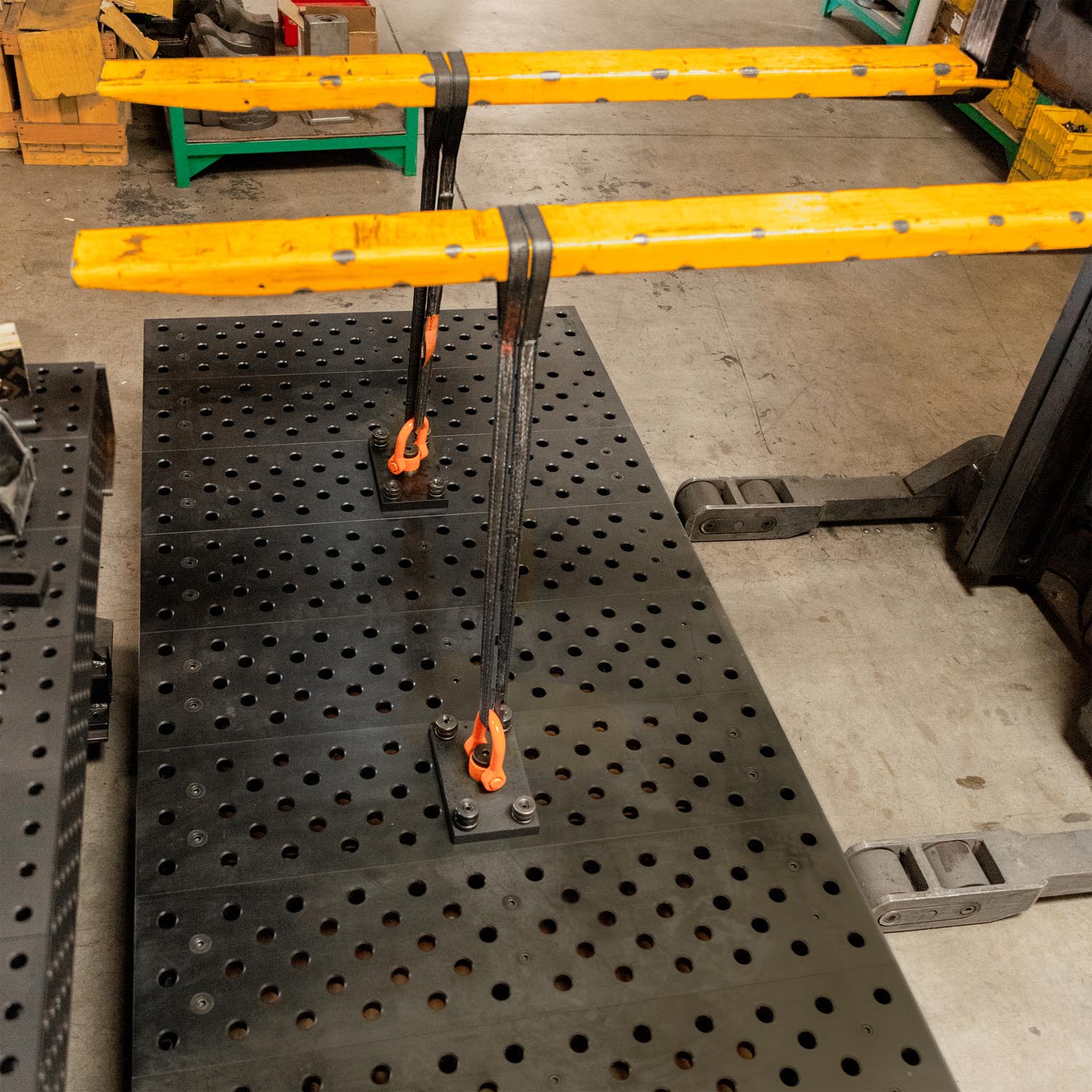

Lift with Confidence.
High-Capacity Brackets Designed for 28 mm Tables — Quick Installation, Maximum Safety.
Quick Installation
Machined Outside Faces
for upright joint.

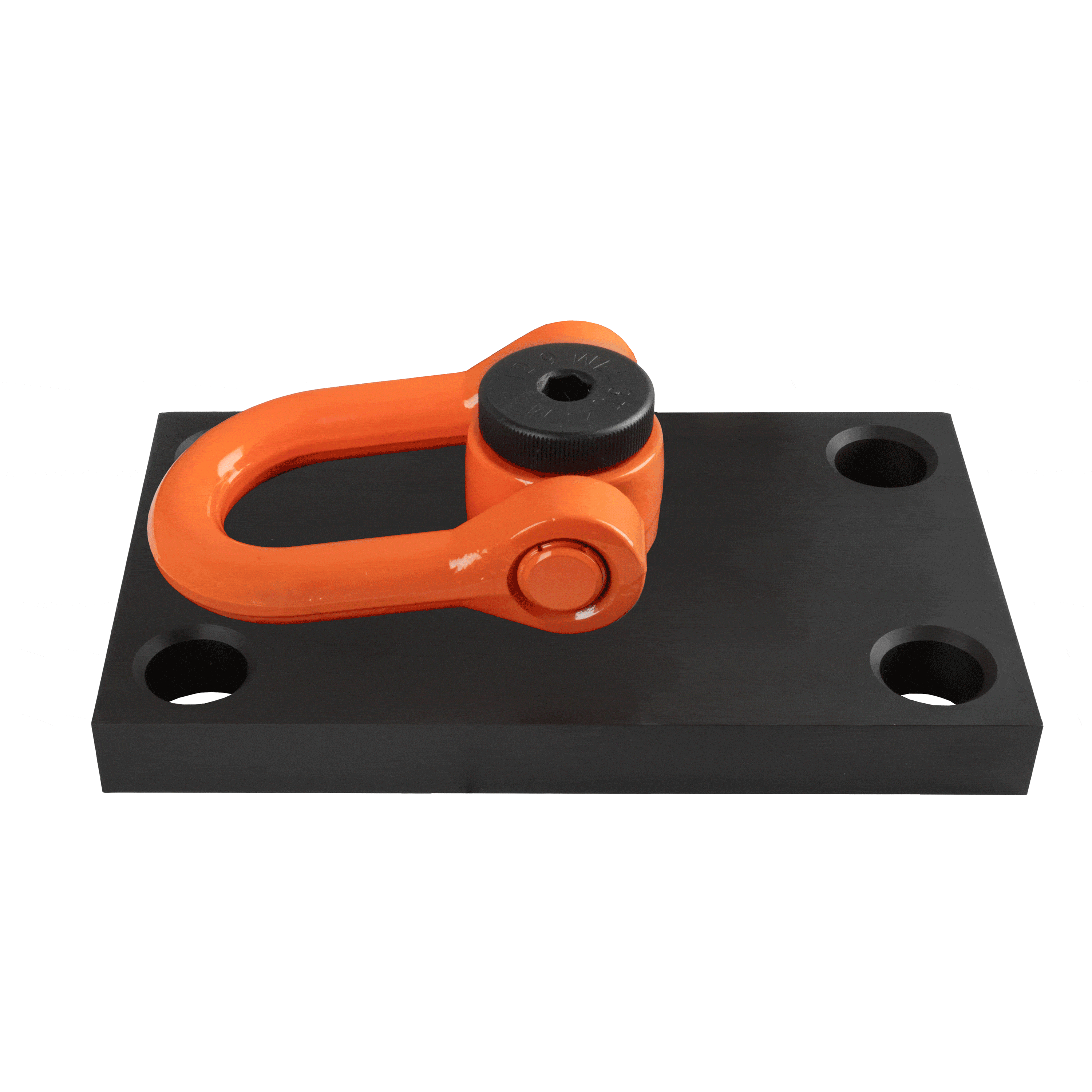

Full Range of Motion
180° pivot and 360° swivel for safe lifting from virtually any angle.
Weight Capacity:
1,800 kg
Net Weight:
4.7 kg
Weight Capacity:
2,700 kg
Net Weight:
8.8 kg
Alpha 28 mm Modular System
Table Accuracy
| Hole Diameter: | 28 + .20 /-0 mm |
| Hole Spacing: | 100 ±0.05 mm |
| Table Flatness: | ±0.125 mm per 600 x 600 mm |
| Plate Thickness: | 25 ±0.06 mm |
| Tabletop Finish: | Nitrided (Heat-Treated) |
| Surface Hardness: | 58-62 HRC |
| Coefficient of Friction: | 0.37 |
Top Plate
| Material: | P20 |
| Hardness: | 58-62 HRC |
Side Plate
| Material: | Q345B |
| Hardness: | 50-55 HRC |
Why Choose Alpha 28?
Modular. Reversible. Unstoppable.
The only ultra heavy-duty welding table with positionable, self-locating plates — engineered for unlimited fixturing possibilities.
BuildPro® Engineers developed the Alpha 28 line by customer demand for an affordable, heavy duty welding table. The five-face Alpha 28 Table is the optimal solution for precision vertical and horizontal fixturing to expand your capabilities in welding and fabrication
Ultra Heavy-Duty Construction
Made from tough P20 low-alloy tool steel, the 25 mm thick table plates are ground for flatness to ±0.125 mm — built for serious fabrication.
Modular & Expandable
Locating Bushings let you easily remove, re-position, re-align, and reverse the plates. Configure your work surface to match any fixturing need.
Reversible, Self-Locating Plates
Flip plates for 2X life. Reposition anytime with perfect alignment — no recalibration needed.
CNC Precision Grid
Ø28 mm holes machined to ±0.05 mm in a 100 mm grid with diagonal offset for flexible, accurate setups. Locating bushings ensure perfect alignment .
Nitrided Finish
QPQ Nitriding adds a 58–62 HRC hardened, corrosion- and spatter-resistant surface for lasting durability and easy cleanup.
Five-Sided Fixturing Surface
Fixture vertically and horizontally for complex assemblies with ease.
Stronger, More Rigid Frame
The machined tubular frame construction of the Alpha 28 table provides improved flatness and torsional stiffness compared to plate only frames. The rigid frame with modular plates on the Alpha 28 means less high spots and less twisting compared to welded plate designs. The welded construction of a plate only design often leads to distortion and high spots around the corners and center.
Ribbing
Load capacity of over 10 metric tons
Tubular Frame Design
Built on a machined tubular steel frame for exceptional rigidity and torsional stability
Side Plate Mounting
Side Plates also use self-locating bushing system for vertical fixturing — ideal for complex assemblies.
Leg Options
Fixed Height
Leg Height: Approx. 350 mm
Table Surface Height: Approx. 560 mm
Static Load Capacity: 2,000 kg
Fixed Height
Leg Height: Approx. 500 mm
Table Surface Height: Approx. 710 mm
Static Load Capacity: 2,000 kg
Fixed Height
Leg Height: Approx. 650 mm
Table Surface Height: Approx. 860 mm
Static Load Capacity: 2,000 kg
Adjustable Height
Leg Height: Approx. 610 ~ 900 mm
Table Surface Height: Approx. 820 ~ 1,170 mm
Static Load Capacity: 2,000 kg
Fixed Height + Caster and Locking Brake
Leg Height: Approx. 640 mm
Table Surface Height: Approx. 840 mm
Static Load Capacity: 800 kg
Adjustable Height + Caster and Locking Brake
Leg Height: Approx. 600 ~ 780 mm
Table Surface Height: Approx. 790 ~ 970 mm
Static Load Capacity: 800 kg
Four M12 hex drive cap screws and washers are included with each leg to mount onto flanges at the bottom of the table frame.
Leveling feet with spindles at the bottom of the legs offer fine adjustment and leveling.
Anchoring pads can be used in place of leveling feet and include a plate flange with two 18 mm diameter holes for anchoring your table down to the floor.
