- • Adjustable Angle Protractor.
- • Applications with high repeat accuracy.
- • Any individual angular degree between 10 and 150 degree can be set.
- • The angle can be set according to the scale and then locked in place with an Allen key.
- • Holding force is 150 Ibs.
- • It can be used on our 5/8" series workbenches.
Other Systems
16mm System
28mm System
Metric Spacing
Inch Spacing
Tables
Fixtures
Save 5%

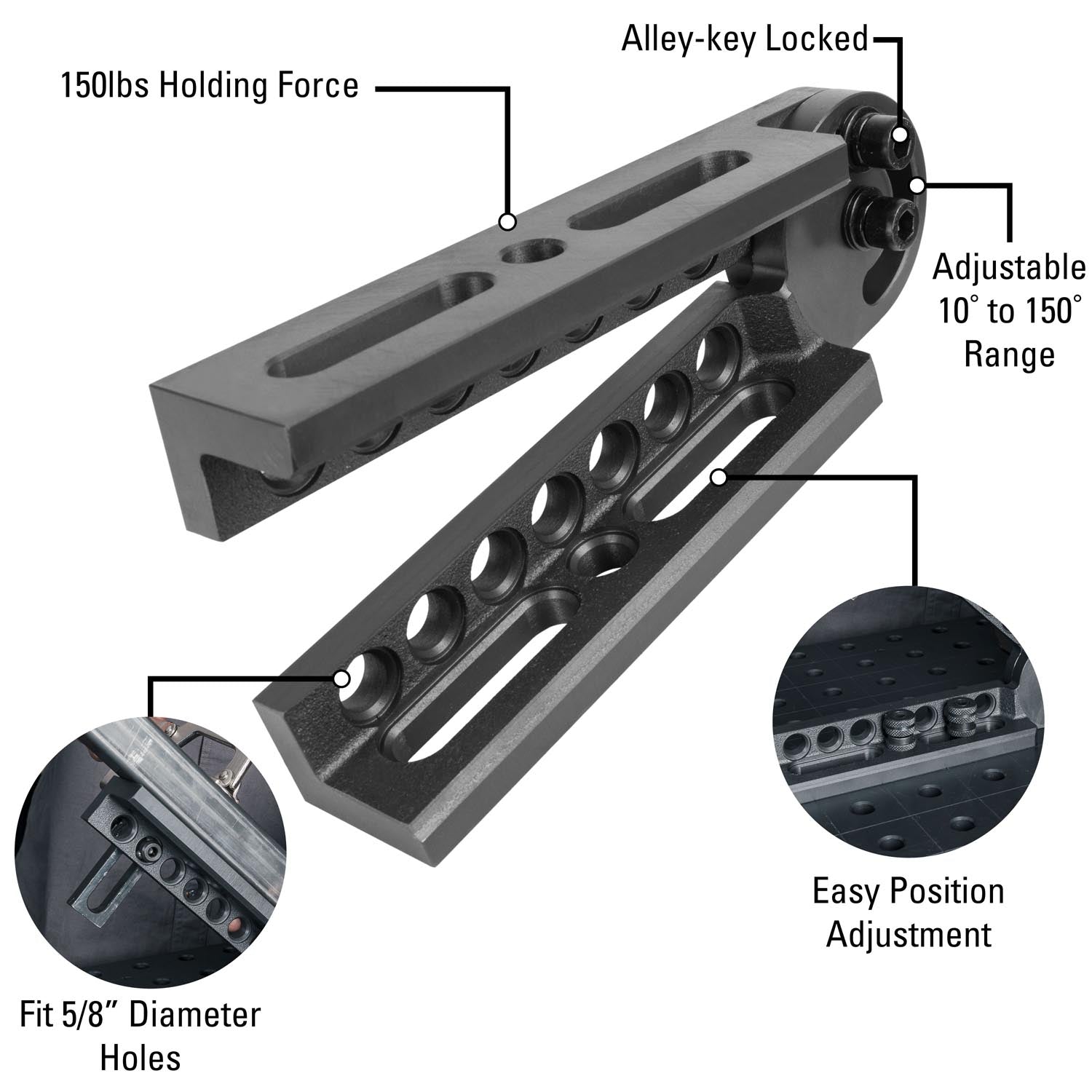

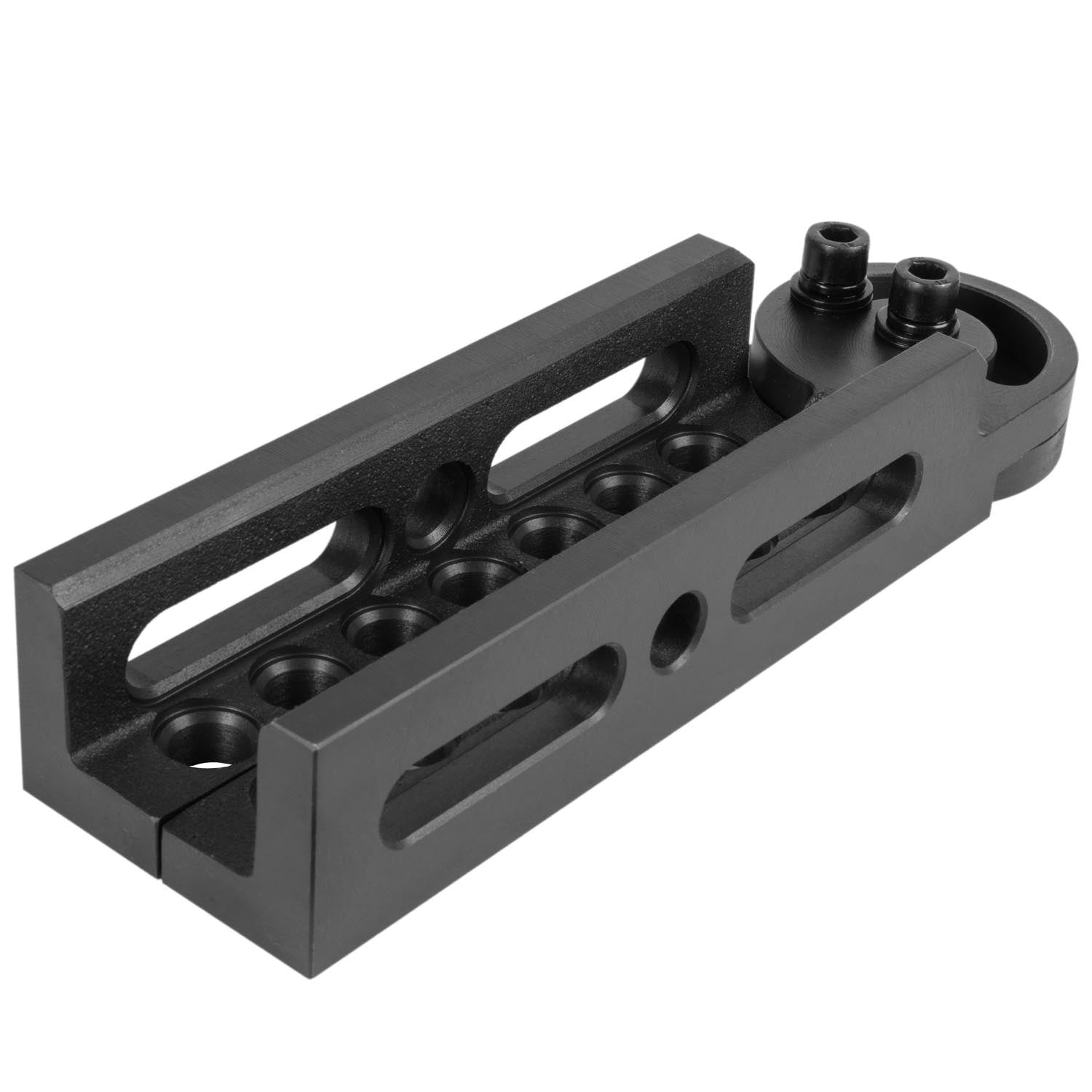

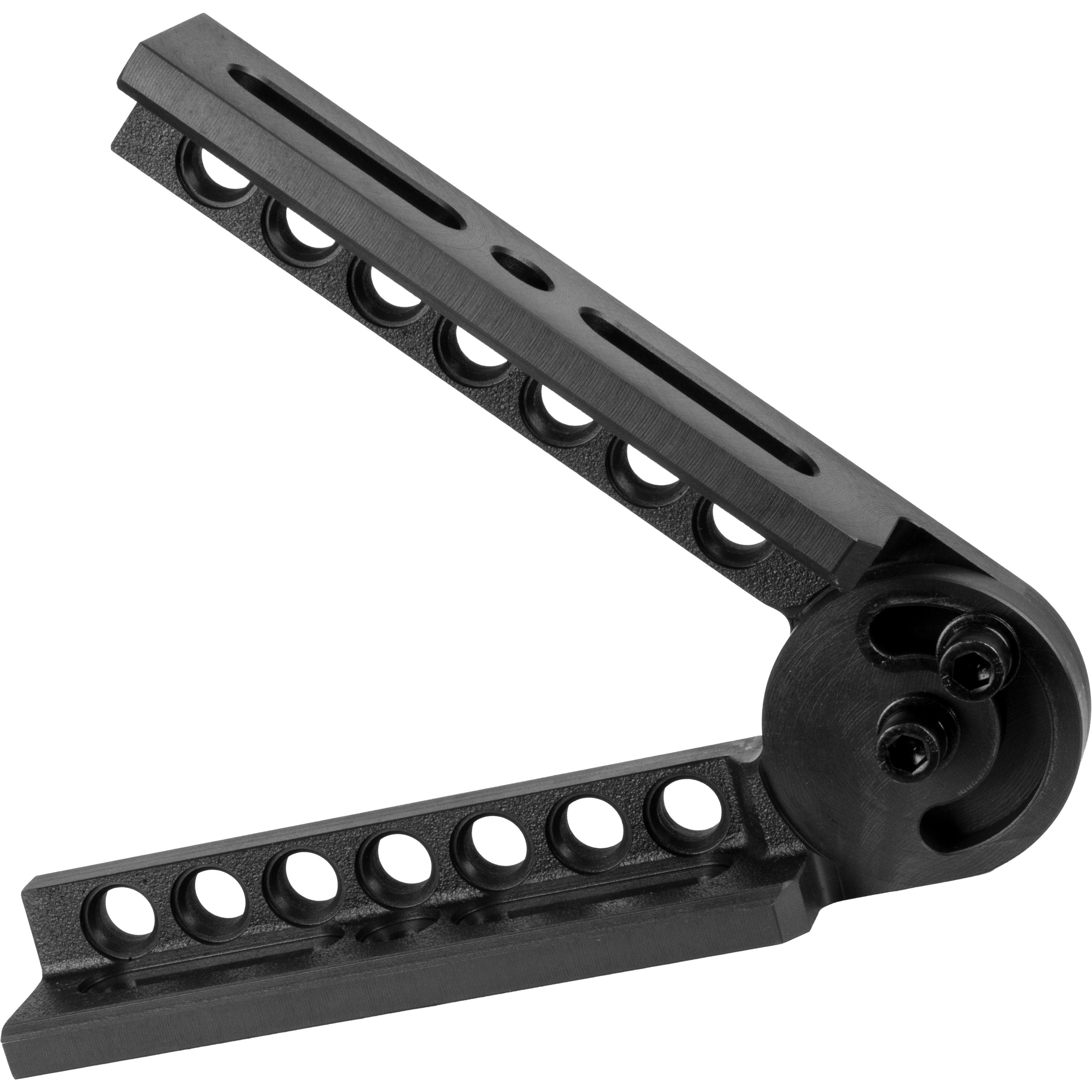

Adjustable Angle Bracket - 5/8" Hole Diameter
Regular price
Sale price
$171.00
Regular price
$180.00
Shipping calculated at checkout.
5/8"
Hole Diameter
2"
Hole Spacing
Black Oxide Steel
Material
10° - 150°
Angle
-
Estimated delivery: Sep 05 - Sep 09
Couldn't load pickup availability

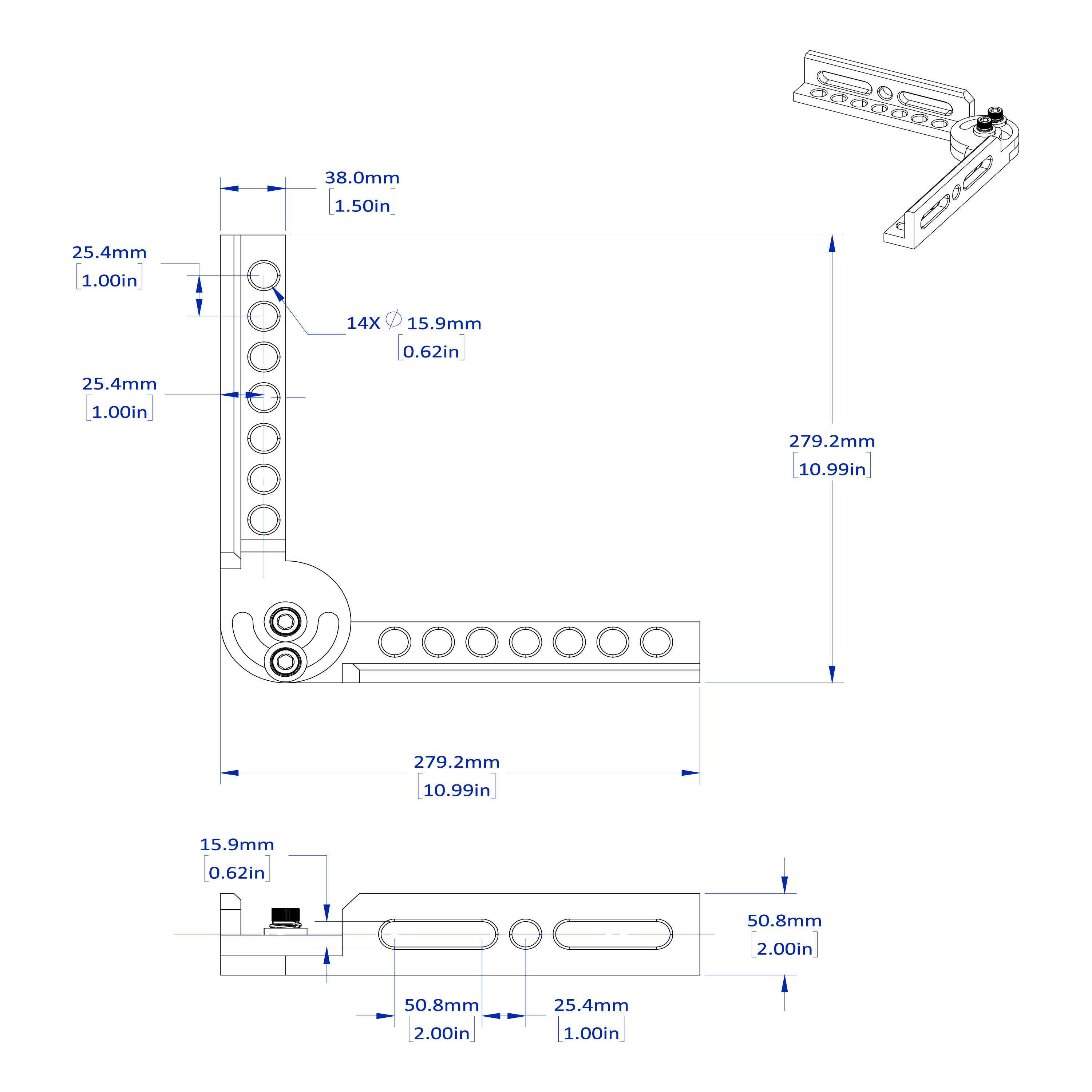

T50350 - Adjustable Angle Bracket
Hole Diameter:
5/8"
Grid Pattern:
2"
Length:
11"
Angle Range:
10° - 150°
Material / Finish:
Steel / Black Oxide
Surface Hardness:
HV550
Holding Force:
150 LB
Gross Weight:
6.8 LB
Features

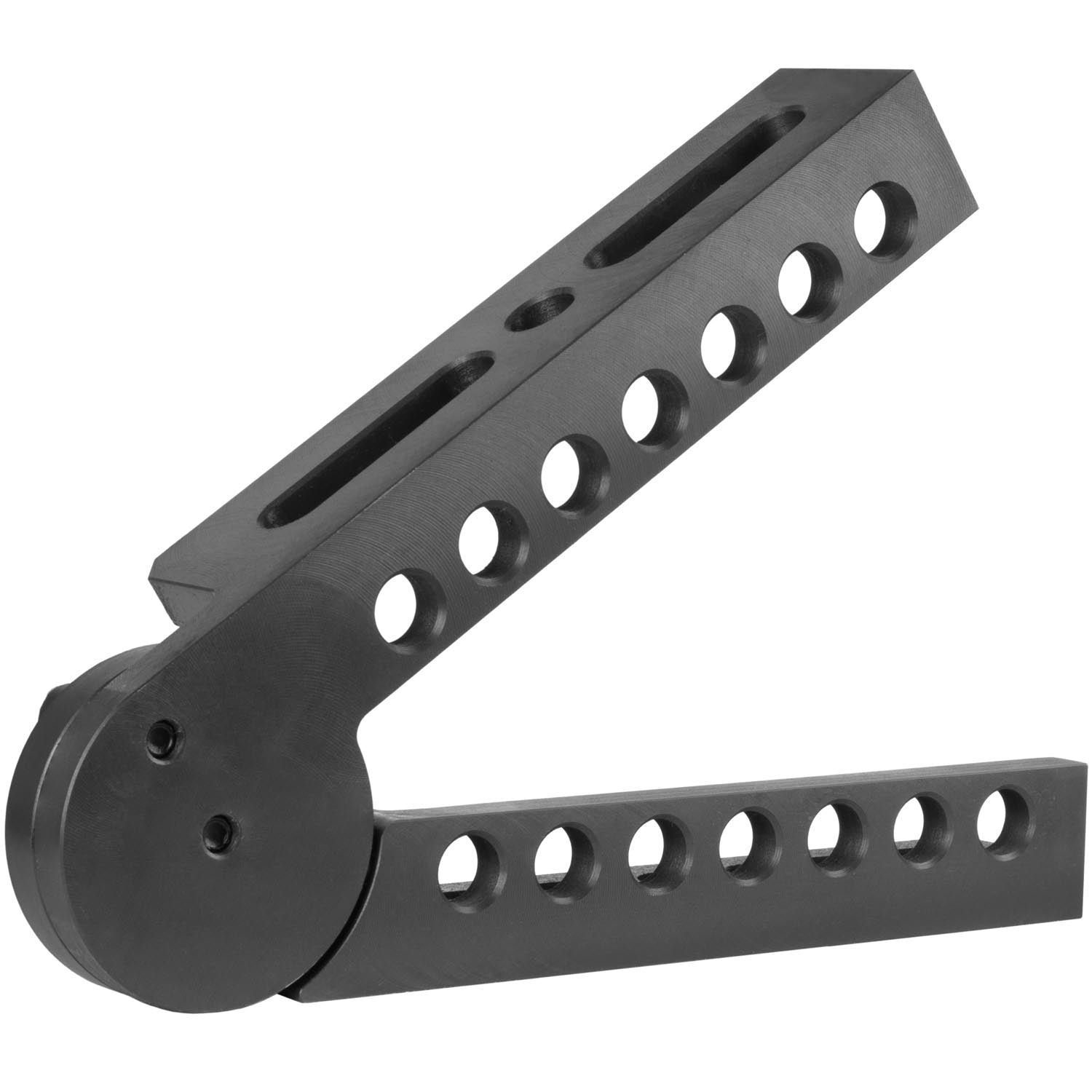

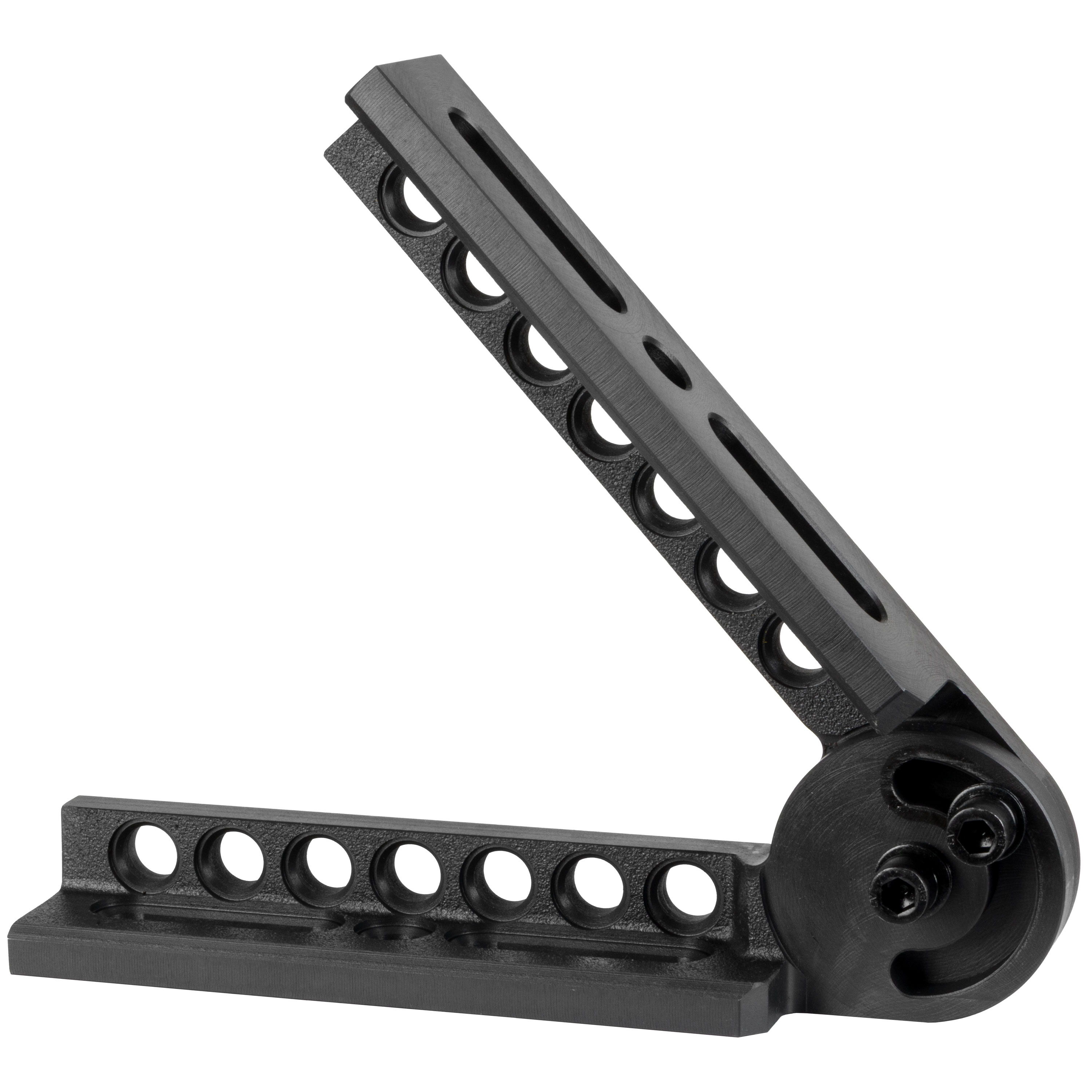

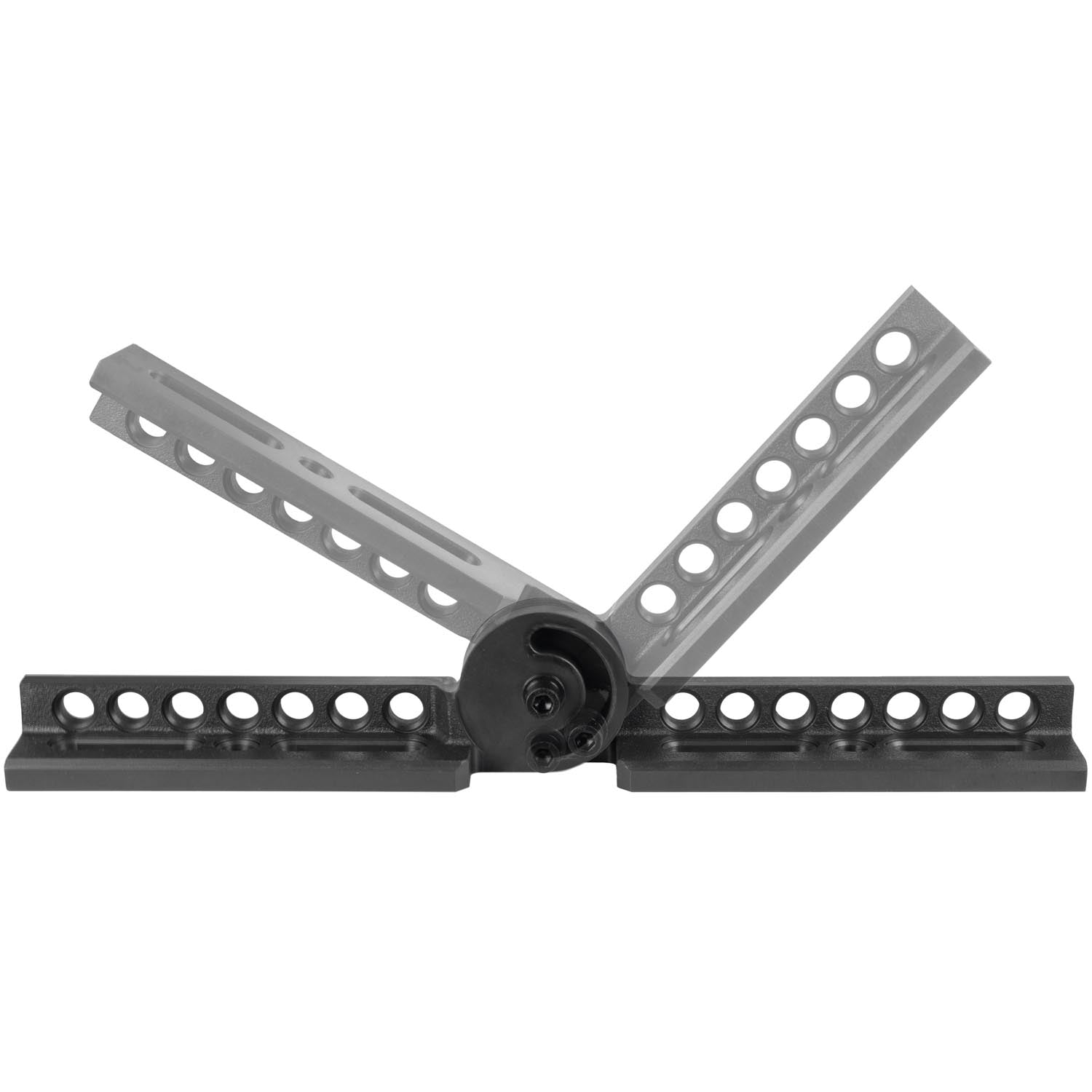

Precision Angle Adjustment
Set any angle between 10° and 150° using the engraved protractor scale for repeatable fabrication setups.
Secure Angle Locking
Lock the selected angle securely using a 5/16" Allen key to maintain consistent positioning throughout welding and assembly.
150 lb Holding Force
Robust steel construction provides up to 150 lb of holding force for dependable workholding during fabrication.

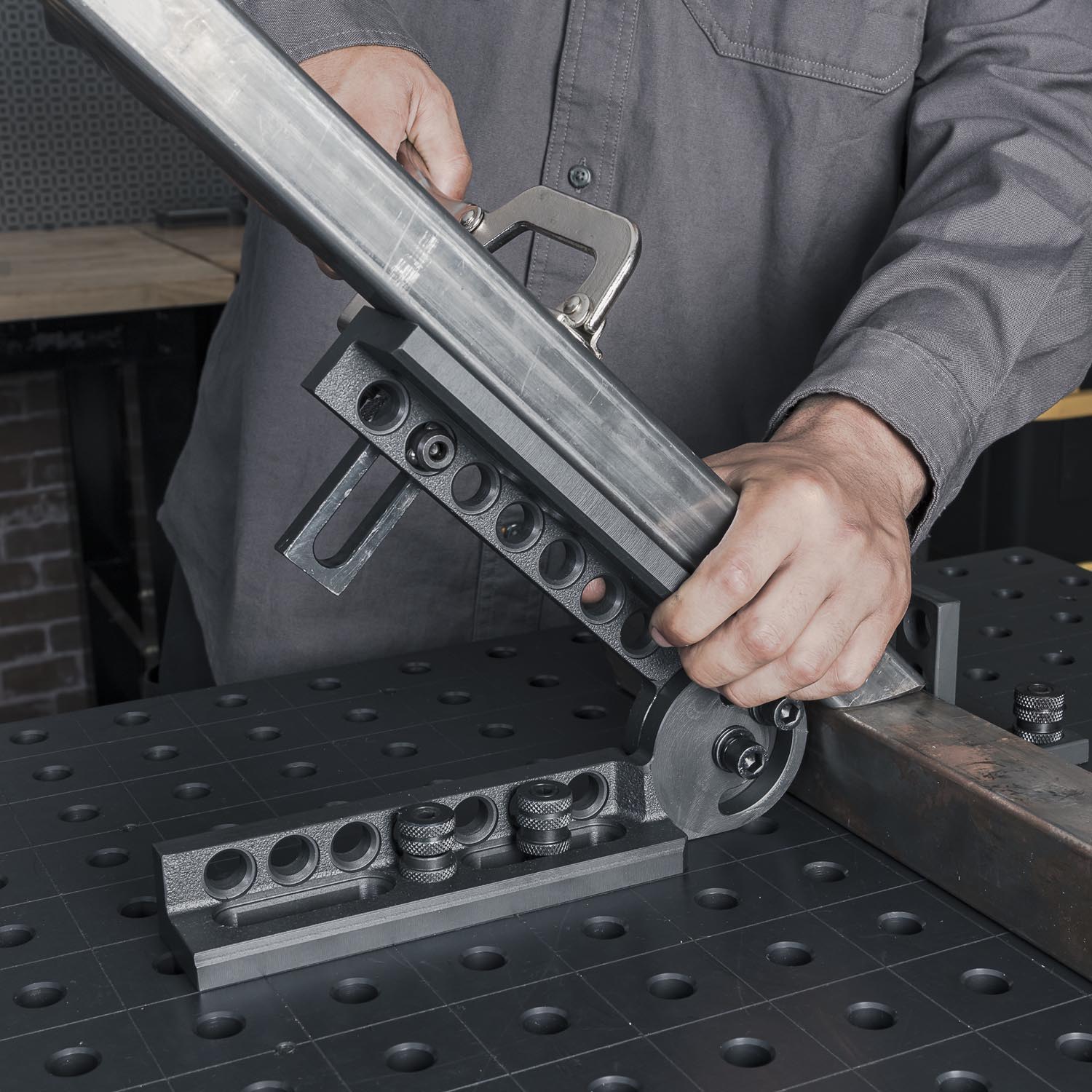

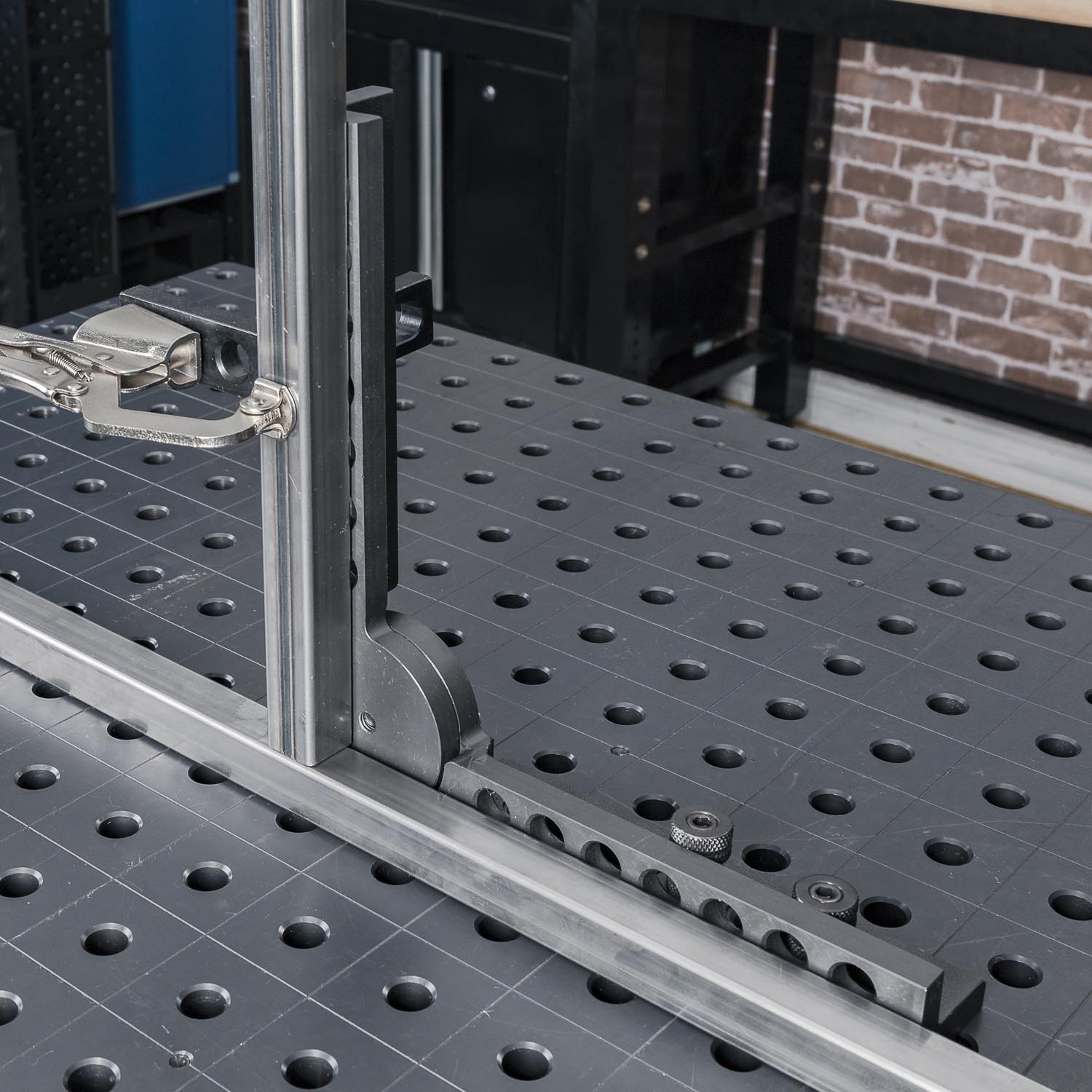

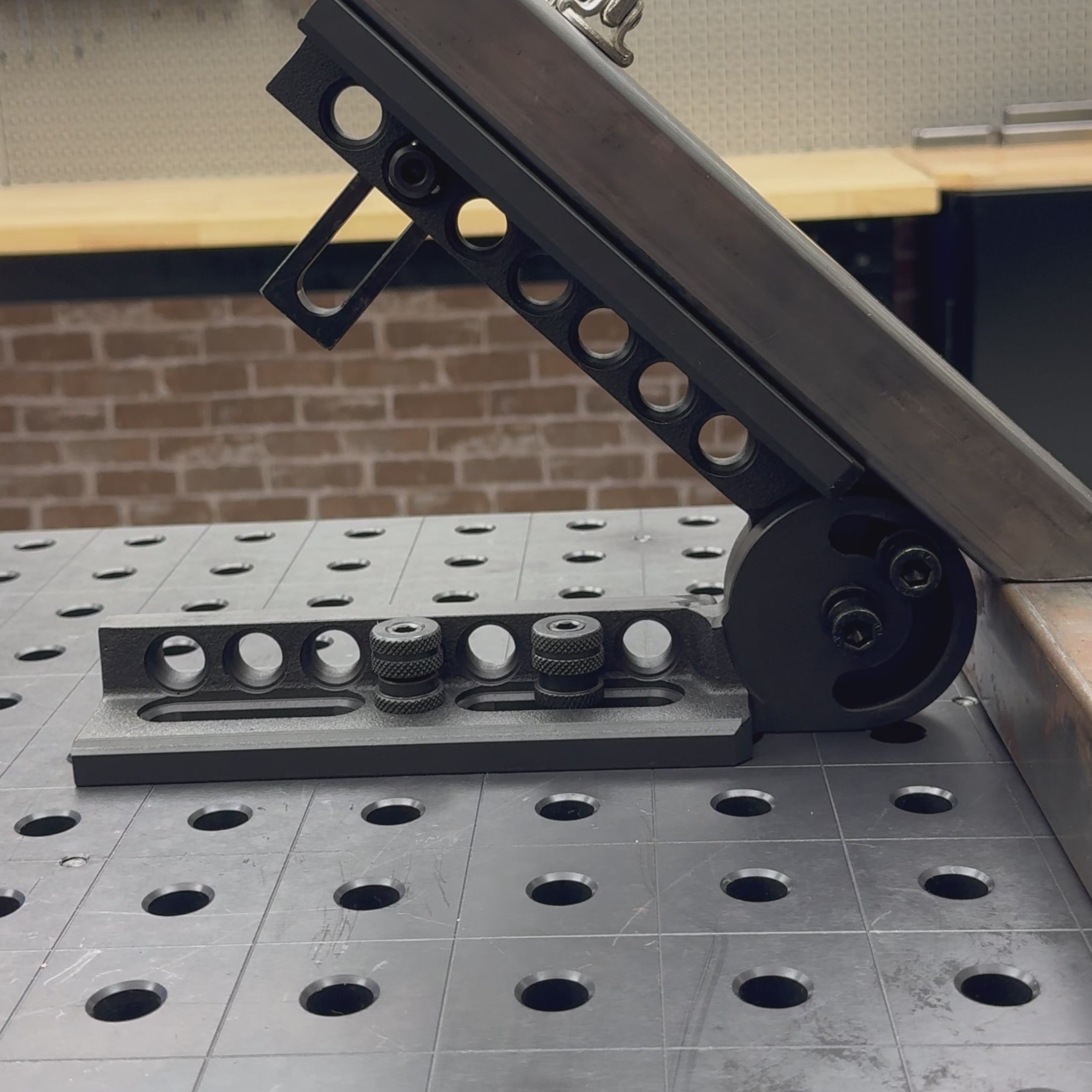

Fits 5/8" Fixture Tables
Designed to mount directly on BuildPro 5/8" fixture tables with 2" hole spacing for flexible positioning.
