FixturePoint Table + 24 pc. Clamping Kit
FixturePoint Table + 24 pc. Clamping Kit

FixturePoint Table + 24 pc. Clamping Kit

FixturePoint Table + 24 pc. Clamping Kit

SKU: TBHK200

Discontinued

This item is no longer available. For bulk orders, with a minimum order requirement, please call 800.989.5244 for more information.

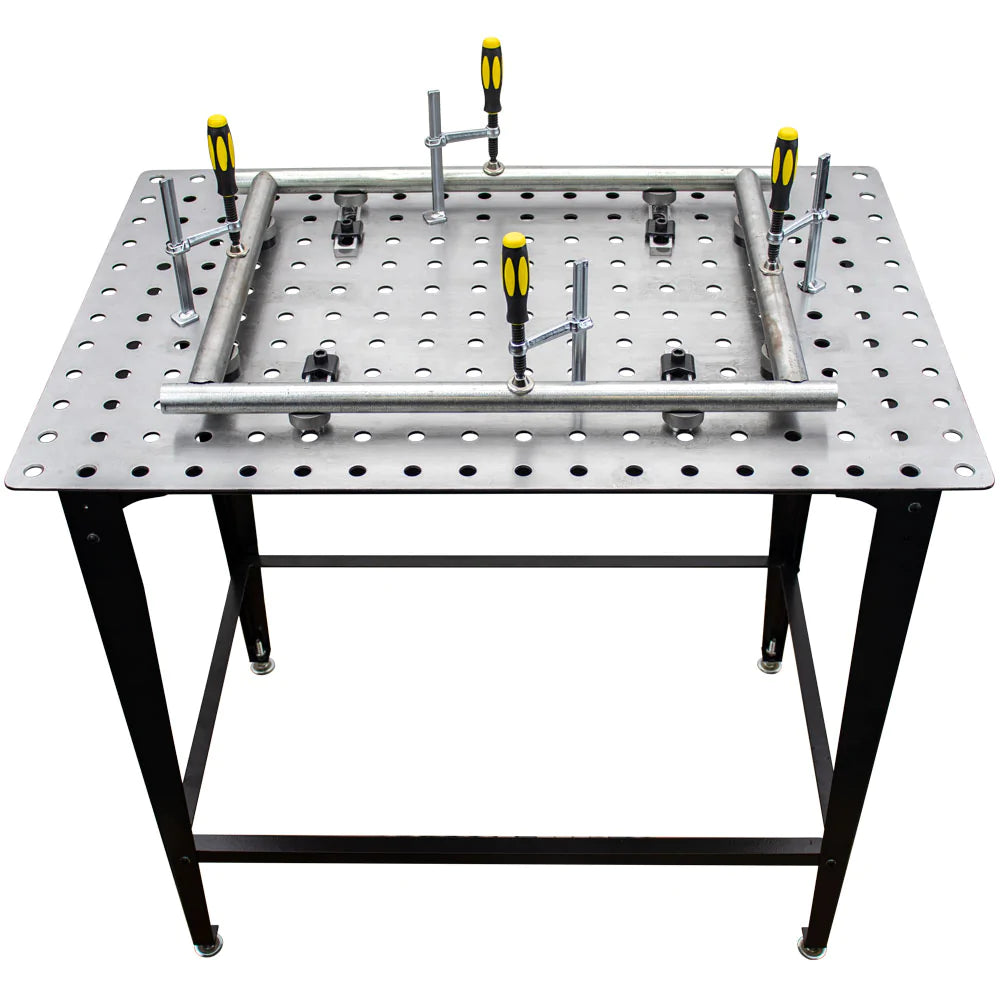

TBHK200 is a complete Modular Fixturing Kit for the set-up of 4x ROUND Tubing frames.

Complete Kit includes:  Table (TBH36244) + Clamps & Components Kit (TBK2-24).

* All fixturing elements for FixturePoint fit 16 mm table holes and NOT compatible with Alpha, MAX or Rhino Cart system.

Manual Download

Installation Manual
Part No. Description Weight (lb)
TBHK200 FixturePoint Welding Table + Kit TBK2-24 78

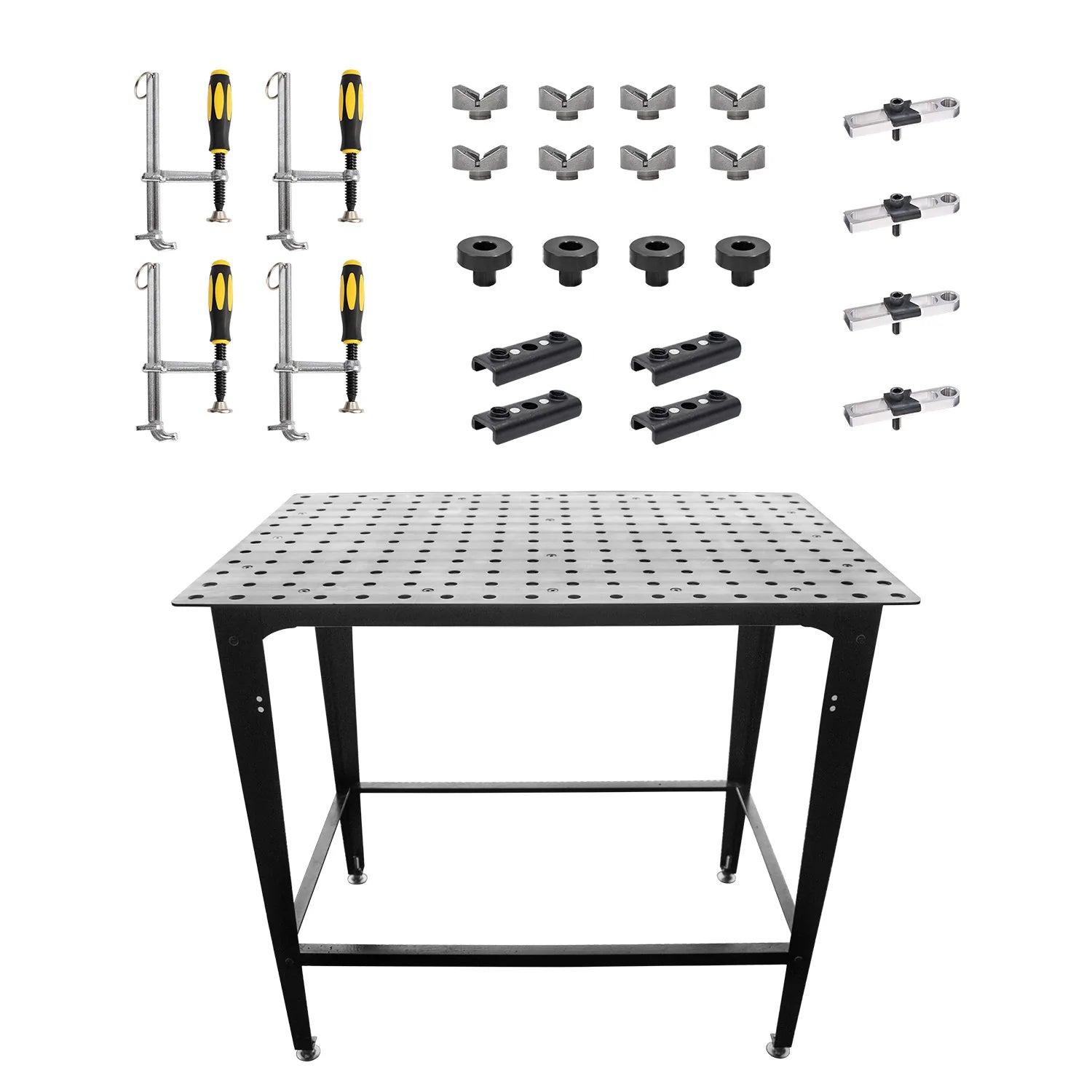

Package includes:

Rhino Cart Mobile Fixturing Station, Mobile Welding Table

TBH36244 x1

Rhino Cart Mobile Fixturing Station, Mobile Welding Table

UBN110 x4

Rhino Cart Mobile Fixturing Station, Mobile Welding Table

V-Block, 16 mm

T64216 x8

Rhino Cart Mobile Fixturing Station, Mobile Welding Table

V-Block Spacer, 16 mm

T64211 x4

D-Stop Bars

T60632 x4

Threaded Adaptor

TXB6204 x4

Insert the clamps into any hole on the tabletop for fast hold-down clamping.

Aluminum V-Blocks fit into the holes of the FixturePoint table, D-Stop bars and V-Spacers to hold round parts.

V-spacers used in conjunction with V-Blocks to elevate the round stock.

Use Threaded Adaptors underneath tabletop to mount the D-Stop Bars on the tabletop to locate and stop stock.
