Part No. Description Weight (lb)
TBK2-24 24-piece Clamp and Component Kit for ROUND stock 6

Package includes:

UBN110 x4

Rhino Cart Mobile Fixturing Station, Mobile Welding Table

V-Block, 16 mm

T64216 x8

Rhino Cart Mobile Fixturing Station, Mobile Welding Table

V-Block Spacer, 16 mm

T64211 x4

D-Stop Bars

T60632 x4

Threaded Adaptor

TXB6204 x4

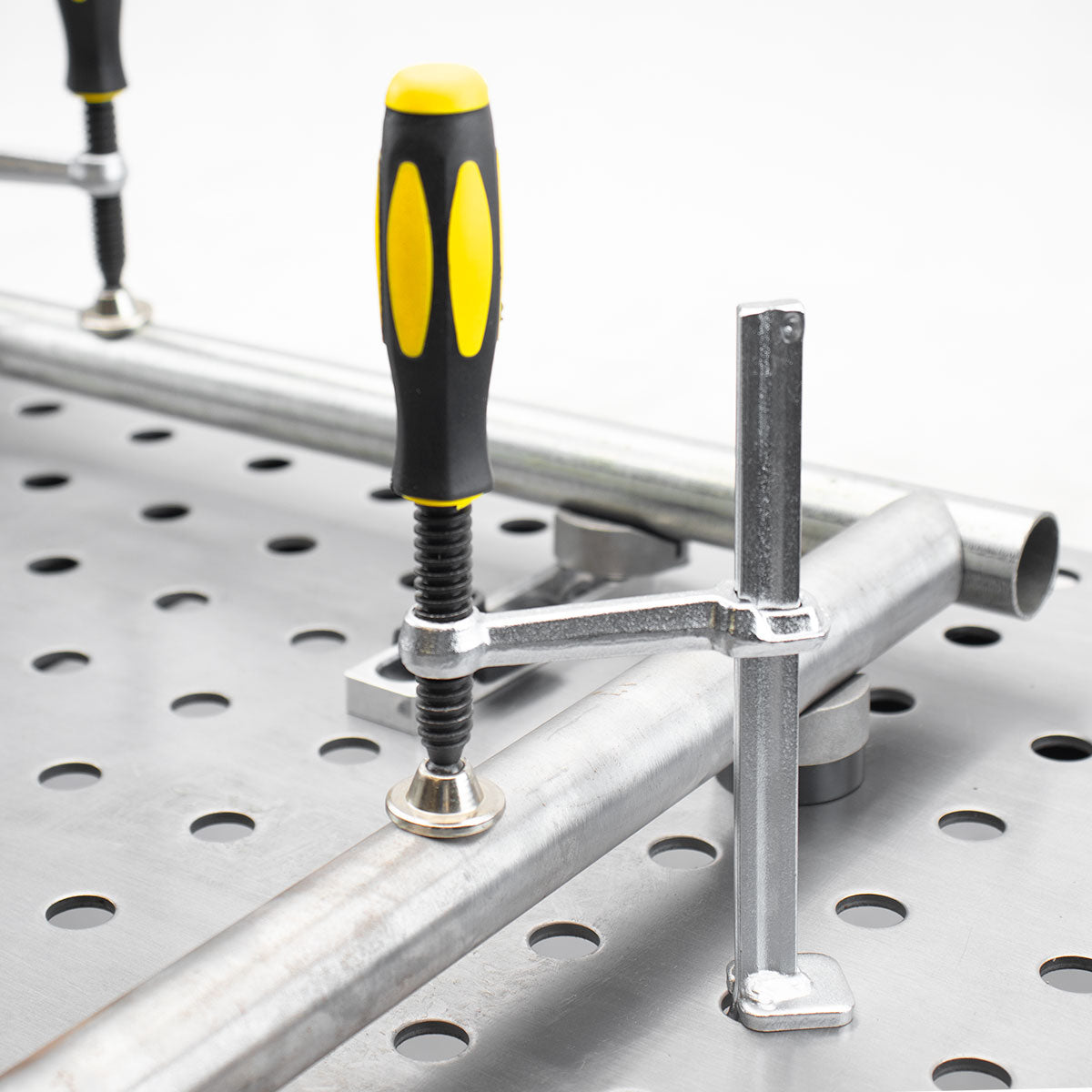

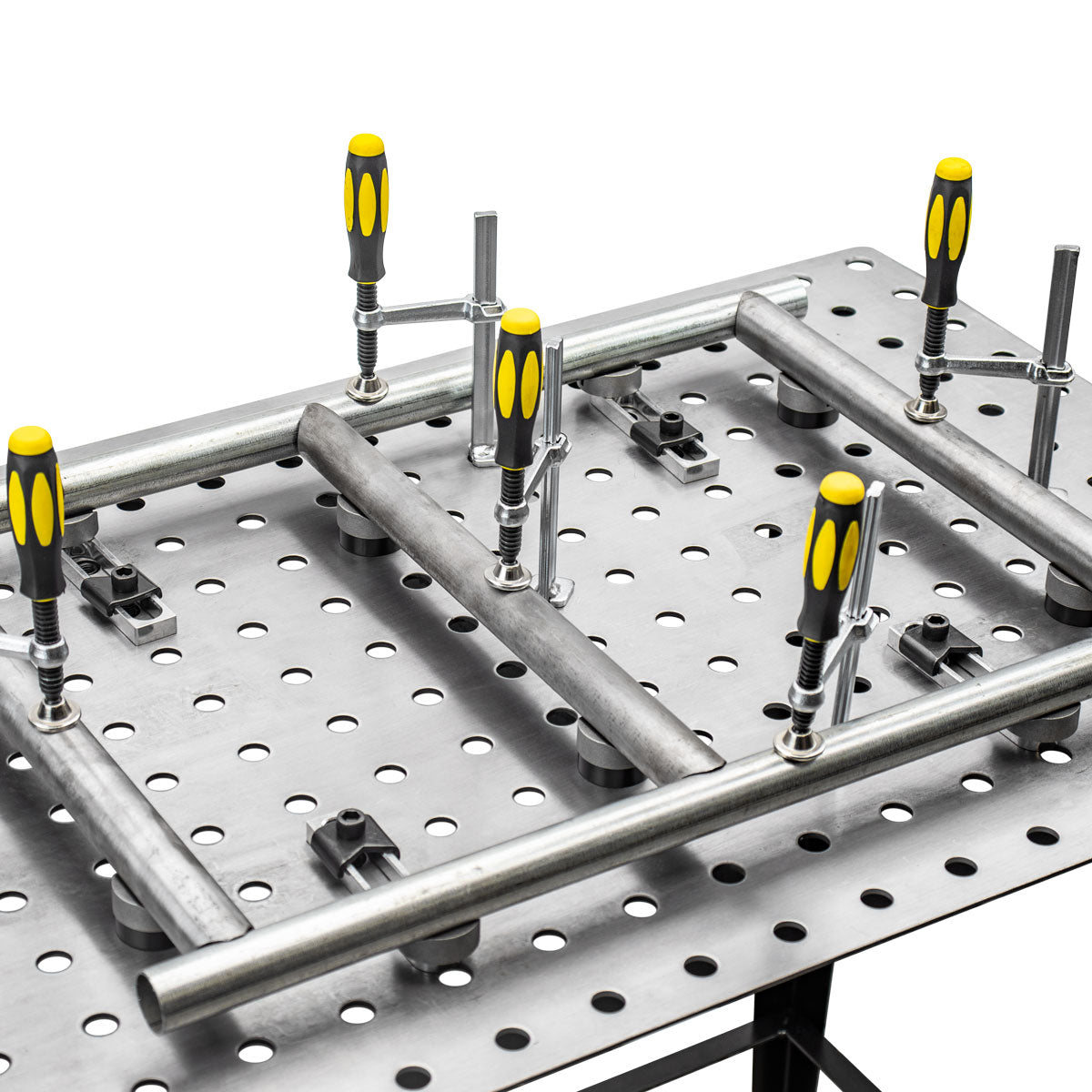

Insert the clamps into any hole on the tabletop for fast hold-down clamping.

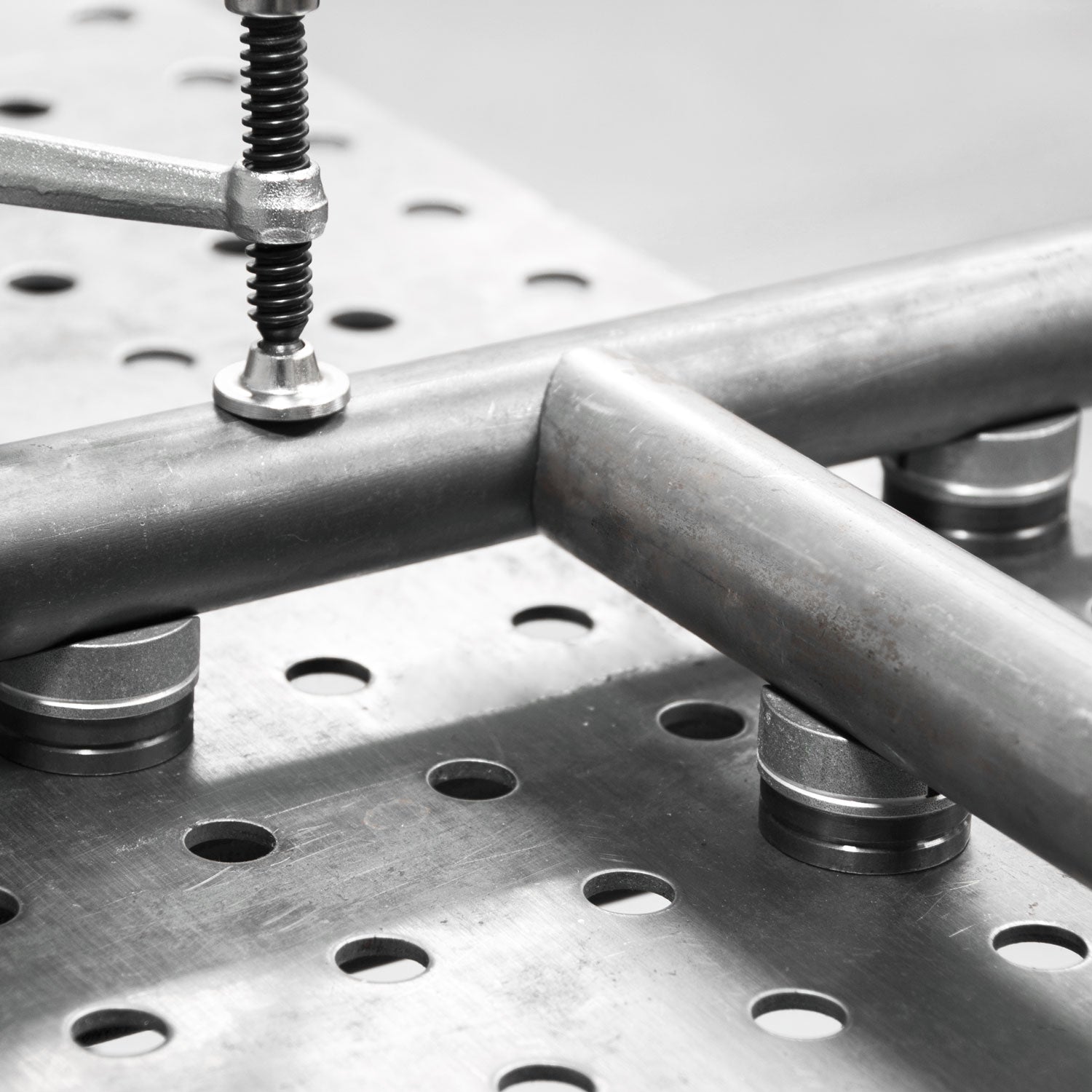

Aluminum V-Blocks fit into the holes of the FixturePoint table, D-Stop bars and V-Spacers to hold round parts.

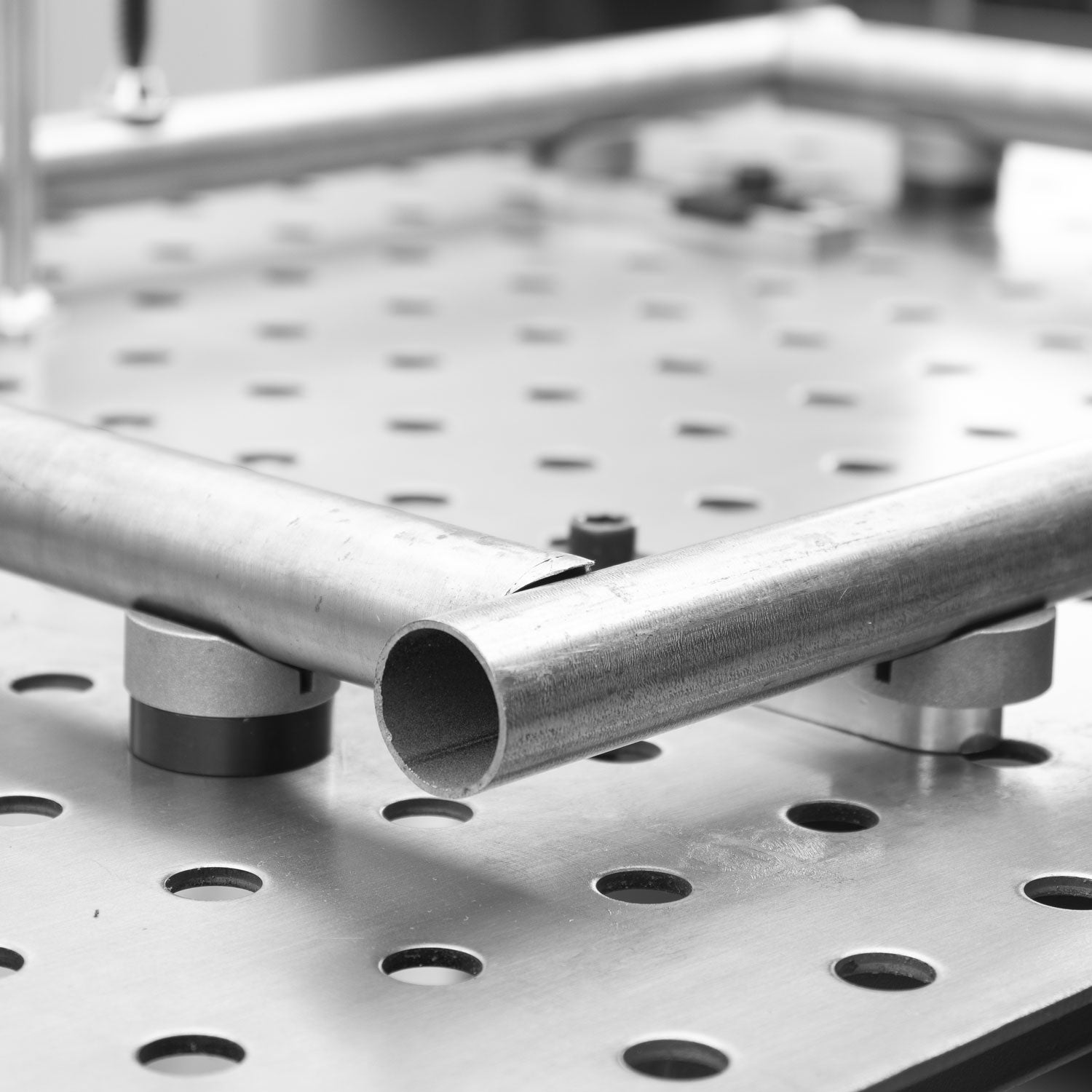

V-spacers used in conjunction with V-Blocks to elevate the round stock.

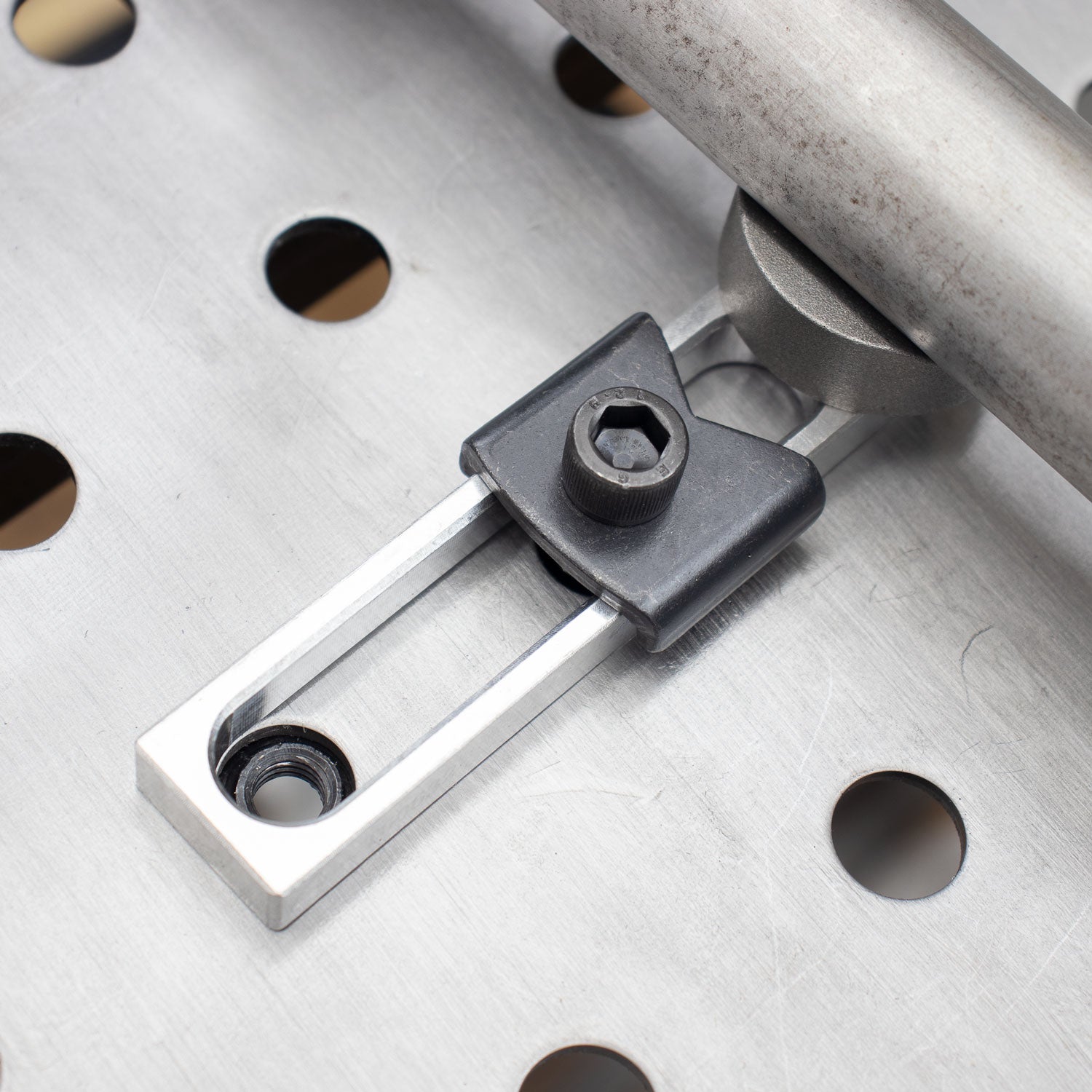

Use Threaded Adaptors underneath tabletop to mount the D-Stop Bars on the tabletop to locate and stop stock.
