Professional Welding Table, 1200 x 1200 x 200 + Clamp Package

Package Includes:

Professional Welding Table, 1200 x 1200 x 200, 750 Standard Leg, Nitrided, 28 mm (S1-280015-PT1) x 1
Siegmund™ System 28 Professional Tables are built for strength, precision, and durability. Double Hardened and Plasma Nitrided, these legacy tables offer excellent resistance to wear, deformation, corrosion, and weld spatter.
Made from 25 mm thick plates (material thickness approx. 24.5–27 mm) with internal ribbing, the five-face design provides a highly rigid surface. The table includes four standard legs and features a standard grid layout with 28 mm boreholes spaced 100 x 100 mm on the surface and side panels.

Additional details:
Rounded corners, edges, and boreholes
Side panel height: 200 mm
High-quality steel side panels with Plasma Nitration

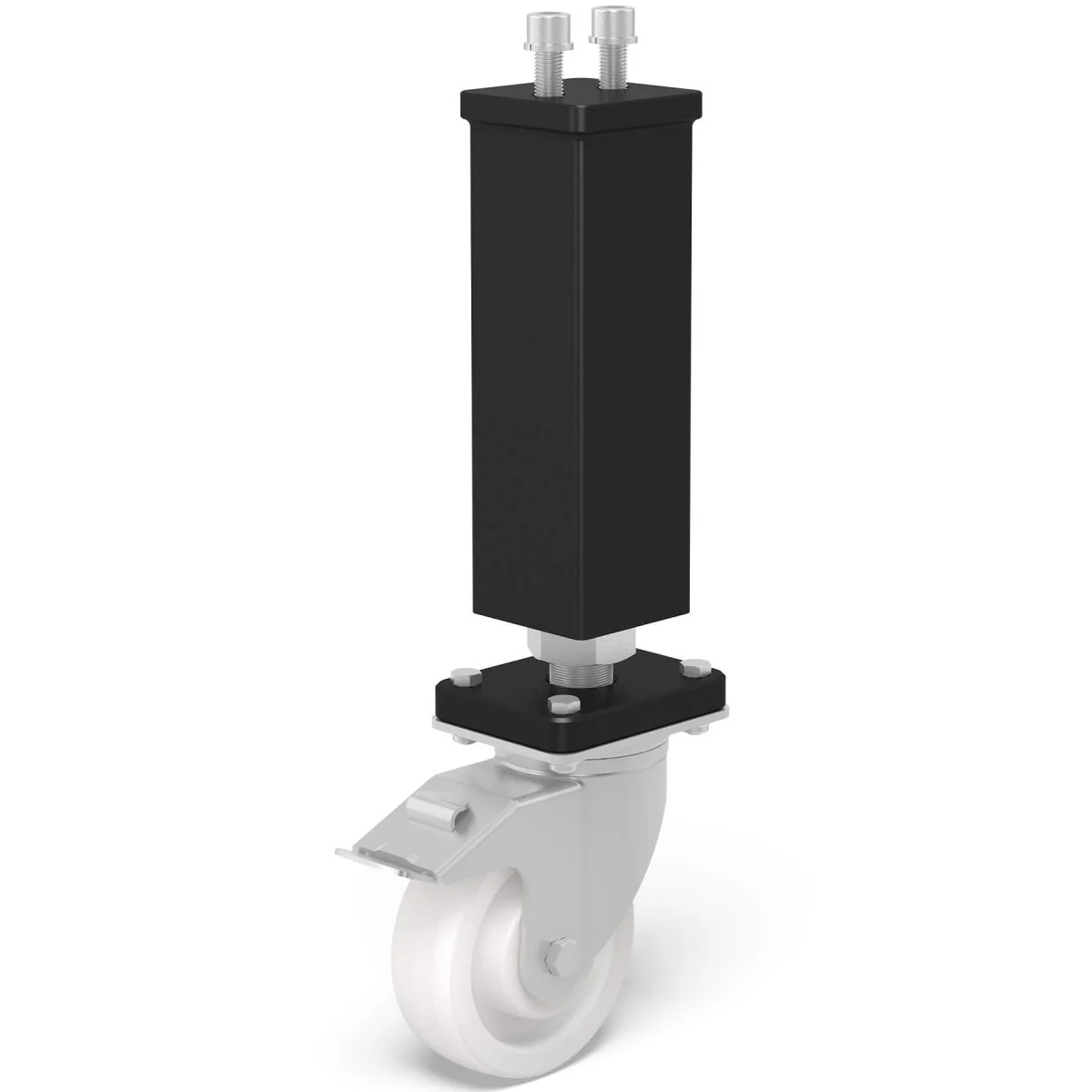

Leg with Caster and Locking Brake, 650 H, 28 mm (S1-280864) x 4
The Siegmund 25.5" Leg with Caster and Locking Brake. Load-bearing capacity 800 kg. / 1,770 lbs. per caster, adjustable up to 20mm / 0.78" by turning the spacer plate and is equipped with a reinforced arbor.

Specs and Features:
Length: 90mm (3.5")
Width: 90mm (3.5")
Height: 650mm (25.5")
Weight: 20 lbs.

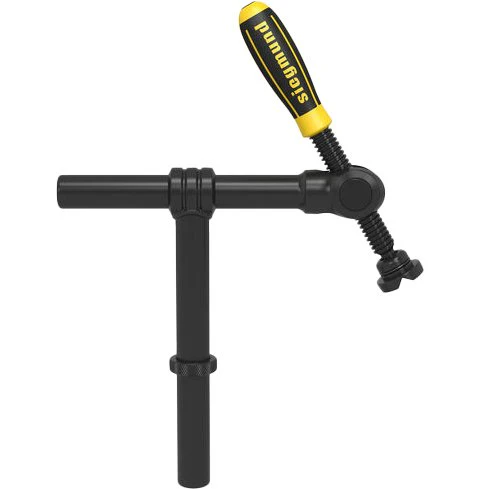

Pipe Clamp Universal, 28 mm (S2-280604) x 4
Pipe Clamp Universal, with swiveling Arbor enables flexible clamping at a + / - 42 degree angle. This Pipe Clamp combines the advantages of conventional 45° or 90° clamps. It can be used at an angle as well as straight, resulting in additional clamping options and a more variable clamping range.

The horizontal round tube with a length of 200 mm is fully adjustable and creates, combined with the swiveling arbor, a variable clamping range. The length of the vertical pipe is 250 mm.

To integrate the vertical pipe into the system boreholes, an adjusting ring is used (Item No. 280653.N). As a standard feature, the Round Pipe Clamp Universal is equipped with a 135 mm threaded arbor.

A long lifetime and efficiency is guaranteed by the high-quality material, as well as the option to order spare parts individually.

‐ Interchangeable prism
‐ Ball diameter spindle 16 mm
‐ Trapezoid thread of spindle 20 x 4 mm
