BuildPro · 28 mm system
Alpha 28
welding tables
-
Smallest footprintView table4 legs
-
View table4 legs
-
NarrowestView table6 legs
-
View table6 legs
-
LargestView table6 legs
-

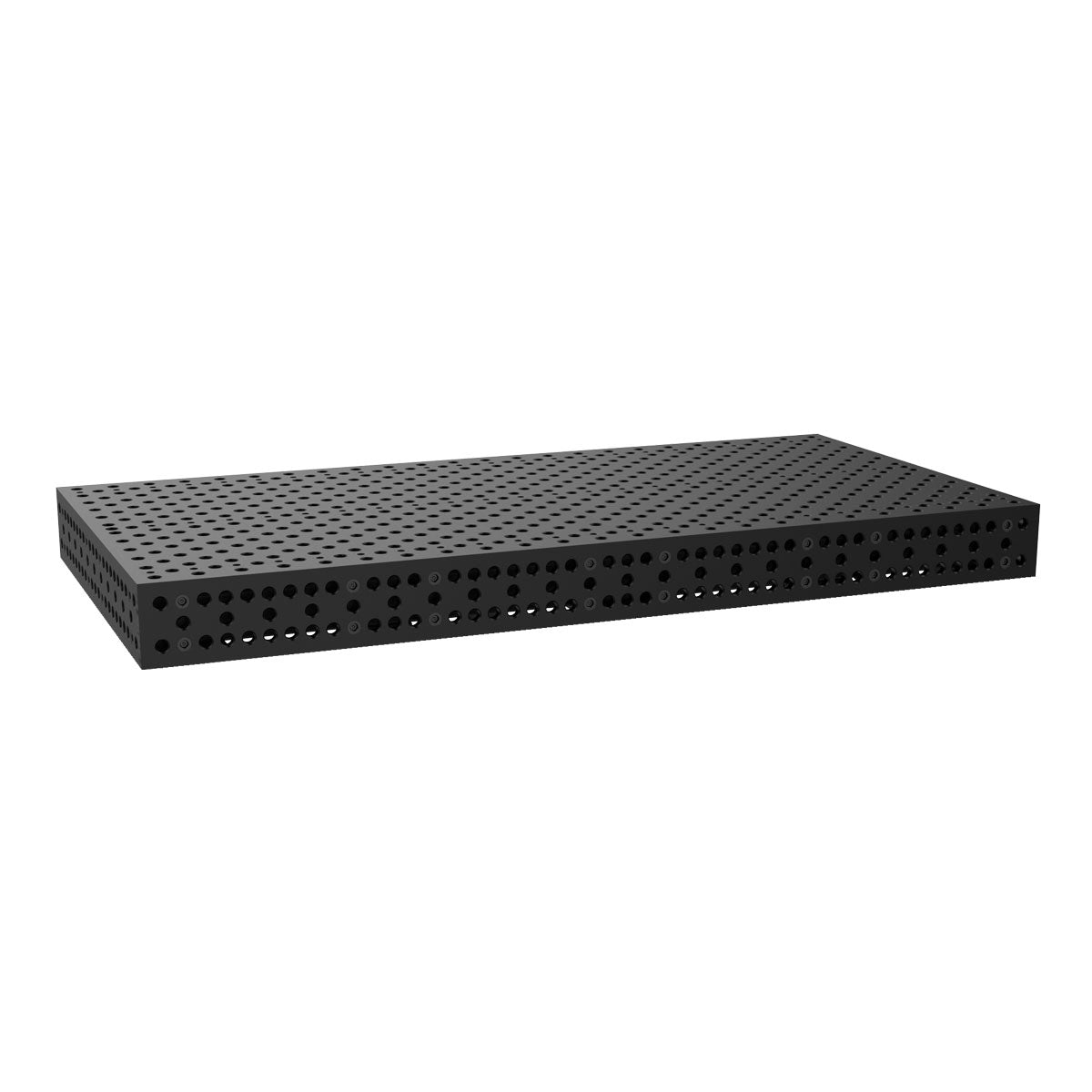

Tabletop only View tabletops5 sizes
-
Plates only View plates19 sizes
-
Not sure yet?
Pick the size by what you build.
Same 25 mm P20 plates, same Ø28 mm grid on 100 mm centers, the same six leg options and the same five fixturing faces on every size — only the footprint, the leg count and the capacity change. The series details below cover the top, the legs and the tooling that fits.
Quoted, not carted. Alpha 28 tables and tabletops are priced by quote from their product page — the leg you pick above carries over to that page. Tables come complete with legs; the legs are not sold on their own.
Why Alpha 28
The heavy
metric table
Alpha 28 is the BuildPro table for structural work. Thick P20 tool-steel plates on a machined tubular frame, with Ø28 mm holes on 100 mm centers — plus a second 100 mm grid offset 50 mm diagonally, so a clamp lands closer to wherever the part actually is.
You fixture on five faces, not one. The four sides carry plates on the same self-locating bushings as the top, so a square, a stop or a clamp mounts vertically off the edge of the table and holds an assembly upright while you weld it.
Every plate is reversible. When a face is spattered or worn, lift it, turn it over and set it back on its bushings — the grid comes back in tolerance without re-calibration. The full build is in the tech specs.
Choose from five sizes, 1.2 × 1.2 m up to 3.0 × 1.5 m, then pick from six legs: three fixed heights, height-adjustable, or either on braked casters. Tabletops are also sold on their own.
How it compares
Alpha 28 vs the
other BuildPro series
Alpha 28 is the metric series: the thickest plate, the most capacity and the only one besides Alpha 5/8 that fixtures on all five faces. The rest run the imperial 5/8" system and share its tooling. Greyed values match Alpha 28.
Slide sideways to see every series →
Alpha 28This series
Alpha 5/85/8" systemView
MAX5/8" systemView
MAX Slotted5/8" systemView
Rhino Cart5/8" systemView
Scout 365/8" or 16 mmView
Scout Tripod5/8" systemViewLoad capacities are static ratings. Alpha 28 takes 28 mm tooling; the 5/8" series share the Strong Hand Tools 5/8" clamps, stops and squares. The two systems are not interchangeable.
Construction
What the table is made of
Reversible tool-steel plates on a machined tubular frame. The same build on every size, in one nitrided finish.
-
Plate
25 mm P20 tool steel
1" (25 ±0.06 mm) low-alloy P20 tool steel, hardened to 58–62 HRC and ground flat to ±0.125 mm over any 600 × 600 mm.
-
Hole grid
Ø28 mm on 100 mm
28 mm holes on 100 mm centers, plus a second grid offset 50 mm diagonally. Machined to ±0.05 mm, so a clamp lands close to the part wherever it sits.
-
Five faces
Top and four sides
The four sides carry plates too. Mount a square or a clamp vertically off the edge and hold an assembly upright while you weld it — not just flat on the top.
-
Reversible
Flip a worn plate
Lift a plate off, turn it over and set it back. The other face becomes the working surface, so a spattered plate is twice the life instead of a replacement.
-
Frame
Machined tubular frame
A machined tubular steel frame, not a welded plate box. Welded plate-only designs distort and leave high spots at the corners and center; the rigid frame carries the plates instead.
-
Finish
QPQ nitrided
A QPQ nitrided surface at 58–62 HRC, with a 0.37 coefficient of friction — weld spatter lifts off and the plate resists corrosion and wear.
The legs
Six legs,
one flange
Three fixed heights, one adjustable, and two of them on braked casters. The letters are the leg part of the table part number. Drawn on one floor, to scale against each other.
-
A1T28-81007
Fixed · 653 mm
25.7"653 mm · leg alone
The standard leg. A one-piece square tube with a bolt-on top flange and a threaded leveling pad underneath — the height most shops fixture at.
- Adjustment
- Fixedleveling pad
- Stands on
- Leveling padthreaded stem
-
A2T28-81005
Fixed · 503 mm
19.8"503 mm · leg alone
150 mm shorter. Same tube and same leveling pad as the 653 mm leg — a lower bench height for seated work or for stacking tall fixtures.
- Adjustment
- Fixedleveling pad
- Stands on
- Leveling padthreaded stem
-
A3T28-81004
Fixed · 352 mm
13.9"352 mm · leg alone
The low leg. Drops the surface to 560 mm so you can work over the top of a tall weldment, or run the table as a low assembly platform.
- Adjustment
- Fixedleveling pad
- Stands on
- Leveling padthreaded stem
-
B1T28-82009
Height-adjustable
24–35.3"609–896 mm · leg alone
One table, any bench height. An inner tube pins through the outer tube over a 287 mm range, so the same table suits standing layout and seated detail work.
- Adjustment
- 287 mm rangepinned inner tube
- Stands on
- Leveling padthreaded stem
-
C1T28-82407
Adjustable + caster
23.5–30.6"596–776 mm · leg alone
Adjustable and mobile. The pinned telescoping tube on a braked swivel caster — roll the table to the work, set the brakes, then set the height.
- Adjustment
- 180 mm rangepinned inner tube
- Stands on
- Casterlocking brake
-
C2T28-81406
Fixed + caster
25.3"642 mm · leg alone
Mobile, at one height. The fixed tube on the same braked caster — nothing to re-set after a move, and the stiffest of the two rolling options.
- Adjustment
- Fixedon casters
- Stands on
- Casterlocking brake
-
Bolts to the frame
Each leg carries a top flange that bolts up into the underframe. The frame takes the load, so the plates stay flat and the leg can come off without disturbing the top.
-
Braked caster
Precision ball bearings on a non-marking nylon polymer wheel, with a dual toe-step brake. Sold on its own as T28-81406-03 when a wheel wears out.
-
Anchoring pad
Swaps in for a leveling foot and adds a flange with two Ø18 mm holes, so a table on fixed legs can be bolted down to the floor. Sold as T28-81304-01.
Legs ship with the table, not on their own. Pick the option above the collection grid and it carries through to the quote. Casters trade some capacity for mobility — see the rating for each size in the tech specs.
28 mm system
Works with the whole 28 mm system
Ø28 mm holes on a 100 mm grid across the top and every side plate. Clamps, squares, stops and rests built for the BuildPro 28 mm system drop straight in — the imperial 5/8" tooling does not fit.
Specifications
Tech specs
Pick a size for its numbers and part numbers. The tabletop build and the six legs are the same on every size; the capacity and the leg count are not.
This size
Changes with the size you picked
Tabletop
Same build on every size — only the footprint, the leg count and the capacity change
- Plate
- 1" (25 ±0.06 mm)P20 low-alloy tool steel, the grade used for mold tooling
- Hardness
- 58–62 HRCtop plate P20 · side plates Q345B at 50–55 HRC
- Hole pattern
- Ø28 mm on 100 mm centersØ28 +0.20/−0 mm · 100 ±0.05 mm spacing · plus a second 100 mm grid offset 50 mm diagonally
- Fixturing faces
- 5the top plus all four sides — side plates on the same bushings
- Flatness
- ±0.125 mm per 600 × 600 mmabout ±0.005" per 23.6" × 23.6"
- Finish
- QPQ nitridedcoefficient of friction 0.37 · weld-spatter, corrosion and wear resistant
- Tabletop height
- 7.9" (200 mm)the tabletop alone, plates plus frame
- Plates
- Self-locating, reversiblelift, turn over, reset on the locating bushings — no re-calibration
- Frame
- Machined tubular steelthe frame carries the load, not the plates
Legs
Six options, one bolt-on flange — the letters are the leg part of the table part number
- A1T28-81007
- Fixed 25.7" (653 mm)leveling pad
- A2T28-81005
- Fixed 19.8" (503 mm)leveling pad
- A3T28-81004
- Fixed 13.9" (352 mm)leveling pad
- B1T28-82009
- Adjustable 24–35.3" (609–896 mm)pinned inner tube · leveling pad
- C1T28-82407
- Adjustable 23.5–30.6" (596–776 mm) on casterspinned inner tube · caster with locking brake
- C2T28-81406
- Fixed 25.3" (642 mm) on casterscaster with locking brake
- On casters
- Two of the sixthe 653 mm fixed leg (C2) and the adjustable leg (C1); the 503 and 352 mm legs are leveling-pad only
- Surface height
- Leg + 200 mm topthe heights above are the leg alone — the finished surface height per size is in This size
- Sold
- With the tablelegs are not stocked separately; the caster and the anchoring pad are
FAQ
Questions, answered
Straight answers on table height, the leg options, 28 mm tooling, tabletops and pricing.
- How tall is the finished table?
- Leg height plus the 200 mm tabletop. On the 653 mm fixed legs the surface sits at 860 mm (33.9"); on the 503 mm legs, 710 mm (28"); on the 352 mm legs, 560 mm (22"). The height-adjustable legs run 810–1,160 mm (31.9–45.7") and the adjustable caster legs 765–970 mm (30.1–38.2"). Every surface height is in the tech specs.
- Which leg option should I pick?
- Start with how the table has to move. Leveling pads sit the table on the floor and take the full rating; casters trade some capacity for mobility — 3,200 kg instead of 4,000 on the two smaller sizes, 4,800 instead of 6,000 on the three larger ones. Then pick the height. Only the 653 mm fixed leg and the adjustable leg have caster versions; the 503 and 352 mm legs are leveling-pad only, which is why those chips grey out above when casters are selected.
- Does my 5/8" tooling fit an Alpha 28 table?
- No — 28 mm is a separate system. The holes are Ø28 mm on 100 mm centers, so imperial 5/8" clamps, stops and squares do not fit. Use the 28 mm tooling, or one of the Alpha 28 fixturing kits.
- Can I buy the tabletop without legs?
- Yes. All five sizes are sold as a tabletop on its own (part numbers ending in N), for mounting on a positioner, a lift or a frame of your own. Individual replacement plates and a plate mounting kit are also stocked.
- Can I change legs later, or add casters?
- The legs come with the table and are not sold on their own. Pick the leg option when you request the quote. The wear parts are: the caster itself, and an anchoring pad that replaces a leveling foot with a flange so you can bolt the table to the floor.
- How do I get a price?
- Request a quote from the table page. Open the size you want — the leg option you picked above carries over — and use the quote request. Alpha 28 tables are not sold through the online cart.
Ready to quote
Pick your size.
We'll price it.
Every Alpha 28 table is quoted from its own page. Pick a size and a leg option in the collection above, or jump straight to one.
