Strong Hand Tools 4 inch and 5 inch yoke pipe vises on a dark background

Strong Hand Tools · Pipe vises

Yoke
Pipe Vise

A cast-iron yoke vise that bolts to your welding table. Two sizes, for pipe up to 4" or 5" in diameter, with the M12 bolts, washers and nuts in the box.

  • 4" & 5" sizes
  • 3 × M12 bolts included

Overview

Pipe held
on the table

A yoke pipe vise holds round pipe between serrated jaws, clamped from above by a T-handle screw. The yoke is hinged, so it swings open to take the pipe and latches shut over it.

The cast-iron base bolts to your table through three holes. The M12 bolts, washers and nuts come in the box.

Two sizes: the YPV004 for pipe up to 4" and the YPV005 for pipe up to 5".

Enlarge YPV004 4 inch and YPV005 5 inch yoke pipe vises side by side
YPV004 and YPV005 shown: the 4" on the left, the 5" on the right.
Max pipe diameter
4" / 5"YPV004 / YPV005
Mounting holes
3Ø0.63" (16 mm) through
Hole pattern
4" × 2"102 × 51 mm, both sizes
Fasteners
M123 bolts, 6 washers, 3 nuts
Weight
12.4 / 18.4 lb5.6 / 8.3 kg

Two sizes

4-inch or
5-inch

Pick a size to see its base drawing and specs. Both bolt down on the same three-hole pattern.

YPV004Enlarge
YPV004 base drawing: 5.6 inch deep, 3.1 inch tall, mounting holes 4.0 inch apart with the third hole 2.0 inch back

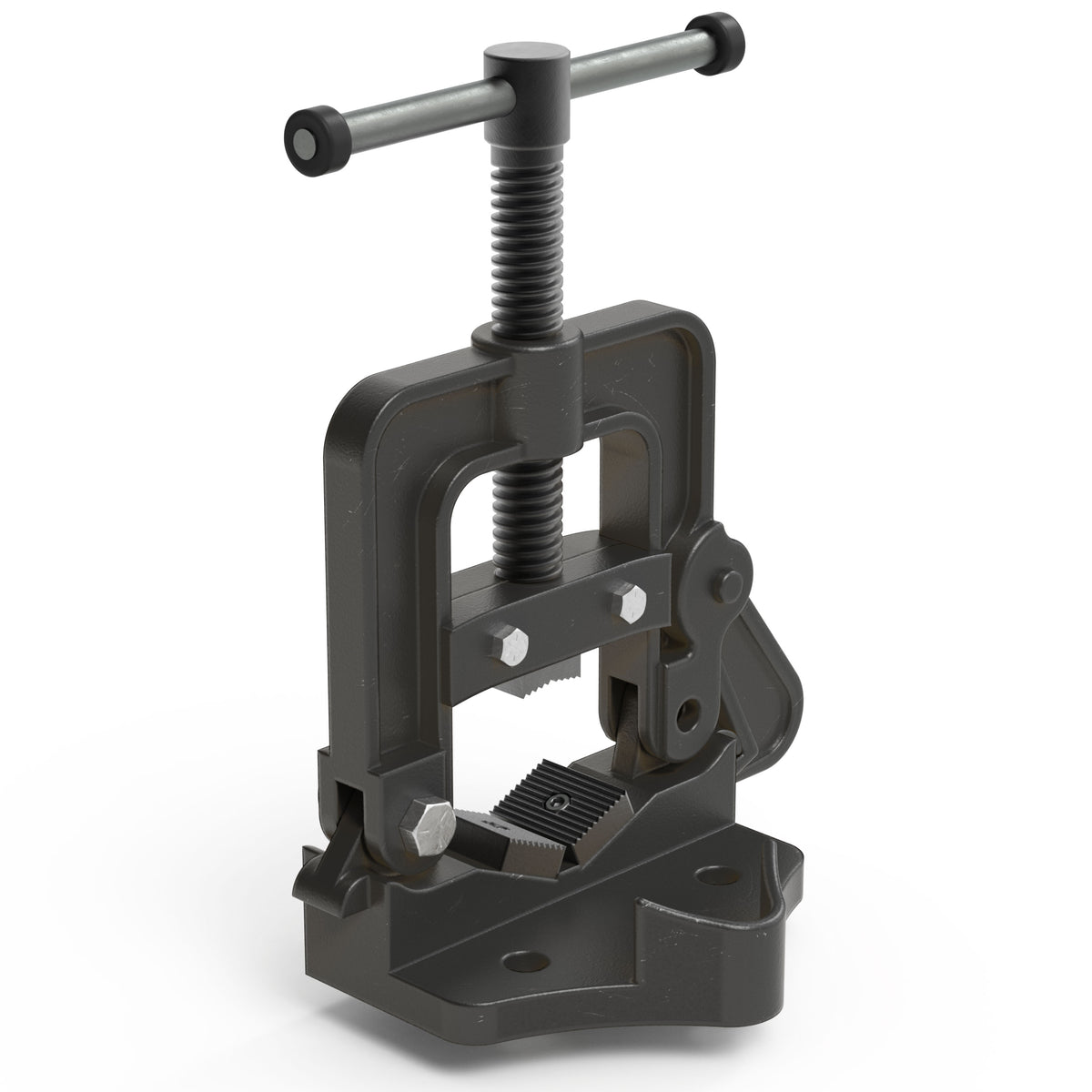

4-inchThe smaller yoke pipe vise
YPV004
Max pipe diameter
4"102 mm
Base depth
5.6"143 mm
Base height
3.1"79 mm
Mounting holes
3 × Ø0.63"16 mm, 4.0" × 2.0" pattern
Base at the holes
3/4"19 mm thick
Jaw inserts
1.7" × 1.3"43 × 32 mm, 0.4" (10 mm) thick
Weight
12.4 lb5.6 kg
Choose 4" (YPV004)
YPV005Enlarge
YPV005 base drawing: 6.4 inch deep, 4.1 inch tall, mounting holes 4.0 inch apart with the third hole 2.0 inch back

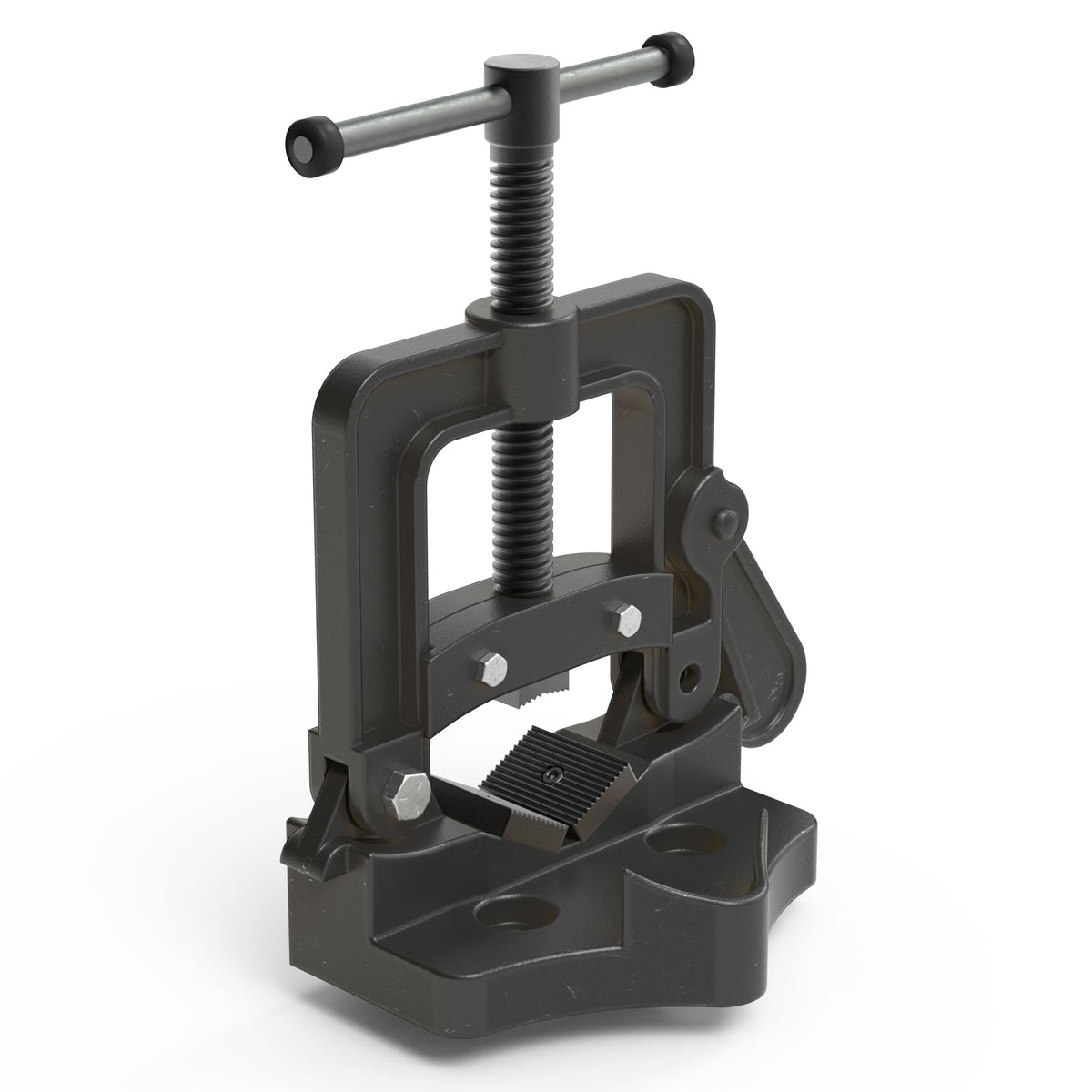

5-inchThe larger yoke pipe vise
YPV005
Max pipe diameter
5"127 mm
Base depth
6.4"162 mm
Base height
4.1"105 mm
Mounting holes
3 × Ø0.63"16 mm, 4.0" × 2.0" pattern
Base at the holes
1"25 mm thick
Jaw inserts
2.3" × 1.5"58 × 38 mm, 0.5" (11 mm) thick
Weight
18.4 lb8.3 kg
Choose 5" (YPV005)

How it works

Bolt, open,
set, clamp

Four steps from a bare table to a clamped pipe. Both sizes work the same way.

  1. 01Pointing to the yoke pipe vise mounting holes over the holes of a welding table

    Bolt it down

    Line the three base holes up with holes in the table top and bolt through with the M12 bolts, washers and nuts.

  2. 02Yoke swung open on the yoke pipe vise while a pipe is set in

    Open the yoke

    Release the latch and swing the yoke open on its hinge.

  3. 03Closing the yoke over a pipe and latching it on the yoke pipe vise

    Set and latch

    Lay the pipe on the lower jaws, swing the yoke closed over it and let the latch lock it.

  4. 04Turning the T-handle of the yoke pipe vise to clamp a pipe

    Clamp it

    Turn the T-handle to bring the upper jaw down onto the pipe.

Construction

Cast iron,
serrated jaws

  • Yoke pipe vise with the yoke closed and a pipe clamped

    Body

    Cast-iron yoke

    The base and the hinged yoke are cast iron.

  • Close view of the yoke pipe vise upper jaw and lower V jaws

    Jaws

    Serrated, top and bottom

    Serrated jaws above and below the pipe. The inserts are ETD-150 steel with a black-oxide finish.

  • Serrated lower jaws of the yoke pipe vise set in a V

    Lower jaw

    Set in a V

    Two serrated inserts form a V for the pipe to sit in.

  • Yoke pipe vise base on a perforated welding table

    Base

    3/4" or 1" at the holes

    The base is 3/4" (19 mm) thick at the mounting holes on the 4" and 1" (25 mm) on the 5".

Works with

Bolts to
5/8" tables

The three base holes line up with 5/8" holes on a 2" grid, so the vise bolts straight through a perforated table top.

Shop Alpha 5/8" tables

In the box

What's included

The vise and everything to bolt it down. Both sizes ship with the same fastener set.

  • 1×YPV004 yoke pipe vise
    Yoke pipe viseThe 4" (YPV004) or the 5" (YPV005), whichever size you choose.
  • 3×M12 x 60 mm grade 8.8 hex bolt
    M12 hex boltsM12 × 1.75, 60 mm long, grade 8.8.
  • 6×M12 flat washer
    M12 flat washersFlat washers sized for M12, two per bolt.
  • 3×M12 hex nut
    M12 hex nutsM12 × 1.75, one per bolt.

Not included: the welding table. See the tables it bolts to above.

Specifications

Every number

  • Max pipe diameter

    YPV0044"102 mm
    YPV0055"127 mm
  • Jaws

    Serratedtop and bottom
    Both
  • Lower jaw

    V-shapedtwo serrated inserts
    Both
  • Jaw insert size

    YPV0041.7" × 1.3"43 × 32 mm, 0.4" (10 mm) thick
    YPV0052.3" × 1.5"58 × 38 mm, 0.5" (11 mm) thick
  • Jaw insert material

    ETD-150 steelblack-oxide finish
    Both
  • Clamping

    T-handle screwhinged yoke with latch
    Both
  • Base depth

    YPV0045.6"143 mm
    YPV0056.4"162 mm
  • Base height

    YPV0043.1"79 mm
    YPV0054.1"105 mm
  • Base thickness at holes

    YPV0043/4"19 mm
    YPV0051"25 mm
  • Mounting holes

    3 × Ø0.63"16 mm, through
    Both
  • Hole pattern

    4.0" × 2.0"101.6 × 50.8 mm: two holes 4" apart, third hole 2" back
    Both
  • Body

    Cast iron
    Both
  • Bolts

    3 × M12 × 1.7560 mm long, grade 8.8, 19 mm hex head, 30 mm min. thread
    Both
  • Washers

    6 × M12 flat24 mm OD, 13 mm ID, 2.3–2.7 mm thick
    Both
  • Nuts

    3 × M12 × 1.75hex, 19 mm across flats, 10 mm tall
    Both
  • Wrench size

    19 mmbolt heads and nuts
    Both
  • Weight

    YPV00412.4 lb5.6 kg
    YPV00518.4 lb8.3 kg
  • SKU

    YPV004YPV0044" yoke pipe vise
    YPV005YPV0055" yoke pipe vise
  • UPC

    YPV004679352024127
    YPV005679352024134

FAQ

Questions, answered

Short answers on mounting and hardware.

Do I need to drill my table?
Not on a table with 5/8" holes on a 2" grid. The base holes sit 4" apart with the third 2" back, so all three land on holes in the top.
Do both sizes use the same bolts?
Yes. The 4" and the 5" share the same hole pattern and ship with the same three M12 × 60 mm bolts, six washers and three nuts.
What wrench do I need for the hardware?
19 mm. The bolt heads and the nuts are both 19 mm across the flats.
