Product Dimensions and Specifications: The table measures 120" x 60" with a 6" side height; it features 5/8" boreholes spaced 2" apart for precise fixturing and a five-sided, reversible design to extend usability.
Material and Construction: Constructed from P20 top plate (hardness 58-62 HRC) and Q345B sides (hardness 50-55 HRC), with a nitrided finish for enhanced durability; flatness tolerance is ±0.005" per 24" x 24".
Key Features: Includes self-locating, reversible plates that can be rotated 180° when worn; extended hole patterns on sides for added versatility; rated for static loads (specific capacity not detailed).
Additional Options and Pricing: Optional leg brace available for older models; pricing requires a quote request, as it is not listed on the page.
* All load capacities are calculated based on static load.
* If you have the legacy model that comes with yellow round legs, optional Leg Brace Assembly TMLB120A is suggested.
Other Systems
16mm System
28mm System
Metric Spacing
Inch Spacing
Tables
Fixtures

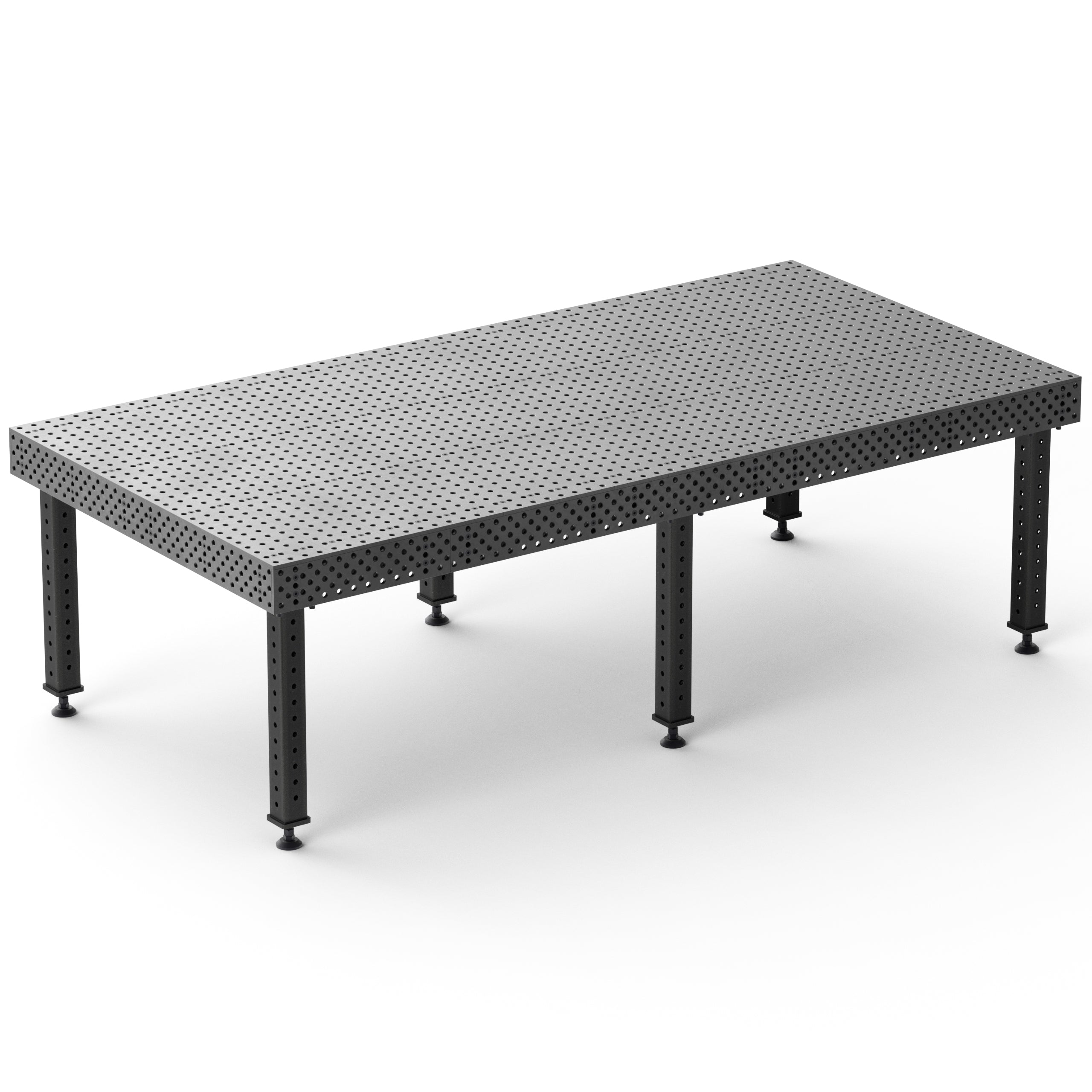

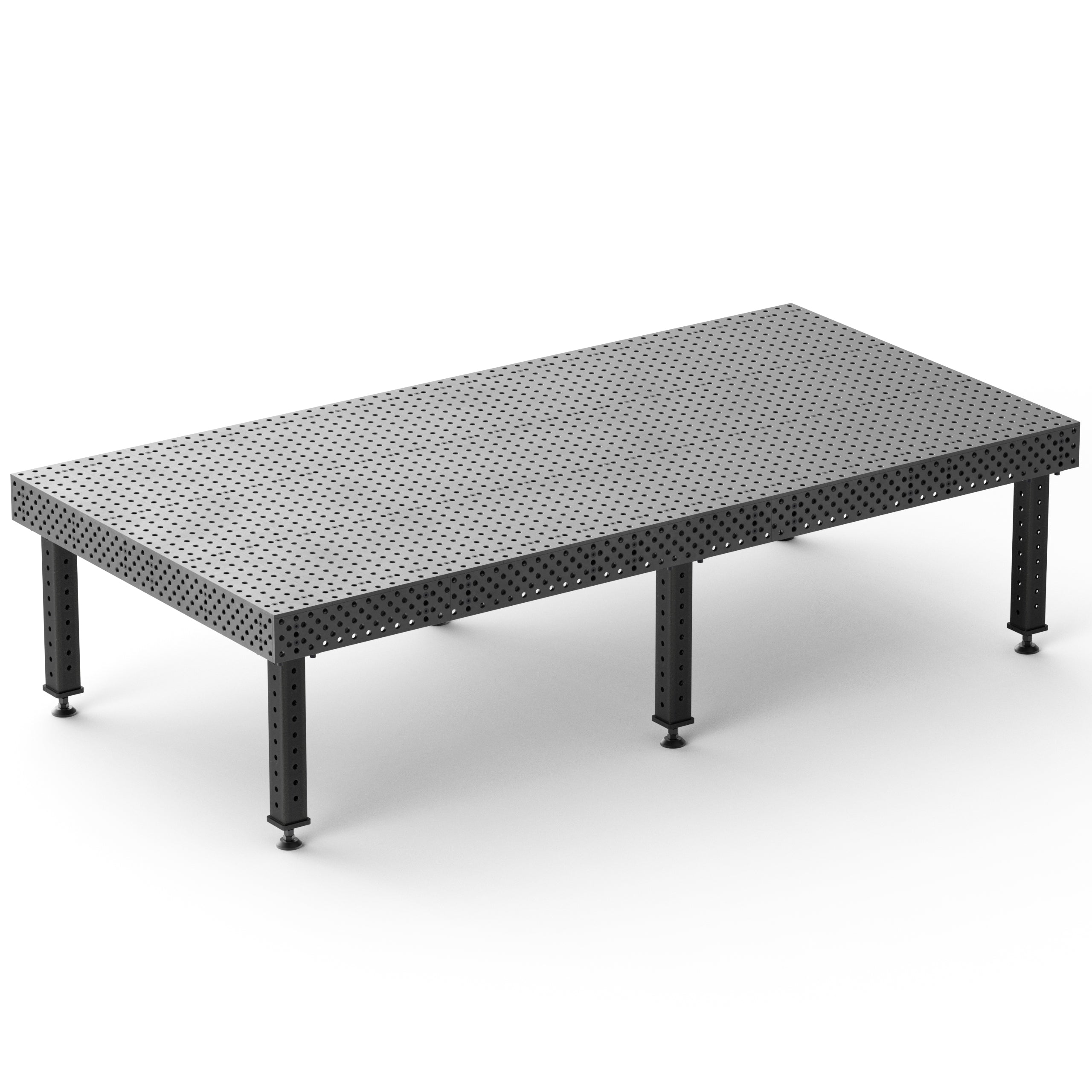

Mesas Alpha 5/8, 10' x 5'
Mesas Alpha 5/8, 10' x 5'
Patented
-
Estimated delivery: Oct 05 - Oct 09

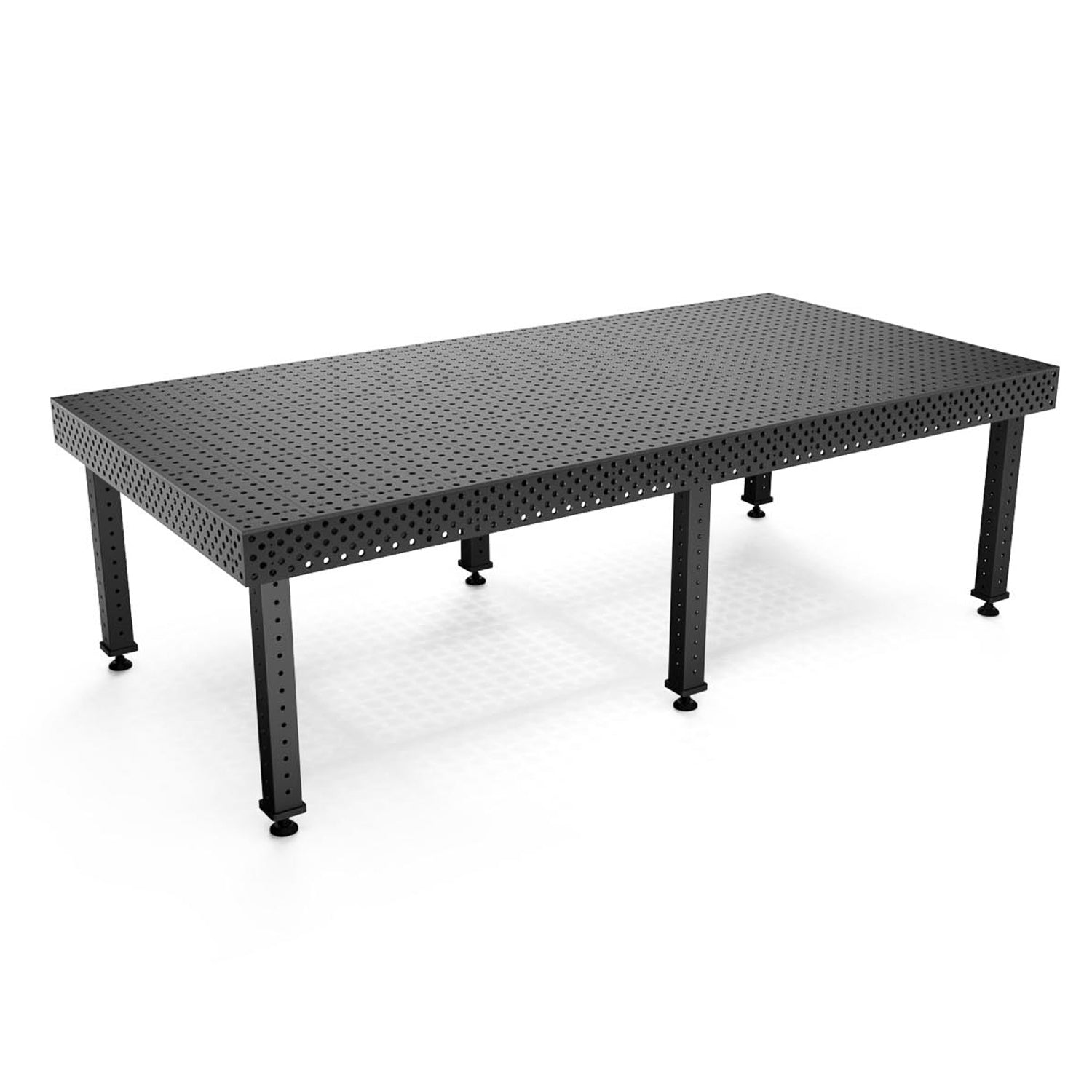

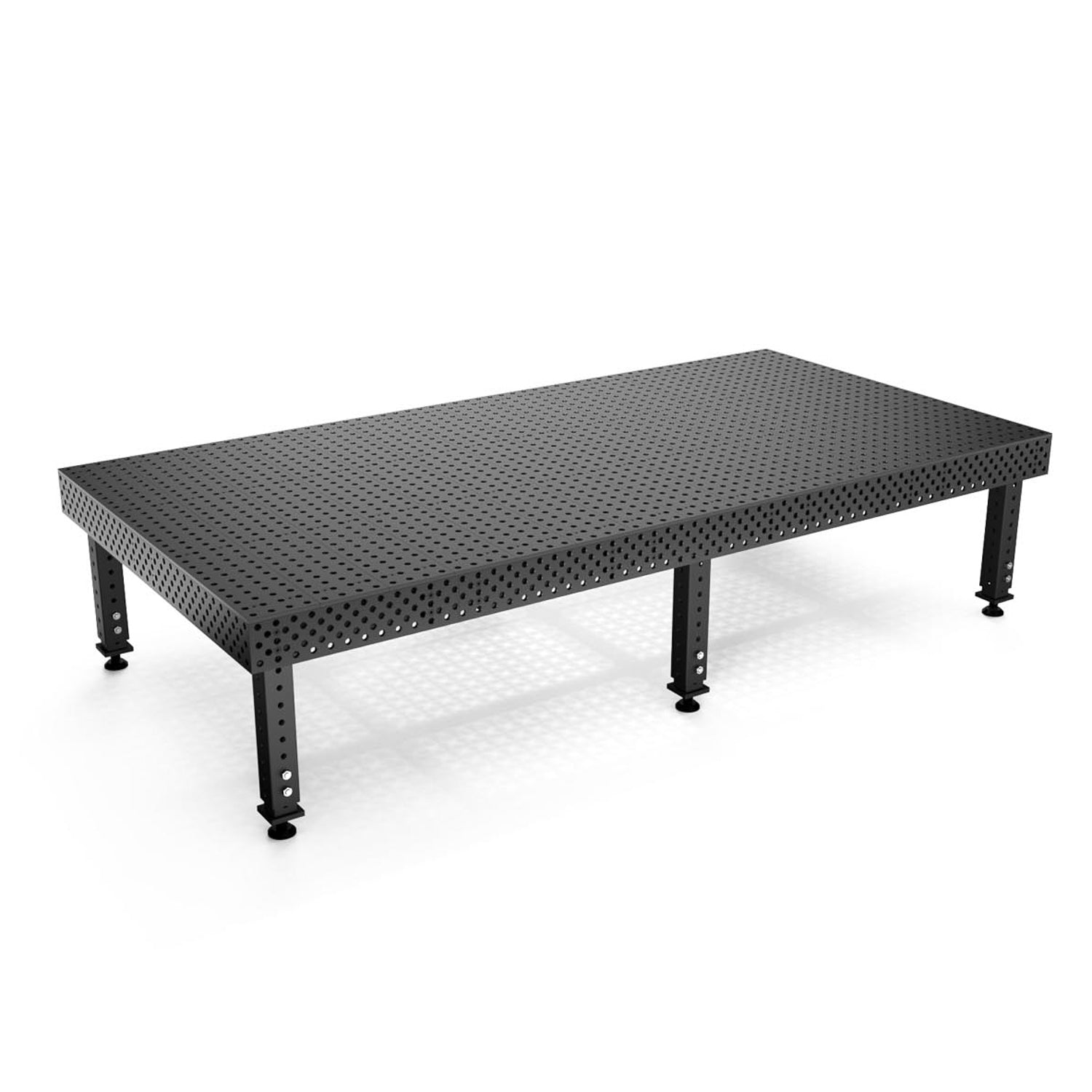

Alpha 10' x 5' (120" x 60")
Table Accuracy
Hole Diameter:
0.625" + .002 / -.000
Hole Spacing:
2.000" ±0.001
Table Flatness:
±0.005 per 24" x 24"
Plate Thickness:
0.47" ±0.004
Tabletop Finish:
Nitrided (Heat-Treated)
Surface Hardness:
58-62 HRC
Coefficient of Friction:
0.37
Table Dimensions:
10' x 5' (120" x 60")
Top Plate
Material:
P20
Hardness:
58-62 HRC
Side Plate
Material:
Q345B
Hardness:
50-55 HRC
Features
REVERSIBLE Self-Locating Top & Side Plates
All BuildPro welding tables feature precision machined self-locating steel plates and reversible top plates; this enables each table plate to be removed and flipped 180 degrees to expose a new working surface if the top side has been damaged or worn down.
Table Accuracy
Table flatness: ±0.005 per 24″ x 24″
Hole spacing: 2.000″ ±0.001
Hole diameter: 0.625″ +.002/-.000
Plate thickness: 0.47″ ±0.004
Tabletop Side Height
The new five-sided tables feature a 5-1/2″ side plate combined with the top plate to create a 6″ height.
Alpha table side plates feature an extended 5 borehole pattern for added precision and adjust-ability.

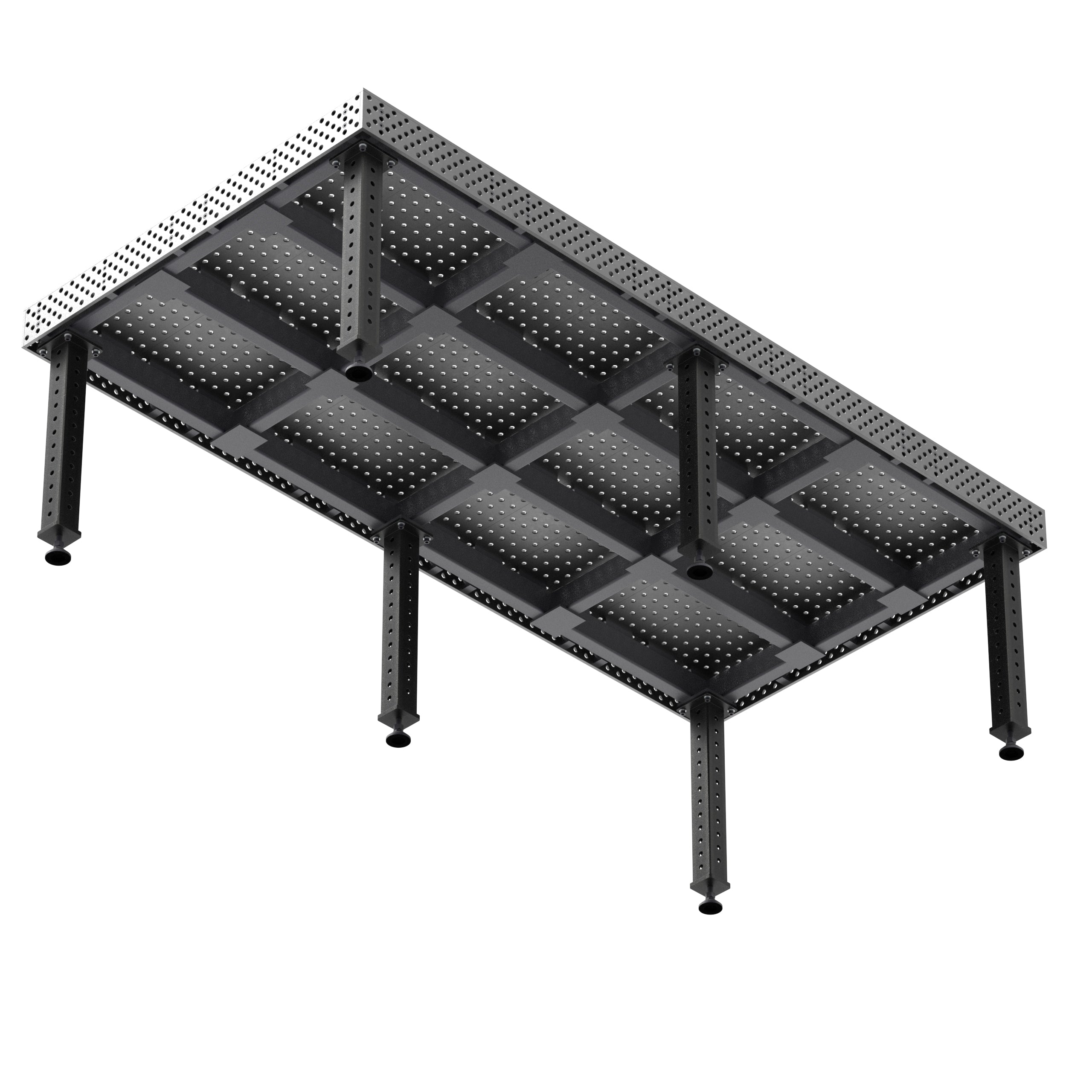

Plate Mounting Detail for Side Plates
Side Plates also use self locating bushing system.
Nitrided (Heat-Treated) Tabletop
All top and side plates of alpha table are constructed from heat-treated steel, hardened to 58-62 HRC (top) and 50-55 HRC (side), and finished with a nitrite coating with a case depth of .0004-.0008″.
10' x 5' (120" x 60")
Heavy Duty 30-1/4"
Heavy Duty 24-1/4"
Adjustable 22-1/4" - 38-1/2"

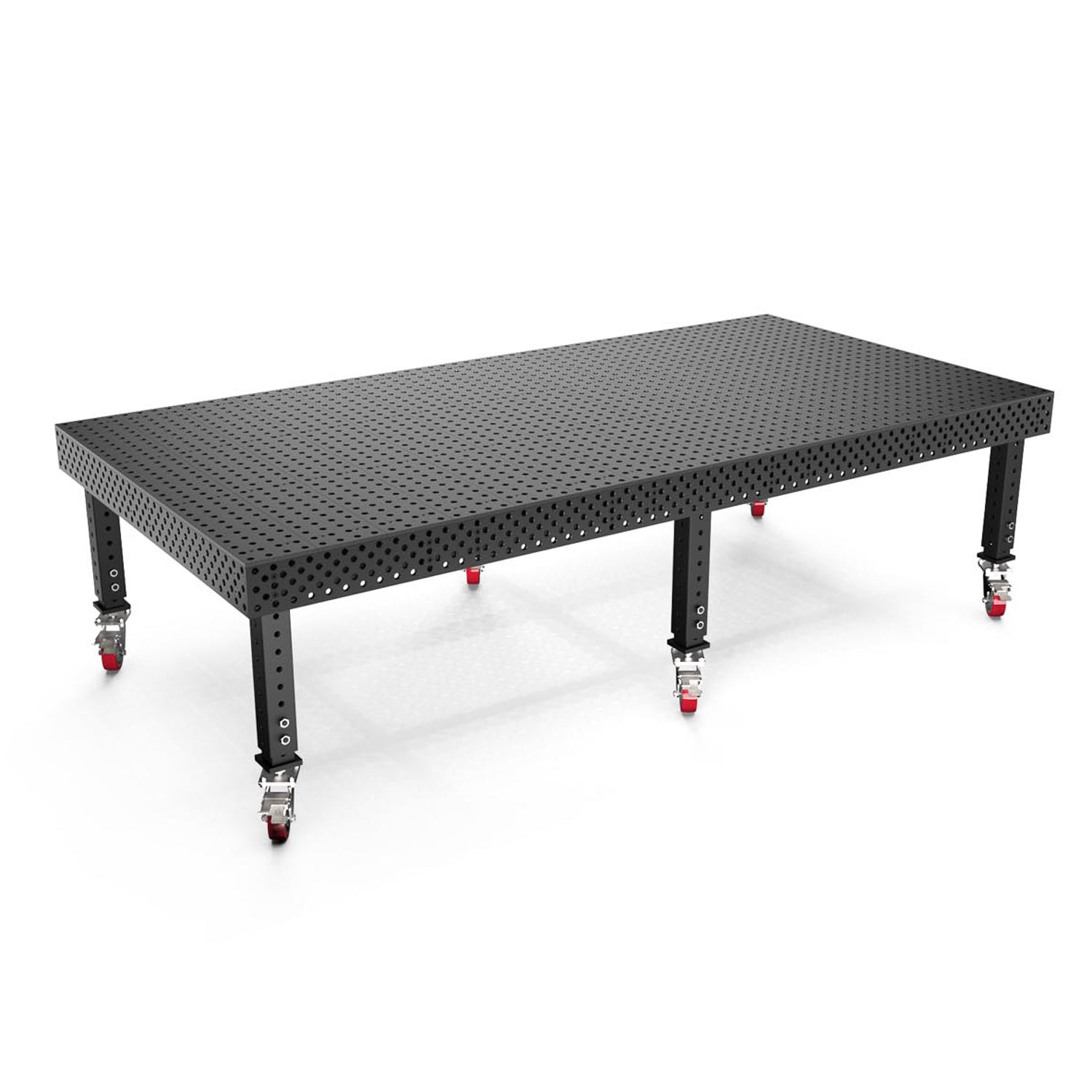

Adjustable 27" ~ 37" + Mobility Caster
8' x 4' (96" x 48")
Heavy Duty 30-1/4"
Heavy Duty 24-1/4"
Adjustable 22-1/4" - 38-1/2"
Adjustable 27" ~ 37" + Mobility Caster
6' x 4' (72" x 48")
Heavy Duty 30-1/4"
Heavy Duty 24-1/4"
Adjustable 22-1/4" - 38-1/2"
Adjustable 27" ~ 37" + Mobility Caster
6' x 3' (72" x 36")
Heavy Duty 30-1/4"
Heavy Duty 24-1/4"
Adjustable 22-1/4" - 38-1/2"
Adjustable 27" ~ 37" + Mobility Caster
4' x 4' (48" x 48")
Heavy Duty 30-1/4"
Heavy Duty 24-1/4"
Adjustable 22-1/4" - 38-1/2"
Adjustable 27" ~ 37" + Mobility Caster
