Nro. de pieza Nombre Longitud (pulgadas) Ancho (pulgadas) Altura (pulgadas) Espesor (pulgadas) Peso (lb)

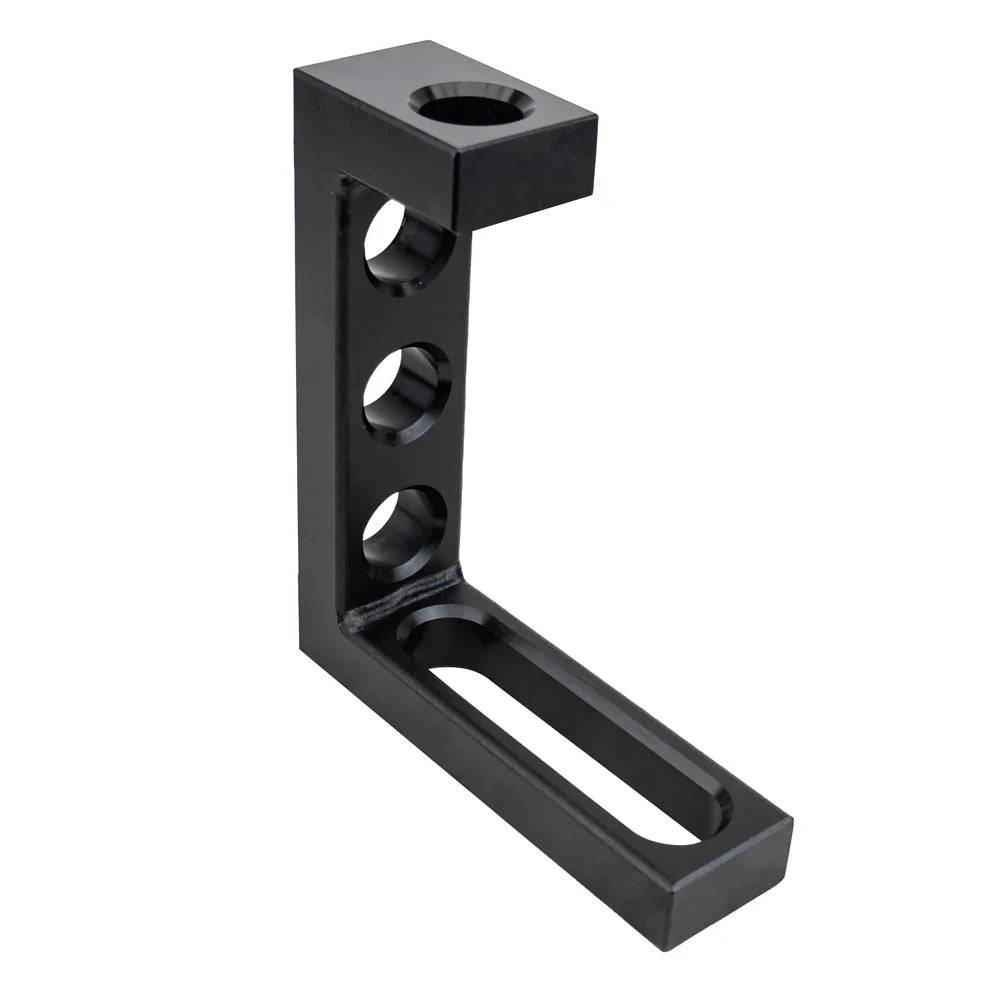

U28-12018 Ángulo cuadrado 7 2 8 1 5.5

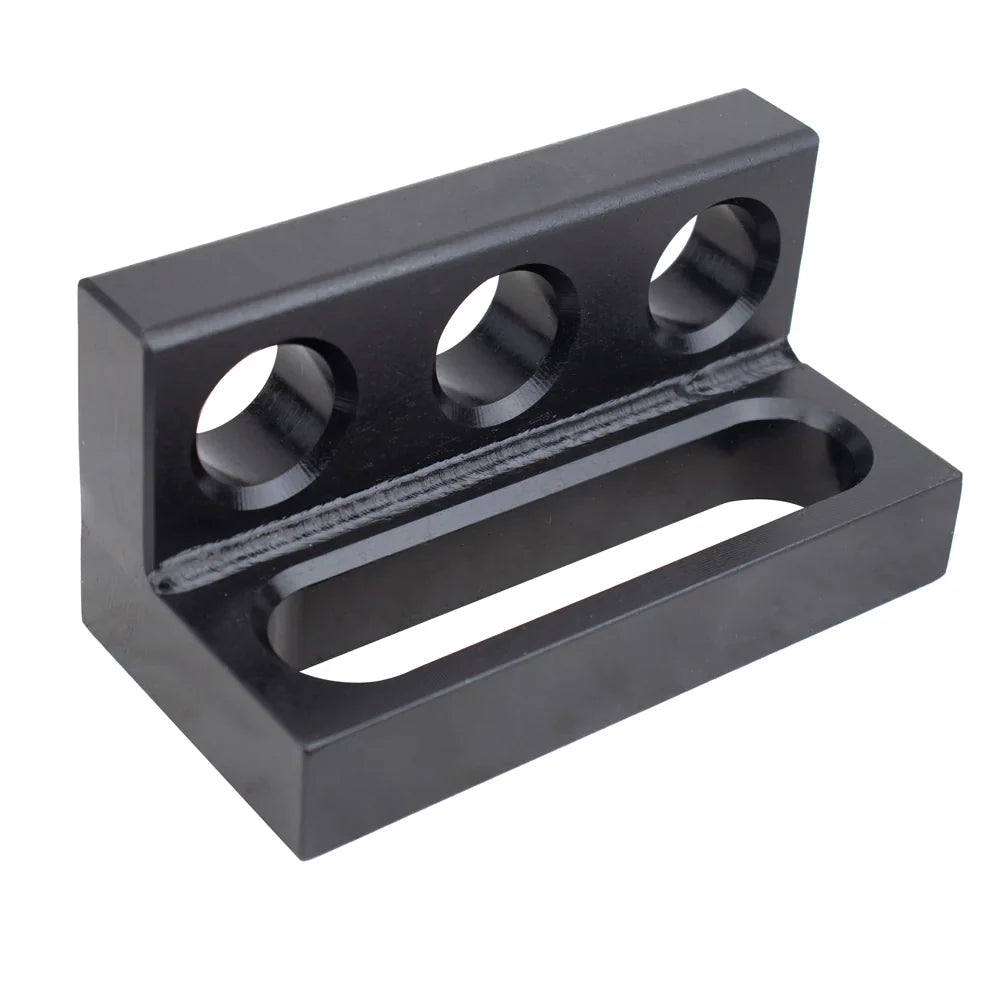

U28-23081 Cuadrado de montaje 6 3 3 1 5.7

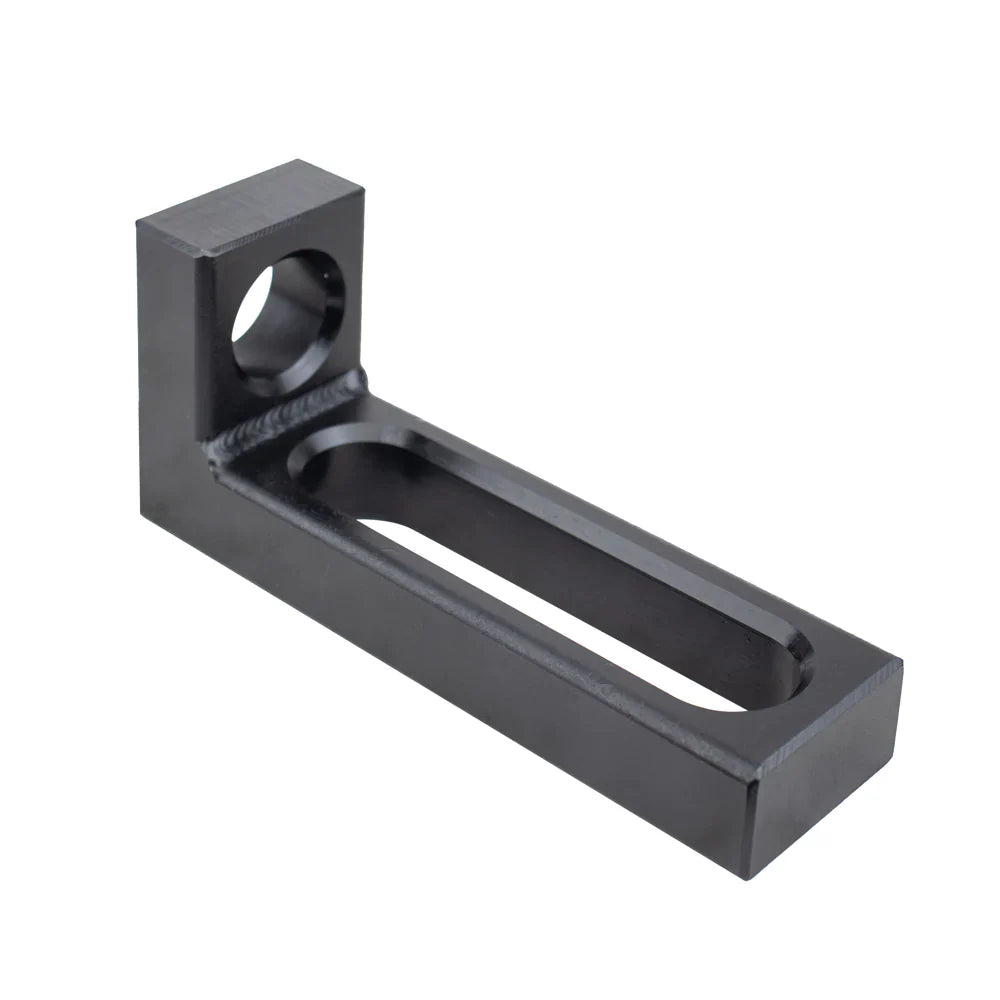

U28-23181 Ángulo cuadrado 7 2 3 1 3.1

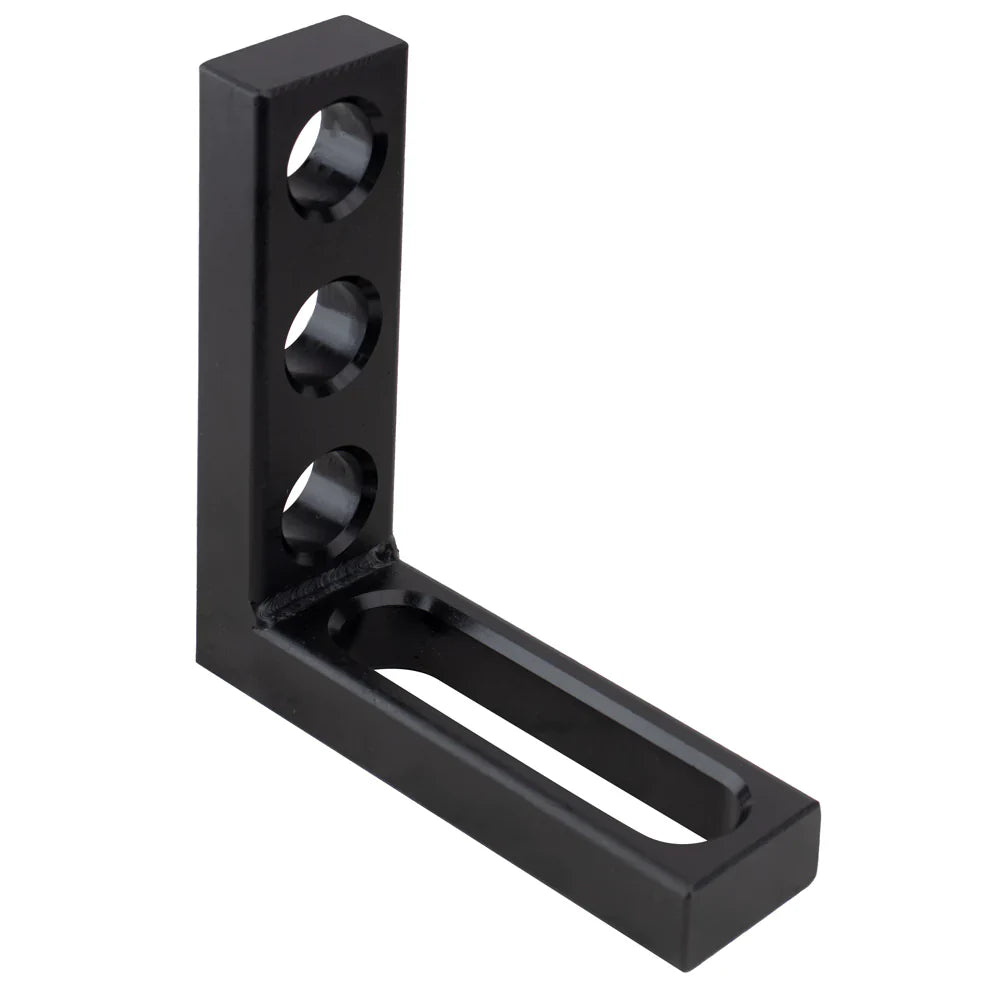

U28-23183 Ángulo cuadrado 7 2 7 1 4.4

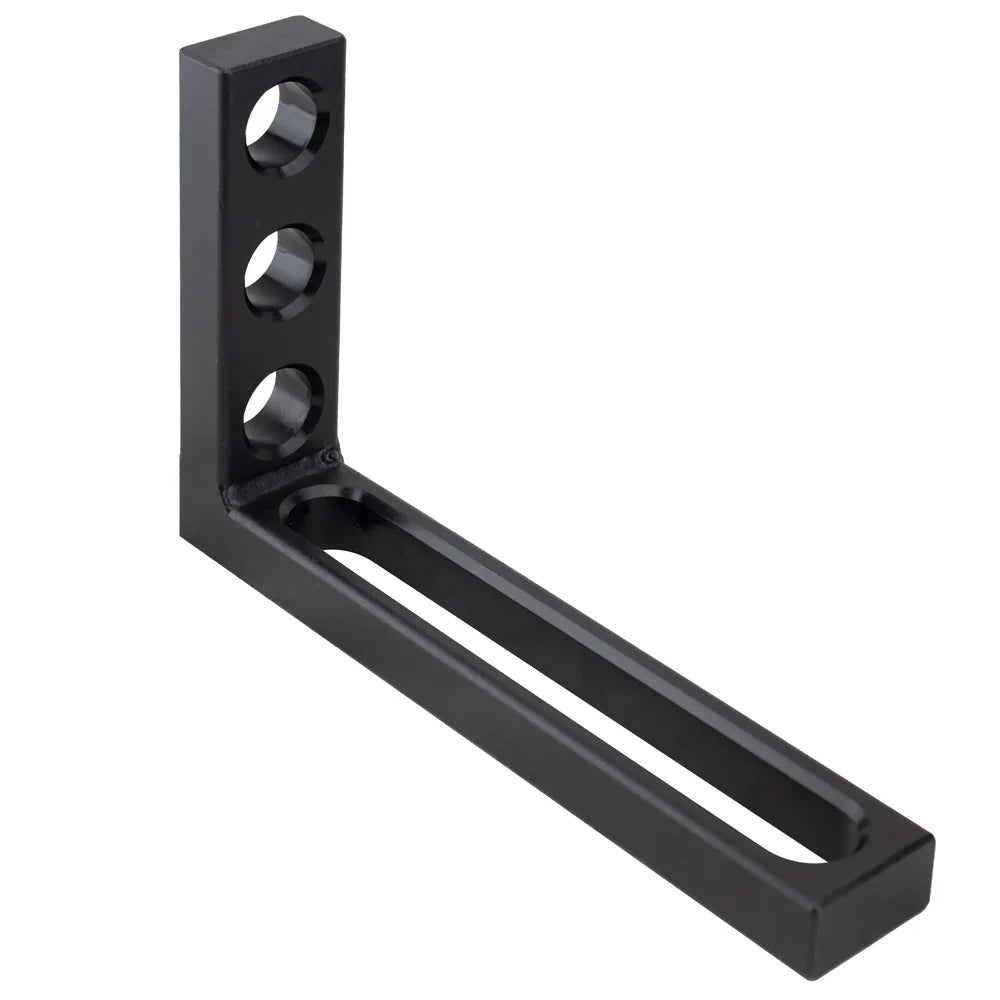

U28-23283.1 Ángulo cuadrado 11 2 7 1 6

If you need a document you can't find here, request it below and our engineering team will get back to you shortly.

Request a File

Downloads

Spec Drawing

Manual

CAD

U28-12018 - STEP

U28-23081 - STEP

U28-23181 - STEP

U28-23183 - STEP

U28-23283.1 - STEP
