Precise positioning. Independent adjustment. Rock-solid hold.

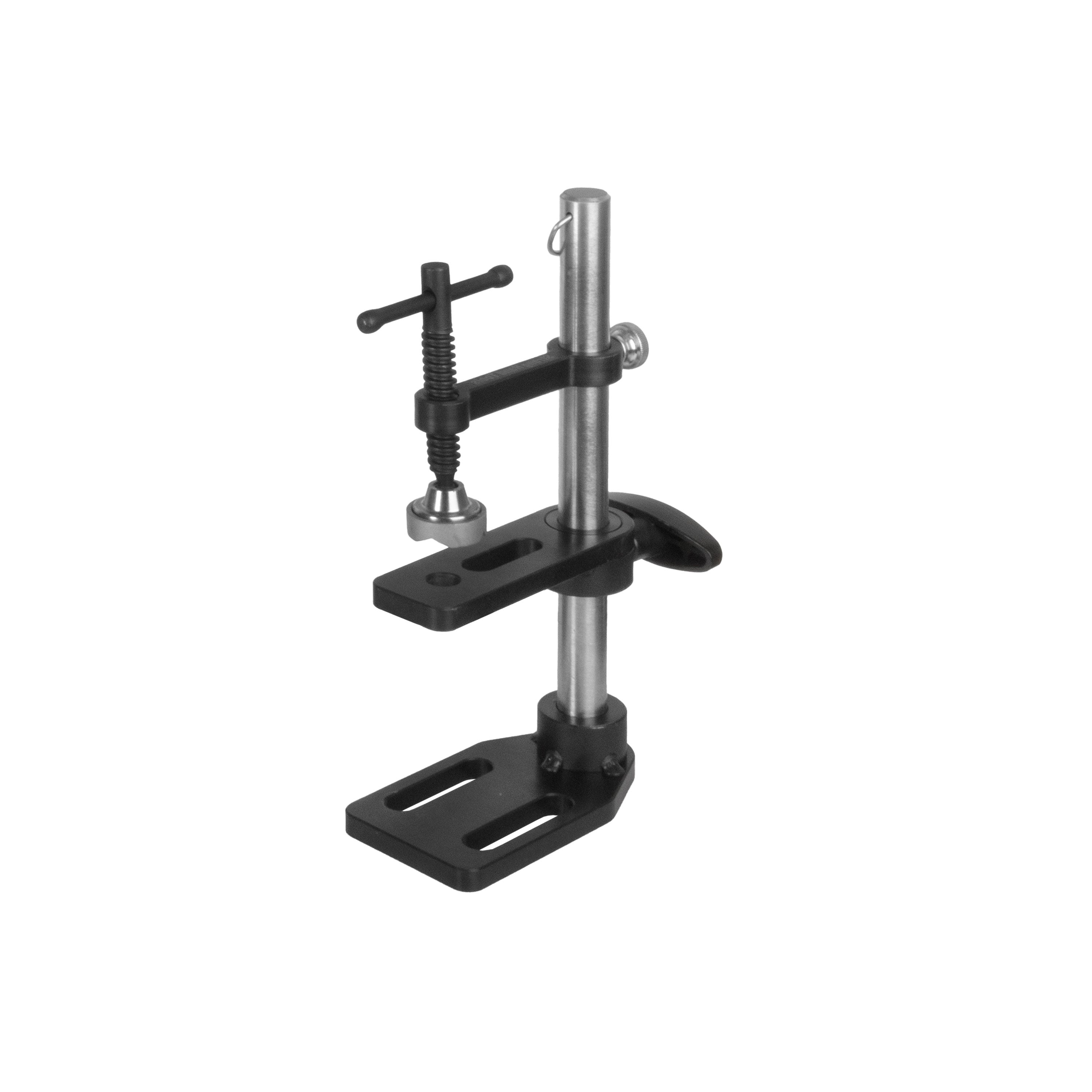

The APC120 and APC180 Positioning Clamps mount directly to the tabletop and feature dual adjustable arms with positive locking. Dial in height and clamping capacity independently to secure parts exactly where you need them every time.

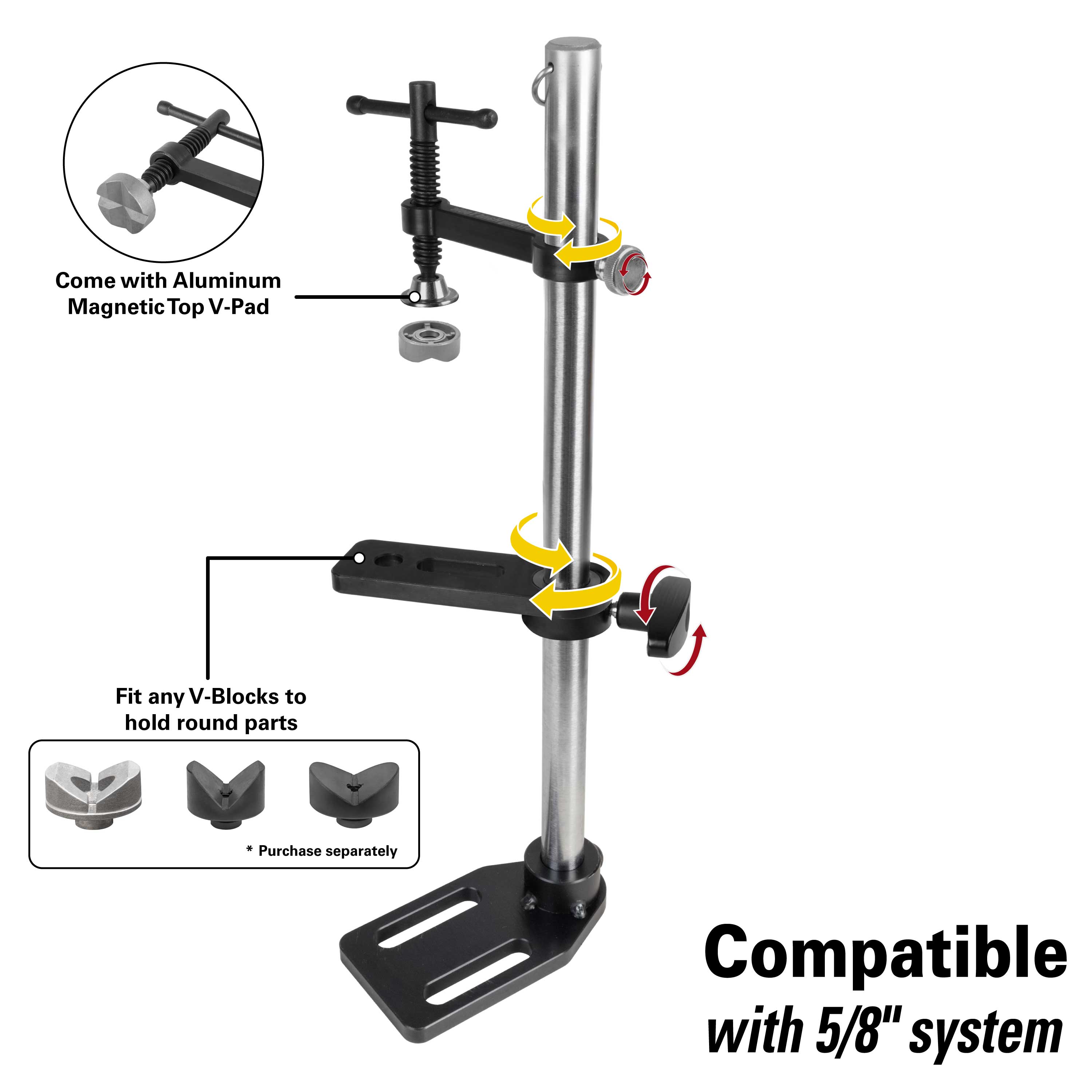

Vertical Adjustments

Rotating Arms

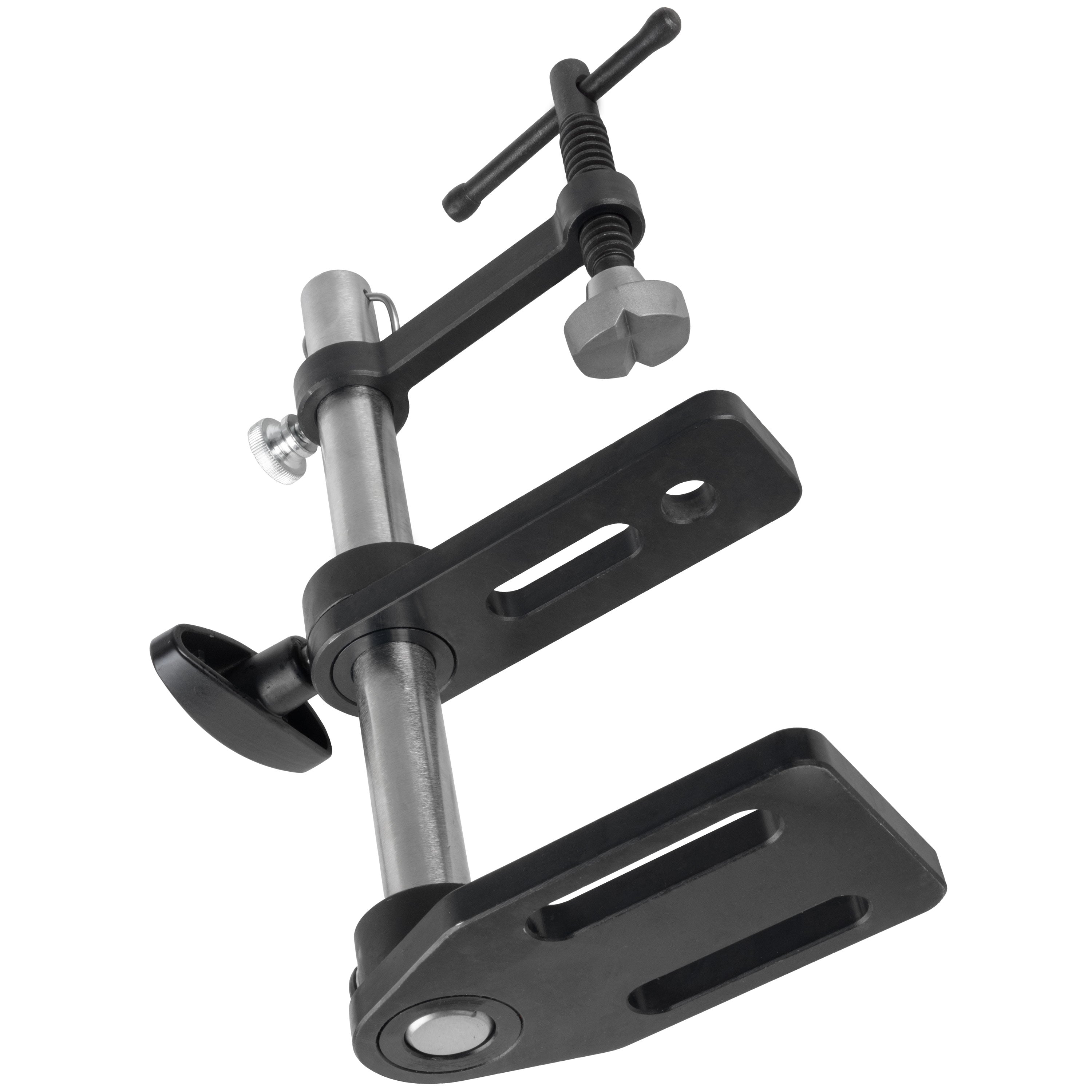

Adjustable clamp mechanism with a metal rod and multiple mounting options.

5/8" Slot for Mounting

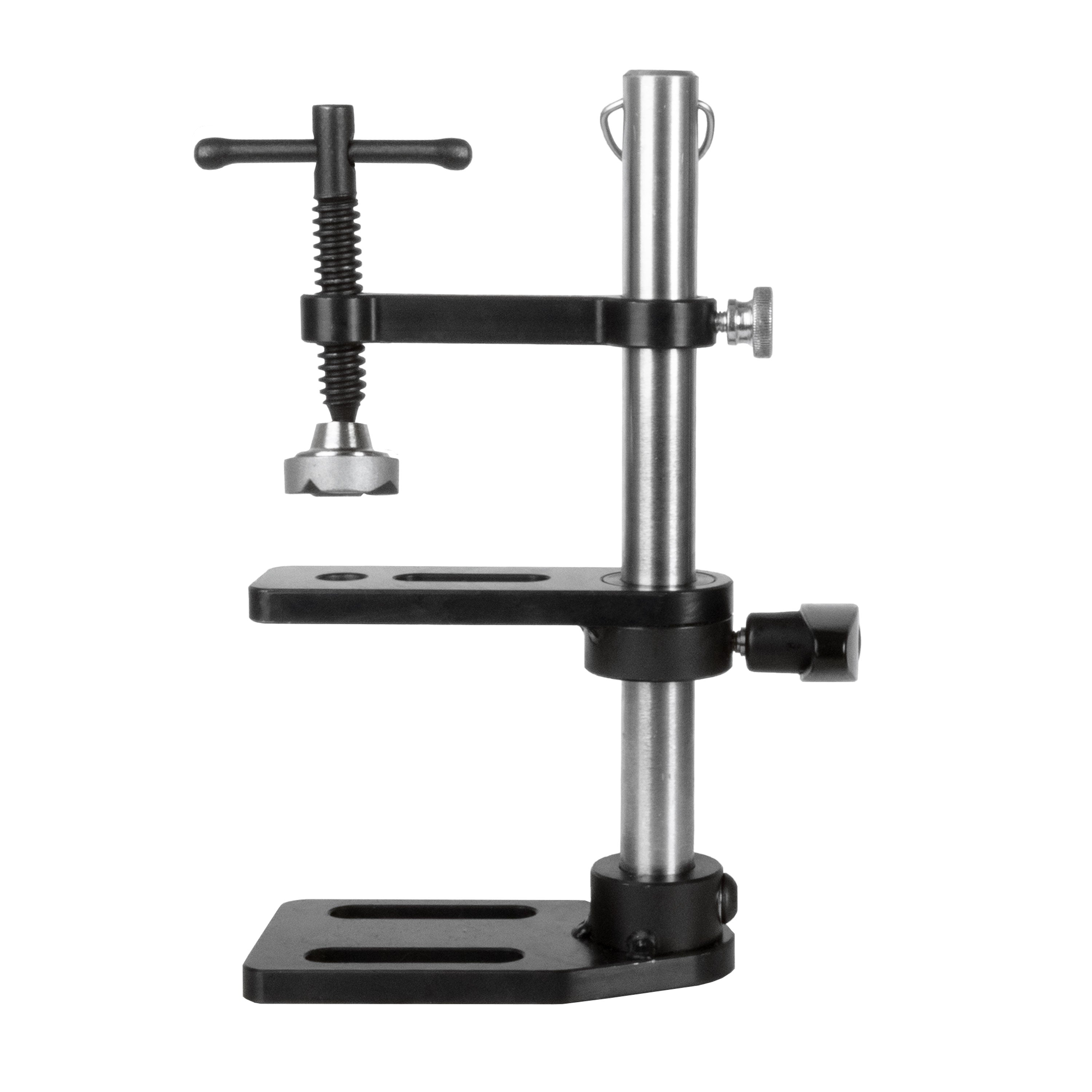

Model:

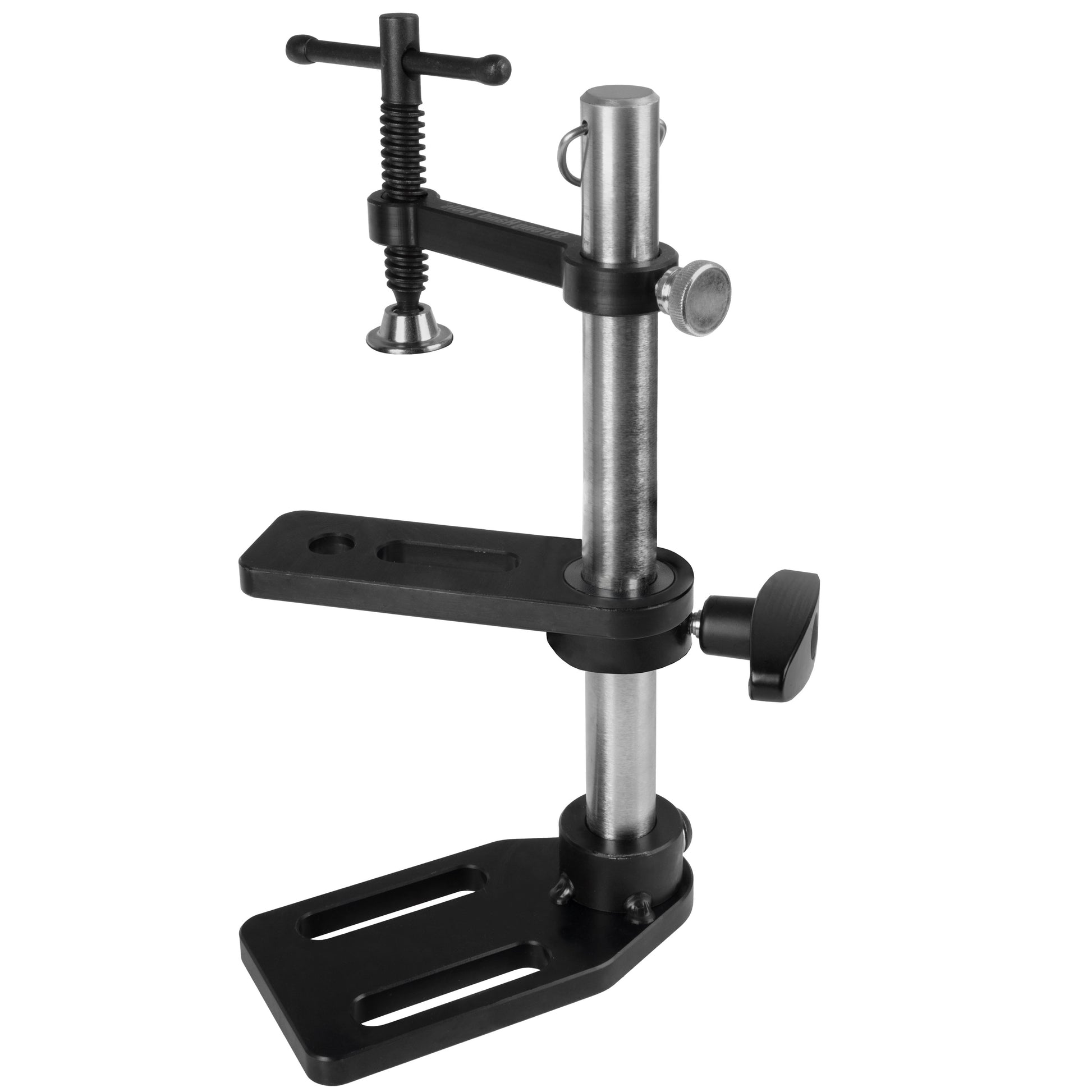

APC120
Clamping Capacity:
7"

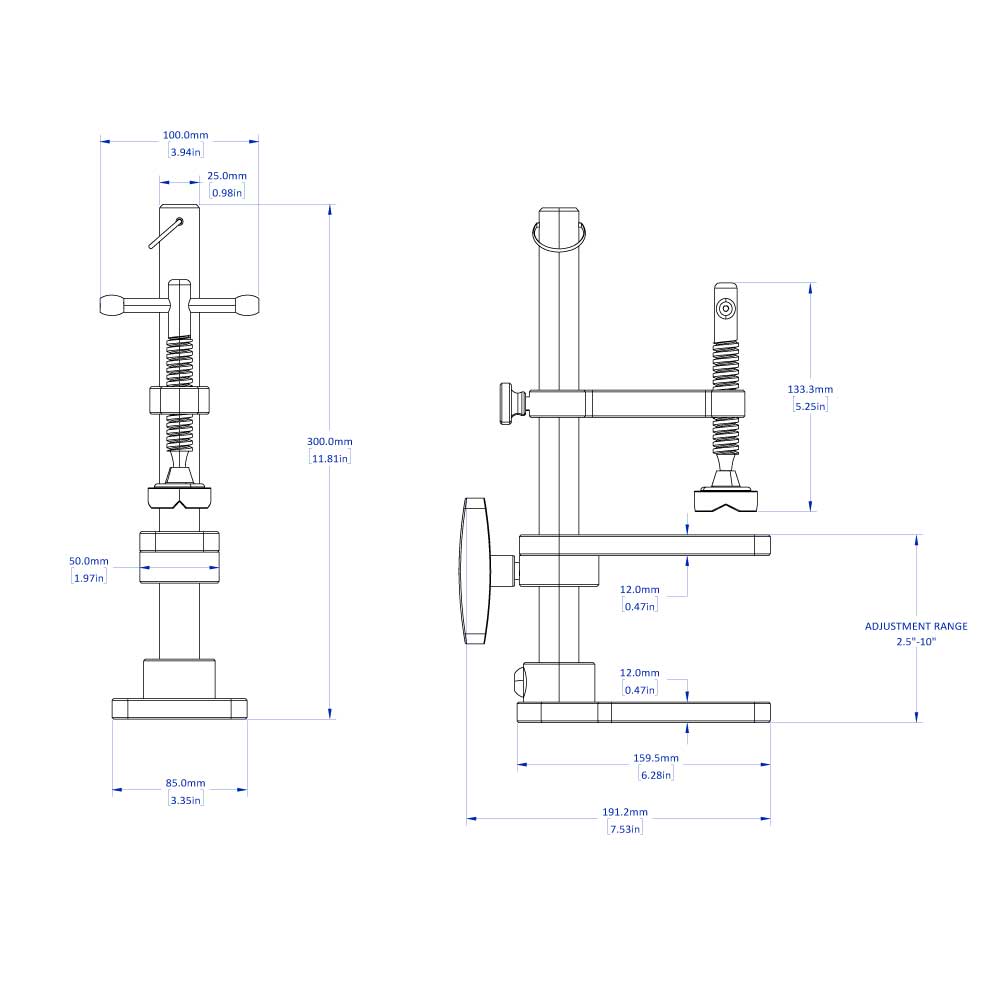

Height Adjustable Range:
2.5" - 10"
Clamping Force:
1,200 lb

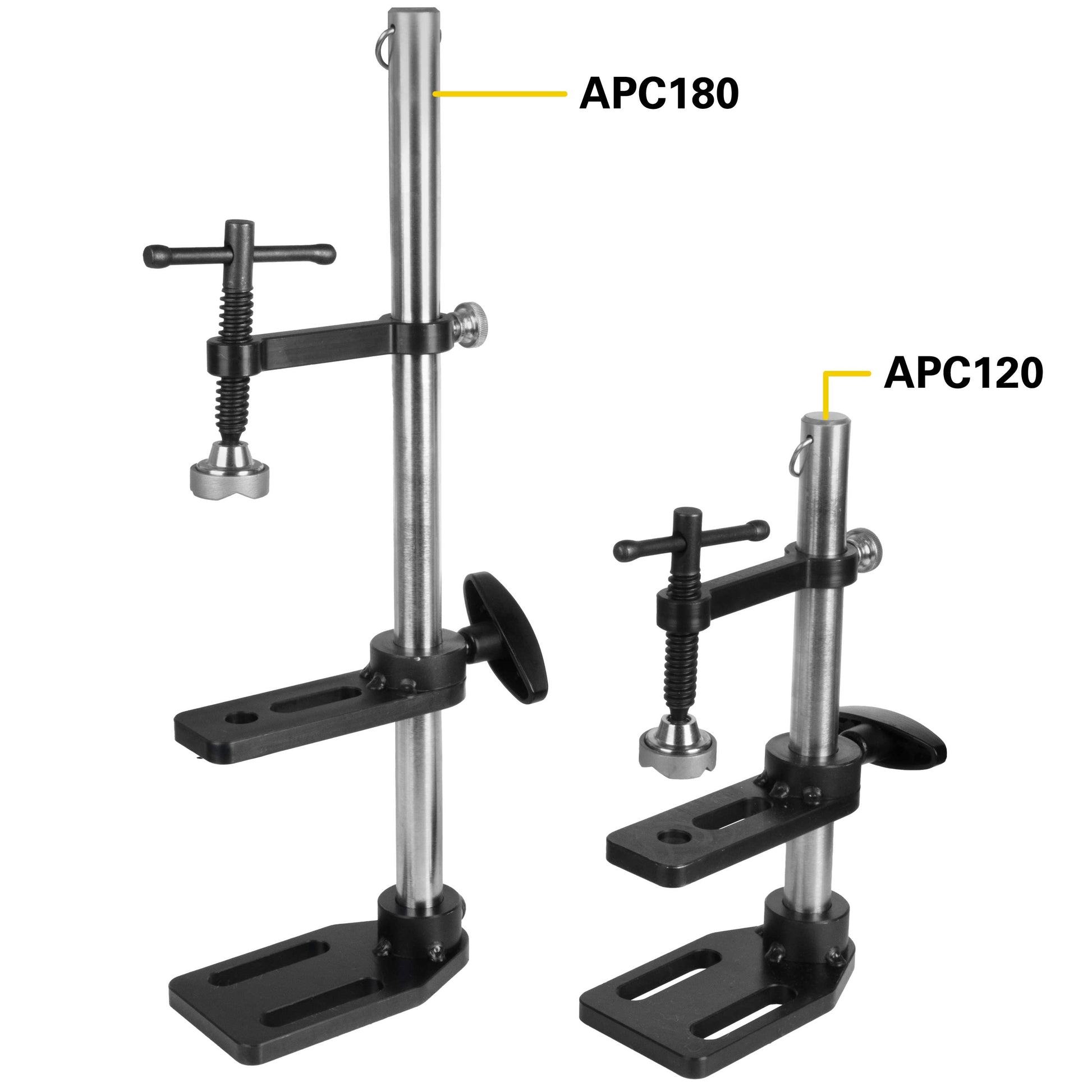

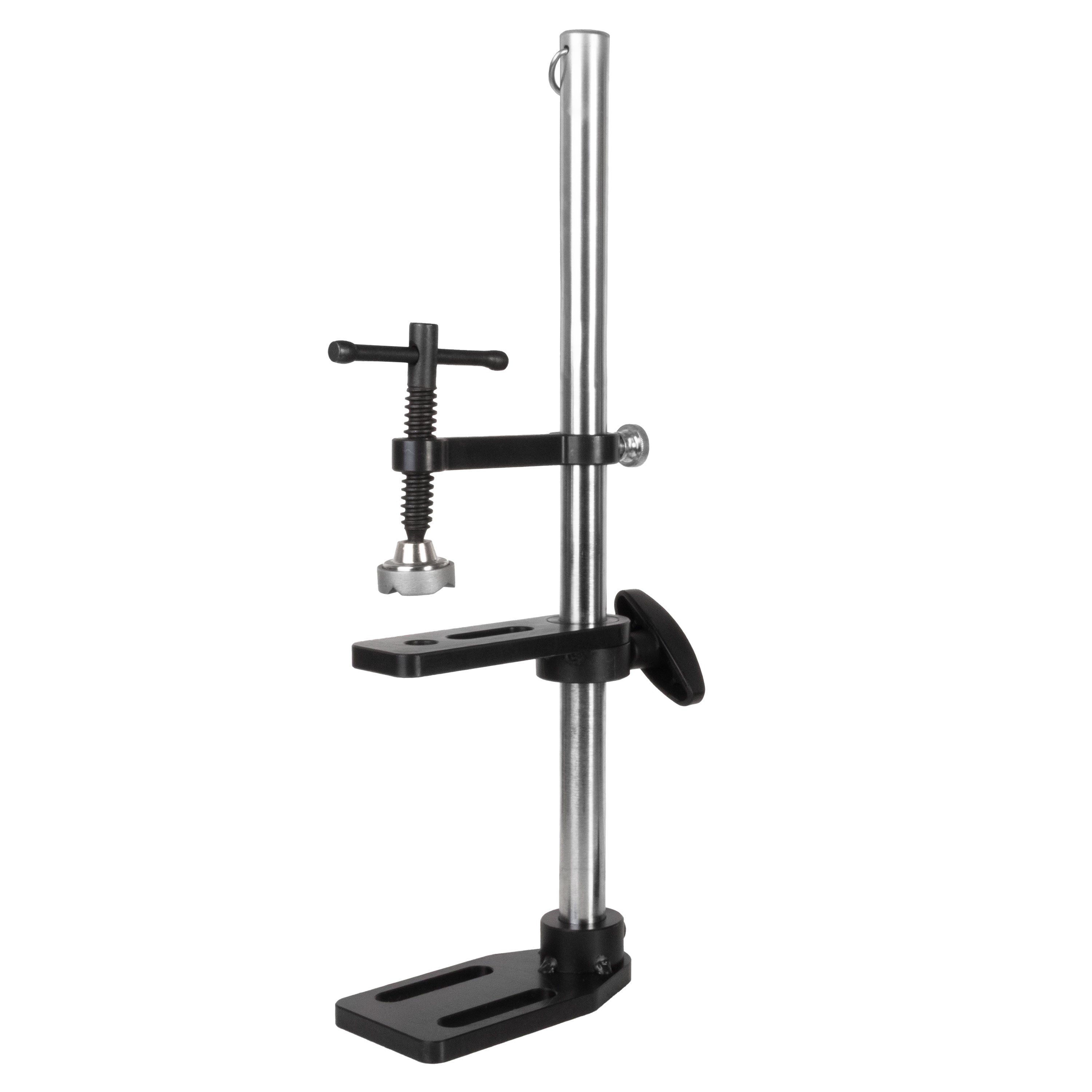

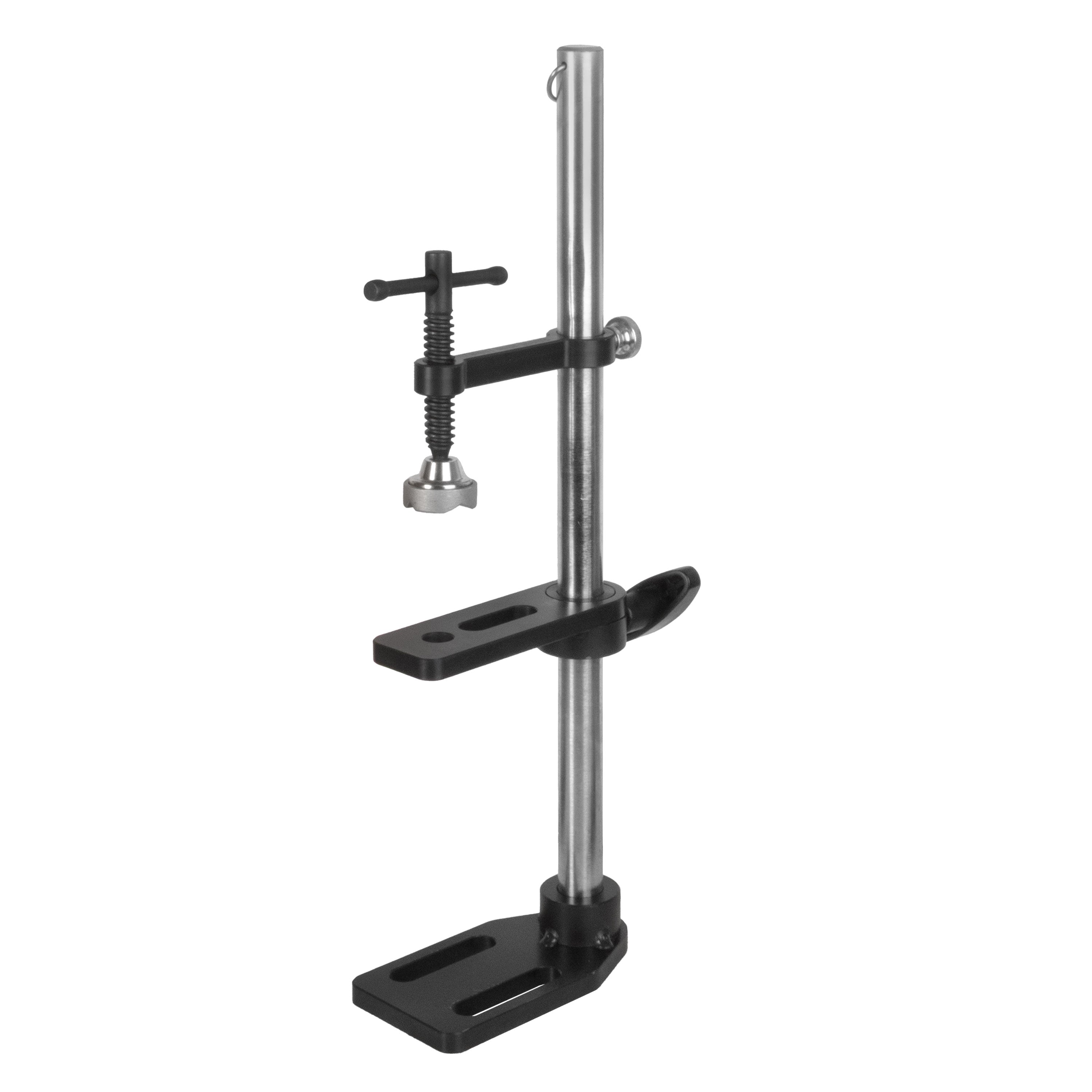

Model:

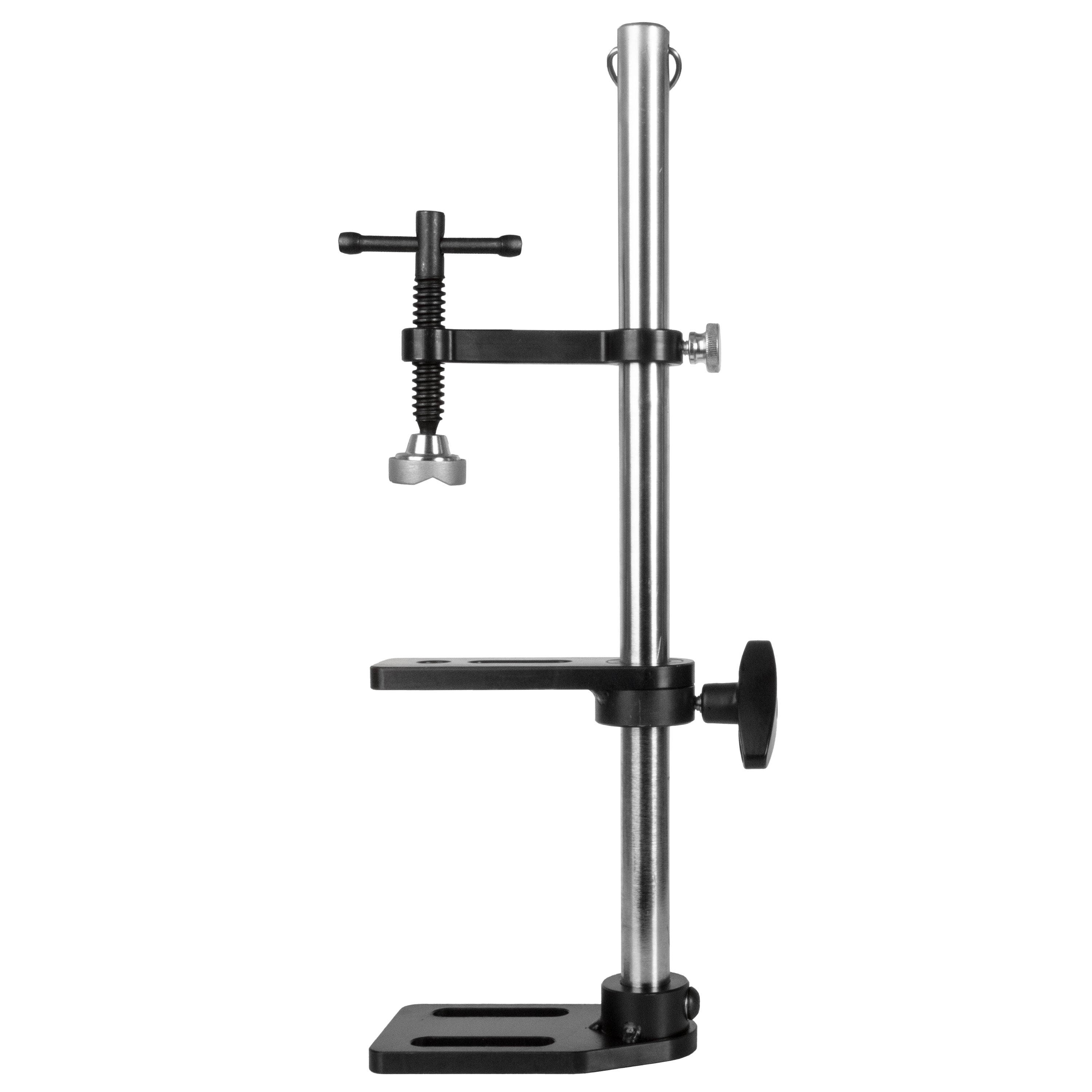

APC180
Clamping Capacity:
15"
Height Adjustable Range:
2.5" - 18"
Clamping Force:
1,200 lb

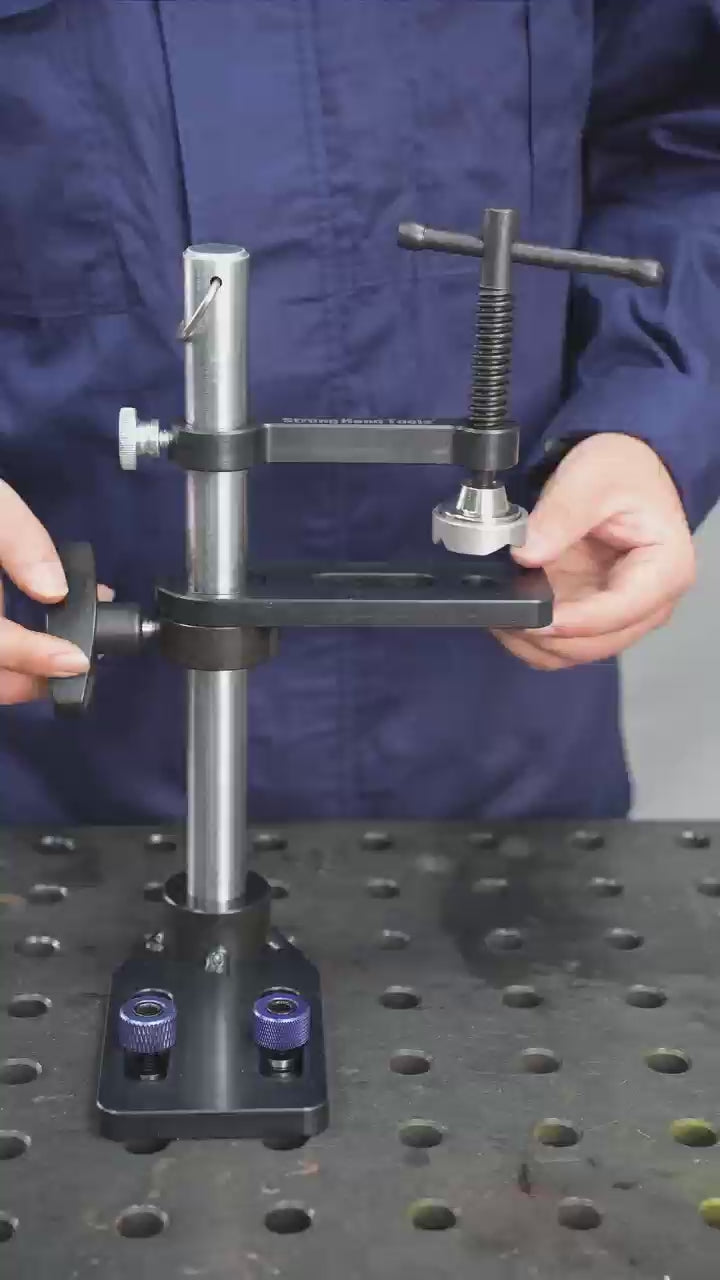

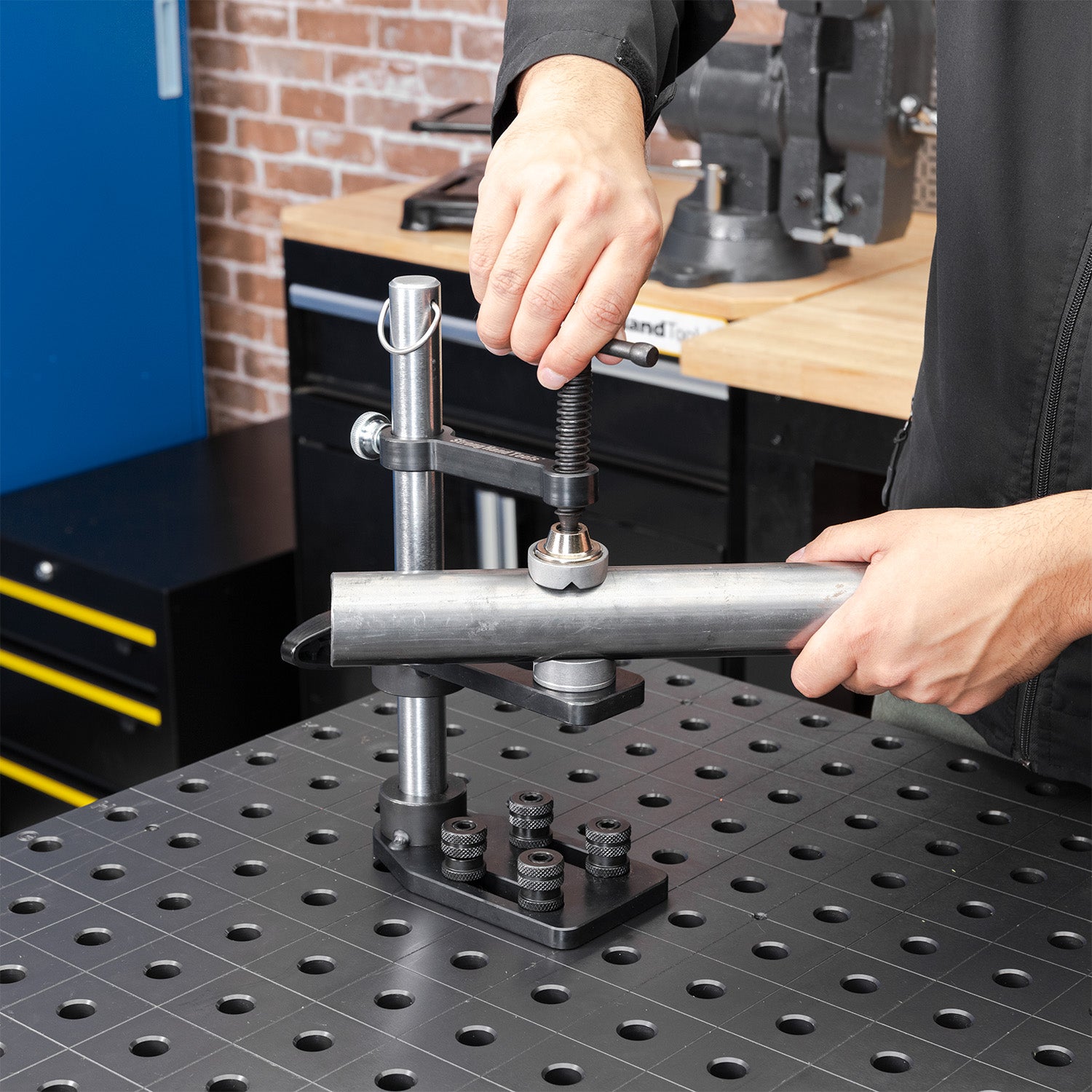

Person adjusting a metal fixture on a workbench.

Secure both the top and bottom arms to hold your workpiece firmly in place.

Person adjusting a tool on a black workbench with holes.

Use Ball Lock Bolts (sold separately) to mount the clamps on the 5/8" table

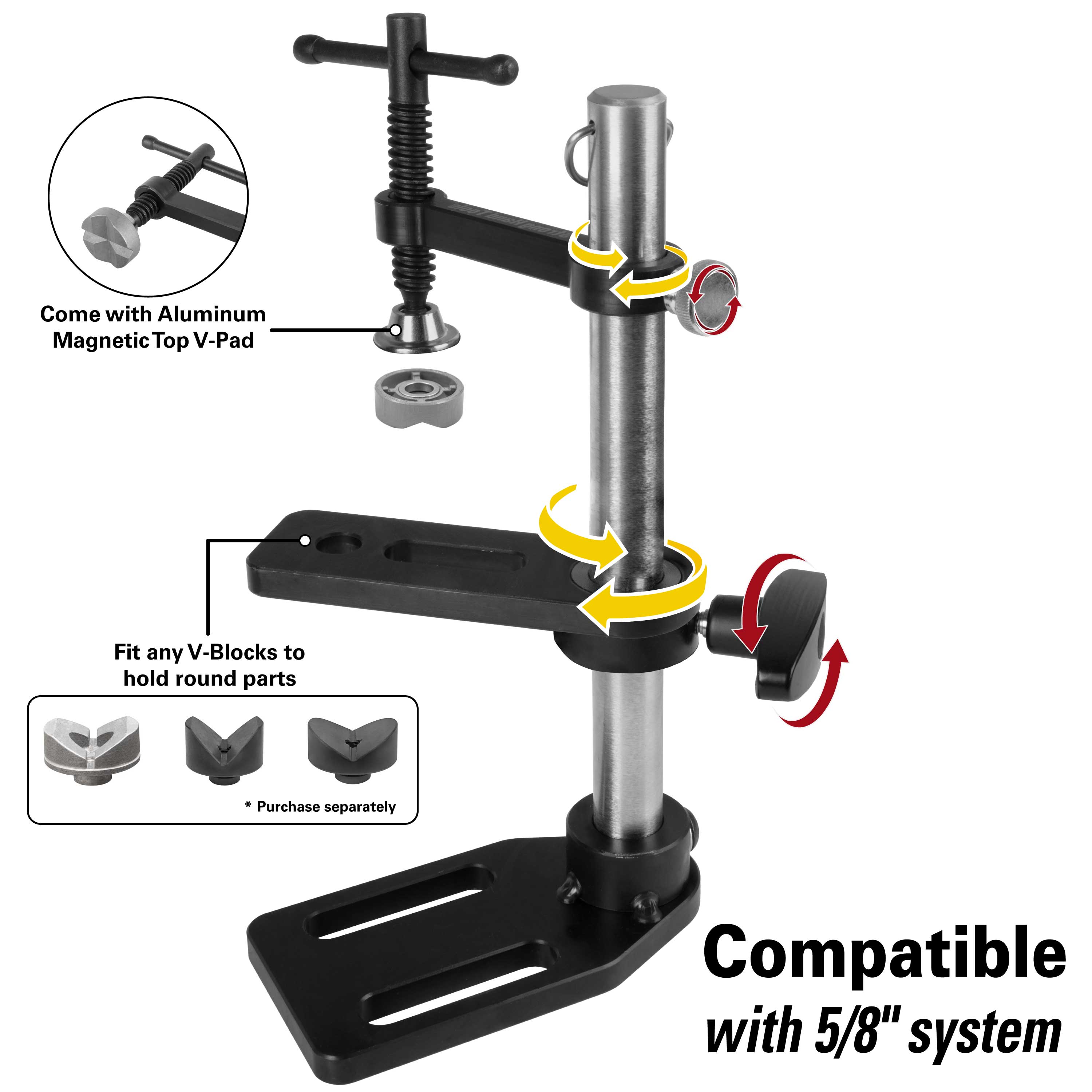

Use additional V-Block (sold separately) to secure round pipe.

If you need some documents but not able to find them here, please fill out the form below. Our engineering team will get back to you shortly.

Downloads

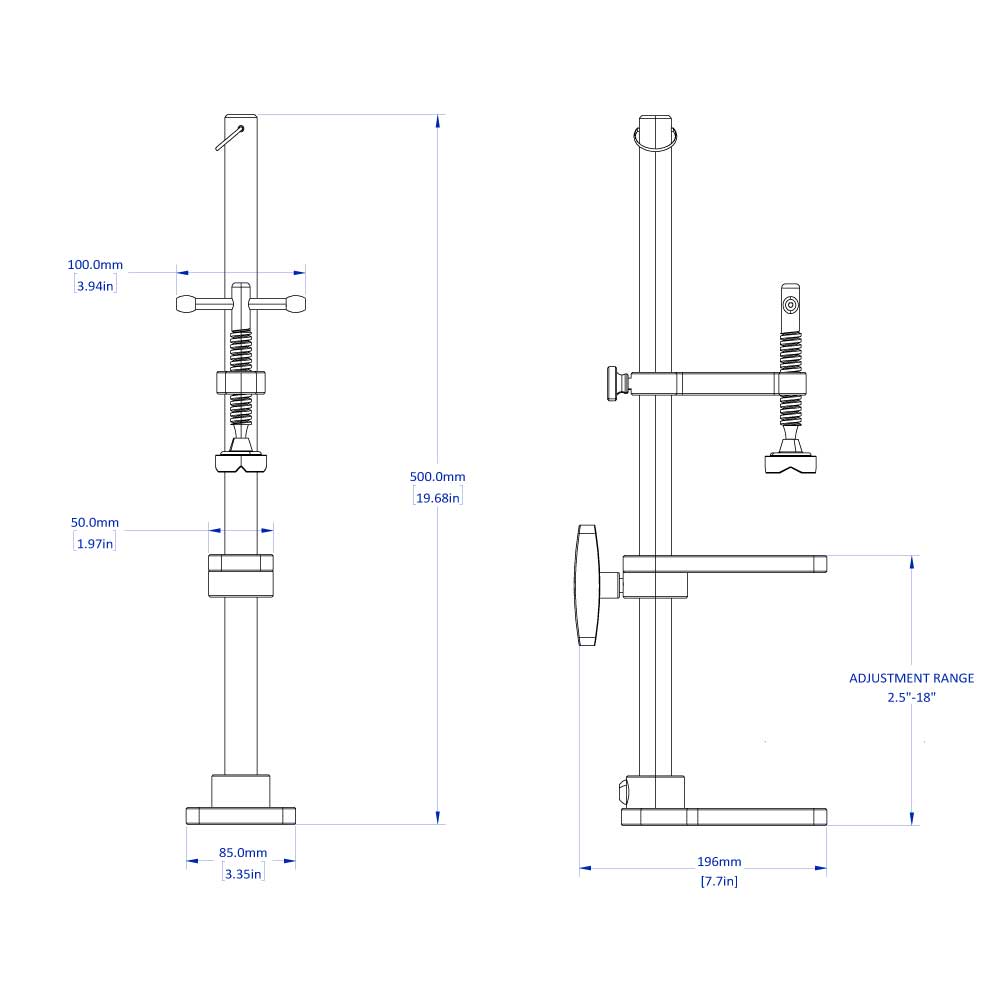

Spec Drawing
