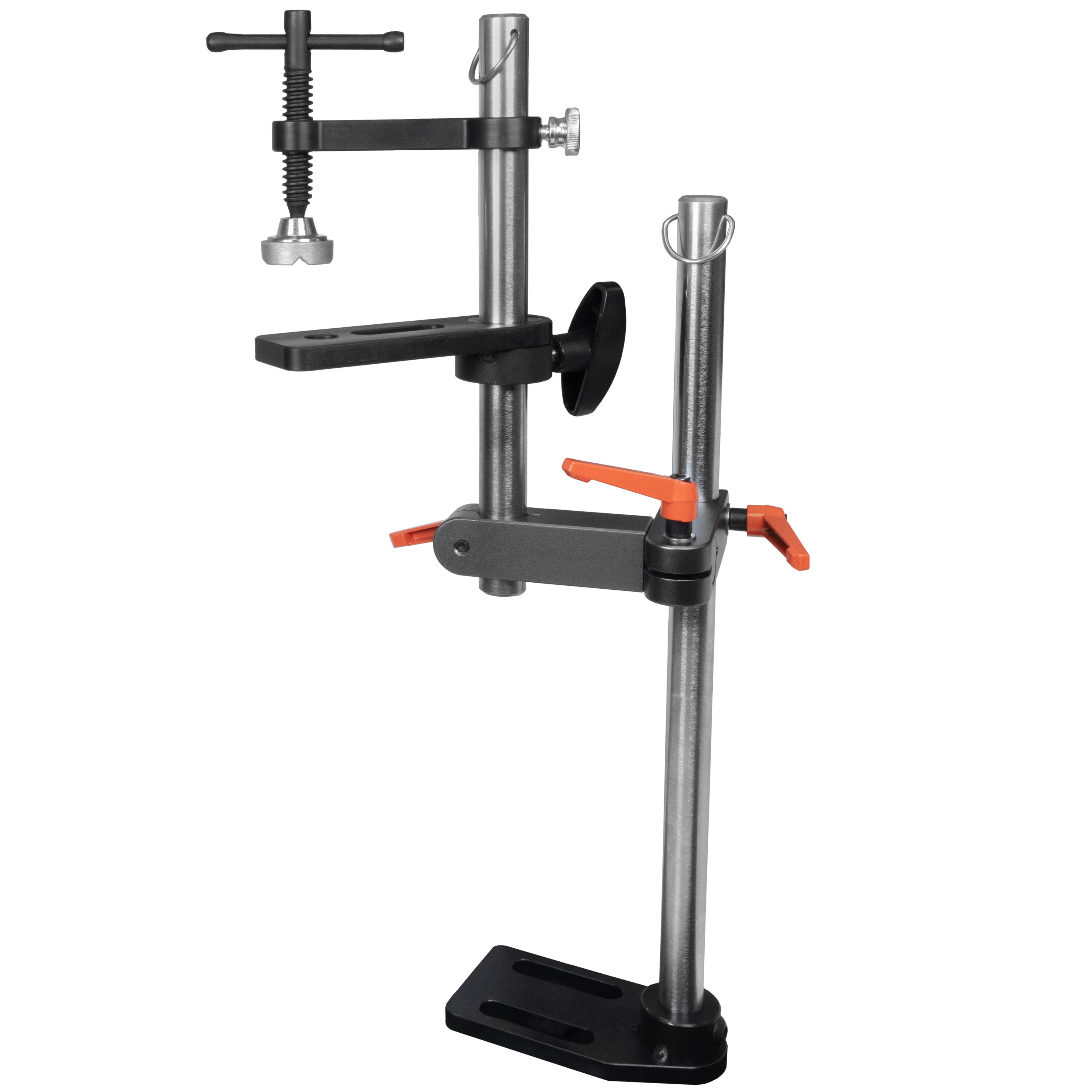

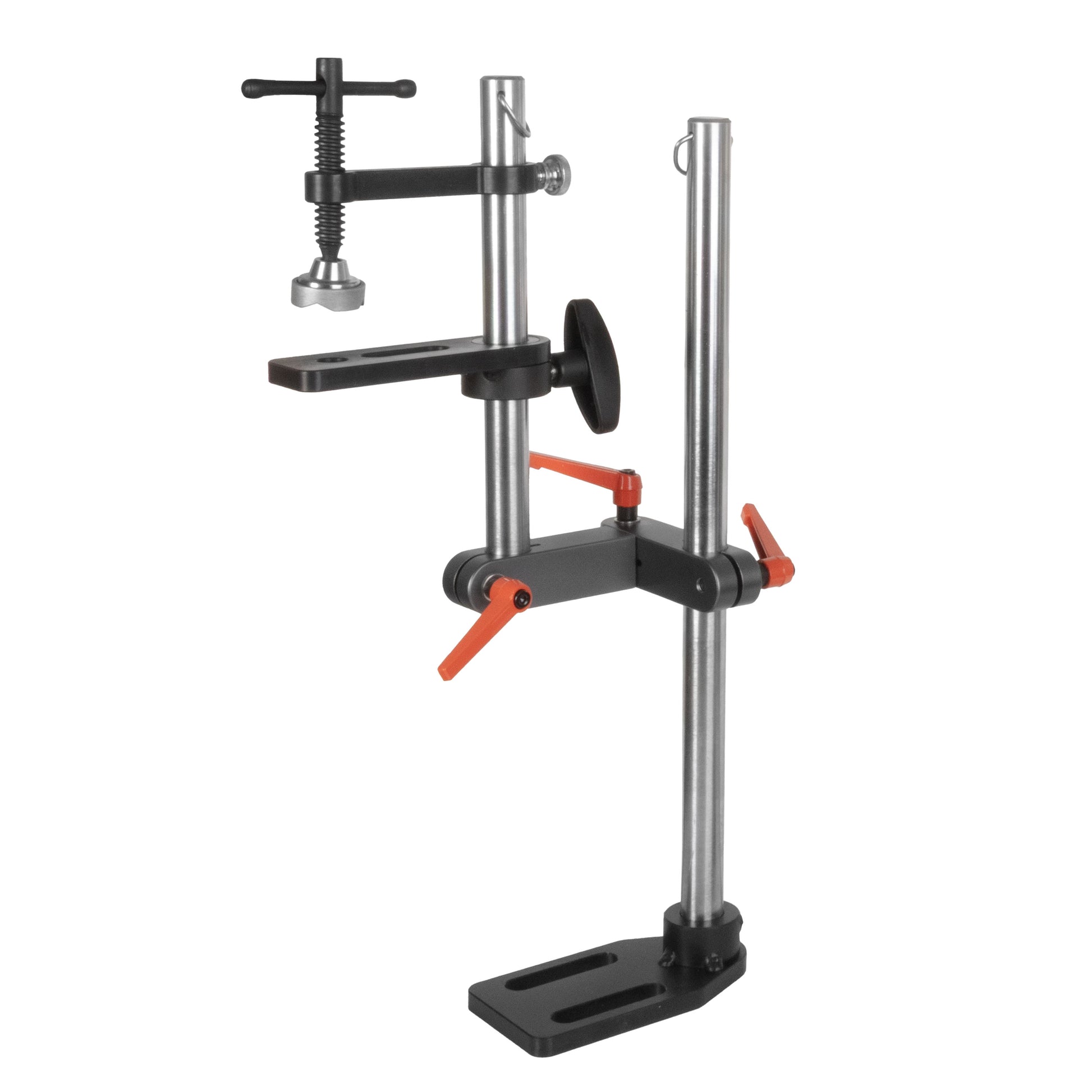

Height & Angle-Adjustable Positioning Clamp

Designed for precision setups, the APC250 features height and angle adjustment with positive locking, allowing you to hold parts exactly where you need them even in complex orientations.



Height/Angle Adjustments

Rotating Arms

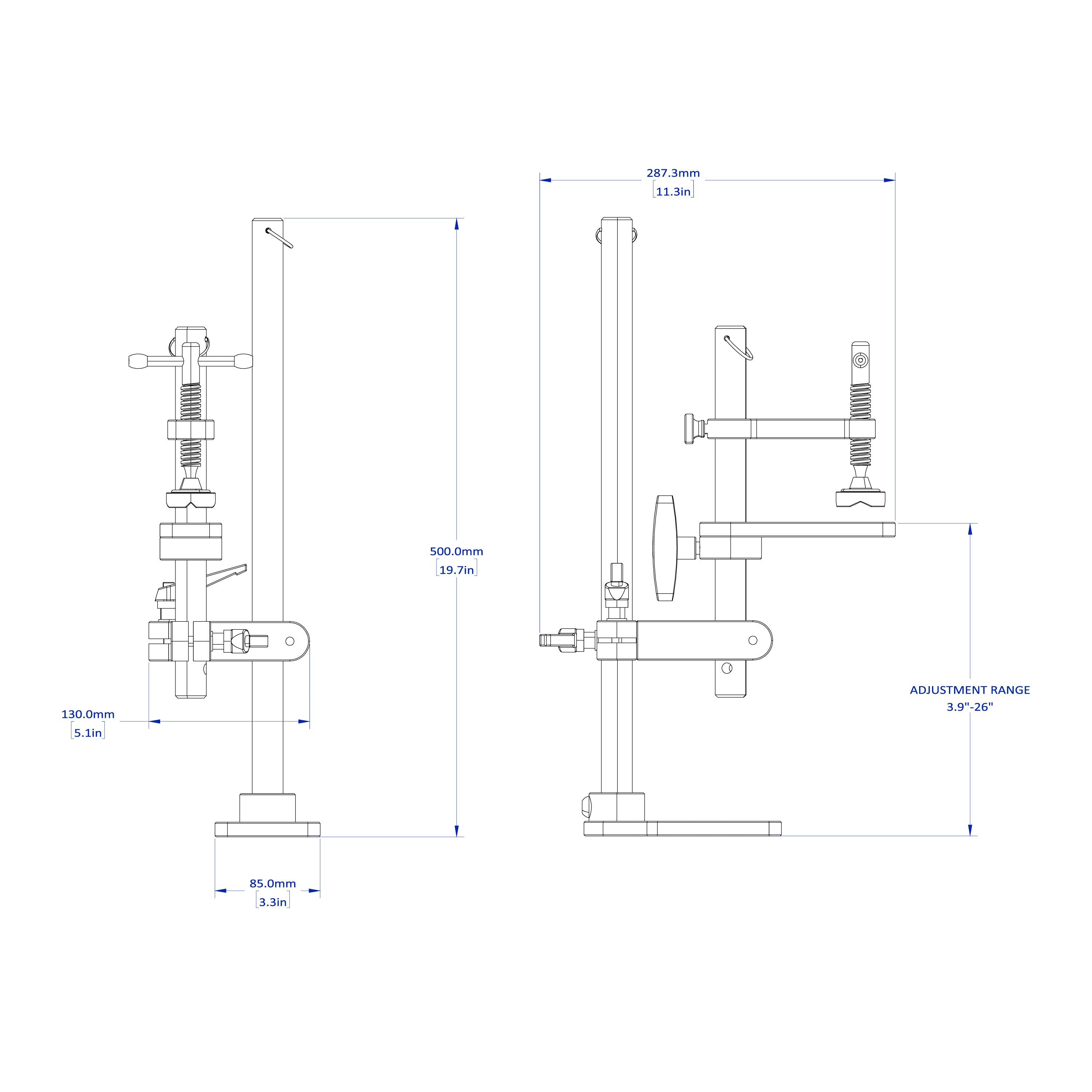

Height Adjustable Range:
3.9" - 26"
Clamping Capacity:
7"
Clamping Force:
1,200 LB

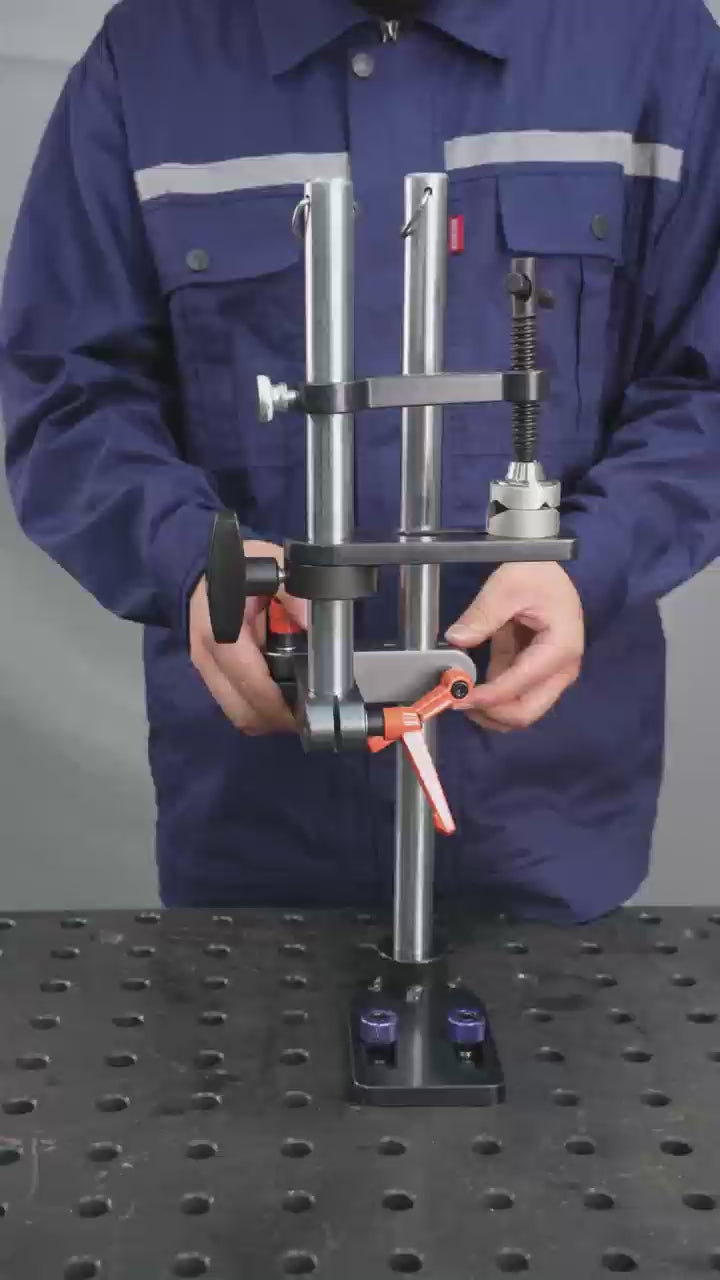

Person adjusting a tool fixture on a workbench with clamps.

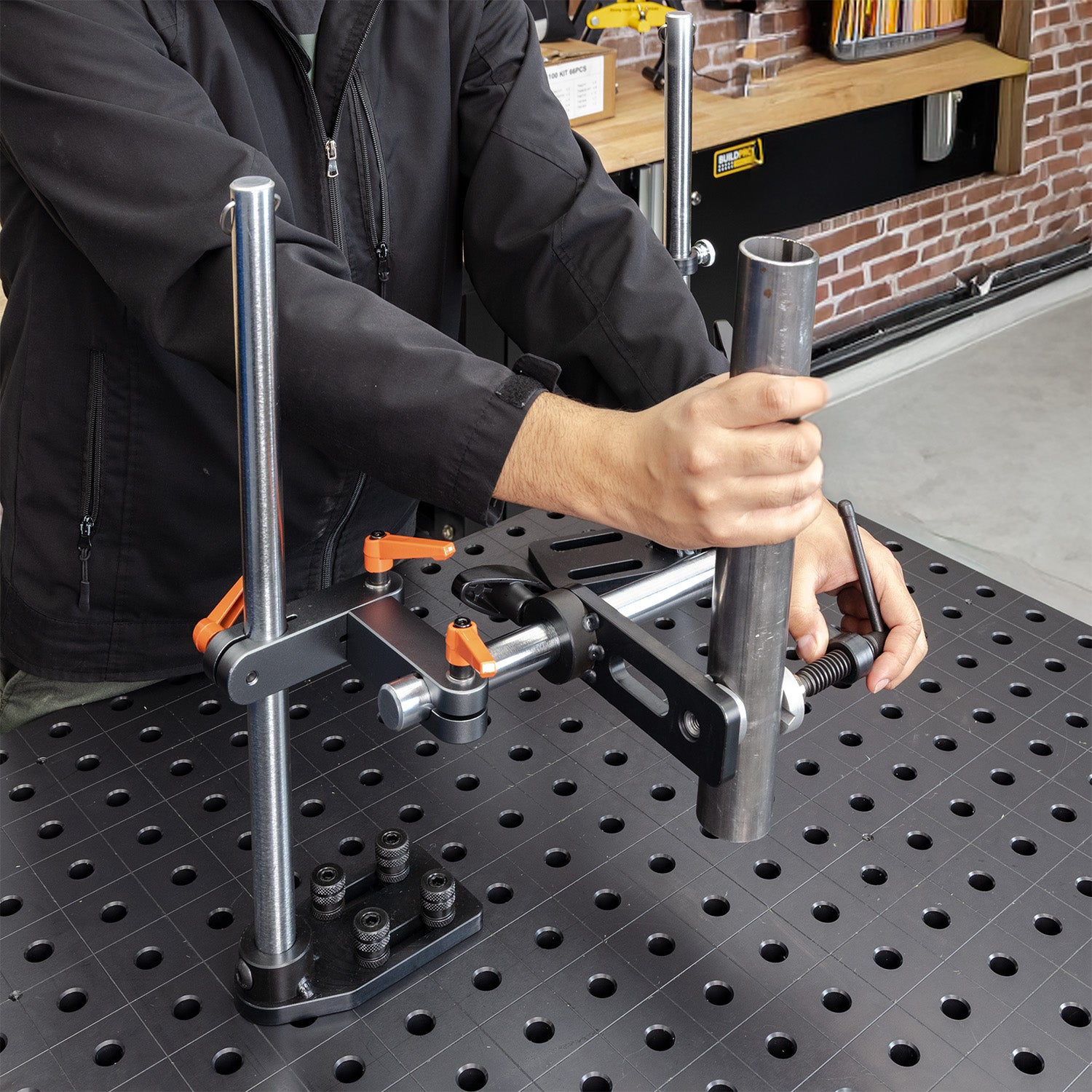

Vertical tube positioning with height & angle control.

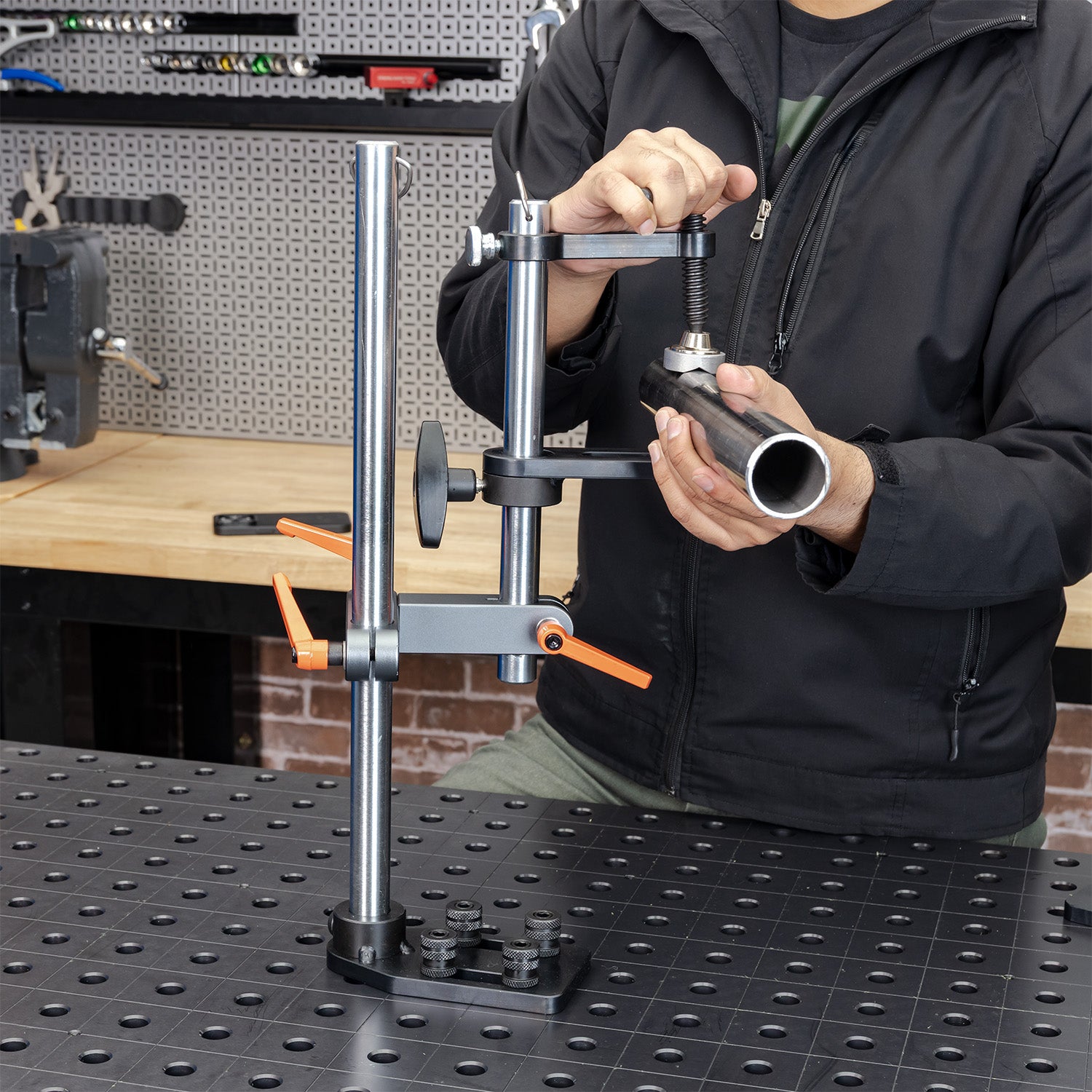

Side clamping with precise height adjustment.

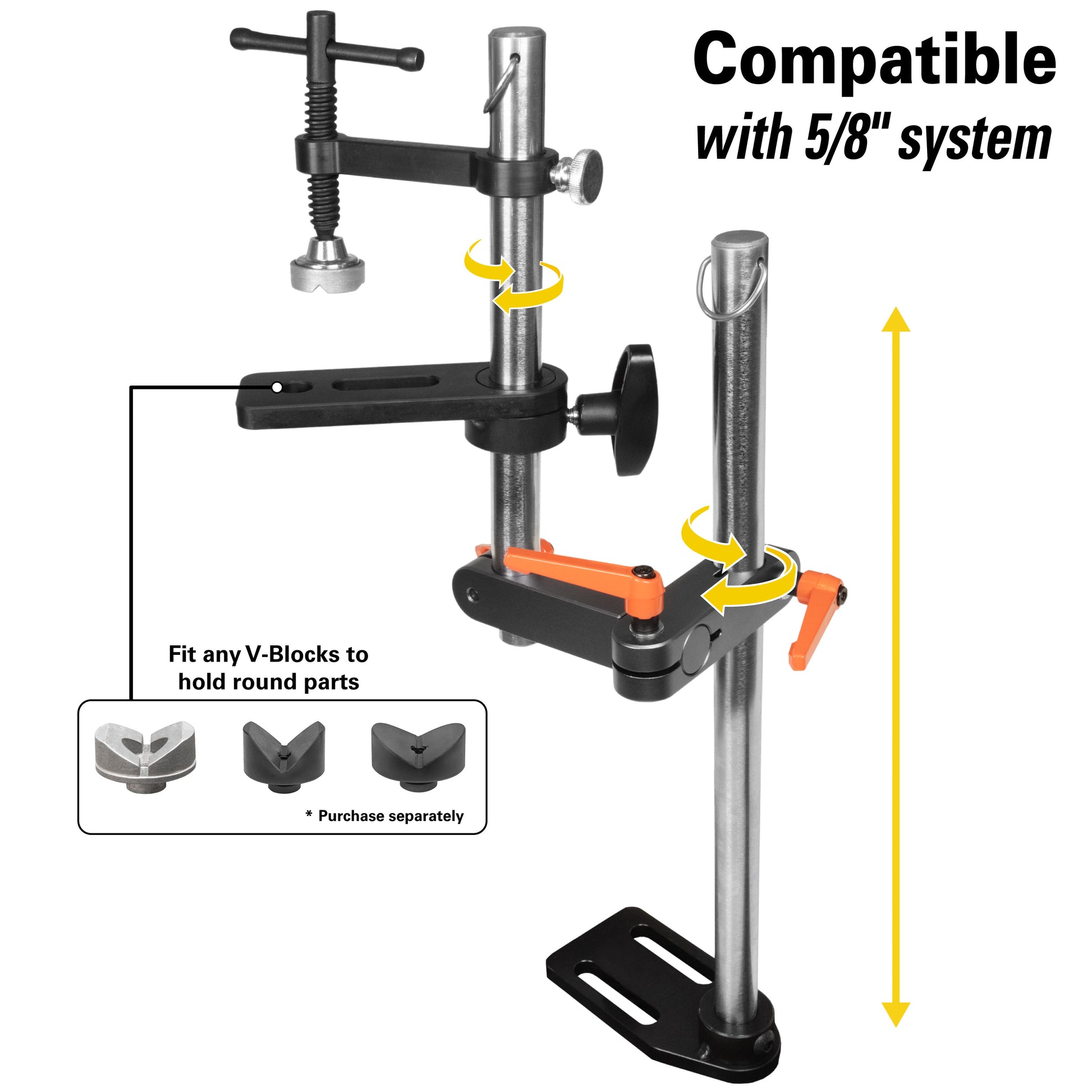

Use additional V-Block (sold separately) to secure round pipe.

If you need some documents but not able to find them here, please fill out the form below. Our engineering team will get back to you shortly.

Downloads

Spec Drawing

CAD
