fixturepoint table
TBH36244 Tabletop WITHOUT Leg Frame
Square and Round Tubes Frame on fixturepoint table
Square Tubes Frame
Round Tubes Frame
Cargar vídeo:
fixturepoint table
TBH36244 Tabletop WITHOUT Leg Frame
Square and Round Tubes Frame on fixturepoint table
Square Tubes Frame
Round Tubes Frame

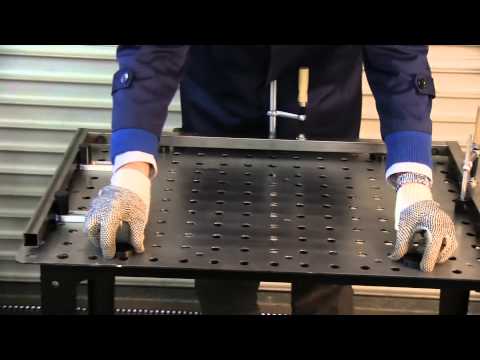

Tabla de puntos de fijación

Tabla de puntos de fijación

Tabla de puntos de fijación

SKU: TBH36244

Discontinued

This item is no longer available. For bulk orders, with a minimum order requirement, please call 800.989.5244 for more information.

Un sistema de fijación modular asequible y fácil de usar. ¡Mejora la calidad y la productividad del trabajo! Fijación en CUALQUIER PUNTO de la mesa.

El sistema de fijación de puntos es ideal para la instalación de cuadros 2D. Utilice los kits de fijación de puntos para comenzar de inmediato y trabajar de manera cómoda, segura y eficiente para mejorar la calidad del trabajo y la productividad.

Las abrazaderas y componentes AccessoryPoint se pueden insertar en los orificios de 16 mm en el tablero de la mesa de 36" x 24" (900 x 600 mm) para lograr una flexibilidad completa en la fijación modular.

Manual Download

Manual de instalación
Part No. Tabletop Height with leveling feet (in) Tabletop Height with leg frame (in) Hole Dia. (in) Hole Spacing (in) Tabletop Surface Dimensions (in) Tabletop Material Thickness (in) Weight (lb)
TBH36244 6-1/4 34 0.63 2 x 2 36 x 24 0.16 72

FIXTUREPOINT JIG & FIXTURE TABLE

A Light Weight, Compact Modular Fixturing System.

The FixturePoint Table is ideal for the set-up of 2D frames.

Use the FixturePoint Table with or without leg frame to fit available space. The lightweight tabletop can be detached from the leg frame and placed on any alternate work surfaces as needed for small fixtures.

You can fixture at ANY POINT on the tabletop.

ONE Table, TWO Height Settings

The FixturePoint Welding Table can be used as a free-standing table or on top of your existing workbench with the included legs and leveling feet.

Tabletop WITHOUT Leg Frame

Tabletop WITH Leg Frame

Hole Diameter: 16 mm
Grid Pattern: 2" x 2"
Tabletop Size: 36" x 24"
Tabletop Material Thickness: 0.16"
Tabletop Height with leg frame: 34"
Tabletop Height with leveling feet: 6-1/4"
Tabletop Side Height (WITHOUT leg frame or leveling feet): 4.3"
Static Loading Capacity: 500 LB

Great starter fixture point table! I use it on my light duty jobs and it works awesome.

dtm dan

Choose from two fixturing kits that mate to the 16 mm holes on the 36” x 24” x 0.16" tabletop.

fixturepoint table with 28 pieces clamping kit

fixturepoint table with 28 pieces clamping kit
