Nro. de pieza Nombre Longitud (pulgadas) Ancho (pulgadas) Altura (pulgadas) Espesor (pulgadas) Peso (lb)

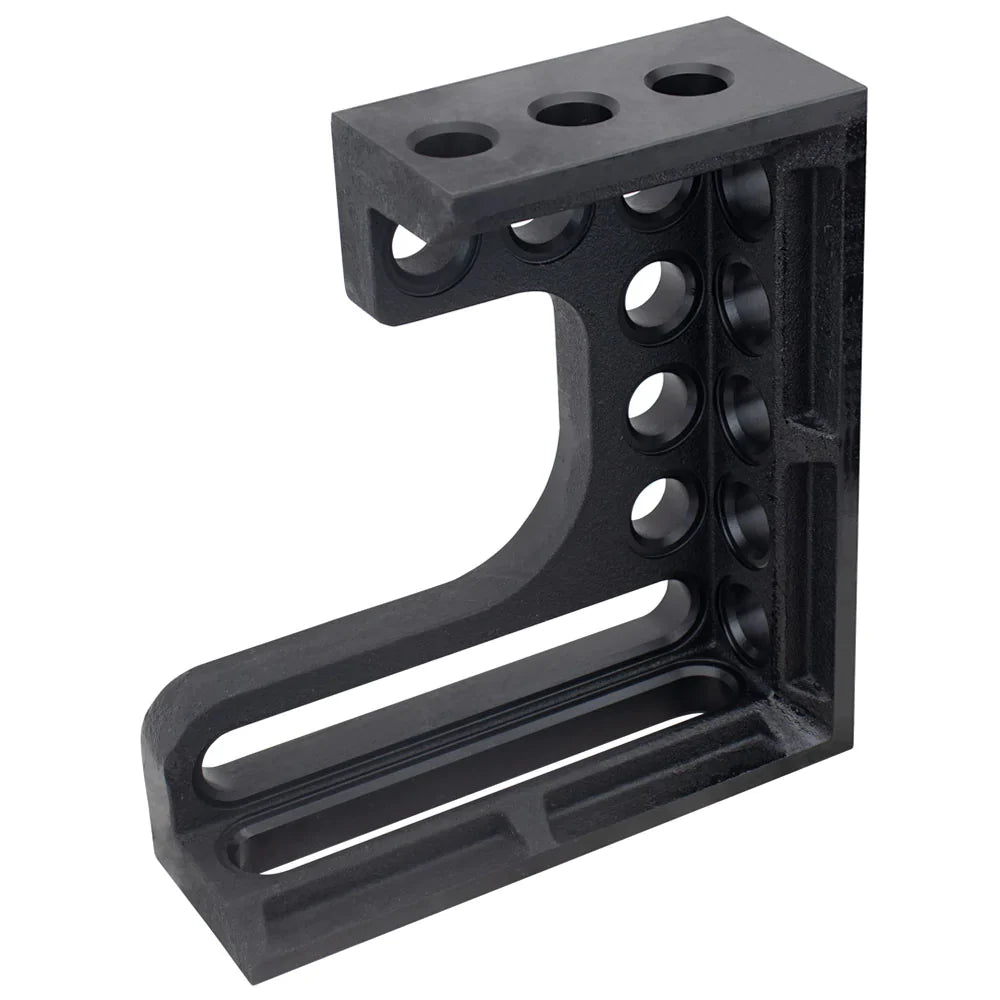

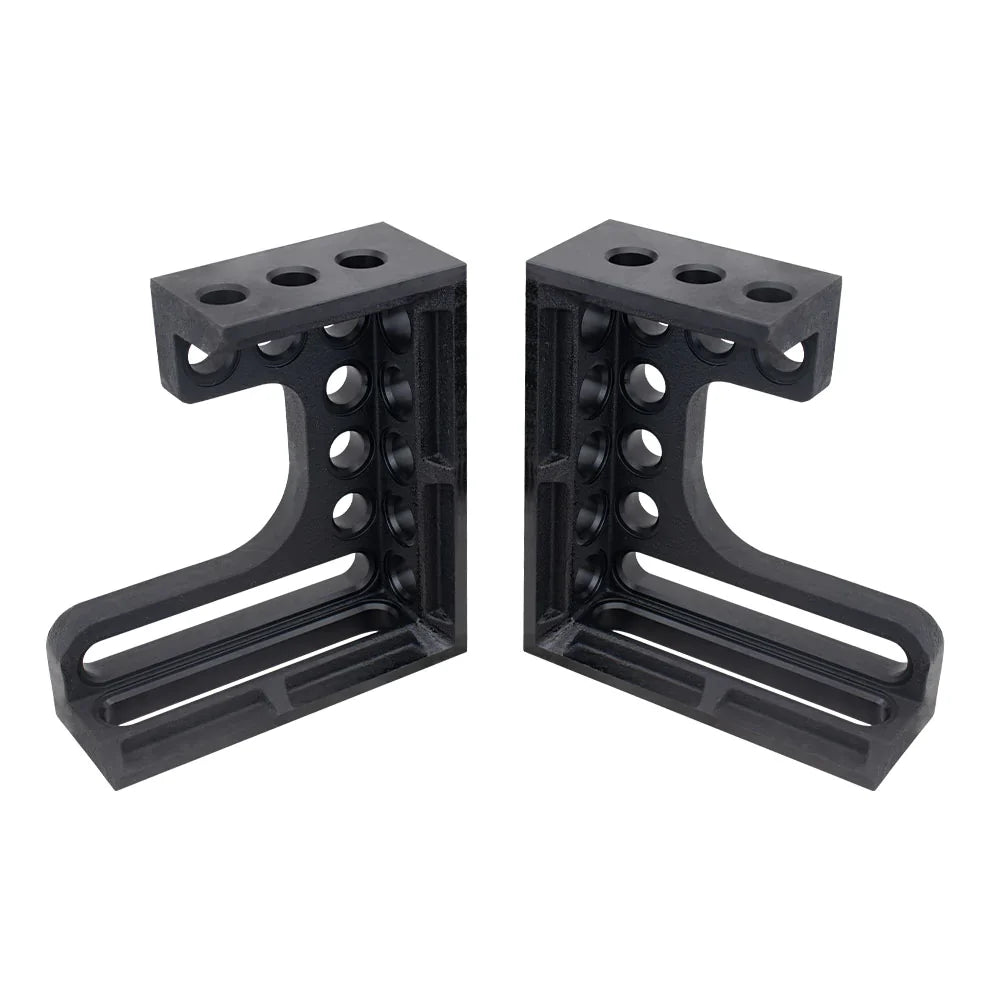

U28-13028L Cuadrado de alta definición 12 - Izquierda 11 3.8 12 aprox. 1,1 28
U28-13028R Cuadrado de fundición HD 12 - Derecha 11 3.8 12 aprox. 1,1 28
U28-16038L HD Square 24 - Izquierda 15 3.7 24 aprox. 1,1 50
U28-16038R Cuadrado HD 24 - Derecha 15 3.7 24 aprox. 1,1 50

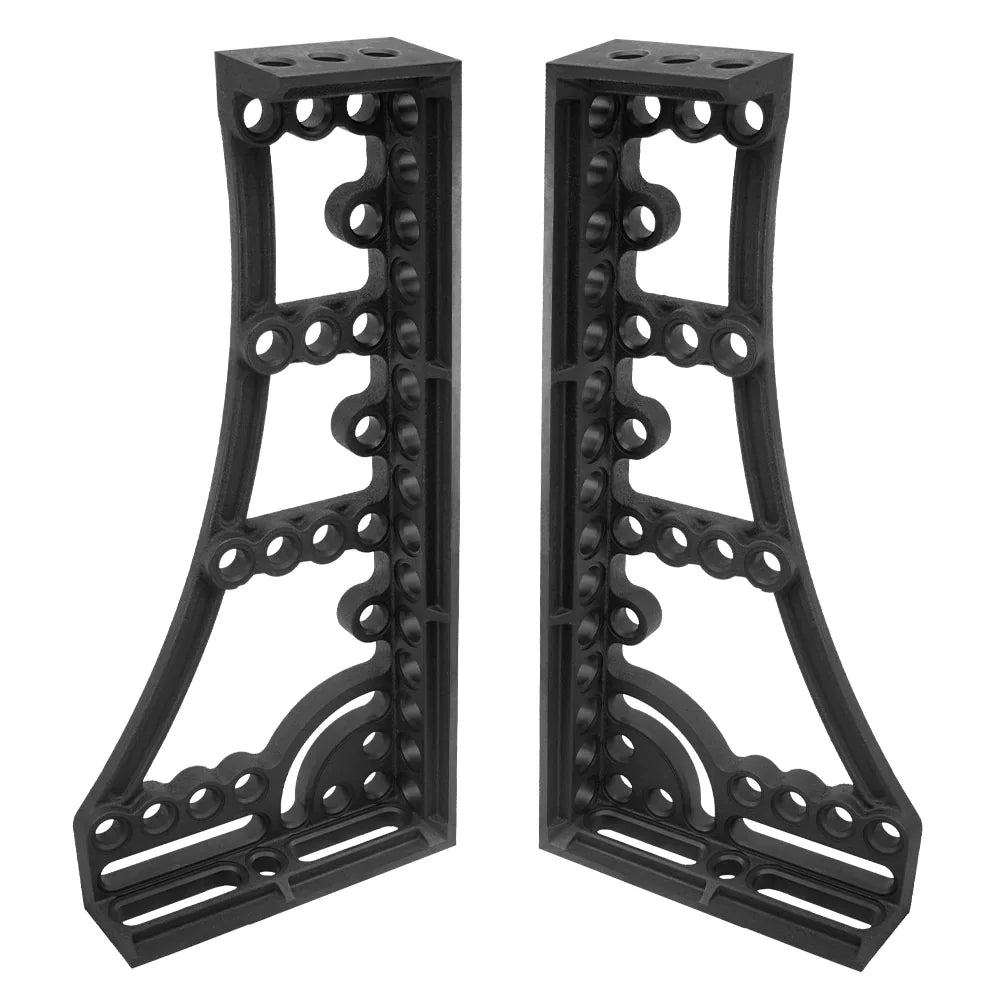

U28-18038L HD Square 32 - Izquierda 15 3.7 32 aprox. 1,1 60
U28-18038R HD Square 32 - Derecha 15 3.7 32 aprox. 1,1 60

If you need some documents but not able to find them here, please fill out the form below. Our engineering team will get back to you shortly.

Downloads

Spec Drawing

Manual

CAD

U28-13028L - STEP

U28-13028R - STEP

U28-16038L - STEP

U28-16038R - STEP

U28-18038L - STEP

U28-18038R - STEP
