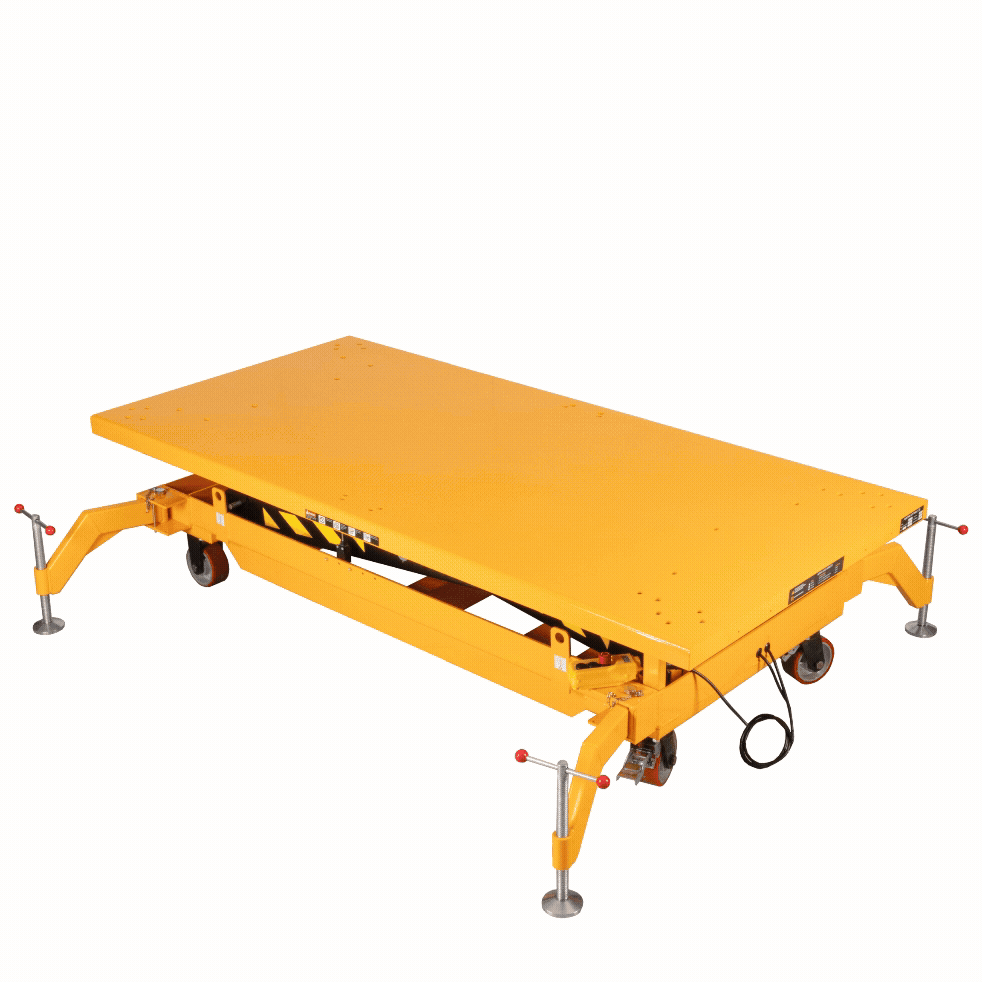

HD Electric Hydraulic Scissor Lift

The rugged scissor mechanism creates a wide, secure lifting platform that keeps loads centered and protected during elevation. Its electric hydraulic system provides precise, consistent movement, helping reduce operator strain and improve overall shop efficiency. Built for professionals who rely on repeatable performance, this lift is a reliable solution for material handling, positioning, and height adjustment tasks in high-use environments.

Ideal for welding, fabrication, assembly, and maintenance applications, this lift supports safer workflows and increased productivity where heavy loads are part of the job.

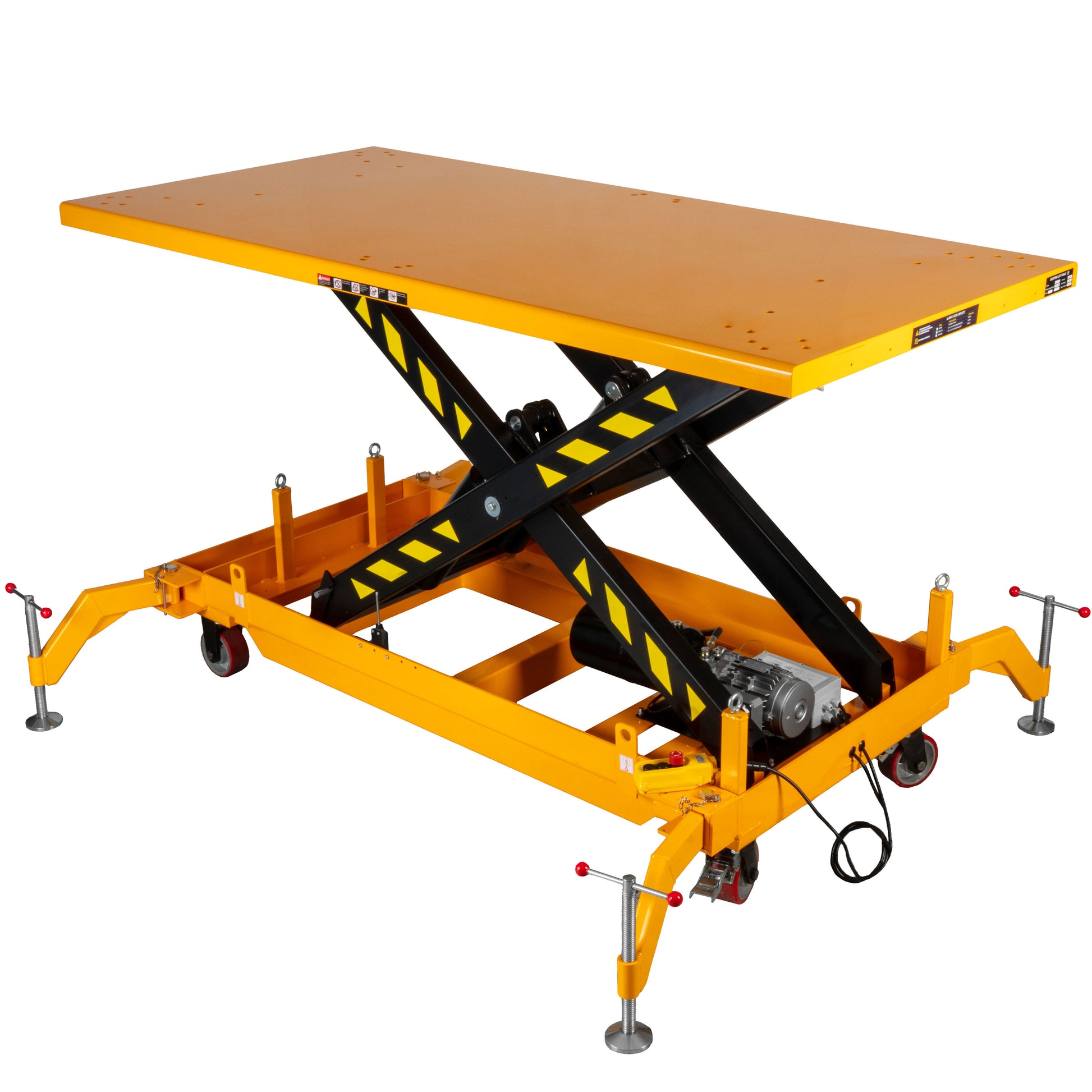

Lift Only (HSLT600):

  • Load Capacity: 3,628 kg / 8,000 lb
  • Height Adjustment: 550 -1,650 mm / 21.6" - 65"
  • Dimensions: 92" x 45" x 12"
  • Lifting Stroke: 1,100 mm / 43.3"
  • Lift Up Time: 1 min 10 sec
  • Lower Time: 1 min 26 sec
  • Net Weight: 724 kg / 1,600 lb
  • Motor: 1.5 kW, 110V

Available Configurations

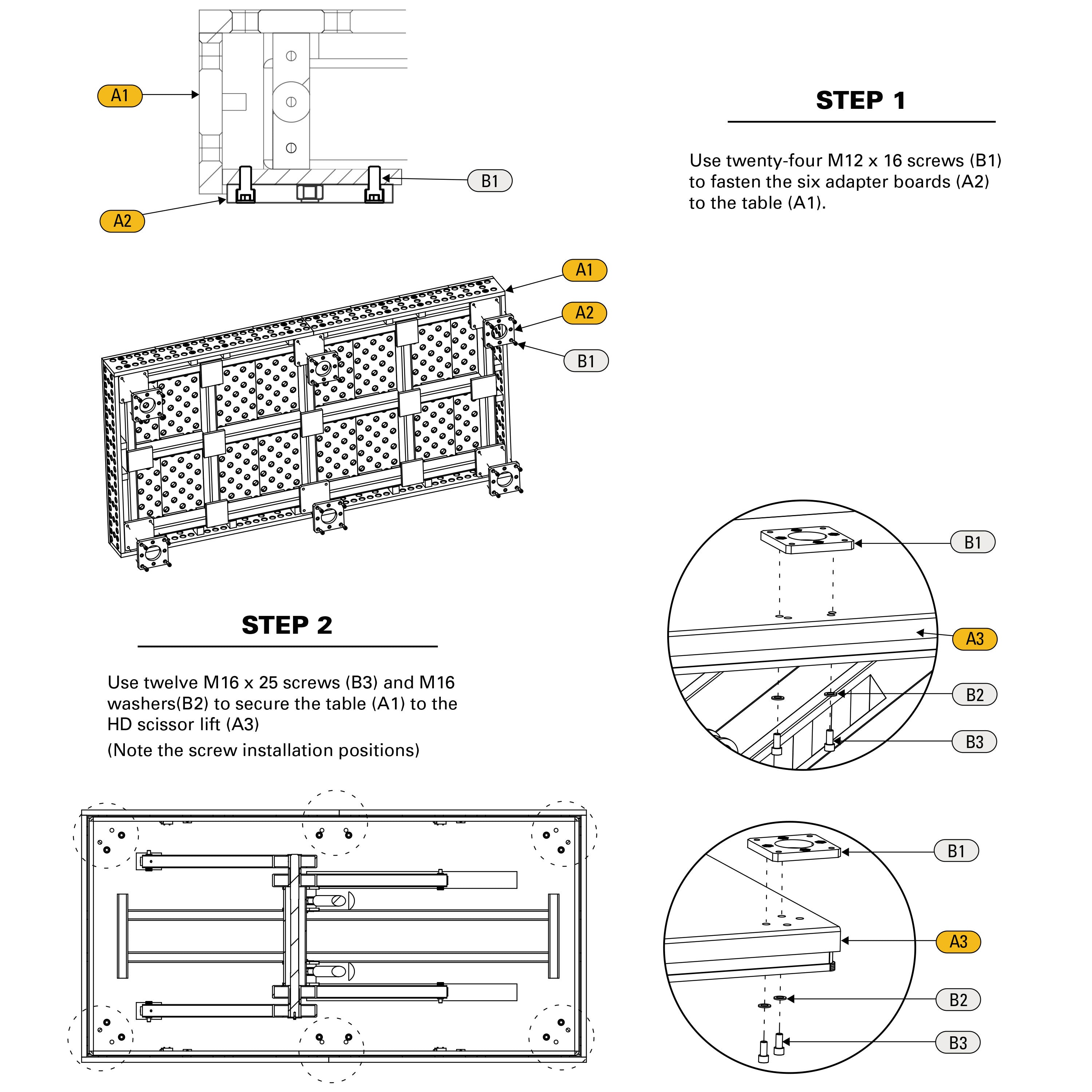

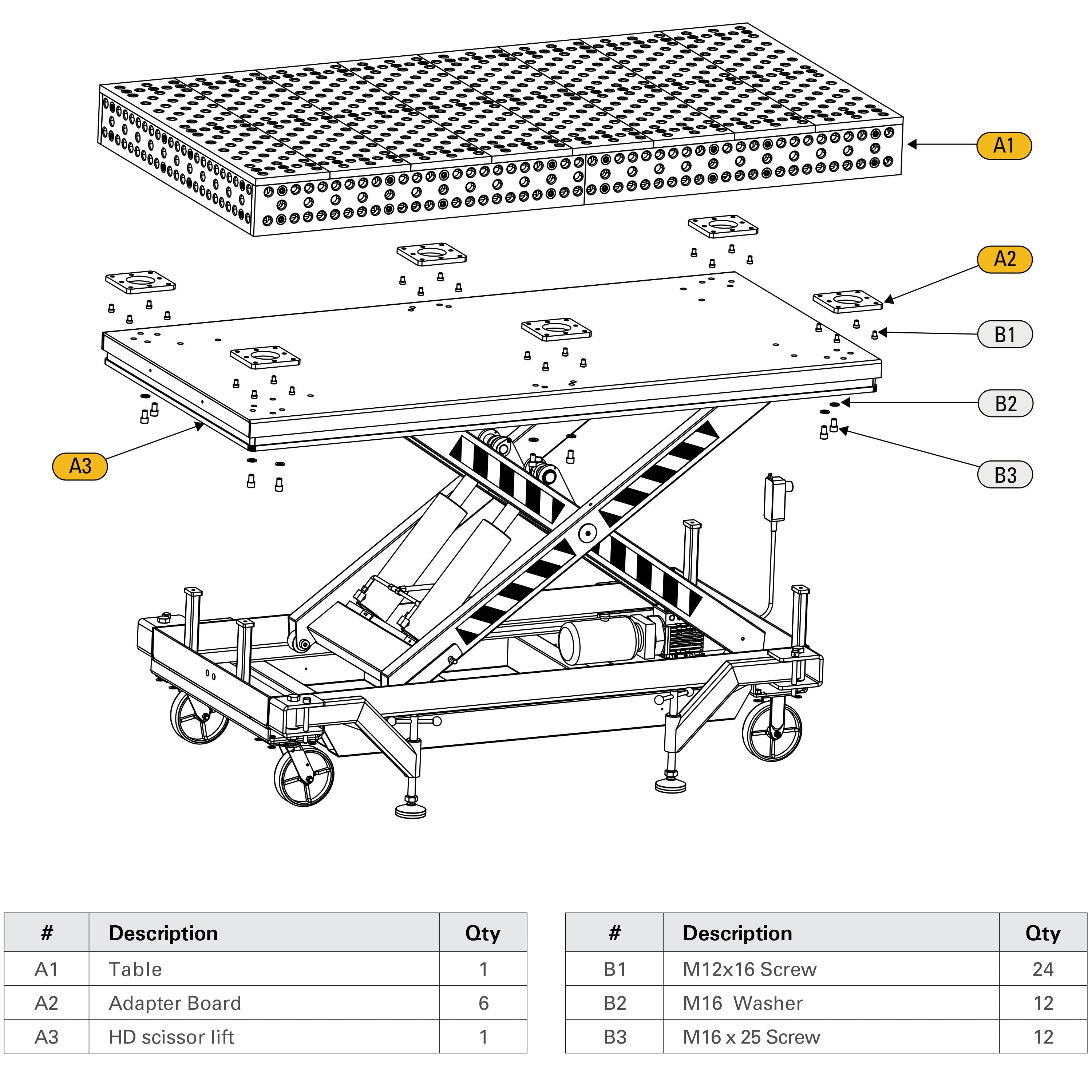

Use adapter plates too add fixture tabletops

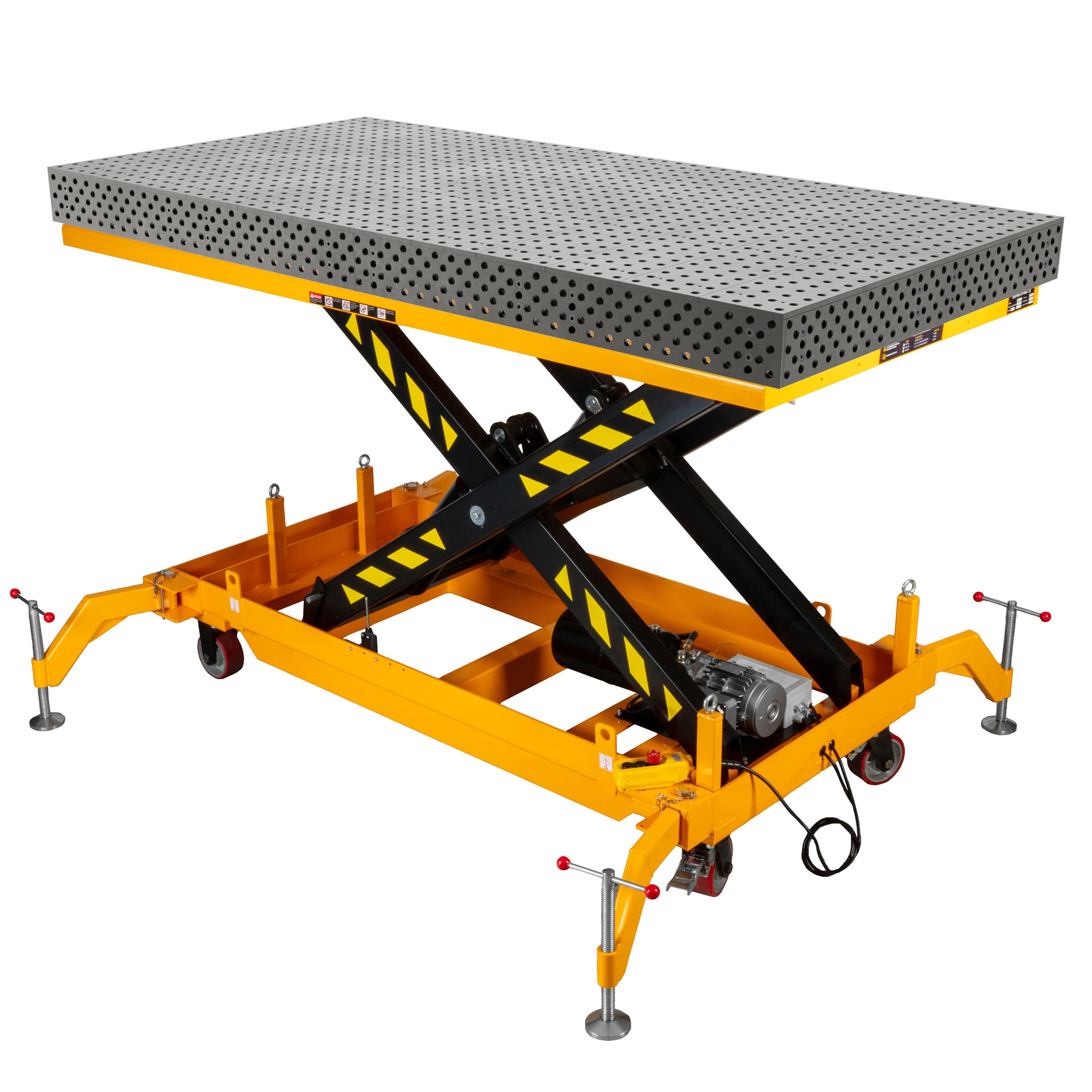

Alpha 5/8″ Tabletop (8 × 4 ft)

  • TMLK-9648
    A full-size heavy-duty configuration designed for large assemblies, structural work, and high-load industrial fabrication. (Mounting adapter plates included)
    Load Capacity: 7,450 lb / 3,379 kg

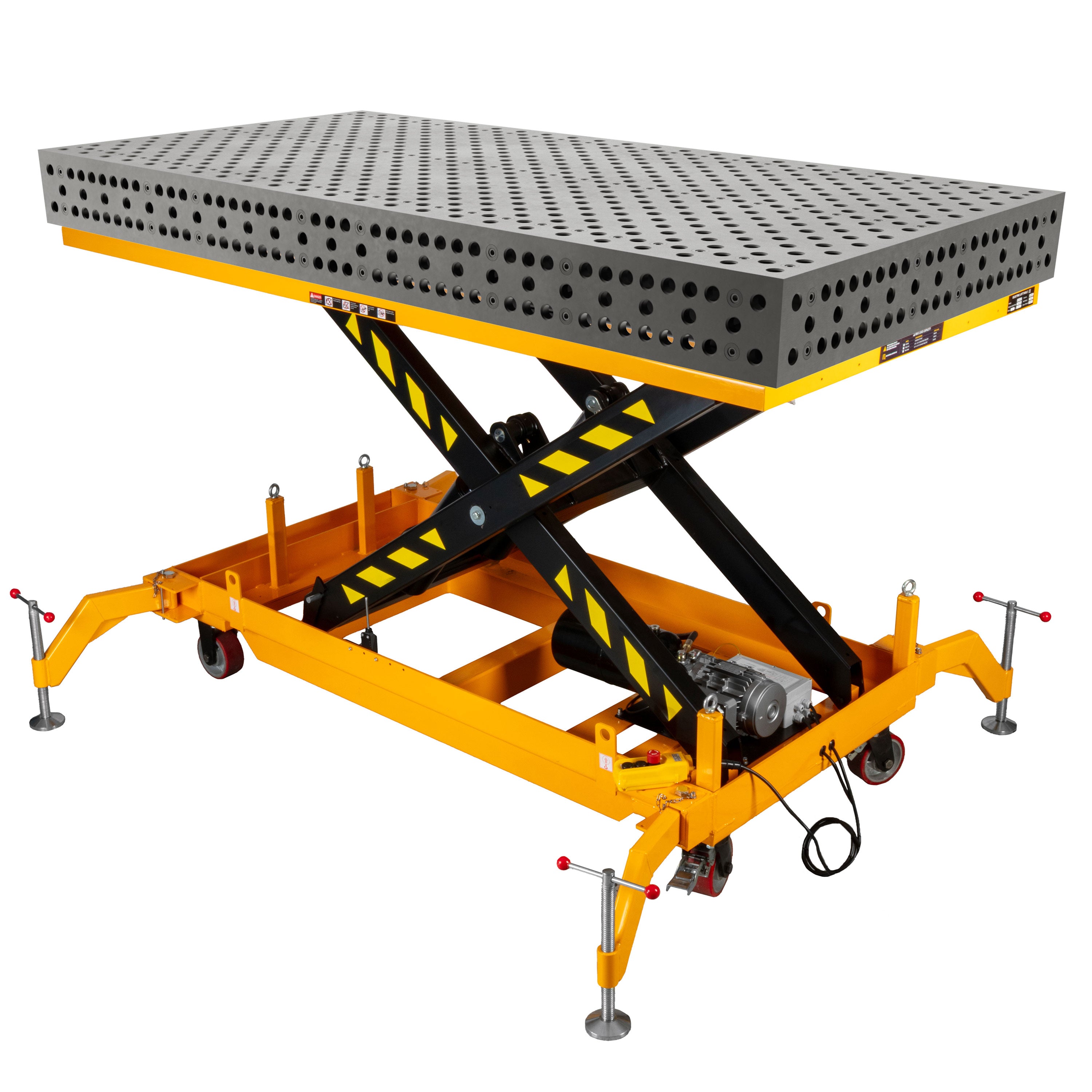

Alpha 28 Tabletop (2.4 × 1.2 m)

  • TMLK-2412
    A compact yet versatile workstation setup, ideal for precision welding, fixturing, and modular fabrication. (Mounting adapter plates included)
    Load Capacity: 6,400 lb / 2,902 kg
Load Capacity
3,628 kg / 8,000 lb
Height Adjustment
550 -1,650 mm / 21.6" - 65"
Dimensions
92" x 45" x 12"
Net Weight
724 kg / 1,600 lb
Lifting Stroke
1,100 mm / 43.3"
Up Time
1 min 10 sec
Lower Time
1 min 26 sec
Power
1.5 kW

Features

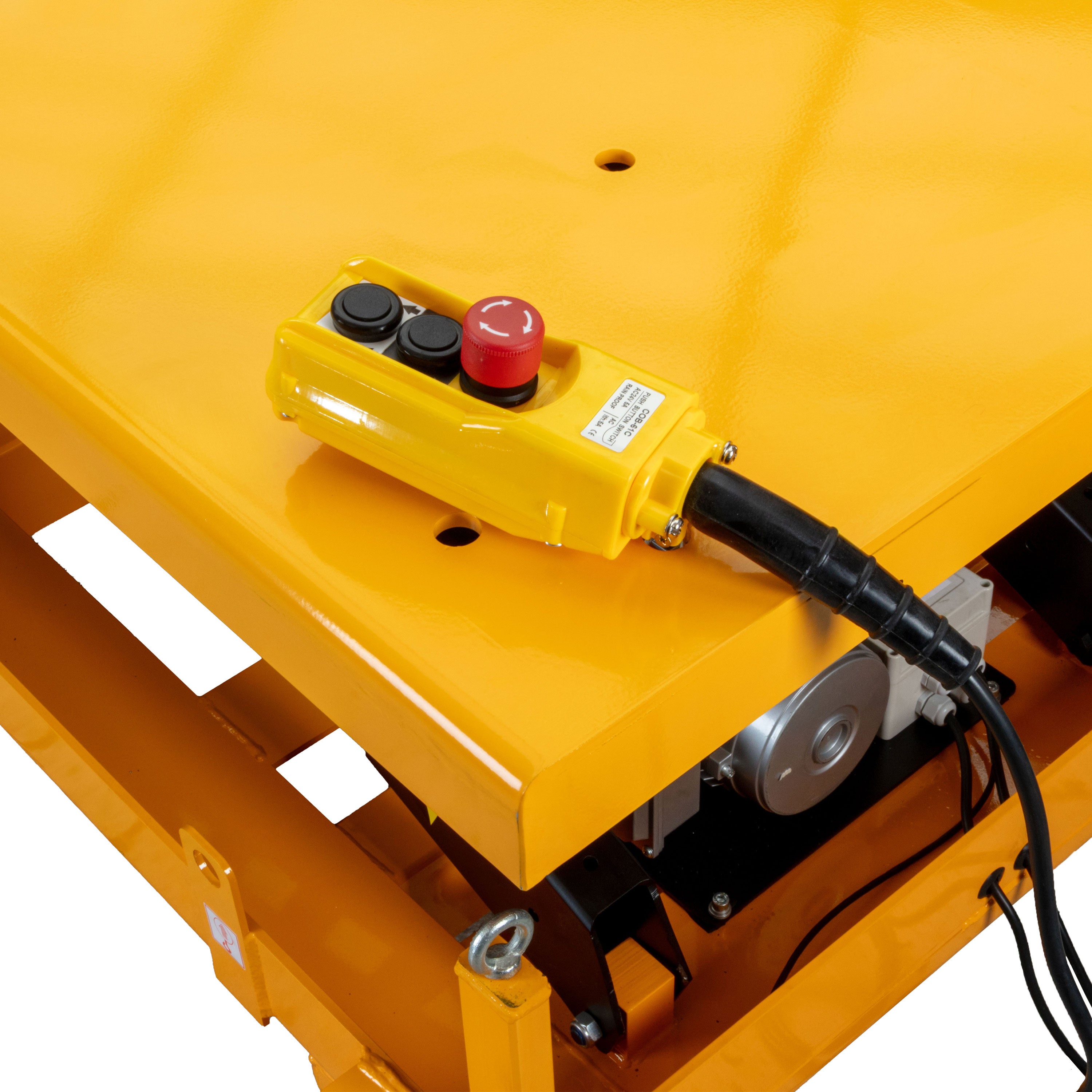

Electric Remote

Remote with long cord and a safety locking switch.

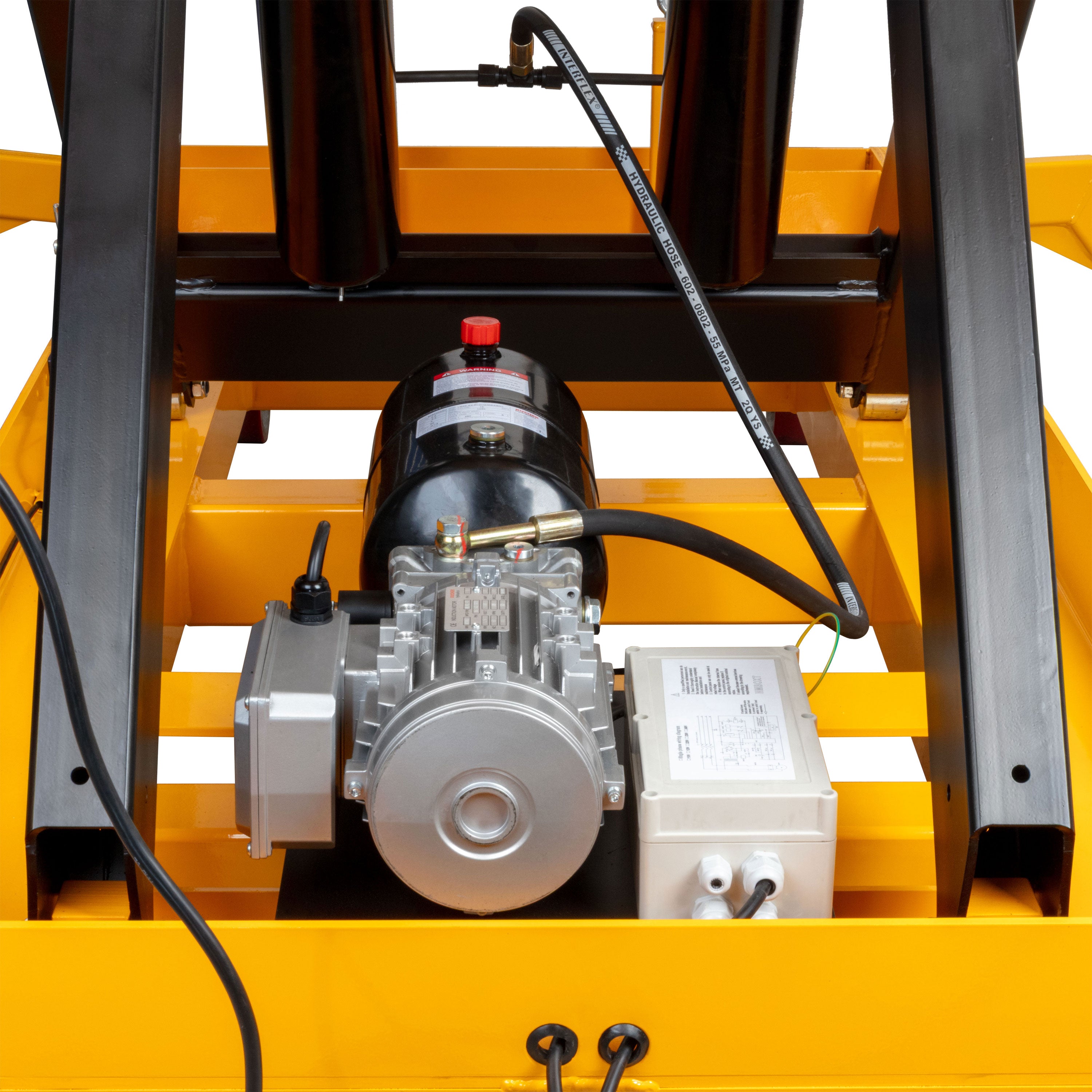

Motor

1.5 kW, 110V

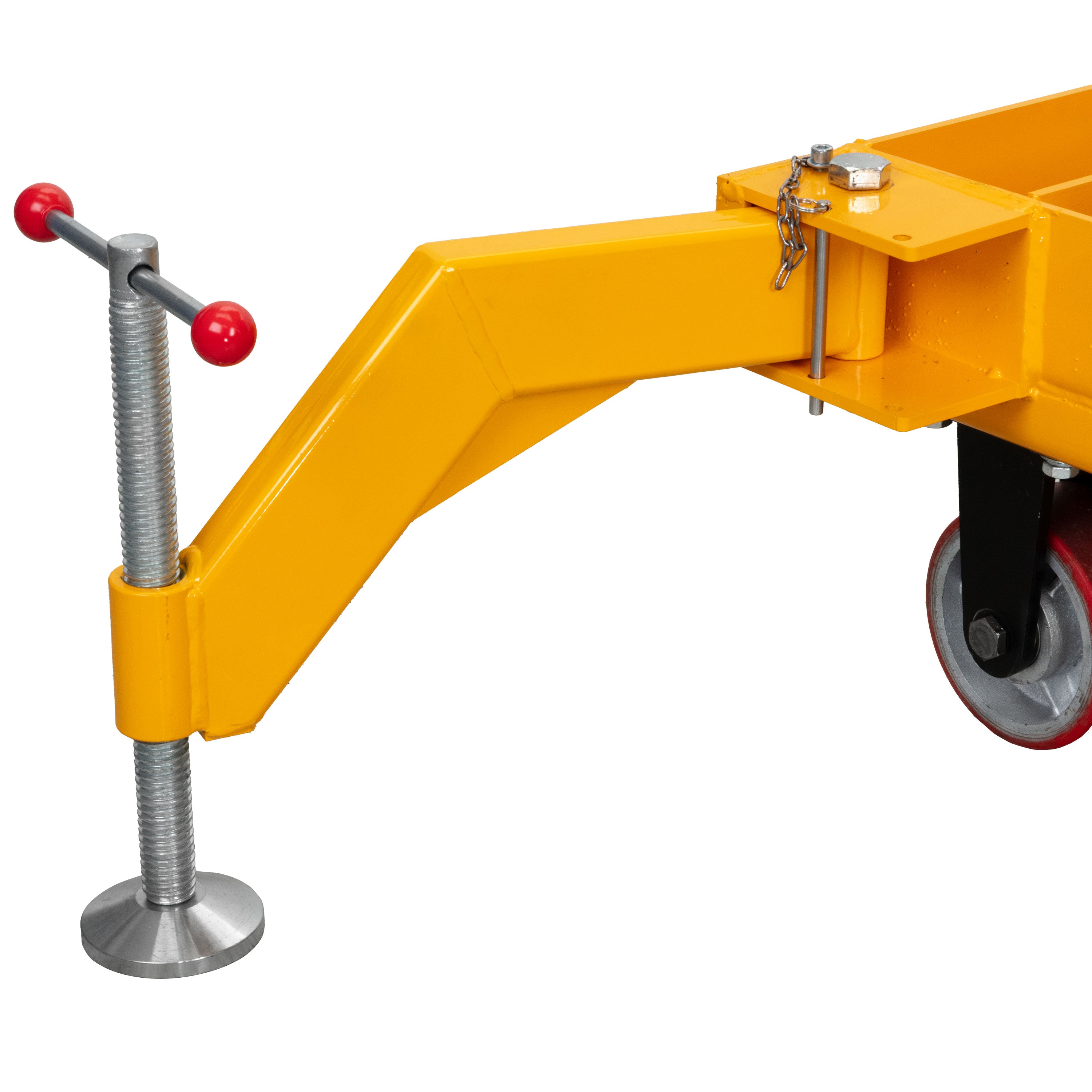

Extending Leveling Pads

Steel legs are equipped with four locking casters and leveling feet for mobile or stationary use.

Height Adjustment

  • 550 -1,650 mm / 21.6" - 65"

If you need some documents but not able to find them here, please fill out the form below. Our engineering team will get back to you shortly.

Downloads

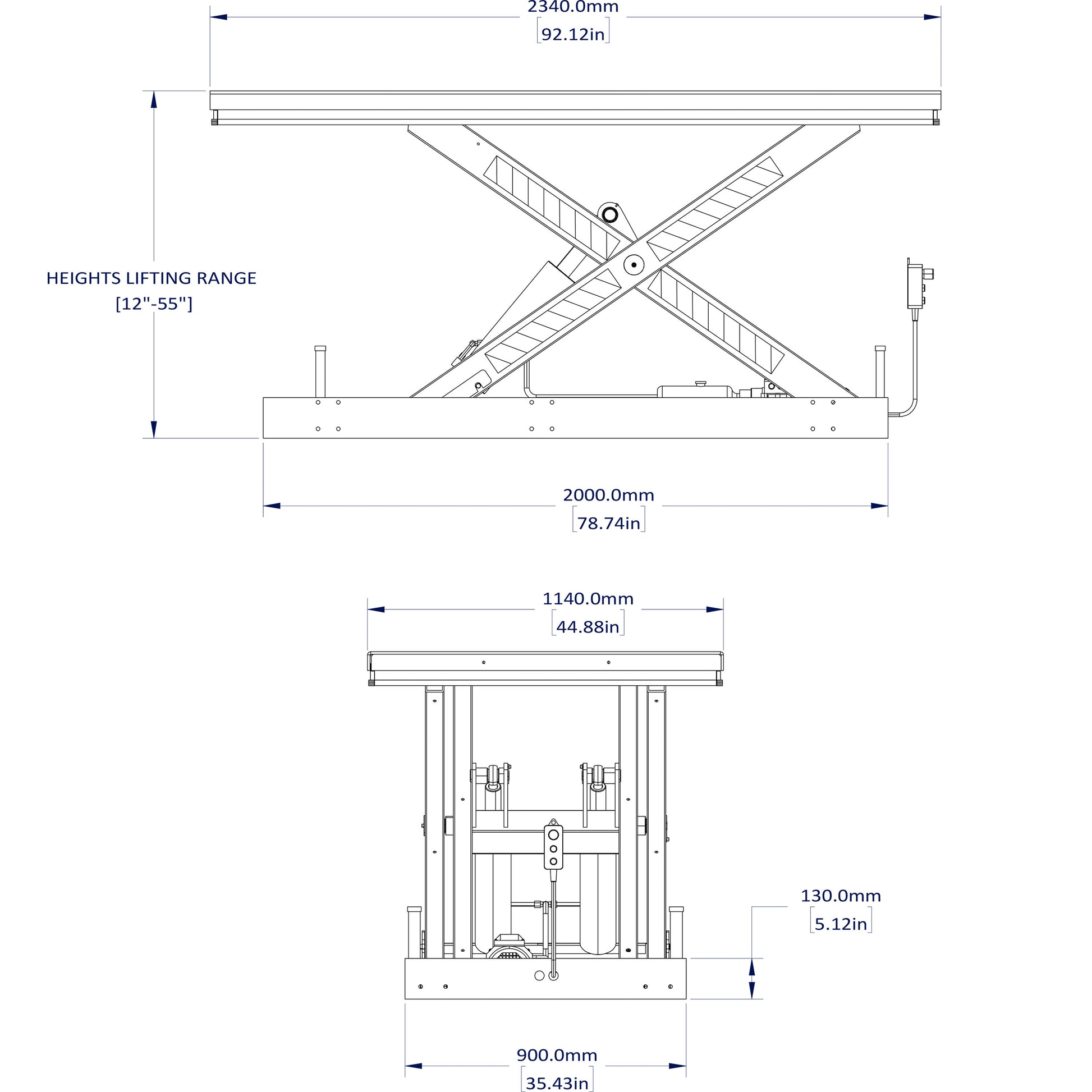

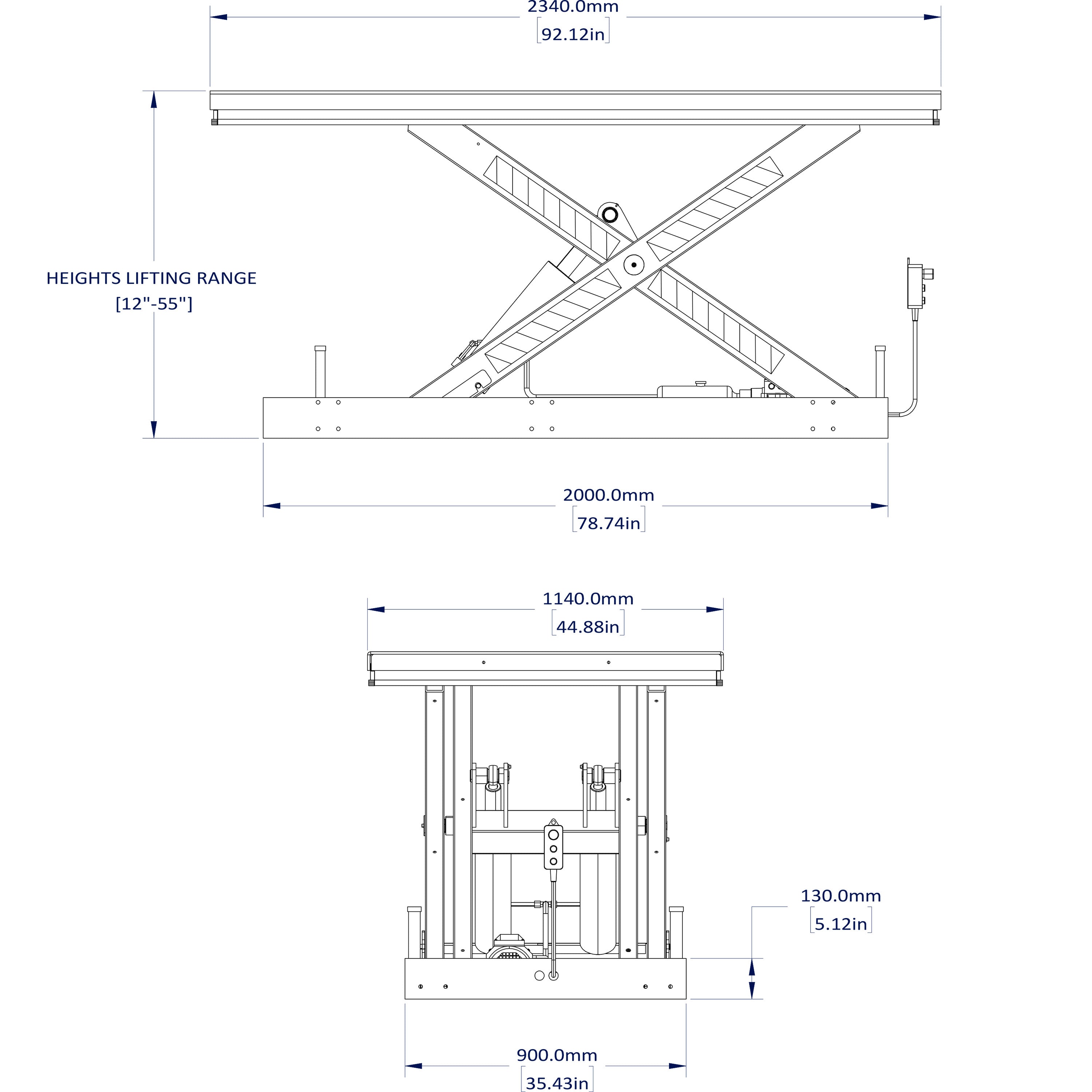

Spec Drawing

CAD

HSLT600 - STEP
