Aluminum 90º Tru-Angle Fixture Weld Jig

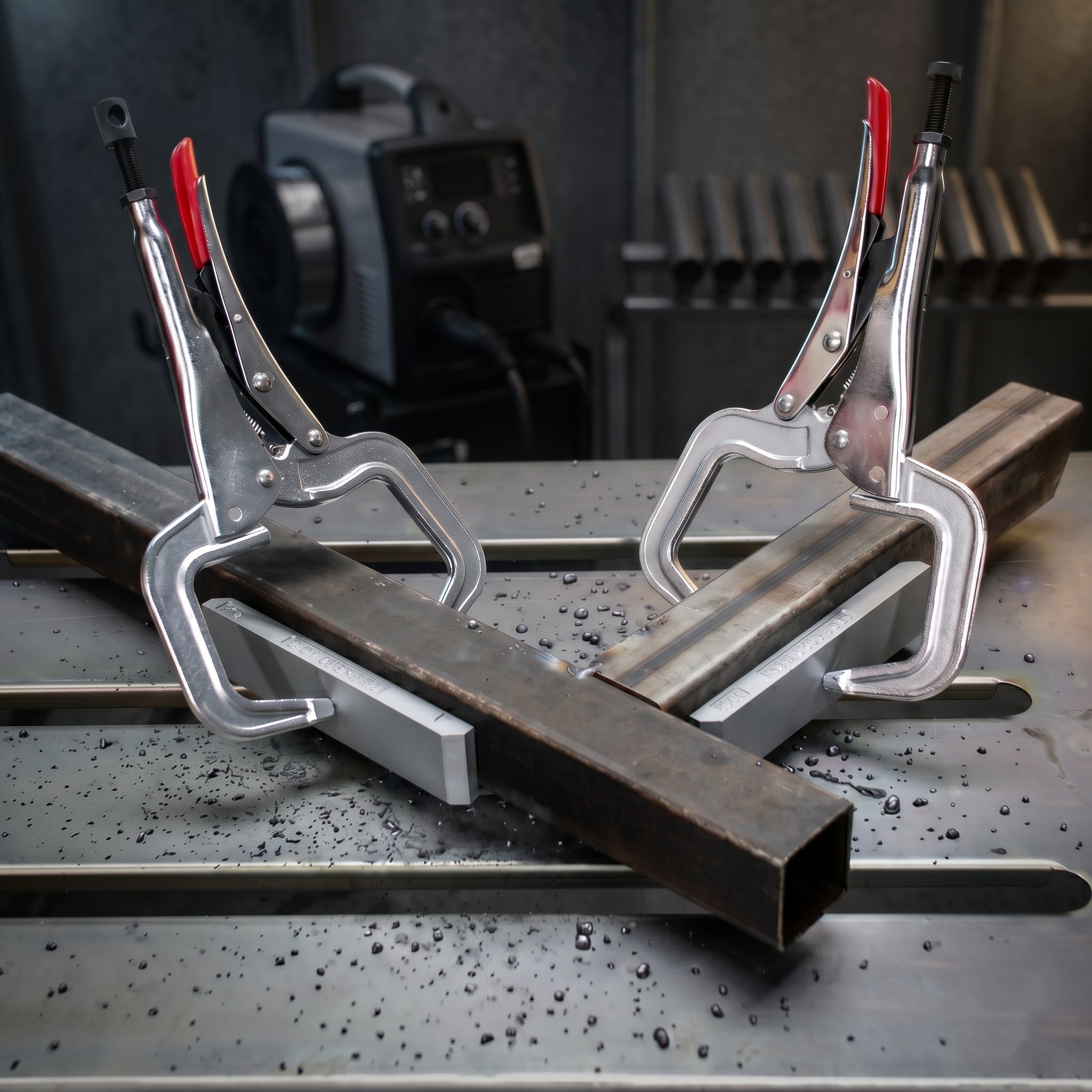

Achieve precise right-angle alignment every time with this durable fixture. Crafted from weld spatter-resistant aluminum alloy, it's built to handle tough jobs without compromise.

Versatile and reliable, it holds round, square, flat, and angled materials with ease and works seamlessly on both outside and inside surfaces for unmatched flexibility.

Designed for convenience, it can even be securely held in a vise, making it the go-to tool for welding, fabrication, and assembly tasks. Get the accuracy you need, hassle-free!

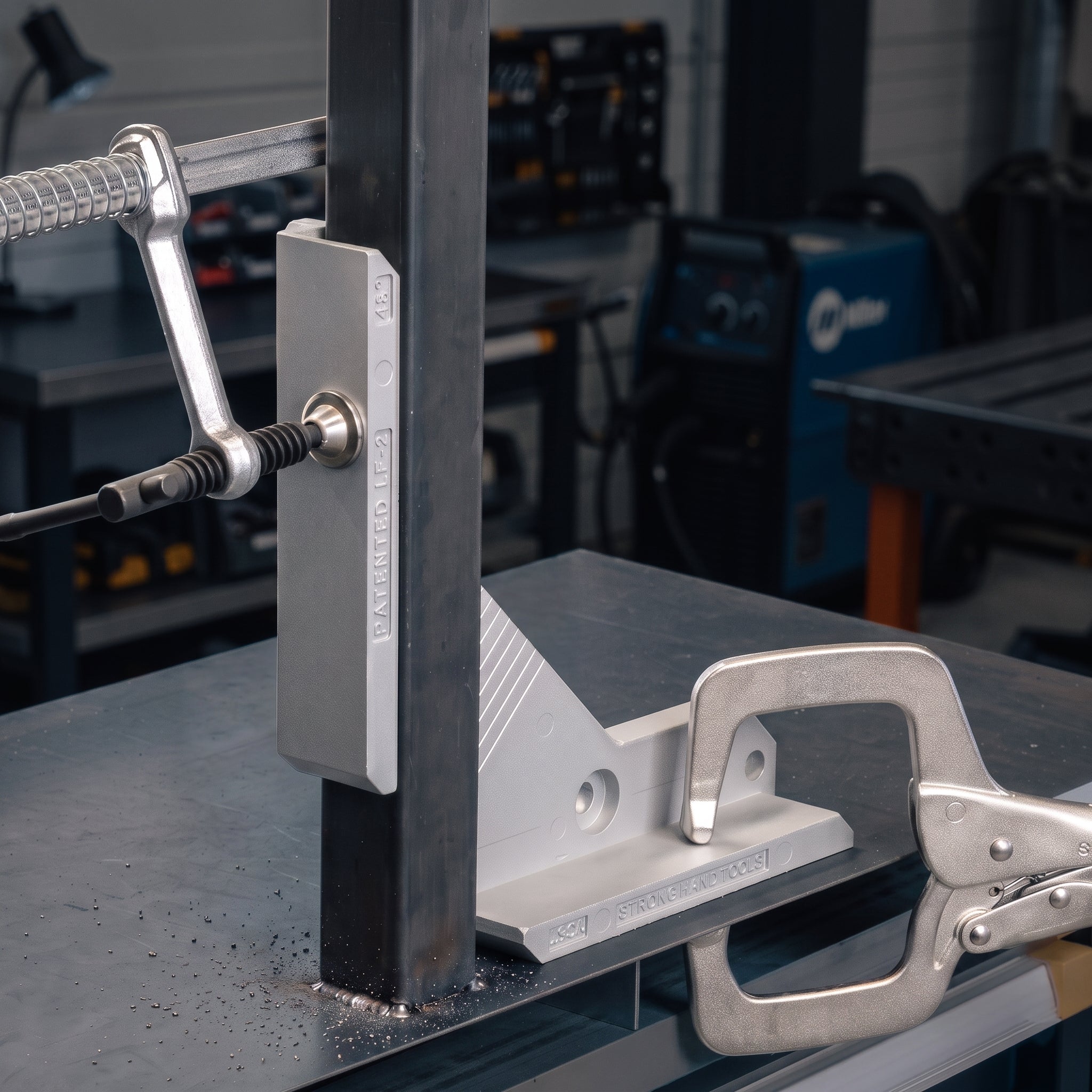

Outer/Inner Clamping

Works on both inside and outside corners for more flexible positioning options.

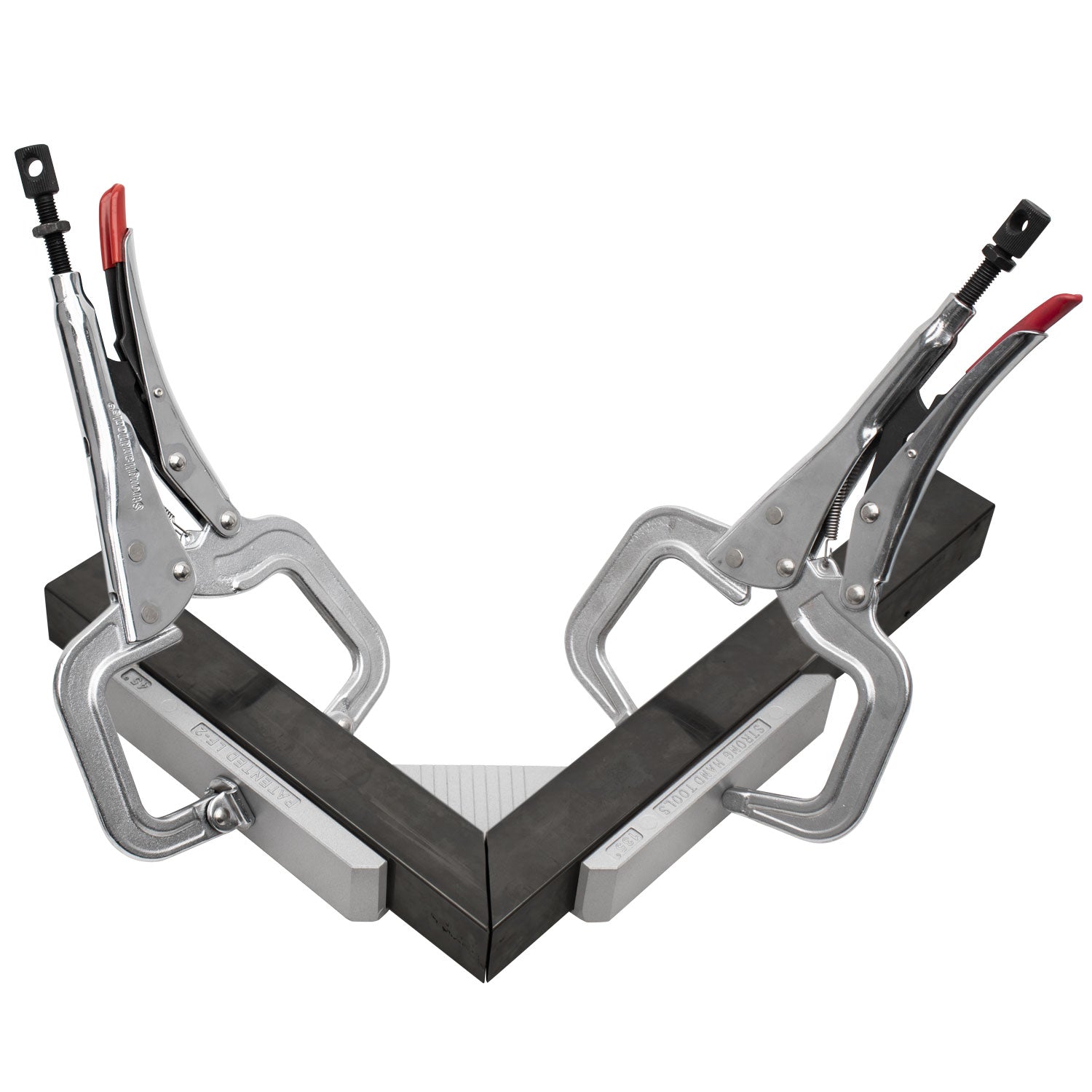

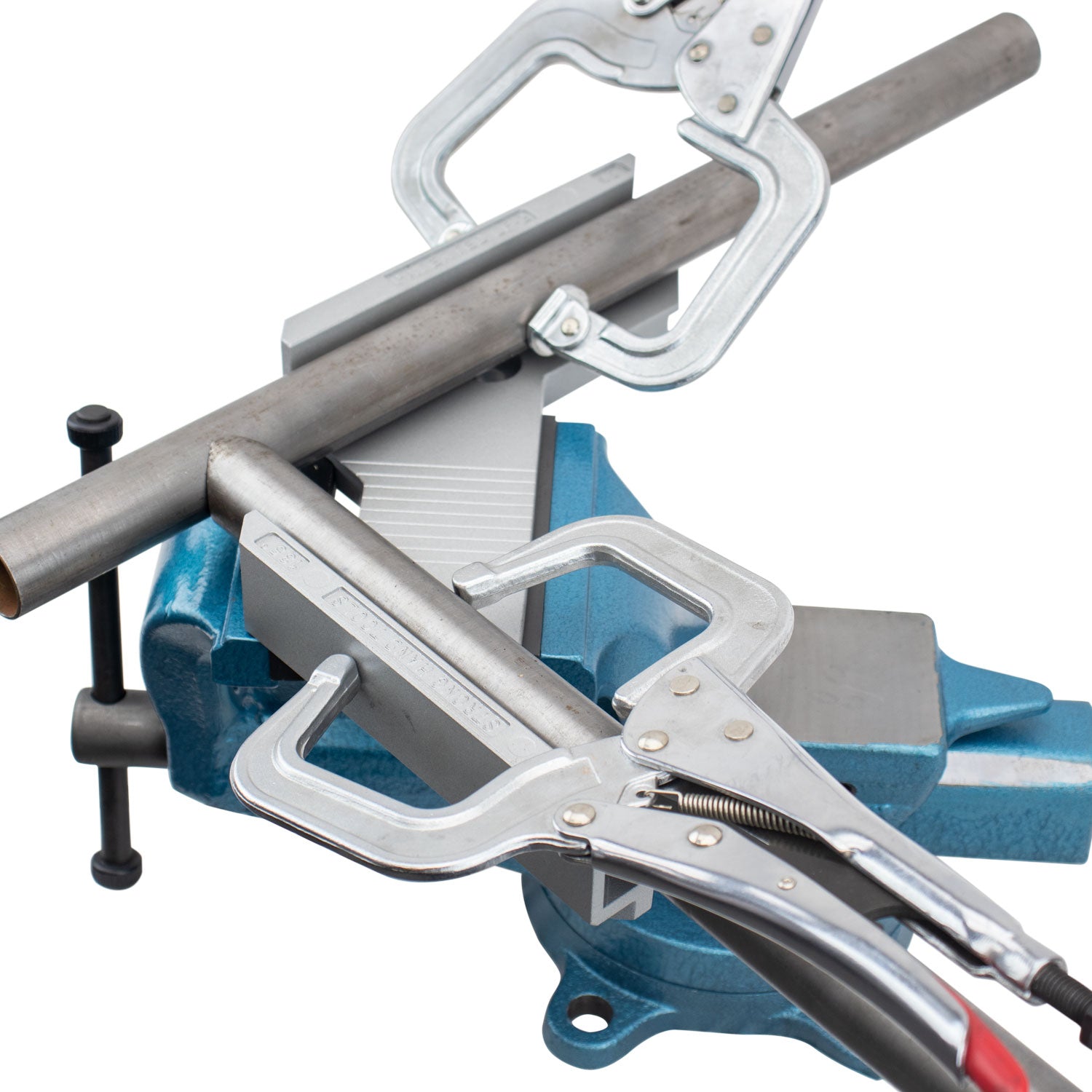

Holds Round, Square, Flat & Angle Stock

Handles multiple material shapes without changing fixtures or setups.

Weld Spatter Resistant

Aluminum alloy construction helps reduce weld spatter buildup for easier cleanup and maintenance.

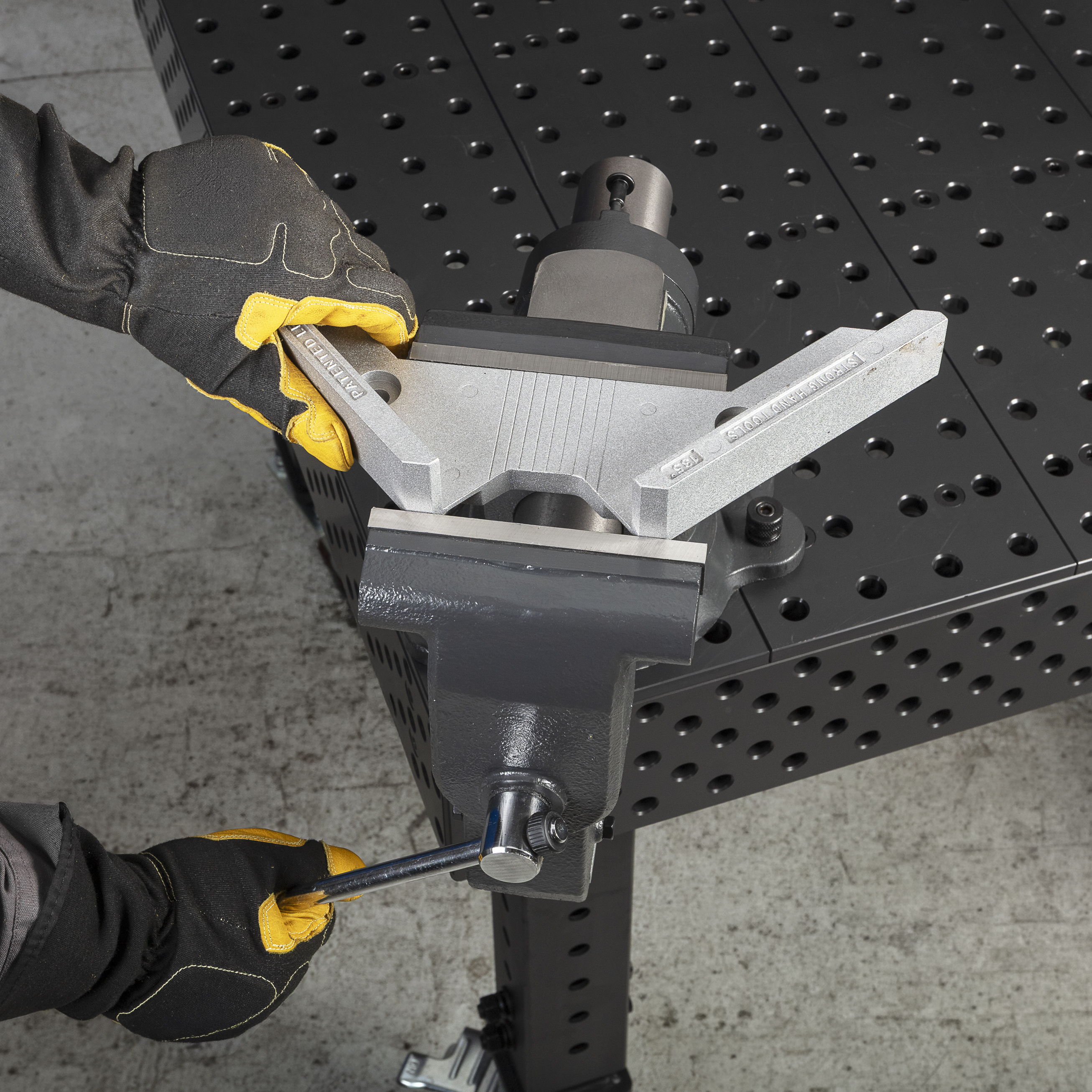

Hands adjusting a vice grip on a workbench with a textured surface.

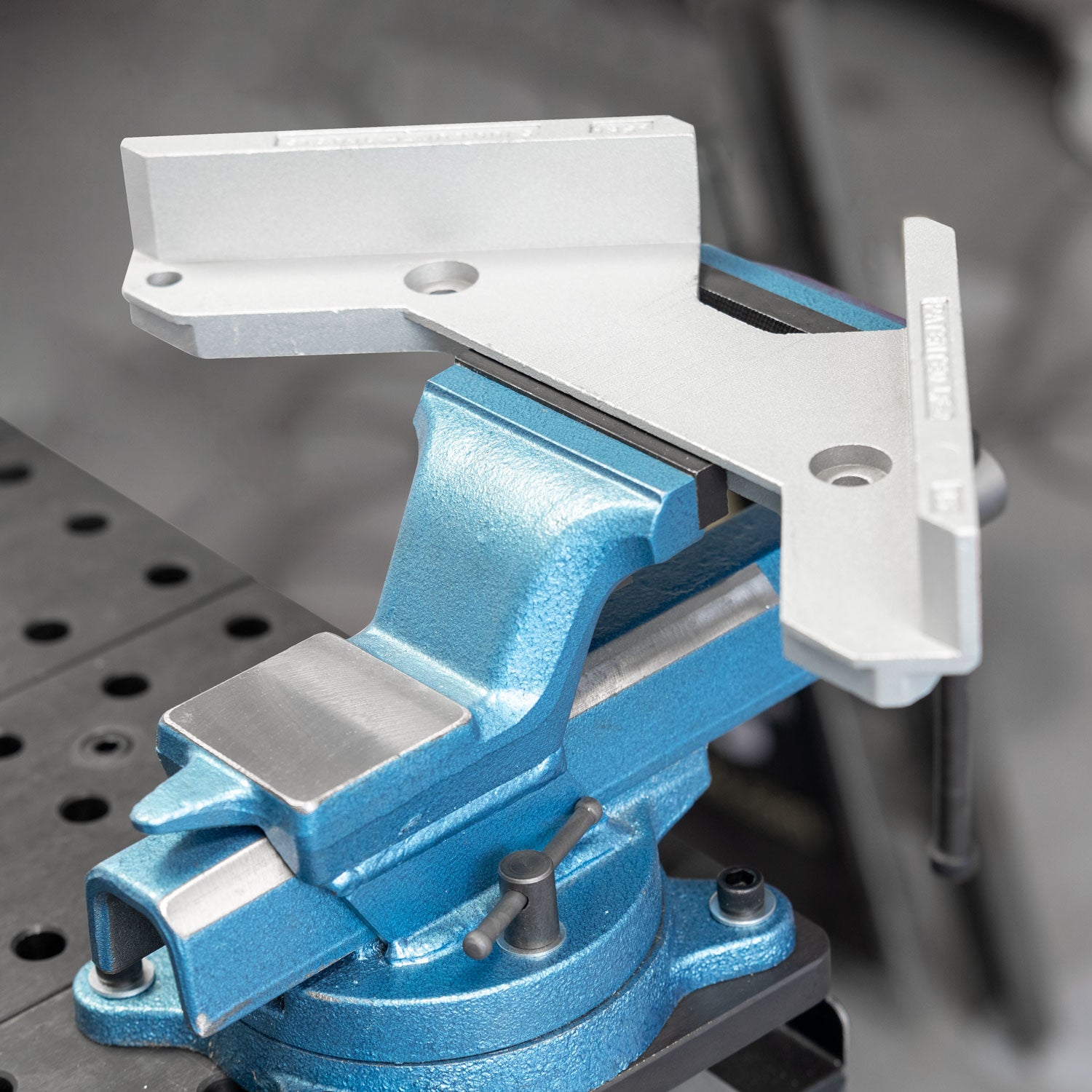

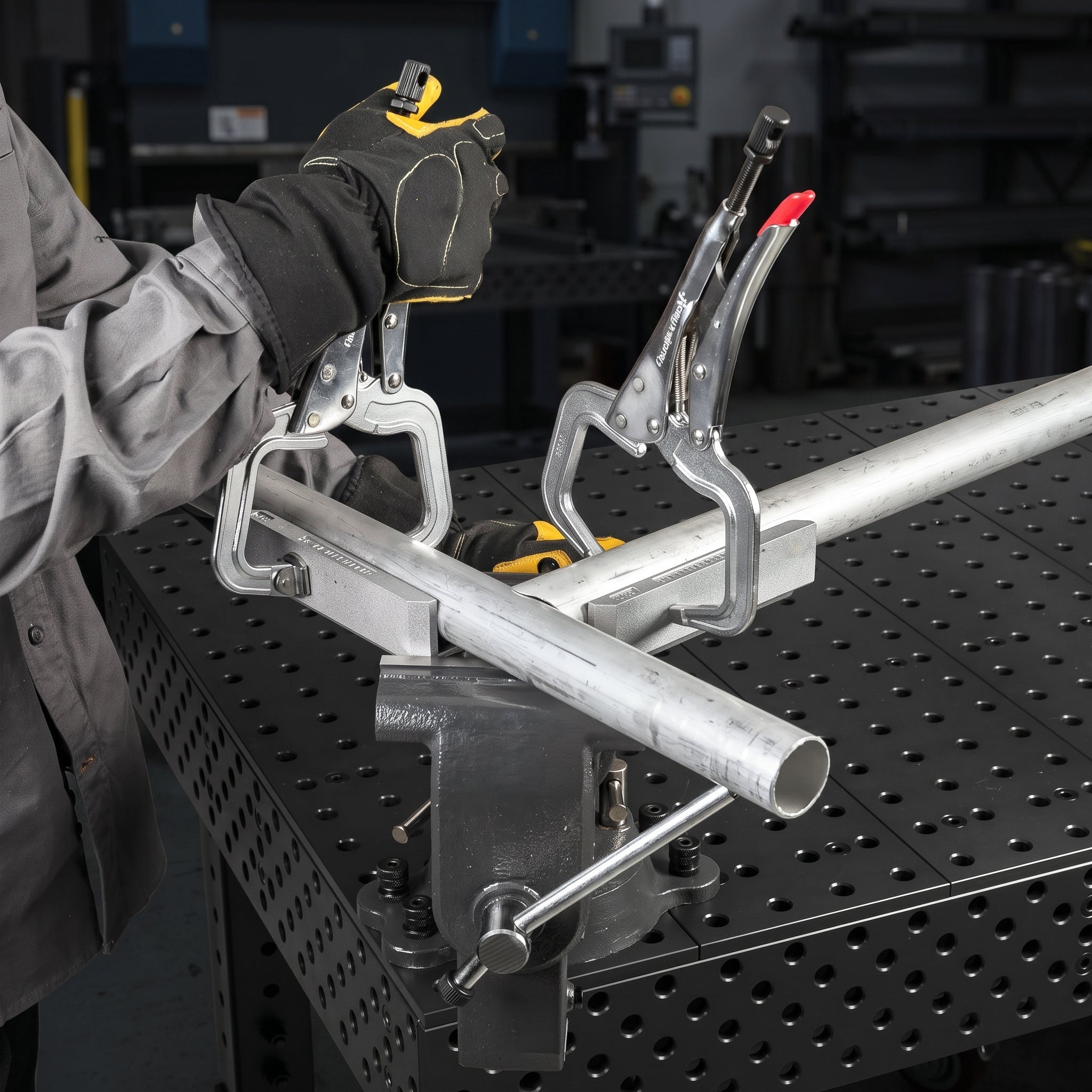

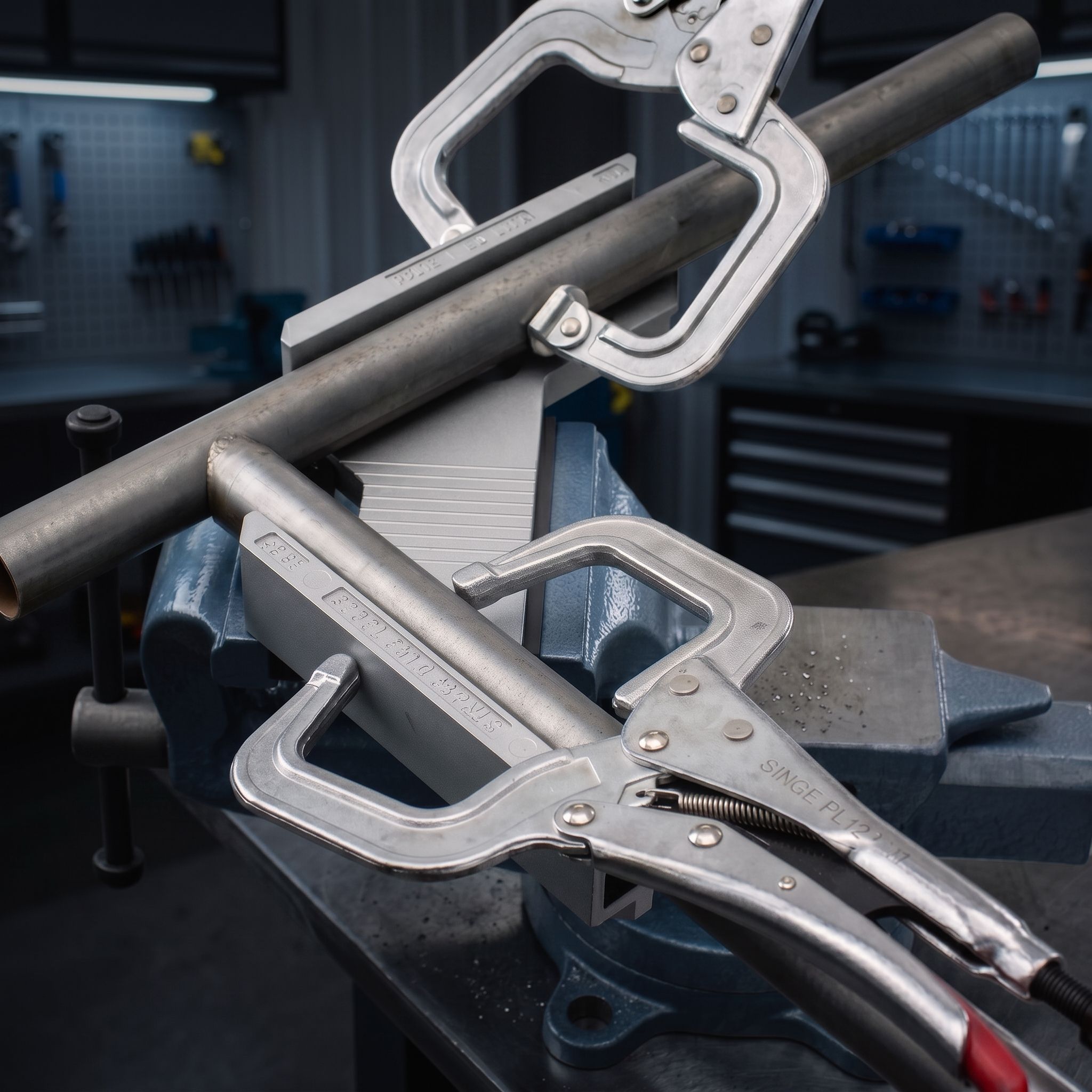

Securely Hold In a Vise

Mount directly in a bench vise for stable, hands-free welding setups.

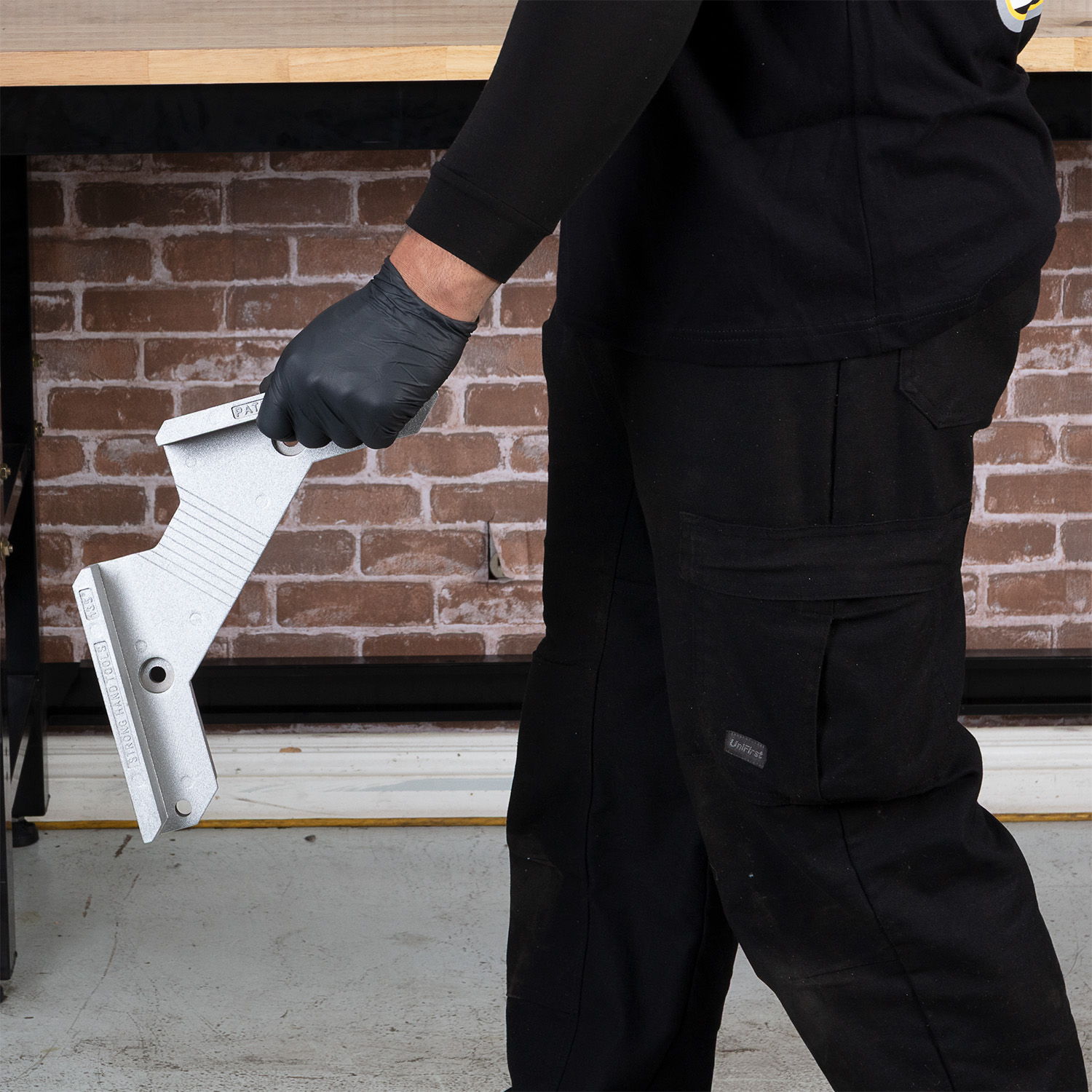

Person holding a white tool in a workshop setting.

Lightweight & Portable

At just 3 lbs, easily move the fixture between workstations or jobsites.

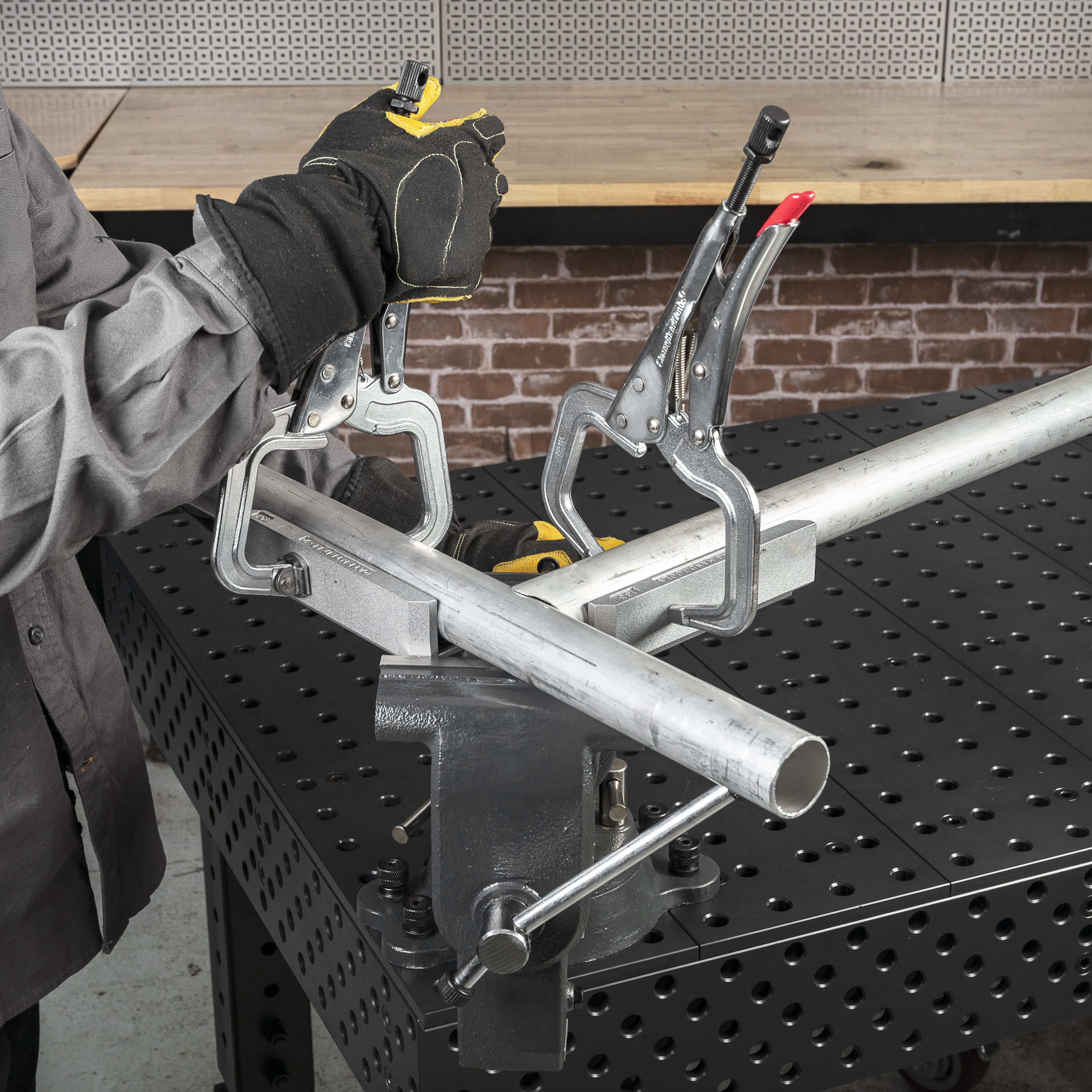

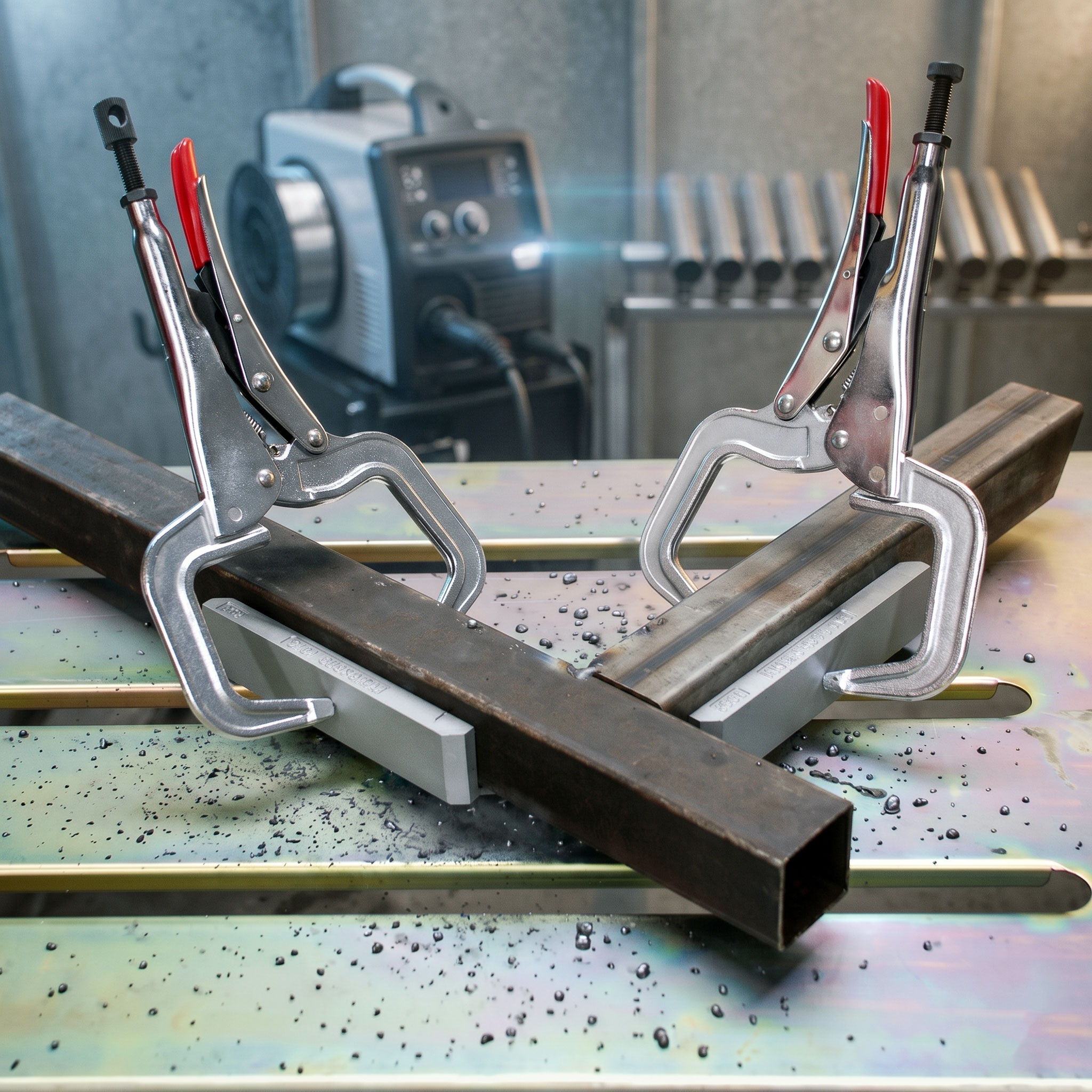

Person using clamps on a metal pipe at a workbench.

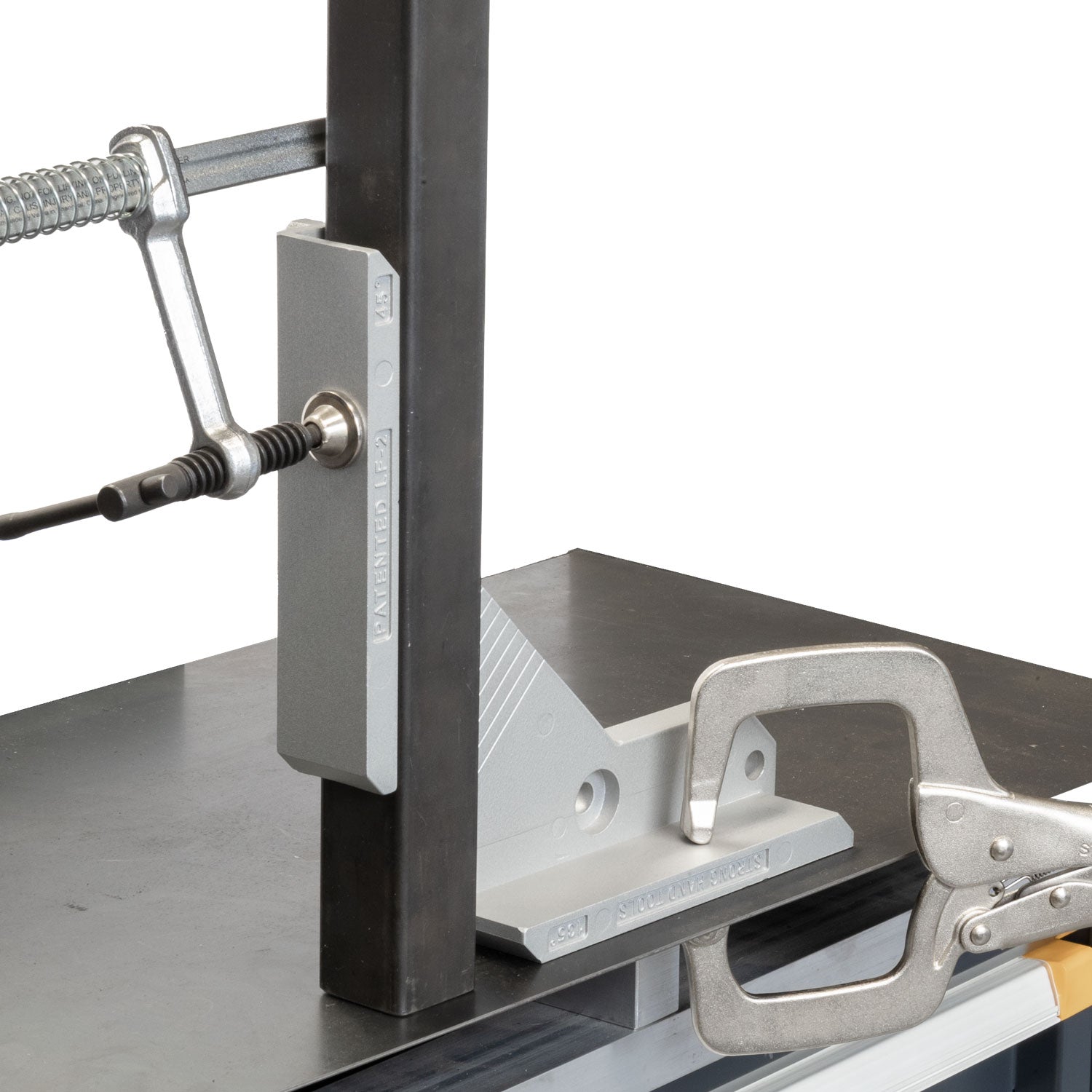

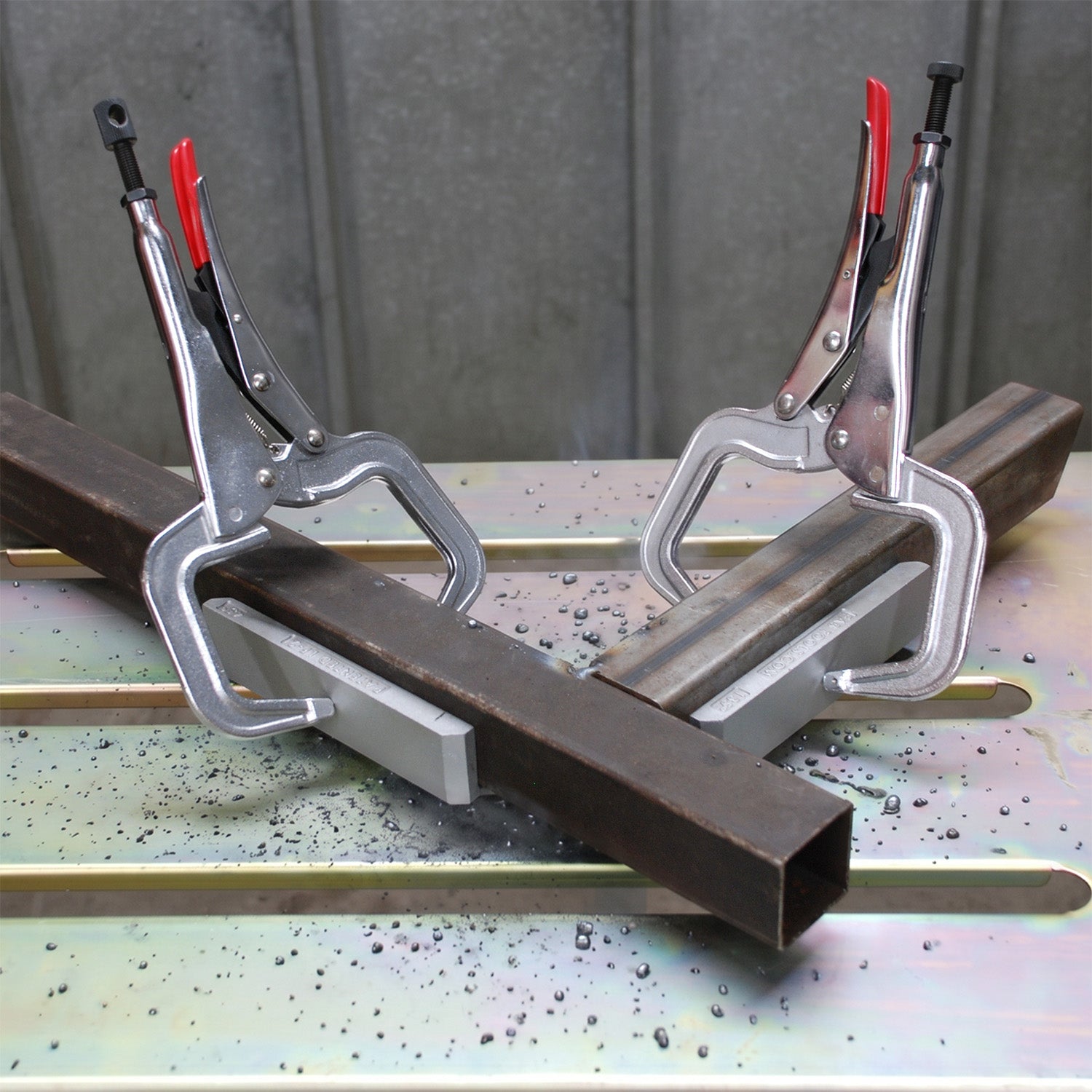

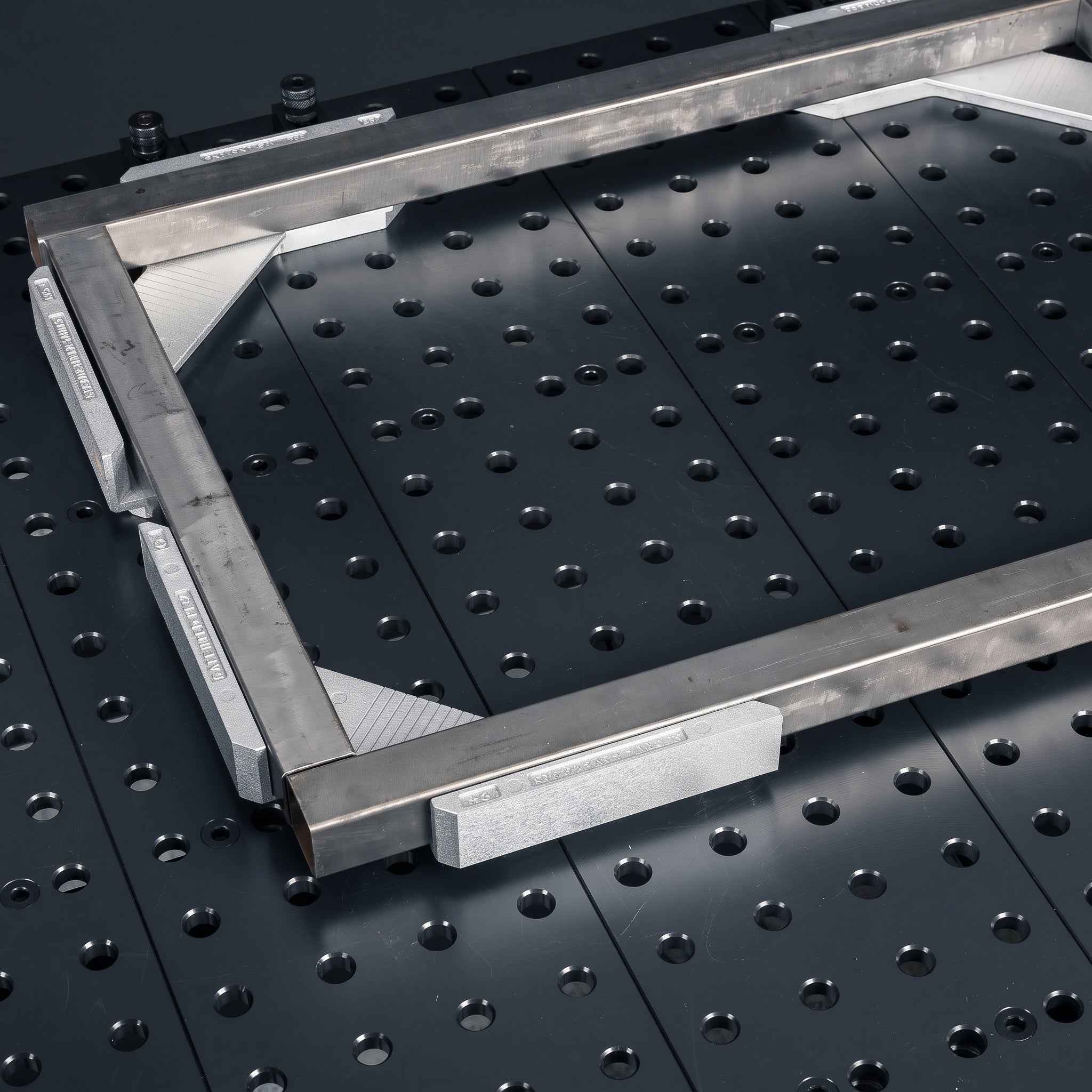

Fast Setup & Tack Welding

Quickly position and secure materials for faster fit-up, tack welding, and fabrication work.

Person holding a metallic object with two holes and a textured grip.

Bolt Down for Repeatable Setups

Integrated mounting holes holes allow secure, repeatable production-style setups.

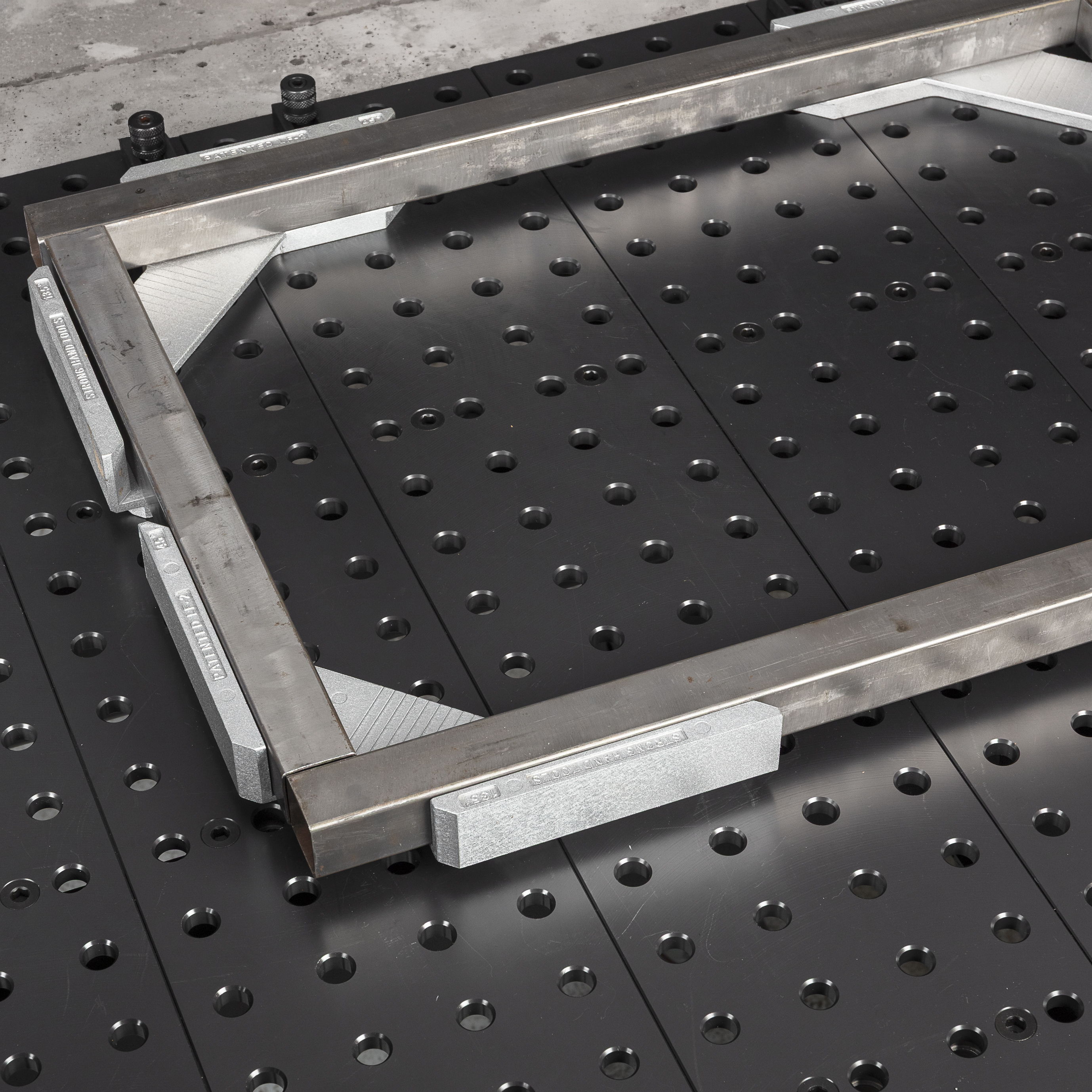

Metal frame on a black perforated surface.

Corner Helper

Simplifies right-angle positioning during fit-up and tack welding.

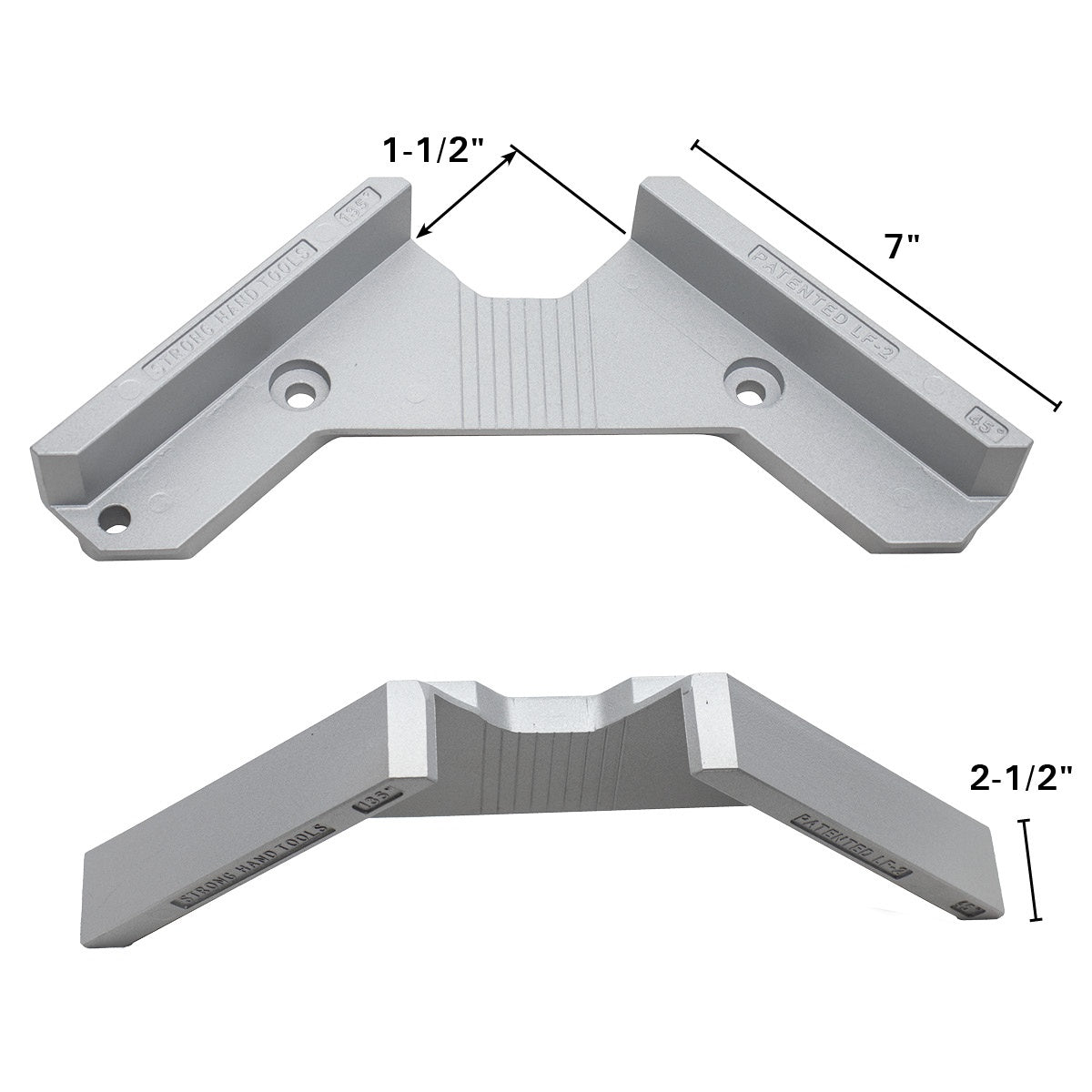

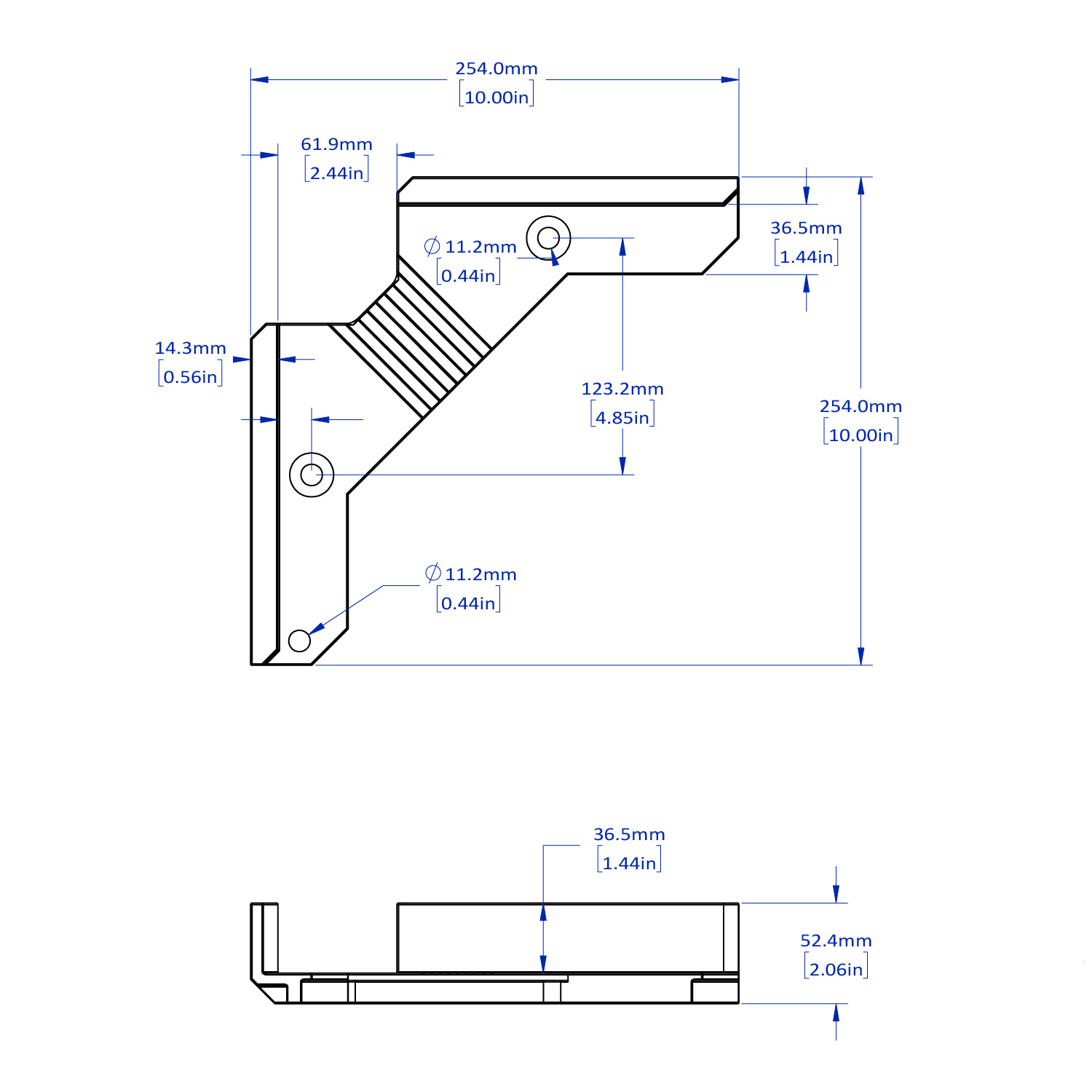

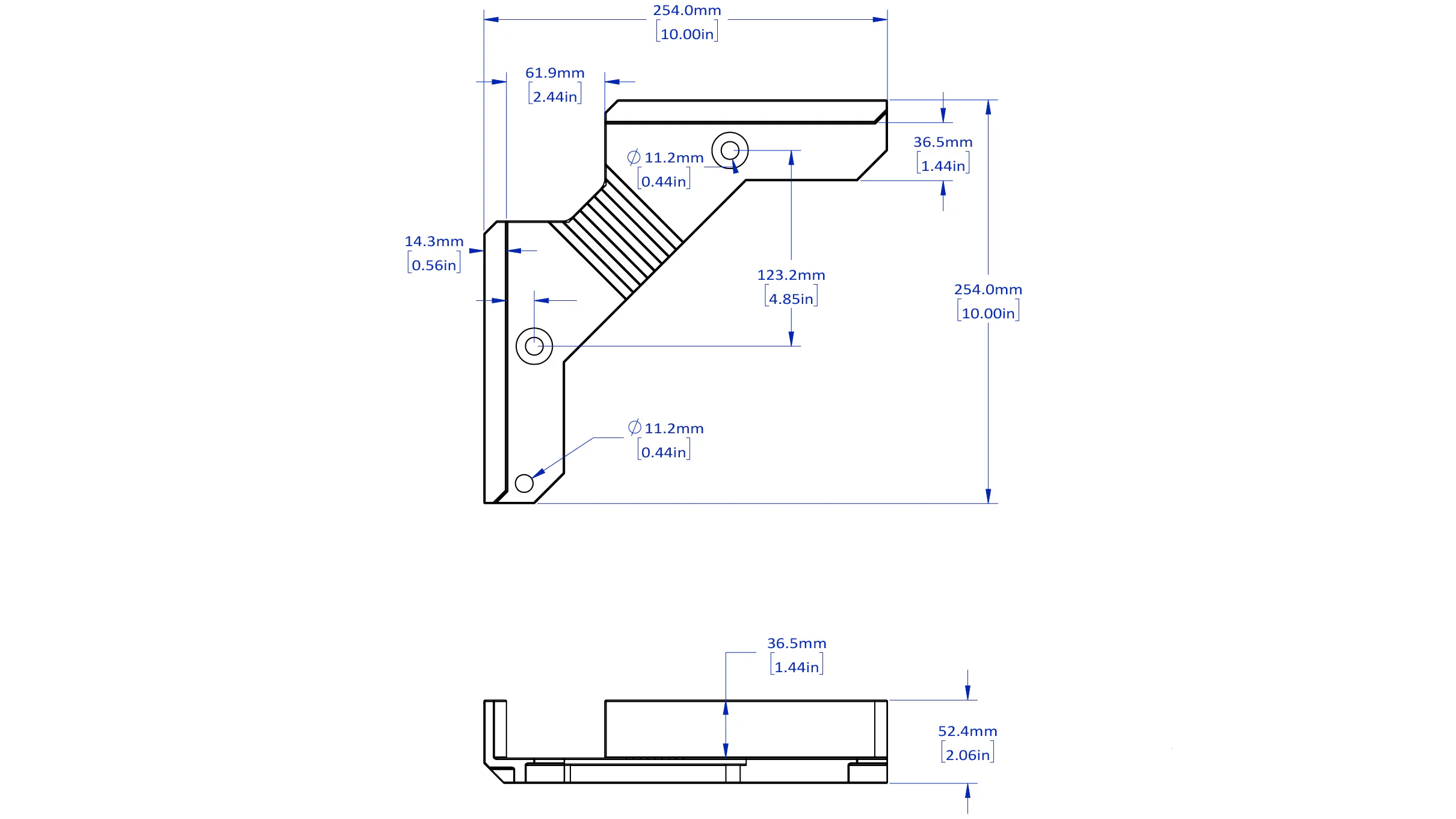

Technical drawing of a mechanical part with dimensions.
Clearance (in)
1-1/2"
Base Height (in)
2.44"
Vise Grip Width (in)
2.06"
Weight (lb)
3 lb

If you need some documents but not able to find them here, please fill out the form below. Our engineering team will get back to you shortly.

Downloads

Spec Drawing

Manual

CAD

LF-2-STEP
