- Sujételo firmemente para soportar una carga de hasta 50 lb.
- La almohadilla en V en la mordaza superior y el husillo en la mordaza inferior sujetan firmemente el tubo redondo contra una superficie plana.

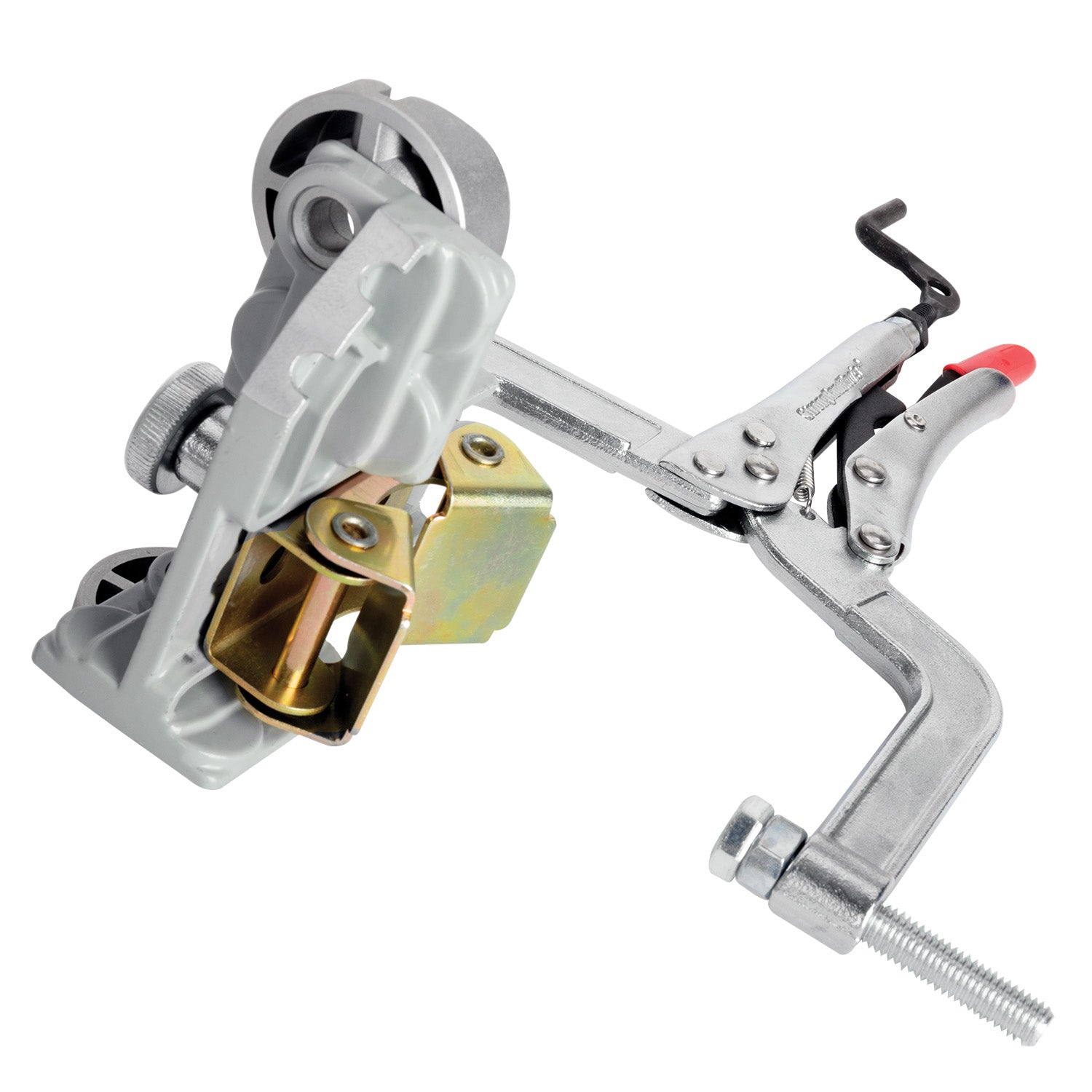

- Se pueden usar dos bloques en V de aluminio en el soporte de aluminio con alicates o abrazaderas adicionales para sujetar tubos de diferentes diámetros en diferentes ángulos.
Alicates para juntas de tuberías
Alicates para juntas de tuberías
Disponible en stock
-
Estimated delivery: Sep 01 - Sep 05
No se pudo cargar la disponibilidad de recogida
California Prop 65 - This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more info: www.P65Warnings.ca.gov
Manual Download
Manual Download
Spec Download
Spec Download
CAD Drawings Download
CAD Drawings Download

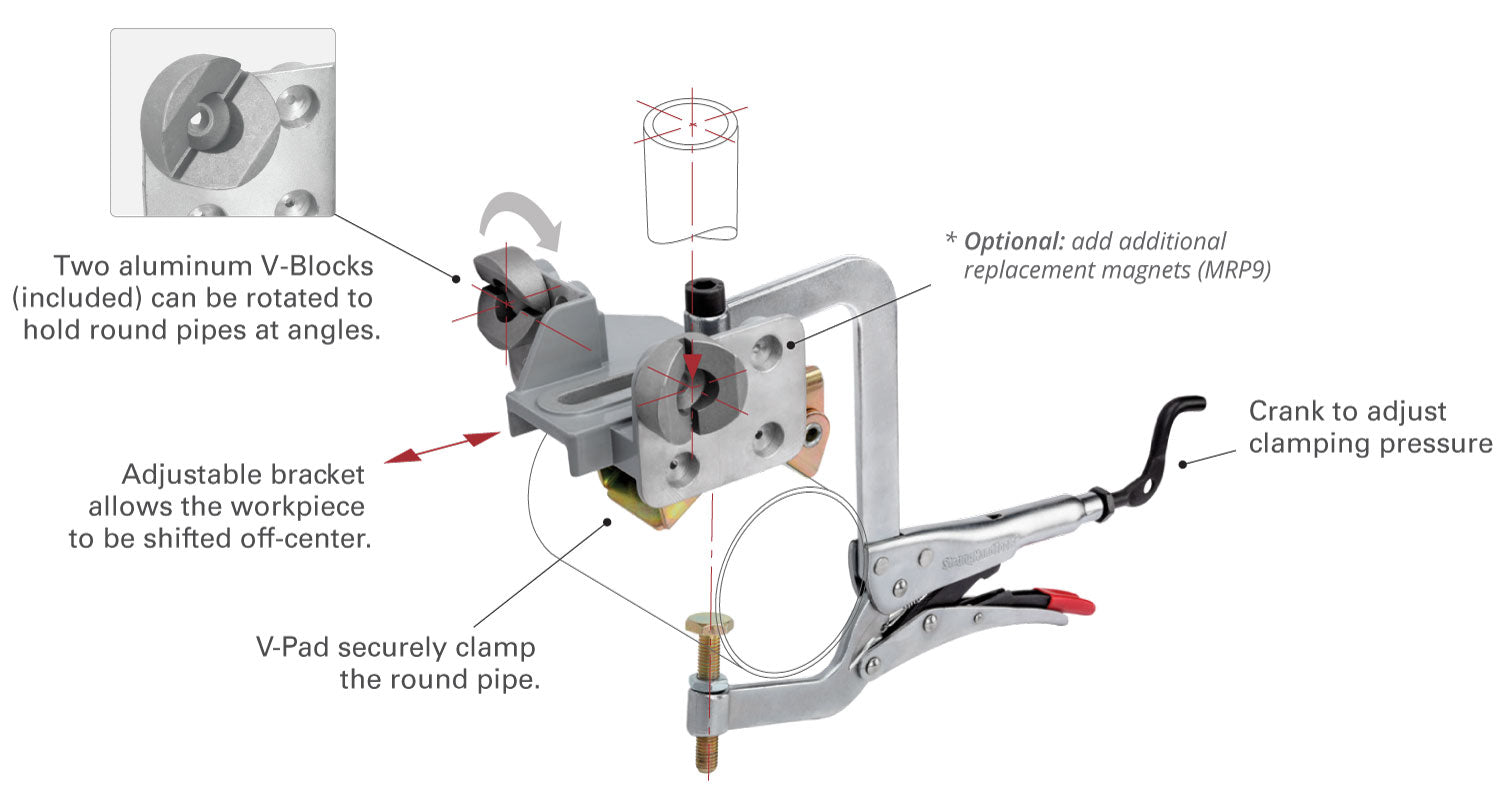

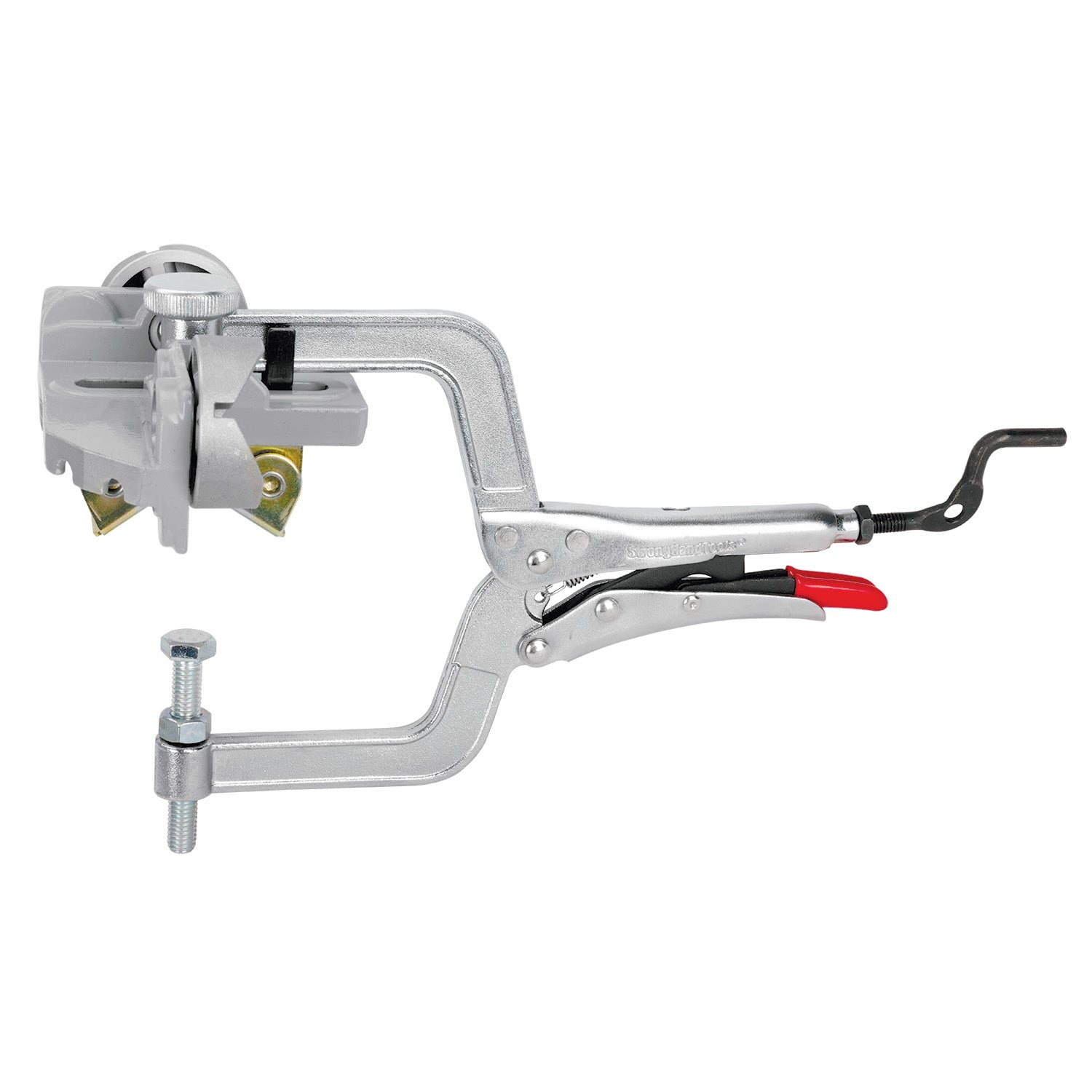

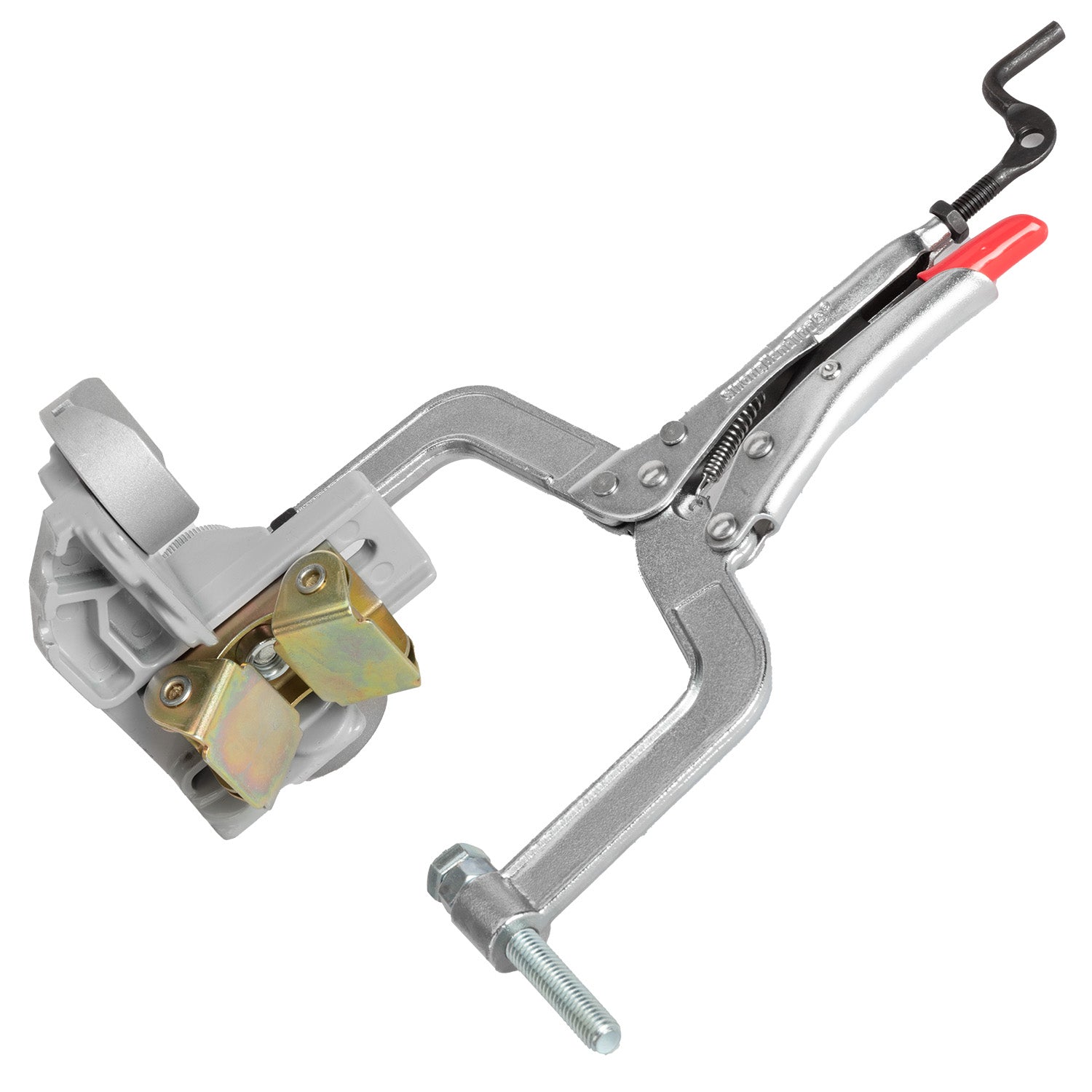

- Hold tight, for load-bearing, as much as 50 lb.
- Two aluminum V-Blocks (included) can be rotated to hold round pipes at angles.

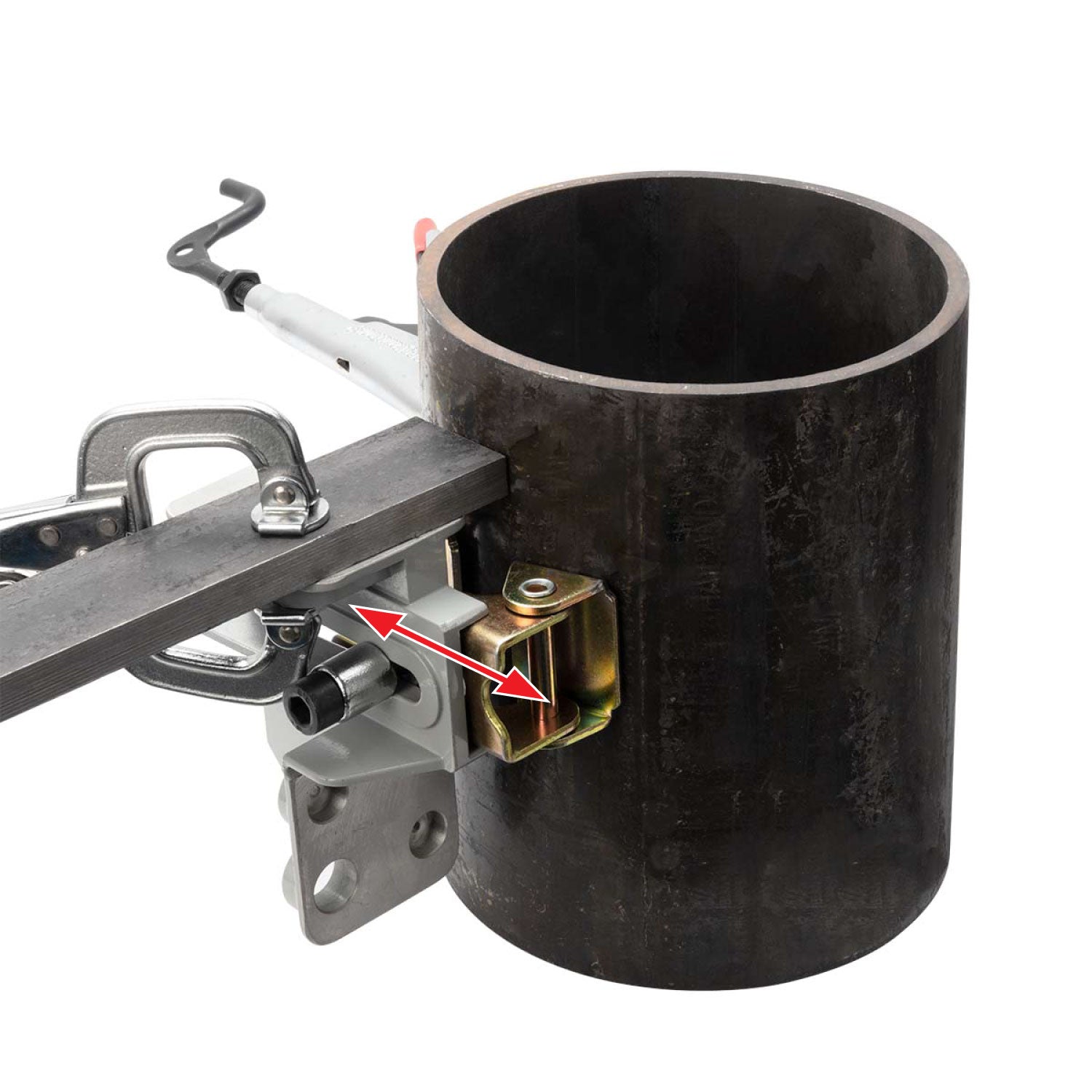

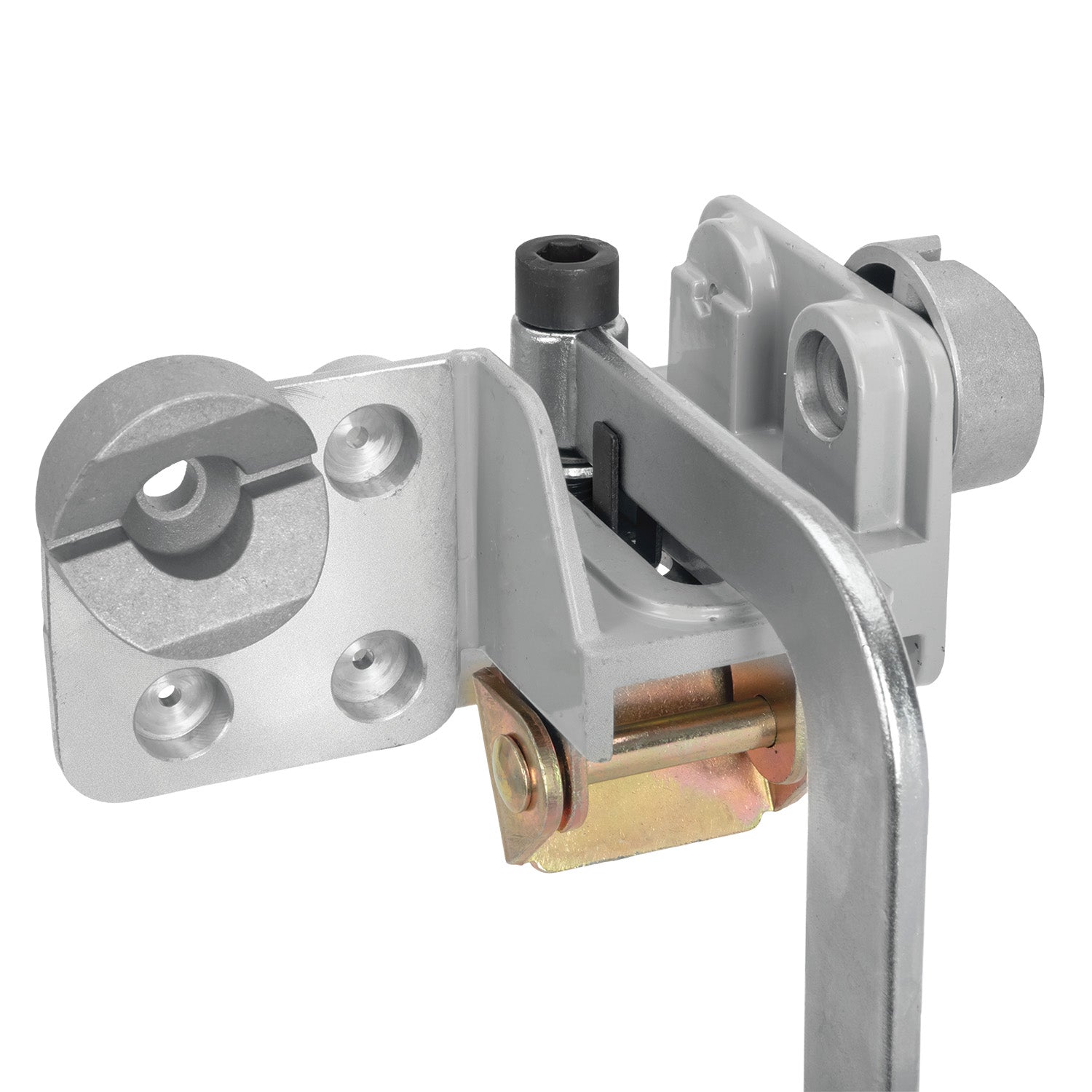

- Adjustable bracket allows the workpiece to be shifted off-center.
- Replaceable Magnets (sold separately) can be added to the bracket to hold metal piece up.

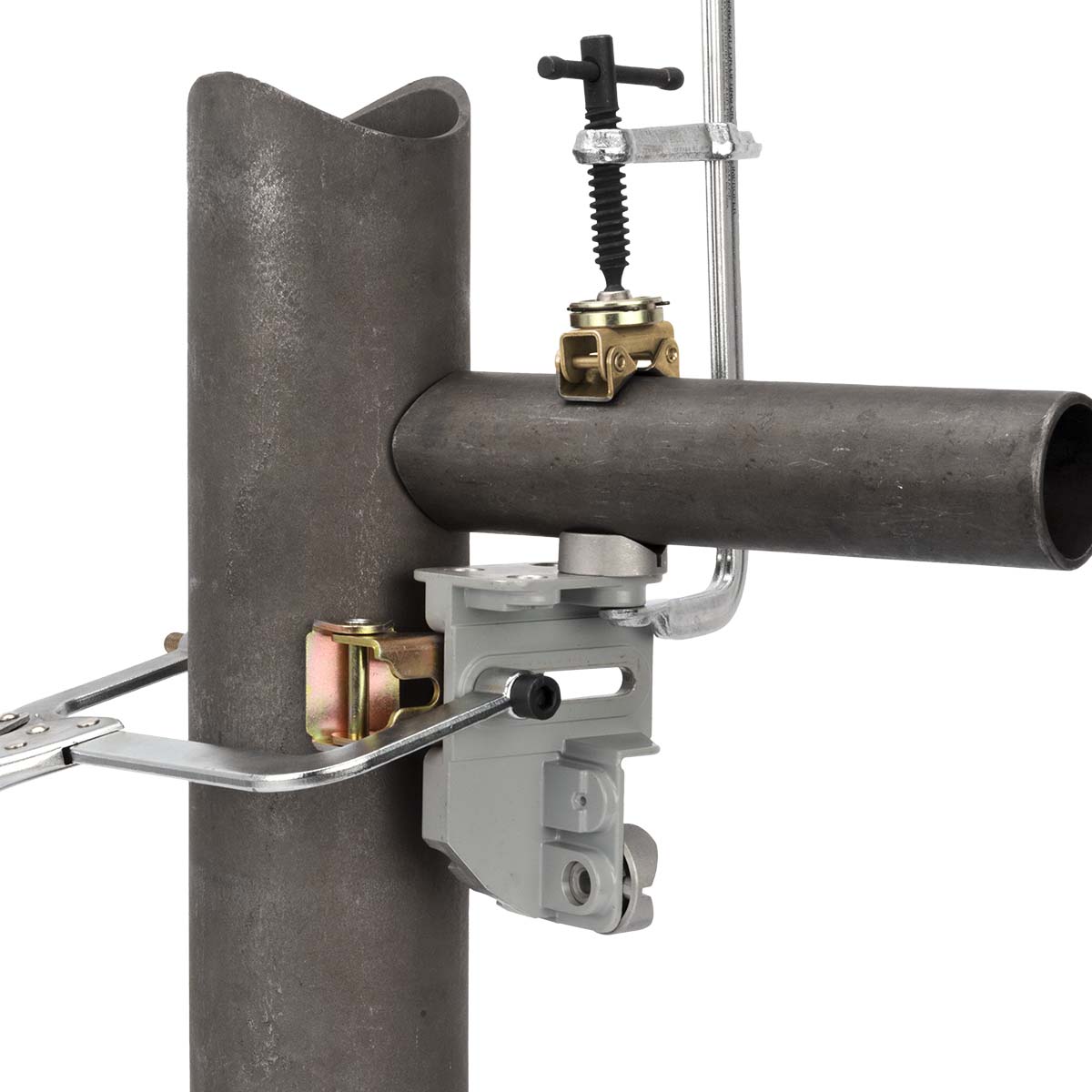

Use with Utility Clamp with Clip-on Top V-Pad to hold pipe at 90 degree

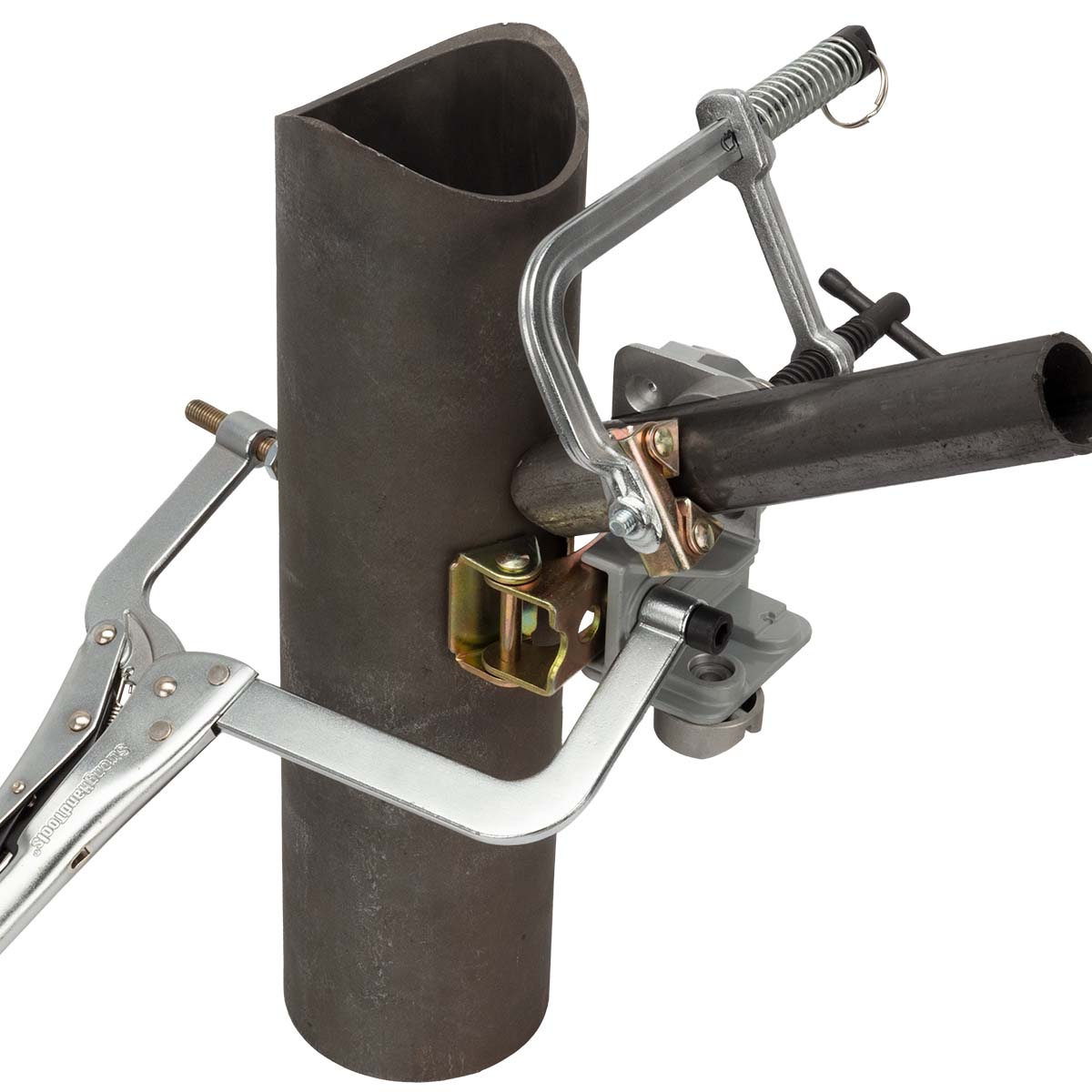

Use with MagSpring Clamp to join pipe at angle
Use with Locking C-Clamp to hold square pipe

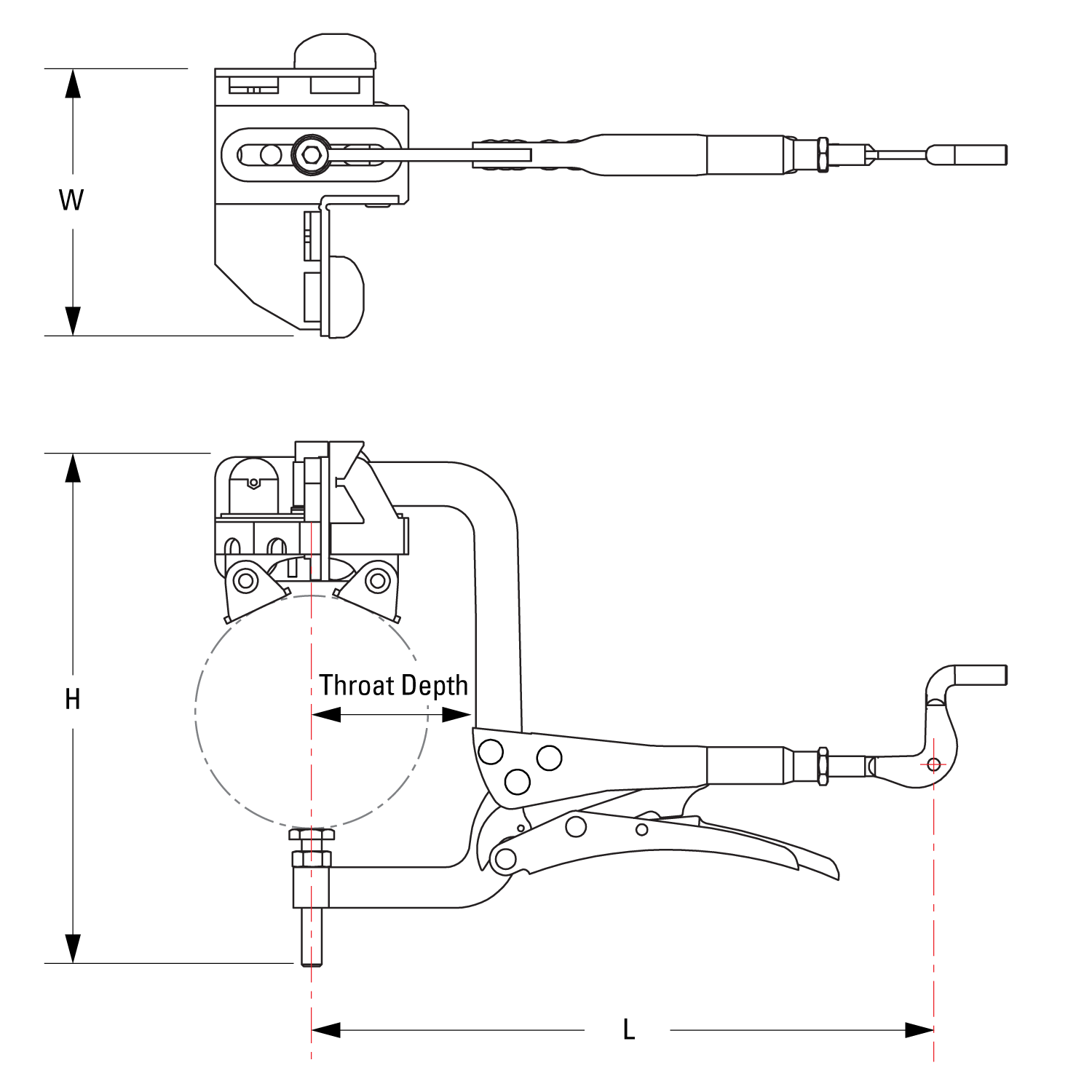

Part No. | Hold Pipe (in) | L (in) | W (in) | H (in) | Throat Depth (in) | Weight (lb) |
---|---|---|---|---|---|---|
PPJ634 | Up to Ø2.5" | 8.3 | 3.1 | 6.3 | 3 | 1.5 |

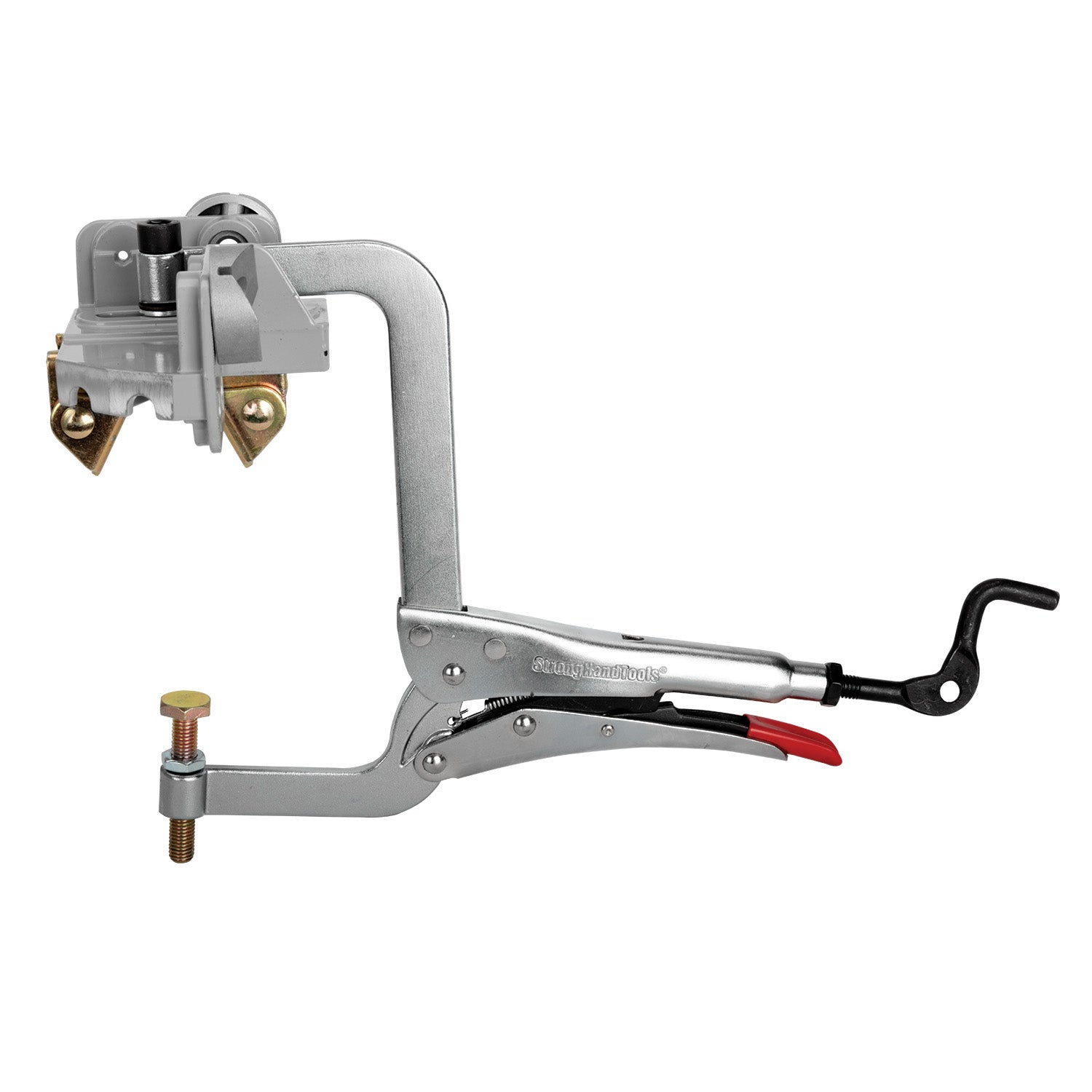

PPJ1107 | Up to Ø5" | 11.5 | 5.2 | 10.2 | 3.1 | 3.7 |
