Individual Model

Part No. Overall Length (in) Throat Depth (in) MAX Clamping Capacity (in) Weight (lb)
PR115S 11.0 3.3 4.0 2.2

Round Tip Models

Part No. Overall Length (in) Throat Depth (in) MAX Clamping Capacity (in) Weight (lb)
PR6 6.5 1.8 2.0 0.5
PR115 11.0 3.3 4.0 2.0
PR18 18.0 10.0 4.5 3.0

Swivel Pad Models

Part No. Overall Length (in) Throat Depth (in) MAX Clamping Capacity (in) Weight (lb)
PR6S 6.5 1.8 1.8 0.6
PR115S 11.0 3.3 4.0 2.2
PR18S 18.0 10.0 4.5 3.1

If you need a document you can't find here, request it below and our engineering team will get back to you shortly.

Request a File

Downloads

Spec Drawing

Manual

CAD

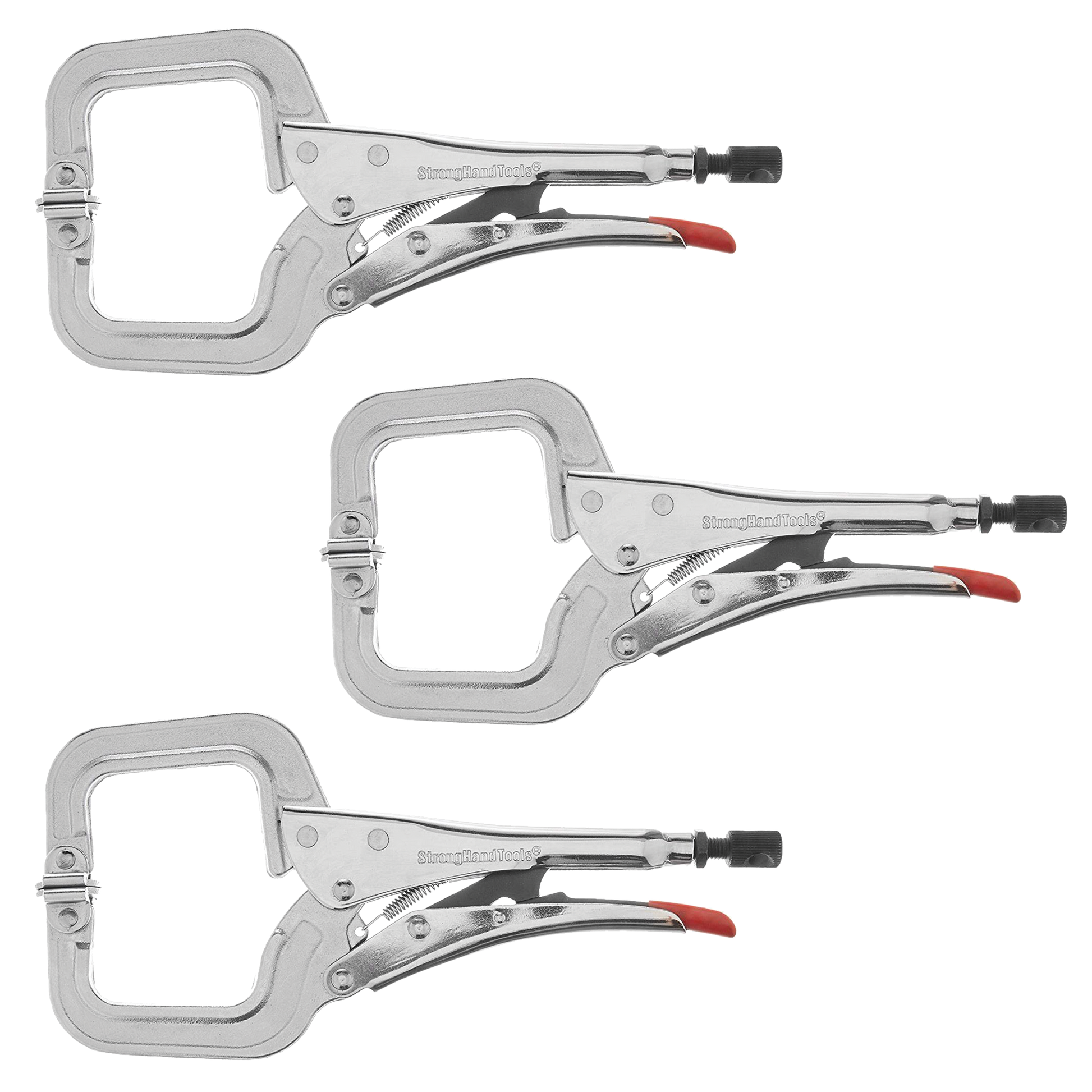

PR115S- PASO

  • 5 stars: 0 (0%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 1 (100%)
t
todd

Only one of three pairs of pliers actually fits in my fixture table. All the mounting plates are mounted on the shaft that different height not one of them is the same. None of them are consistent.
