Nro. de pieza Longitud (mm) Ancho (mm) Altura (mm) Peso (kg)

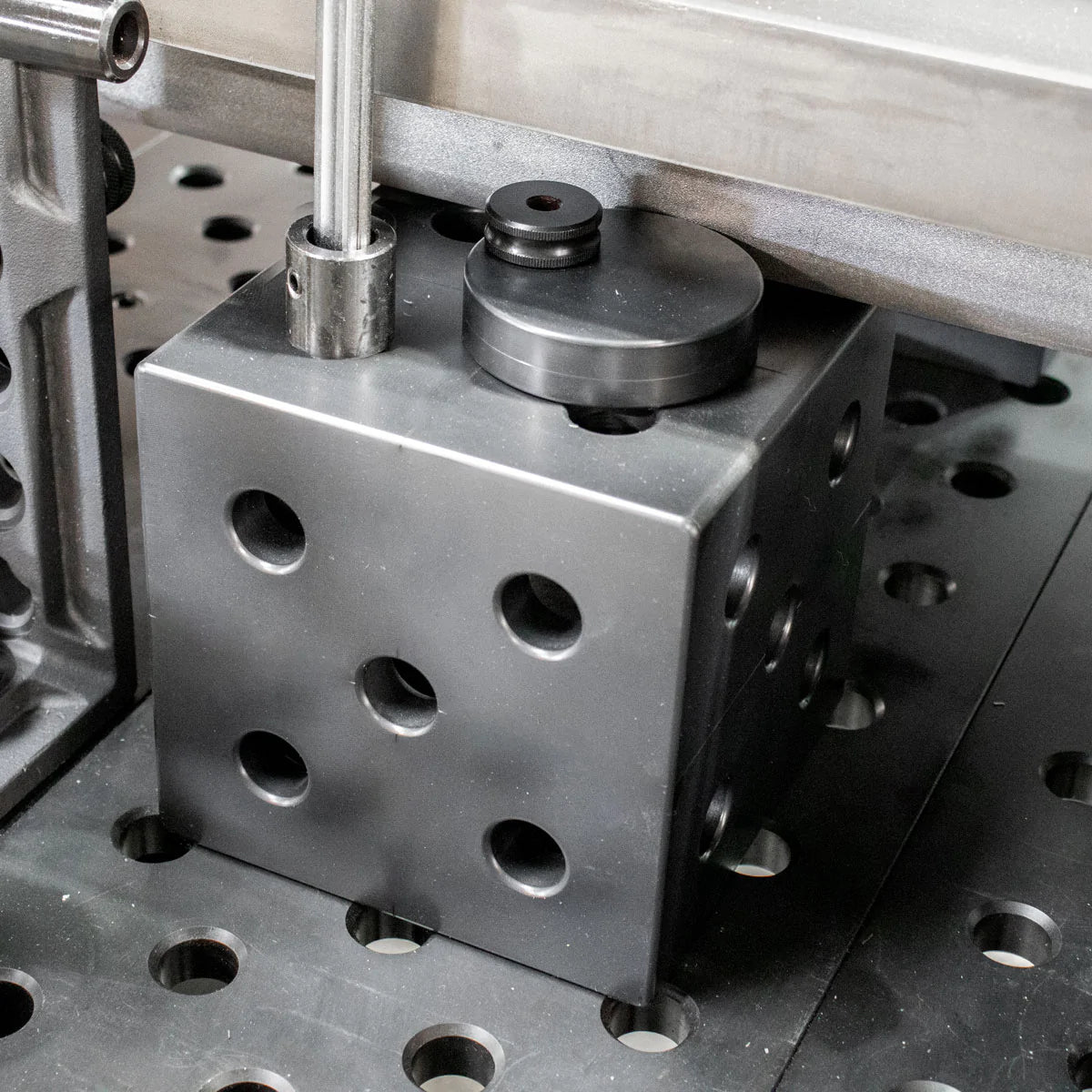

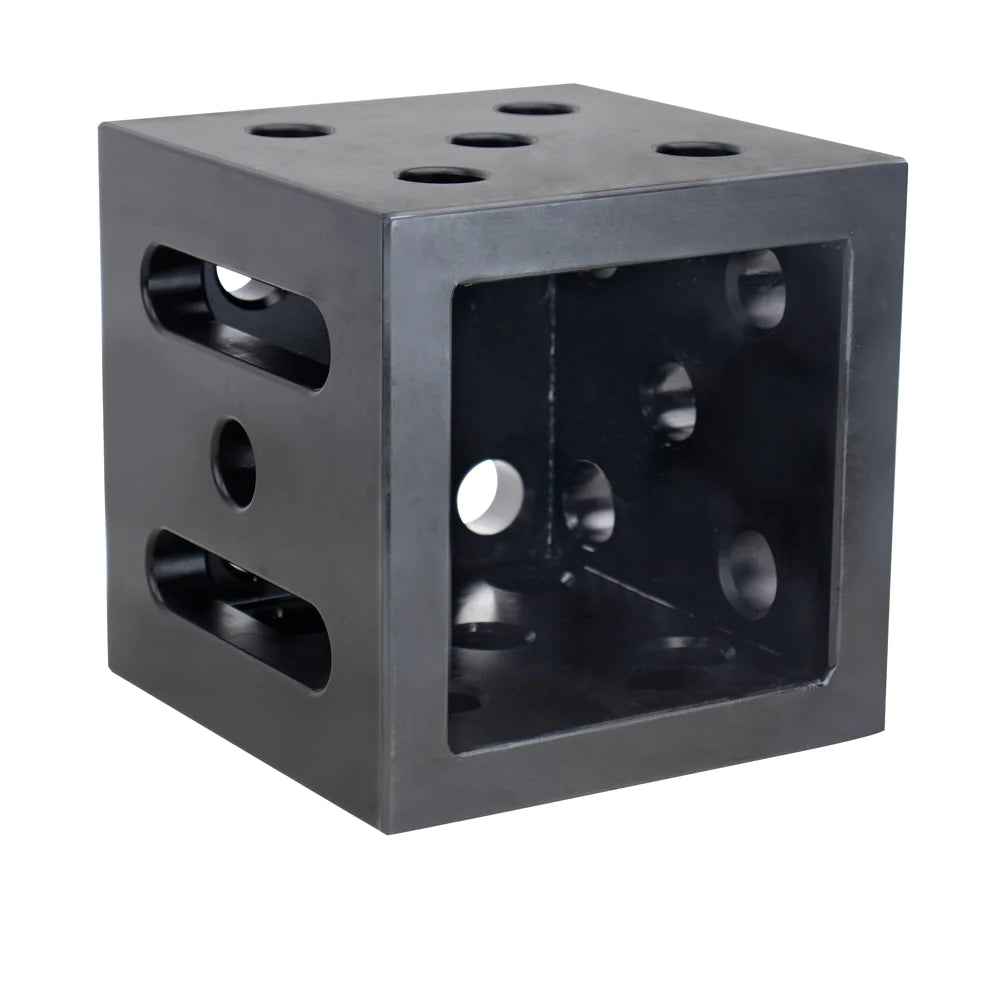

T28-32202 200 200 200 27.7

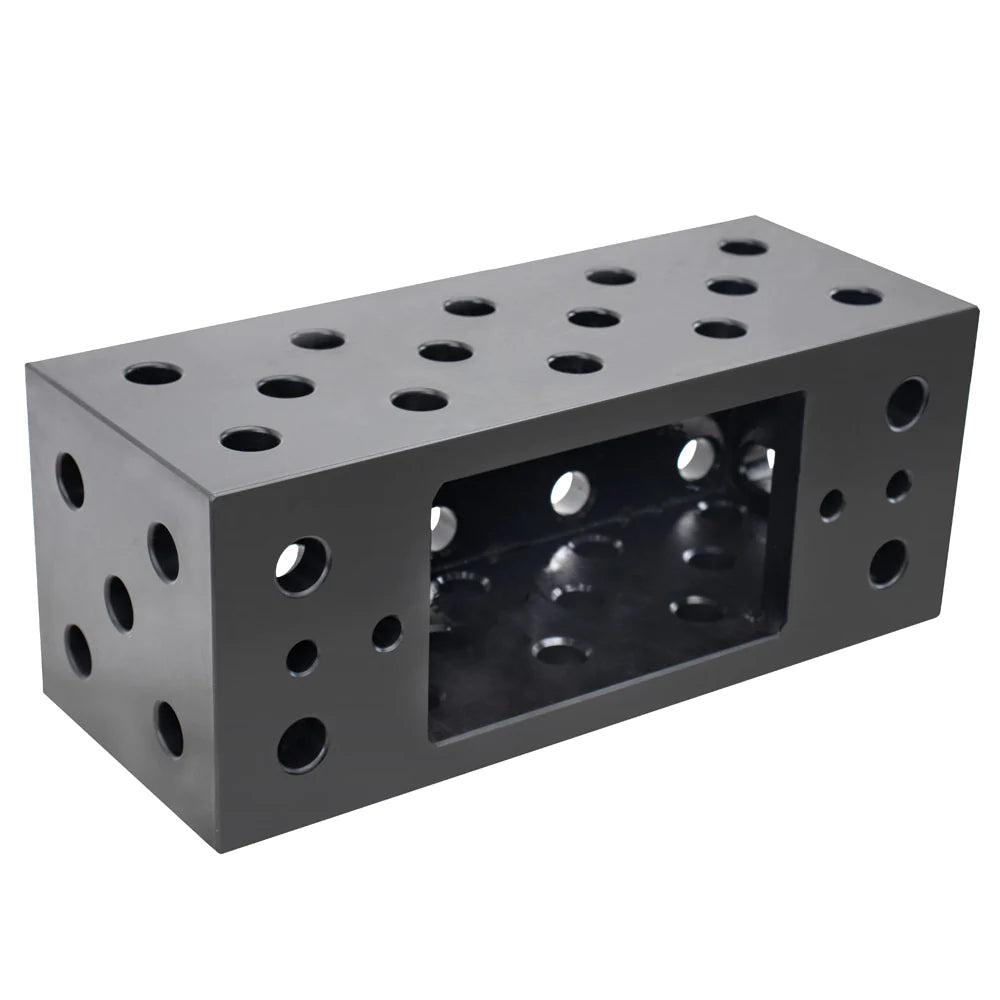

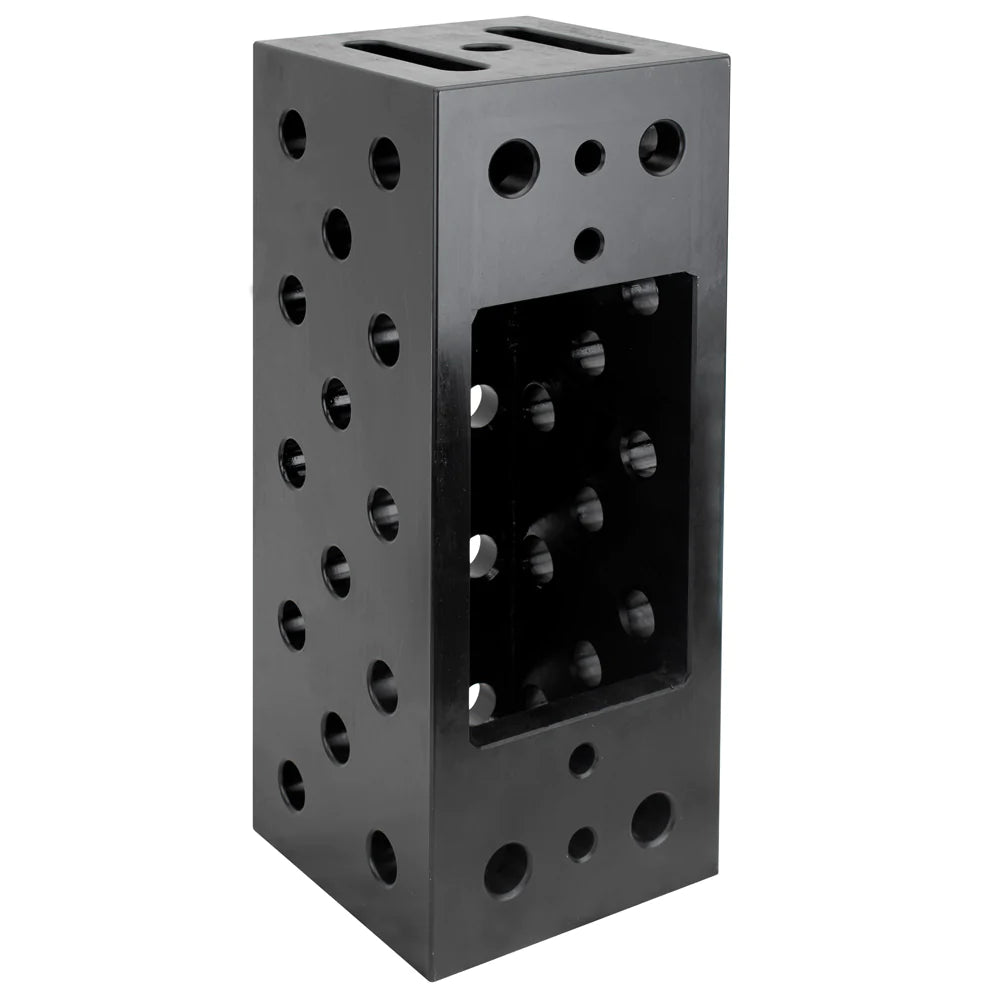

T28-32205 500 200 200 62

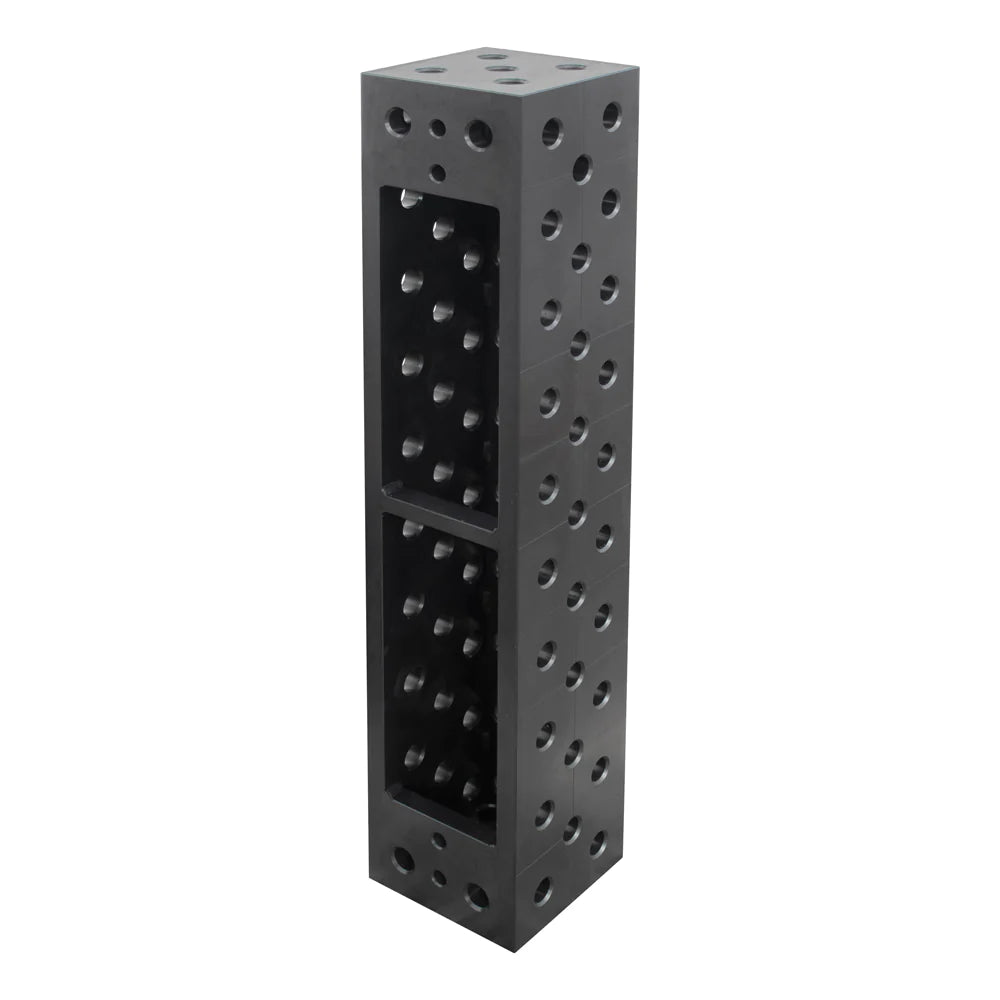

T28-32210 1.000 200 200 109,5

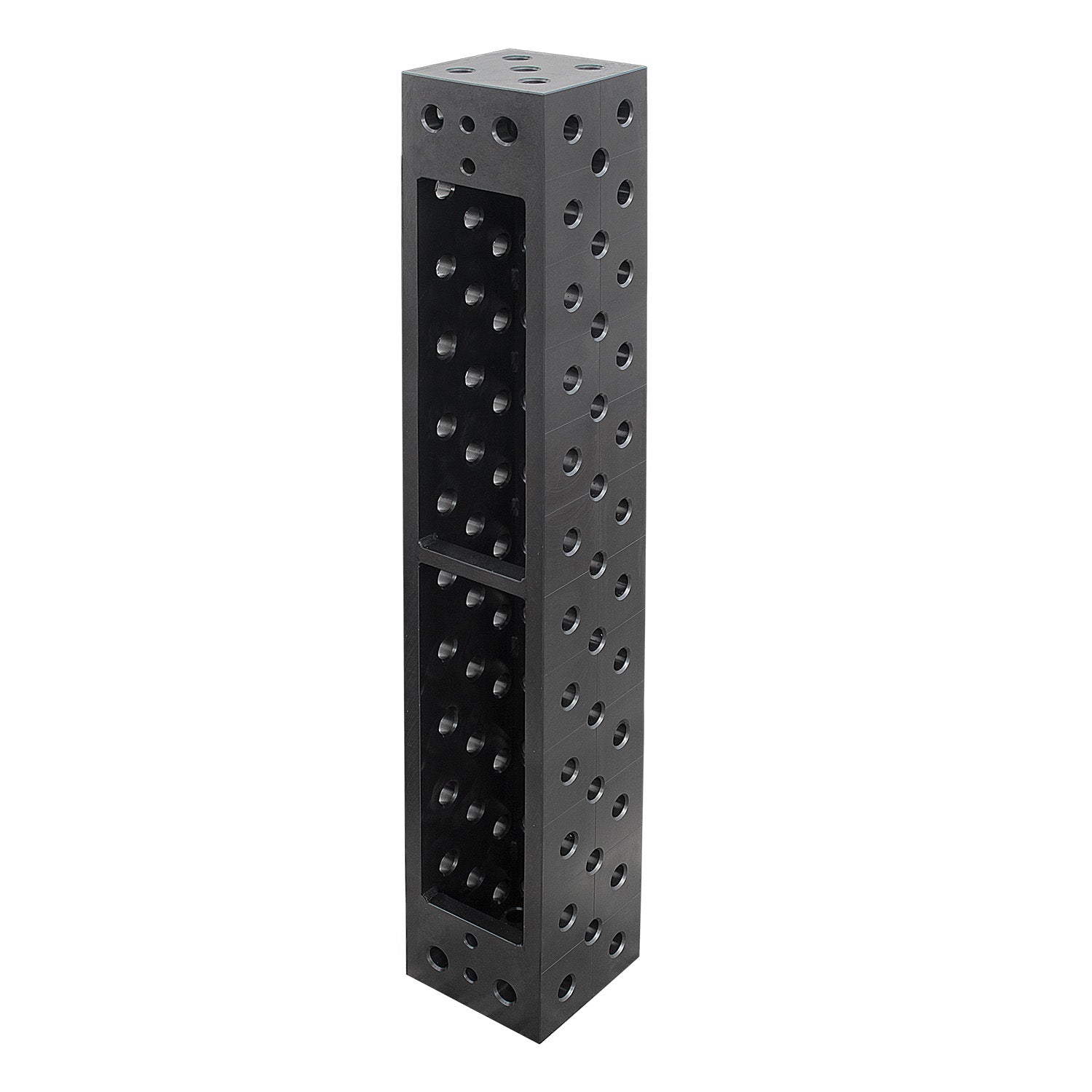

T28-32212 1.200 200 200 128
T28-32215 1.500 200 200 160

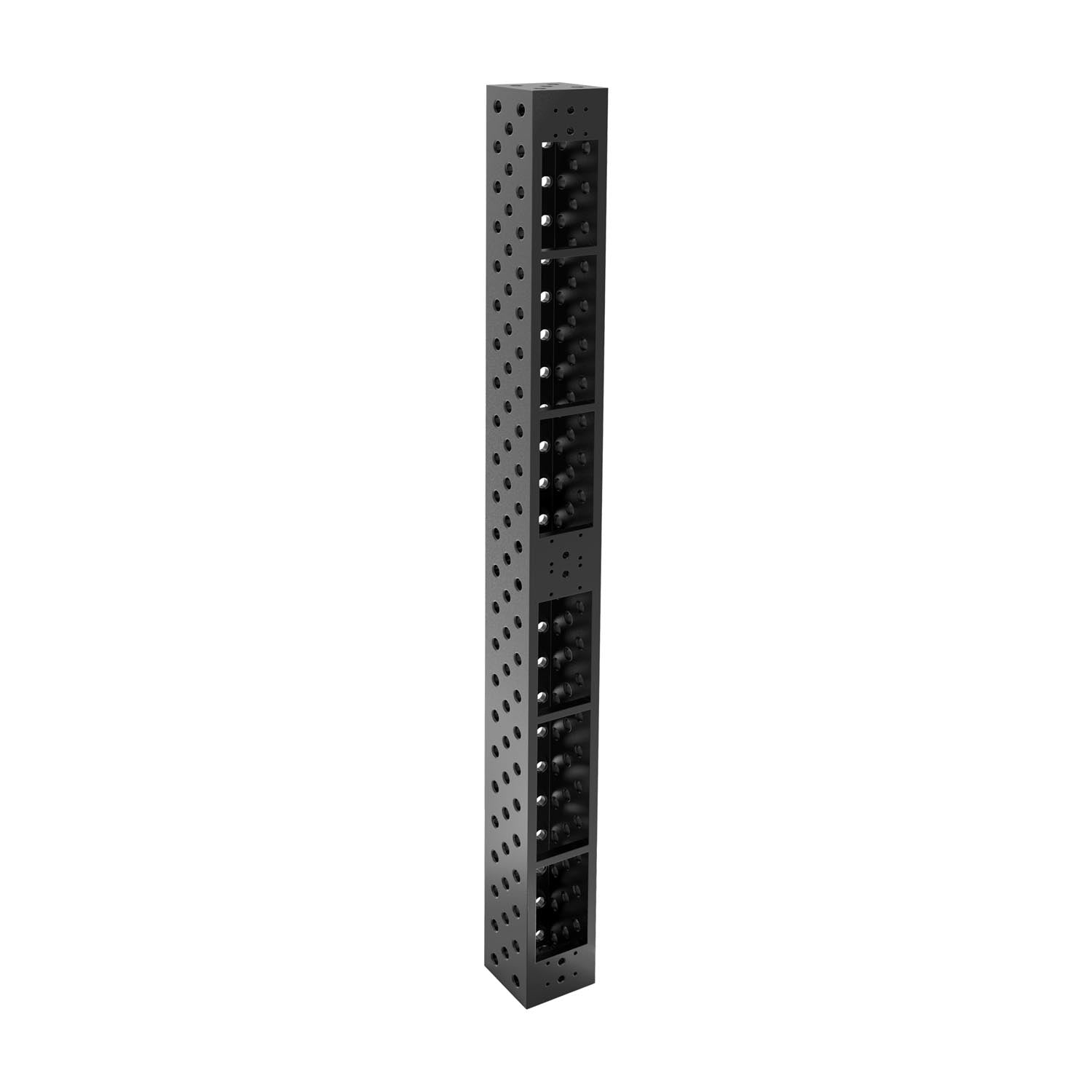

T28-32224 2.400 200 200 257,6

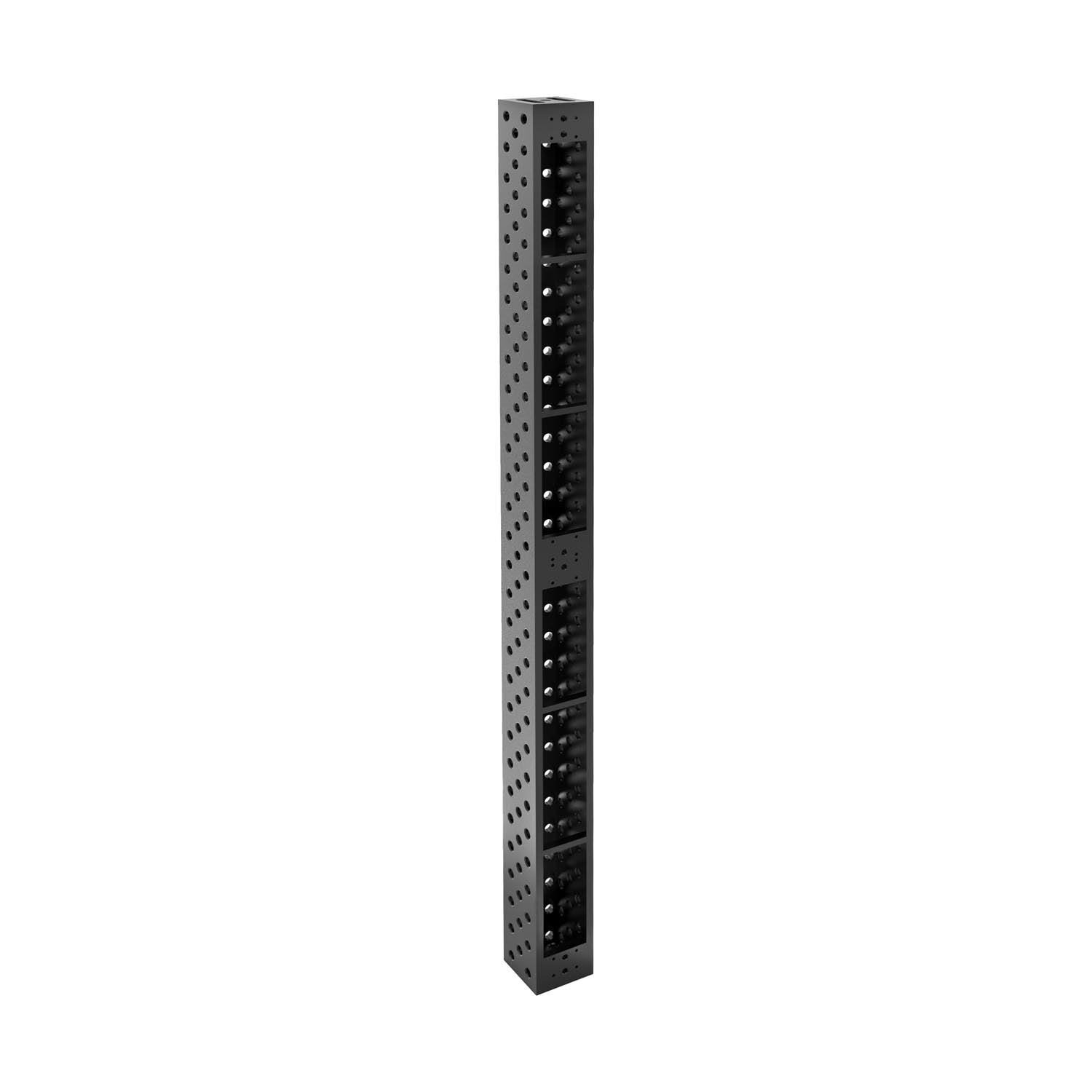

T28-32230 3.000 200 200 324

If you need some documents but not able to find them here, please fill out the form below. Our engineering team will get back to you shortly.

Downloads

Spec Drawing

Manual

CAD

T28-32202- PASO

T28-32205- PASO

T28-32210- PASO

T28-32212- PASO

T28-32215- PASO

T28-32224- PASO

T28-32230- PASO
