Multi-Functional Design: Combines system boreholes and an oblong slot to allow for highly versatile setups and diverse applications.
-
Infinitely Variable Adjustment: Enables precise, continuous adjustment of clamping elements across a full 180° angle range.
-
Flexible Configurations: Can be easily adapted to several different configurations depending on your project needs.
Compatibility: Designed for 5/8" (16 mm) diameter holes on a 1" (25.4 mm) grid spacing with a 1" (25.4 mm) fixture and table thickness.
-
-
Fast Clamping: Engineered to work seamlessly with fast clamping bolts on 5/8" (16 mm) fixture tables.
Other Systems
16mm System
28mm System
Metric Spacing
Inch Spacing
Tables
Fixtures

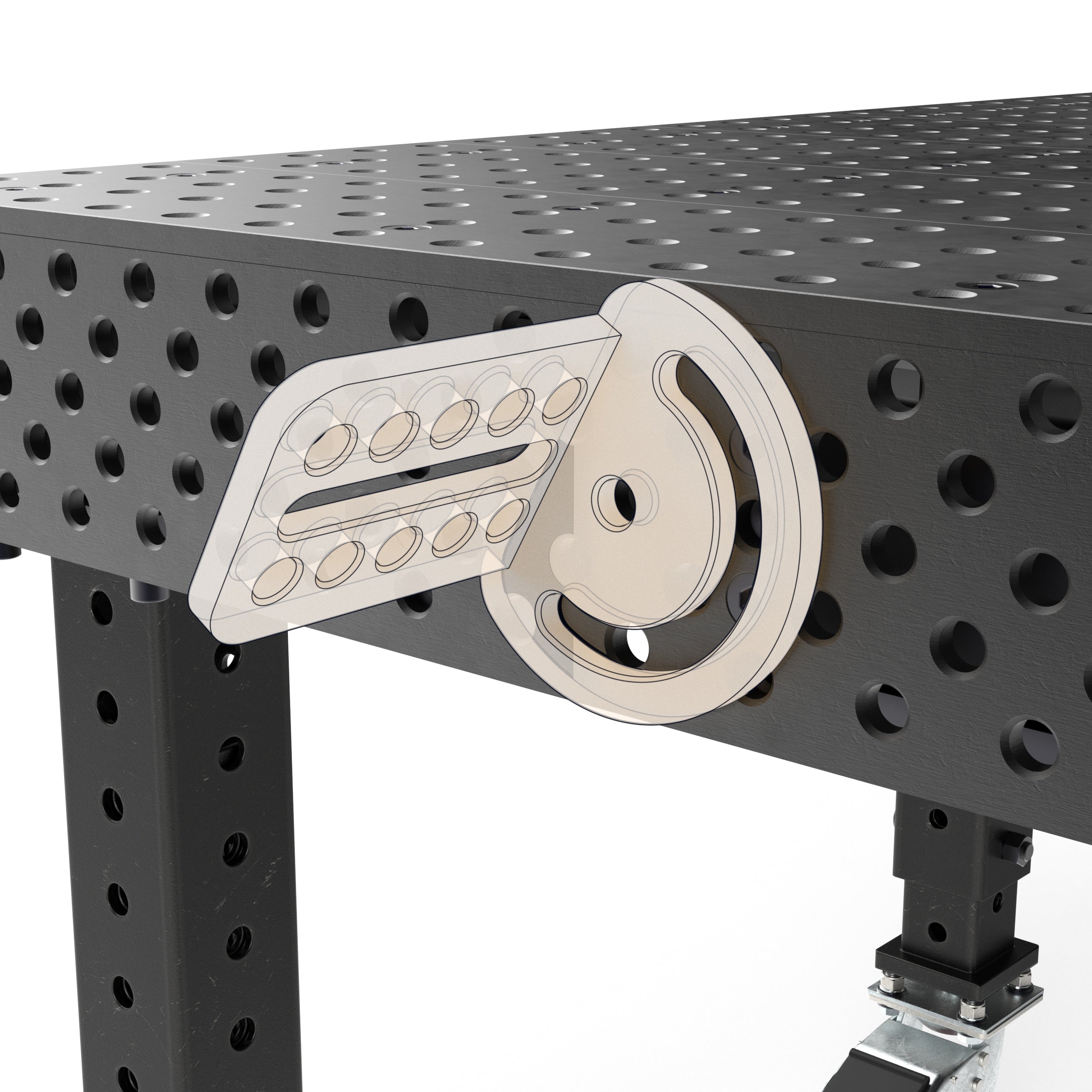

Rotation Angle Square - 5/8" System Fixture
5/8"
Hole Diameter
2"x1"
Hole Spacing
Nitrided
Material Finish
Rotation
180°
Precio habitual
$92.00
Precio rebajado
Precio habitual
Envío calculado al finalizar la compra.
-
Estimated delivery: Aug 04 - Aug 08

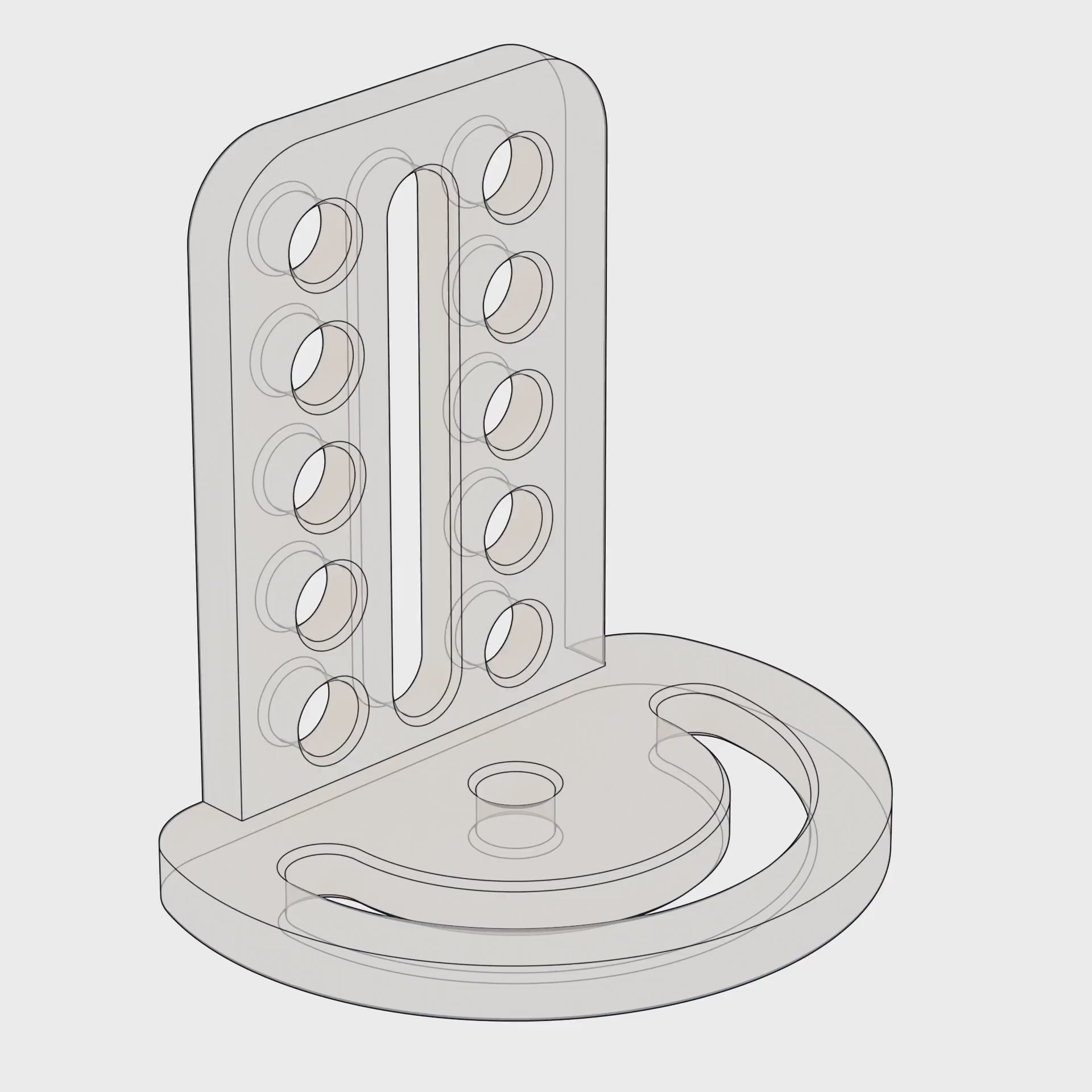

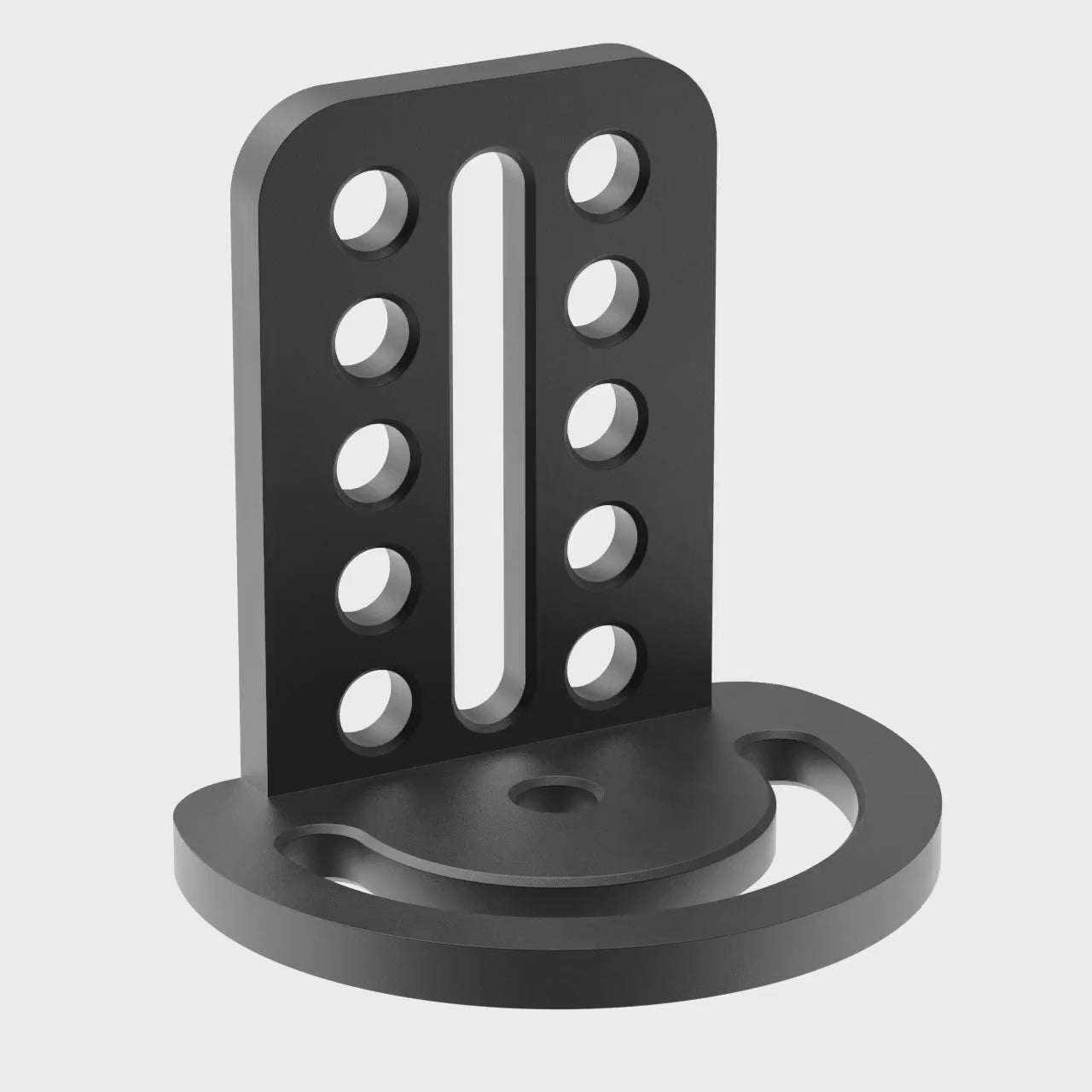

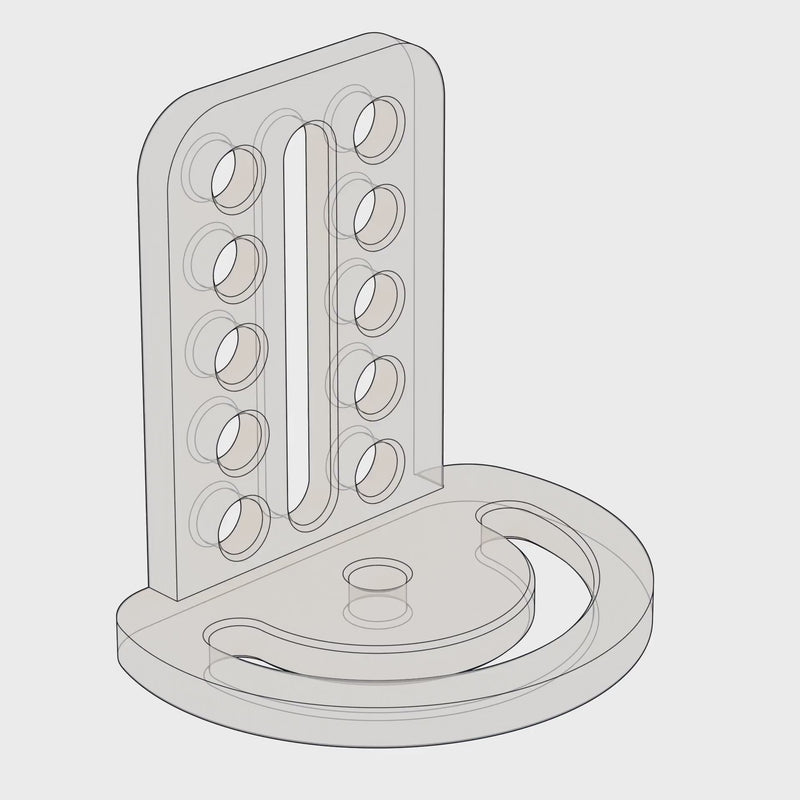

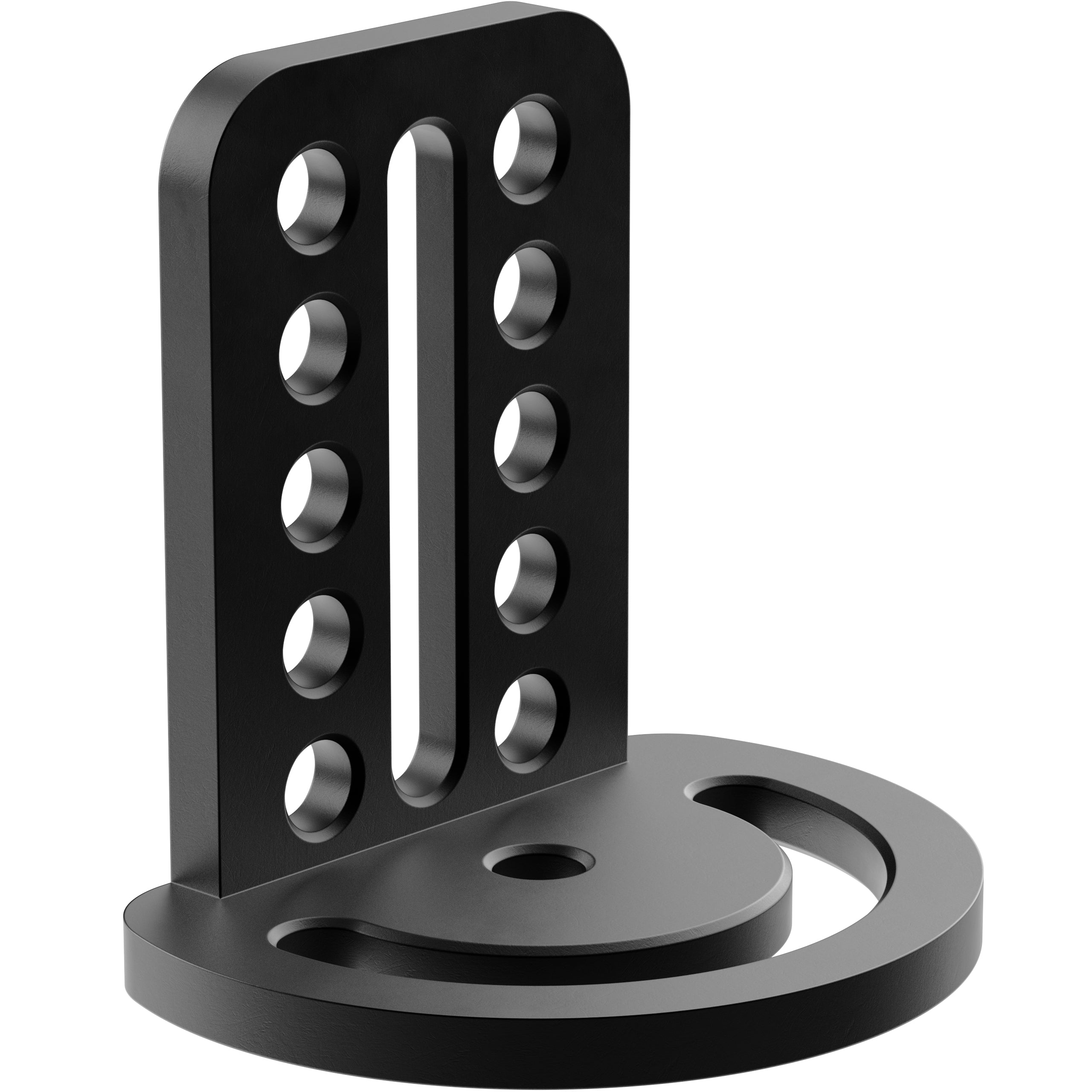

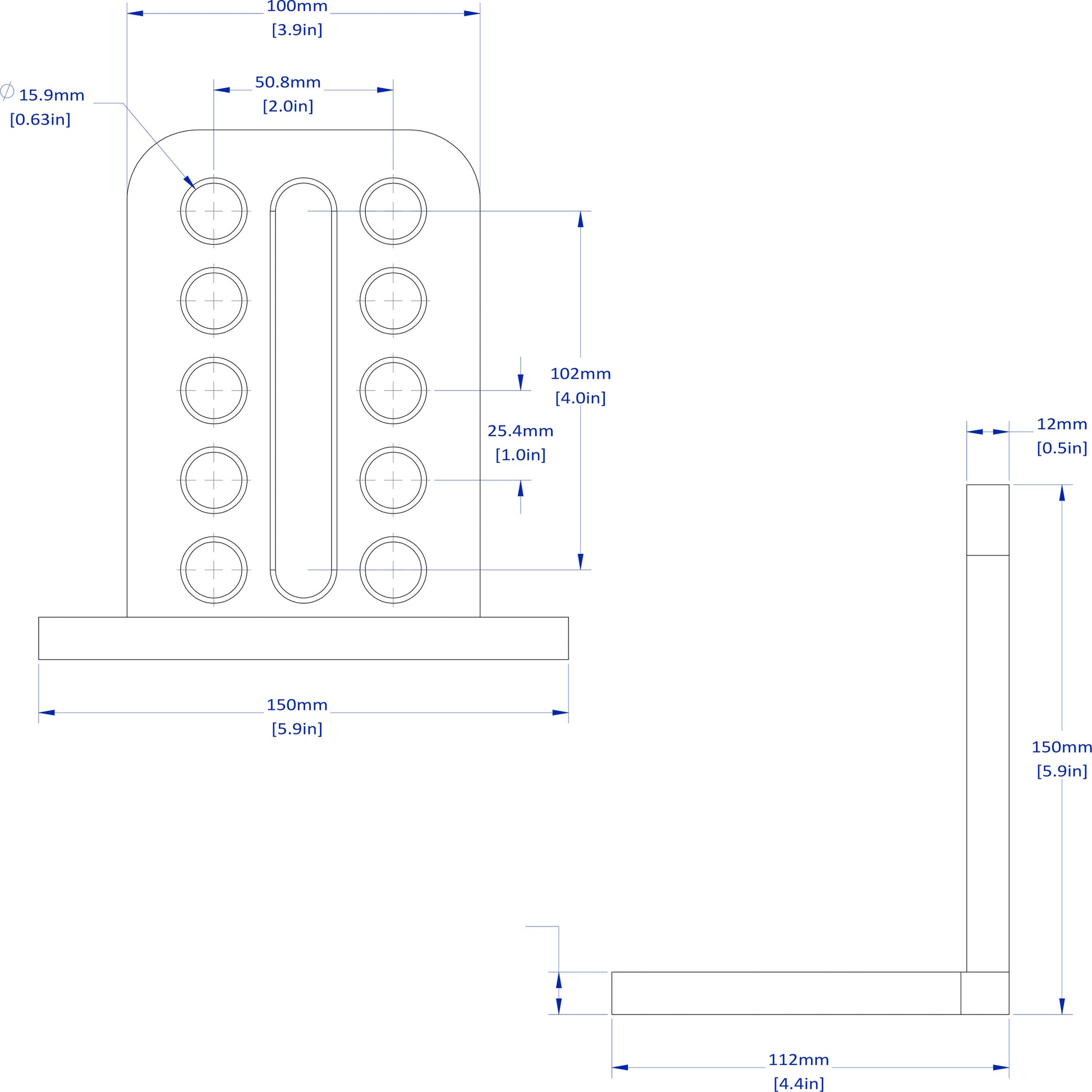

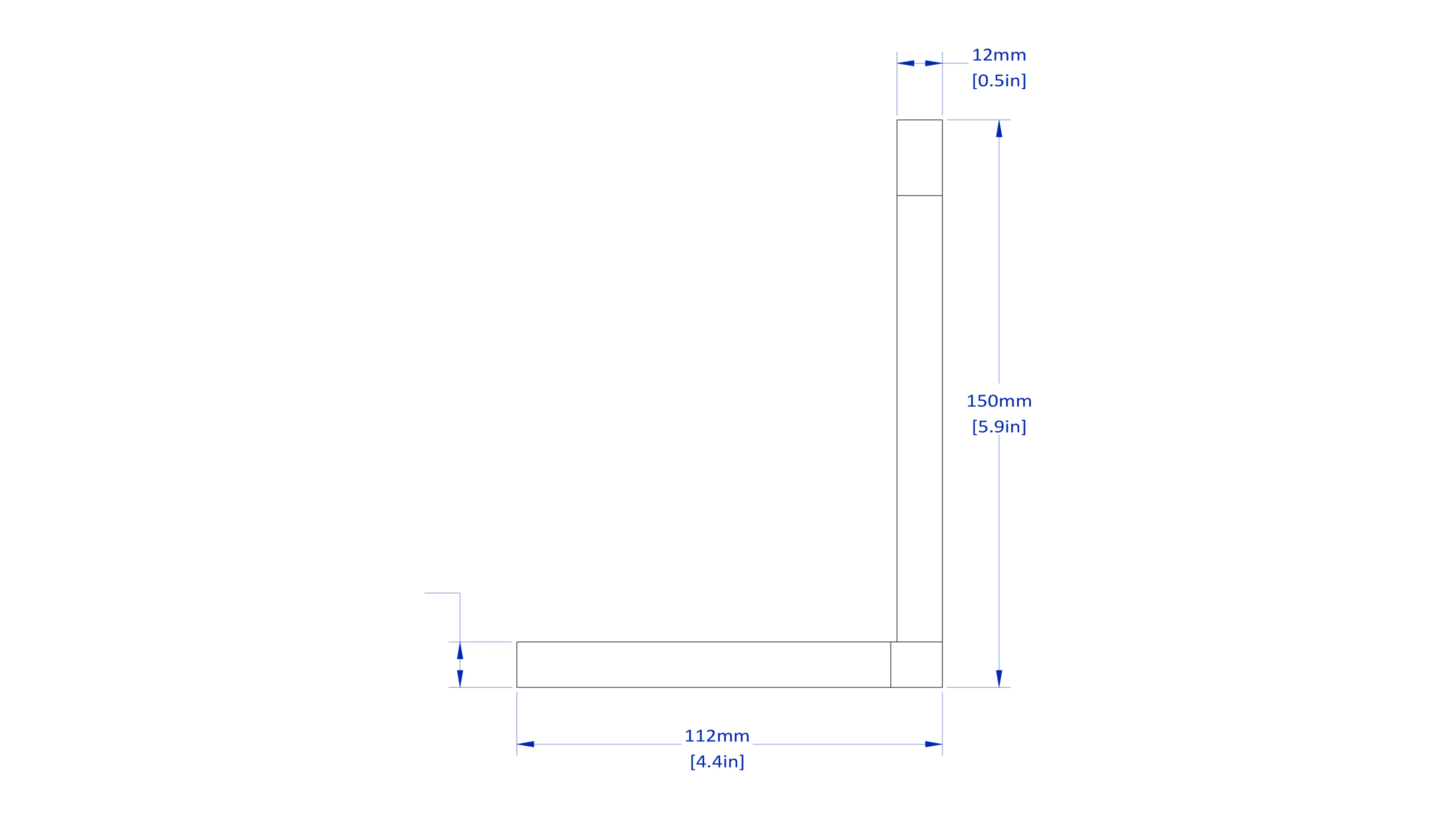

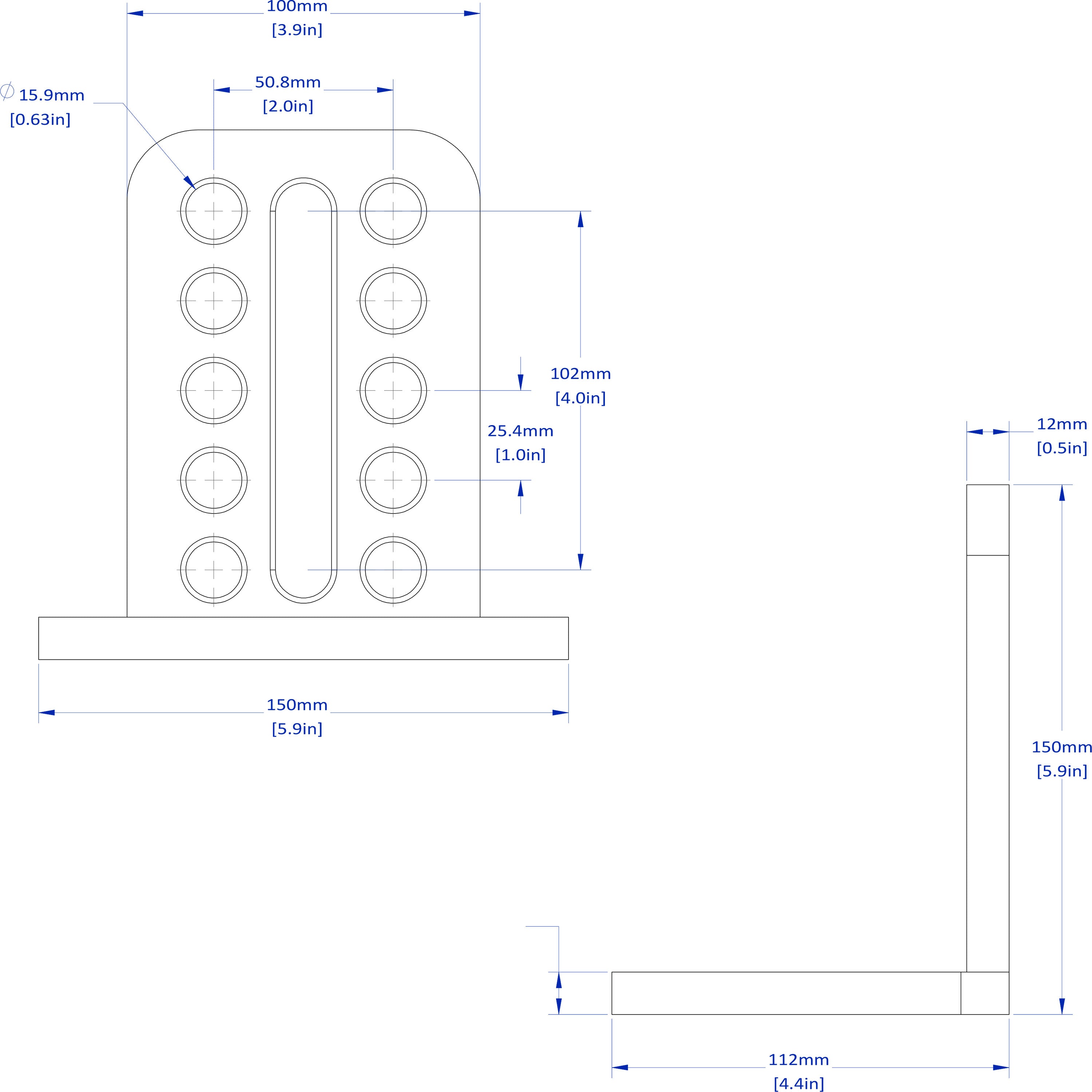

Rotation Angle Square
Hole Diameter:
5/8"
Vertical Grid Pattern:
2" x 1"
Angle Rotation:
180°
Material (Finish)
1045 Steel (Nitrided)
Multi-Functional Use
The Angle of Rotation allows the infinitely variable adjustment of clamping elements with system boreholes at an angle range of 180°.
Perfect for frame fabrication and complex geometry

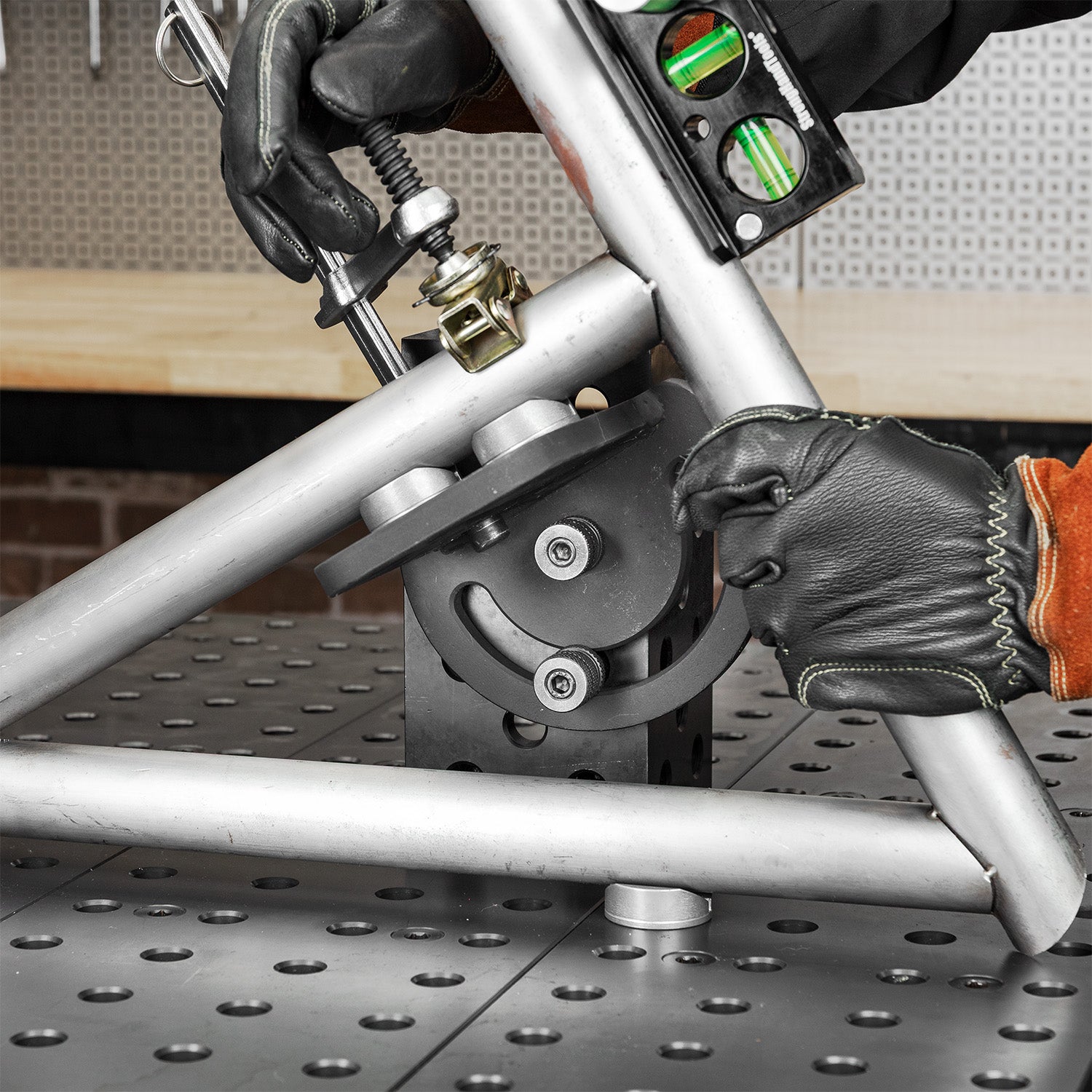

This setup demonstrates how the Rotation Angle Square securely holds round tubing at precise, custom angles, allowing you to easily check alignment and clamp with confidence before you weld.

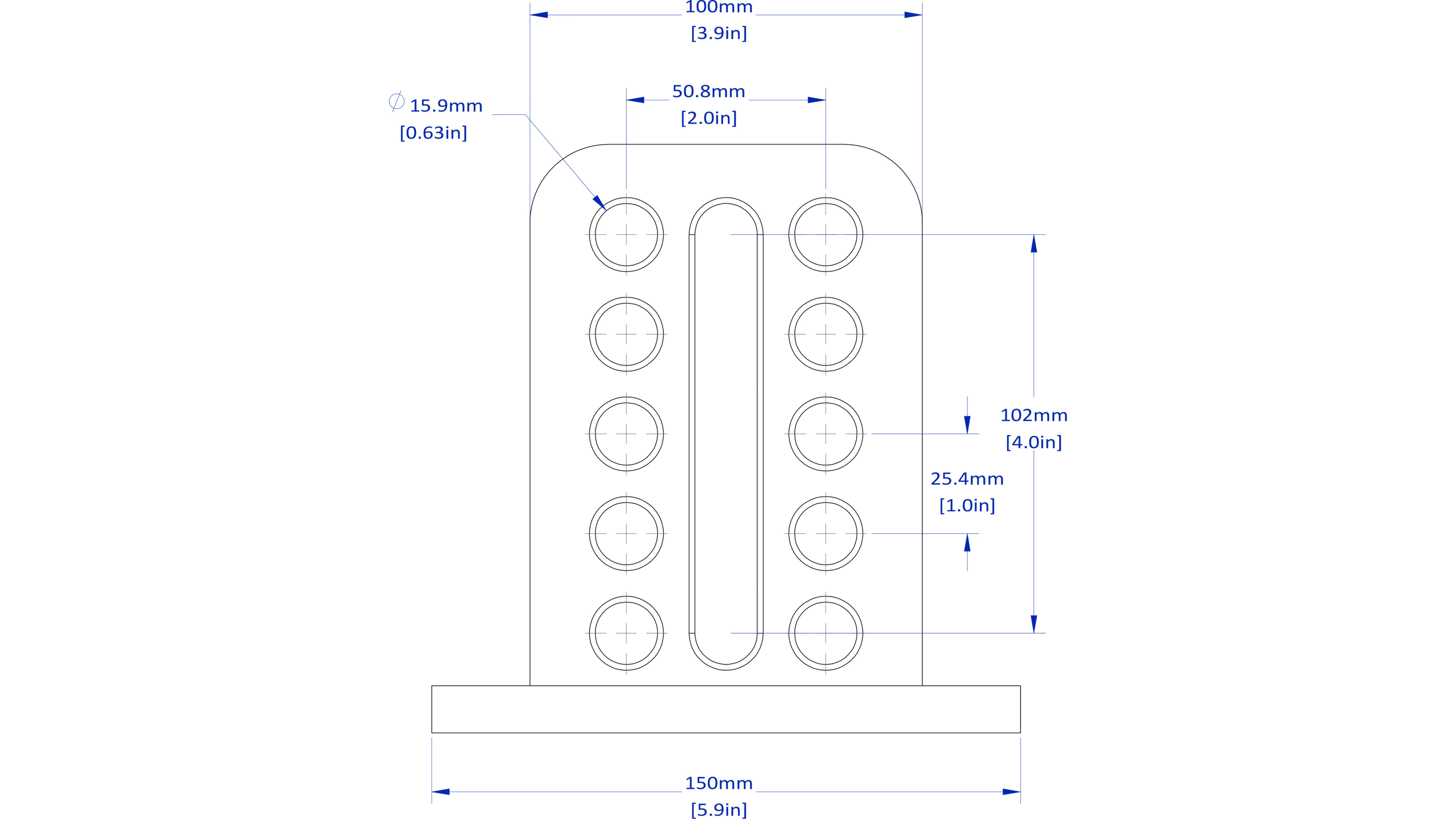

Seamless integration with your existing 5/8" fixture table

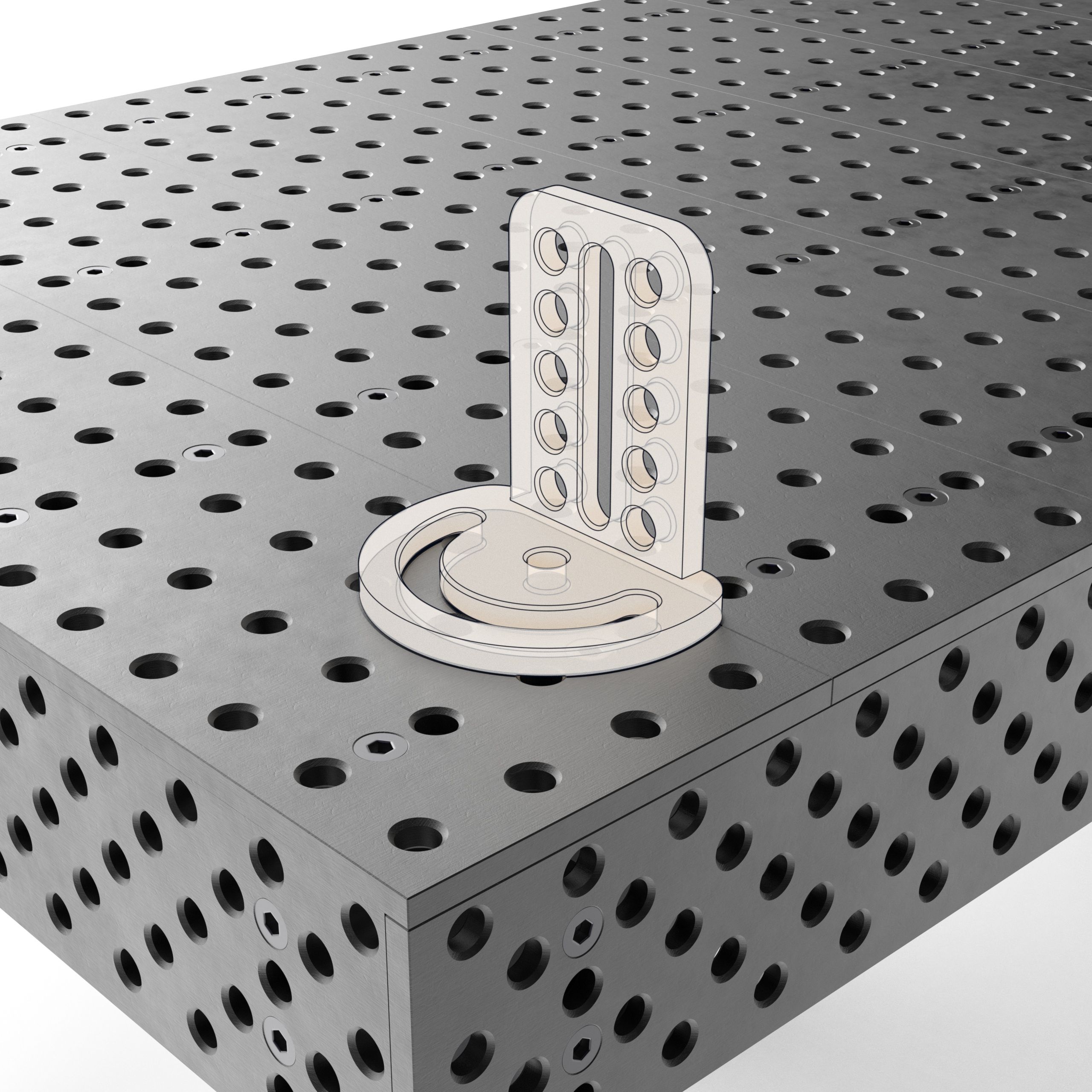

This view highlights the vertical grid pattern and oblong slot, showing how easily the square mounts directly to your workspace to create an adjustable, rock-solid foundation.
Maximize your workspace by building off the edge

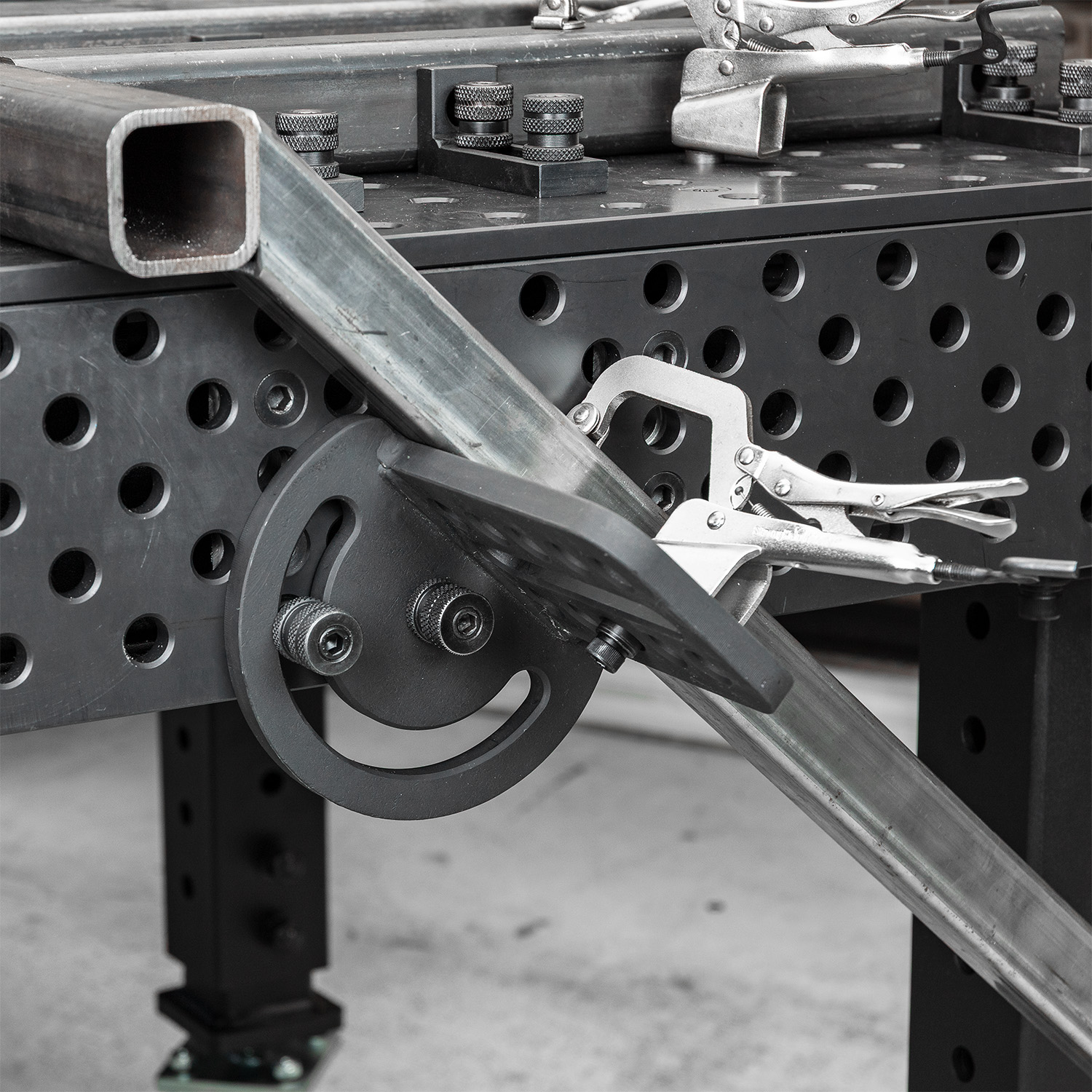

This configuration shows the Rotation Angle Square mounted to the side of the table, supporting square tubing at an exact angle while leaving the main table surface completely clear for standard clamping.
