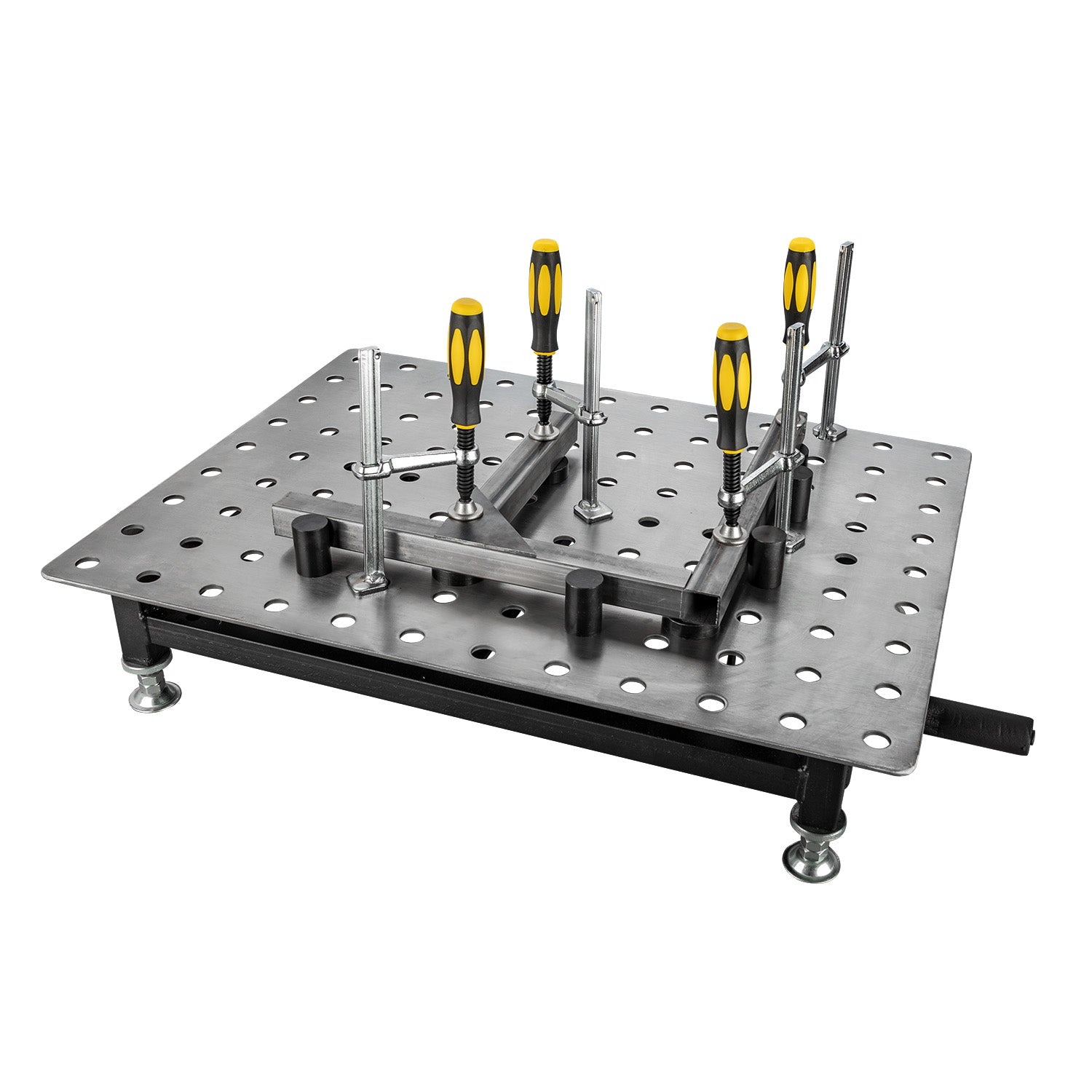

Portable FixturePoint Table Package

Portable, positionable welding table for TIG welding of small parts.

Part No. Description Gross Weight (lb)
TB52418-K1 Portable FixturePoint Table + 12-pc. Fixturing Kit 35

Package includes:

Portable FixturePoint Table

TB52418 x1

UBN110 x4

TBXS2538 x4

T50737 x 4

Rigid construction, multi-angle settings. Easily moves around the shop!

Create your setup in the horizontal position, then set the ideal tabletop angle for worker comfort in each unique project! Parts stay securely clamped in position at any angle.

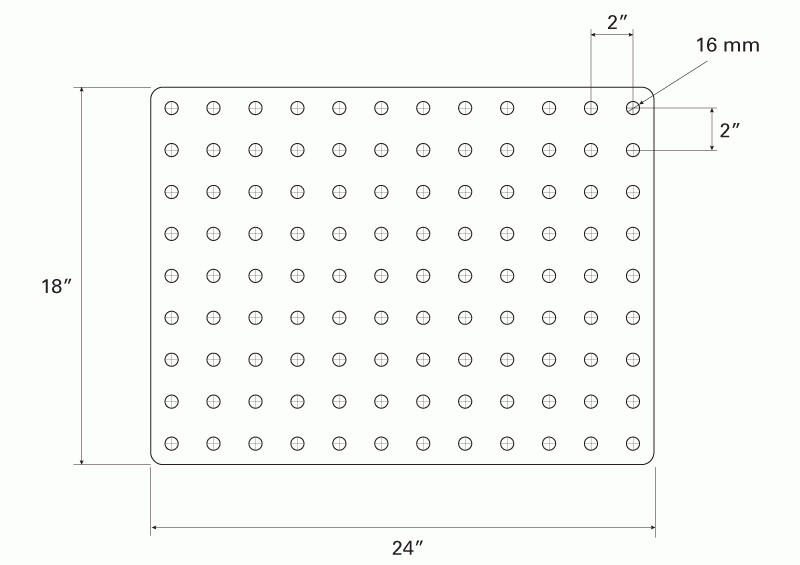

Table Details:

Hole Diameter: 16 mm
Grid Pattern: 2" x 2"
Tabletop Size: 24" x 18"
Tabletop Material Thickness:  0.16" / 4 mm

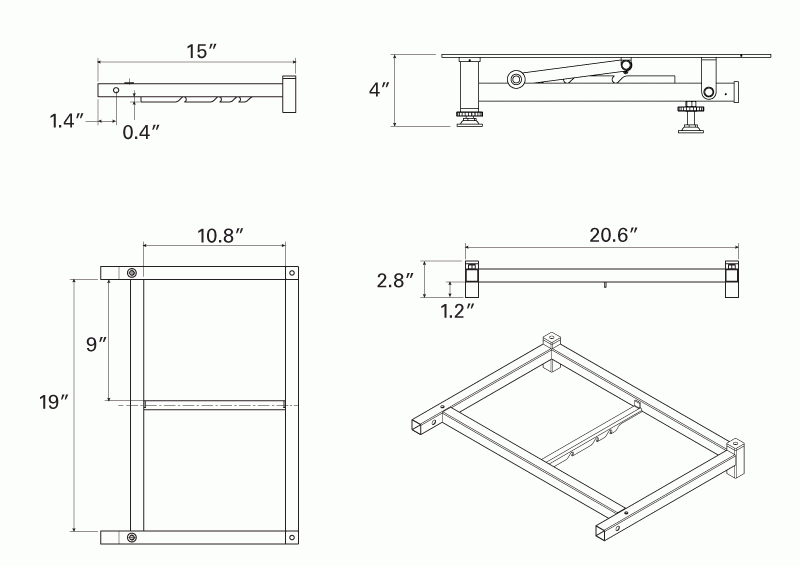

Table Height: 4"
Leveling Feet Adjustment: 0 ~ 1.6"
Static Loading Capacity: 60 lb
Table Net Weight: 25.4 lb

Adjust tabletop angle for worker comfort in each unique project!

Rigid construction, multi-angle settings: 30º, 45º, and 65º.

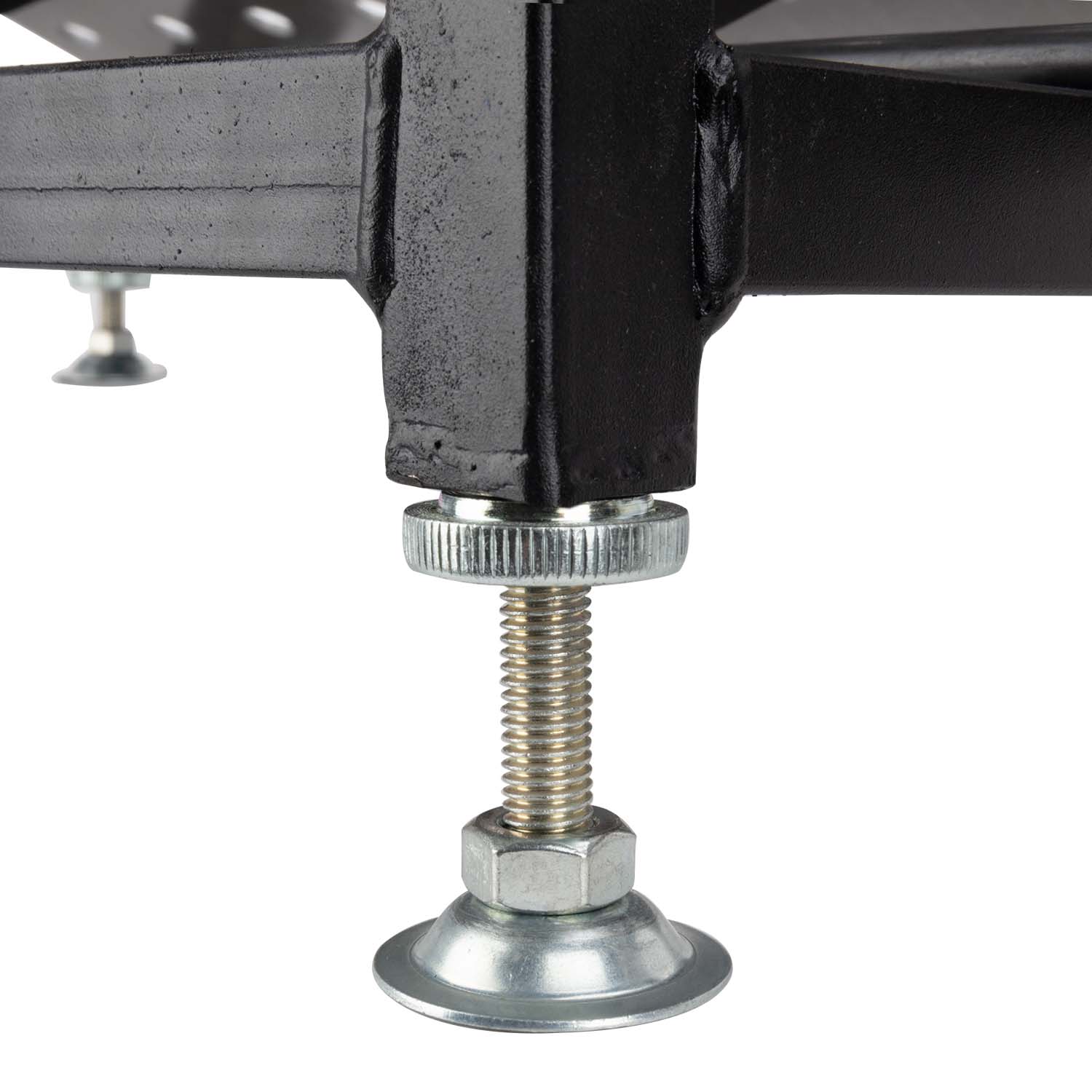

Leveling Pad adjust from 0 ~ 1.6″

Also Compatible with all FixturePoint Elements

Use all the FixturePoint components to create your setup in the horizontal position, then tilt as needed for tack welding. Parts stay securely clamped in position at any angle.

  • 5 stars: 4 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
J
Jon C. (Sun Prairie, US)
Exactly what I was looking for!

People must remember that this is a setup and tack-up table not intended for large weldments. With this said, it is of great value.

R
Russell G. (Plymouth, US)
Portable Fixture

Packaging was excellent and the fixture arrived in time to assist with an important project. Product quality is very good. This is for light duty work - not heavy duty.

C
Chris P. (Havre, US)
Absolutely Amazing extreme quality

Highly recommended

J
Jasen N. (Oakland, US)
Perfect for my work shed

Perfect size for the small jobs I can do in my shed. Good quality product
