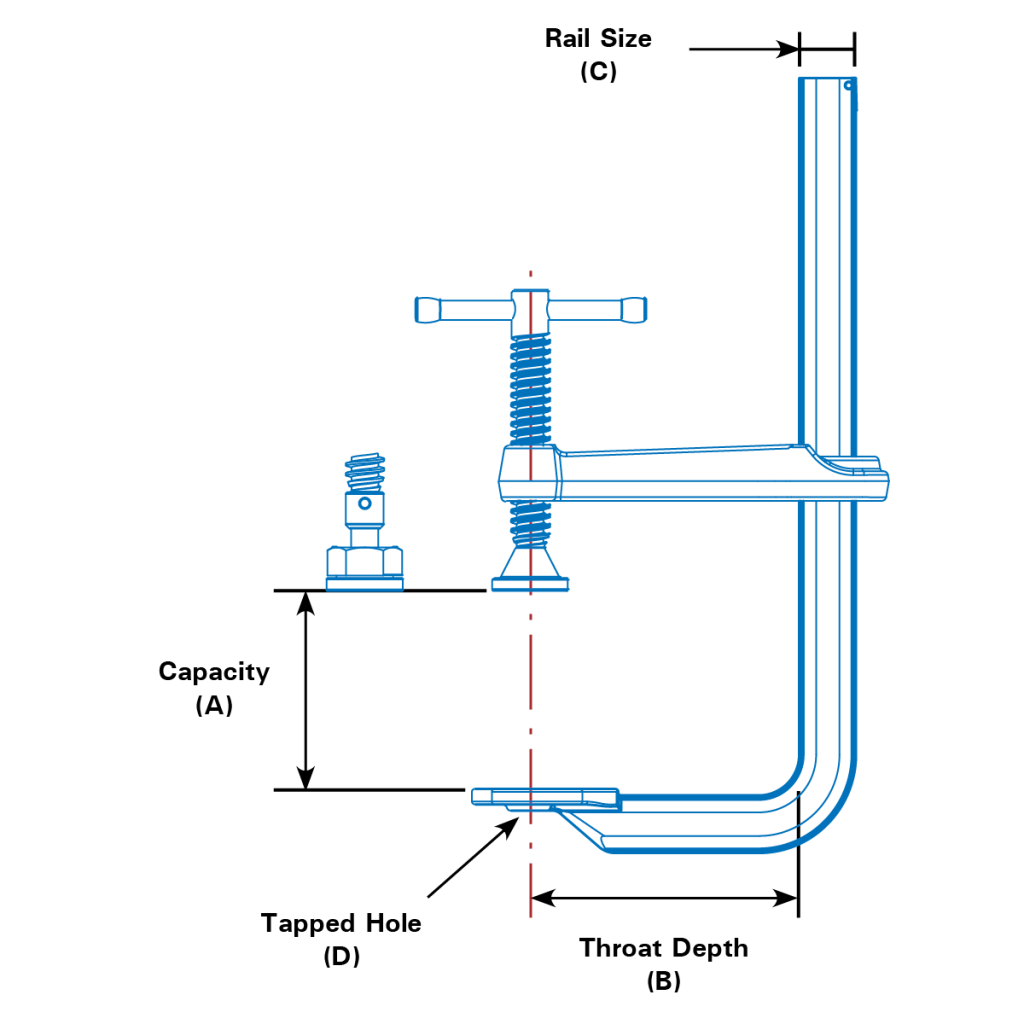

Nro. de pieza Capacidad - A (pulg.) Profundidad de garganta - B (pulg.) Presión de sujeción (lb) Almohadillas Tamaño del riel - C (pulg.) Agujero roscado - D Peso (lb)

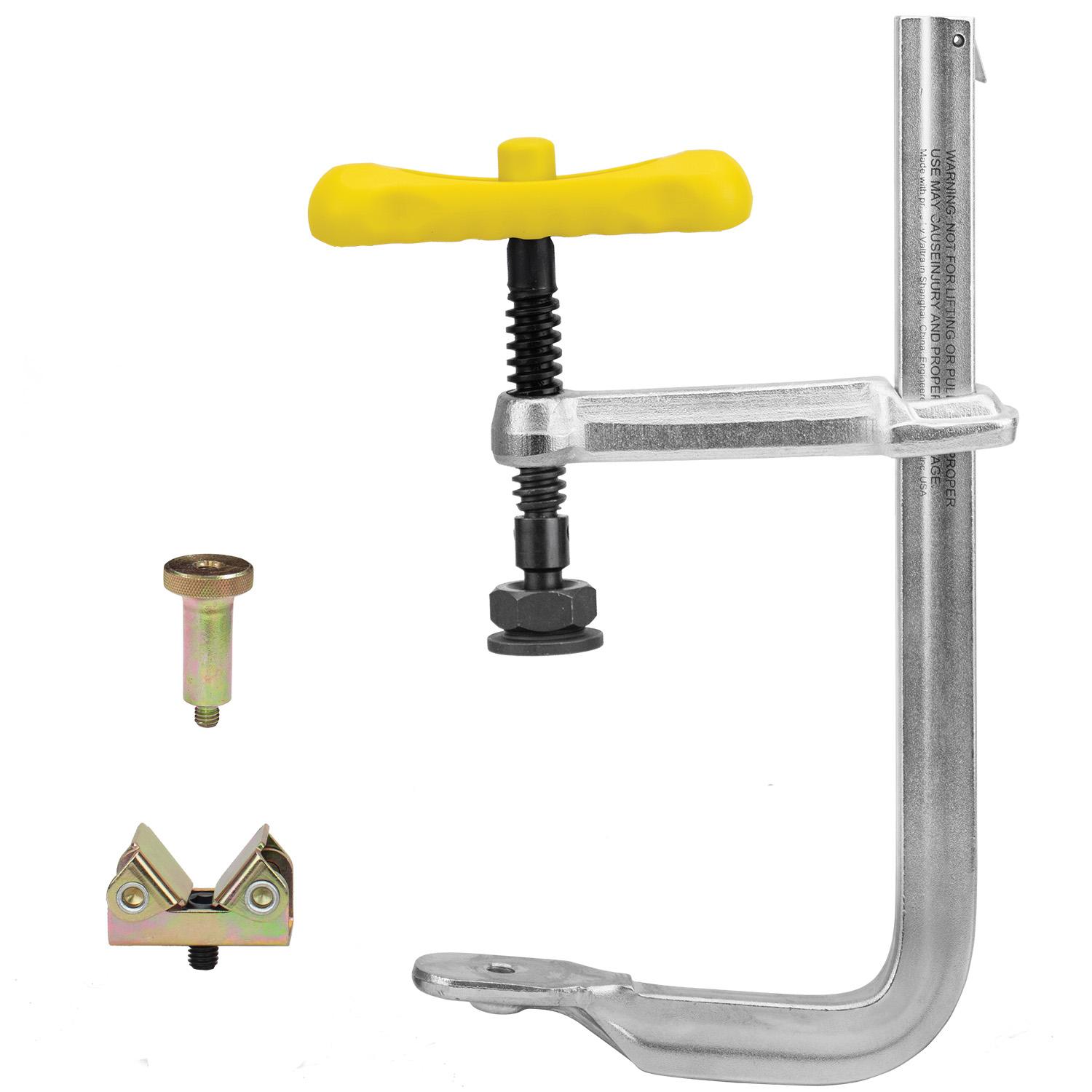

UG85XG-C3 8-1/2 4-3/4 1.200 Trabajo pesado 1x15/32 3/8-16 4.5

If you need a document you can't find here, request it below and our engineering team will get back to you shortly.

Request a File

Downloads

Spec Drawing

Manual

CAD

UG85XG-C3 - STEP
